FIAT BRAVO 2014 2.G Owners Manual

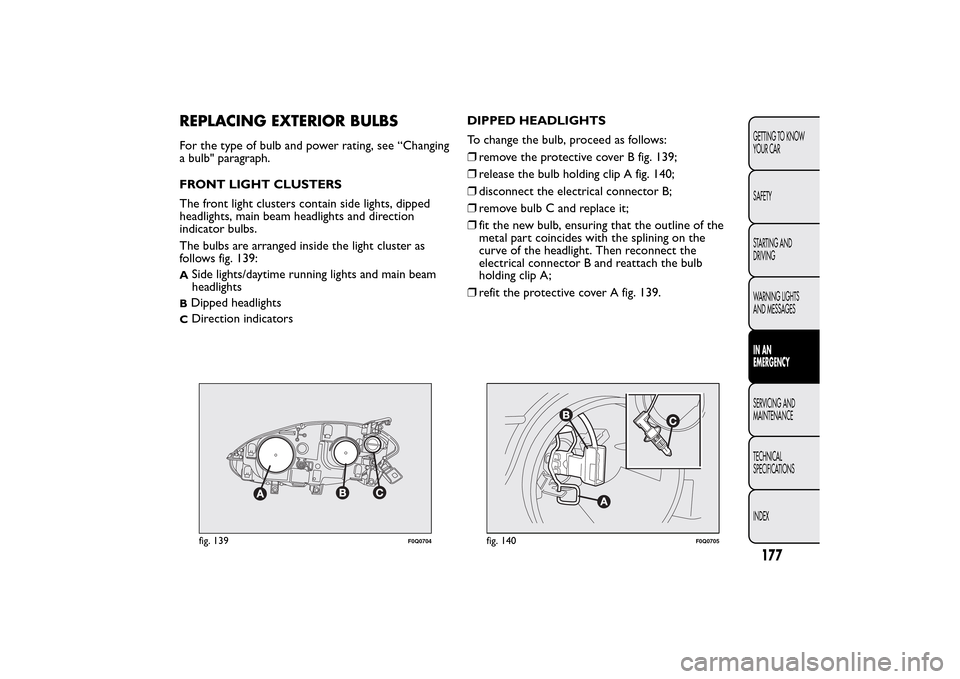

REPLACING EXTERIOR BULBSFor the type of bulb and power rating, see “Changing
a bulb" paragraph.
FRONT LIGHT CLUSTERS
The front light clusters contain side lights, dipped
headlights, main beam headlights and direction
indicator bulbs.
The bulbs are arranged inside the light cluster as
follows fig. 139:A
Side lights/daytime running lights and main beam
headlights
BDipped headlightsC
Direction indicatorsDIPPED HEADLIGHTS
To change the bulb, proceed as follows:
❒remove the protective cover B fig. 139;
❒release the bulb holding clip A fig. 140;
❒disconnect the electrical connector B;
❒remove bulb C and replace it;
❒fit the new bulb, ensuring that the outline of the
metal part coincides with the splining on the
curve of the headlight. Then reconnect the
electrical connector B and reattach the bulb
holding clip A;
❒refit the protective cover A fig. 139.fig. 139
F0Q0704
fig. 140
F0Q0705
177GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

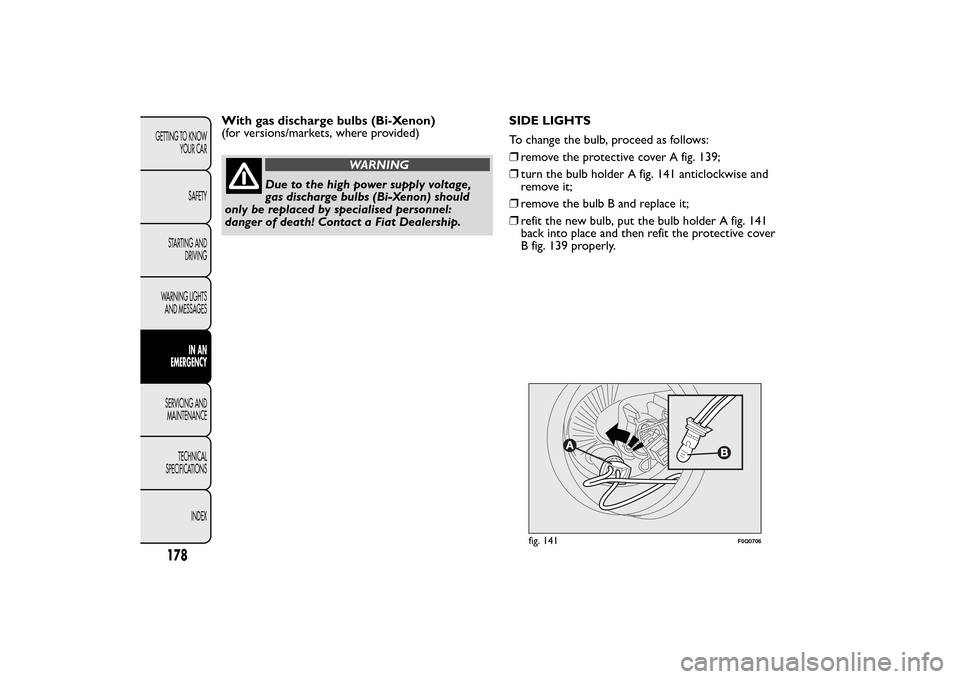

With gas discharge bulbs (Bi-Xenon)
(for versions/markets, where provided)
WARNING
Due to the high power supply voltage,
gas discharge bulbs (Bi-Xenon) should
only be replaced by specialised personnel:
danger of death! Contact a Fiat Dealership.SIDE LIGHTS
To change the bulb, proceed as follows:
❒remove the protective cover A fig. 139;
❒turn the bulb holder A fig. 141 anticlockwise and
remove it;
❒remove the bulb B and replace it;
❒refit the new bulb, put the bulb holder A fig. 141
back into place and then refit the protective cover
B fig. 139 properly.
fig. 141
F0Q0706
178GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

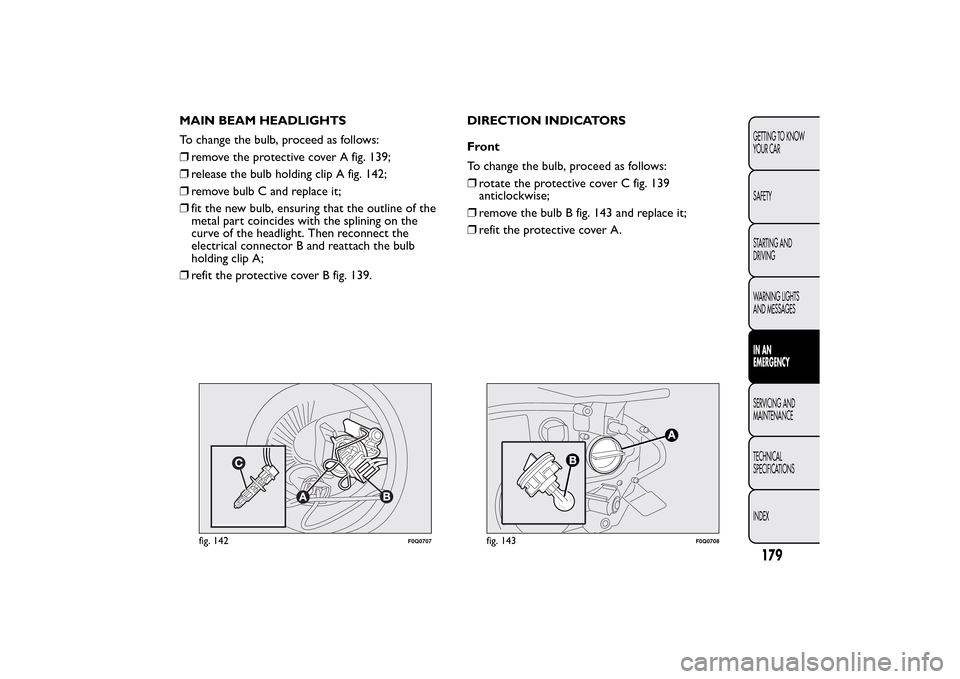

MAIN BEAM HEADLIGHTS
To change the bulb, proceed as follows:
❒remove the protective cover A fig. 139;
❒release the bulb holding clip A fig. 142;
❒remove bulb C and replace it;
❒fit the new bulb, ensuring that the outline of the
metal part coincides with the splining on the
curve of the headlight. Then reconnect the
electrical connector B and reattach the bulb
holding clip A;
❒refit the protective cover B fig. 139.DIRECTION INDICATORS
Front
To change the bulb, proceed as follows:
❒rotate the protective cover C fig. 139
anticlockwise;
❒remove the bulb B fig. 143 and replace it;
❒refit the protective cover A.
fig. 142
F0Q0707
fig. 143
F0Q0708
179GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

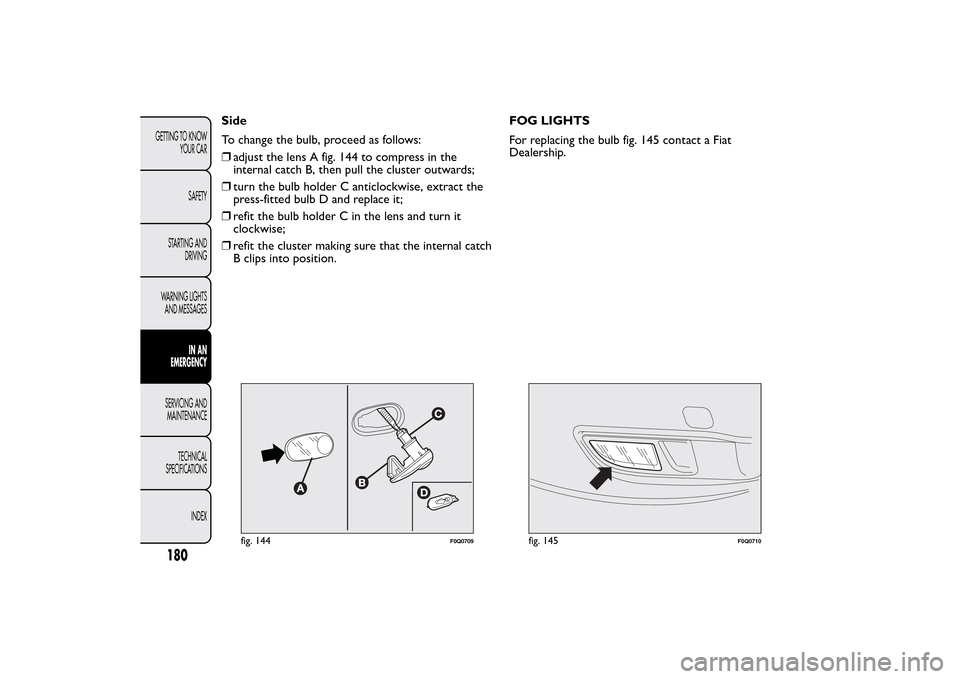

Side
To change the bulb, proceed as follows:
❒adjust the lens A fig. 144 to compress in the
internal catch B, then pull the cluster outwards;
❒turn the bulb holder C anticlockwise, extract the
press-fitted bulb D and replace it;
❒refit the bulb holder C in the lens and turn it
clockwise;
❒refit the cluster making sure that the internal catch
B clips into position.FOG LIGHTS
For replacing the bulb fig. 145 contact a Fiat
Dealership.
fig. 144
F0Q0709
fig. 145
F0Q0710
180GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

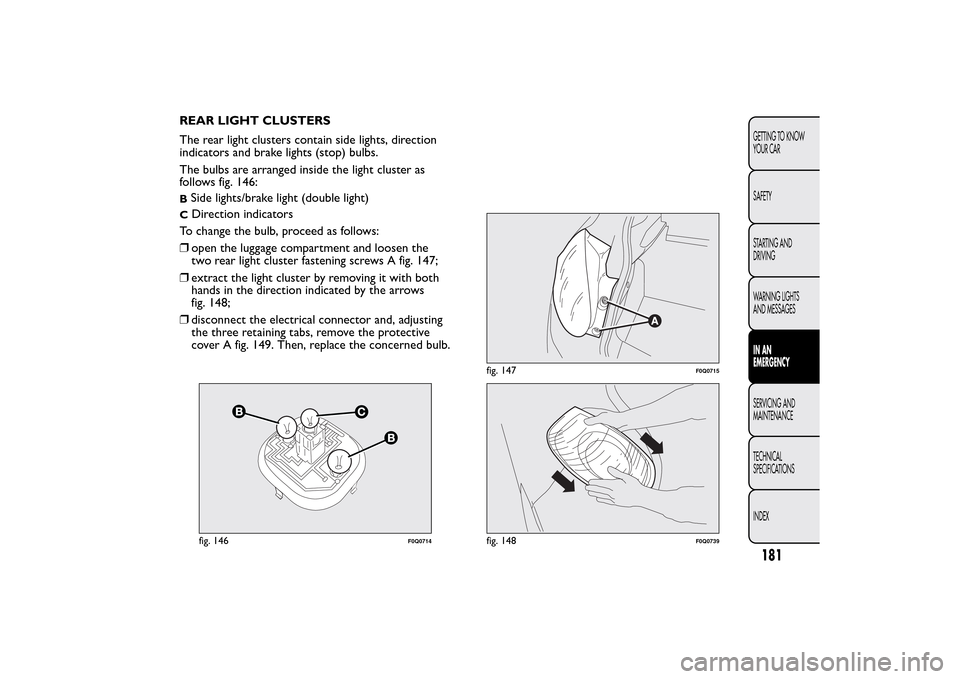

REAR LIGHT CLUSTERS
The rear light clusters contain side lights, direction
indicators and brake lights (stop) bulbs.
The bulbs are arranged inside the light cluster as
follows fig. 146:BSide lights/brake light (double light)C
Direction indicators
To change the bulb, proceed as follows:
❒open the luggage compartment and loosen the
two rear light cluster fastening screws A fig. 147;
❒extract the light cluster by removing it with both
hands in the direction indicated by the arrows
fig. 148;
❒disconnect the electrical connector and, adjusting
the three retaining tabs, remove the protective
cover A fig. 149. Then, replace the concerned bulb.fig. 146
F0Q0714
fig. 147
F0Q0715
fig. 148
F0Q0739
181GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

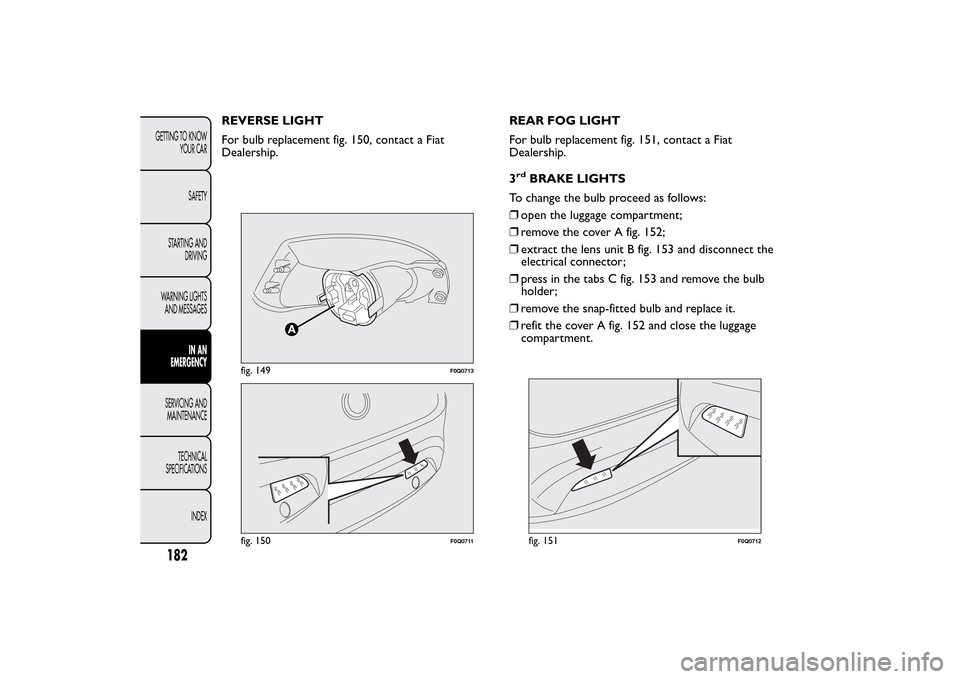

REVERSE LIGHT
For bulb replacement fig. 150, contact a Fiat
Dealership.REAR FOG LIGHT
For bulb replacement fig. 151, contact a Fiat
Dealership.
3
rd
BRAKE LIGHTS
To change the bulb proceed as follows:
❒open the luggage compartment;
❒remove the cover A fig. 152;
❒extract the lens unit B fig. 153 and disconnect the
electrical connector;
❒press in the tabs C fig. 153 and remove the bulb
holder;
❒remove the snap-fitted bulb and replace it.
❒refit the cover A fig. 152 and close the luggage
compartment.
fig. 149
F0Q0713
fig. 150
F0Q0711
fig. 151
F0Q0712
182GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

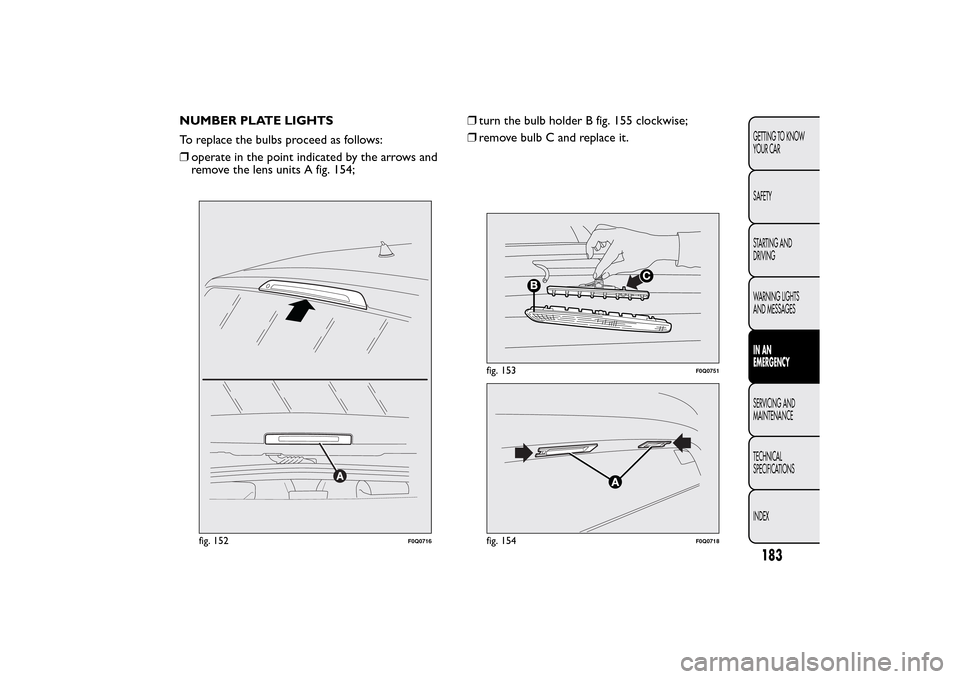

NUMBER PLATE LIGHTS
To replace the bulbs proceed as follows:
❒operate in the point indicated by the arrows and
remove the lens units A fig. 154;❒turn the bulb holder B fig. 155 clockwise;
❒remove bulb C and replace it.
fig. 152
F0Q0716
fig. 153
F0Q0751
fig. 154
F0Q0718
183GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

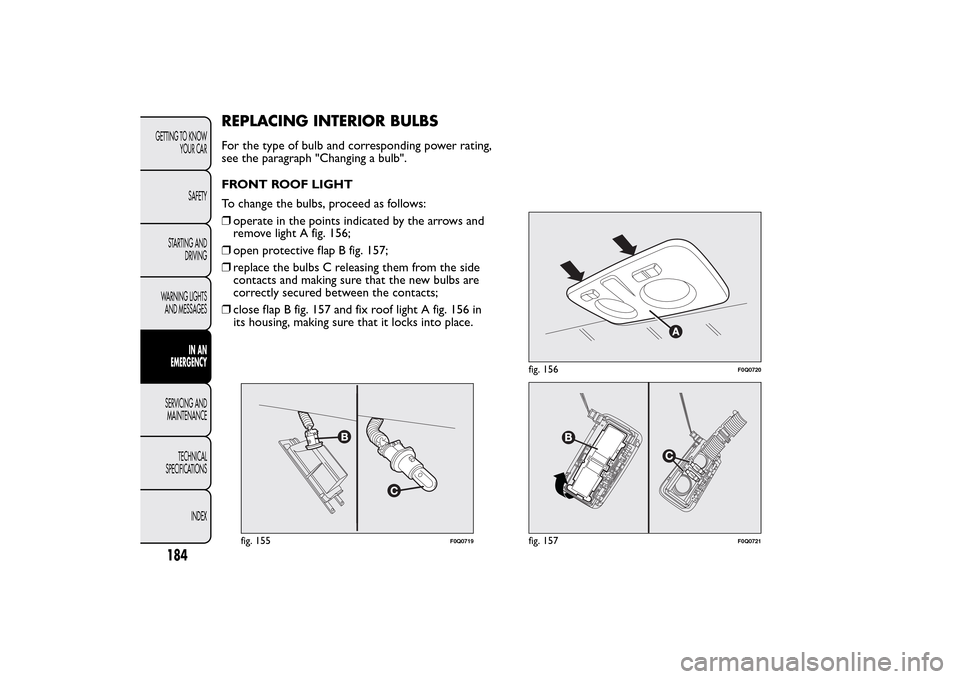

REPLACING INTERIOR BULBSFor the type of bulb and corresponding power rating,
see the paragraph "Changing a bulb".
FRONT ROOF LIGHT
To change the bulbs, proceed as follows:
❒operate in the points indicated by the arrows and
remove light A fig. 156;
❒open protective flap B fig. 157;
❒replace the bulbs C releasing them from the side
contacts and making sure that the new bulbs are
correctly secured between the contacts;
❒close flap B fig. 157 and fix roof light A fig. 156 in
its housing, making sure that it locks into place.
fig. 155
F0Q0719
fig. 156
F0Q0720
fig. 157
F0Q0721
184GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

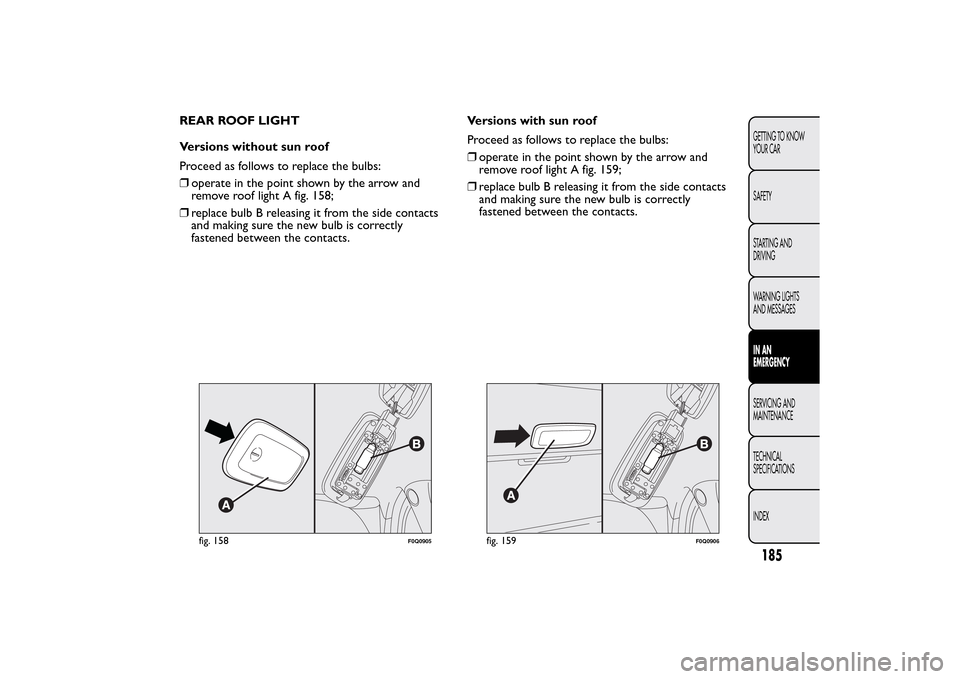

REAR ROOF LIGHT
Versions without sun roof
Proceed as follows to replace the bulbs:
❒operate in the point shown by the arrow and
remove roof light A fig. 158;
❒replace bulb B releasing it from the side contacts
and making sure the new bulb is correctly
fastened between the contacts.Versions with sun roof
Proceed as follows to replace the bulbs:
❒operate in the point shown by the arrow and
remove roof light A fig. 159;
❒replace bulb B releasing it from the side contacts
and making sure the new bulb is correctly
fastened between the contacts.
fig. 158
F0Q0905
fig. 159
F0Q0906
185GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

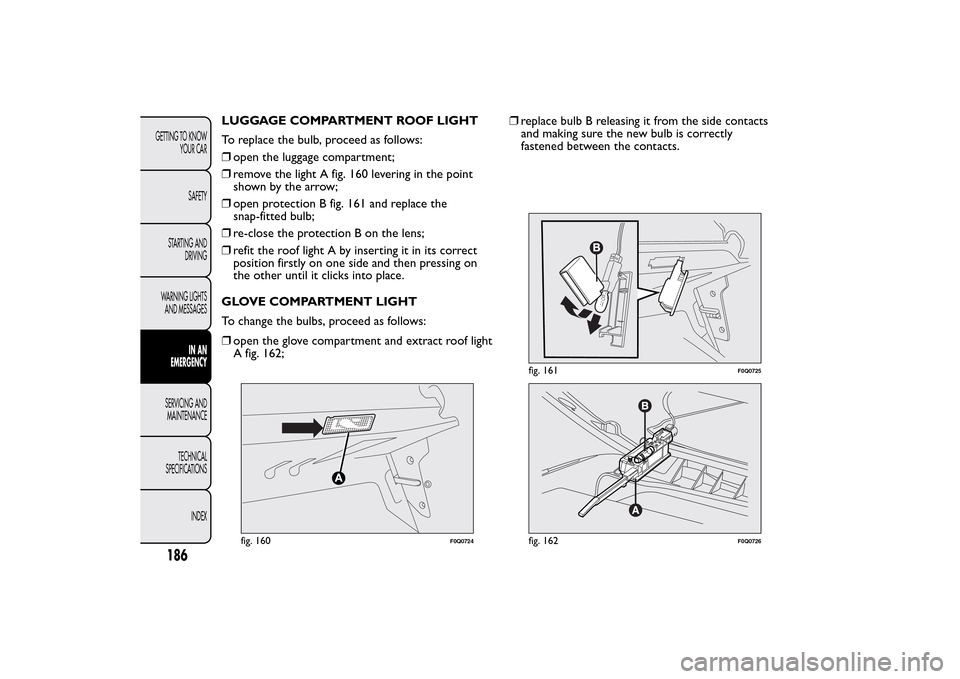

LUGGAGE COMPARTMENT ROOF LIGHT
To replace the bulb, proceed as follows:
❒open the luggage compartment;
❒remove the light A fig. 160 levering in the point
shown by the arrow;
❒open protection B fig. 161 and replace the
snap-fitted bulb;
❒re-close the protection B on the lens;
❒refit the roof light A by inserting it in its correct
position firstly on one side and then pressing on
the other until it clicks into place.
GLOVE COMPARTMENT LIGHT
To change the bulbs, proceed as follows:
❒open the glove compartment and extract roof light
A fig. 162;❒replace bulb B releasing it from the side contacts
and making sure the new bulb is correctly
fastened between the contacts.
fig. 160
F0Q0724
fig. 161
F0Q0725
fig. 162
F0Q0726
