FIAT BRAVO 2015 2.G Owners Manual

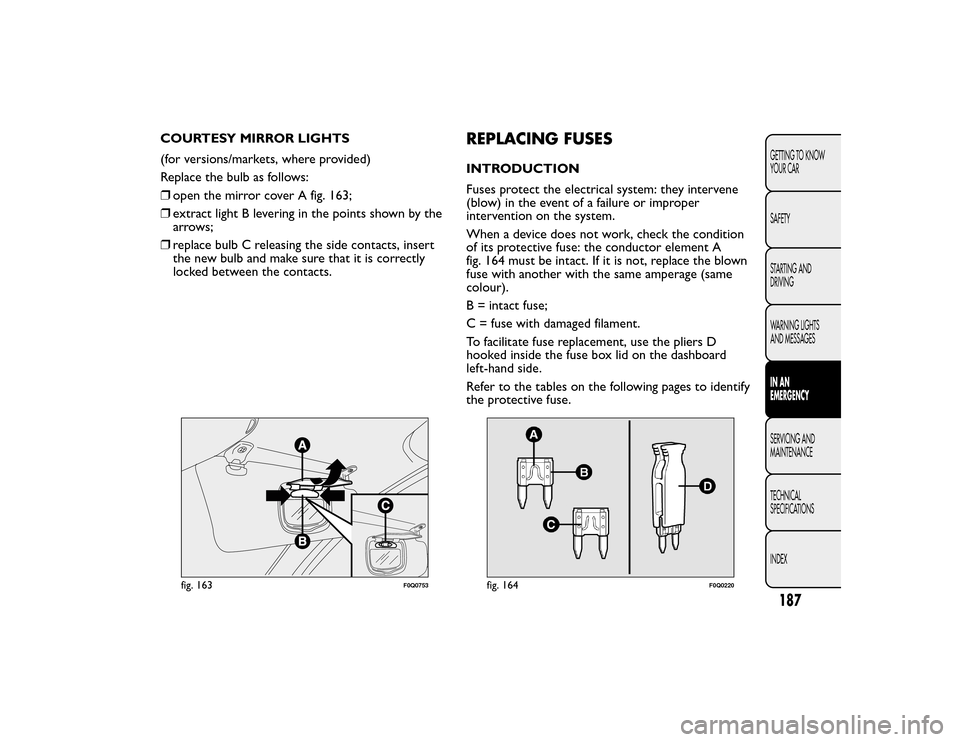

COURTESY MIRROR LIGHTS
(for versions/markets, where provided)
Replace the bulb as follows:
❒open the mirror cover A fig. 163;
❒ extract light B levering in the points shown by the
arrows;
❒ replace bulb C releasing the side contacts, insert
the new bulb and make sure that it is correctly
locked between the contacts.
REPLACING FUSESINTRODUCTION
Fuses protect the electrical system: they intervene
(blow) in the event of a failure or improper
intervention on the system.
When a device does not work, check the condition
of its protective fuse: the conductor element A
fig. 164 must be intact. If it is not, replace the blown
fuse with another with the same amperage (same
colour).
B = intact fuse;
C = fuse with damaged filament.
To facilitate fuse replacement, use the pliers D
hooked inside the fuse box lid on the dashboard
left-hand side.
Refer to the tables on the following pages to identify
the protective fuse.
fig. 163
F0Q0753
fig. 164
F0Q0220
187GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

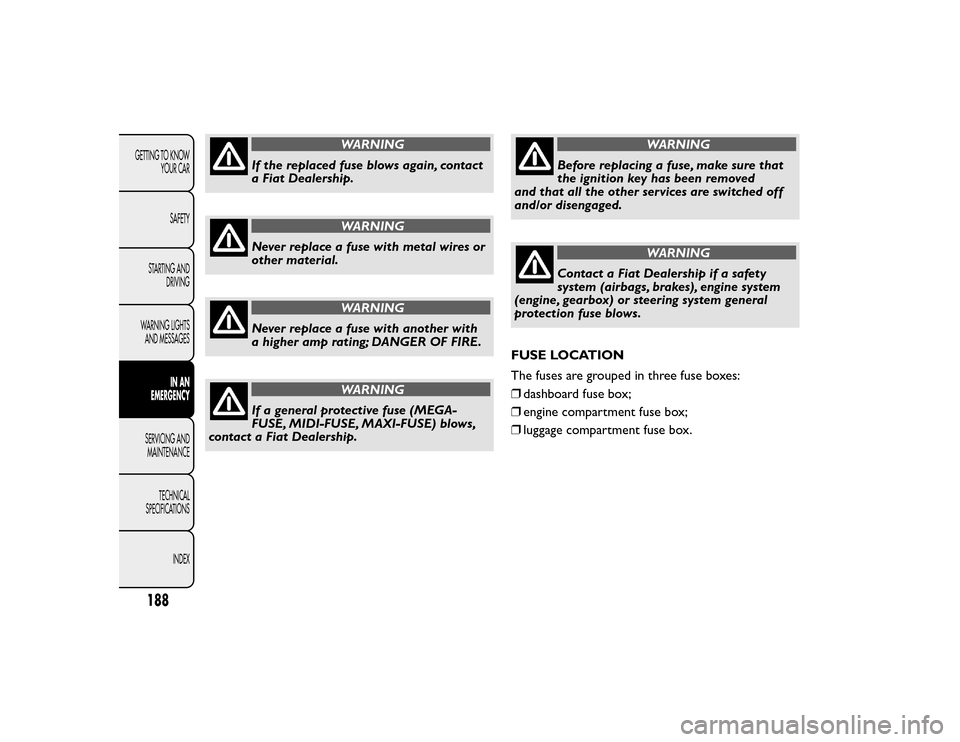

WARNING
If the replaced fuse blows again, contact
a Fiat Dealership.WARNING
Never replace a fuse with metal wires or
other material.WARNING
Never replace a fuse with another with
a higher amp rating; DANGER OF FIRE.WARNING
If a general protective fuse (MEGA-
FUSE, MIDI-FUSE, MAXI-FUSE) blows,
contact a Fiat Dealership.
WARNING
Before replacing a fuse, make sure that
the ignition key has been removed
and that all the other services are switched off
and/or disengaged.WARNING
Contact a Fiat Dealership if a safety
system (airbags, brakes), engine system
(engine, gearbox) or steering system general
protection fuse blows.
FUSE LOCATION
The fuses are grouped in three fuse boxes:
❒ dashboard fuse box;
❒ engine compartment fuse box;
❒ luggage compartment fuse box.
188GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

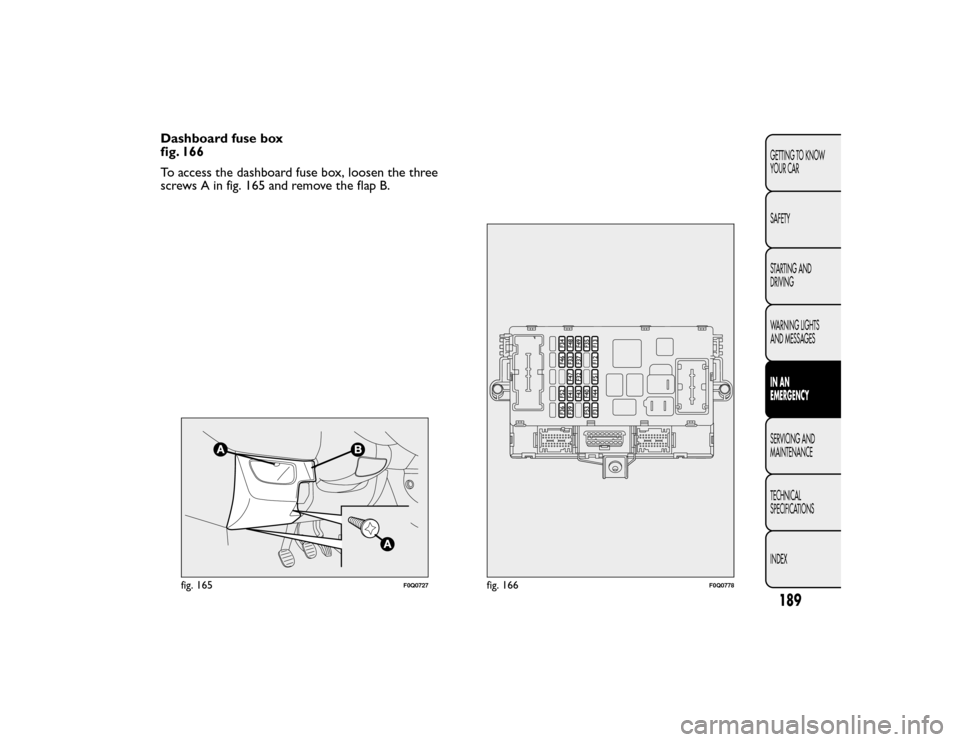

Dashboard fuse box
fig. 166
To access the dashboard fuse box, loosen the three
screws A in fig. 165 and remove the flap B.
fig. 165
F0Q0727
fig. 166
F0Q0778
189GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

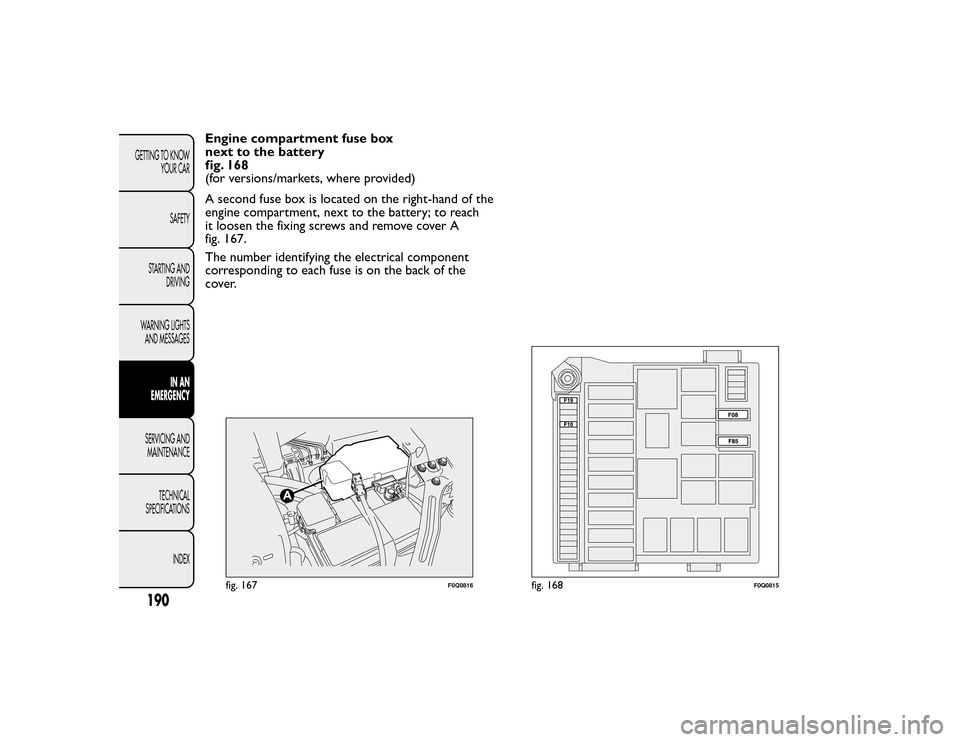

Engine compartment fuse box
next to the battery
fig. 168
(for versions/markets, where provided)
A second fuse box is located on the right-hand of the
engine compartment, next to the battery; to reach
it loosen the fixing screws and remove cover A
fig. 167.
The number identifying the electrical component
corresponding to each fuse is on the back of the
cover.
fig. 167
F0Q0816
fig. 168
F0Q0815
190GETTING TO KNOWYOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

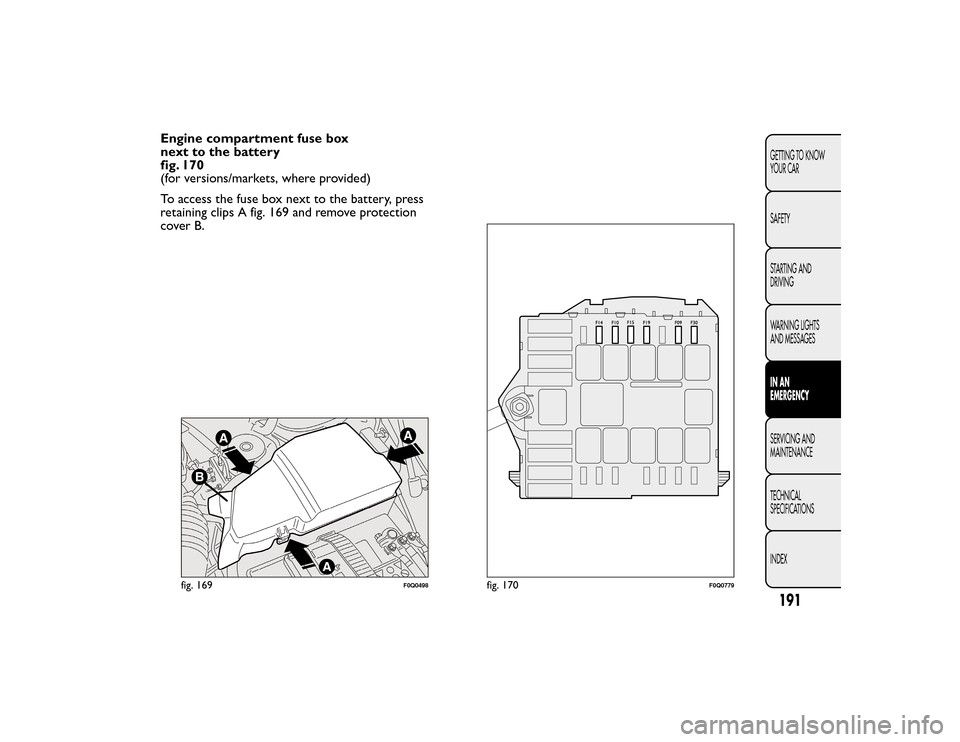

Engine compartment fuse box
next to the battery
fig. 170
(for versions/markets, where provided)
To access the fuse box next to the battery, press
retaining clips A fig. 169 and remove protection
cover B.
fig. 169
F0Q0498
fig. 170
F0Q0779
191GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

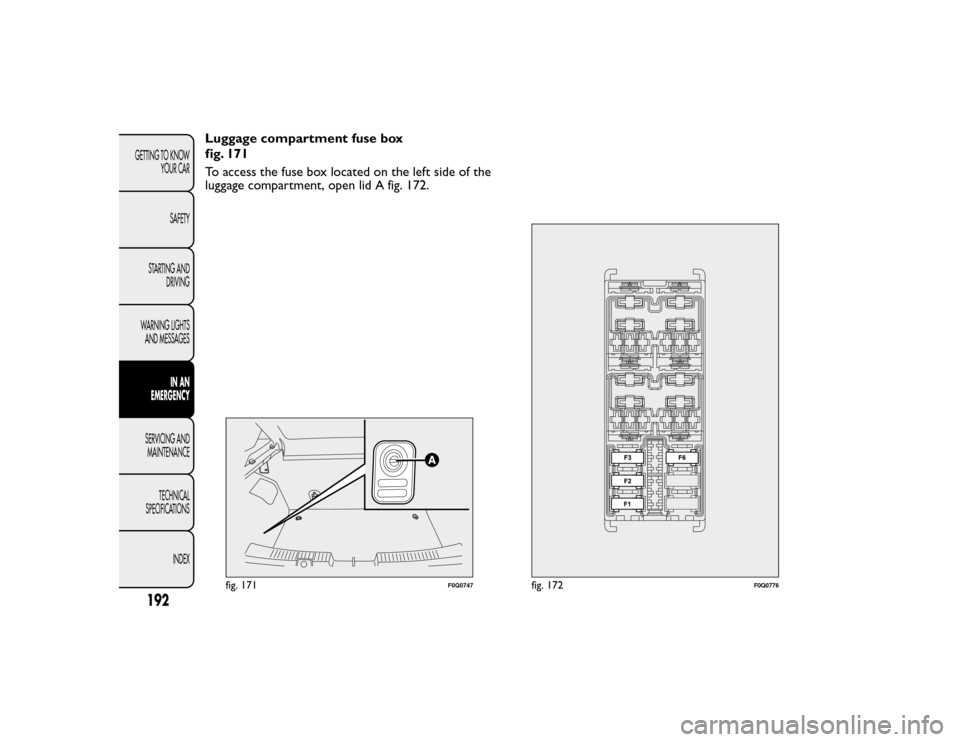

Luggage compartment fuse box
fig. 171
To access the fuse box located on the left side of the
luggage compartment, open lid A fig. 172.
fig. 171
F0Q0747
fig. 172
F0Q0776
192GETTING TO KNOWYOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

FUSE SUMMARY TABLEDashboard fuse boxFUSEAMPS
Right dipped headlight (halogen headlights) F127,5
Right dipped headlight (Bi-Xenon headlights) F1215
Left dipped headlight (halogen headlights) F137,5
Left dipped headlight (Bi-Xenon headlights) F1315
Reverse F355
3rd brake light F377,5
Rear fog light (driver's side) F537,5
Headlight alignment corrector system
(halogen headlights) F13
7,5
Relay switch coils on engine compartment fuse box
(CVM)/Body Computer control unit (NBC) F31
5
HI-FI audio system subwoofer amplifier F3215
Left rear electric window F3320
Right rear electric window F3420
Control on brake pedal (NC contact)/Water presence
in diesel sensor/Air flow meter F35
5
Central locking system control unit (CGP)
(door opening/closing, safe lock, tailgate release) F36
20
Control on brake pedal (normally open contact NO)/
Instrument panel (NQS)/Gas discharge bulbs control
units on front headlights F37
7,5
193GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Dashboard fuse boxFUSEAMPS
Radio and radio navigator /Radio setup//Blue&Me
TM
system/Alarm siren (CSA)/Alarm system on roof light/
Internal cooling unit/Tyre pressure monitoring system
control unit (CPP)/Diagnosis socket connector/Rear
roof lights F39
10
Heated rear window F4030
Electric door mirror demisters/Demisters on
windscreen jets F41
7,5
Windscreen wiper/Bi-directional windscreen/rear
window washer electric pump system on steering
column stalk F43
30
Current sockets/Cigar lighter F4415
Electric sun roof motor F4620
Front electric window (driver side) F4720
Front electric window (passenger side) F4820
Emergency control panel (lighting)/Right branch central
control panel (lighting, ASR switch) and left branch/
Steering wheel controls (lighting)/Control panel on
front roof light (lighting)/Volume sensing alarm system
control unit (deactivation)/Electric sun roof system
(control unit, control lighting)/Rain sensor/Dusk sensor
on rear view mirror/Heating pad activation controls on
front seats F49
5
194GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Dashboard fuse boxFUSEAMPS
Internal cooling unit/Radio setup/Cruise Control lever/
Blue&Me
TM
system control unit/Parking sensor control
unit (NSP)/Air pollution sensor (AQS)/Automatic
climate control system/Electric door mirrors
(adjustment, folding)/Tyre pressure monitoring system
control unit (CPP) F51
5
Rear window wiper F5215
Instrument Panel (NQS) F537,5
195GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

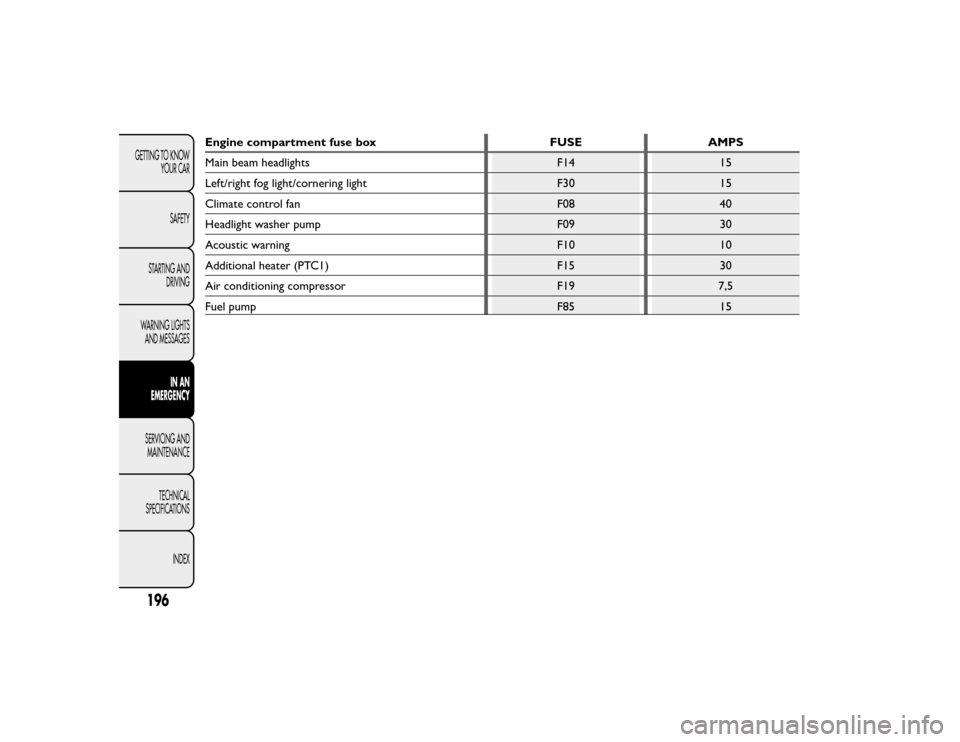

Engine compartment fuse boxFUSEAMPS
Main beam headlights F1415
Left/right fog light/cornering light F3015
Climate control fan F0840
Headlight washer pump F0930
Acoustic warning F1010
Additional heater (PTC1) F1530
Air conditioning compressor F197,5
Fuel pump F8515
