FIAT BRAVO 2015 2.G Owners Manual

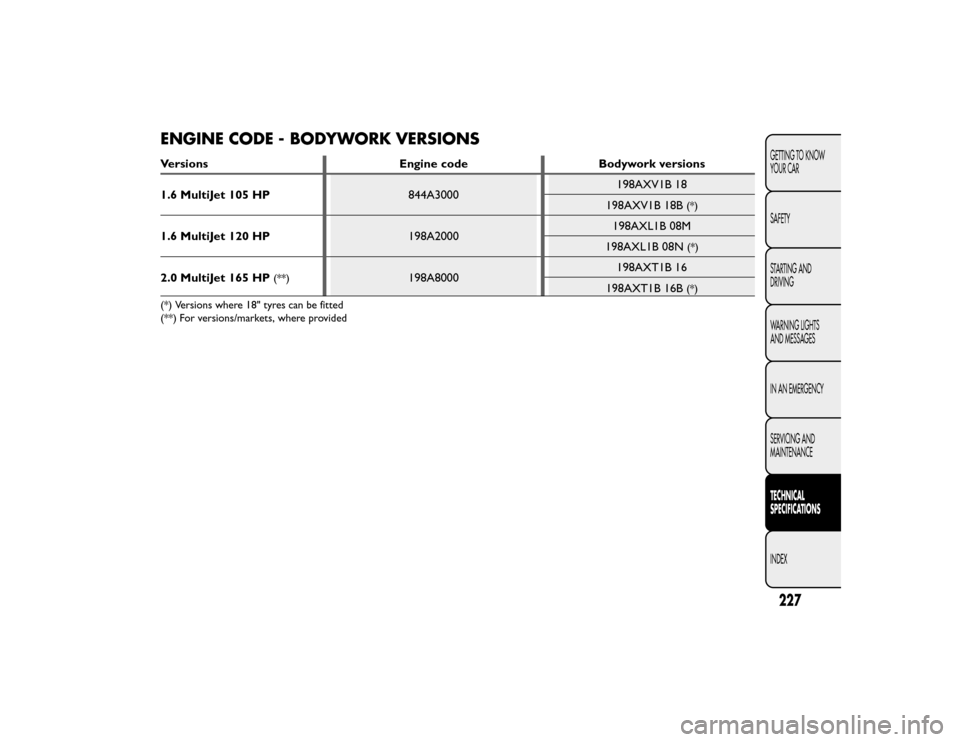

ENGINE CODE - BODYWORK VERSIONSVersionsEngine codeBodywork versions
1.6 MultiJet 105 HP 844A3000198AXV1B 18
198AXV1B 18B
(*)
1.6 MultiJet 120 HP 198A2000198AXL1B 08M
198AXL1B 08N
(*)
2.0 MultiJet 165 HP
(**)
198A8000 198AXT1B 16
198AXT1B 16B
(*)
(*) Versions where 18" tyres can be fitted
(**) For versions/markets, where provided
227GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

ENGINE
1.6 MultiJet 105 HP1.6 MultiJet 120 HP
Type code 844A3000198A2000
Cycle DieselDiesel
Number and arrangement of cylinders 4 in line4 in line
Piston bore and stroke (mm) 79.5 × 80.579.5 × 80.5
Total displacement (cm3) 15981598
Compression ratio 16,516,5
Maximum power (EC) (kW) 7788
Maximum power (EC) (HP) 105120
corresponding engine speed (rpm) 40004000
Maximum torque (EC) (Nm) 300300
Maximum torque (EC) (kgm) 30,630,6
corresponding engine speed (rpm) 15001500
Fuel Diesel for automotive engines (Specification EN590)
228GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

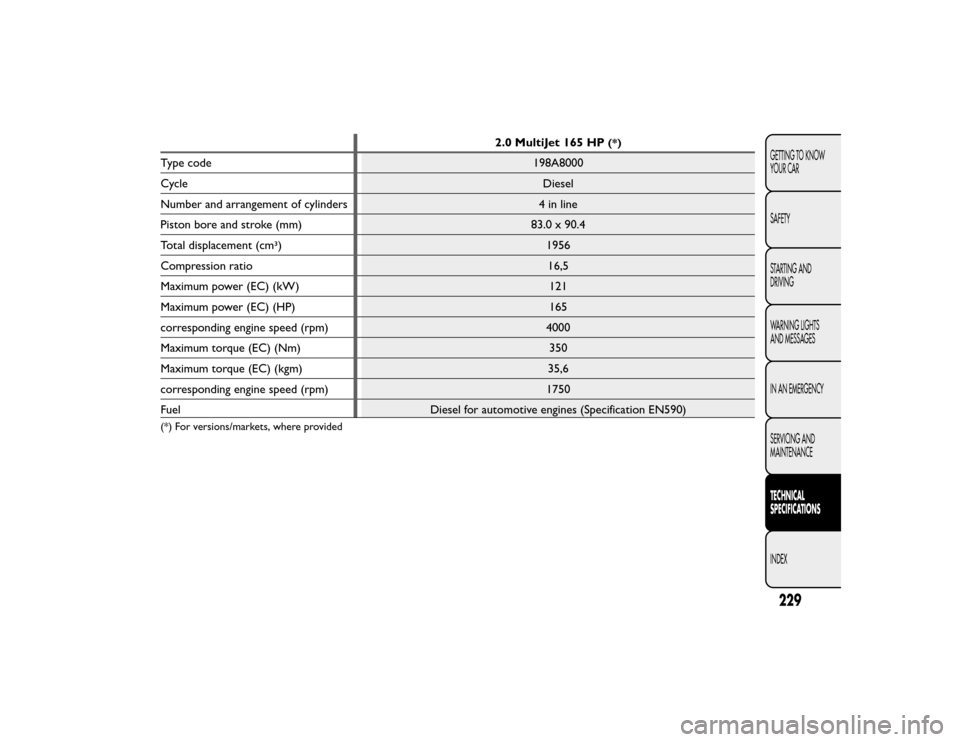

2.0 MultiJet 165 HP
(*)
Type code198A8000
Cycle Diesel
Number and arrangement of cylinders 4 in line
Piston bore and stroke (mm) 83.0 x 90.4
Total displacement (cm3) 1956
Compression ratio 16,5
Maximum power (EC) (kW) 121
Maximum power (EC) (HP) 165
corresponding engine speed (rpm) 4000
Maximum torque (EC) (Nm) 350
Maximum torque (EC) (kgm) 35,6
corresponding engine speed (rpm) 1750
Fuel Diesel for automotive engines (Specification EN590)(*) For versions/markets, where provided
229GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

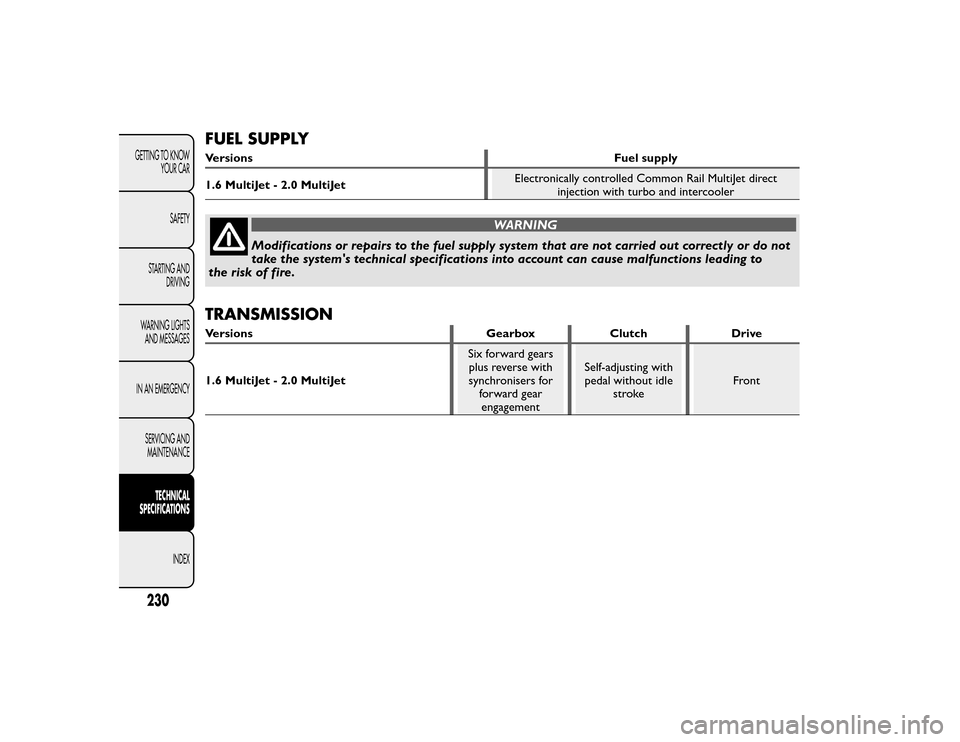

FUEL SUPPLYVersionsFuel supply
1.6 MultiJet - 2.0 MultiJet Electronically controlled Common Rail MultiJet direct
injection with turbo and intercooler
WARNING
Modifications or repairs to the fuel supply system that are not carried out correctly or do not
take the system's technical specifications into account can cause malfunctions leading to
the risk of fire.
TRANSMISSIONVersions GearboxClutchDrive
1.6 MultiJet - 2.0 MultiJet Six forward gears
plus reverse with
synchronisers for forward gearengagement Self-adjusting with
pedal without idle stroke Front
230GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

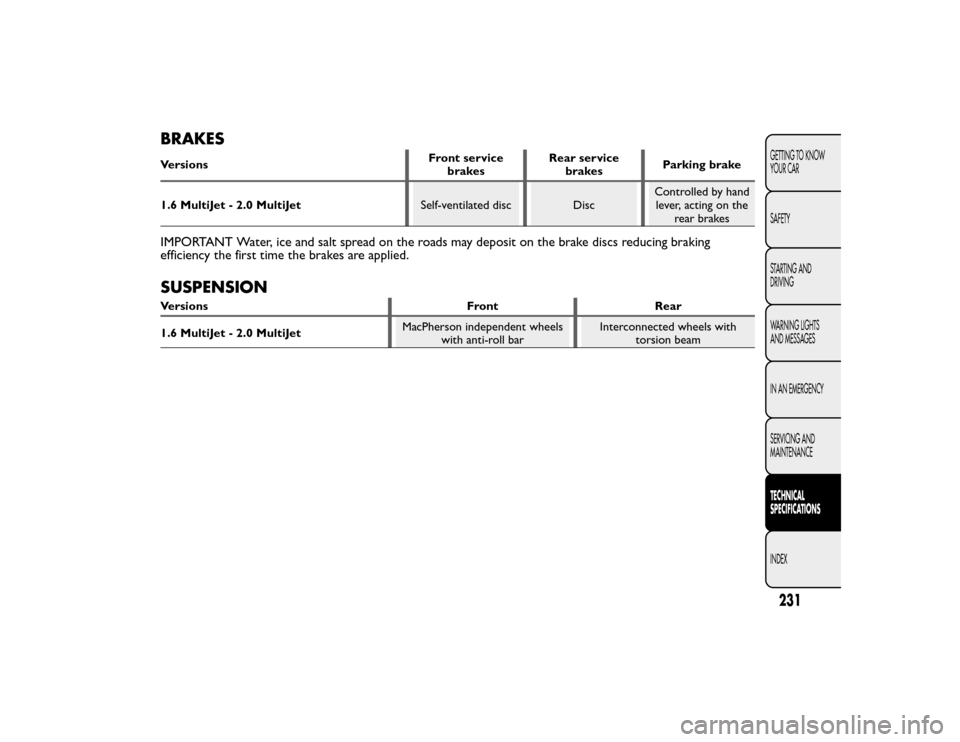

BRAKESVersionsFront service
brakes Rear service
brakes Parking brake
1.6 MultiJet - 2.0 MultiJet Self-ventilated discDiscControlled by hand
lever, acting on the rear brakesIMPORTANT Water, ice and salt spread on the roads may deposit on the brake discs reducing braking
efficiency the first time the brakes are applied.SUSPENSIONVersions FrontRear
1.6 MultiJet - 2.0 MultiJet MacPherson independent wheels
with anti-roll bar Interconnected wheels with
torsion beam
231GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

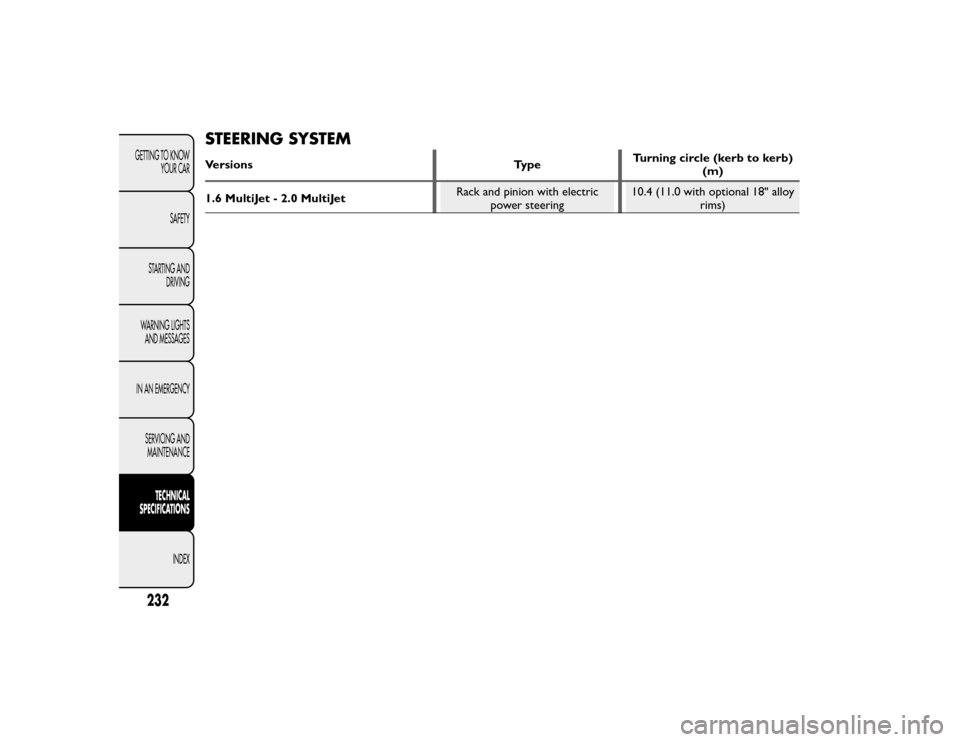

STEERING SYSTEMVersionsTypeTurning circle (kerb to kerb)
(m)
1.6 MultiJet - 2.0 MultiJet Rack and pinion with electric
power steering 10.4 (11.0 with optional 18" alloy
rims)
232GETTING TO KNOWYOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WHEELSRIMS AND TYRES
Pressed steel or alloy rims. Tubeless radial carcass
tyres. The vehicle registration document also lists all
type-approved tyres.
IMPORTANT If there are any discrepancies between
the Owner Handbook and the registration
document, take the information from the latter. For
safe driving, the car must be fitted with tyres of
the same make and type on all wheels.
IMPORTANT Do not use air chambers with Tubeless
tyres.
SPARE WHEEL
Pressed steel rim. Tubeless tyre.
WHEEL GEOMETRY
Front wheel toe-in measured from rim to rim:
-1mm+/-1mm
The values refer to the car in running order.
CORRECT TYRE READING
Example fig. 186: 195/55 R 16 91V195
Nominal width (S, distance in mm between
sidewalls)
55
Height/width ratio (H/S) as a percentage
RRadial tyre
16
Rim diameter in inches (Ø)
91
Load rating (capacity)
V
Maximum speed rating
Maximum speed rating
Q
up to 160 km/h
Rup to 170 km/hSup to 180 km/hT
up to 190 km/h
U
up to 200 km/h
H
up to 210 km/h
V
up to 240 km/h
W
up to 270 km/h
Y
up to 300 km/hfig. 186
F0Q0200
233GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

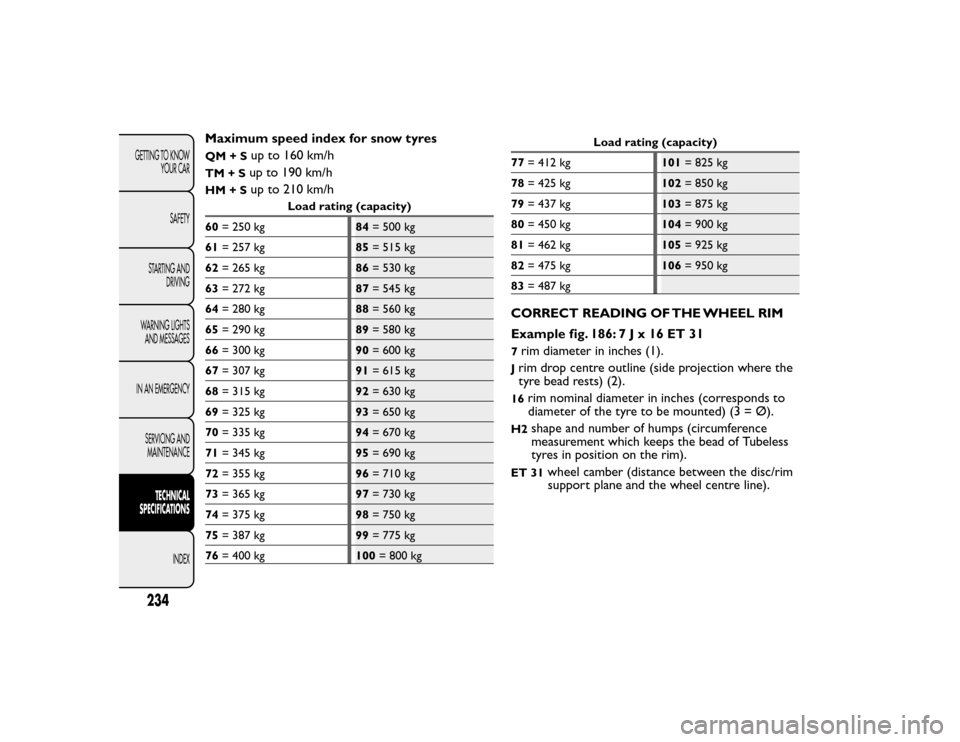

Maximum speed index for snow tyresQM+S
up to 160 km/h
TM+S
up to 190 km/h
HM+S
up to 210 km/h
Load rating (capacity)
60 = 250 kg 84= 500 kg
61 = 257 kg 85= 515 kg
62 = 265 kg 86= 530 kg
63 = 272 kg 87= 545 kg
64 = 280 kg 88= 560 kg
65 = 290 kg 89= 580 kg
66 = 300 kg 90= 600 kg
67 = 307 kg 91= 615 kg
68 = 315 kg 92= 630 kg
69 = 325 kg 93= 650 kg
70 = 335 kg 94= 670 kg
71 = 345 kg 95= 690 kg
72 = 355 kg 96= 710 kg
73 = 365 kg 97= 730 kg
74 = 375 kg 98= 750 kg
75 = 387 kg 99= 775 kg
76 = 400 kg 100= 800 kg
Load rating (capacity)
77 = 412 kg 101= 825 kg
78 = 425 kg 102= 850 kg
79 = 437 kg 103= 875 kg
80 = 450 kg 104= 900 kg
81 = 462 kg 105= 925 kg
82 = 475 kg 106= 950 kg
83 = 487 kg
CORRECT READING OF THE WHEEL RIM
Example fig. 186: 7Jx16ET317rim diameter in inches (1).Jrim drop centre outline (side projection where the
tyre bead rests) (2).16
rim nominal diameter in inches (corresponds to
diameter of the tyre to be mounted) (3 = Ø).
H2
shape and number of humps (circumference
measurement which keeps the bead of Tubeless
tyres in position on the rim).
ET 31
wheel camber (distance between the disc/rim
support plane and the wheel centre line).
234GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN EMERGENCY SERVICING ANDMAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

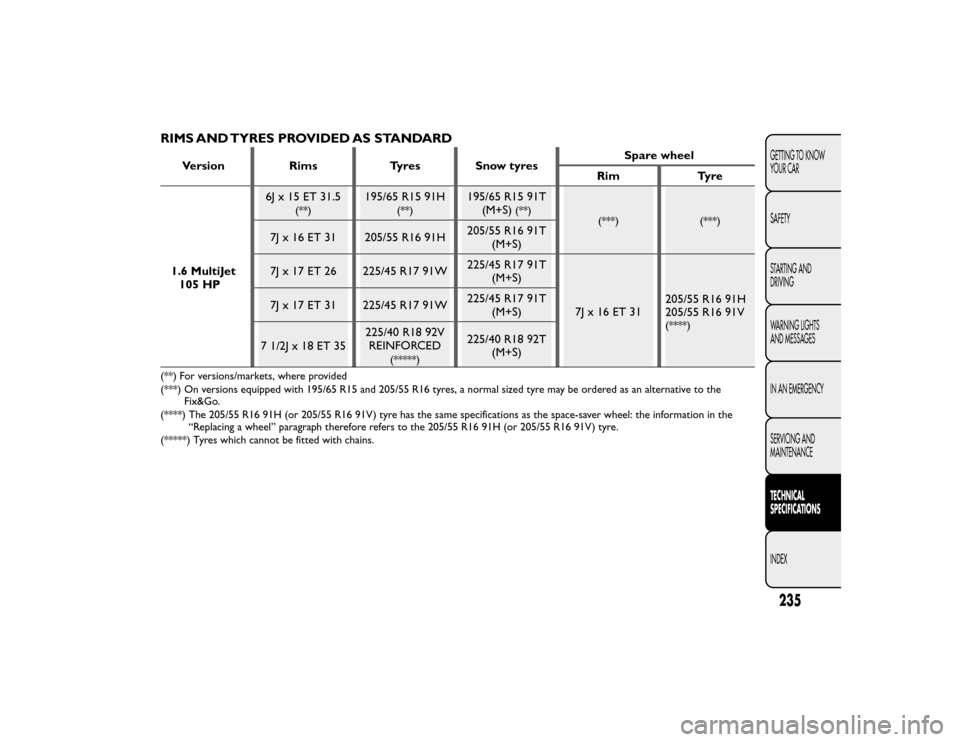

RIMS AND TYRES PROVIDED AS STANDARD
VersionRimsTyres Snow tyres Spare wheel
Rim Tyre
1.6 MultiJet 105 HP 6J x 15 ET 31.5
(**)
195/65 R15 91H
(**)
195/65 R15 91T
(M+S)
(**) (***) (***)
7J x 16 ET 31 205/55 R16 91H 205/55 R16 91T
(M+S)
7J x 17 ET 26 225/45 R17 91W 225/45 R17 91T
(M+S)
7J x 16 ET 31 205/55 R16 91H
205/55 R16 91V
(****)
7J x 17 ET 31 225/45 R17 91W
225/45 R17 91T
(M+S)
7 1/2J x 18 ET 35 225/40 R18 92V
REINFORCED
(*****)
225/40 R18 92T (M+S)
(**) For versions/markets, where provided
(***) On versions equipped with 195/65 R15 and 205/55 R16 tyres, a normal sized tyre may be ordered as an alternative to the
Fix&Go.
(****) The 205/55 R16 91H (or 205/55 R16 91V) tyre has the same specifications as the space-saver wheel: the information in the “Replacing a wheel” paragraph therefore refers to the 205/55 R16 91H (or 205/55 R16 91V) tyre.
(*****) Tyres which cannot be fitted with chains.
235GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

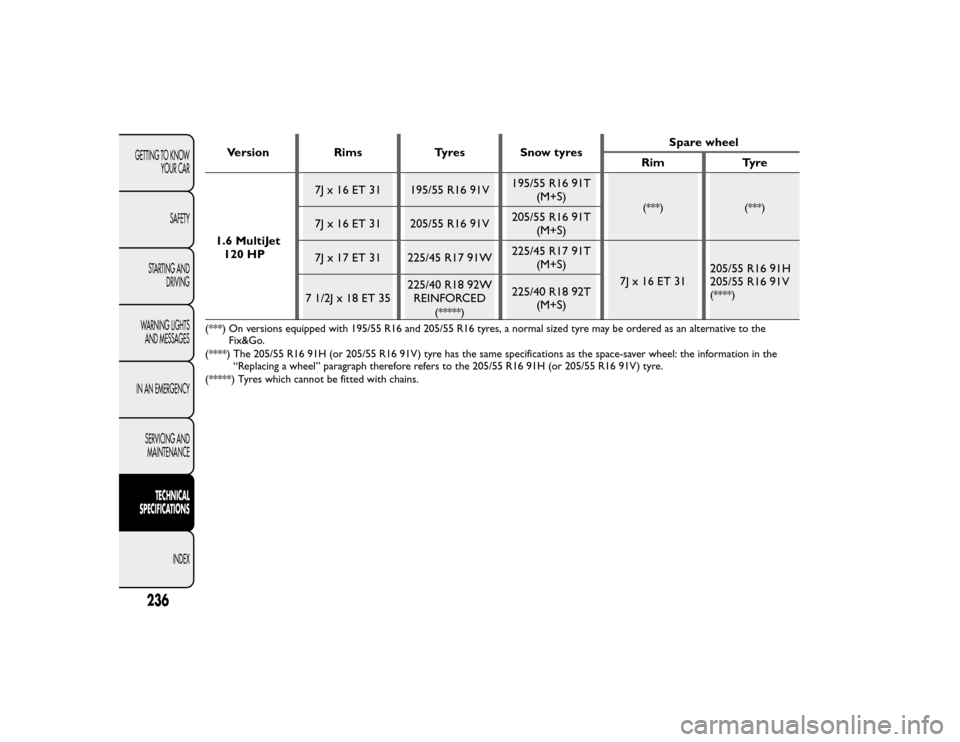

VersionRimsTyres Snow tyres Spare wheel
Rim Tyre
1.6 MultiJet 120 HP 7J x 16 ET 31 195/55 R16 91V
195/55 R16 91T
(M+S)
(***) (***)
7J x 16 ET 31 205/55 R16 91V 205/55 R16 91T
(M+S)
7J x 17 ET 31 225/45 R17 91W 225/45 R17 91T
(M+S)
7J x 16 ET 31 205/55 R16 91H
205/55 R16 91V
(****)
7 1/2J x 18 ET 35 225/40 R18 92W
REINFORCED
(*****)
225/40 R18 92T (M+S)
(***) On versions equipped with 195/55 R16 and 205/55 R16 tyres, a normal sized tyre may be ordered as an alternative to the
Fix&Go.
(****) The 205/55 R16 91H (or 205/55 R16 91V) tyre has the same specifications as the space-saver wheel: the information in the “Replacing a wheel” paragraph therefore refers to the 205/55 R16 91H (or 205/55 R16 91V) tyre.
(*****) Tyres which cannot be fitted with chains.
