FIAT CROMA 2004 2.G Radio CD Manual
Manufacturer: FIAT, Model Year: 2004, Model line: CROMA, Model: FIAT CROMA 2004 2.GPages: 80, PDF Size: 0.62 MB
Page 71 of 80
71
RADIO WITH COMPACT DISC
AND MP3 CD PLAYERRADIO WITH
COMPACT DISC PLAYER
SVC SETTING function
(volume changing with speed)
The SVC function makes it possible to automatically
adapt the volume level to the speed of the car,
increasing it as the speed increases to maintain the
ratio with the noise level in the passenger
compartment.
To turn the function on/off use button 7 (
÷) or 5
(
˜). The display will show the current status of the
function:
❒“SVC SETTING: ON” (function on);
❒“SVC SETTING: OFF” (function off).
CD NAMING function
(allocating a name to a CD)
Use the CD NAME function to give a name (max.
name length = 8 characters) to max. 30 CDs.
This function can be selected only if in Compact Disc
or CD Changer mode. To turn this function on, use
button 7 (
÷) or 5 (˜): the display shows “CD
NAMING FUNCTION”. If the CD already has a name,
this will be shown on the display, if not, eight dashes
will be shown. If storage is no longer available for a
new name, the display will show the first name stored.To change the name or give a name to the new CD
press button 7 (
÷) or 5 (˜). Press the buttons
again to choose the position of the character to be
changed. Press buttons 3 (
N) or 6 (O) to choose or
change the character.
To store the name, press button 12 (MENU-PRESET
SCAN) again. The display will show “CD NAME”.
To clear a name, turn the function on and press
button 16 (2-CLR) for about 5 seconds. The system
beeps and the display shows “ONE NAME DELETED”
for about 2 seconds. At this point the procedure can
be started to give a new name.
To clear all the names, turn the function on and keep
button 16 (2-CLR) pressed for over 8 seconds. The
set gives two beeps and the display shows “ALL
NAMES DELETED” for about 2 seconds. At this point
it is possible to start the name allocation procedure.
Page 72 of 80
72
RADIO WITH COMPACT DISC
AND MP3 CD PLAYERRADIO WITH
COMPACT DISC PLAYER
VOICE SETTINGS function
(telephone volume adjustment)
With this function it is possible to adjust (setting from
1 to 66) or cut off (OFF setting) the telephone sound.
To turn the function on/off use button 7 (
÷) or 5
(
˜).
To adjust, turn the button/knob 19 (ON/OFF
VOLUME).
The display will show the current status of the
function:
❒“VOICE VOLUME 23”: function on with volume
setting 23
❒“VOICE FUNCTION OFF”: function off.
HICUT function (treble reduction)
Using this function it is possible to reduce the treble
tones, in accordance with the signal transmitted.
To turn the function on/off, use button
7 (
÷) or 5 (˜).
The display will show the current status of the
function:
❒“HICUT FUNCTION: ON” (function on);
❒“HICUT FUNCTION: OFF” (function off).IGNITION TIMER function
(system power off mode)
This function enables to switch off the sound system
according to two different modes. To turn this
function on/off, use buttons 7 (
÷) or 5 (˜).
The display will show the chosen mode:
❒“00 MIN”: deactivation dependent on ignition key.
Sound system will switch off automatically when
turning the ignition key to STOP;
❒“20 MIN”: deactivation independent of ignition key.
After having turned the ignition key to STOP, the
sound system will stay on for 20 minutes max.
IMPORTANT When the sound system is switched off
automatically after turning the ignition key to OFF
(for both immediate or 20-minute delayed power off),
it will switch on automatically turning the ignition key
to ON. If the sound system has been switched off
pressing the knob/button 19 (ON/OFF VOLUME),
when turning the key to ON it will stay off.
Page 73 of 80
73
RADIO WITH COMPACT DISC
AND MP3 CD PLAYERRADIO WITH
COMPACT DISC PLAYER
TECHNICAL INFORMATION
Radio
Maximum power: 4x40W
Sound system
The system includes:
❒2 tweeters (A), 40W max. power, set on front doors as shown in the
figure;
❒2 mid-woofers (B), 165 mm diameter, 40W max. power, set on front
doors;
❒2 rear full-range speakers (C), 165 mm diameter, 40W max. power,
set on rear doors.
F0L0165m
F0L0167m
F0L0169m
Page 74 of 80
74
RADIO WITH COMPACT DISC
AND MP3 CD PLAYERRADIO WITH
COMPACT DISC PLAYER
CD Changer (where provided)
The car can be equipped with a CD Changer for 5 discs set in the glove
compartment.
Protection fuse
The radio has a 10A fuse.
Hi-Fi system (where provided)
The system includes:
❒2 tweeters (D), 40W power, set on front doors as shown in the figure;
❒2 woofers (E), 165 mm diameter, 40W power, set on front doors;
❒2 tweeters (F), 40W power, set on front doors;
❒2 woofers (G), 165 mm diameter, 40W power, set on rear doors;
❒1 subwoofer, 100 W power set on the right side of the boot.
Subwoofer is protected by a fuse
F0L0166m
F0L0168m
F0L0170m
Page 75 of 80

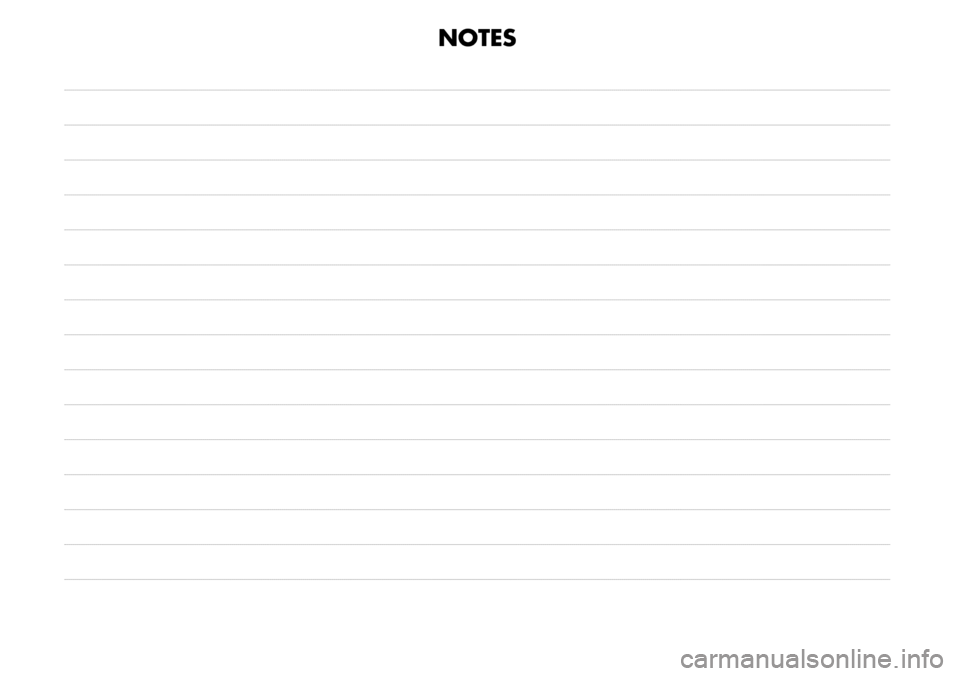

NOTES
