CD player FIAT CROMA 2004 2.G Radio CD Manual

73
RADIO WITH COMPACT DISC
AND MP3 CD PLAYERRADIO WITH
COMPACT DISC PLAYER
TECHNICAL INFORMATION
Radio
Maximum power: 4x40W
Sound system

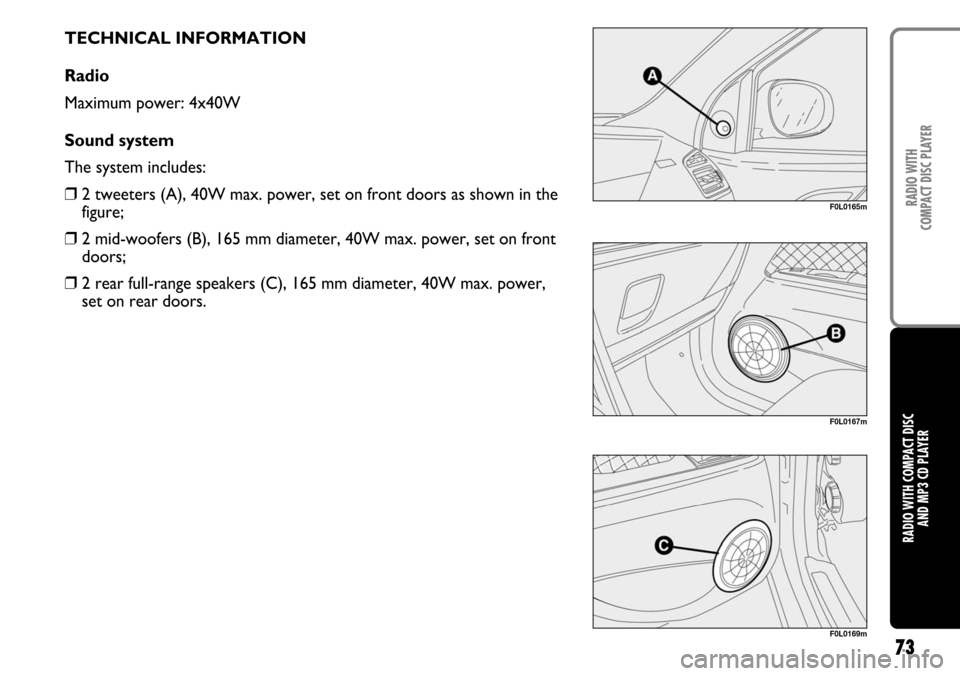

The system includes:
❒2 tweeters (A), 40W max. power, set on front doors as shown in the
figure;
❒2 mid-woofers (B), 165 mm diameter, 40W max. power, set on front
doors;
❒2 rear full-range speakers (C), 165 mm diameter, 40W max. power,
set on rear doors.
F0L0165m
F0L0167m
F0L0169m

74
RADIO WITH COMPACT DISC
AND MP3 CD PLAYERRADIO WITH
COMPACT DISC PLAYER
CD Changer (where provided)
The car can be equipped with a CD Changer for 5 discs set in the glove
compartment.
Protection fuse
The radio has a 10A fuse.

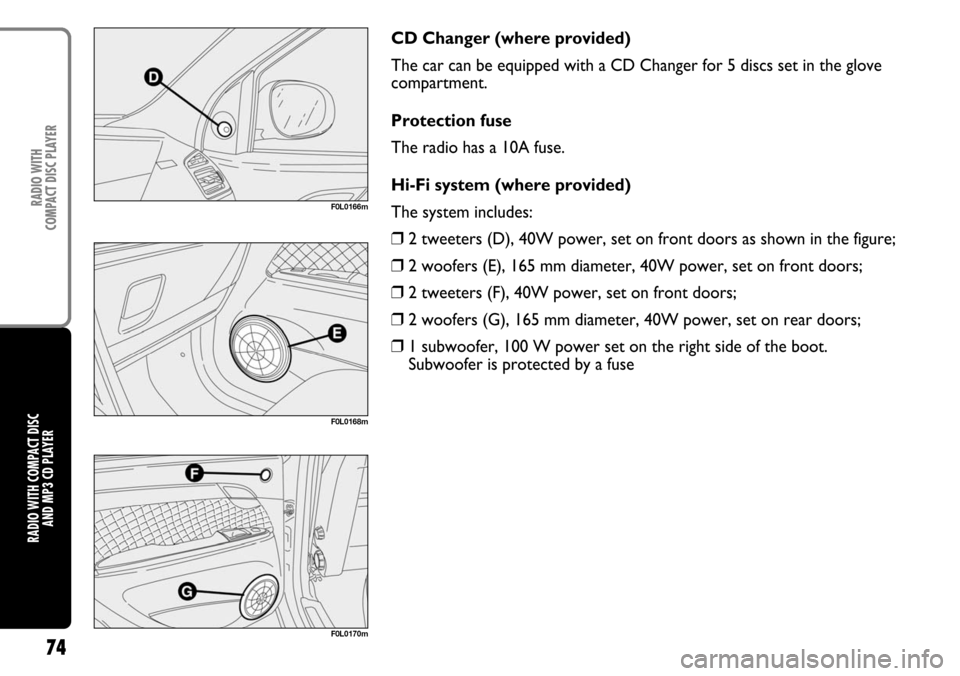

Hi-Fi system (where provided)
The system includes:
❒2 tweeters (D), 40W power, set on front doors as shown in the figure;
❒2 woofers (E), 165 mm diameter, 40W power, set on front doors;
❒2 tweeters (F), 40W power, set on front doors;
❒2 woofers (G), 165 mm diameter, 40W power, set on rear doors;
❒1 subwoofer, 100 W power set on the right side of the boot.
Subwoofer is protected by a fuse
F0L0166m
F0L0168m
F0L0170m
