Paint
Paintwork does not only serve an aesteth-
ic purpose, but also protects the under-
lying sheet metal.
In the case of deep scrapes or scores, you
are advised to have the necessary touch-
ing up carried out immediately to avoid
the formation of rust. Use only original
paint products for touching up (see “Body-
work paint identification plate” in section
“Technical specification”).
Normal paint maintenance consists in
washing at intervals depending on the con-
ditions and environment of use. For ex-
ample, in highly polluted areas, or if the
roads are sprayed with salt, it is wise to
wash the car more frequently.To correctly wash the car:
❒remove the aerial from the roof to
prevent damage to it if the car is
washed in an automatic system;
❒wash the body using a low pressure jet
of water;
❒wipe a sponge with a slightly soapy so-
lution over the bodywork, frequently
rinsing with the sponge;
❒rinse well with water and dry with a
jet of air or a chamois leather.
When drying, take particular care with the
less visible parts like door surrounds, bon-
net and around the headlights where wa-
ter may stagnate. The car should not be
taken to a closed area immediately, but left
in the open so that residual water can
evaporate.
Do not wash the car after it has been left
in the sun or with the bonnet hot: this may
alter the shine of the paintwork.
❒Spraying the underbody, engine com-
partment, wheelhouse internal parts
and other parts with highly protective
wax products;
❒Spraying of plastic parts, with a pro-
tective function, in the more exposed
points: underdoor, inner fender parts,
edges, etc.;
❒Use of “open” boxed sections to pre-
vent condensation and pockets of
moisture from triggering rust inside.
BODY AND UNDERBODY
WARRANTY
Your car is covered by warranty against
perforation due to rust of any original el-
ement of the structure or body. For the
general terms of this warranty, refer to
the Fiat Warranty booklet.
183-206 Croma TRW GB 20-11-2006 15:03 Pagina 204

205
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
Windows
Use specific window cleaner products.
Use also clean cloths to avoid scratching
the glass or damaging the transparency.
IMPORTANT The inside of the
rearscreen should be wiped gently with a
cloth in the direction of the filaments to
avoid damaging the heating device.
Engine compartment
At the end of the winter the engine com-
partment should be carefully washed,
without directing the jet against electron-
ic control units. Contact a specialised
workshop to have this done.
IMPORTANT The car should be washed
with the engine cold and the ignition key
at OFF. After washing make sure that the
various protections (e.g. rubber caps and
various covers) have not been damaged or
removed.INTERIORS
Periodically check that water is not
trapped under the mats (due to water
dripping off shoes, umbrellas, etc.) which
could cause oxidisation of the sheet met-
al.
CLEANING SEATS AND FABRIC
AND VELVET PARTS
Use a soft brush or vacuum cleaner to re-
move dust. Velvet is cleaned better if the
brush is moistened.
Rub the seats with a sponge moistened
with a solution of water and neutral de-
tergent.
CLEANING LEATHER SEATS
Remove dried on dirt with lightly moist-
ened chamois leather or cloth without
pressing too hard.
Remove liquid or grease stains with a dry
absorbent cloth without rubbing. Then
wipe with a soft cloth or chamois leather
with water and neutral soap. Exterior plastic parts must be cleaned in
the same way as the rest of the car.
Where possible, do not park under trees;
the resinous substance many species re-
lease give the paint a dull appearance and
increase the possibility of triggering rust
processes.
IMPORTANT Bird droppings must be
washed off immediately and thoroughly as
the acid they contain is particularly ag-
gressive.
Detergents cause water pollu-
tion. Therefore the car should
be washed in areas equipped
for collecting and purifying the
liquid used in the washing process.
183-206 Croma TRW GB 20-11-2006 15:03 Pagina 205

206
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
STEERING WHEEL/GEAR LEVER
KNOB WITH GENUINE
LEATHER COVERING
These components shall only be cleaned
with water and neutral soap. Never use
spirit or alcohol-based products.
Before using special products for clean-
ing interiors, read carefully label instruc-
tions and indications to make sure they
are free from spirit and/or alcohol-based
substances.
If when cleaning the windscreen with spe-
cial glass products, some drops fall on the
leather covering of the steering wheel/gear
lever knob remove them immediately and
then clean with water and neutral soap.
IMPORTANT Take the utmost care when
engaging the steering lock to prevent
scratching the leather covering.INTERIOR PLASTIC PARTS
Use appropriate products designed to
preserve the appearance of components.
IMPORTANT Never use spirit or petro-
leum to clean the instrument panel. If the stain persists, use specific products,
carefully following the instructions for use.
IMPORTANT Never use spirit or alcohol-
based products.

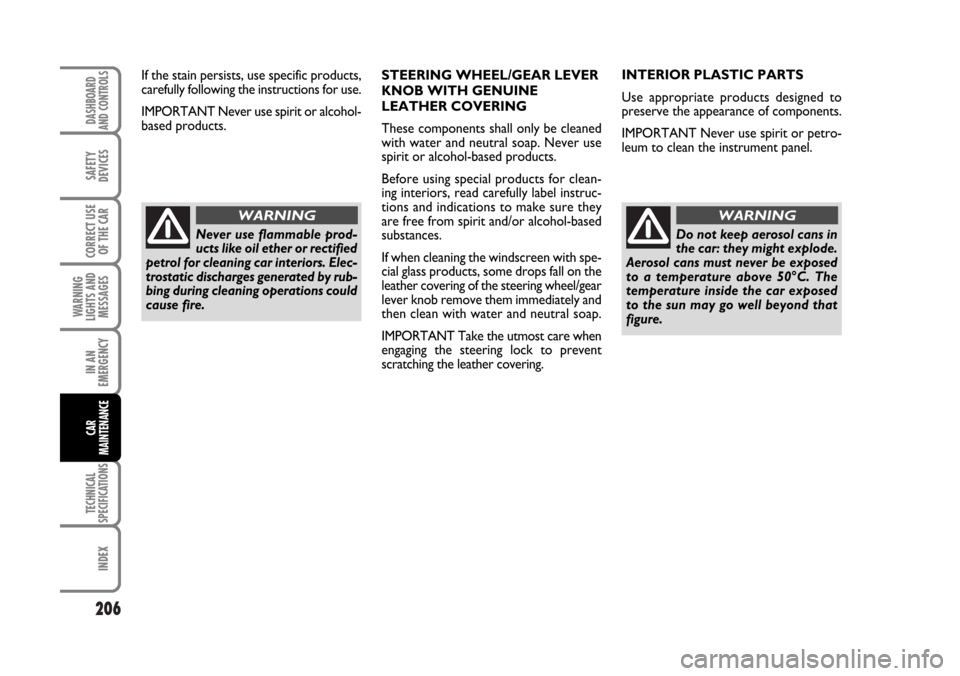

Never use flammable prod-
ucts like oil ether or rectified
petrol for cleaning car interiors. Elec-
trostatic discharges generated by rub-
bing during cleaning operations could
cause fire.
WARNING
Do not keep aerosol cans in
the car: they might explode.
Aerosol cans must never be exposed
to a temperature above 50°C. The
temperature inside the car exposed
to the sun may go well beyond that
figure.
WARNING
183-206 Croma TRW GB 20-11-2006 15:03 Pagina 206

207
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IDENTIFICATION DATA ................................................... 208
ENGINE CODES - BODYWORK VERSIONS ............... 210
ENGINE .................................................................................... 211
FUEL FEED/IGNITION ........................................................ 213
TRANSMISSION .................................................................... 213
BRAKES ..................................................................................... 214
SUSPENSIONS......................................................................... 214
STEERING ................................................................................. 214
WHEELS .................................................................................... 215
DIMENSIONS .......................................................................... 220
PERFORMANCE ..................................................................... 221
WEIGHTS ................................................................................. 222
CAPACITIES............................................................................. 224
FLUIDS AND LUBRICANTS ............................................... 226
FUEL CONSUMPTION ........................................................ 228
CO
2EMISSIONS .................................................................... 230
RADIO FREQUENCY REMOTE CONTROL:
MINISTERIAL CERTIFICATIONS ..................................... 231
T T
E E
C C
H H
N N
I I
C C
A A
L L
S S
P P
E E
C C
I I
F F
I I
C C
A A
T T
I I
O O
N N
S S
207-231 Croma TRW GB 20-11-2006 15:04 Pagina 207

IEngine type.
LBody version code.
MSpare part code.
NSmoke opacity index (for diesel en-
gines).
IDENTIFICATION DATA
You are advised to note the identification
codes. The identification data stamped and
given on the plates and their position are
the following:
❒Model plate
❒Chassis marking
❒Bodywork paint identification plate
❒Engine marking.
208
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
fig. 1F0L0160m
MODEL PLATE fig. 1
The plate is to be found on the front
crossmember of the engine compartment
and bears the following identification da-
ta:
AManufacturer’ name.
BHomologation number.
CVehicle type code.
DChassis number.
EMaximum vehicle weight fully loaded.
FMaximum vehicle weight fully loaded
with trailer.
GMaximum vehicle weight on front axle.
HMaximum vehicle weight on rear axle.
207-231 Croma TRW GB 20-11-2006 15:04 Pagina 208

ENGINE MARKING
Engine marking is stamped on the cylinder
block and includes the model and the
chassis number.
BODYWORK PAINT
IDENTIFICATION PLATE fig. 3
The plate is applied inside the bonnet and
it bears the following data:
APaint manufacturer.
BColour name.
CFiat colour code.
DRespray and touch up code.
209
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CHASSIS MARKING fig. 2
It is printed on the passenger compart-
ment floor, near the right-hand front seat.
It can be reached by lifting the special flap
in the carpeting and includes the following
data:
❒car model;
❒chassis number.
fig. 2F0L0204mfig. 3F0L0161m
207-231 Croma TRW GB 20-11-2006 15:04 Pagina 209

210
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
ENGINE CODES - BODYWORK VERSIONS
Engine code Body version
1.8939A4000 194AXG1A 08B
2.2194A1000 194AXA1A 00B
2.2 a.t.194A1000 194AXA12 01B
1.9 Multijet 8V (with DPF)939A1000 194AXB1B 02
1.9 Multijet 8V (without DPF)939A1000 194AXB1B 02B
1.9 Multijet 8V 115 HP (*)939A7000 194AXE1B
1.9 Multijet 16V (with DPF)939A2000 194AXC1B 03C
1.9 Multijet 16V (without DPF)939A2000 194AXC1B 03D
1.9 Multijet 16Va.t. (with DPF)939A2000 194AXC12 04
1.9 Multijet 16V136 HP (*)939A8000 194AXF1B
2.4 Multijet 20Va.t. (with DPF)939A3000 194AXD12 05
(*) Versions for specific markets
207-231 Croma TRW GB 20-11-2006 15:04 Pagina 210

211
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
ENGINE
1.8 2.2 2.2 a.t.
GENERAL FEATURES
Engine code
Cycle
Number and layout of cylinders
Piston bore and stroke mm
Total displacement cm3
Compression ratio
Maximum power (EEC) kW
HP
corresponding ratio rpm
Maximum torque (EEC) Nm
kgm
corresponding ratio rpm
Spark plugs
Fuel
939A4000
Otto
4 in line
80.5 x 88.2
1796
10.5 : 1
103
140
6300
175
17.8
3800
BOSCH FQR 8 LEU2
Unleaded
petrol 95 RON
(Specification EN228)194A1000
Otto
4 in line
86 x 94.6
2198
10.0 : 1
108
147
5800
203
20.7
4000
AC DELCO HLR8STEX
Unleaded
petrol 95 RON
(Specification EN228)194A1000
Otto
4 in line
86 x 94.6
2198
10.0 : 1
108
147
5800
203
20.7
4000
AC DELCO HLR8STEX
Unleaded
petrol 95 RON
(Specification EN228)
207-231 Croma TRW GB 20-11-2006 15:04 Pagina 211

212
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
GENERAL FEATURES
Engine code
Cycle
Number and layout of cylinders
Piston bore and stroke mm
Total displacement cm3
Compression ratio
Maximum power (EEC) kW
HP
corresponding ratio rpm
Maximum torque (EEC) Nm
kgm
corresponding ratio rpm
Fuel
1.9 Multijet 8V
939A1000
Diesel
4 in line
82 x 90.4
1910
18.0 : 1
88
120
4000
280
28.6
2000
Diesel fuel for
motor vehicles
(Specification EN590)1.9 Multijet
16V
939A2000
Diesel
4 in line
82 x 90.4
1910
17.5 : 1
110
150
4000
320
32.6
2000
Diesel fuel for
motor vehicles
(Specification EN590)1.9 Multijet
16Va.t.
939A2000
Diesel
4 in line
82 x 90.4
1910
17.5 : 1
110
150
4000
320
32.6
2000
Diesel fuel for
motor vehicles
(Specification EN590)2.4 Multijet 20Va.t.
939A3000
Diesel
5 in line
82 x 90.4
2387
17.0 : 1
147
200
4000
400
40.8
2000
Diesel fuel for
motor vehicles
(Specification EN590)
207-231 Croma TRW GB 20-11-2006 15:04 Pagina 212

213
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
Multipoint electronic injectionDirect injection with electronically controlled
Multijet “Common Rail”,
turbosupercharger and intercooler

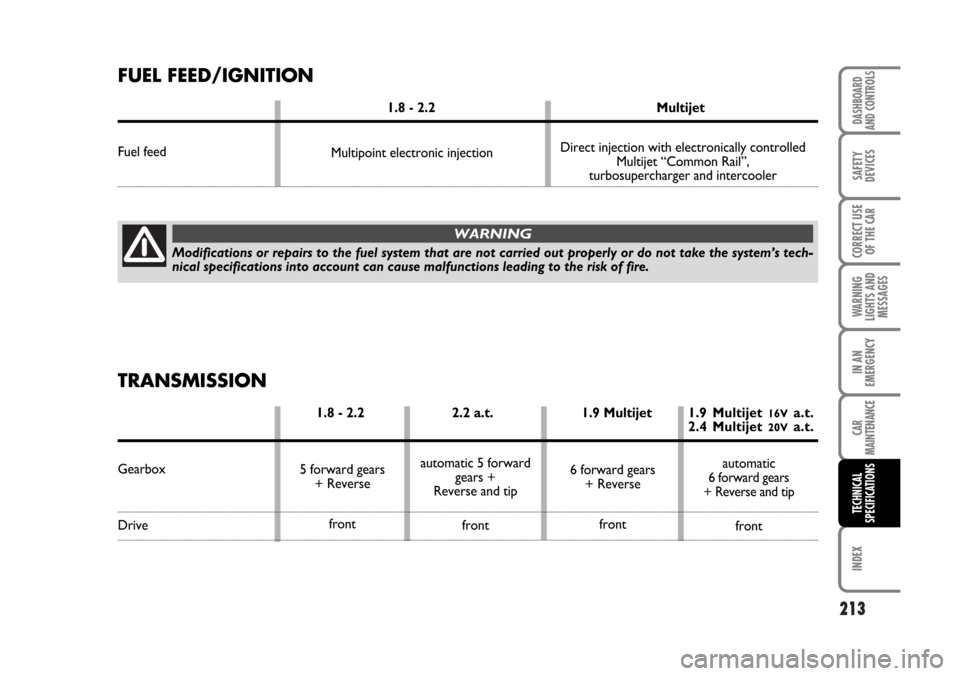

Modifications or repairs to the fuel system that are not carried out properly or do not take the system’s tech-
nical specifications into account can cause malfunctions leading to the risk of fire.
WARNING
TRANSMISSION
1.8 - 2.2 2.2 a.t. 1.9 Multijet1.9 Multijet 16Va.t.2.4 Multijet 20Va.t.
Gearbox
Drive5 forward gears
+ Reverse
frontautomatic 5 forward
gears +
Reverse and tip
front6 forward gears
+ Reverse
frontautomatic
6 forward gears
+ Reverse and tip
front
FUEL FEED/IGNITION
1.8 - 2.2 Multijet
Fuel feed
207-231 Croma TRW GB 20-11-2006 15:04 Pagina 213
