Dear Customer,
Thank you for selecting Fiat and congratulations on your choice of a Fiat Croma.
We have written this handbook to help you get to know all your new Fiat Croma features and use it in the best possible way.
You should read it right through before taking the road for the first time.
You will find information, tips and important warnings regarding the driving of your car to help you derive the maximum from your
Fiat Croma technological features.
You are recommended to read carefully the warnings and indications, marked with the respective symbols, at the end of the page:
personal safety;
the car’s wellbeing;
environmental protection.
The enclosed Warranty Booklet lists the services that Fiat offers to its Customers:
❒ the Warranty Certificate with terms and conditions for maintaining its validity
❒the range of additional services available to Fiat Customers
Best regards and good motoring!
This Owner Handbook describes all Fiat Croma versions. As a consequence, you should consider only
the information which is related to the engine and bodywork version of the car you purchased.
001-030 Croma TRW GB 20-11-2006 14:58 Pagina 1
Page 2 of 240
MUST BE READ!
K
REFUELLING
Petrol engines: only refuel with unleaded petrol with octane rating (RON) not less than 95.
Diesel engines: only refuel with diesel fuel conforming to the European specification EN590.
Using other products or mixtures may damage the engine beyond repair and cause the forfeiture of the warranty cov-
er for caused damages as a consequence.
ENGINE STARTING
Petrol engines: make sure that the handbrake is engaged; set the gearshift lever to neutral (positions P or N with
automatic transmission); fully depress the clutch pedal (or brake pedal with automatic transmission) without press-
ing the accelerator, then turn the ignition key to START and release it as soon as the engine has started.
Diesel engines: make sure that the handbrake is engaged; set the gearshift lever to neutral (positions P or N with
automatic transmission); fully depress the clutch pedal (or brake pedal with automatic transmission) without press-
ing the accelerator, then turn the ignition key to ON and wait for the
Yand mwarning lights to go off; turn the
ignition key to START and release it as soon as the engine has started.
PARKING ON FLAMMABLE MATERIAL
While working, the catalyst develops a very high temperature. Do not park the car over grass, dry leaves, pine nee-
dles or any other inflammable materials: risk of fire.
RESPECTING THE ENVIRONMENT
The car is fitted with a system that allows continuous diagnosis of the components correlated with emissions to en-
sure better respect for the environment.
001-030 Croma TRW GB 20-11-2006 14:58 Pagina 2
Page 3 of 240

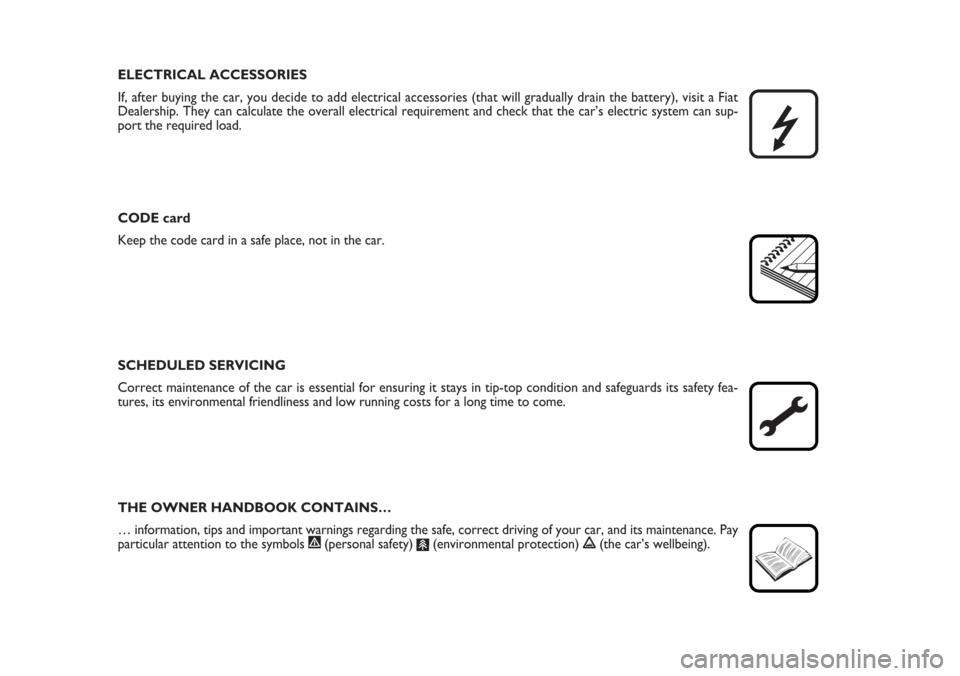

ELECTRICAL ACCESSORIES
If, after buying the car, you decide to add electrical accessories (that will gradually drain the battery), visit a Fiat
Dealership. They can calculate the overall electrical requirement and check that the car’s electric system can sup-
port the required load.
CODE card
Keep the code card in a safe place, not in the car.
SCHEDULED SERVICING
Correct maintenance of the car is essential for ensuring it stays in tip-top condition and safeguards its safety fea-
tures, its environmental friendliness and low running costs for a long time to come.
THE OWNER HANDBOOK CONTAINS…
… information, tips and important warnings regarding the safe, correct driving of your car, and its maintenance. Pay
particular attention to the symbols
"(personal safety) #(environmental protection) !(the car’s wellbeing).
001-030 Croma TRW GB 20-11-2006 14:58 Pagina 3
Page 4 of 240
4
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLSDASHBOARD ........................................................................ 5
INSTRUMENT PANEL ......................................................... 6
SYMBOLS ................................................................................. 7
THE FIAT CODE SYSTEM ................................................... 7
THE KEYS ................................................................................ 8
ALARM ..................................................................................... 12
IGNITION SWITCH.............................................................. 17
INSTRUMENTS ....................................................................... 18
SEATS ........................................................................................ 31
HEAD RESTRAINTS .............................................................. 34
STEERING WHEEL ............................................................... 35
REARVIEW MIRRORS ........................................................... 36
HEATING/CLIMATE
CONTROL SYSTEM ............................................................. 39
MANUAL CLIMATE CONTROL SYSTEM .................... 41
AUTOMATIC CLIMATE CONTROL SYSTEM ............ 44
EXTERNAL LIGHTS .............................................................. 54
WINDOW WASHING......................................................... 57
CRUISE CONTROL ............................................................. 60
CEILING LIGHTS .................................................................. 62
CONTROLS ........................................................................... 63
INTERIOR FITTINGS ............................................................ 66SUNROOF................................................................................ 70
DOORS .................................................................................... 73
POWER WINDOWS ........................................................... 74
BOOT ........................................................................................ 76
BONNET .................................................................................. 82
HEADLIGHTS .......................................................................... 85
ABS SYSTEM ........................................................................... 86
ESP SYSTEM ............................................................................ 88
ASR SYSTEM ........................................................................... 89
EOBD SYSTEM ....................................................................... 90
T.P.M.S. SYSTEM .................................................................... 91
SOUND SYSTEM .................................................................... 92
ACCESSORIES PURCHASED BY THE OWNER .......... 93
PARKING SENSORS ............................................................ 94
AT THE FILLING STATION .............................................. 95
PROTECTING THE ENVIRONMENT ............................ 97
DIESEL PARTICULATE FILTER (DPF) ............................. 98
D D
A A
S S
H H
B B
O O
A A
R R
D D
A A
N N
D D
C C
O O
N N
T T
R R
O O
L L
S S
001-030 Croma TRW GB 20-11-2006 14:58 Pagina 4
Page 5 of 240
DASHBOARD
The presence and the position of the instruments and warning lights may vary according to the versions.
1. Side air vent - 2. Left steering column stalk: external lights - 3. Instrument panel and warning lights - 4. Right steering column
stalk: windscreen, rear window wiper and trip computer controls - 5. Central air vents - 6. Sound system - 7. Front passenger air
bag - 8. Glovebox - 9. Heating/ventilation/climate controls - 10. Gearshift lever - 11. Driver’s knees air bag - 12. Driver’s air bag -
13. Cruise control lever - 14. Control unit access door - 15. Control plate.
5
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0L0001mfig. 1
001-030 Croma TRW GB 20-11-2006 14:58 Pagina 5
Page 6 of 240
6
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0L0182m
F0L0140m
INSTRUMENT PANEL
fig. 3 fig. 2
1.8 - 1.9 Multijet 8V versions
ARev counter
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DSpeedometer (speed indicator)
EMultifunction display
2.2 - 1.9 Multijet 16V -
2.4 Multijet 20V versions
ARev counter
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DSpeedometer (speed indicator)
EMultifunction display
mcWarning lights fitted on Multijet ver-
sions
t
Warning light fitted on versions with au-
tomatic transmission
001-030 Croma TRW GB 20-11-2006 14:58 Pagina 6
Page 7 of 240
THE FIAT CODE SYSTEM
To further protect your car from theft, it
has been fitted with an engine immobilising
system. This system is automatically acti-
vated when the ignition key is removed.
An electronic device, in fact, is fitted in each
ignition key grip. The device transmits a ra-
dio-frequency signal when the engine is
started through a special aerial built into the
ignition switch. The modulate signal, which
changes each time the engine is started, is
the “password”, by means of which the
control unit recognises the key and enables
to start the engine.
OPERATION
Each time the key is fitted into the ignition
switch, the Fiat CODE system control unit
sends a recognition code to the engine con-
trol unit to deactivate the inhibitor.
The code is sent only if the Fiat CODE sys-
tem control unit has recognised the code
transmitted from the key.
Each time the ignition key is removed, the
Fiat CODE system deactivates the func-
tions of the engine electronic control unit.
If the code has not been recognised cor-
rectly, the warning light
Yturns on ac-
companied by the related message on the
display (see chapter “Warning lights and
messages”).
SYMBOLS
Special coloured labels have been attached
near or actually on some of the compo-
nents of your car. These labels bear sym-
bols that remind you of the precautions
to be taken as regards that particular com-
ponent.
7
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
The plate summarising the symbols used
can be found under the bonnet fig. 4.
fig. 4F0L0099m
001-030 Croma TRW GB 20-11-2006 14:58 Pagina 7
Page 8 of 240
THE KEYS
CODE CARD fig. 5
The car is delivered with two copies of the
ignition key and with the CODE card
which bears the following:
❒the electronic code A
❒the mechanical key code Bto be giv-
en to the Fiat Dealership when order-
ing duplicate keys.
IMPORTANT In order to ensure perfect
efficiency of the electronic devices con-
tained inside the keys, they should never be
exposed to direct sunlight.
8
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
All the keys and the CODE
card must be handed over to
the new owner when selling
the car.
The electronic components in-
side the key may be damaged
if the key is submitted to sharp
knocks.
In this case, the key should be removed and
refitted; if the lock continues, possibly try
again with the other key provided with the
car. If it is still not possible to start the car
contact a Fiat Dealership.
IMPORTANT Every key has its own code,
which must be memorised by the system
control unit. To memorise new keys, up to
a maximum of eight, apply to Fiat Dealer-
ship.
Warning light
Ycoming on when
driving
❒If the warning light Yturns on, this
means that the system is running a self-
test (for example for a voltage drop).
At the first stop, turn the ignition key
to OFF and then back to ON: if no
failure is detected warning light
Ywill not come on.
❒If the warning light Ystays on, re-
peat the procedure described previ-
ously leaving the key at OFFfor over
30 seconds. Should the inconvenience
persists, contact a Fiat Dealership.
fig. 5F0L0002m
001-030 Croma TRW GB 20-11-2006 14:58 Pagina 8
Page 9 of 240
KEY WITH REMOTE CONTROL
fig. 6
This key operates the ignition switch.
Button Ëshall be used for remote open-
ing of doors and tailgate and for remote
deactivation of the alarm (where provid-
ed).
Button Áshall be used for remote lock-
ing of doors and tailgate and for remote
activation of the alarm (where provided).
Button Rshall be used for remote
opening of the tailgate.
When unlocking the doors, the passen-
ger’s compartment lights will come on for
a preset time.
fig. 6F0L0100m
9
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Opening the doors and the tailgate
Briefly press button Ëfor remote un-
locking of doors, tailgate and fuel filler cap
and simultaneous alarm (where provided)
deactivation, timed switching on of the in-
ternal ceiling lights and double flashing of
direction indicators.
Press button Ëfor more than 2 seconds
to open the windows.
Doors will be unlocked automatically if the
fuel inertial cut-off switch comes into op-
eration.
The “Set-up menu” on the display (see
paragraph “Multifunction display”) enables
to set the system so that by pressing but-
ton Ë, only the driver’s door is unlocked.
In this event, to unlock the other doors
press quickly button Ëtwice.
IMPORTANT If the remote control does
not work properly, it is still possible to
carry out the emergency opening proce-
dure by using the metal insert set inside
the remote control (see “Emergency
opening using the metal insert of the key”).Locking the doors and the tailgate
Briefly press button Áfor remote lock-
ing of doors, tailgate and fuel filler cap and
simultaneous alarm (where provided) ac-
tivation, switching off of the internal ceil-
ing lights and single flashing of direction in-
dicators.
Press button Áfor more than 2 seconds
to close the windows. If the button is
briefly pressed twice, the dead lock device
is activated (see paragraph “Dead lock de-
vice”).
IMPORTANT If the remote control does
not work properly, it is still possible to
lock the car doors by following the pro-
cedure described in paragraph “Emer-
gency closing”
001-030 Croma TRW GB 20-11-2006 14:58 Pagina 9
Page 10 of 240
Used batteries are harmful to
the environment. They should
be disposed of as specified by
law in the special containers
provided, or take them to a Fiat Deal-
ership, which will deal with their dis-
posal.
10
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Opening the tailgate
by the remote control
Press button
Rto open the tailgate by
remote control even if the alarm (where
provided) is on.
Opening the tailgate is accompanied by the
direction indicators flashing twice; clos-
ing is accompanied by a single flash (only
if the alarm is on).
If the alarm is on, when the tailgate is
opened the alarm system switches off vol-
umetric protection and the tailgate
perimetral protection sensor.
When closing the tailgate again, volumet-
ric and perimetral protection sensors are
restored.
IMPORTANT If the remote control does
not work properly, it is however possi-
ble to open the tailgate through the me-
chanical lever set on the lock inside the
boot (see paragraph “Boot” in this sec-
tion).Leds on the driver’s door fig. 7
When locking the doors, led Aswitches
on for about 3 seconds and than starts
flashing (deterrence function).
Once doors are locked, if one or more
doors or the tailgate are not closed cor-
rectly, the led and direction indicators
start flashing quickly.
Replacing the battery of the key
with remote control fig. 8
To replace the battery, proceed as follows:
❒move aside lever Aand take out the
emergency metal insert B;
❒take out the battery case Cusing the
emergency metal insert, move aside
battery Dand replace it making sure
the bias is correct;
❒refit the battery case Cand the emer-
gency metal insert Binside the key.Request for additional remote
controls
The system can recognise up to 8 keys with
incorporated remote control. Should a new
key with remote control be necessary, con-
tact a Fiat Dealership, taking with you the
CODE card and the keys, a personal iden-
tity document and the car’s ownership doc-
uments.
fig. 7F0L0054mfig. 8F0L0101m
001-030 Croma TRW GB 20-11-2006 14:58 Pagina 10
