131IN AN EMERGENCY
TYPES OF BULBS
Several types of bulbs are installed in
the vehicle fig. 17:
A Glass bulbs
Clipped into position.
To remove them, pull.B Bayonet connection bulbs
Remove from the bulb holder by
pressing the bulb and turning it
anticlockwise.
C Cylindrical bulbs
Remove by pulling away from
terminals.D-E Halogen bulbs
To remove the bulb, release
the clip holding the bulb in
place.
A
B
C
E
D
fig. 17
F0A098b
Fig. 17
E
D
A
B
A
E
B
B
B
B
B
A
C
APower
55W
55W
5W
21W
5W
55W
21/5W
21W
21W
21W
21W
5W
10W
10W
5W Type
H1
H7
W5W
PY21W
W5W
H1
P21W/5W
P21W
PY21W
P21W
P21W
W5W
C10W
W5WBulb
Main beam headlights
Dipped beam headlights
Front sidelights
Front direction indicators
Side direction indicators
Front fog lights
Taillights and brake lights
Third brake light
(supplementary brake lights)
Rear direction indicators
Reversing light
Rear fog light
Number plate light
Ceiling light:
– with toggle lens
– with map reading light
Boot

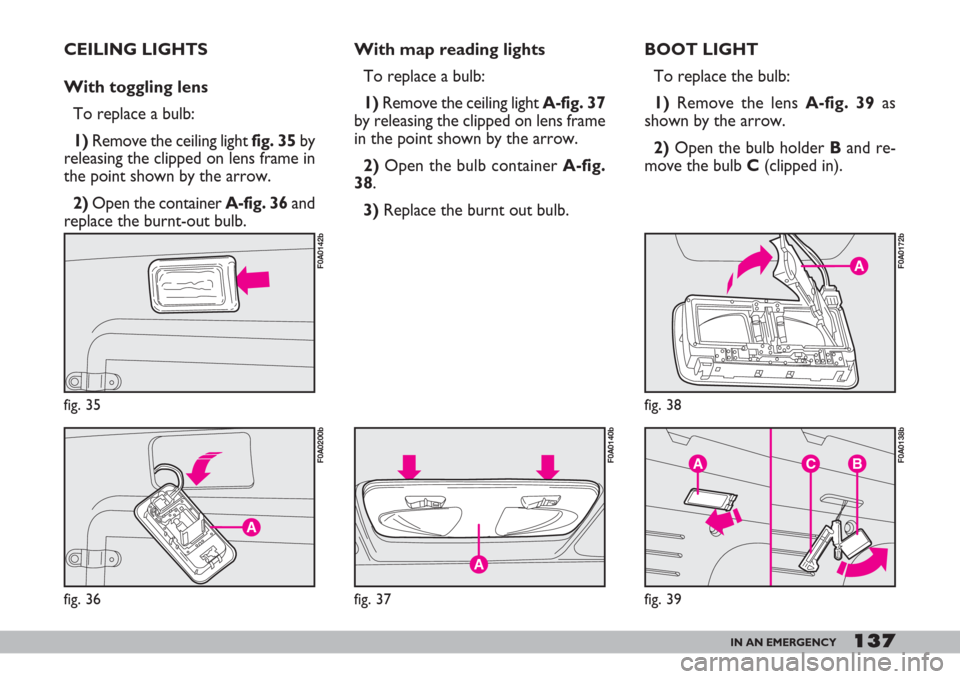

137IN AN EMERGENCY
CEILING LIGHTS
With toggling lens
To replace a bulb:
1)Remove the ceiling lightfig. 35by
releasing the clipped on lens frame in
the point shown by the arrow.
2)Open the container A-fig. 36and
replace the burnt-out bulb.With map reading lights
To replace a bulb:
1)Remove the ceiling lightA-fig. 37
by releasing the clipped on lens frame
in the point shown by the arrow.
2)Open the bulb container A-fig.
38.
3)Replace the burnt out bulb.BOOT LIGHT
To replace the bulb:
1)Remove the lens A-fig. 39as
shown by the arrow.
2)Open the bulb holder Band re-
move the bulb C(clipped in).
fig. 35
F0A0142b
A
fig. 36
F0A0200b
A
fig. 37
F0A0140b
A
fig. 38
F0A0172b
ABC
fig. 39
F0A0138b

141IN AN EMERGENCY
FUSE SUMMARY TABLE
10
10
10
10
10
10
15
10
7.5
15
10
10
10
7.5
10
7.5
10
20
7.5
40
70
40
20
20
20
20
15
7.5
7.5 F14
F15
F12
F13
F42
F53
F30
F53
F51
F32
F42
F37
F53
F31
F37
F51
F37
F44
F50
F02 – MAXI FUSE
F01 – MAXI FUSE
F04 – MAXI FUSE
F48
F47
F38
F22
F11
F42
F18 42
42
41
41
41
41
42
41
41
41
41
41
41
41
41
41
41
41
41
42
42
42
41
41
41
42
42
41
42
Figure Fuse Ampere
Right-hand main beam
Left-hand main beam
Right-hand dipped beam
Left-hand dipped beam
Boot
Hazard lights
Front fog lights
Direction indicators
Dashboard instrument lights
Light system
Ceiling light
Instrument panel and warning lights (ignition switch powered)
Instrument panel and warning lights (battery powered)
Reversing light
Brake lights
Number plate light
Additional brake light (third stop light)
Cigar lighter
Air bag
Dashboard control unit power: optional functions
Dashboard control unit power: standard functions
ABS power (pump)
Right front power window
Left front power window
Door locking system
Ignition coils
Engine control system secondary loads
ABS control unit (ignition switch powered)
Engine control unit (+battery)

150VEHICLE MAINTENANCE
thousands of kilometres
Check tyre conditions / wear and adjust pressure, if required
Check lighting system operation (headlights, direction indicators,
hazard lights, boot light, passenger's compartment lights,
glove compartment light, instrument panel warning lights, etc.)
Check windscreen wiper/washer operation, adjust nozzles
Check windscreen/rear window wiper blade position/wear
Check front disk brake pad conditions and wear
Check rear drum brake lining conditions and wear
Inspect conditions of: underbody protection, piping (exhaust -
fuel feed and brakes), rubber parts (boots, sleeves, bushings, etc.),
fuel feed and braking system hosing
Check cleanness of locks, bonnet and boot and lever
cleanness and lubrication
Sight inspect accessory drive belt conditions
Replace accessory drive belts
Check/adjust tappet clearance (1.4 8V and 1.9 Multijet versions)
Check and adjust handbrake lever stroke
Check exhaust gas/smokiness (diesel versions)
Check anti-evaporation system
Replace fuel filter (Multijet versions)
SERVICE SCHEDULE
The scheduled service must be carried out every 20,000 km.
20 40 60 80 100 120 140 160 180
●●●●●●●●●
●●●●●●●●●
●●●●●●●●●
●●●●●●●●●
●●●●●●●●●
●●●
●●●●●●●●●
●●●●●●●●●
●●
●
●●●
●●●●
●●●●
●●
●●●

152VEHICLE MAINTENANCE
ANNUAL
INSPECTION
SCHEDULE
For vehicles with an annual
mileage of below 20.000 km (for
example about 10.000 km) the
following yearly inspection pro-
gramme is advised:
– check tyre conditions/wear and ad-
just pressure if required (including the
spare wheel).
– check light system operation (head-
lights, direction indicators, hazard
lights, boot lights, passenger compart-
ment lights, glovebox light, warning
lights, etc.).
– check windscreen wiper/washer
operation, adjust nozzles.
– check windscreen/rear window
blade position/wear
– check front disk brake pad condi-
tions and wear.– check cleanness of bonnet and
boot locks and lever cleanness and lu-
brication
– sight inspect the conditions of: en-
gine, gearbox, transmission, pipes and
hoses (exhaust - fuel - brakes), rubber
parts (boots, sleeves, bushes, etc)
brake and fuel hoses.
– check battery charge.
– visual check on various drive belt
conditions.
– check and top up, if required, fluid
levels (engine coolant, brake fluid,
windscreen washer fluid, battery fluid,
etc.).
– change engine oil.
– change engine oil filter.
– replace pollen filter (where pro-
vided).
ADDITIONAL
CHECKS
Every 1,000 kmor before long
trips, check and top up as necessary:
engine coolant level, brake fluid level,
windscreen washer liquid level, tyre
pressure and conditions.
Every 3,000 km check and top up
as necessary: engine oil level.
You are recommended to use FL
Selenia,products designed and pro-
duced specifically for Fiat vehicles (see
“Capacities” in section “Technical
specifications”).

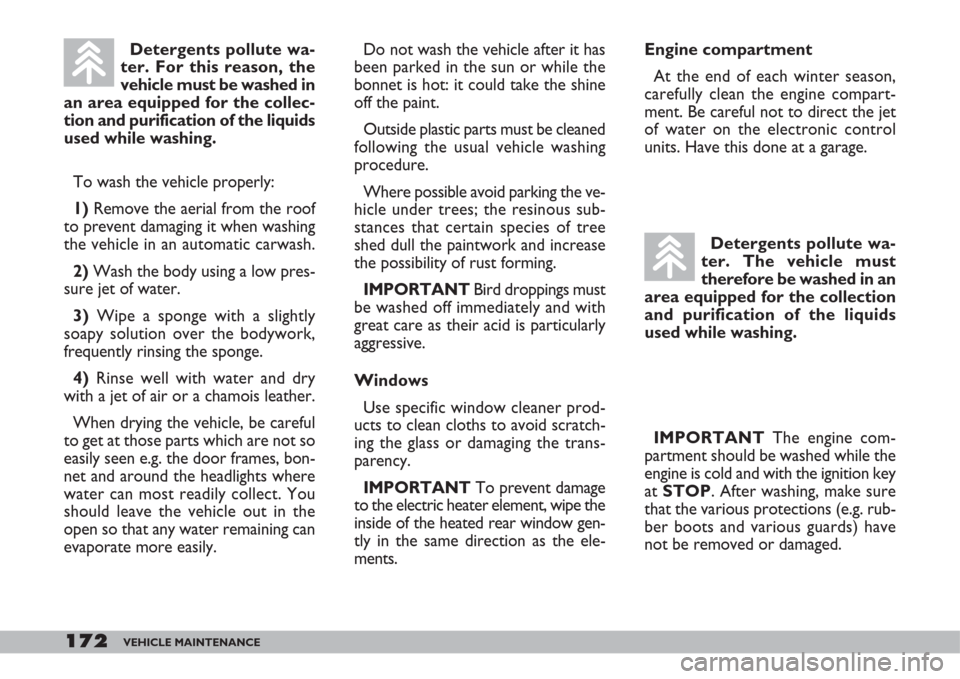

172VEHICLE MAINTENANCE
Detergents pollute wa-
ter. The vehicle must
therefore be washed in an
area equipped for the collection
and purification of the liquids
used while washing.
IMPORTANT The engine com-
partment should be washed while the
engine is cold and with the ignition key
at STOP. After washing, make sure
that the various protections (e.g. rub-
ber boots and various guards) have
not be removed or damaged. To wash the vehicle properly:
1) Remove the aerial from the roof
to prevent damaging it when washing
the vehicle in an automatic carwash.
2) Wash the body using a low pres-
sure jet of water.
3)Wipe a sponge with a slightly
soapy solution over the bodywork,
frequently rinsing the sponge.
4)Rinse well with water and dry
with a jet of air or a chamois leather.
When drying the vehicle, be careful
to get at those parts which are not so
easily seen e.g. the door frames, bon-
net and around the headlights where
water can most readily collect. You
should leave the vehicle out in the
open so that any water remaining can
evaporate more easily.Detergents pollute wa-
ter. For this reason, the
vehicle must be washed in
an area equipped for the collec-
tion and purification of the liquids
used while washing.
Engine compartment
At the end of each winter season,
carefully clean the engine compart-
ment. Be careful not to direct the jet
of water on the electronic control
units. Have this done at a garage. Do not wash the vehicle after it has
been parked in the sun or while the
bonnet is hot: it could take the shine
off the paint.
Outside plastic parts must be cleaned
following the usual vehicle washing
procedure.
Where possible avoid parking the ve-
hicle under trees; the resinous sub-
stances that certain species of tree
shed dull the paintwork and increase
the possibility of rust forming.
IMPORTANTBird droppings must
be washed off immediately and with
great care as their acid is particularly
aggressive.
Windows
Use specific window cleaner prod-
ucts to clean cloths to avoid scratch-
ing the glass or damaging the trans-
parency.
IMPORTANTTo prevent damage
to the electric heater element, wipe the
inside of the heated rear window gen-
tly in the same direction as the ele-
ments.

186TECHNICAL SPECIFICATIONS
PERFORMANCE
Top admitted speed after running-in,
in km/h:
1.4 .................................................... 148
1.4 high roof................................ 145
1.4 7 plae ...................................... 145
1.3 Multijet 75 HP.................. 146
1.3 Multijet 85 HP.................. 153
1.3 Multijet 85 HP
high roof...................................... 150
1.3 Multijet 85 HP 7 place.... 150
1.9 Multijet 100/105 HP........ 168
1.9 Multijet 120 HP................ 175
1.9 Multijet 120 HP
high roof .................................... 172
1.9 Multijet 120 HP 7 place.. 172
DIMENSIONS
fig. 6
F0A0721b
Dimensions are expressed in mm.
Height is intended on an unladen ve-
hicle
Unladen boot volume (Fiat Doblò
Cargo versions): 3,2 m
3.Unladen boot volume (Fiat Doblò
Passengers Transport versions):
– standard conditions 750 dm
3;
– with rear table seat tilted 3000 dm
3.

208INDEX
I I
N N
D D
E E
X X
- recharging ................................ 144
- replacing ................................... 164
Bodywork
- maintenance ............................ 171
- version codes .......................... 176
Bodywork paint plate .................. 175
Bonnet ............................................ 85
Boot
- anchoring the load .................. 84
- extending .................................. 80
- opening and closing ................ 79
Boot light........................................ 134
Brake fluid level ............................ 160
Brake lights .................................... 134
Brakes
- fluid level ................................... 160
- service and emergency .......... 181
Bulb (replacement) ...................... 130
- bulb types.................................. 131
- general instructions ................ 130
Capacities ..................................... 200Catalytic converter
(oxidising) .................................... 104
Catalytic converter
(three way) .................................. 104
Ceiling light .................................... 66
- control ....................................... 67
- replacement.............................. 137
Cellular telephone setup ............ 99
Central side windows ................. 72
Checking the levels ...................... 154
Child lock
(device)......................................... 77
Cigar lighter ................................. 70
Clutch ............................................ 182
- fluid level .................................. 160
CO
2emissions at exhaust ......... 205
Containing running costs and
pollution ....................................... 110
Control buttons ........................... 68
Dashboard................................... 21
Demisting
- electric mirrors ....................... 61
- front side windows ................. 60
ABS .............................................. 89
Accessories purchased
by the owner .............................. 100
- installation of
electric/electronic devices .... 100
- radio transmitters and
cellular telephones .................. 100
Air filter
- replacement ............................ 162
Air recirculation ........................... 61
Air vents ......................................... 58
Airbags (front and side) .............. 91
- general warnings...................... 94
- passenger airbag manual
deactivation .............................. 93
Annual inspection schedule ....... 152
Ashtray
- front ........................................... 71
At the filling station ..................... 102
Battery
- fluid level (electrolyte) .......... 163
- jump starting ............................ 144

209INDEX
- rear window ............................. 61
- windscreen ............................... 60
Digital clock .......................... 26-27
Dimensions ................................... 187
Direction indicators
- control ...................................... 64
- front bulb replacement .......... 133
- rear bulb replacement ........... 134
- side bulb replacement ............ 134
Door lock/unlock
remote control ............................. 8
Double ladder (partitions) ......... 51
Driver’s protection ladder
(partitions)................................... 51
Driving your vehicle .................... 106
EBD electronic brake force
distributor ................................... 90
Electric windows .......................... 74
Electronic brake force
distributor EBD .......................... 90
Electronic control units .............. 166
Engine
- fuel feed ..................................... 181
- identification code .................. 176
- ignition ...................................... 181
- specifications ............................ 179Engine compartment
- washing ...................................... 172
Engine coolant gauge ................... 25
Engine coolant level ..................... 159
Engine oil
- checking the level.................... 157
- consumption............................. 158
- specifications ............................ 202
Engine oil level .............................. 157
EOBD system................................ 97
Evaporation system...................... 104
Exhaust gas recirculation ............ 104
Extending the boot ...................... 80
Fiat CODE system ..................... 6
First aid kit ..................................... 148
Follow me home ......................... 66
Front doors ................................... 74
Front foglights
- bulb replacement ................... 133
- control button ......................... 68
Fuel
- at the filling station ................. 102
- capacities .................................. 200
- fuel cut-off switch ................... 69
- gauge .......................................... 25
Fuel cap........................................... 103Fuel consumption ......................... 204
Fuel cut-off switch........................ 69
Fuses
- dashboard fusebox.................. 139
- engine compartment
fusebox ...................................... 140
- replacement.............................. 138
- table............................................ 141
Gearbox
- gearbox use .............................. 109
- technical characteristics ........ 182
Getting to know your vehicle ... 6
Glove compartment .................... 69
Handbrake .......................... 107-182
Hazard lights.................................. 68
Headlight beam corrector.......... 88
Headlight slant
(electrical corrector) ................ 88
Headlights
- adjusting the headlights
abroad........................................ 89
- beam corrector ....................... 88
- beam direction......................... 89
- slant compensation ................. 88
Head restraints
