FIAT DOBLO 2007 1.G Radio CD MP3 Manual

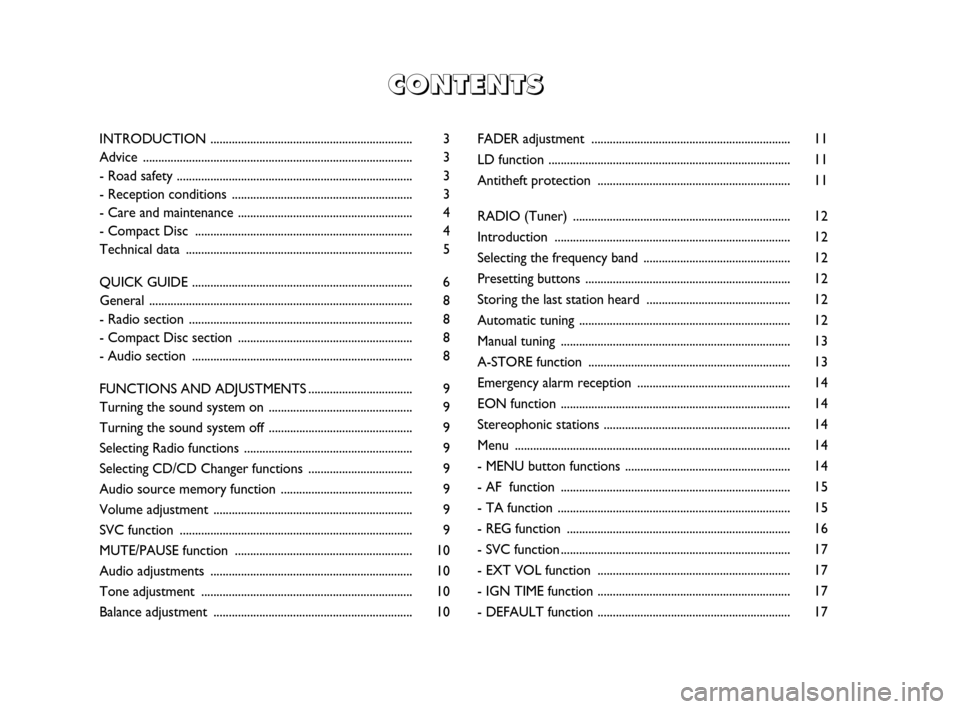

FADER adjustment ................................................................. 11
LD function ............................................................................... 11
Antitheft protection ............................................................... 11
RADIO (Tuner) ....................................................................... 12
Introduction ............................................................................. 12
Selecting the frequency band ................................................ 12
Presetting buttons ................................................................... 12
Storing the last station heard ............................................... 12
Automatic tuning ..................................................................... 12
Manual tuning ........................................................................... 13
A-STORE function .................................................................. 13
Emergency alarm reception .................................................. 14
EON function ........................................................................... 14
Stereophonic stations ............................................................. 14
Menu .......................................................................................... 14
- MENU button functions ...................................................... 14
- AF function ........................................................................... 15
- TA function ............................................................................ 15
- REG function ......................................................................... 16
- SVC function........................................................................... 17
- EXT VOL function ............................................................... 17
- IGN TIME function ............................................................... 17
- DEFAULT function ............................................................... 17
C
C C C
O O O O
N N N N
T T T T
E E E E
N N N N
T T T T
S S S S
INTRODUCTION .................................................................. 3
Advice ........................................................................................ 3
- Road safety ............................................................................. 3
- Reception conditions ........................................................... 3
- Care and maintenance ......................................................... 4
- Compact Disc ....................................................................... 4
Technical data .......................................................................... 5
QUICK GUIDE ........................................................................ 6
General ...................................................................................... 8
- Radio section ......................................................................... 8
- Compact Disc section ......................................................... 8
- Audio section ........................................................................ 8
FUNCTIONS AND ADJUSTMENTS.................................. 9
Turning the sound system on ............................................... 9
Turning the sound system off ............................................... 9
Selecting Radio functions ....................................................... 9
Selecting CD/CD Changer functions .................................. 9
Audio source memory function ........................................... 9
Volume adjustment ................................................................. 9
SVC function ............................................................................ 9
MUTE/PAUSE function .......................................................... 10
Audio adjustments .................................................................. 10
Tone adjustment ..................................................................... 10
Balance adjustment ................................................................. 10
603_83_533 Radio Doblo GB 15-06-2007 11:49 Pagina 1

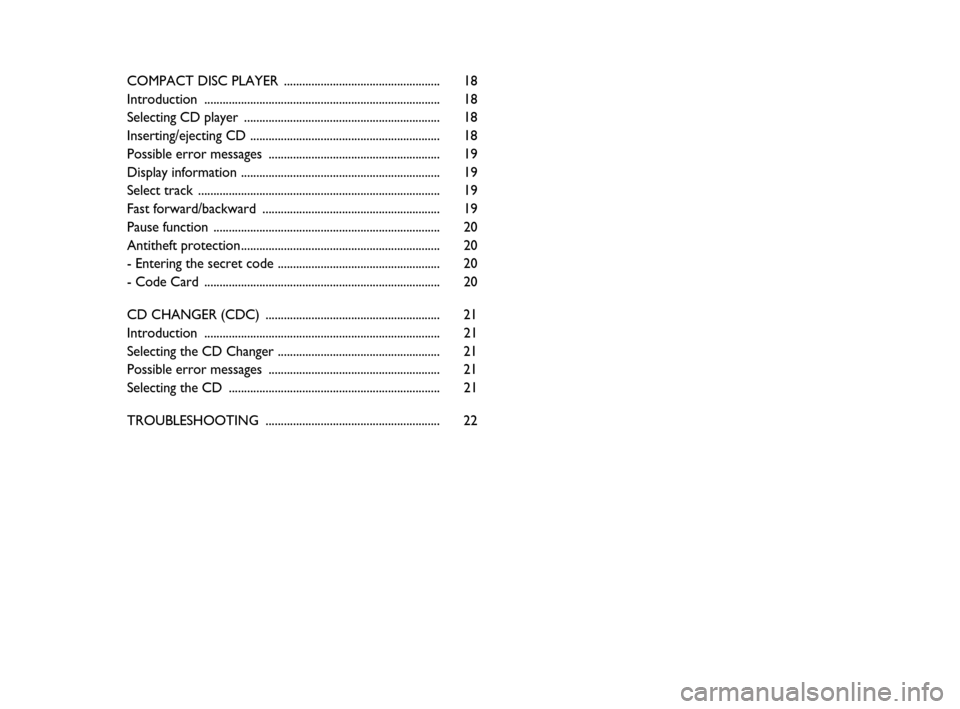

COMPACT DISC PLAYER ................................................... 18
Introduction ............................................................................. 18
Selecting CD player ................................................................ 18
Inserting/ejecting CD .............................................................. 18
Possible error messages ........................................................ 19
Display information ................................................................. 19
Select track ............................................................................... 19
Fast forward/backward .......................................................... 19
Pause function .......................................................................... 20
Antitheft protection................................................................. 20
- Entering the secret code ..................................................... 20
- Code Card ............................................................................. 20
CD CHANGER (CDC) ......................................................... 21
Introduction ............................................................................. 21
Selecting the CD Changer ..................................................... 21
Possible error messages ........................................................ 21
Selecting the CD ..................................................................... 21
TROUBLESHOOTING ......................................................... 22
603_83_533 Radio Doblo GB 15-06-2007 11:49 Pagina 2

3
QUICK
GUIDE
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
CD
CHANGER
INTRODUCTIONADVICE
Road safety
You are advised to learn how to use the
various radio functions (e.g.: storing sta-
tions) before starting to drive.
Reception conditions
Reception conditions change constantly
when driving. Reception may be disturbed
by the presence of mountains, buildings or
bridges particularly when far away from
the station being listened to.
IMPORTANT When receiving traffic in-
formation, the volume may be higher than
normal.
I I I I
N N N N
T T T T
R R R R
O O O O
D D D D
U U U U
C C C C
T T T T
I I I I
O O O O
N N N N

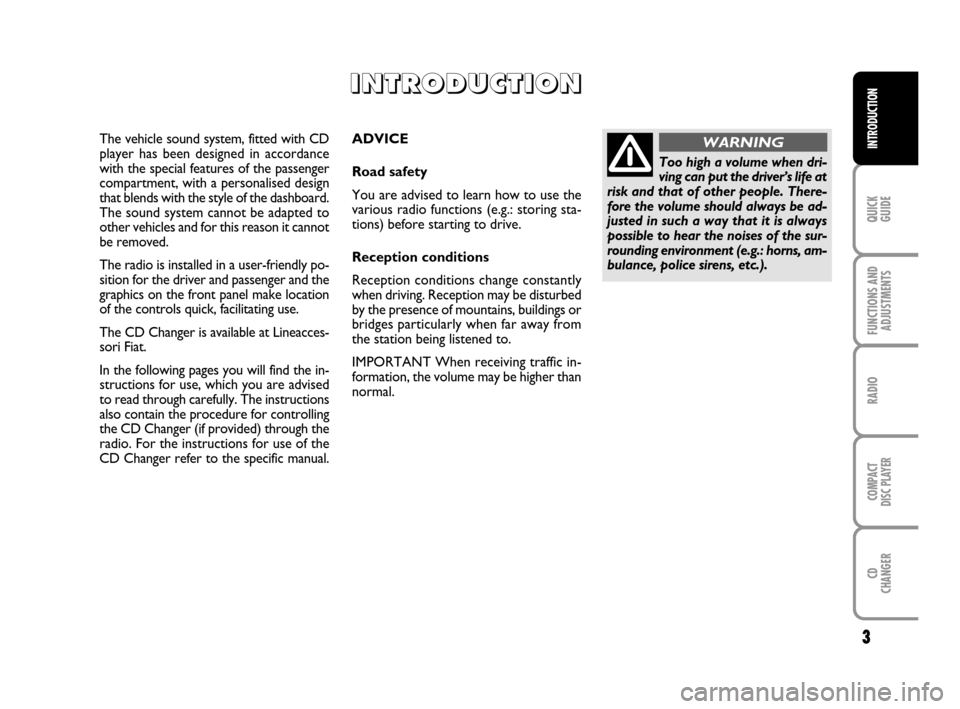

The vehicle sound system, fitted with CD
player has been designed in accordance
with the special features of the passenger
compartment, with a personalised design
that blends with the style of the dashboard.
The sound system cannot be adapted to
other vehicles and for this reason it cannot
be removed.
The radio is installed in a user-friendly po-
sition for the driver and passenger and the
graphics on the front panel make location
of the controls quick, facilitating use.
The CD Changer is available at Lineacces-
sori Fiat.
In the following pages you will find the in-
structions for use, which you are advised
to read through carefully. The instructions
also contain the procedure for controlling
the CD Changer (if provided) through the
radio. For the instructions for use of the
CD Changer refer to the specific manual.
Too high a volume when dri-
ving can put the driver’s life at
risk and that of other people. There-
fore the volume should always be ad-
justed in such a way that it is always
possible to hear the noises of the sur-
rounding environment (e.g.: horns, am-
bulance, police sirens, etc.).
WARNING
603_83_533 Radio Doblo GB 15-06-2007 11:49 Pagina 3

QUICK
GUIDE
4
FFUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
CD
CHANGER
INTRODUCTION
❒Carefully clean all Compact Discs of fin-
gerprints and dust using a soft cloth. Sup-
port Compact Discs from the outer cir-
cumference and clean from the centre
outwards;
❒Never use chemical products for clean-
ing (e.g.: spray cans, antistatic or thin-
ners) as they might damage the surface
of Compact Discs;
❒After use, put Compact Discs back in
their container, to avoid marks or
scratches that may cause skipping when
playing;
❒Do not expose Compact Discs to direct
sunlight, high temperatures or damp for
prolonged lengths of time to prevent
them from bending;
❒Do not stick labels or write on the
recorded surface of Compact Discs.To remove a Compact Disc from its con-
tainer, press the centre and raise the disc
carefully, holding it by the outer circum-
ference.
Always hold Compact Discs by the outer
circumference. Never touch the surface.
To remove fingerprints and dust, use a
soft cloth starting from the centre of the
Compact Disc outwards.
Do not use highly scratched, cracked, or
distorted discs, etc. The use of these discs
will involve malfunctioning or damage to
the player.
For optimal playing use original CDs only.
Regular operation is not guaranteed if us-
ing R/RW CDs not properly mastered
and/or CDs with max. capacity higher than
650 MB.
IMPORTANT Do not use the protective
sheets for CD in commerce or discs with
stabilisers, etc. as they might get stuck in
the internal mechanism and damage the

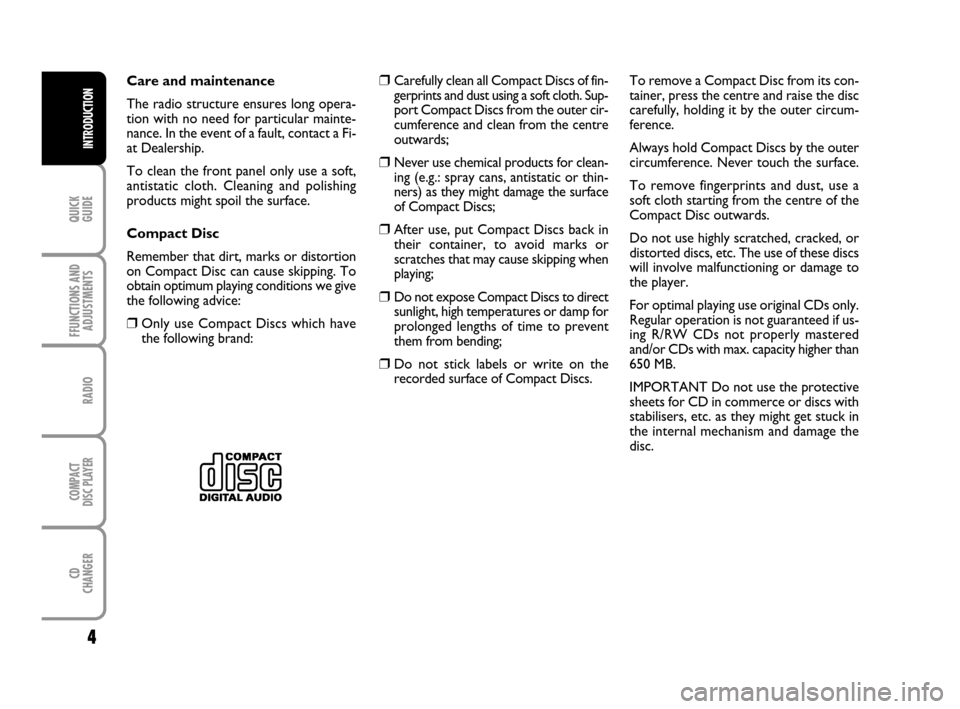

disc. Care and maintenance
The radio structure ensures long opera-
tion with no need for particular mainte-
nance. In the event of a fault, contact a Fi-
at Dealership.
To clean the front panel only use a soft,
antistatic cloth. Cleaning and polishing
products might spoil the surface.
Compact Disc
Remember that dirt, marks or distortion
on Compact Disc can cause skipping. To
obtain optimum playing conditions we give
the following advice:
❒Only use Compact Discs which have
the following brand:
603_83_533 Radio Doblo GB 15-06-2007 11:49 Pagina 4

5
QUICK
GUIDE
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
CD
CHANGER
INTRODUCTION
IMPORTANT The CD player can read
most of the compression systems cur-
rently on sale (e.g.: LAME, BLADE, XING,
FRAUNHOFER) however, due to the
evolution of these systems, reading of all
compression formats is not guaranteed.
IMPORTANT When loading a multi-ses-
sion CD, only the first session will be

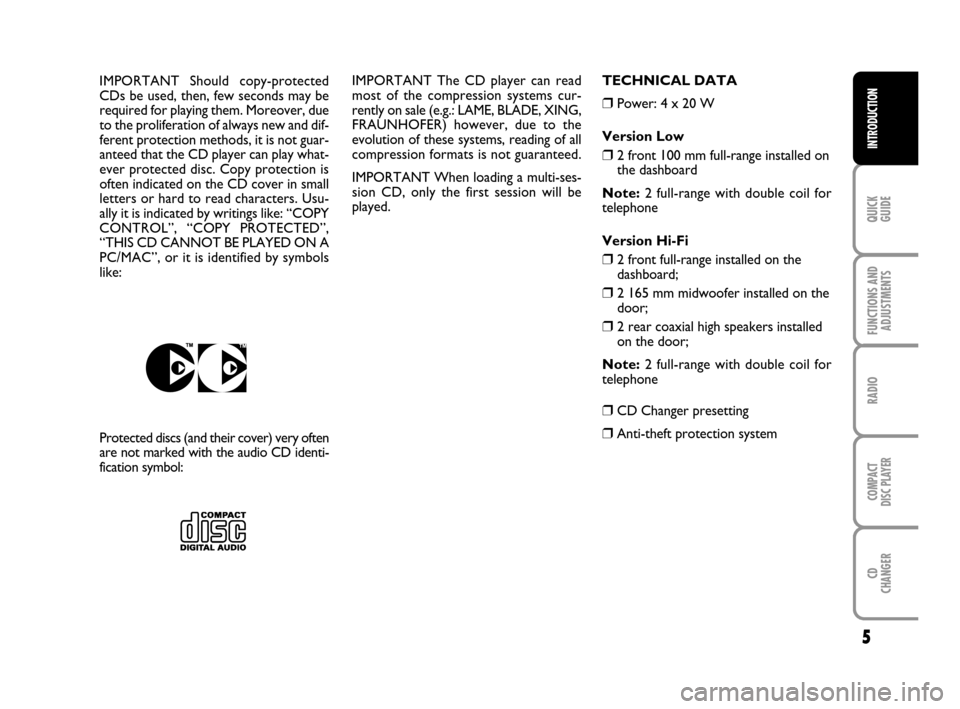

played. IMPORTANT Should copy-protected
CDs be used, then, few seconds may be
required for playing them. Moreover, due
to the proliferation of always new and dif-
ferent protection methods, it is not guar-
anteed that the CD player can play what-
ever protected disc. Copy protection is
often indicated on the CD cover in small
letters or hard to read characters. Usu-
ally it is indicated by writings like: “COPY
CONTROL”, “COPY PROTECTED”,
“THIS CD CANNOT BE PLAYED ON A
PC/MAC”, or it is identified by symbols
like:TECHNICAL DATA
❒Power: 4 x 20 W
Version Low
❒2 front 100 mm full-range installed on
the dashboard
Note:2 full-range with double coil for
telephone
Version Hi-Fi
❒2 front full-range installed on the
dashboard;
❒2 165 mm midwoofer installed on the
door;
❒2 rear coaxial high speakers installed
on the door;
Note:2 full-range with double coil for
telephone
❒CD Changer presetting
❒Anti-theft protection systemProtected discs (and their cover) very often
are not marked with the audio CD identi-
fication symbol:
603_83_533 Radio Doblo GB 15-06-2007 11:49 Pagina 5

6
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
CD
CHANGER
INTRODUCTION
QUICK
GUIDE
Q Q Q Q
U U U U
I I I I
C C C C
K K K K

G G G G
U U U U
I I I I
D D D D
E E E E

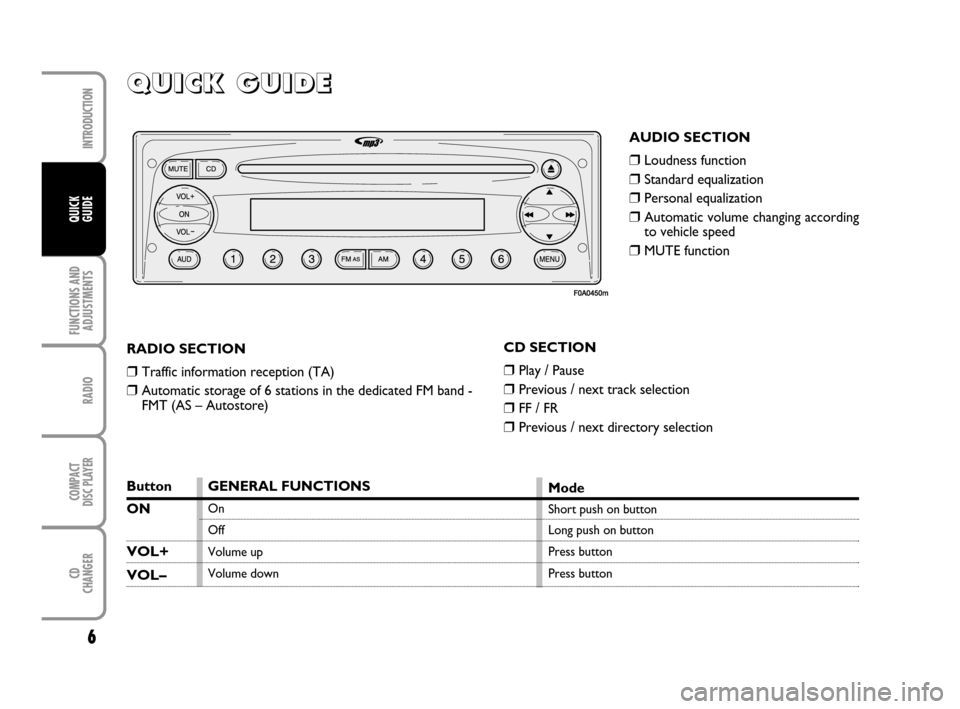

AUDIO SECTION
❒Loudness function
❒Standard equalization
❒Personal equalization
❒Automatic volume changing according
to vehicle speed
❒MUTE function
F F0
0A
A0
04
45
50
0m
m
Button
ON
VOL+
VOL–
RADIO SECTION
❒Traffic information reception (TA)
❒Automatic storage of 6 stations in the dedicated FM band -
FMT (AS – Autostore)CD SECTION
❒Play / Pause
❒Previous / next track selection
❒FF / FR
❒Previous / next directory selection
GENERAL FUNCTIONS
On
Off
Volume up
Volume down
Mode
Short push on button
Long push on button
Press button
Press button
603_83_533 Radio Doblo GB 15-06-2007 11:49 Pagina 6

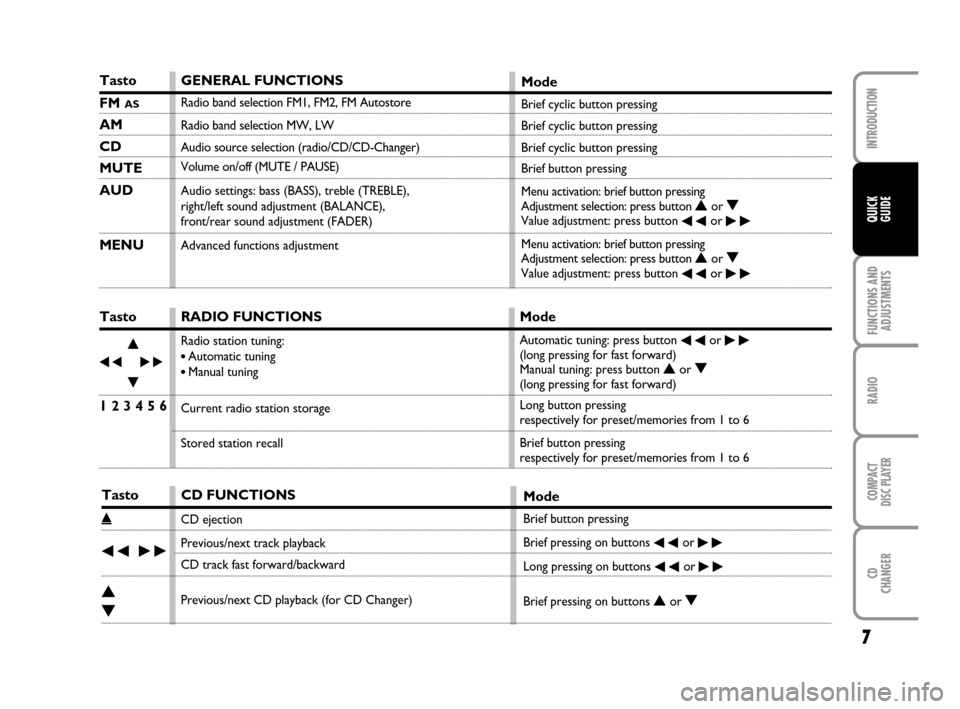

7
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
CD
CHANGER
INTRODUCTION
QUICK
GUIDE
Tasto
FM AS
AM
CD
MUTE
AUD
MENU
Tasto
÷N
˜
O
1 2 3 4 5 6
Tasto
˚
÷˜
N
O
GENERAL FUNCTIONS
Radio band selection FM1, FM2, FM Autostore
Radio band selection MW, LW
Audio source selection (radio/CD/CD-Changer)
Volume on/off (MUTE / PAUSE)
Audio settings: bass (BASS), treble (TREBLE),
right/left sound adjustment (BALANCE),
front/rear sound adjustment (FADER)
Advanced functions adjustment
Mode
Brief cyclic button pressing
Brief cyclic button pressing
Brief cyclic button pressing
Brief button pressing
Menu activation: brief button pressing
Adjustment selection: press button
Nor OValue adjustment: press button ÷or ˜
Menu activation: brief button pressing
Adjustment selection: press button Nor OValue adjustment: press button ÷or ˜
RADIO FUNCTIONS
Radio station tuning:
•Automatic tuning
•Manual tuning
Current radio station storage
Stored station recall
Mode
Automatic tuning: press button ÷or ˜(long pressing for fast forward)
Manual tuning: press button Nor O(long pressing for fast forward)
Long button pressing
respectively for preset/memories from 1 to 6
Brief button pressing
respectively for preset/memories from 1 to 6
CD FUNCTIONS
CD ejection
Previous/next track playback
CD track fast forward/backward
Previous/next CD playback (for CD Changer)
Mode
Brief button pressing
Brief pressing on buttons
÷or ˜
Long pressing on buttons ÷or ˜
Brief pressing on buttons Nor O
603_83_533 Radio Doblo GB 15-06-2007 11:49 Pagina 7

8
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
CD
CHANGER
INTRODUCTION
QUICK
GUIDE
Compact Disc section
❒Direct disc selection;
❒Track selection (forward/backward);
❒Fast forward/backward;
❒CD Display function: displaying CD
name/time elapsed from start of track;
❒Playing audio CDs and R/RW CDs. GENERAL
The set possesses the following functions:
Radio section
❒PLL tuning with FM/AM/MW/LW fre-
quency bands;
❒RDS (Radio Data System) with TA
(traffic announcements) - TP (Program
Type) - EON (Enhanced Other Net-
work) - REG (Regional programmes);
❒AF: alternative frequency search selec-
tion in RDS mode;
❒emergency alarm presetting;
❒automatic/manual station tuning;
❒FM Multipath detector;
❒manual storage of 36 stations: 18 in the
FM band (6 in FM1, 6 in FM2, 6 in FMT),
6 in the MW band and 6 in the LW
band;
❒automatic storage (Autostore function)
of 6 stations in FM band;
❒SVC function: automatic volume ad-
justment with vehicle speed;
❒automatic Stereo/Mono switching.
On multimedia CDs in addi-
tion to sound tracks also da-
ta tracks are recorded. Play-
ing one of these CDs may
cause rustling and such a volume as to
compromise road safety, as well as
causing damage to the final stages and
speakers.
Audio section
❒Mute/Pause function;
❒Soft Mute function;
❒Loudness function;
❒7 band graphic equalizer;
❒Separate bass/treble adjustment;
❒Right/left channel balancing.
603_83_533 Radio Doblo GB 15-06-2007 11:49 Pagina 8

9
QUICK
GUIDE
RADIO
COMPACT
DISC PLAYER
CD
CHANGER
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS

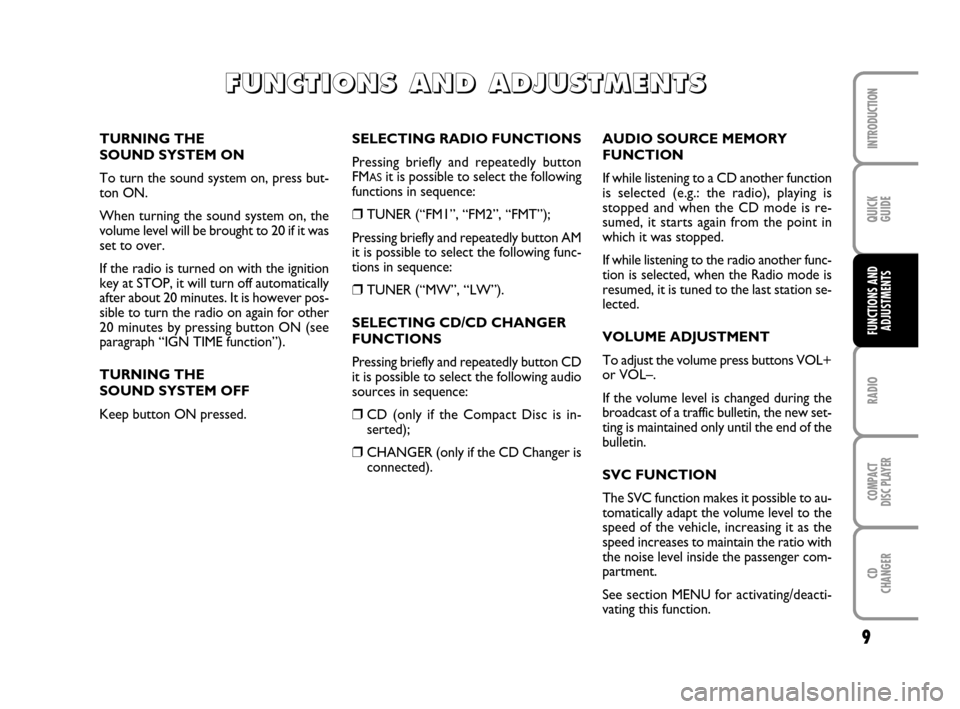

SELECTING RADIO FUNCTIONS
Pressing briefly and repeatedly button
FM
ASit is possible to select the following
functions in sequence:
❒TUNER (“FM1”, “FM2”, “FMT”);
Pressing briefly and repeatedly button AM
it is possible to select the following func-
tions in sequence:
❒TUNER (“MW”, “LW”).
SELECTING CD/CD CHANGER
FUNCTIONS
Pressing briefly and repeatedly button CD
it is possible to select the following audio
sources in sequence:
❒CD (only if the Compact Disc is in-
serted);
❒CHANGER (only if the CD Changer is
connected).AUDIO SOURCE MEMORY
FUNCTION
If while listening to a CD another function
is selected (e.g.: the radio), playing is
stopped and when the CD mode is re-
sumed, it starts again from the point in
which it was stopped.
If while listening to the radio another func-
tion is selected, when the Radio mode is
resumed, it is tuned to the last station se-
lected.
VOLUME ADJUSTMENT
To adjust the volume press buttons VOL+
or VOL–.
If the volume level is changed during the
broadcast of a traffic bulletin, the new set-
ting is maintained only until the end of the
bulletin.
SVC FUNCTION
The SVC function makes it possible to au-
tomatically adapt the volume level to the
speed of the vehicle, increasing it as the
speed increases to maintain the ratio with
the noise level inside the passenger com-
partment.
See section MENU for activating/deacti-
vating this function. TURNING THE
SOUND SYSTEM ON
To turn the sound system on, press but-
ton ON.
When turning the sound system on, the
volume level will be brought to 20 if it was
set to over.
If the radio is turned on with the ignition
key at STOP, it will turn off automatically
after about 20 minutes. It is however pos-
sible to turn the radio on again for other
20 minutes by pressing button ON (see
paragraph “IGN TIME function”).
TURNING THE
SOUND SYSTEM OFF
Keep button ON pressed.
F F F F
U U U U
N N N N
C C C C
T T T T
I I I I
O O O O
N N N N
S S S S

A A A A
N N N N
D D D D

A A A A
D D D D
J J J J
U U U U
S S S S
T T T T
M M M M
E E E E
N N N N
T T T T
S S S S
603_83_533 Radio Doblo GB 15-06-2007 11:49 Pagina 9
