21GETTING TO KNOW YOUR VEHICLE

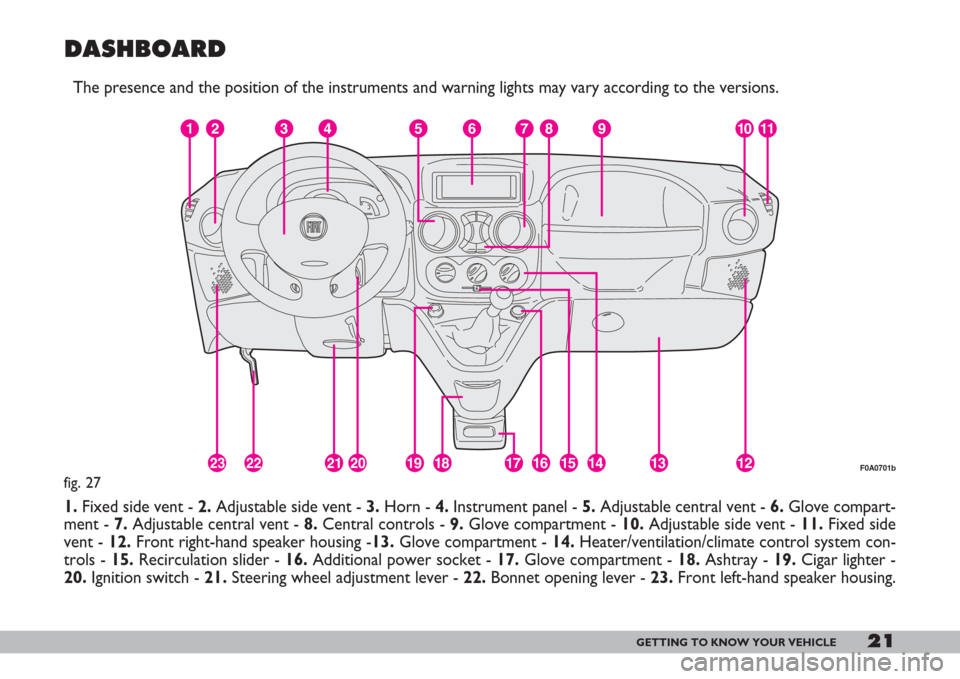

DASHBOARD
The presence and the position of the instruments and warning lights may vary according to the versions.
1.Fixed side vent - 2.Adjustable side vent - 3.Horn - 4.Instrument panel - 5.Adjustable central vent - 6.Glove compart-
ment - 7.Adjustable central vent - 8.Central controls - 9.Glove compartment - 10.Adjustable side vent - 11.Fixed side
vent - 12.Front right-hand speaker housing -13.Glove compartment - 14.Heater/ventilation/climate control system con-
trols - 15.Recirculation slider - 16.Additional power socket - 17.Glove compartment - 18.Ashtray - 19.Cigar lighter -
20.Ignition switch - 21.Steering wheel adjustment lever - 22.Bonnet opening lever - 23.Front left-hand speaker housing.
143567891011
121314161517191820212223
2
fig. 27
F0A0701b

HEATED REAR
WINDOW (amber)
The warning light turns
on when switching the heated rear
window on.

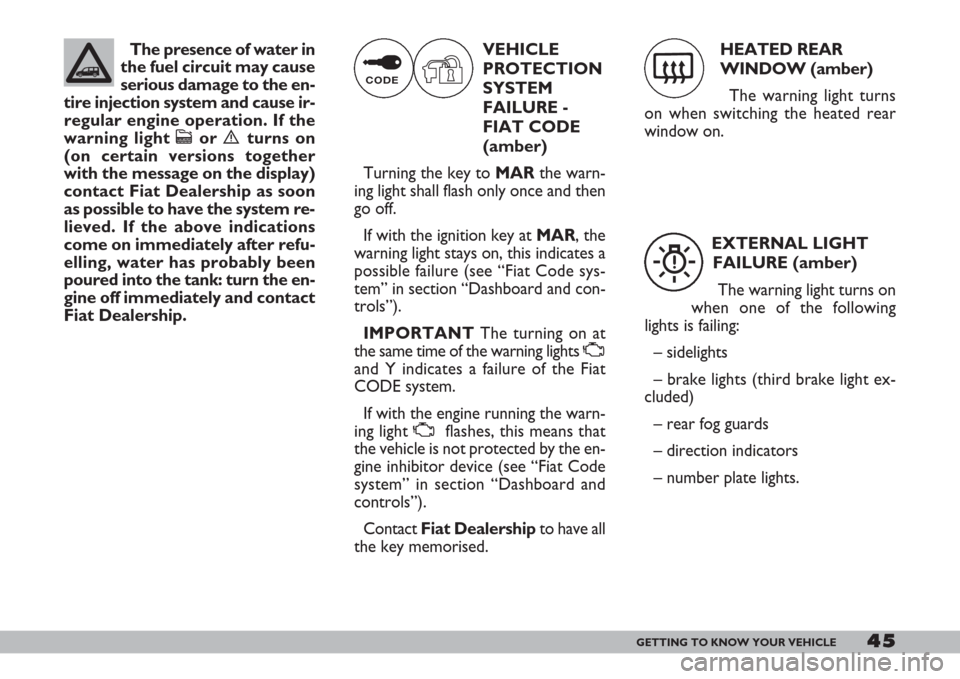

45GETTING TO KNOW YOUR VEHICLE
The presence of water in
the fuel circuit may cause
serious damage to the en-
tire injection system and cause ir-
regular engine operation. If the
warning light
cor èturns on
(on certain versions together
with the message on the display)
contact Fiat Dealership as soon
as possible to have the system re-
lieved. If the above indications
come on immediately after refu-
elling, water has probably been
poured into the tank: turn the en-
gine off immediately and contact
Fiat Dealership.
¢Y(
EXTERNAL LIGHT
FAILURE (amber)
The warning light turns on
when one of the following
lights is failing:
– sidelights
– brake lights (third brake light ex-
cluded)
– rear fog guards
– direction indicators
– number plate lights.
W
VEHICLE
PROTECTION
SYSTEM
FAILURE -
FIAT CODE
(amber)
Turning the key to MARthe warn-
ing light shall flash only once and then
go off.
If with the ignition key at MAR, the
warning light stays on, this indicates a
possible failure (see “Fiat Code sys-
tem” in section “Dashboard and con-
trols”).
IMPORTANTThe turning on at
the same time of the warning lights
U
and Yindicates a failure of the Fiat
CODE system.
If with the engine running the warn-
ing light
Uflashes, this means that
the vehicle is not protected by the en-
gine inhibitor device (see “Fiat Code
system” in section “Dashboard and
controls”).
Contact Fiat Dealership to have all
the key memorised.

LEFT-HAND AND
RIGHT-HAND
DIRECTION
INDICATOR (green -
intermittent) (Natural
Power versions)
The warning light turns on when the
direction indicator control lever is
moved downwards or, together with
the right indicator, when the hazard
warning light button is pressed.
The warning light turns on when the
direction indicator control lever is
moved upwards or, together with the
left indicator, when the hazard warn-
ing light button is pressed.RIGHT-HAND
DIRECTION
INDICATOR (green -
intermittent)
The warning light turns on when the
direction indicator control lever is
moved upwards or, together with the
left indicator, when the hazard warn-
ing light button is pressed.
LEFT-HAND
DIRECTION
INDICATOR (green -
intermittent)
The warning light turns on when the
direction indicator control lever is
moved downwards or, together with
the right indicator, when the hazard
warning light button is pressed. SIDELIGHTS
AND LOW BEAMS
(green)
FOLLOW ME HOME (green)
Side/taillights and low beams
The warning light turns on when
side/taillights or low beams are turned
on.

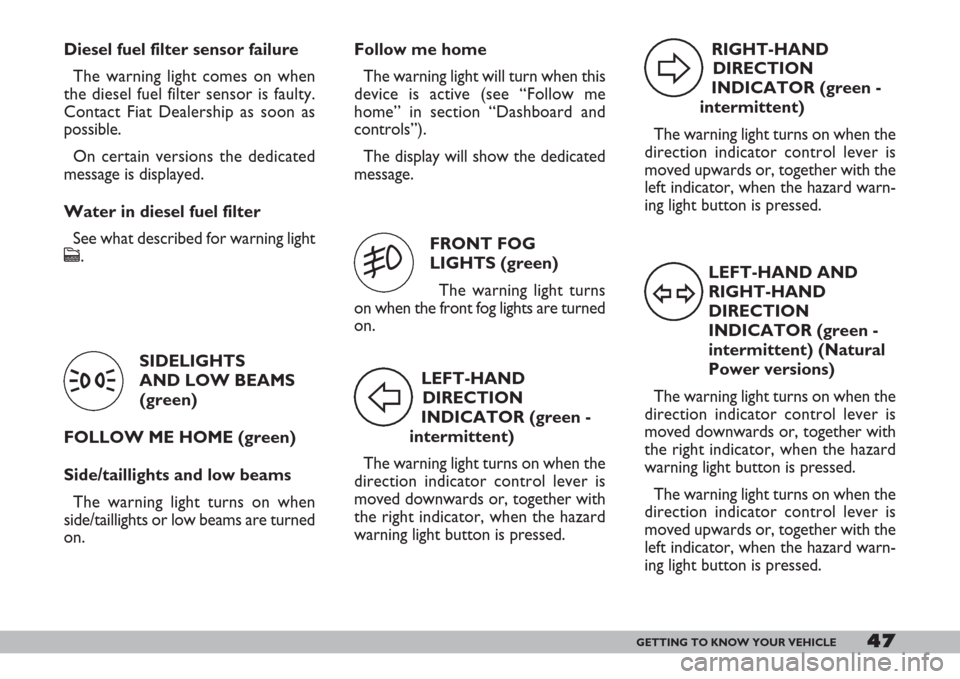

47GETTING TO KNOW YOUR VEHICLE
FRONT FOG
LIGHTS (green)
The warning light turns
on when the front fog lights are turned
on.
3
5
Follow me home
The warning light will turn when this
device is active (see “Follow me
home” in section “Dashboard and
controls”).
The display will show the dedicated
message.
F
y
D
Diesel fuel filter sensor failure
The warning light comes on when
the diesel fuel filter sensor is faulty.
Contact Fiat Dealership as soon as
possible.
On certain versions the dedicated
message is displayed.
Water in diesel fuel filter
See what described for warning light
c.

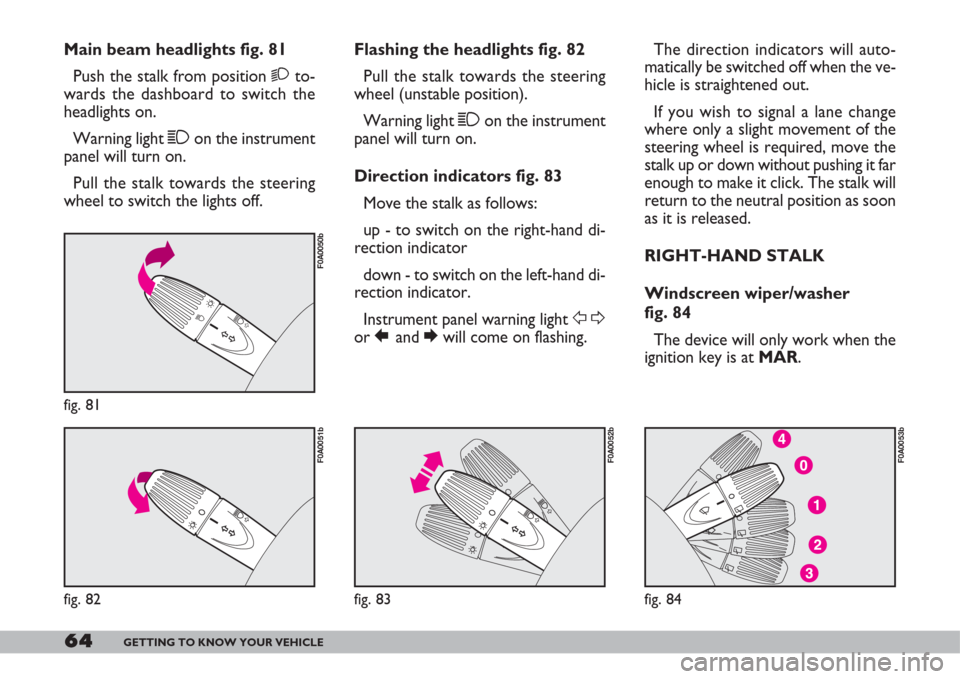

64GETTING TO KNOW YOUR VEHICLE
The direction indicators will auto-
matically be switched off when the ve-
hicle is straightened out.
If you wish to signal a lane change
where only a slight movement of the
steering wheel is required, move the
stalk up or down without pushing it far
enough to make it click. The stalk will
return to the neutral position as soon
as it is released.
RIGHT-HAND STALK
Windscreen wiper/washer
fig. 84
The device will only work when the
ignition key is at MAR.
fig. 84
F0A0053b
Main beam headlights fig. 81
Push the stalk from position 2to-
wards the dashboard to switch the
headlights on.
Warning light 1on the instrument
panel will turn on.
Pull the stalk towards the steering
wheel to switch the lights off.Flashing the headlights fig. 82
Pull the stalk towards the steering
wheel (unstable position).
Warning light 1on the instrument
panel will turn on.
Direction indicators fig. 83
Move the stalk as follows:
up - to switch on the right-hand di-
rection indicator
down - to switch on the left-hand di-
rection indicator.
Instrument panel warning light FD
or Rand Ewill come on flashing.
62
y1Δ
fig. 81
F0A0050b
fig. 82
F0A0051b
fig. 83
F0A0052b

141IN AN EMERGENCY

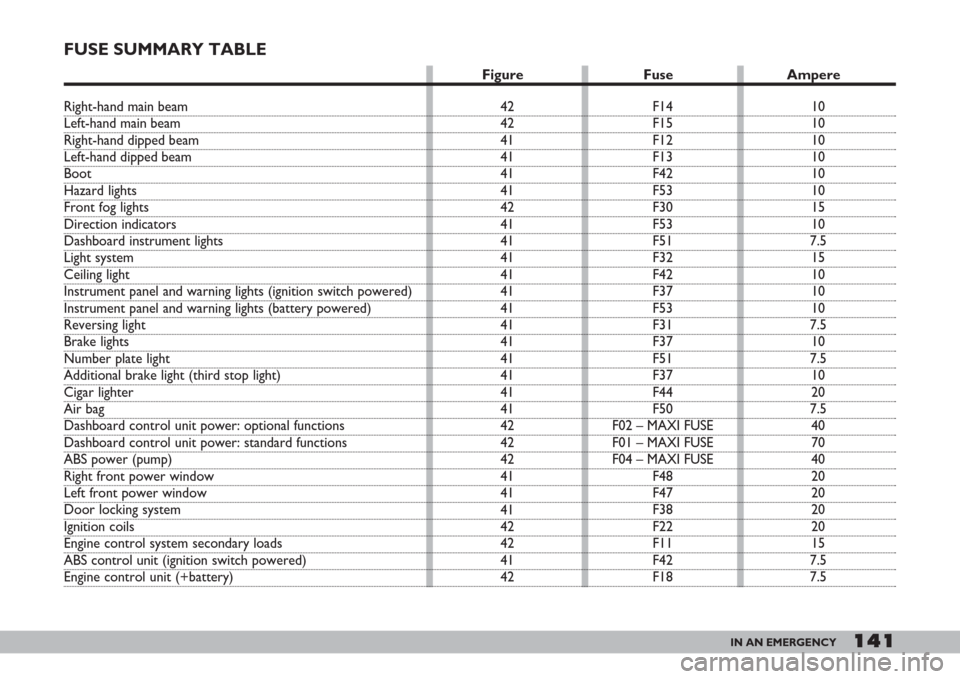

FUSE SUMMARY TABLE
10
10
10
10
10
10
15
10
7.5
15
10
10
10
7.5
10
7.5
10
20
7.5
40
70
40
20
20
20
20
15
7.5
7.5 F14
F15
F12
F13
F42
F53
F30
F53
F51
F32
F42
F37
F53
F31
F37
F51
F37
F44
F50
F02 – MAXI FUSE
F01 – MAXI FUSE
F04 – MAXI FUSE
F48
F47
F38
F22
F11
F42
F18 42
42
41
41
41
41
42
41
41
41
41
41
41
41
41
41
41
41
41
42
42
42
41
41
41
42
42
41
42
Figure Fuse Ampere
Right-hand main beam
Left-hand main beam
Right-hand dipped beam
Left-hand dipped beam
Boot
Hazard lights
Front fog lights
Direction indicators
Dashboard instrument lights
Light system
Ceiling light
Instrument panel and warning lights (ignition switch powered)
Instrument panel and warning lights (battery powered)
Reversing light
Brake lights
Number plate light
Additional brake light (third stop light)
Cigar lighter
Air bag
Dashboard control unit power: optional functions
Dashboard control unit power: standard functions
ABS power (pump)
Right front power window
Left front power window
Door locking system
Ignition coils
Engine control system secondary loads
ABS control unit (ignition switch powered)
Engine control unit (+battery)

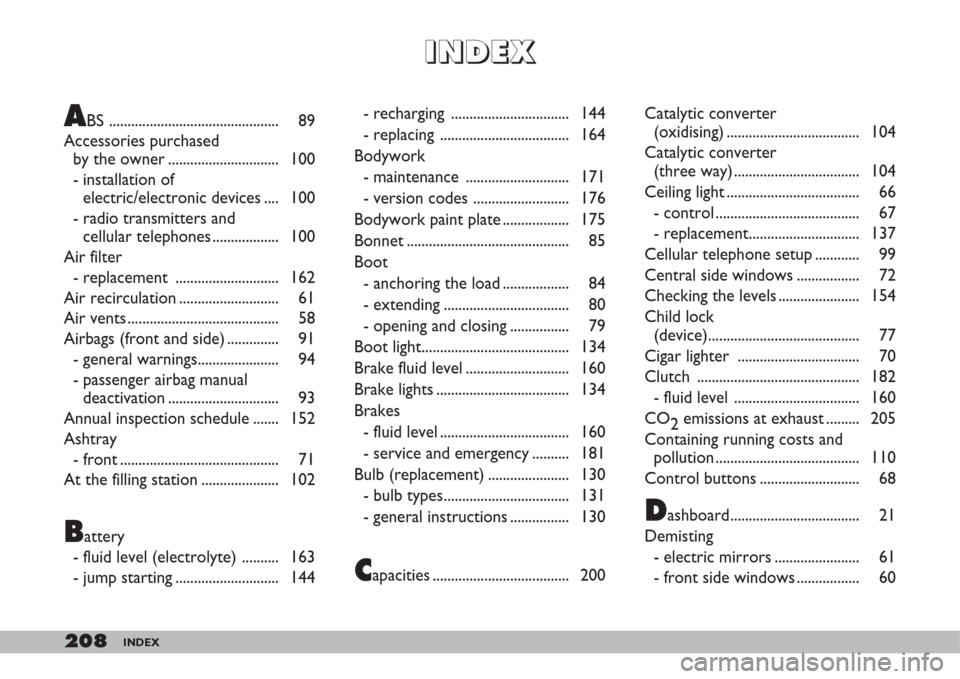

208INDEX
I I
N N
D D
E E
X X
- recharging ................................ 144
- replacing ................................... 164
Bodywork
- maintenance ............................ 171
- version codes .......................... 176
Bodywork paint plate .................. 175
Bonnet ............................................ 85
Boot
- anchoring the load .................. 84
- extending .................................. 80
- opening and closing ................ 79
Boot light........................................ 134
Brake fluid level ............................ 160
Brake lights .................................... 134
Brakes
- fluid level ................................... 160
- service and emergency .......... 181
Bulb (replacement) ...................... 130
- bulb types.................................. 131
- general instructions ................ 130
Capacities ..................................... 200Catalytic converter
(oxidising) .................................... 104
Catalytic converter
(three way) .................................. 104
Ceiling light .................................... 66
- control ....................................... 67
- replacement.............................. 137
Cellular telephone setup ............ 99
Central side windows ................. 72
Checking the levels ...................... 154
Child lock
(device)......................................... 77
Cigar lighter ................................. 70
Clutch ............................................ 182
- fluid level .................................. 160
CO
2emissions at exhaust ......... 205
Containing running costs and
pollution ....................................... 110
Control buttons ........................... 68
Dashboard................................... 21
Demisting
- electric mirrors ....................... 61
- front side windows ................. 60
ABS .............................................. 89
Accessories purchased
by the owner .............................. 100
- installation of
electric/electronic devices .... 100
- radio transmitters and
cellular telephones .................. 100
Air filter
- replacement ............................ 162
Air recirculation ........................... 61
Air vents ......................................... 58
Airbags (front and side) .............. 91
- general warnings...................... 94
- passenger airbag manual
deactivation .............................. 93
Annual inspection schedule ....... 152
Ashtray
- front ........................................... 71
At the filling station ..................... 102
Battery
- fluid level (electrolyte) .......... 163
- jump starting ............................ 144
