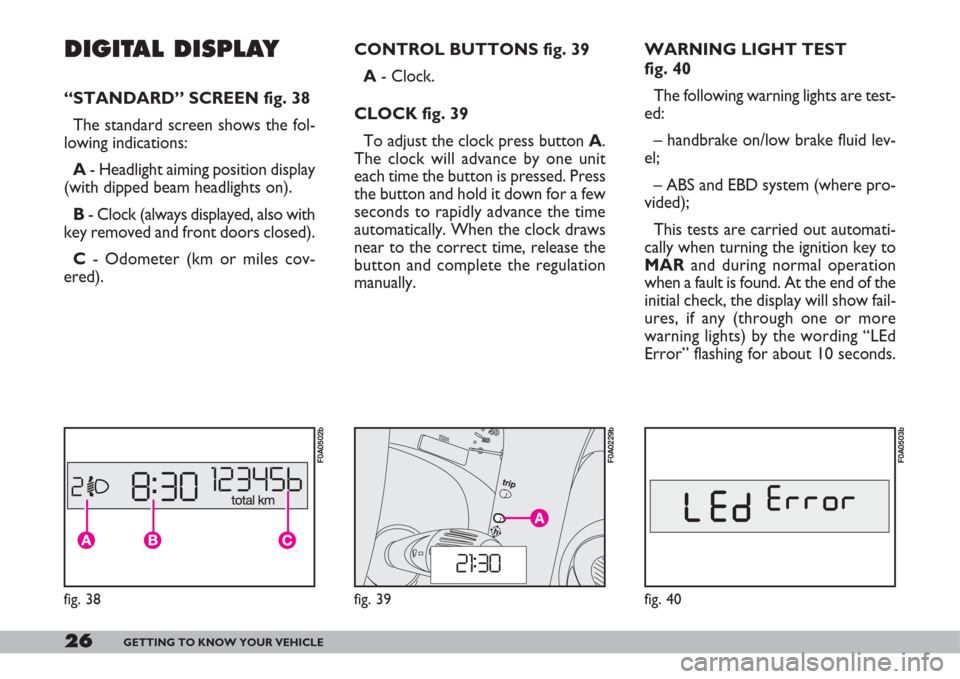

26GETTING TO KNOW YOUR VEHICLE
WARNING LIGHT TEST
fig. 40
The following warning lights are test-
ed:
– handbrake on/low brake fluid lev-
el;
– ABS and EBD system (where pro-
vided);
This tests are carried out automati-
cally when turning the ignition key to
MARand during normal operation
when a fault is found. At the end of the
initial check, the display will show fail-
ures, if any (through one or more
warning lights) by the wording “LEd
Error” flashing for about 10 seconds.DIGITAL DISPLAY
“STANDARD” SCREEN fig. 38
The standard screen shows the fol-
lowing indications:
A- Headlight aiming position display
(with dipped beam headlights on).
B- Clock (always displayed, also with
key removed and front doors closed).
C- Odometer (km or miles cov-
ered).CONTROL BUTTONS fig. 39
A- Clock.
CLOCK fig. 39
To adjust the clock press button A.
The clock will advance by one unit
each time the button is pressed. Press
the button and hold it down for a few
seconds to rapidly advance the time
automatically. When the clock draws
near to the correct time, release the
button and complete the regulation
manually.
fig. 39
F0A0229b
fig. 40
F0A0503b
fig. 38
F0A0502b

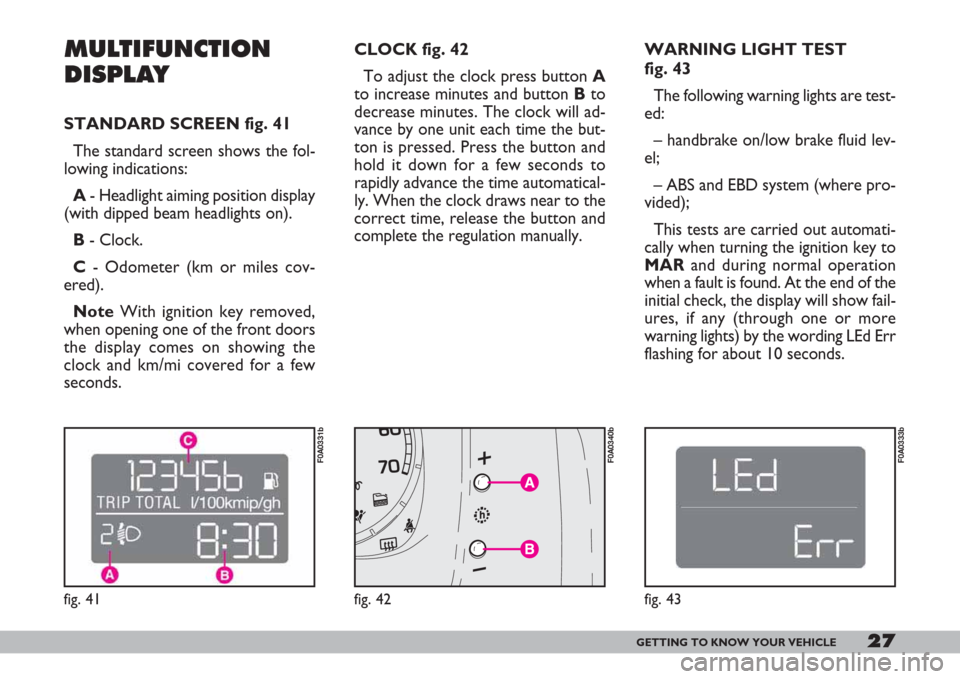

27GETTING TO KNOW YOUR VEHICLE
MULTIFUNCTION
DISPLAY
STANDARD SCREEN fig. 41
The standard screen shows the fol-
lowing indications:
A- Headlight aiming position display
(with dipped beam headlights on).
B- Clock.
C- Odometer (km or miles cov-
ered).
Note With ignition key removed,
when opening one of the front doors
the display comes on showing the
clock and km/mi covered for a few
seconds.CLOCK fig. 42
To adjust the clock press button A
to increase minutes and button Bto
decrease minutes. The clock will ad-
vance by one unit each time the but-
ton is pressed. Press the button and
hold it down for a few seconds to
rapidly advance the time automatical-
ly. When the clock draws near to the
correct time, release the button and
complete the regulation manually.WARNING LIGHT TEST
fig. 43
The following warning lights are test-
ed:
– handbrake on/low brake fluid lev-
el;
– ABS and EBD system (where pro-
vided);
This tests are carried out automati-
cally when turning the ignition key to
MARand during normal operation
when a fault is found. At the end of the
initial check, the display will show fail-
ures, if any (through one or more
warning lights) by the wording LEd Err
flashing for about 10 seconds.
fig. 41
F0A0331b
fig. 42
F0A0340b
fig. 43
F0A0333b

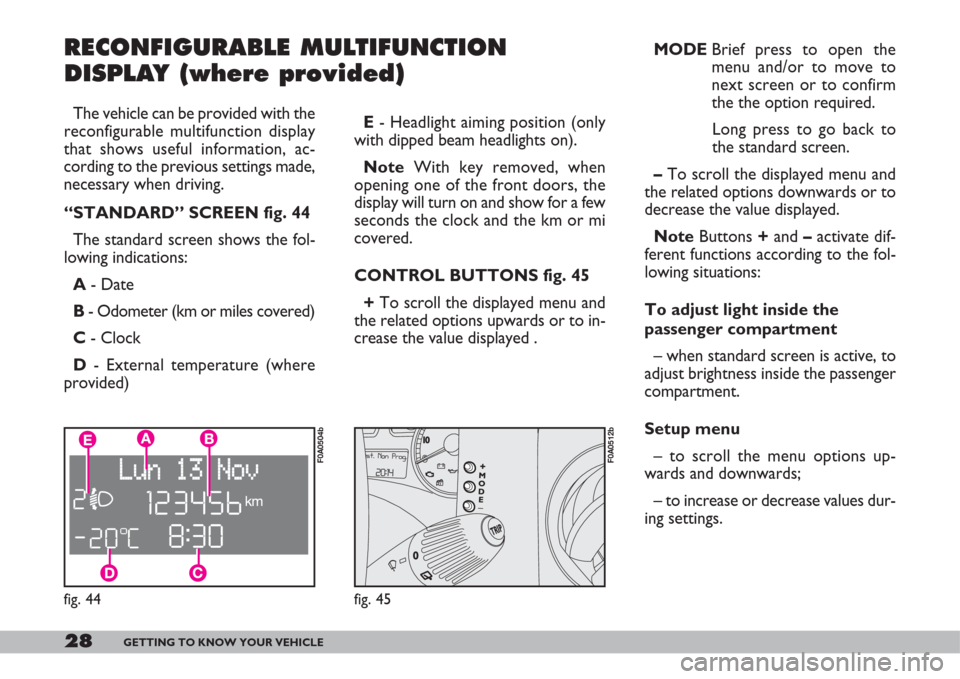

28GETTING TO KNOW YOUR VEHICLE
RECONFIGURABLE MULTIFUNCTION
DISPLAY (where provided)
E- Headlight aiming position (only
with dipped beam headlights on).
NoteWith key removed, when
opening one of the front doors, the
display will turn on and show for a few
seconds the clock and the km or mi
covered.
CONTROL BUTTONS fig. 45
+ To scroll the displayed menu and
the related options upwards or to in-
crease the value displayed .MODE Brief press to open the
menu and/or to move to
next screen or to confirm
the the option required.
Long press to go back to
the standard screen.
– To scroll the displayed menu and
the related options downwards or to
decrease the value displayed.
NoteButtons +and –activate dif-
ferent functions according to the fol-
lowing situations:
To adjust light inside the
passenger compartment
– when standard screen is active, to
adjust brightness inside the passenger
compartment.
Setup menu
– to scroll the menu options up-
wards and downwards;
– to increase or decrease values dur-
ing settings.
fig. 44
F0A0504b
fig. 45
F0A0512b
The vehicle can be provided with the
reconfigurable multifunction display
that shows useful information, ac-
cording to the previous settings made,
necessary when driving.
“STANDARD” SCREEN fig. 44
The standard screen shows the fol-
lowing indications:
A- Date
B- Odometer (km or miles covered)
C- Clock
D- External temperature (where
provided)
