INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
SELECTING THE
FREQUENCY BAND
If in the Tuner mode, briefly and repeat-
edly press button BAND to select the re-
quired frequency band.
Every time the button is pressed the fol-
lowing bands are selected in sequence:
“FM1”, “FM2”, “FMT” and “AM”.
Each band is shown by the respective
wording on the display.
The last station selected in the respective
frequency band will be tuned.
The FM band is divided into sections: FM1,
FM2 and FMT; the FMT reception band is
reserved to the stations stored automati-
cally with the Autostore function.PRESETTING BUTTONS
The buttons with symbols from 1 to 6
make it possible to set the following pre-
settings:
❒18 in the FM band (6 in FM1, 6 in FM2,
6 in FMT);
❒6 in the AM band;
To call a preset station, choose the re-
quired frequency band and then press
briefly the corresponding preset button
(from 1 to 6).
Pressing the respective preset button for
longer than 2 seconds will store the tuned
station. Storing is confirmed by a beep.
STORING THE LAST STATION
HEARD
The radio automatically keeps in storage
the last station heard for each reception
band, which is then tuned when the ra-
dio is turned on or the reception band is
changed. INTRODUCTION
When the set is turned on the last func-
tion selected before turning off is played
(Radio or CD).
To select the Tuner source while listen-
ing to the CD player, press briefly button
SRC.
When Tuner is on, the display will show
the selected station name (RDS stations
only) or frequency, the frequency band
(e.g.: FM1) and the presetting button num-
ber (e.g.: P1).
R R R R
A A A A
D D D D
I I I I
O O O O

( ( ( (
T T T T
u u u u
n n n n
e e e e
r r r r
) ) ) )
603_83_550 Radio FunDOBLO GB 15-06-2007 11:59 Pagina 12

13
COMPACT DISC
PLAYER
INTRODUCTION
QUICK
REFERENCE
GUIDE
FUNCTIONS AND
ADJUSTMENTS
RADIO
MANUAL TUNING
This allows manual station searching in the
chosen band.
Select the required frequency band and
then:
❒press for long button ¯or ˙to start
manual tuning;
❒press briefly and repeatedly button ¯or˙to start searching in the chosen band;
or
❒keep button ¯or ˙pressed to start fast
searching in the required direction.
In both cases tuning will stop when releas-
ing the button and the display will show the
station frequency.A-STORE FUNCTION
(automatic station storage)
To switch on the A-STORE function, keep
button BAND pressed until receiving the
confirmation beep. With this function the
radio automatically stores the six stations
with the strongest signal in decreasing or-
der of intensity in the FMT frequency
band.
IMPORTANT Activating the A-STORE
function cancels the stations stored pre-
viously in the FMT band.
If the TA function is on (traffic informa-
tion), only the stations that send traffic in-
formation will be stored.
If during automatic station storage
(A-STORE on) the Tuner mode is select-
ed or the sound source is changed, the A-
STORE function will not be interrupted
and automatic storage will be completed.
During automatic storage the display
shows “FM ASTORE”. AUTOMATIC TUNING
Briefly press button
¯or ˙to start au-
tomatically searching the tuning for the
next station that it is possible to receive
in the direction chosen.
If the TA function is on (traffic information),
the tuner only searches stations that broad-
cast traffic bulletins.
603_83_550 Radio FunDOBLO GB 15-06-2007 11:59 Pagina 13

QUICK
REFERENCE
GUIDE
14
COMPACT DISC
PLAYER
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO

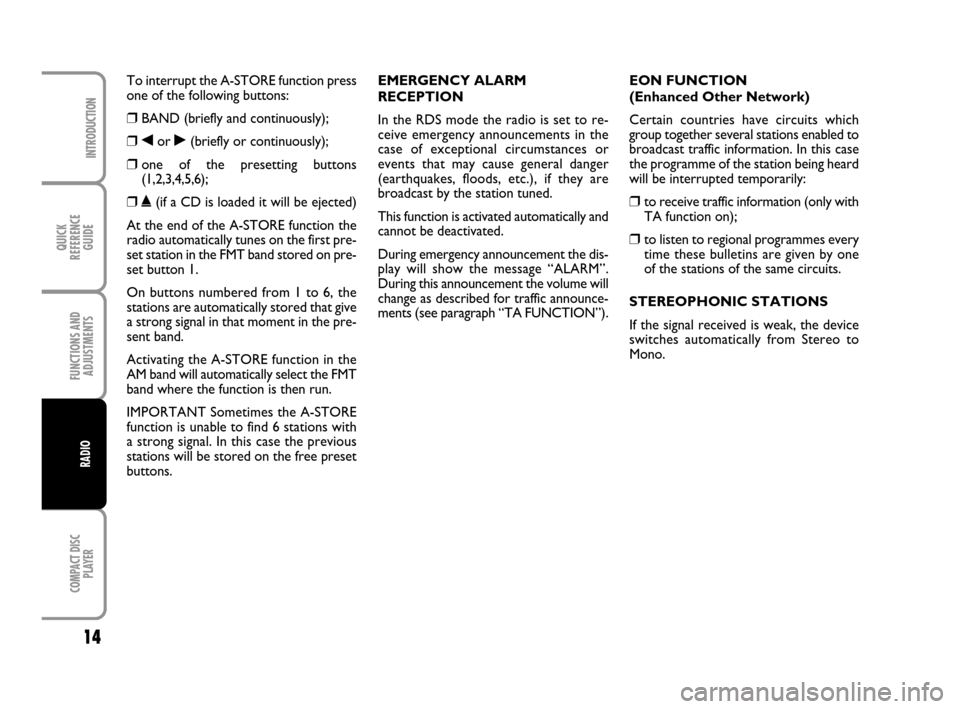

To interrupt the A-STORE function press
one of the following buttons:
❒BAND (briefly and continuously);
❒¯or ˙(briefly or continuously);
❒one of the presetting buttons
(1,2,3,4,5,6);
❒˚(if a CD is loaded it will be ejected)
At the end of the A-STORE function the
radio automatically tunes on the first pre-
set station in the FMT band stored on pre-
set button 1.
On buttons numbered from 1 to 6, the
stations are automatically stored that give
a strong signal in that moment in the pre-
sent band.
Activating the A-STORE function in the
AM band will automatically select the FMT
band where the function is then run.
IMPORTANT Sometimes the A-STORE
function is unable to find 6 stations with
a strong signal. In this case the previous
stations will be stored on the free preset
buttons.EMERGENCY ALARM
RECEPTION
In the RDS mode the radio is set to re-
ceive emergency announcements in the
case of exceptional circumstances or
events that may cause general danger
(earthquakes, floods, etc.), if they are
broadcast by the station tuned.
This function is activated automatically and
cannot be deactivated.
During emergency announcement the dis-
play will show the message “ALARM”.
During this announcement the volume will
change as described for traffic announce-
ments (see paragraph “TA FUNCTION”).EON FUNCTION
(Enhanced Other Network)
Certain countries have circuits which
group together several stations enabled to
broadcast traffic information. In this case
the programme of the station being heard
will be interrupted temporarily:❒to receive traffic information (only with
TA function on);
❒to listen to regional programmes every
time these bulletins are given by one
of the stations of the same circuits.
STEREOPHONIC STATIONS
If the signal received is weak, the device
switches automatically from Stereo to
Mono.
603_83_550 Radio FunDOBLO GB 15-06-2007 11:59 Pagina 14

15
COMPACT DISC
PLAYER
INTRODUCTION
QUICK
REFERENCE
GUIDE
FUNCTIONS AND
ADJUSTMENTS
RADIO
AF function
(alternative frequency search)
Within the RDS system the radio can
work in two different modes:
❒“AF ON”: alternative frequency search
on (the display shows “AF”);
❒“AF OFF”: alternative frequency search
off.
With “AF ON”, the radio is automatical-
ly tuned to the station with the strongest
signal that is broadcasting the same pro-
gramme. During the journey it will thus be
possible to continue listening to the sta-
tion chosen without having to change the
frequency when changing area.
Of course, the station being listened to
must be receivable in the area the car is
crossing.
To turn the AF function on/off press but-
ton MENU, select “AF ON” or “AF OFF”.
If the AF function has been turned on the
display shows “AF”.
If the radio is working in the AM band,
when the AF function is activated, it pass-
es to the FM1 band on the last station se-
lected. TA function
(traffic information)
Certain stations in the FM band (FM1, FM2
and FMT) are enabled to broadcast infor-
mation about traffic conditions.
To turn the TA (traffic information) func-
tion on/off, briefly press button MENU and
select “TA ON” or “TA OFF”.
IMPORTANT If the TA function (traffic in-
formation) is on, with CD or Mute/Pause
active: automatic tuning to a station en-
abled to broadcast traffic information will
start.
With the TA function it is possible:
❒to search only RDS stations that trans-
mit in the FM band, enabled to broad-
cast traffic information;
❒to receive traffic information although
the CD player is being used;
❒to receive traffic information at a pre-
defined minimum volume even with the
radio volume off. MENU
MENU button functions
To activate the Menu function, briefly
press button MENU. The display will show
the first menu function that can be se-
lected.
To scroll the Menu functions press button
MENU. To change the setting of the se-
lected function use button
¯or ˙.
The display will show the current status
of the function selected.
The functions controlled by the menu are
the following:
❒AF (alternative frequency search);
❒TA (traffic information);
❒REG (regional programs);
To exit the Menu function, press the but-
ton MENU for long.
603_83_550 Radio FunDOBLO GB 15-06-2007 11:59 Pagina 15

QUICK
REFERENCE
GUIDE
16
COMPACT DISC
PLAYER
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
REG function
(regional broadcast reception)
Certain national broadcasters, at deter-
minate times of the day, transmit region-
al programmes which differ from region
to region. This function makes it possible
to tune in only on local stations (region-
al) (see paragraph “EON function”).
Activate this function if you want to tune
automatically to regional stations broad-
casting in the selected band.
To turn the function on/off use button
¯or ˙.The display will show the current status
of the function:
❒“REG ON”: function on.
❒“REG OFF”: function off.
If the function is off and a regional pro-
gramme is tuned that works in a deter-
minate area and the car enters a different
area, the regional station of the new area
is received.
IMPORTANT If AF and REG are both ac-
tive, when passing from one region to an-
other the radio could not tune properly to
a valid alternative frequency. IMPORTANT In certain countries radio
stations exist which, even if enabled, do
not transmit traffic information.
If the radio is working in the AM band,
when TA is activated, it passes to the FM1
band on the last station heard.
The volume with which the traffic bulletin
is transmitted varies depending on the lis-
tening volume:
❒listening volume below 20: traffic bul-
letin volume = 20 (fixed value);
❒listening volume above 20: traffic bul-
letin volume = listening volume +1.
If the volume is changed during a traffic
bulletin the new volume level will be
shown on the display but it will be kept
only for the bulletin in progress.
The TA function is interrupted by press-
ing any sound system button.
603_83_550 Radio FunDOBLO GB 15-06-2007 11:59 Pagina 16

17
INTRODUCTION
QUICK
REFERENCE
GUIDE
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT DISC
PLAYER

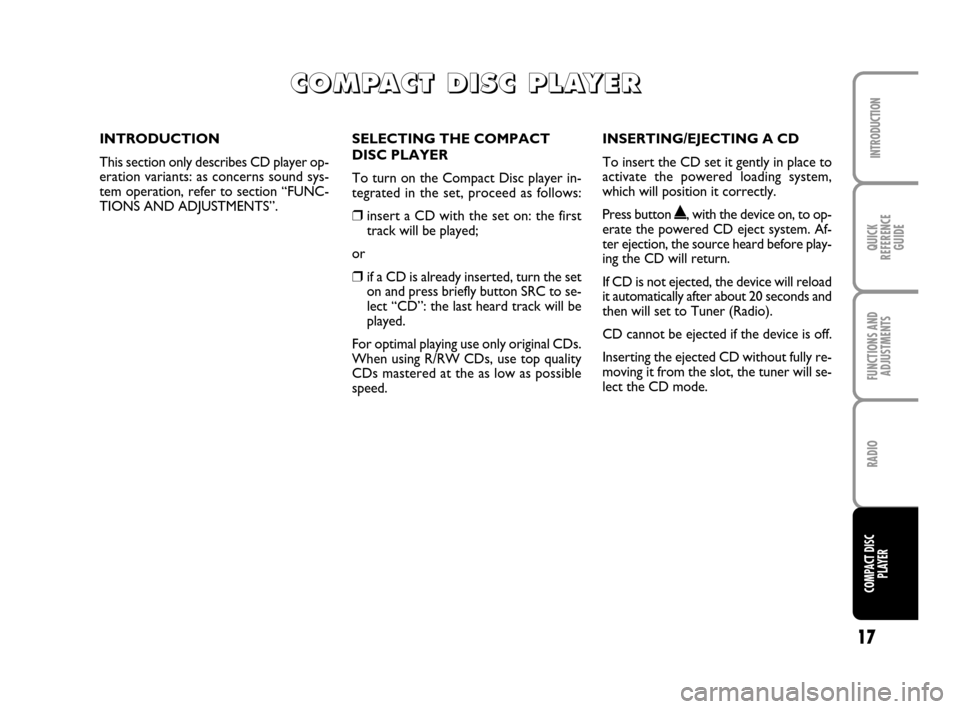

SELECTING THE COMPACT
DISC PLAYER
To turn on the Compact Disc player in-
tegrated in the set, proceed as follows:
❒insert a CD with the set on: the first
track will be played;
or
❒if a CD is already inserted, turn the set
on and press briefly button SRC to se-
lect “CD”: the last heard track will be
played.
For optimal playing use only original CDs.
When using R/RW CDs, use top quality
CDs mastered at the as low as possible
speed.INSERTING/EJECTING A CD
To insert the CD set it gently in place to
activate the powered loading system,
which will position it correctly.
Press button
˚, with the device on, to op-
erate the powered CD eject system. Af-
ter ejection, the source heard before play-
ing the CD will return.
If CD is not ejected, the device will reload
it automatically after about 20 seconds and
then will set to Tuner (Radio).
CD cannot be ejected if the device is off.
Inserting the ejected CD without fully re-
moving it from the slot, the tuner will se-
lect the CD mode. INTRODUCTION
This section only describes CD player op-
eration variants: as concerns sound sys-
tem operation, refer to section “FUNC-
TIONS AND ADJUSTMENTS”.
C C C C
O O O O
M M M M
P P P P
A A A A
C C C C
T T T T

D D D D
I I I I
S S S S
C C C C

P P P P
L L L L
A A A A
Y Y Y Y
E E E E
R R R R
603_83_550 Radio FunDOBLO GB 15-06-2007 11:59 Pagina 17

QUICK
REFERENCE
GUIDE
18
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT DISC
PLAYER
POSSIBLE ERROR
MESSAGES
If the CD inserted is illegible (e.g.: CD-
ROM inserted, CD not inserted properly
or reading error), the display will show the
message “CD ERROR” for about 2 sec-
onds.
This time elapsed, the Tuner mode will be
activated automatically (the CD will not
be ejected automatically, to eject it press
button
˚).
DISPLAY INFORMATION
When the CD player is working, the dis-
play shows the following information
which means:
“T1”: shows the number of the track on
the CD;
“0:42”: shows the time elapsed since the
start of the track.SELECT TRACK
(forward/backward)
Briefly press button
¯to play the previ-
ous track and button
˙to play the next
one. Tracks are played in sequence: after
the last track, the first one will be played
and vice versa.
If playing the track started more than 3
seconds ago, pressing briefly button
¯the
track is played again from the start. In this
case if wanting to play the previous track,
press the button twice consecutively.
FAST FORWARD/BACKWARD
Keep button
˙pressed to move the track
selected forward at high speed and keep
button
¯pressed to move it quickly back-
ward. Fast forward/backward is stopped
once the button is released.PAUSE FUNCTION
To pause the CD player, press briefly the
button/knob ON/ OFF. The display will
show “PAUSE”.
To resume playing the track, press the
button/knob ON/ OFF again.
The pause function is deactivated chang-
ing the sound source.
CODE CARD
This the document that certifies posses-
sion of the sound system. The Code Card
contains the sound system model and se-
rial number.
IMPORTANT Keep the Code Card care-
fully to be able to give the related data to
the competent authorities in the event of
theft.
603_83_550 Radio FunDOBLO GB 15-06-2007 11:59 Pagina 18

OVERVIEW
Low volume
The Fader function shall only be set to “F”
(front), to prevent sound system output
power reduction and volume muting if the
Fader level set is = R+9.
Required source cannot be
selected
No CD loaded. Load the CD you want

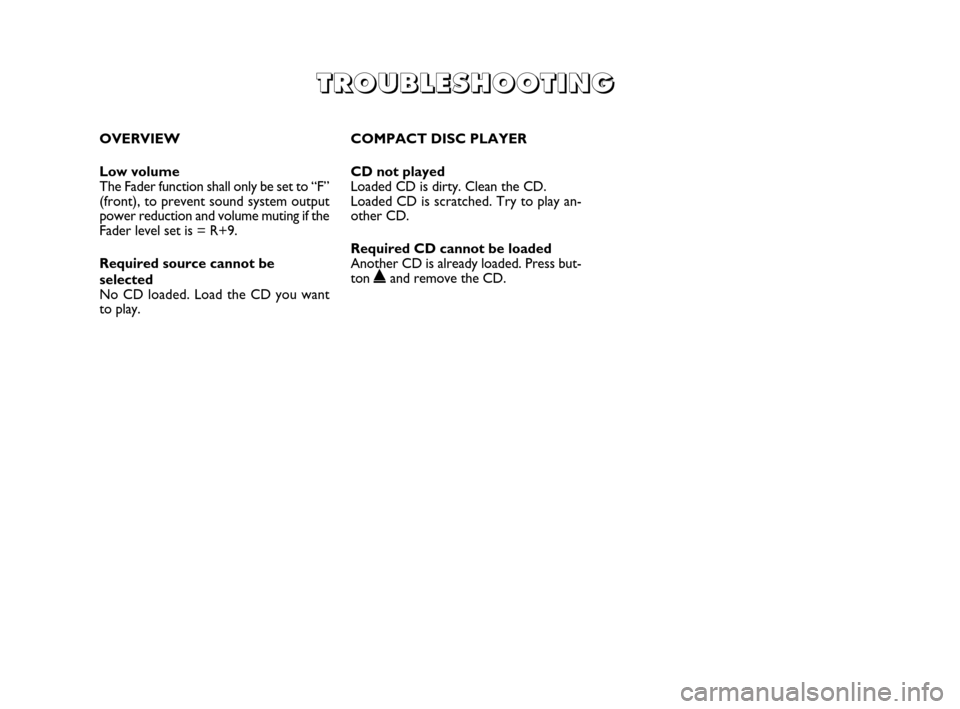

to play.
T T T T
R R R R
O O O O
U U U U
B B B B
L L L L
E E E E
S S S S
H H H H
O O O O
O O O O
T T T T
I I I I
N N N N
G G G G
COMPACT DISC PLAYER
CD not played
Loaded CD is dirty. Clean the CD.
Loaded CD is scratched. Try to play an-
other CD.
Required CD cannot be loaded
Another CD is already loaded. Press but-
ton
˚and remove the CD.
603_83_550 Radio FunDOBLO GB 15-06-2007 11:59 Pagina 19
