130IN AN EMERGENCY

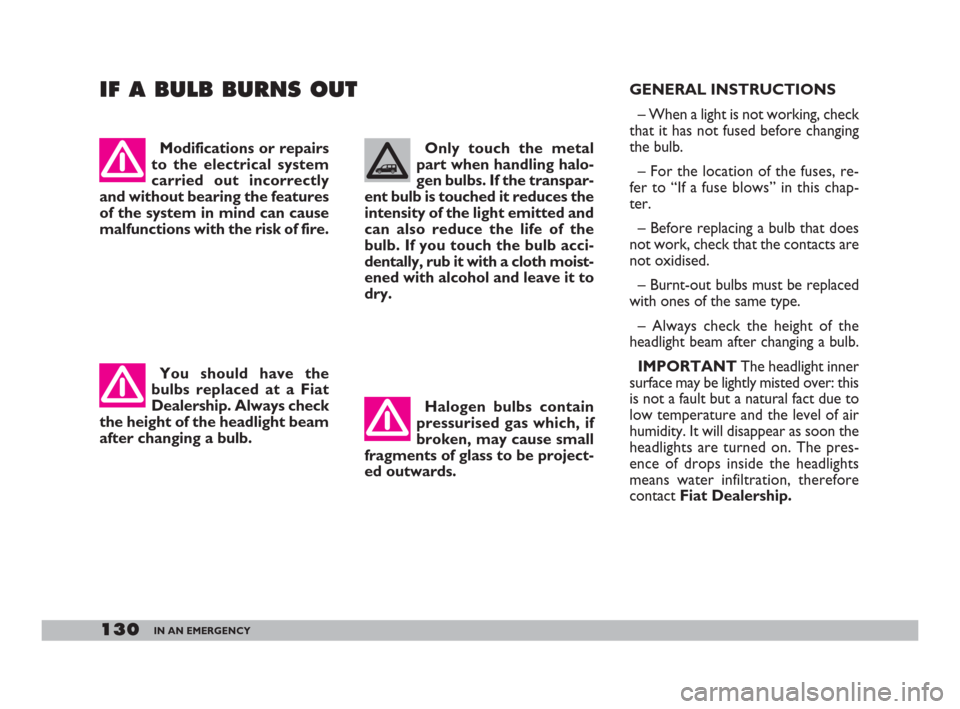

IF A BULB BURNS OUT
Modifications or repairs
to the electrical system
carried out incorrectly
and without bearing the features
of the system in mind can cause
malfunctions with the risk of fire.Only touch the metal
part when handling halo-
gen bulbs. If the transpar-
ent bulb is touched it reduces the
intensity of the light emitted and
can also reduce the life of the
bulb. If you touch the bulb acci-
dentally, rub it with a cloth moist-
ened with alcohol and leave it to
dry.
You should have the
bulbs replaced at a Fiat
Dealership. Always check
the height of the headlight beam
after changing a bulb.
Halogen bulbs contain
pressurised gas which, if
broken, may cause small
fragments of glass to be project-
ed outwards.
GENERAL INSTRUCTIONS
– When a light is not working, check
that it has not fused before changing
the bulb.
– For the location of the fuses, re-
fer to “If a fuse blows” in this chap-
ter.
– Before replacing a bulb that does
not work, check that the contacts are
not oxidised.
– Burnt-out bulbs must be replaced
with ones of the same type.
– Always check the height of the
headlight beam after changing a bulb.
IMPORTANTThe headlight inner
surface may be lightly misted over: this
is not a fault but a natural fact due to
low temperature and the level of air
humidity. It will disappear as soon the
headlights are turned on. The pres-
ence of drops inside the headlights
means water infiltration, therefore
contact Fiat Dealership.
119-148 Doblo GB 9-05-2008 12:09 Pagina 130

131IN AN EMERGENCY

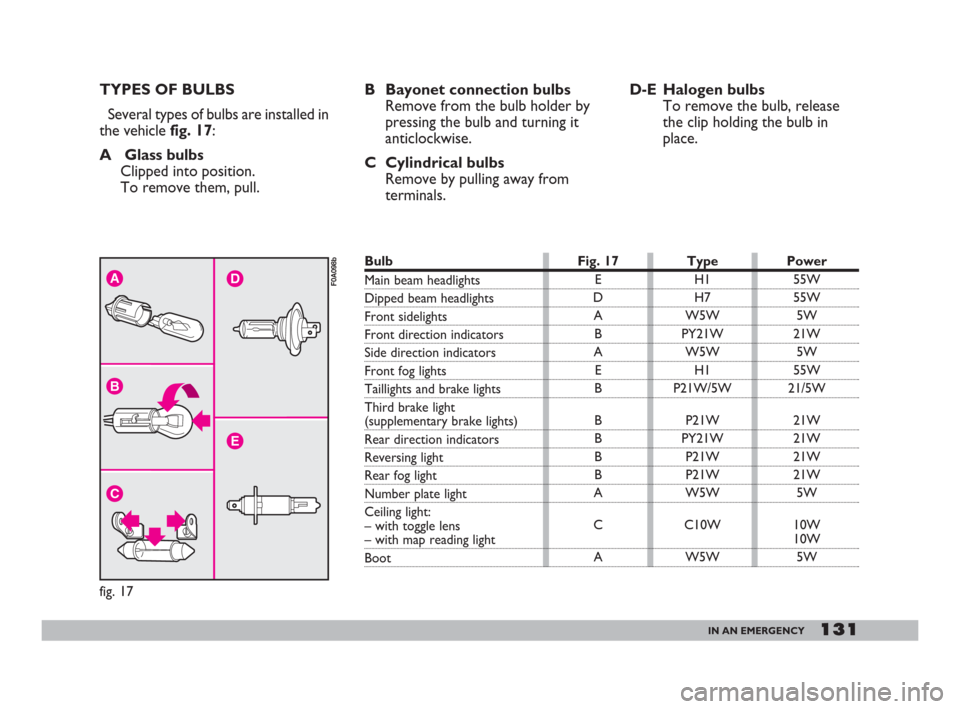

TYPES OF BULBS
Several types of bulbs are installed in
the vehicle fig. 17:
A Glass bulbs
Clipped into position.
To remove them, pull.B Bayonet connection bulbs
Remove from the bulb holder by
pressing the bulb and turning it
anticlockwise.
C Cylindrical bulbs
Remove by pulling away from
terminals.D-E Halogen bulbs
To remove the bulb, release
the clip holding the bulb in
place.
A
B
C
E
D
fig. 17
F0A098b
Fig. 17
E
D
A
B
A
E
B
B
B
B
B
A
C
APower
55W
55W
5W
21W
5W
55W
21/5W
21W
21W
21W
21W
5W
10W
10W
5W Type
H1
H7
W5W
PY21W
W5W
H1
P21W/5W
P21W
PY21W
P21W
P21W
W5W
C10W
W5WBulb
Main beam headlights
Dipped beam headlights
Front sidelights
Front direction indicators
Side direction indicators
Front fog lights
Taillights and brake lights
Third brake light
(supplementary brake lights)
Rear direction indicators
Reversing light
Rear fog light
Number plate light
Ceiling light:
– with toggle lens
– with map reading light
Boot
119-148 Doblo GB 9-05-2008 12:09 Pagina 131

132IN AN EMERGENCY
See “If a bulb burns out” in this chap-

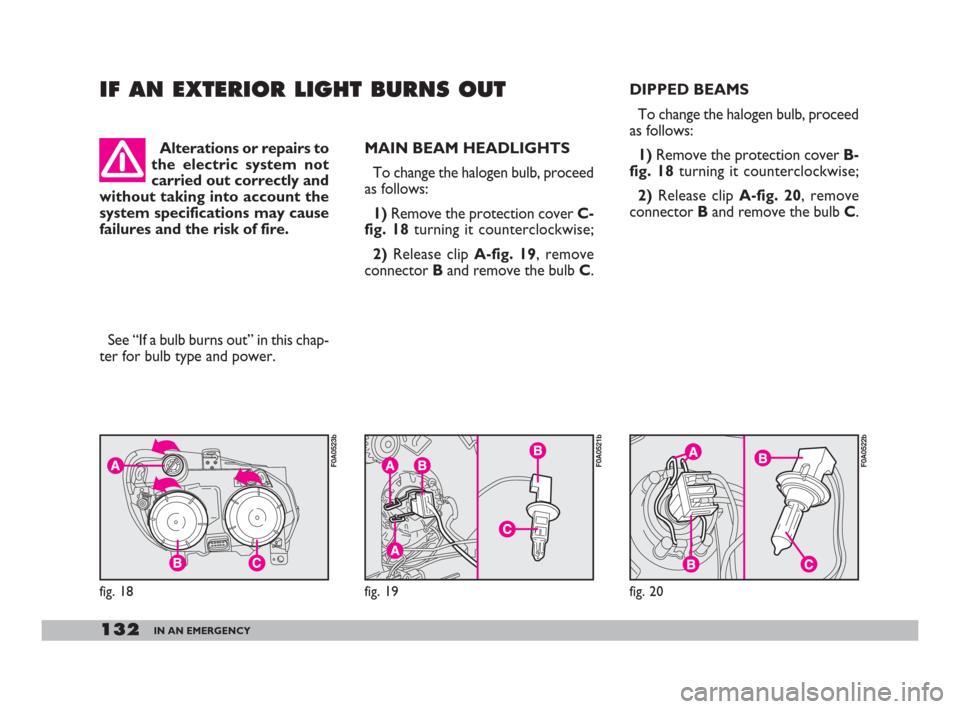

ter for bulb type and power.MAIN BEAM HEADLIGHTS
To change the halogen bulb, proceed
as follows:
1)Remove the protection cover C-
fig. 18turning it counterclockwise;
2)Release clip A-fig. 19, remove
connector Band remove the bulb C.DIPPED BEAMS
To change the halogen bulb, proceed
as follows:
1)Remove the protection cover B-
fig. 18turning it counterclockwise;
2)Release clip A-fig. 20, remove
connector Band remove the bulb C.
IF AN EXTERIOR LIGHT BURNS OUT
Alterations or repairs to
the electric system not
carried out correctly and
without taking into account the
system specifications may cause
failures and the risk of fire.
fig. 18
F0A0523b
fig. 19
F0A0521b
fig. 20
F0A0522b
119-148 Doblo GB 9-05-2008 12:09 Pagina 132
