tow FIAT DOBLO COMBI 2011 Owner handbook (in English)

190
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0051mfig. 179
Before towing, turn the ignition key to
MAR and then to STOP without extract-
ing it. The steering column will automatically lock
when the key is removed, making it impossible to
turn the wheels.
WARNING
Before tightening the ring, clean the
threaded housing thoroughly. Before tow-
ing the vehicle, make sure that the tow ring is ful-
ly tightened in its appropriate housing.
Never start the engine when the vehicle is being
towed.
WARNING
Remember that, while being towed, you
will need to brake harder because there
will be no assistance from the brake booster. Do
not use bendy cables for towing and avoid jerking.
During towing operations, make sure that the fas-
tened joint does not damage adjoining compo-
nents. When towing the vehicle, comply with the
specific rules of the highway code regarding the
towing device and road conduct. Do not start the
engine while being towed.
WARNING
The front and rear tow hooks should be
used only for emergencies on the road. You
are allowed to tow the car for short dis-
tances using an appropriate device in accordance
with the highway code (a rigid bar), to move the ve-
hicle on the road in readiness for towing or trans-
porting via a breakdown vehicle. Tow hooks MUST
NOT be used to tow vehicles off the road or where
there are obstacles and/or for towing operations us-
ing cables or other non-rigid devices. Respecting the
above conditions, towing must take place with two
vehicles (one towing, the other towed) aligned as
much as possible along the same centre line.

191
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

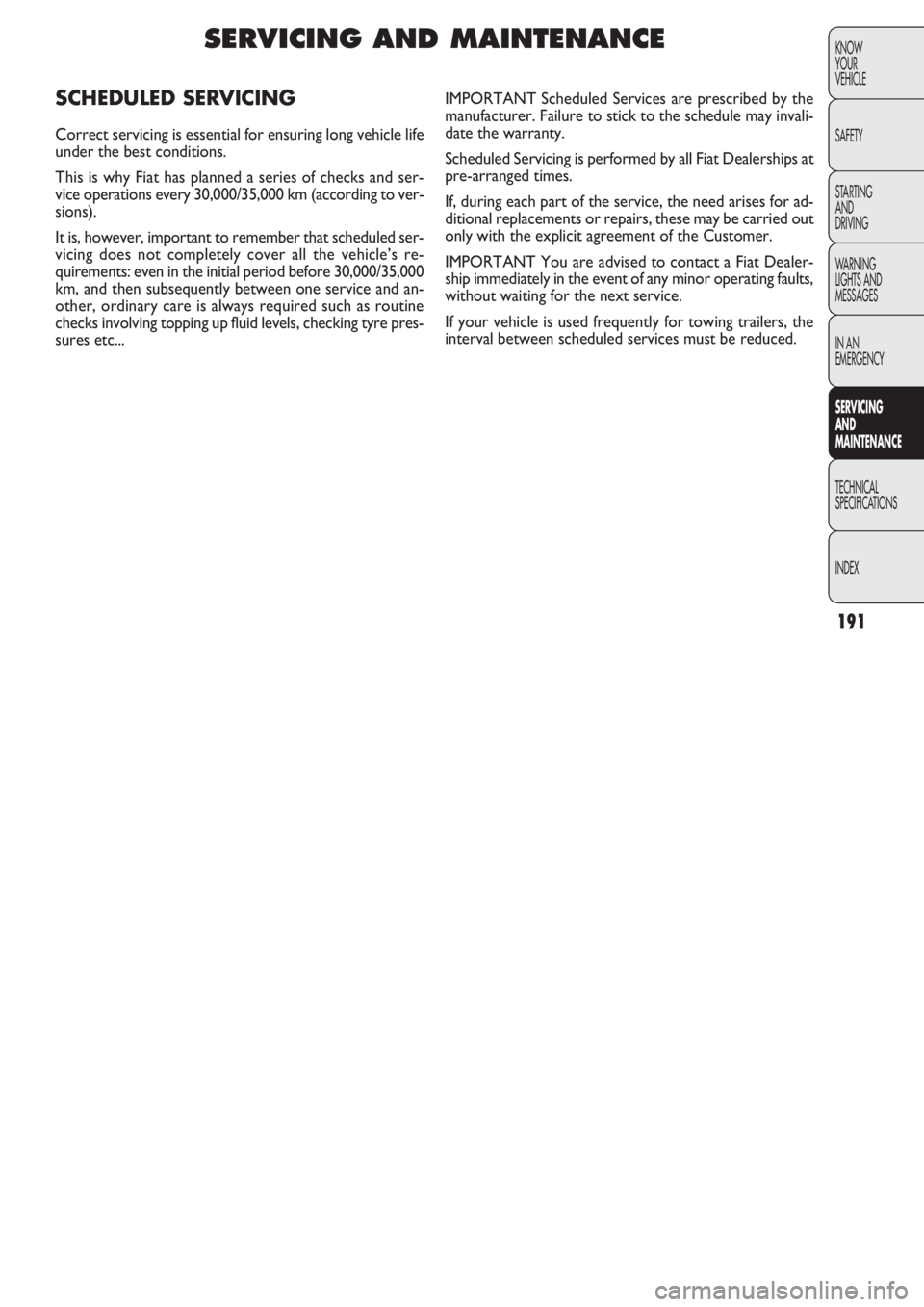

SERVICING AND MAINTENANCE
SCHEDULED SERVICING
Correct servicing is essential for ensuring long vehicle life
under the best conditions.
This is why Fiat has planned a series of checks and ser-
vice operations every 30,000/35,000 km (according to ver-
sions).
It is, however, important to remember that scheduled ser-
vicing does not completely cover all the vehicle’s re-
quirements: even in the initial period before 30,000/35,000
km, and then subsequently between one service and an-
other, ordinary care is always required such as routine
checks involving topping up fluid levels, checking tyre pres-
sures etc...IMPORTANT Scheduled Services are prescribed by the
manufacturer. Failure to stick to the schedule may invali-
date the warranty.
Scheduled Servicing is performed by all Fiat Dealerships at
pre-arranged times.
If, during each part of the service, the need arises for ad-
ditional replacements or repairs, these may be carried out
only with the explicit agreement of the Customer.
IMPORTANT You are advised to contact a Fiat Dealer-
ship immediately in the event of any minor operating faults,
without waiting for the next service.
If your vehicle is used frequently for towing trailers, the
interval between scheduled services must be reduced.

193
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
●●
●●●●●●
●
●
●●●
●●●●●●
●●●●●●
●●●●●●
●●●●●●
●●●
●●●●●●
Thousands of kilometres 30 60 90 120 150 180
Check condition of toothed timing belt
Replace spark plugs
Replace accessory drive belt(s)
Replace toothed timing belt (*)
Replace air filter cartridge
Check and, if necessary, top up fluid levels (brakes/hydraulic
clutch, windscreen washer, battery, engine coolant, etc.)
Check engine management system operation
(through diagnostic socket)
Check cleanliness of sliding side door lower guides
(or every 6 months)
Change engine oil and replace oil filter (or every 24 months) (**)
Change brake fluid (or every 24 months)
Replace pollen filter (or every 24 months)
(*) Regardless of distance covered, the timing belt must be replaced every four years in the case of particularly demanding use (cold cli-
mate, city traffic, long idling) or at least every five years in all other cases.
(**) If the vehicle is mainly driven in towns or clocks less than 10,000 km a year, the engine oil and filter should be changed every
12 months.

197
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
(*) Regardless of the distance covered, the timing belt must be changed every four years for particularly demanding use (cold climates,
city driving, long periods of idling) or at least every five years in all other cases.
(**) The engine oil and filter should be replaced according to their effective state, displayed by a message or warning light on the instru-
ment panel, or at least every 24 months.
If the vehicle is driven mainly in towns, change engine oil and filter every 12 months.
● ●●●●
● ●●●●
●
●
●●
● ●●●●
●●
● ●●●●
Thousands of kilometres 35 70 105 140 175
Check engine management system operation (via diagnostic socket)
Check cleanliness of sliding side door lower guides
(or every six months)
Replace accessory drive belt(s)
Replace toothed timing belt (*) (1.6 Multijet - 2.0 Multijet)
Replace fuel filter
Replace air filter cartridge
Change engine oil and replace oil filter (versions with DPF) (**)
Change brake fluid (or every 24 months)
Replace pollen filter (or every 24 months)

198
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
HEAVY USAGE OF THE VEHICLE
If the vehicle is primarily used in one of the following
particularly onerous conditions:
❒ towing trailers;
❒ dusty roads;
❒ short, repeated journeys (less than 7-8 km) at sub-ze-
ro temperatures;
❒ frequently idling engine or long-distance, low-speed dri-
ving (e.g. door-to-door deliveries) or lengthy inactivi-
ty;
❒ driving in towns and cities;
you should perform the following inspections more fre-
quently than shown on the Scheduled Servicing Plan:
❒ check front disc brake pad conditions and wear;
❒ check cleanliness of bonnet and boot locks, and clean-
liness and lubrication of linkages;
❒ visually inspect the conditions of: engine, gearbox,
transmission, pipes and tubes (exhaust – fuel – brakes),
rubber parts (boots, sleeves, bushes, etc.);
❒ check battery charge and fluid level (electrolite) (check
to be carried out only by specialists or at a Fiat Deal-
ership – see the “Battery” paragraph in this section);
❒ visually inspect the condition of the accessory drive
belts;
❒ check pollen filter and replace, if required;
❒ check and, if necessary, replace air filter.
REGULAR CHECKS
Every 1,000 km or before long journeys, check and, if nec-
essary, top up:
❒ engine coolant fluid level;
❒ brake fluid level;
❒ windscreen washer level;
❒ tyre pressure and conditions.
❒ operation of lighting system (headlights, direction in-
dicators, hazard lights, etc.);
❒ operation of windscreen washer/wipers system and po-
sitioning/wear of windscreen/rear window wiper blades
(for versions/markets where provided);
Check and top up, if required, the engine oil level every
3,000 km.
You are recommended to use
PETRONAS LUBRICANTS
products, which have been designed and produced specif-
ically for Fiat vehicles (see “Capacities” table in the “Tech-
nical specifications” section).

1.4
233
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
1340
600
525
1090
1140
1940
1000
500
100
601370
600
525
1075
1075
1970
1000
500
100
601410
600
525
1075
1075
2010
1300
500
100
60
1.3 Multijet1.6 Multijet2.0 Multijet
1450
600
525
1120
1140
2050
1500
500
100
60
DOBLÒ 5 SEATER M1 WEIGHTS
Weights (kg)
Unladen weight (with all fluids,
fuel tank filled to 90%
and without optional extras)
Payload including
the driver (*):
Payload
excluding the driver (*):
Maximum permitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– braked trailer:
– non-braked trailer:
Maximum load on roof (***):
Maximum load on the ball joint
(braked trailer):
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload.
(**) Loads that must not be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load carrying plat-
form within the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).

234
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
1360
600
525
1090
1140
1960
1000
500
–
60
1.4
1430
600
525
1075
1075
2030
1300
500
–
60
1.6 Multijet2.0 Multijet
1470
600
525
1120
1140
2070
1500
500
–
60
DOBLÒ 5 SEATER M1 HIGH-ROOF WEIGHTS
Weights (kg)
Unladen weight (with all fluids, fuel tank filled to
90% and without optional extras)
Payload including the driver (*):
Payload excluding the driver (*):
Maximum permitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– braked trailer:
– non-braked trailer:
Maximum load on roof (***):
Maximum load on ball joint (braked trailer):
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload.
(**) Loads that must not be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load carrying plat-
form within the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).

235
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
1.4
1370
685
610
1090
1170
2055
1000
500
100
601400
685
610
1090
1140
2085
1000
500
100
601430
685
610
1090
1140
2115
1000
500
100
60
1.3 Multijet1.6 Multijet2.0 Multijet
1480
685
610
1120
1140
2165
1500
500
100
60
DOBLÒ 7 SEATER M1 WEIGHTS
Weights (kg)
Unladen weight (with all fluids,
fuel tank filled to 90% and
without optional extras)
Payload including
the driver (*):
Payload excluding the
driver (*):
Maximum permitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– braked trailer:
– non-braked trailer:
Maximum load on roof (***):
Maximum load on the ball joint
(braked trailer):
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload.
(**) Loads that must not be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load carrying plat-
form within the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).

236
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
1.4
1350
710
635
1090
1450
2060
1000
500
100
601380
710
635
1090
1310
2090
1000
500
100
601420
710
635
1090
1310
2130
1300
500
100
60
1.3 Multijet1.6 Multijet2.0 Multijet
1460
710
635
1120
1450
2170
1500
500
100
60
DOBLÒ COMBI N1 SHORT WHEELBASE WEIGHTS
Weights (kg)
Unladen weight (with all fluids,
fuel tank filled to 90% and
without optional extras)
Payload including
the driver (*):
Payload
excluding the driver (*):
Maximum permitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– braked trailer:
– non-braked trailer:
Maximum load on roof (***):
Maximum load on the ball joint
(braked trailer):
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload.
(**) Loads that must not be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load carrying plat-
form within the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).

237
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
1.4
1360
800
725
1090
1450
2160
1000
500
100
601390
800
725
1090
1310
2190
1000
500
100
601430
800
725
1090
1310
2230
1300
500
100
60
1.3 Multijet1.6 Multijet2.0 Multijet
1470
800
725
1120
1450
2270
1500
500
100
60
DOBLÒ COMBI N1 SHORT WHEELBASE EXTRA CAPACITY WEIGHTS
Weights (kg)
Unladen weight (with all fluids,
fuel tank filled to 90%
and without optional extras)
Payload including
the driver (*):
Payload
excluding the driver (*):
Maximum permitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– braked trailer:
– non-braked trailer:
Maximum load on roof (***):
Maximum load on the ball joint
(braked trailer):
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload.
(**) Loads that must not be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load carrying plat-
form within the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
