technical specifications FIAT DOBLO COMBI 2012 Owner handbook (in English)

13
KNOW
YOUR
VEHICLE
SAFETY
STAR

TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

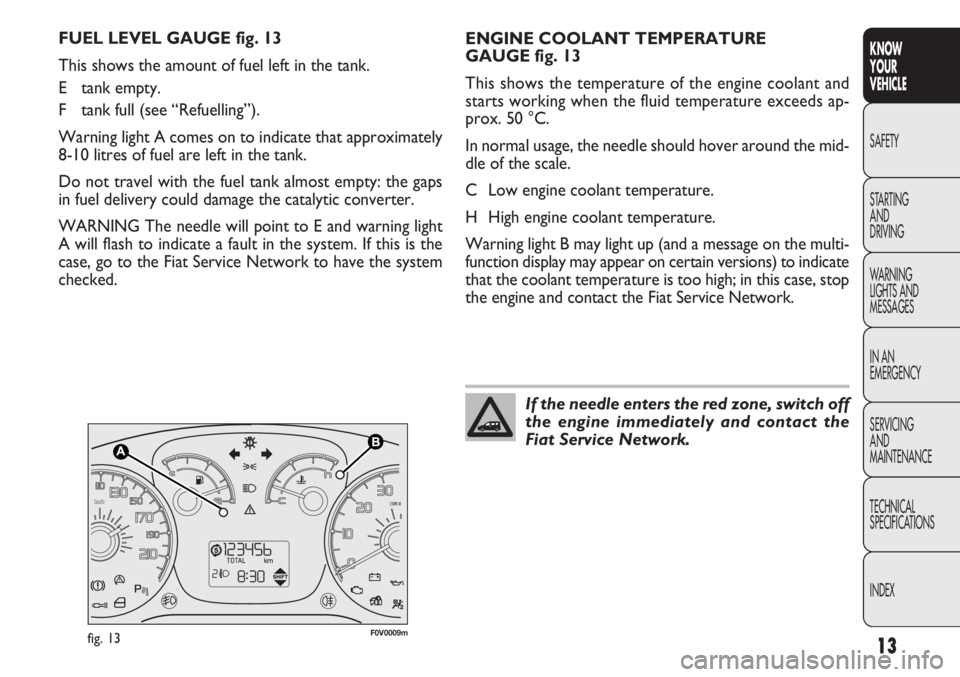

F0V0009mfig. 13
ENGINE COOLANT TEMPERATURE
GAUGE fig. 13
This shows the temperature of the engine coolant and
starts working when the fluid temperature exceeds ap-
prox. 50 °C.
In normal usage, the needle should hover around the mid-
dleofthescale.
C Low engine coolant temperature.
H High engine coolant temperature.
Warning light B may light up (and a message on the multi-
function display may appear on certain versions) to indicate
that the coolant temperature is too high; in this case, stop
the engine and contact the Fiat Service Network.
FUEL LEVEL GAUGE fig. 13
This shows the amount of fuel left in the tank.
E tank empty.
F tank full (see “Refuelling”).
Warning light A comes on to indicate that approximately
8-10 litres of fuel are left in the tank.
Do not travel with the fuel tank almost empty: the gaps
in fuel delivery could damage the catalytic converter.
WARNING The needle will point to E and warning light
A will flash to indicate a fault in the system. If this is the
case, go to the Fiat Service Network to have the system
checked.
If the needle enters the red zone, switch off
the engine immediately and contact the
Fiat Service Network.

14
KNOWYOUR
VEHICLE
SAFETY
ST AR

TINGAND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

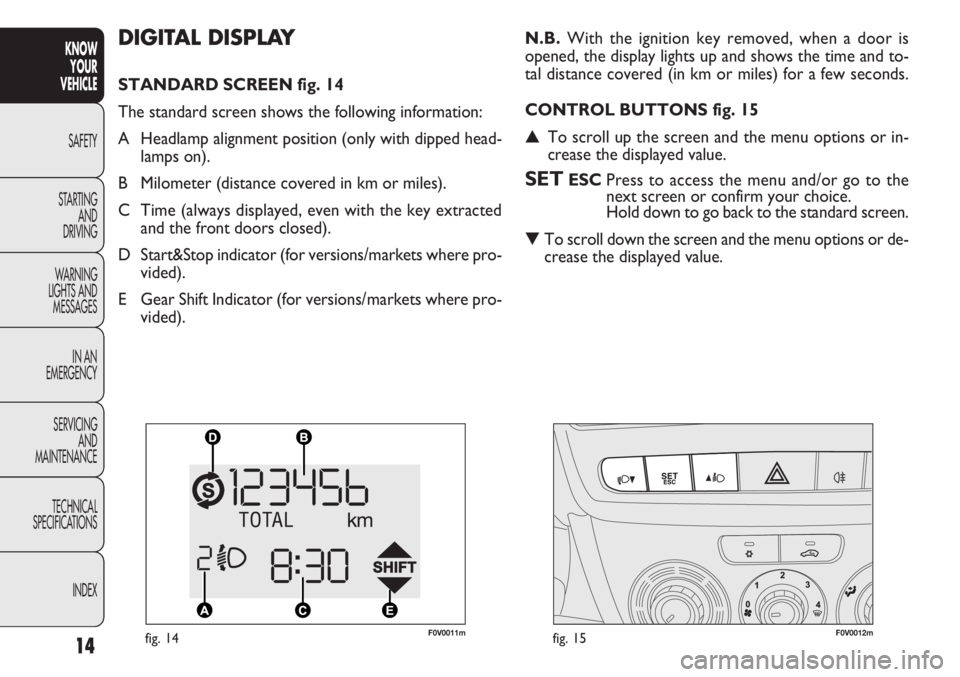

DIGITAL DISPLAY
STANDARD SCREEN fig. 14
The standard screen shows the following information:
A Headlamp alignment position (only with dipped head-lamps on).
B Milometer (distance covered in km or miles).
C Time (always displayed, even with the key extracted and the front doors closed).
D Start&Stop indicator (for versions/markets where pro- vided).
E Gear Shift Indicator (for versions/markets where pro- vided). N.B.
With the ignition key removed, when a door is
opened, the display lights up and shows the time and to-
tal distance covered (in km or miles) for a few seconds.
CONTROL BUTTONS fig. 15
▲ To scroll up the screen and the menu options or in-
crease the displayed value.
SETESC Press to access the menu and/or go to the
next screen or confirm your choice.
Hold down to go back to the standard screen.
▼ To scroll down the screen and the menu options or de-
crease the displayed value.
F0V0011mfig. 14F0V0012mfig. 15

15
KNOW
YOUR
VEHICLE
SAFETY
STAR

TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

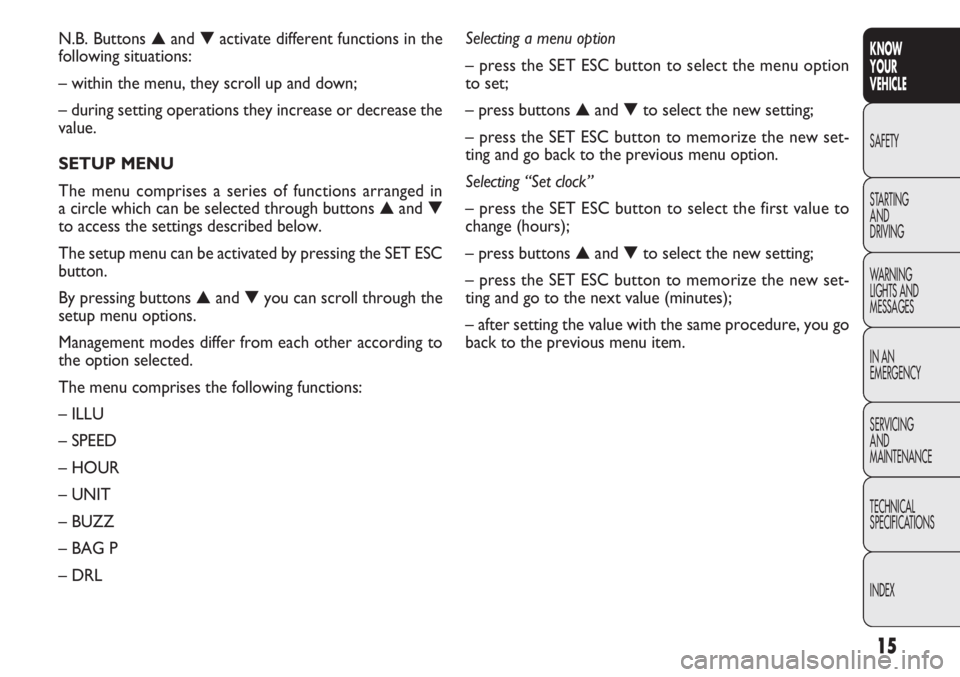

N.B. Buttons ▲and ▼activate different functions in the
following situations:
– within the menu, they scroll up and down;
– during setting operations they increase or decrease the
value.
SETUP MENU
The menu comprises a series of functions arranged in
a circle which can be selected through buttons ▲and ▼
to access the settings described below.
The setup menu can be activated by pressing the SET ESC
button.
By pressing buttons ▲and ▼you can scroll through the
setup menu options.
Management modes differ from each other according to
the option selected.
The menu comprises the following functions:
– ILLU
– SPEED
–HOUR
– UNIT
–BUZZ
– BAG P
– DRL Selecting a menu option
– press the SET ESC button to select the menu option
to set;
– press buttons
▲and ▼to select the new setting;
– press the SET ESC button to memorize the new set-
ting and go back to the previous menu option.
Selecting “Set clock”
– press the SET ESC button to select the first value to
change (hours);
– press buttons ▲and ▼to select the new setting;
– press the SET ESC button to memorize the new set-
ting and go to the next value (minutes);
– after setting the value with the same procedure, you go
back to the previous menu item.

Proceed as follows to adjust the brightness:
– press the SET ESC button: the display will show ILLU;
– press button▲or ▼to adjust the brightness level;
– press the SET ESC button to go back to the menu screen
or hold the button down to go back to the standard screen
without saving.
Setting the speed limit (SPEEd)
This function is used to set a speed limit (km/h or mph);
the driver is alerted when this limit is exceeded (see
“Warning lights and messages”).
To set the desired speed limit, proceed as follows:
– press SET ESC: the word SPEEd and the previously set
unit (km/h or mph) will appear on the display;
– press button ▲or ▼to select speed limit activation (On)
or deactivation (Off);
– when the function is activated (On), press buttons
▲ or ▼to select the speed limit and press SET ESC to
confirm.
Hold down the SET ESC button
– to quit the setup menu if you are in the menu;
– to quit to the menu if you are setting an option;
– to save only the settings already memorized (confirmed
by pressing the SET ESC button).
The setup menu page is timed. Only the changes already
memorized by pressing the SET ESC button are saved
when you come out of the menu.
Adjusting the vehicle interior lighting
(ILLU)
This function is available, with the dipped headlamps on
and at night, to adjust the brightness of the instrument pan-
el, buttons, radio display and automatic climate control dis-
play.
During the daytime, and with the dipped headlamps on,
the instrument panel, buttons and radio and automatic cli-
mate control displays are set to maximum brightness.
16
KNOW
YOUR
VEHICLE
SAFETY
ST AR

TINGAND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

17
KNOW
YOUR
VEHICLE
SAFETY
STAR

TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

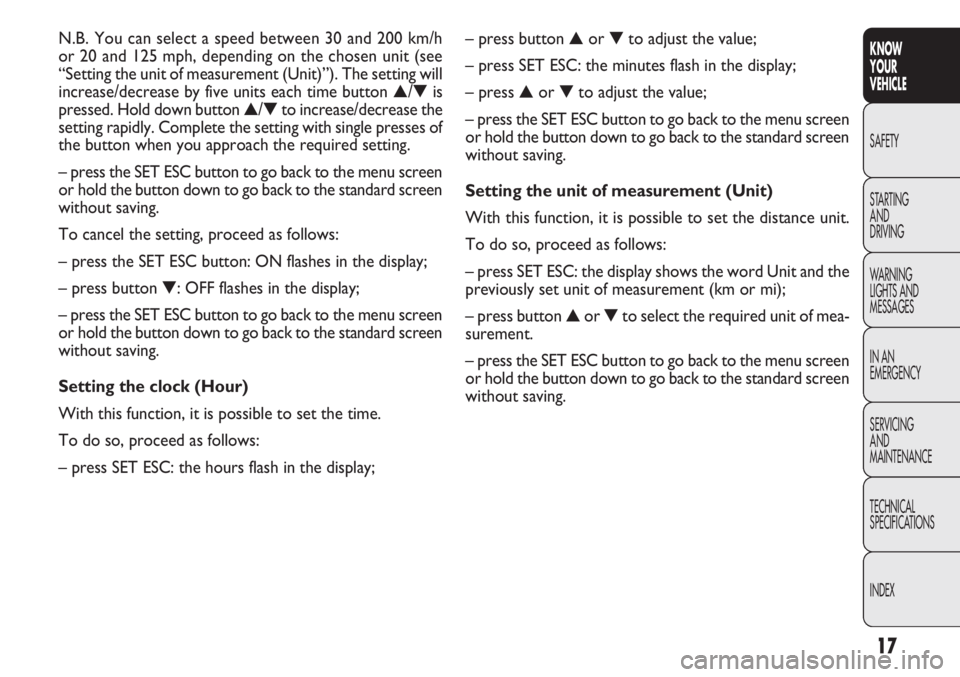

– press button ▲or ▼to adjust the value;
– press SET ESC: the minutes flash in the display;
– press ▲or ▼to adjust the value;
– press the SET ESC button to go back to the menu screen
or hold the button down to go back to the standard screen
without saving.
Setting the unit of measurement (Unit)
With this function, it is possible to set the distance unit.
To do so, proceed as follows:
– press SET ESC: the display shows the word Unit and the
previously set unit of measurement (km or mi);
– press button ▲or ▼to select the required unit of mea-
surement.
– press the SET ESC button to go back to the menu screen
or hold the button down to go back to the standard screen
without saving.
N.B. You can select a speed between 30 and 200 km/h
or 20 and 125 mph, depending on the chosen unit (see
“Setting the unit of measurement (Unit)”). The setting will
increase/decrease by five units each time button
▲/▼ is
pressed. Hold down button ▲/▼ to increase/decrease the
setting rapidly. Complete the setting with single presses of
the button when you approach the required setting.
– press the SET ESC button to go back to the menu screen
or hold the button down to go back to the standard screen
without saving.
To cancel the setting, proceed as follows:
– press the SET ESC button: ON flashes in the display;
– press button ▼: OFF flashes in the display;
– press the SET ESC button to go back to the menu screen
or hold the button down to go back to the standard screen
without saving.
Setting the clock (Hour)
With this function, it is possible to set the time.
To do so, proceed as follows:
– press SET ESC: the hours flash in the display;

18
KNOWYOUR
VEHICLE
SAFETY
ST AR

TINGAND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

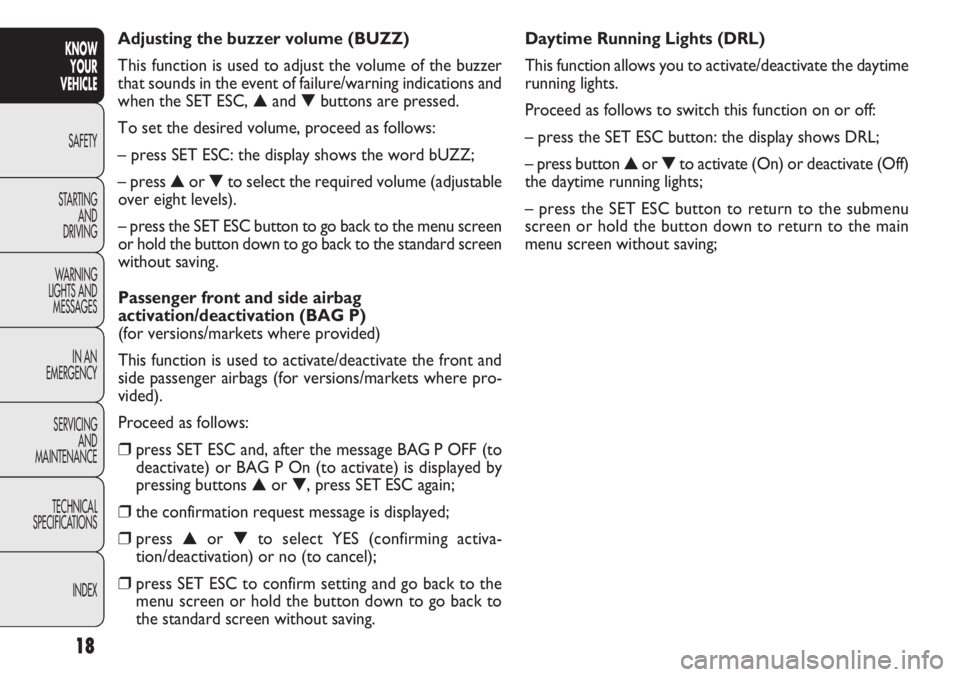

Daytime Running Lights (DRL)
This function allows you to activate/deactivate the daytime
running lights.
Proceed as follows to switch this function on or off:
– press the SET ESC button: the display shows DRL;
– press button ▲or ▼to activate (On) or deactivate (Off)
the daytime running lights;
– press the SET ESC button to return to the submenu
screen or hold the button down to return to the main
menu screen without saving;
Adjusting the buzzer volume (BUZZ)
This function is used to adjust the volume of the buzzer
that sounds in the event of failure/warning indications and
when the SET ESC,
▲and ▼buttons are pressed.
To set the desired volume, proceed as follows:
– press SET ESC: the display shows the word bUZZ;
– press ▲or ▼to select the required volume (adjustable
over eight levels).
– press the SET ESC button to go back to the menu screen
or hold the button down to go back to the standard screen
without saving.
Passenger front and side airbag
activation/deactivation (BAG P)
(for versions/markets where provided)
This function is used to activate/deactivate the front and
side passenger airbags (for versions/markets where pro-
vided).
Proceed as follows:
❒press SET ESC and, after the message BAG P OFF (to
deactivate) or BAG P On (to activate) is displayed by
pressing buttons ▲or ▼, press SET ESC again;
❒the confirmation request message is displayed;
❒press ▲or ▼to select YES (confirming activa-
tion/deactivation) or no (to cancel);
❒press SET ESC to confirm setting and go back to the
menu screen or hold the button down to go back to
the standard screen without saving.

19
KNOW
YOUR
VEHICLE
SAFETY
STAR

TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0038mfig. 16F0V0012mfig. 17
F Start&Stop indicator (for versions/markets where pro-
vided)
G Gear Shift Indicator (for versions/markets where pro- vided)
N.B. When one of the front doors is opened, the display
turns on and shows the time and distance covered (in km
or mi) for a few seconds.
CONTROL BUTTONS fig. 17
▲ To scroll up the screen and the menu options or in-
crease the displayed value.
SETESC Press to access the menu and/or go to the
next screen or confirm your choice.
Hold down to go back to the standard screen.
▼ To scroll down the screen and the menu options or de-
crease the displayed value.

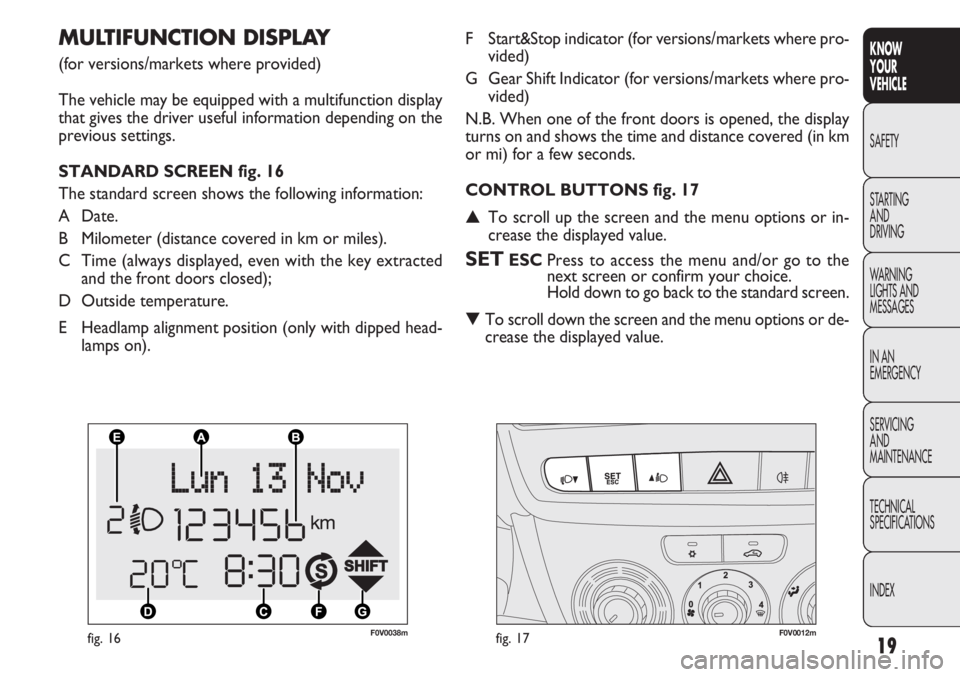

MULTIFUNCTION DISPLAY
(for versions/markets where provided)
The vehicle may be equipped with a multifunction display
that gives the driver useful information depending on the
previous settings.
STANDARD SCREEN fig. 16
The standard screen shows the following information:
A Date.
B Milometer (distance covered in km or miles).
C Time (always displayed, even with the key extracted
and the front doors closed);
D Outside temperature.
E Headlamp alignment position (only with dipped head- lamps on).

20
KNOWYOUR
VEHICLE
SAFETY
ST AR

TINGAND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

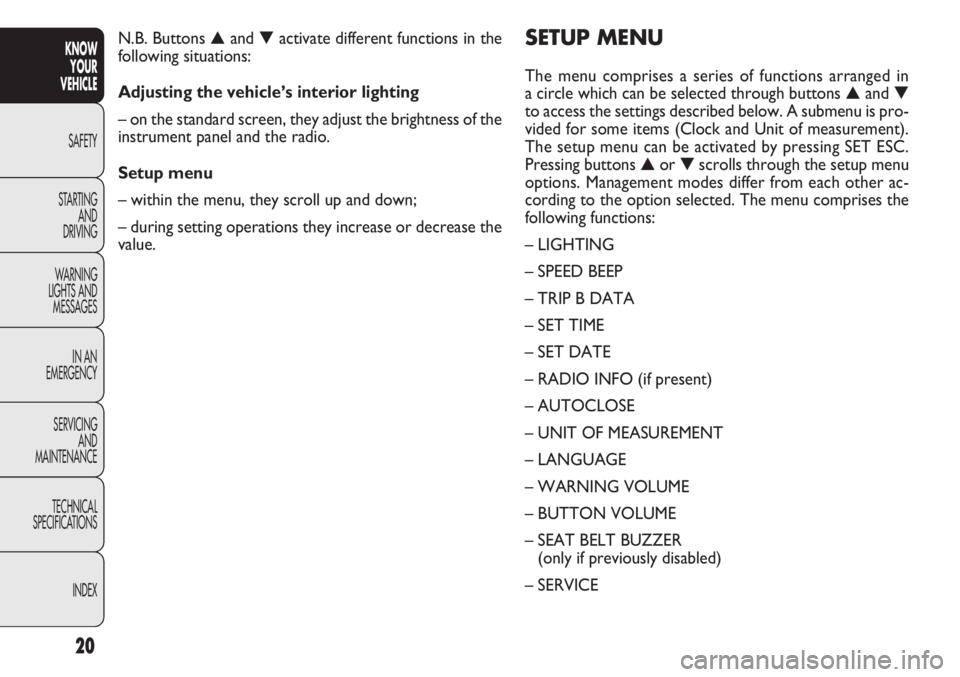

SETUP MENU
The menu comprises a series of functions arranged in
a circle which can be selected through buttons ▲and ▼
to access the settings described below. A submenu is pro-
vided for some items (Clock and Unit of measurement).
The setup menu can be activated by pressing SET ESC.
Pressing buttons ▲or ▼scrolls through the setup menu
options. Management modes differ from each other ac-
cording to the option selected. The menu comprises the
following functions:
– LIGHTING
– SPEED BEEP
– TRIP B DATA
– SET TIME
– SET DATE
– RADIO INFO (if present)
– AUTOCLOSE
– UNIT OF MEASUREMENT
– LANGUAGE
– WARNING VOLUME
– BUTTON VOLUME
– SEAT BELT BUZZER (only if previously disabled)
– SERVICE
N.B. Buttons
▲and ▼activate different functions in the
following situations:
Adjusting the vehicle’s interior lighting
– on the standard screen, they adjust the brightness of the
instrument panel and the radio.
Setup menu
– within the menu, they scroll up and down;
– during setting operations they increase or decrease the
value.

21
KNOW
YOUR
VEHICLE
SAFETY
STAR

TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

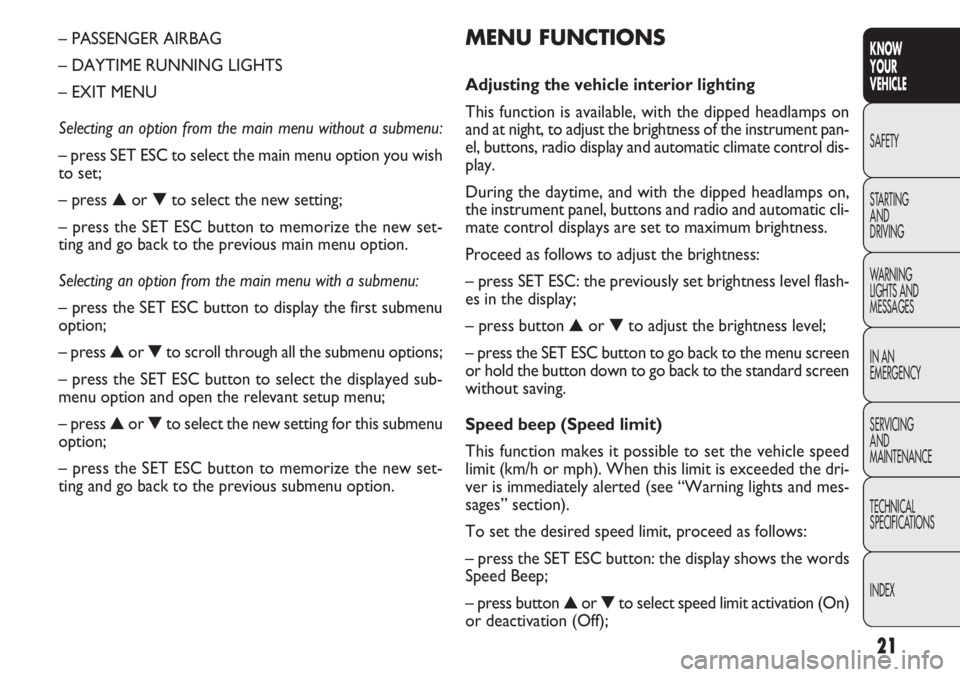

MENU FUNCTIONS
Adjusting the vehicle interior lighting
This function is available, with the dipped headlamps on
and at night, to adjust the brightness of the instrument pan-
el, buttons, radio display and automatic climate control dis-
play.
During the daytime, and with the dipped headlamps on,
the instrument panel, buttons and radio and automatic cli-
mate control displays are set to maximum brightness.
Proceed as follows to adjust the brightness:
– press SET ESC: the previously set brightness level flash-
es in the display;
– press button ▲or ▼to adjust the brightness level;
– press the SET ESC button to go back to the menu screen
or hold the button down to go back to the standard screen
without saving.
Speed beep (Speed limit)
This function makes it possible to set the vehicle speed
limit (km/h or mph). When this limit is exceeded the dri-
ver is immediately alerted (see “Warning lights and mes-
sages” section).
To set the desired speed limit, proceed as follows:
– press the SET ESC button: the display shows the words
Speed Beep;
– press button ▲or ▼to select speed limit activation (On)
or deactivation (Off);
– PASSENGER AIRBAG
– DAYTIME RUNNING LIGHTS
– EXIT MENU
Selecting an option from the main menu without a submenu:
– press SET ESC to select the main menu option you wish
to set;
– press
▲or ▼to select the new setting;
– press the SET ESC button to memorize the new set-
ting and go back to the previous main menu option.
Selecting an option from the main menu with a submenu:
– press the SET ESC button to display the first submenu
option;
– press ▲or ▼to scroll through all the submenu options;
– press the SET ESC button to select the displayed sub-
menu option and open the relevant setup menu;
– press ▲or ▼to select the new setting for this submenu
option;
– press the SET ESC button to memorize the new set-
ting and go back to the previous submenu option.

22
KNOWYOUR
VEHICLE
SAFETY
ST AR

TINGAND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

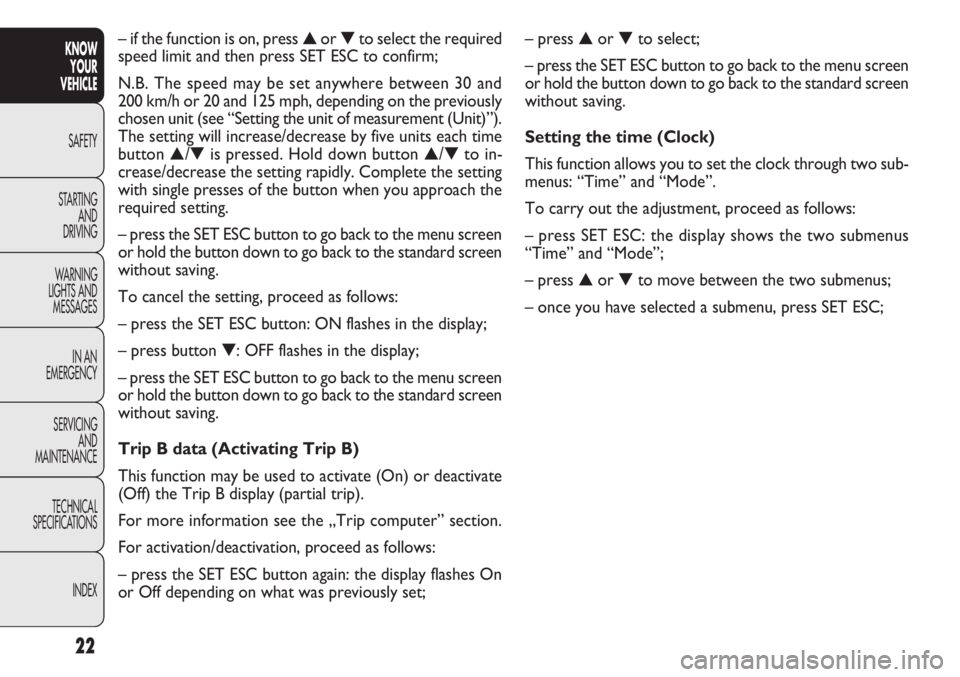

–press▲or▼to select;
– press the SET ESC button to go back to the menu screen
or hold the button down to go back to the standard screen
without saving.
Setting the time (Clock)
This function allows you to set the clock through two sub-
menus: “Time” and “Mode”.
To carry out the adjustment, proceed as follows:
– press SET ESC: the display shows the two submenus
“Time” and “Mode”;
–press▲ or▼to move between the two submenus;
– once you have selected a submenu, press SET ESC;
– if the function is on, press
▲or ▼to select the required
speed limit and then press SET ESC to confirm;
N.B. The speed may be set anywhere between 30 and
200 km/h or 20 and 125 mph, depending on the previously
chosen unit (see “Setting the unit of measurement (Unit)”).
The setting will increase/decrease by five units each time
button ▲/▼ is pressed. Hold down button ▲/▼ to in-
crease/decrease the setting rapidly. Complete the setting
with single presses of the button when you approach the
required setting.
– press the SET ESC button to go back to the menu screen
or hold the button down to go back to the standard screen
without saving.
To cancel the setting, proceed as follows:
– press the SET ESC button: ON flashes in the display;
– press button ▼: OFF flashes in the display;
– press the SET ESC button to go back to the menu screen
or hold the button down to go back to the standard screen
without saving.
Trip B data (Activating Trip B)
This function may be used to activate (On) or deactivate
(Off) the Trip B display (partial trip).
For more information see the „Trip computer” section.
For activation/deactivation, proceed as follows:
– press the SET ESC button again: the display flashes On
or Off depending on what was previously set;
