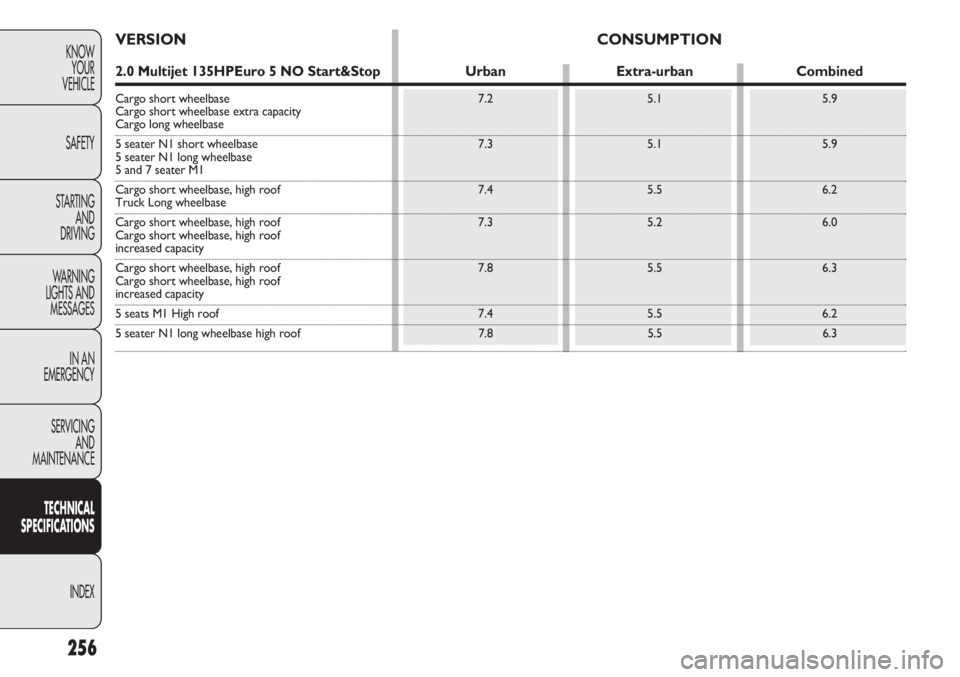

VERSION CONSUMPTION
2.0 Multijet 135HPEuro 5 NO Start&StopUrbanExtra-urban Combined
Cargo short wheelbase 7.25.1 5.9
Cargo short wheelbase extra capacity
Cargo long wheelbase
5 seater N1 short wheelbase 7.35.1 5.9
5 seater N1 long wheelbase
5 and 7 seater M1
Cargo short wheelbase, high roof 7.45.5 6.2
Truck Long wheelbase
Cargo short wheelbase, high roof 7.35.2 6.0
Cargo short wheelbase, high roof
increased capacity
Cargo short wheelbase, high roof 7.85.5 6.3
Cargo short wheelbase, high roof
increased capacity
5 seats M1 High roof 7.45.5 6.2
5 seater N1 long wheelbase high roof 7.85.5 6.3

257
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIO

NS
INDEX

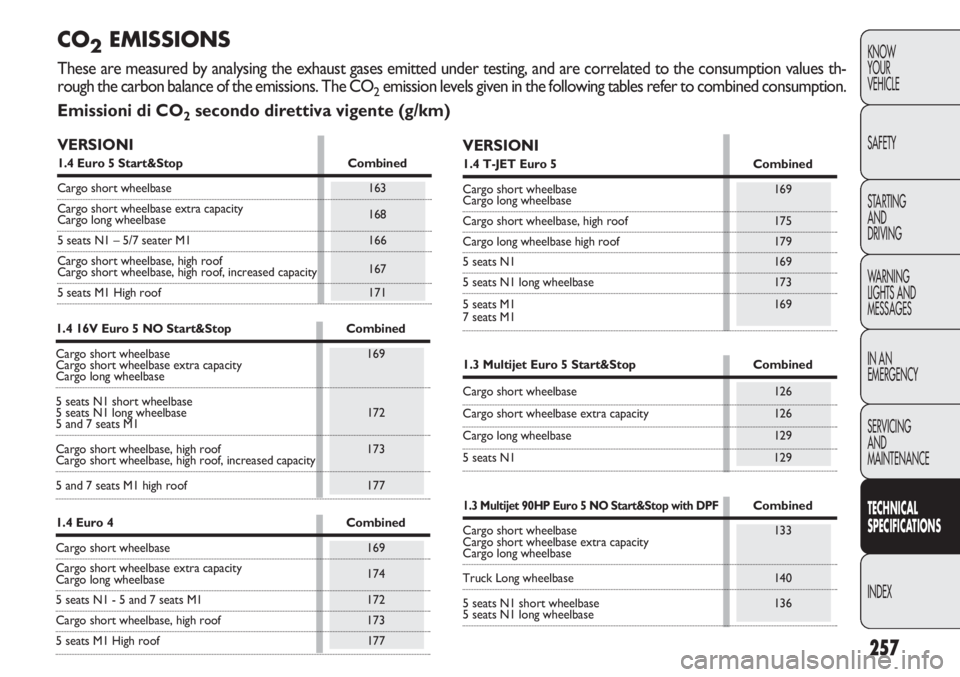

CO2EMISSIONS
These are measured by analysing the exhaust gases emitted under testing,\
and are correlated to the consumption values th-
rough the carbon balance of the emissions. The CO
2emission levels given in the following tables refer to combined consumpt\
ion.
Emissioni di CO
2secondo direttiva vigente (g/km)
VERSIONI
1.4 Euro 5 Start&Stop Combined
Cargo short wheelbase 163
Cargo short wheelbase extra capacity 168
Cargo long wheelbase
5 seats N1 – 5/7 seater M1 166
Cargo short wheelbase, high roof
Cargo short wheelbase, high roof, increased capacity 167
5 seats M1 High roof
171
1.4 16V Euro 5 NO Start&StopCombined
Cargo short wheelbase 169
Cargo short wheelbase extra capacity
Cargo long wheelbase
5 seats N1 short wheelbase
5 seats N1 long wheelbase 172
5 and 7 seats M1
Cargo short wheelbase, high roof 173
Cargo short wheelbase, high roof, increased capacity
5 and 7 seats M1 high roof 177
1.3 Multijet 90HP Euro 5 NO Start&Stop with DPFCombined
Cargo short wheelbase 133
Cargo short wheelbase extra capacity
Cargo long wheelbase
Truck Long wheelbase 140
5 seats N1 short wheelbase 136
5 seats N1 long wheelbase
1.4 Euro 4Combined
Cargo short wheelbase 169
Cargo short wheelbase extra capacity 174
Cargo long wheelbase
5 seats N1 - 5 and 7 seats M1 172
Cargo short wheelbase, high roof173
5 seats M1 High roof 177
1.3 Multijet Euro 5 Start&StopCombined
Cargo short wheelbase 126
Cargo short wheelbase extra capacity126
Cargo long wheelbase 129
5 seats N1129
VERSIONI
1.4 T-JET Euro 5Combined
Cargo short wheelbase 169
Cargo long wheelbase
Cargo short wheelbase, high roof 175
Cargo long wheelbase high roof179
5 seats N1169
5 seats N1 long wheelbase 173
5 seats M1 169
7 seats M1

258
KNOWYOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICAT IO

NS
INDEX

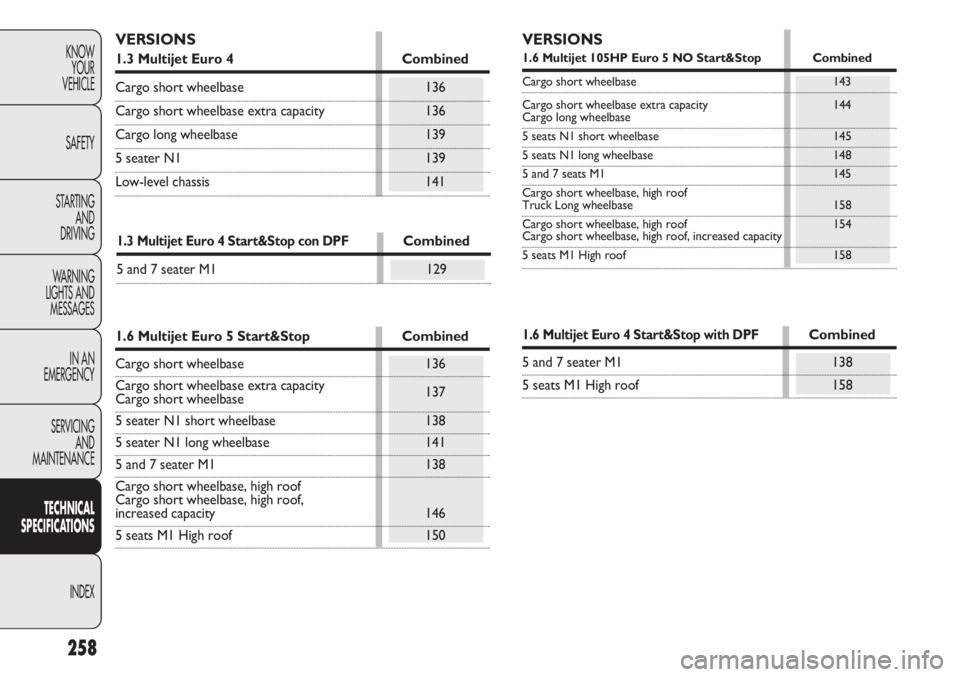

VERSIONS
1.3 Multijet Euro 4 Combined
Cargo short wheelbase 136
Cargo short wheelbase extra capacity 136
Cargo long wheelbase 139
5 seater N1139
Low-level chassis141
1.3 Multijet Euro 4 Start&Stop con DPFCombined
5 and 7 seater M1 129
1.6 Multijet Euro 5 Start&Stop Combined
Cargo short wheelbase 136
Cargo short wheelbase extra capacity 137
Cargo short wheelbase
5 seater N1 short wheelbase 138
5 seater N1 long wheelbase 141
5 and 7 seater M1138
Cargo short wheelbase, high roof
Cargo short wheelbase, high roof,
increased capacity 146
5 seats M1 High roof 150
1.6 Multijet Euro 4 Start&Stop with DPFCombined
5 and 7 seater M1138
5 seats M1 High roof 158
VERSIONS
1.6 Multijet 105HP Euro 5 NO Start&Stop Combined
Cargo short wheelbase 143
Cargo short wheelbase extra capacity 144
Cargo long wheelbase
5 seats N1 short wheelbase 145
5 seats N1 long wheelbase148
5 and 7 seats M1145
Cargo short wheelbase, high roof
Truck Long wheelbase 158
Cargo short wheelbase, high roof 154
Cargo short wheelbase, high roof, increased capacity
5 seats M1 High roof 158

259
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIO

NS
INDEX
VERSIONS
1.6 Multijet Euro 4 Combined
Cargo 7 Q short wheelbase 143
Cargo 10 Q short wheelbase/long wheelbase 144
Cargo short wheelbase, high roof
Cargo short wheelbase, high roof,
increased capacity152
1.6 Multijet Euro 4 Start&Stop with DPFCombined
5 and 7 seater M1 138
5 seats M1 High roof 150
2.0 Multijet Euro 5 Start&StopCombined
Cargo short wheelbase/long wheelbase 148
5 seater N1 / 5 and 7 seater M1 150
Cargo short wheelbase, high roof
Cargo short wheelbase, high roof,
increased capacity 152
5 seats M1 High roof 157
VERSIONS
2.0 Multijet 135HP Euro 5 NO Start&Stop Combined
Cargo short wheelbase 154
Cargo short wheelbase extra capacity
Cargo long wheelbase
5 seats N1 short wheelbase 156
5 seats N1 long wheelbase
5 and 7 seats M1
Cargo short wheelbase, high roof 163
Truck Long wheelbase
Cargo short wheelbase, high roof158
Cargo short wheelbase, high roof, increased capacity
Cargo short wheelbase, high roof167
Cargo short wheelbase, high roof, increased capacity
5 seats M1 High roof 163
5 seats N1 long wheelbase high roof 167

270
KNOWYOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEXDPF (diesel particulate filter) ...................................... 114
E lectrical/electronic devices 110
Emergency starting ................ 155
– bump starting ................... 166
– jump starting .................... 155
Emissions of CO
2................. 257
End of vehicle life .................. 260
Engine codes ........................... 221
Engine compartment – checking le vels ................. 199
– opening/closing the bonnet .......................... 91
– washing .............................. 216
Engine coolant – checking levels and topping up ................. 203
– specifications .................... 248
– temperature gauge and warning light ................. 13Engine coolant temperature
gauge ........................................ 13
– type of coolant ................ 248
Engine coolant temperature overheating warning light .. 145
Engine coolant – checking levels and topping up ......................... 203
– specifications .................... 248
Engine cooling – checking levels and topping up ................. 203
– specifications .................... 248
Engine immobiliser (Fiat CODE) ............................. 4
Engine mark ing ...................... 220
Engine oil consumption ....... 201 – consumption .................... 202
– engine oil specifications .. 247 Engine oil
– checking levels and topping up .................. 202
– consumption .................... 202
– specifications .................... 247
Engine starting ....................... 133
– emergency starting ..134-155
– ignition switch .......................9
– procedure for Diesel versio ns ..............................134
– procedure for petrol versio ns .............................. 133
– stopping the engine ........ 135
– warming up the engine .. 134
Engine
– engine immobiliser (Fiat CODE) ......................... 4
– identification c odes .......... 221
– marking .............................. 220
– technical data ................... 223

276
KNOWYOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEXSetting the clock ....................... 22
Side air bags (side bag - window bag) ......... 130-131-132
– general warnings ............. 131
Side/taillights – front bulb replacement ... 172
– rear bulb replacement ..............175-176
– switching on......................... 59
Sliding side doors ..................... 78
Smart washing (windscreen wipers) ............. 61
Snow cha ins ........................... 141
Sockets ................................ 72-73
Spare wheel ........................... 228 – technical specifications .... 228
Spark plugs (type) .................. 223
Speed block system .............. 102
Speedometer .....................14-19
Start&Stop system ................. 104Starting and driving
............... 133
Steering lock and ignition switch ........................................ 9
Steering wheel adjustment .... 39
Steering wheel levers ....... 59-61
Steering wheel lock.................... 9
Steering wheel – adjustment lever ................ 39
– turning circle ..................... 225
Steering – steering wheel adjustment lever ..................................... 39
– technical data ................... 225
Sun visors ................................. 75
Suspensions ............................ 225
Switching courtesy lights on/off ....................................... 69
Symbols ....................................... 4 T
ailgate
– emergency opening from the inside ........................ 85-86
– opening with remote control ............................... 6-7
Technical specifications. ....... 219
Third brake light .................... 176
Top speeds ............................. 229
Topping up the engine oil ... 202 – specifications .................... 247
Tow hook
– installation ................189-190
Towing the vehicle ............... 189
Towing trailers ...................... 139
Trailer (towing) .............189-190
– installing the tow hook .......................... 189-190
Transmission
– technical data ................... 224
