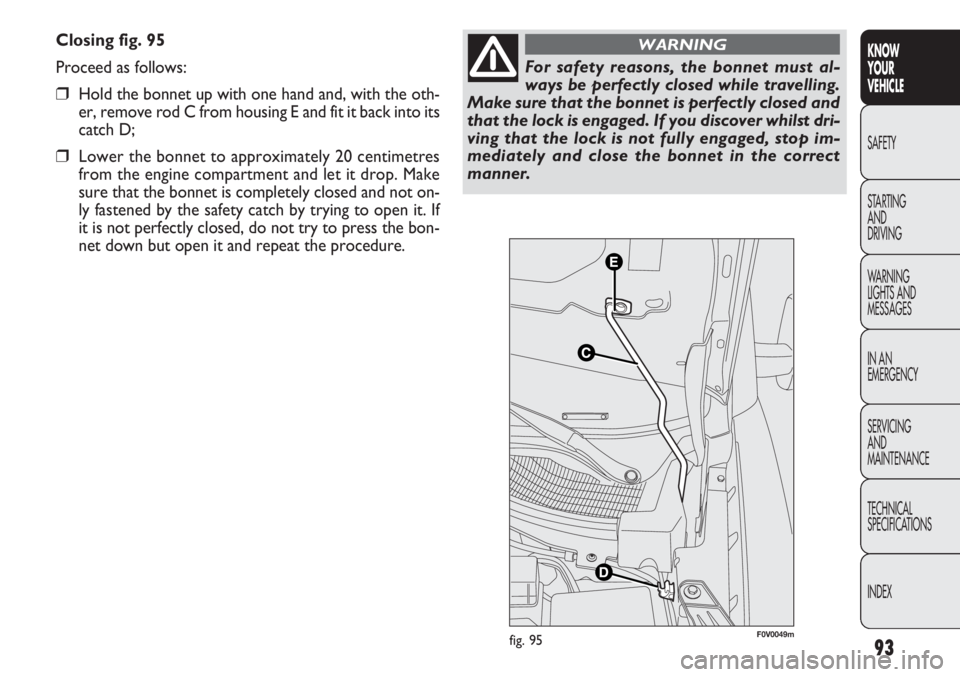

Closing fig. 95
Proceed as follows:
❒Hold the bonnet up with one hand and, with the oth-
er, remove rod C from housing E and fit it back into its
catch D;
❒Lower the bonnet to approximately 20 centimetres
from the engine compartment and let it drop. Make
sure that the bonnet is completely closed and not on-
ly fastened by the safety catch by trying to open it. If
it is not perfectly closed, do not try to press the bon-
net down but open it and repeat the procedure.
For safety reasons, the bonnet must al-
ways be perfectly closed while travelling.
Make sure that the bonnet is perfectly closed and
that the lock is engaged. If you discover whilst dri-
ving that the lock is not fully engaged, stop im-
mediately and close the bonnet in the correct
manner.
WARNING
F0V0049mfig. 95

94
KNOWYOUR
VEHICLE
SAFETY
ST AR

TING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0123mfig. 99

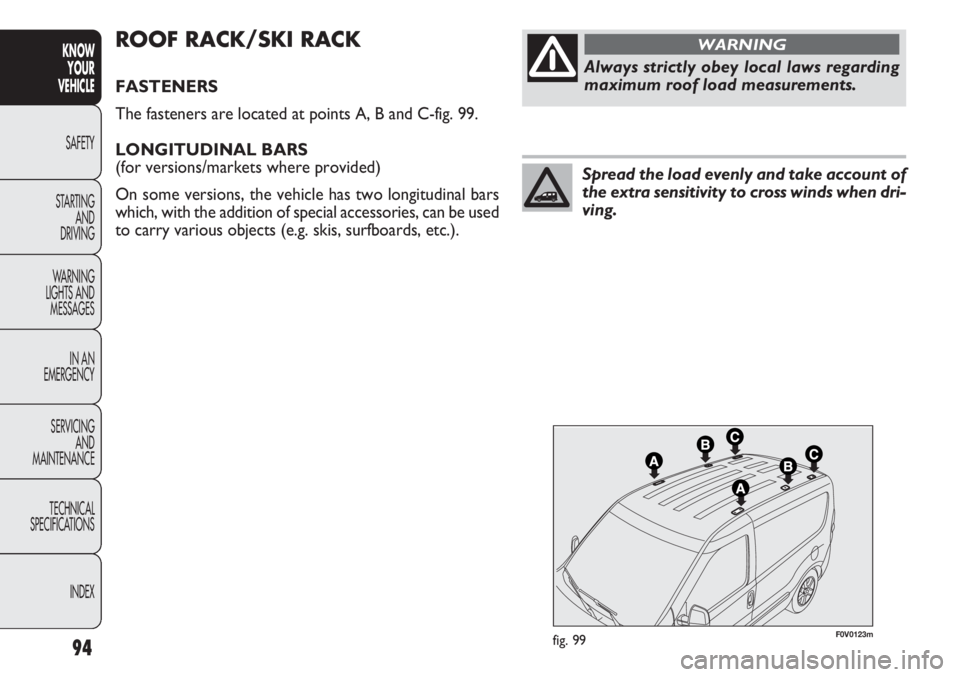

ROOF RACK/SKI RACK
FASTENERS
The fasteners are located at points A, B and C-fig. 99.
LONGITUDINAL BARS
(for versions/markets where provided)
On some versions, the vehicle has two longitudinal bars
which, with the addition of special accessories, can be used
to carry various objects (e.g. skis, surfboards, etc.).
Always strictly obey local laws regarding
maximum roof load measurements.
WARNING
Spread the load evenly and take account of
the extra sensitivity to cross winds when dri-
ving.

95
KNOW
YOUR
VEHICLE
SAFETY
STAR

TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0021mfig. 100
H EA DLIG HTS
LIGHT BEAM DIRECTION
The correct direction of the headlights is essential for the
comfort and safety of the driver and other road users.
To ensure the best visibility conditions when travelling with
the headlights on the headlight alignment must be correct.
Contact the Fiat Service Network to have the direction
checked and, if necessary, adjusted.
HEADLIGHT ALIGNMENT CORRECTOR
This device works with the ignition key in the MAR posi-
tion and the dipped headlamps on.
The vehicle tilts backwards when it is laden, raising the light
beam. The direction of the beam must therefore be ad-
justed in this case.
After having travelled several kilometres,
check that the attachment retaining bolts
are still securely fastened.
WARNING
Never exceed the maximum permitted load
(see “Technical specifications”).

96
KNOWYOUR
VEHICLE
SAFETY
ST AR

TING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
ABS SYSTEM
(for versions/markets where provided)
This is an integral part of the braking system, which pre-
vents one or more wheels from locking or slipping re-
gardless of the road surface conditions and braking action,
giving the best control during emergency braking.
The EBD system (Electronic Braking Force Distribution)
completes the system, allowing the braking action to be
distributed between the front and rear wheels.
WARNING For maximum efficiency of the braking sys-
tem, a bedding-in period of about 500 km is needed: dur-
ing this period it is better to avoid sharp, repeated and pro-
longed braking.
SYSTEM INTERVENTION
The driver can tell the ABS system has come into action
because the brake pedal pulsates slightly and the system
gets noisier: it means that the vehicle speed should be al-
tered to suit the type of road surface.
Headlamp alignment adjustment
To adjust, press buttons Òandfig. 100 on the control
panel.
The display located on the instrument panel provides the
visual indication of the positions during the adjustment op-
eration.
Position 0 – one or two people in the front seats.
Position 1 – five people.
Position 2 – five people + load in the boot.
Position 3 – driver + maximum permitted load stowed in the luggage compartment.
WARNING Check the light beam alignment every time
the load transported changes.
FOG LIGHT DIRECTION
(for versions/markets where provided)
Contact the Fiat Service Network to have the direction
checked and, if necessary, adjusted.
ADJUSTING THE HEADLIGHTS WHEN
ABROAD
The dipped headlamps are adjusted to work in the coun-
try where the vehicle was originally purchased. When in
countries where you drive on the other side of the road,
you need to alter the light beam direction by affixing a spe-
cially designed self-adhesive film in order not to dazzle the
vehicles travelling in the opposite direction. This film is
provided by Lineaccessori Fiat and is available at Fiat Ser-
vice Network.
When the ABS intervenes and you notice
the brake pedal pulsating, do not be afraid
to keep the pedal pushed down. This will help you
to stop in the shortest distance possible, depend-
ing on the road conditions.
WARNING

97
KNOW
YOUR
VEHICLE
SAFETY
STAR

TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

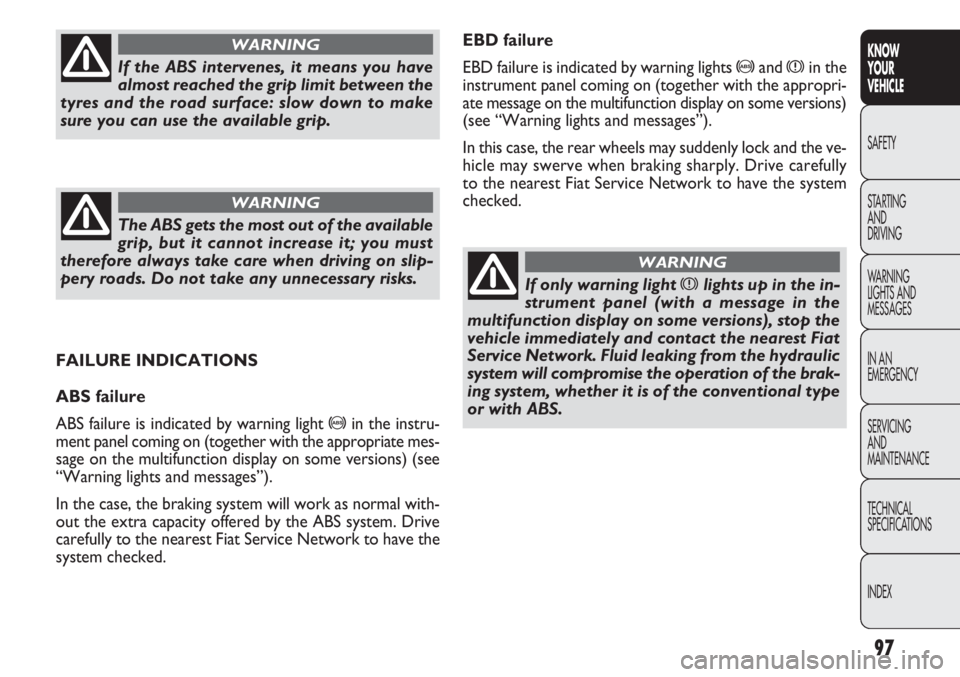

EBD failure
EBD failure is indicated by warning lights
>andxin the
instrument panel coming on (together with the appropri-
ate message on the multifunction display on some versions)
(see “Warning lights and messages”).
In this case, the rear wheels may suddenly lock and the ve-
hicle may swerve when braking sharply. Drive carefully
to the nearest Fiat Service Network to have the system
checked.
FAILURE INDICATIONS
ABS failure
ABS failure is indicated by warning light
>in the instru-
ment panel coming on (together with the appropriate mes-
sage on the multifunction display on some versions) (see
“Warning lights and messages”).
In the case, the braking system will work as normal with-
out the extra capacity offered by the ABS system. Drive
carefully to the nearest Fiat Service Network to have the
system checked.
If the ABS intervenes, it means you have
almost reached the grip limit between the
tyres and the road surface: slow down to make
sure you can use the available grip.
WARNING
The ABS gets the most out of the available
grip, but it cannot increase it; you must
therefore always take care when driving on slip-
pery roads. Do not take any unnecessary risks.
WARNING
If only warning light xlights up in the in-
strument panel (with a message in the
multifunction display on some versions), stop the
vehicle immediately and contact the nearest Fiat
Service Network. Fluid leaking from the hydraulic
system will compromise the operation of the brak-
ing system, whether it is of the conventional type
or with ABS.
WARNING

98
KNOWYOUR
VEHICLE
SAFETY
ST AR

TING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
ESP SYSTEM
(Electronic Stability Program)
(for versions/markets where provided)
This is an electronic system that controls vehicle stability
in the event of tyre grip loss, helping to maintain direc-
tional control.
The ESP system is therefore particularly useful when grip
conditions of road surfaces change.
The MSR system (adjustment of the engine braking torque
during gear downshifts) and the HBA system (automatic
increase in the braking pressure during emergency brak-
ing) are present with ESP, ASR and Hill Holder systems
(for versions/markets where provided).
SYSTEM INTERVENTION
This is signalled by the flashing of warning light
áin the in-
strument panel, to inform the driver that the vehicle is in
critical stability and grip conditions.
SYSTEM ACTIVATION
The ESP system is automatically activated when the vehi-
cle is started and cannot be de-activated.
BRAKE ASSIST (emergency braking assistance
integrated in ESP)
(for versions/markets where provided)
This system (which cannot be deactivated) recognises
emergency braking conditions according to the speed of
operation of the brake pedal and provides an additional
hydraulic braking pressure to support that provided by the
driver. This allows faster and more powerful operation
of the braking system.
Brake Assist is deactivated on the versions equipped with
ESP, in the event of ESP system failure (indicated by warn-
ing light
ácoming on together with the message in the
multifunction display, where provided).
When the ABS cuts in, and you feel the
brake pedal pulsating, do not remove your
foot, but keep it pressed; in doing so you will stop
in the shortest distance possible under the road
conditions at the time.
WARNING

99
KNOW
YOUR
VEHICLE
SAFETY
STAR

TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

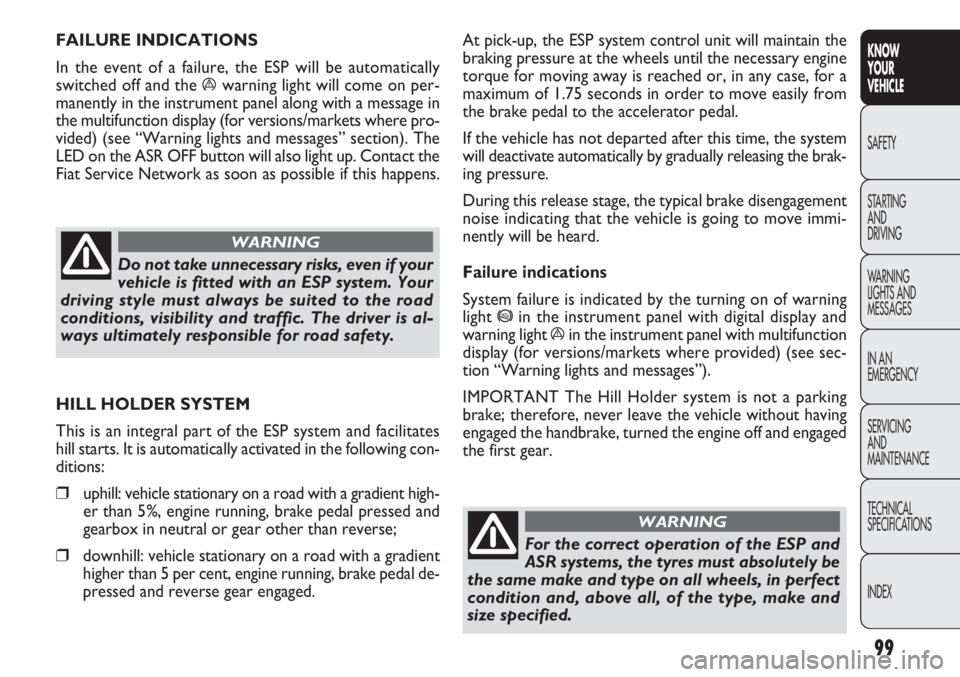

At pick-up, the ESP system control unit will maintain the
braking pressure at the wheels until the necessary engine
torque for moving away is reached or, in any case, for a
maximum of 1.75 seconds in order to move easily from
the brake pedal to the accelerator pedal.
If the vehicle has not departed after this time, the system
will deactivate automatically by gradually releasing the brak-
ing pressure.
During this release stage, the typical brake disengagement
noise indicating that the vehicle is going to move immi-
nently will be heard.
Failure indications
System failure is indicated by the turning on of warning
light
*in the instrument panel with digital display and
warning light
áin the instrument panel with multifunction
display (for versions/markets where provided) (see sec-
tion “Warning lights and messages”).
IMPORTANT The Hill Holder system is not a parking
brake; therefore, never leave the vehicle without having
engaged the handbrake, turned the engine off and engaged
the first gear.
FAILURE INDICATIONS
In the event of a failure, the ESP will be automatically
switched off and the
áwarning light will come on per-
manently in the instrument panel along with a message in
the multifunction display (for versions/markets where pro-
vided) (see “Warning lights and messages” section). The
LED on the ASR OFF button will also light up. Contact the
Fiat Service Network as soon as possible if this happens.
Do not take unnecessary risks, even if your
vehicle is fitted with an ESP system. Your
driving style must always be suited to the road
conditions, visibility and traffic. The driver is al-
ways ultimately responsible for road safety.
WARNING
HILL HOLDER SYSTEM
This is an integral part of the ESP system and facilitates
hill starts. It is automatically activated in the following con-
ditions:
❒uphill: vehicle stationary on a road with a gradient high-
er than 5%, engine running, brake pedal pressed and
gearbox in neutral or gear other than reverse;
❒downhill: vehicle stationary on a road with a gradient
higher than 5 per cent, engine running, brake pedal de-
pressed and reverse gear engaged. For the correct operation of the ESP and
ASR systems, the tyres must absolutely be
the same make and type on all wheels, in perfect
condition and, above all, of the type, make and
size specified.
WARNING

100
KNOWYOUR
VEHICLE
SAFETY
ST AR

TING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

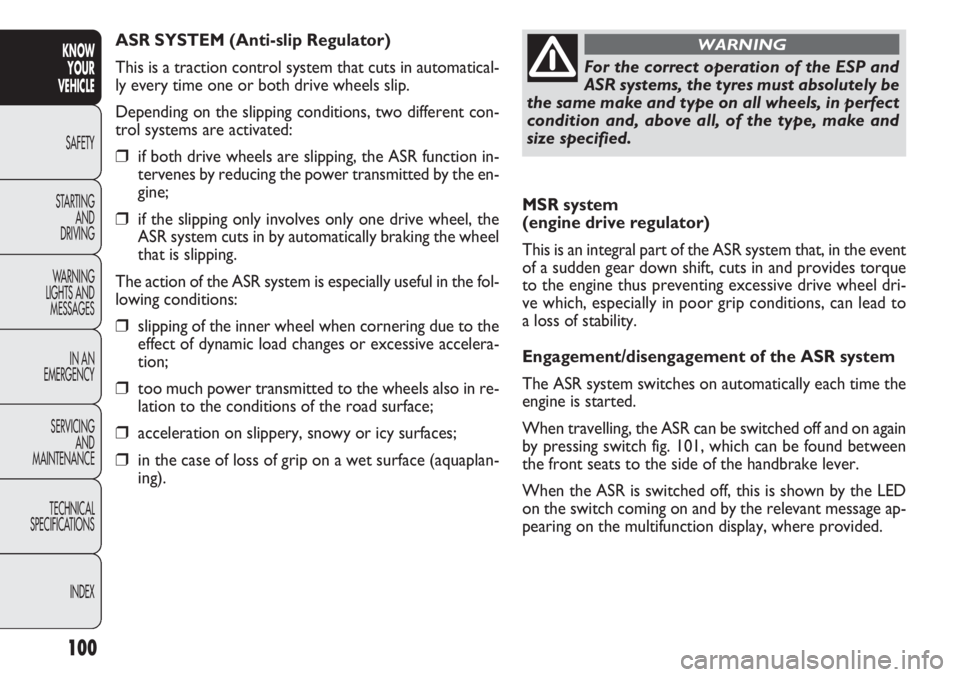

MSR system
(engine drive regulator)
This is an integral part of the ASR system that, in the event
of a sudden gear down shift, cuts in and provides torque
to the engine thus preventing excessive drive wheel dri-
ve which, especially in poor grip conditions, can lead to
a loss of stability.
Engagement/disengagement of the ASR system
The ASR system switches on automatically each time the
engine is started.
When travelling, the ASR can be switched off and on again
by pressing switch fig. 101, which can be found between
the front seats to the side of the handbrake lever.
When the ASR is switched off, this is shown by the LED
on the switch coming on and by the relevant message ap-
pearing on the multifunction display, where provided.
ASR SYSTEM (Anti-slip Regulator)
This is a traction control system that cuts in automatical-
ly every time one or both drive wheels slip.
Depending on the slipping conditions, two different con-
trol systems are activated:
❒if both drive wheels are slipping, the ASR function in-
tervenes by reducing the power transmitted by the en-
gine;
❒if the slipping only involves only one drive wheel, the
ASR system cuts in by automatically braking the wheel
that is slipping.
The action of the ASR system is especially useful in the fol-
lowing conditions:
❒slipping of the inner wheel when cornering due to the
effect of dynamic load changes or excessive accelera-
tion;
❒too much power transmitted to the wheels also in re-
lation to the conditions of the road surface;
❒acceleration on slippery, snowy or icy surfaces;
❒in the case of loss of grip on a wet surface (aquaplan-
ing).
For the correct operation of the ESP and
ASR systems, the tyres must absolutely be
the same make and type on all wheels, in perfect
condition and, above all, of the type, make and
size specified.
WARNING

101
KNOW
YOUR
VEHICLE
SAFETY
STAR

TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

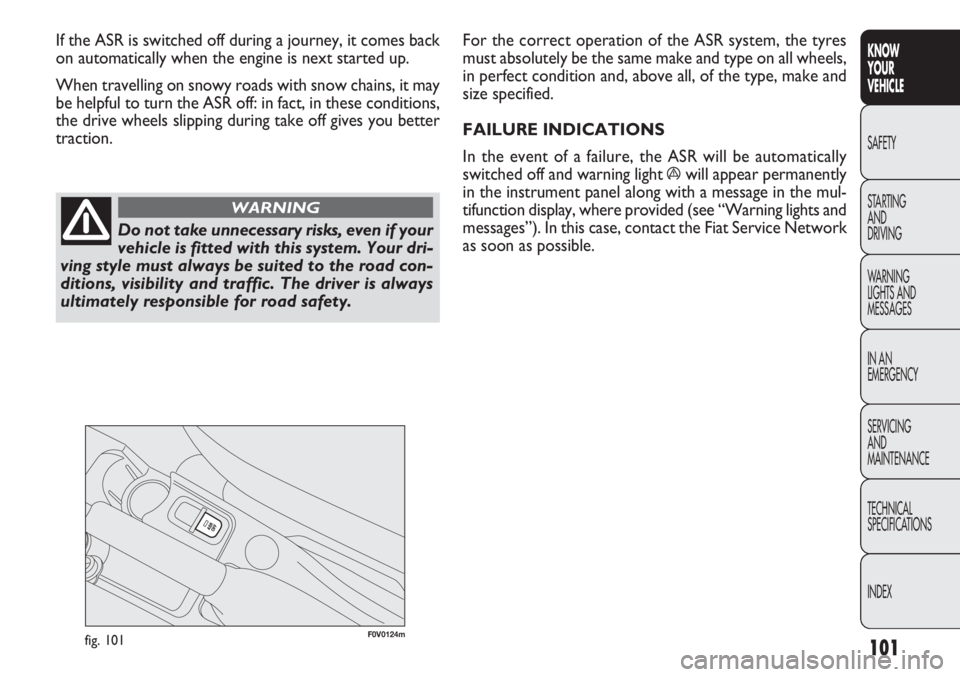

F0V0124mfig. 101
For the correct operation of the ASR system, the tyres
must absolutely be the same make and type on all wheels,
in perfect condition and, above all, of the type, make and
size specified.
FAILURE INDICATIONS
In the event of a failure, the ASR will be automatically
switched off and warning light
áwill appear permanently
in the instrument panel along with a message in the mul-
tifunction display, where provided (see “Warning lights and
messages”). In this case, contact the Fiat Service Network
as soon as possible.
If the ASR is switched off during a journey, it comes back
on automatically when the engine is next started up.
When travelling on snowy roads with snow chains, it may
be helpful to turn the ASR off: in fact, in these conditions,
the drive wheels slipping during take off gives you better
traction.
Do not take unnecessary risks, even if your
vehicle is fitted with this system. Your dri-
ving style must always be suited to the road con-
ditions, visibility and traffic. The driver is always
ultimately responsible for road safety.
WARNING

102
KNOWYOUR
VEHICLE
SAFETY
ST AR

TING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

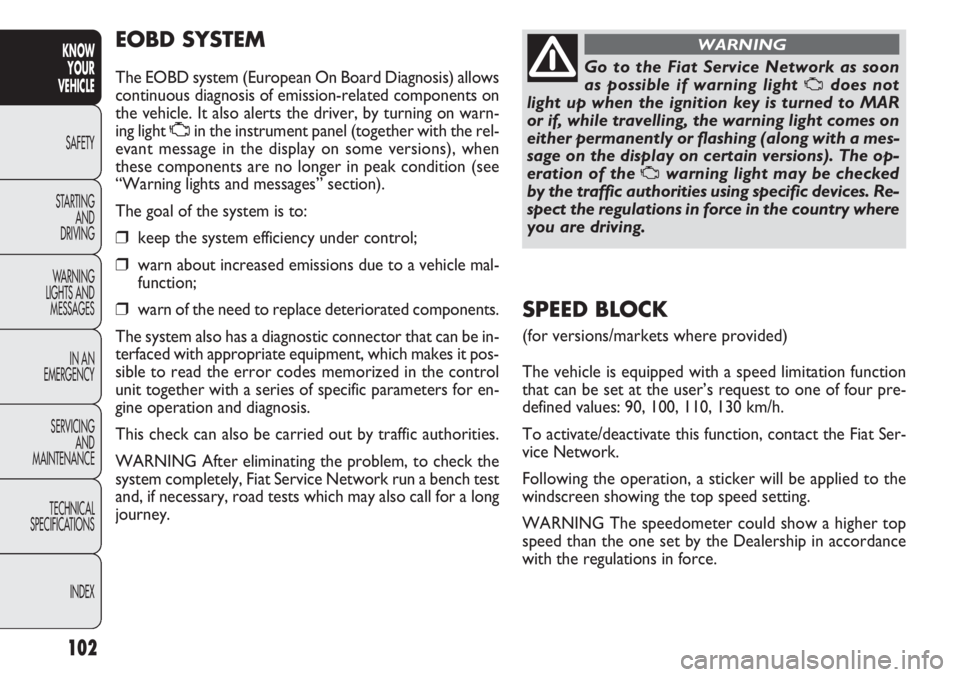

EOBD SY STE M
The EOBD system (European On Board Diagnosis) allows
continuous diagnosis of emission-related components on
the vehicle. It also alerts the driver, by turning on warn-
ing light U in the instrument panel (together with the rel-
evant message in the display on some versions), when
these components are no longer in peak condition (see
“Warning lights and messages” section).
The goal of the system is to:
❒keep the system efficiency under control;
❒warn about increased emissions due to a vehicle mal-
function;
❒warn of the need to replace deteriorated components.
The system also has a diagnostic connector that can be in-
terfaced with appropriate equipment, which makes it pos-
sible to read the error codes memorized in the control
unit together with a series of specific parameters for en-
gine operation and diagnosis.
This check can also be carried out by traffic authorities.
WARNING After eliminating the problem, to check the
system completely, Fiat Service Network run a bench test
and, if necessary, road tests which may also call for a long
journey.
Go to the Fiat Service Network as soon
as possible if warning light
Udoes not
light up when the ignition key is turned to MAR
or if, while travelling, the warning light comes on
either permanently or flashing (along with a mes-
sage on the display on certain versions). The op-
eration of the
Uwarning light may be checked
by the traffic authorities using specific devices. Re-
spect the regulations in force in the country where
you are driving.
WARNING
SPEED BLOCK
(for versions/markets where provided)
The vehicle is equipped with a speed limitation function
that can be set at the user’s request to one of four pre-
defined values: 90, 100, 110, 130 km/h.
To activate/deactivate this function, contact the Fiat Ser-
vice Network.
Following the operation, a sticker will be applied to the
windscreen showing the top speed setting.
WARNING The speedometer could show a higher top
speed than the one set by the Dealership in accordance
with the regulations in force.
