FIAT DOBLO COMBI 2013 Owner handbook (in English)

OWNER HANDBOOK
FIATDOBLÓ

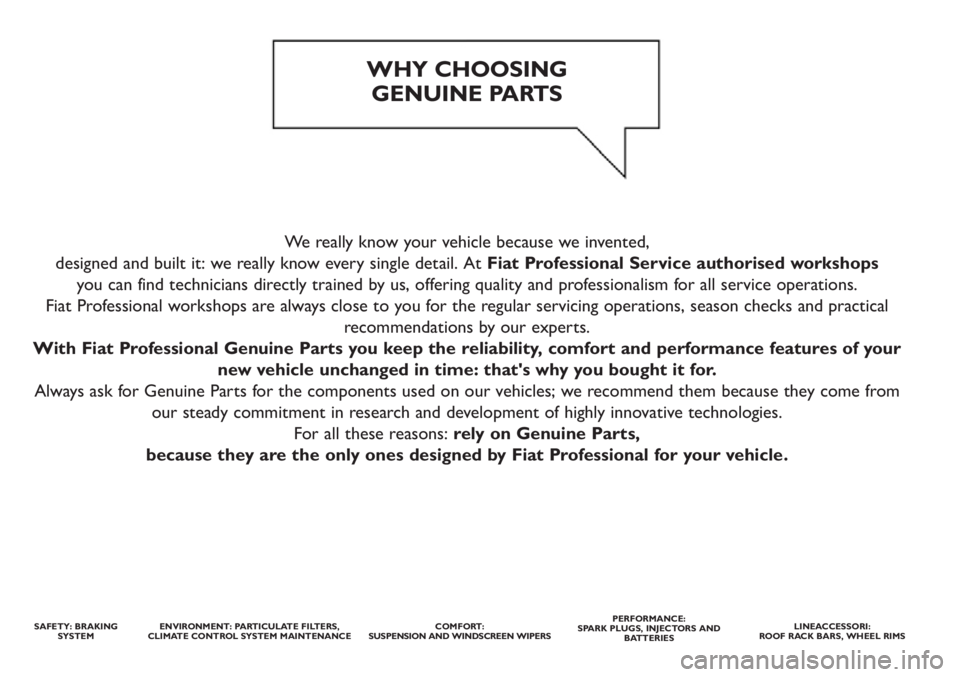

We really know your vehicle because we invented,
designed and built it: we really know every single detail. At Fiat Professional Service authorised workshops
you can find technicians directly trained by us, offering quality and professionalism for all service operations.
Fiat Professional workshops are always close to you for the regular servicing operations, season checks and practical recommendations by our experts.
With Fiat Professional Genuine Parts you keep the reliability, comfort and performance features of your new vehicle unchanged in time: that's why you bought it for.
Always ask for Genuine Parts for the components used on our vehicles; we recommend them because they come from our steady commitment in research and development of highly innovative technologies. For all these reasons: rely on Genuine Parts,
because they are the only ones designed by Fiat Professional for your vehicle.
SAFETY: BRAKING SYSTEMENVIRONMENT: PARTICULATE FILTERS,
CLIMATE CONTROL SYSTEM MAINTENANCECOMFORT:
SUSPENSION AND WINDSCREEN WIPERSPERFORMANCE:
SPARK PLUGS, INJECTORS AND BATTERIESLINEACCESSORI:
ROOF RACK BARS, WHEEL RIMS
WHY CHOOSING GENUINE PARTS

CHOOSING GENUINE PARTS
IS THE MOST NATURAL CHOICE
PERFORMANCE
GENUINE PARTS
COMFORT
GENUINE PARTS
SAFETY
GENUINE PARTS
AMBIENT
GENUINE PARTS
VALUES
GENUINE PARTS
ACCESSORIES
GENUINE PARTS

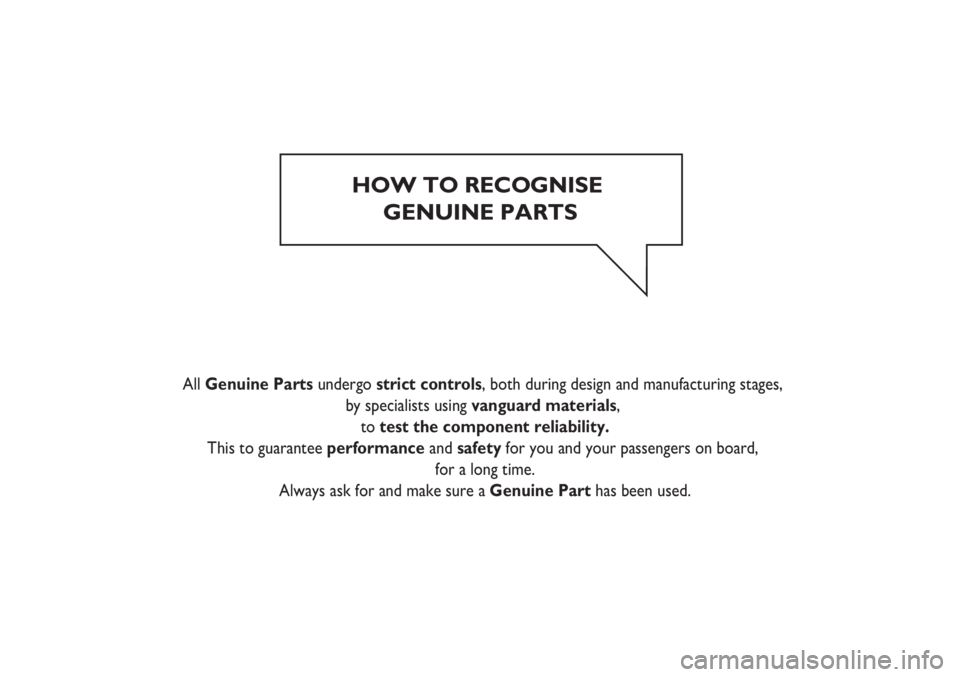

HOW TO RECOGNISEGENUINE PARTS
AllGenuine Parts undergostrict controls, both during design and manufacturing stages,
by specialists using vanguard materials,
to test the component reliability.
This to guarantee performanceandsafety for you and your passengers on board,
for a long time.
Always ask for and make sure a Genuine Parthas been used.

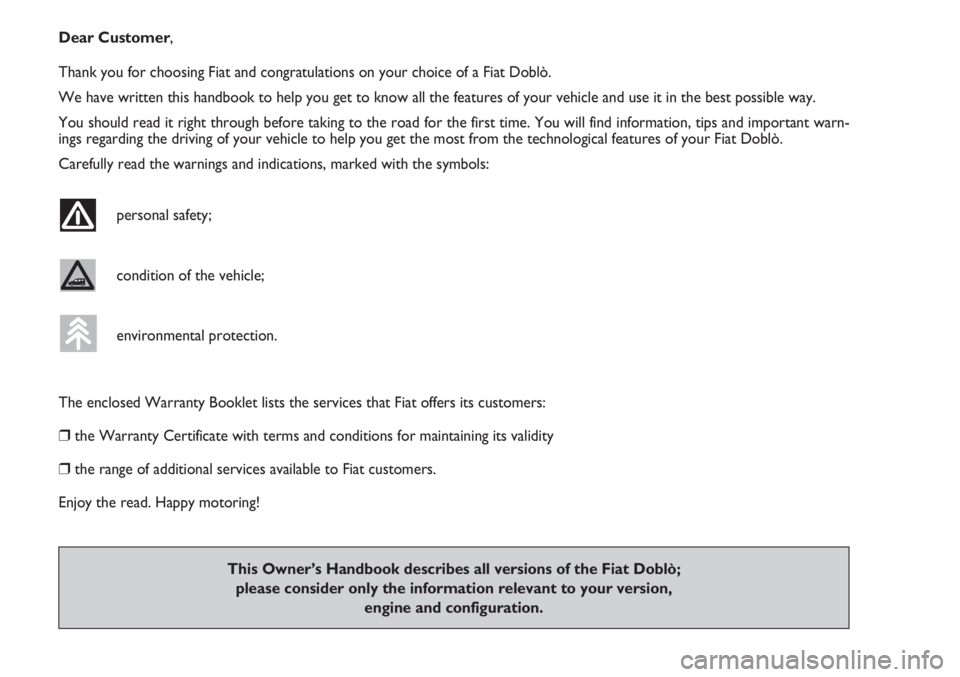

Dear Customer,
Thank you for choosing Fiat and congratulations on your choice of a Fiat Doblò.
We have written this handbook to help you get to know all the features of your vehicle and use it in the best possible way.
You should read it right through before taking to the road for the first time. You will find information, tips and important warn-
ings regarding the driving of your vehicle to help you get the most from the technological features of your Fiat Doblò.
Carefully read the warnings and indications, marked with the symbols:personal safety;
condition of the vehicle;
environmental protection.
The enclosed Warranty Booklet lists the services that Fiat offers its customers:
❒the Warranty Certificate with terms and conditions for maintaining its validity
❒the range of additional services available to Fiat customers.
Enjoy the read. Happy motoring!
This Owner’s Handbook describes all versions of the Fiat Doblò; please consider only the information relevant to your version, engine and configuration.

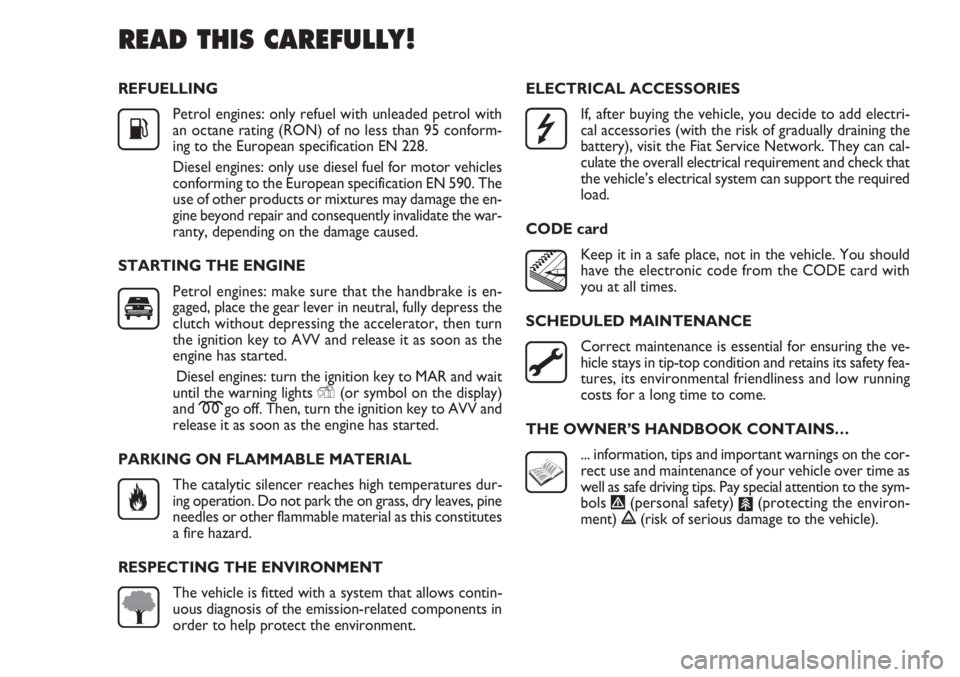

REFUELLINGPetrol engines: only refuel with unleaded petrol with
an octane rating (RON) of no less than 95 conform-
ing to the European specification EN 228.
Diesel engines: only use diesel fuel for motor vehicles
conforming to the European specification EN 590. The
use of other products or mixtures may damage the en-
gine beyond repair and consequently invalidate the war-
ranty, depending on the damage caused.
STARTING THE ENGINE Petrol engines: make sure that the handbrake is en-
gaged, place the gear lever in neutral, fully depress the
clutch without depressing the accelerator, then turn
the ignition key to AVV and release it as soon as the
engine has started.Diesel engines: turn the ignition key to MAR and wait
until the warning lights Y(or symbol on the display)
and m go off. Then, turn the ignition key to AVV and
release it as soon as the engine has started.
PARKING ON FLAMMABLE MATERIAL The catalytic silencer reaches high temperatures dur-
ing operation. Do not park the on grass, dry leaves, pine
needles or other flammable material as this constitutes
a fire hazard.
RESPECTING THE ENVIRONMENT The vehicle is fitted with a system that allows contin-
uous diagnosis of the emission-related components in
order to help protect the environment.
K
ELECTRICAL ACCESSORIES If, after buying the vehicle, you decide to add electri-
cal accessories (with the risk of gradually draining the
battery), visit the Fiat Service Network. They can cal-
culate the overall electrical requirement and check that
the vehicle’s electrical system can support the required
load.
CODE card Keep it in a safe place, not in the vehicle. You should
have the electronic code from the CODE card with
you at all times.
SCHEDULED MAINTENANCE Correct maintenance is essential for ensuring the ve-
hicle stays in tip-top condition and retains its safety fea-
tures, its environmental friendliness and low running
costs for a long time to come.
THE OWNER’S HANDBOOK CONTAINS… ... information, tips and important warnings on the cor-
rect use and maintenance of your vehicle over time as
well as safe driving tips. Pay special attention to the sym-
bols
"(personal safety)#(protecting the environ-
ment)!(risk of serious damage to the vehicle).
READ THIS CAREFULLY!



3
KNOW
YOUR
VEHICLE
SAFETY
STAR

TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

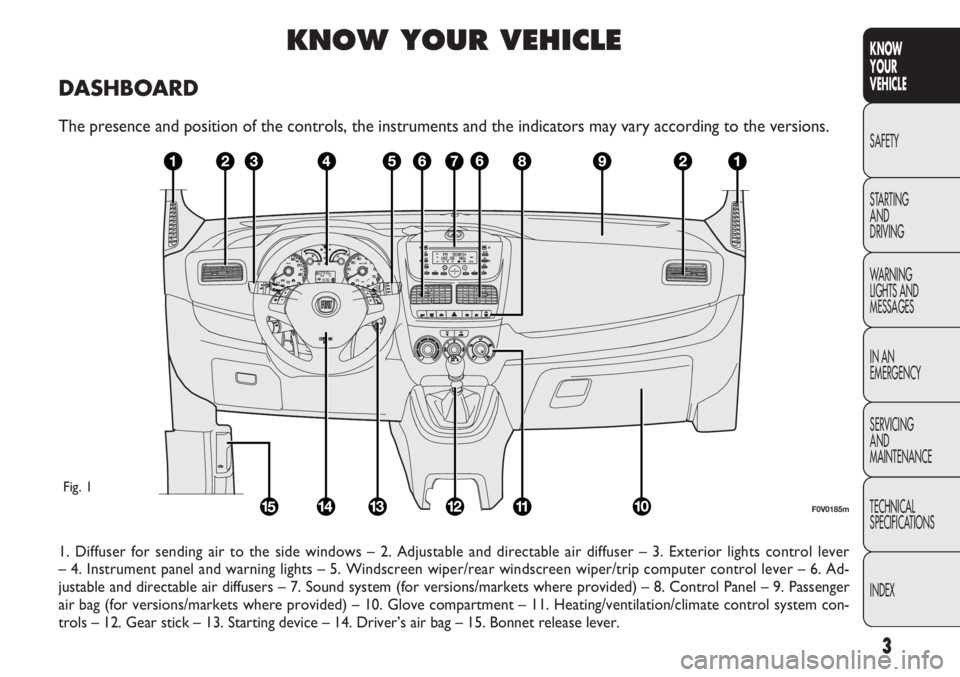

KNOW YOUR VEHICLE
DASHBOARD
The presence and position of the controls, the instruments and the indicators may vary according to the versions.
1. Diffuser for sending air to the side windows – 2. Adjustable and directable air diffuser – 3. Exterior lights control lever
– 4. Instrument panel and warning lights – 5. Windscreen wiper/rear windscreen wiper/trip computer control lever – 6. Ad-
justable and directable air diffusers – 7. Sound system (for versions/markets where provided) – 8. Control Panel – 9. Passenger
air bag (for versions/markets where provided) – 10. Glove compartment – 11. Heating/ventilation/climate control system con-
trols – 12. Gear stick – 13. Starting device – 14. Driver’s air bag – 15. Bonnet release lever.
F0V0185m
Fig. 1

4
KNOWYOUR
VEHICLE
SAFETY
ST AR

TINGAND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

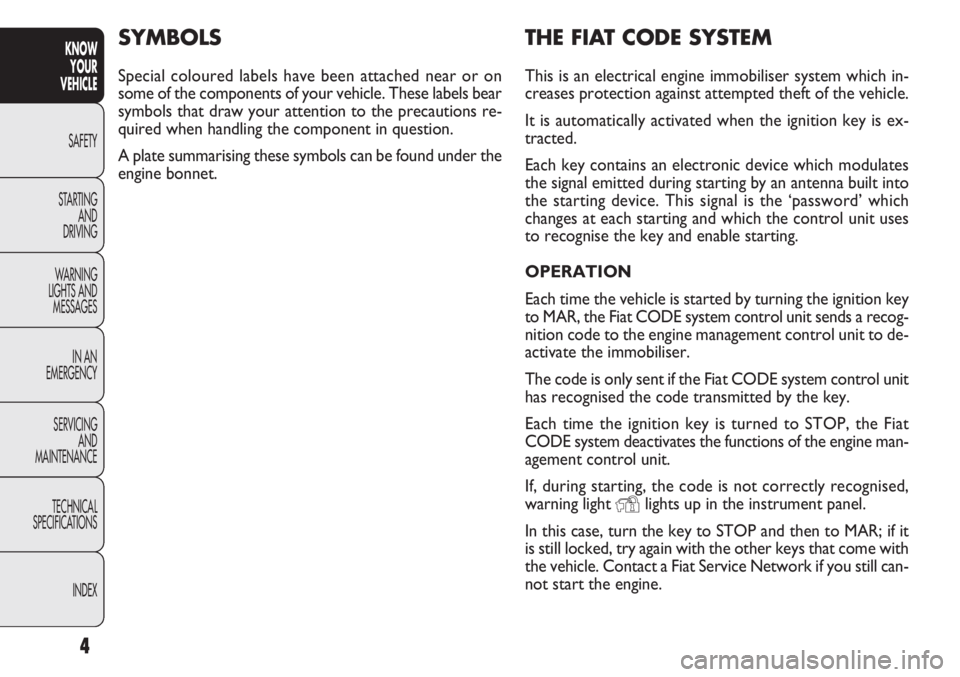

THE FIAT CODE SYSTEM
This is an electrical engine immobiliser system which in-
creases protection against attempted theft of the vehicle.
It is automatically activated when the ignition key is ex-
tracted.
Each key contains an electronic device which modulates
the signal emitted during starting by an antenna built into
the starting device. This signal is the ‘password’ which
changes at each starting and which the control unit uses
to recognise the key and enable starting.
OPERATION
Each time the vehicle is started by turning the ignition key
to MAR, the Fiat CODE system control unit sends a recog-
nition code to the engine management control unit to de-
activate the immobiliser.
The code is only sent if the Fiat CODE system control unit
has recognised the code transmitted by the key.
Each time the ignition key is turned to STOP, the Fiat
CODE system deactivates the functions of the engine man-
agement control unit.
If, during starting, the code is not correctly recognised,
warning light
Ylights up in the instrument panel.
In this case, turn the key to STOP and then to MAR; if it
is still locked, try again with the other keys that come with
the vehicle. Contact a Fiat Service Network if you still can-
not start the engine.
SYMBOLS
Special coloured labels have been attached near or on
some of the components of your vehicle. These labels bear
symbols that draw your attention to the precautions re-
quired when handling the component in question.
A plate summarising these symbols can be found under the
engine bonnet.

5
KNOW
YOUR
VEHICLE
SAFETY
STAR

TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

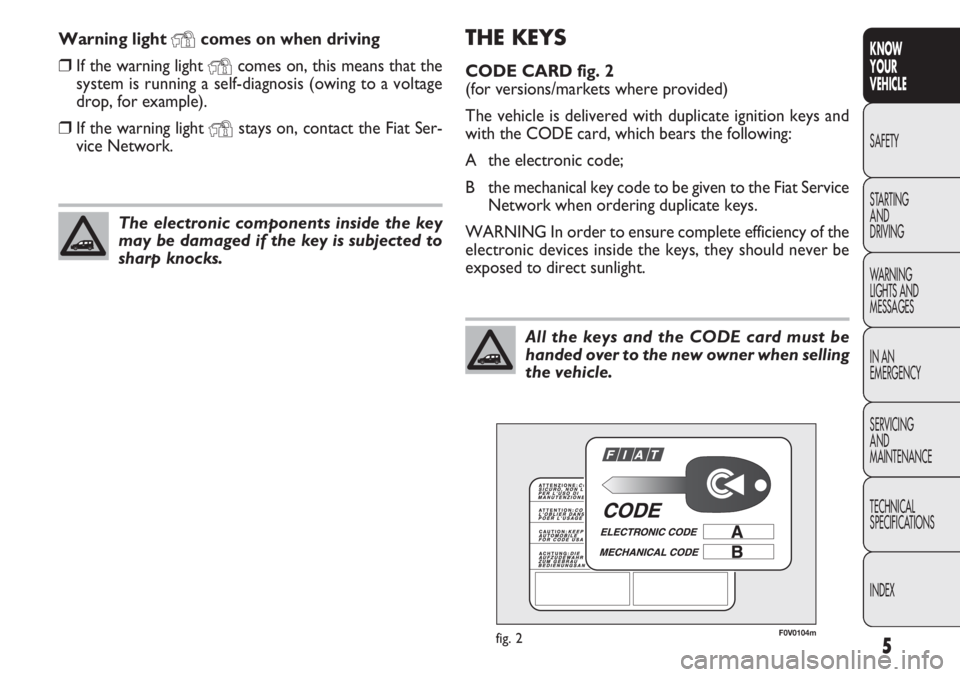

THE KEYS
CODE CARD fig. 2
(for versions/markets where provided)
The vehicle is delivered with duplicate ignition keys and
with the CODE card, which bears the following:
A the electronic code;
B the mechanical key code to be given to the Fiat Service
Network when ordering duplicate keys.
WARNING In order to ensure complete efficiency of the
electronic devices inside the keys, they should never be
exposed to direct sunlight.
Warning light
Ycomes on when driving
❒If the warning lightYcomes on, this means that the
system is running a self-diagnosis (owing to a voltage
drop, for example).
❒If the warning lightYstays on, contact the Fiat Ser-
vice Network.
The electronic components inside the key
may be damaged if the key is subjected to
sharp knocks.
F0V0104mfig. 2
All the keys and the CODE card must be
handed over to the new owner when selling
the vehicle.

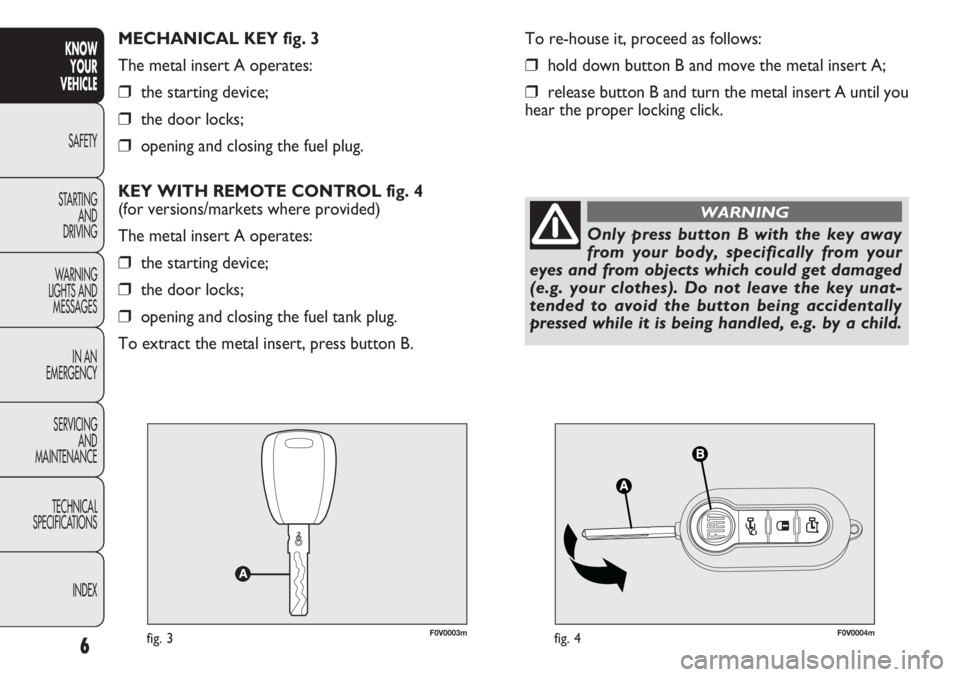

F0V0003mfig. 3F0V0004mfig. 4
To re-house it, proceed as follows:
❒hold down button B and move the metal insert A;
❒release button B and turn the metal insert A until you
hear the proper locking click.
MECHANICAL KEY fig. 3
The metal insert A operates:❒the starting device;
❒the door locks;
❒opening and closing the fuel plug.
KEY WITH REMOTE CONTROL fig. 4
(for versions/markets where provided)
The metal insert A operates:
❒the starting device;
❒the door locks;
❒opening and closing the fuel tank plug.
To extract the metal insert, press button B.
6
KNOW YOUR
VEHICLE
SAFETY
ST AR

TINGAND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Only press button B with the key away
from your body, specifically from your
eyes and from objects which could get damaged
(e.g. your clothes). Do not leave the key unat-
tended to avoid the button being accidentally
pressed while it is being handled, e.g. by a child.
WARNING
