position 1 - device engaged (door
locked);
position 2 - device not engaged
(door may be opened from the
inside).
The device remains engaged even if
the doors are electrically unlocked.
12)
KEY EMERGENCY
LOCK (KEL) DEVICE
The sliding side doors are provided
with a device for locking all the
doors using the lock in the case of a
power fault. The device can be
engaged, with the sliding side doors
open, as follows fig. 16:
❒Position 2: device not engaged
(doors released)❒position 1: device engaged (fit the
metal insert of the ignition key in
its seat and rotate clockwise), door
locked
The device is released and thus the
doors can be opened as follows:
in the event that electrical operation
is restored:
❒by remote control
or
❒opening a front door by inserting the
key into the key pawl. if the power is
not restored;
❒opening the driver side door by key
pawl and the other doors
(passenger's side and sliding side
door) pulling the inner handle.
DOUBLE REAR SWING
DOORS
The double rear swing doors are
fitted with a link system that stops
them when they have opened to an
angle of approximately 90 degrees.
To open them wider to an angle
of 180 degrees, push the locking
device A fig. 17 (one on each side)
as shown in the diagram and
simultaneously open the doors.
13)
Using the key latch on the door, you
can do the following:
❒for Cargo versions with swing
door/boot: centrally unlock the load
compartment (sliding side doors +
rear swing doors/boot), centrally lock
all the doors;
15F0V0186
16F0V0383
17F0V0067
21

❒for Doblò/Doblò Combi versions with
swing door: local unlocking/locking.
Opening/closing the
first swing door from
the outside
To open the door, turn the key metal
insert in the lock or press button
on the remote control and then
pull handle A fig. 18 in the direction
of the arrow. To close the door,
turn the key metal insert in the
closing direction or press button
on the remote control.
14)
Emergency opening of
the first swing door
from the inside
From inside, use device A fig. 19.
Opening the second
swing door
After having opened the first door,
pull handle A fig. 20 in the direction
shown by the arrow.
IMPORTANT Pull handle A fig. 20
only in the direction shown in the
diagram.
FIXED WINDOW
(for versions/markets, where
provided)
Using the fixed window:
❒Open the swing doors.❒Push lever A fig. 21 downwards,
ensuring that it is held down until the
lock goes beyond the crossmember;
❒Open using both hands, making sure
to aid the fixed window opening by
using handle B fig. 21;
❒To close, pull the fixed window
downwards using the suitable handle
B.
IMPORTANT The fixed window
remains open up to a speed of 110
km/h.
With the fixed window open it is
possible, if necessary, to lower the
crossmember C, accompanying
it from position 1 to position 2 fig.
22.
To release and lower the
crossmember, act, with rear doors
open, on lever D fig. 23.
18F0V0518
19F0V0080
20F0V0078
22
KNOW YOUR VEHICLE

Driver seat lumbar
adjustment
(for versions/markets, where
provided)
Turn knob D fig. 25 to adjust the
backrest support.
Heated seats
(for versions/markets, where
provided)
With the key turned to MAR, press
button A fig. 26 to switch the
function on/off.
When the function is enabled, the
LED on the button turns on.FOLDAWAY
PASSENGER SEAT
(for versions/markets, where
provided)
The passenger seat can be folded
away on some Cargo versions.
17)
Completely retract the seat for a
total folding down avoiding
interference with the dashboard.
Seat folding
To fold the seat, proceed as follows:
❒open the passenger side door;
❒pull levers A and fold the backrest
forwards in the direction indicated
by the arrow;
❒then push the backrest B fig.
28down: the seat is now completely
folded over on itself into the "table"
position;
❒pull flap C fig. 29 and push the
backrest down further: the seat
is now completely folded away.
26F0V0208
27F0V0142
28F0V0143
25

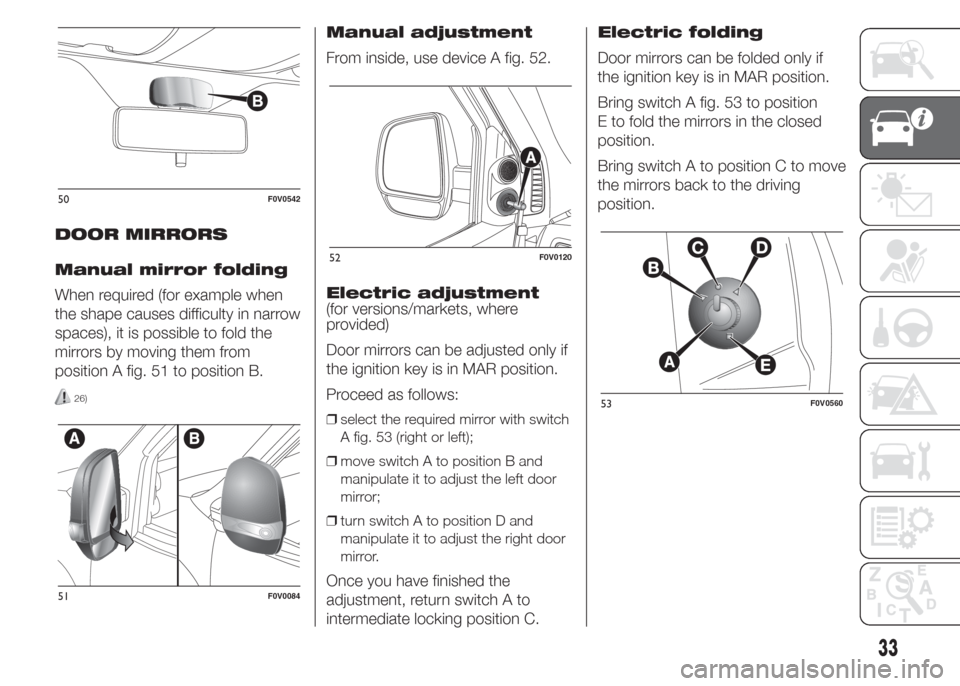

DOOR MIRRORS
Manual mirror folding
When required (for example when
the shape causes difficulty in narrow
spaces), it is possible to fold the
mirrors by moving them from
position A fig. 51 to position B.
26)
Manual adjustment
From inside, use device A fig. 52.
Electric adjustment
(for versions/markets, where
provided)
Door mirrors can be adjusted only if
the ignition key is in MAR position.
Proceed as follows:
❒select the required mirror with switch
A fig. 53 (right or left);
❒move switch A to position B and
manipulate it to adjust the left door
mirror;
❒turn switch A to position D and
manipulate it to adjust the right door
mirror.
Once you have finished the
adjustment, return switch A to
intermediate locking position C.Electric folding
Door mirrors can be folded only if
the ignition key is in MAR position.
Bring switch A fig. 53 to position
E to fold the mirrors in the closed
position.
Bring switch A to position C to move
the mirrors back to the driving
position.
50F0V0542
51F0V0084
52F0V0120
53F0V0560
33

WARNING
26) When driving, these mirrors must
always be in position A fig. 51. As
door mirrors are curved, they
may slightly alter the perception
of distance.
EXTERIOR LIGHTS
IN BRIEF
The left stalk includes the controls
for the exterior lights.
The external lights can only be
switched on when the ignition key
is at MAR.
The instrument panel and the
various dashboard controls will
come on with the external lights.
DAYTIME RUNNING
LIGHTS (DRL)
(for versions/markets, where
provided)
With the ignition key turned to MAR
and the ring nut turned to position
Othe daytime running lights are
automatically activated; the other
lights and interior lighting remain off.
In some markets, the automatic
operation of the daytime running
lights can be activated/deactivated
via the display menu (see "Digital/
multifunction display" in this
section). If the daytime running lights
are deactivated, no light comes on
when the ring nut is turned toO.
27)
DIPPED HEADLIGHTS/
SIDE LIGHTS
With the ignition key turned to MAR,
turn the ring nut to
. If dipped
headlights are activated, the daytime
running lights switch off and the
side lights and dipped headlights
switch on. The
warning light
switches on in the instrument panel.
When the ignition key is turned to
STOP or removed and the ring nut is
turned fromOto
, all the side
lights and the number plate lights
come on. The
warning light will
come on in the instrument panel.
54F0V0515
34
KNOW YOUR VEHICLE

MAIN BEAM
HEADLIGHTS
With ring nut in position
, push
the stalk forward toward the
dashboard (stable position). The
warning light switches on in the
instrument panel. Pulling the stalk
towards the steering wheel, the
main beams are turned off and the
dipped headlights on.
FLASHING
You can flash the beams pulling the
stalk toward the steering wheel
(unstable position). The
warning
light switches on in the instrument
panel.
DIRECTION
INDICATORS
Bring the stalk into (stable) position
fig. 55:
❒up (position 1): to activate the right
direction indicator;
❒down (position 2): activates the left
direction indicator.
Warning lightorwill blink on
the instrument panel.Direction indicators switch off
automatically when the vehicle is
back in a straight line.
Lane change function
If you wish to signal a lane change,
place the left stalk in the unstable
position for less than half a second.
The direction indicator on the side
selected will flash five times and
then switch off automatically.
"FOLLOW ME HOME"
DEVICE
This device allows the illumination of
the space in front of the vehicle for
a preset time.Activation
With the ignition key in the STOP
position or extracted, pull the stalk
towards the steering wheel and
move it within 2 minutes of the
engine switching off.
Each time the stalk is moved, the
lights stay on for an extra 30
seconds up to a maximum of 210
seconds; then the lights are
switched off automatically.
The warning light
on the
instrument panel will light up and the
corresponding message will appear
in the display (see “Warning lights
and messages” section) for as long
as the function is activated.
The warning light comes on when
the stalk is operated and stays
on until the function is automatically
deactivated.
Each movement of the stalk only
increases the amount of time the
lights stay on.55F0V0516
35

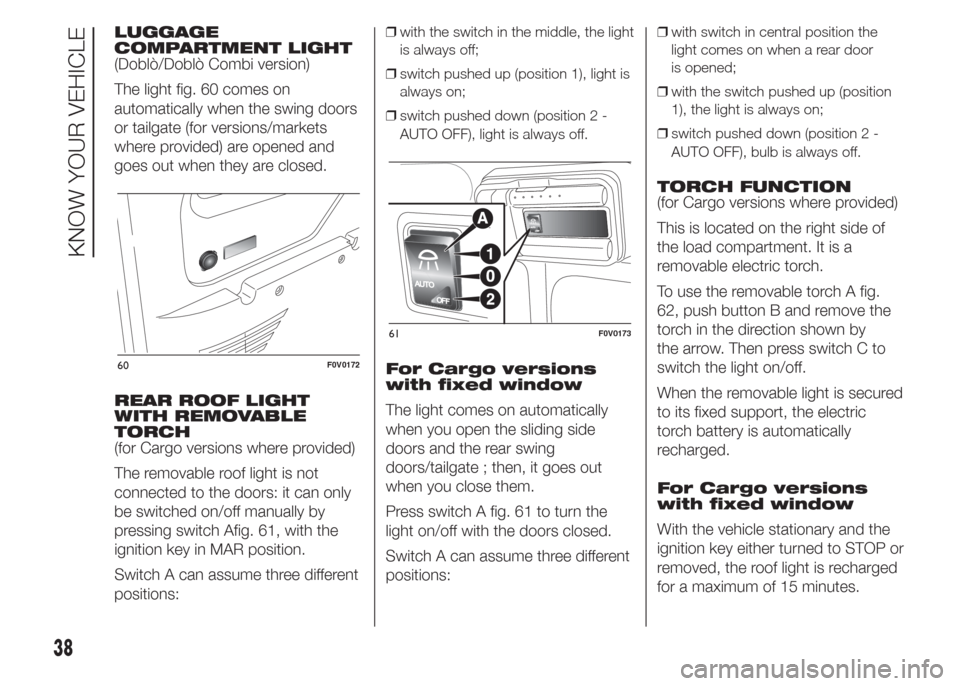

LUGGAGE
COMPARTMENT LIGHT
(Doblò/Doblò Combi version)
The light fig. 60 comes on
automatically when the swing doors
or tailgate (for versions/markets
where provided) are opened and
goes out when they are closed.
REAR ROOF LIGHT
WITH REMOVABLE
TORCH
(for Cargo versions where provided)
The removable roof light is not
connected to the doors: it can only
be switched on/off manually by
pressing switch Afig. 61, with the
ignition key in MAR position.
Switch A can assume three different
positions:❒with the switch in the middle, the light
is always off;
❒switch pushed up (position 1), light is
always on;
❒switch pushed down (position 2 -
AUTO OFF), light is always off.
For Cargo versions
with fixed window
The light comes on automatically
when you open the sliding side
doors and the rear swing
doors/tailgate ; then, it goes out
when you close them.
Press switch A fig. 61 to turn the
light on/off with the doors closed.
Switch A can assume three different
positions:
❒with switch in central position the
light comes on when a rear door
is opened;
❒with the switch pushed up (position
1), the light is always on;
❒switch pushed down (position 2 -
AUTO OFF), bulb is always off.
TORCH FUNCTION
(for Cargo versions where provided)
This is located on the right side of
the load compartment. It is a
removable electric torch.
To use the removable torch A fig.
62, push button B and remove the
torch in the direction shown by
the arrow. Then press switch C to
switch the light on/off.
When the removable light is secured
to its fixed support, the electric
torch battery is automatically
recharged.
For Cargo versions
with fixed window
With the vehicle stationary and the
ignition key either turned to STOP or
removed, the roof light is recharged
for a maximum of 15 minutes.
60F0V0172
61F0V0173
38
KNOW YOUR VEHICLE

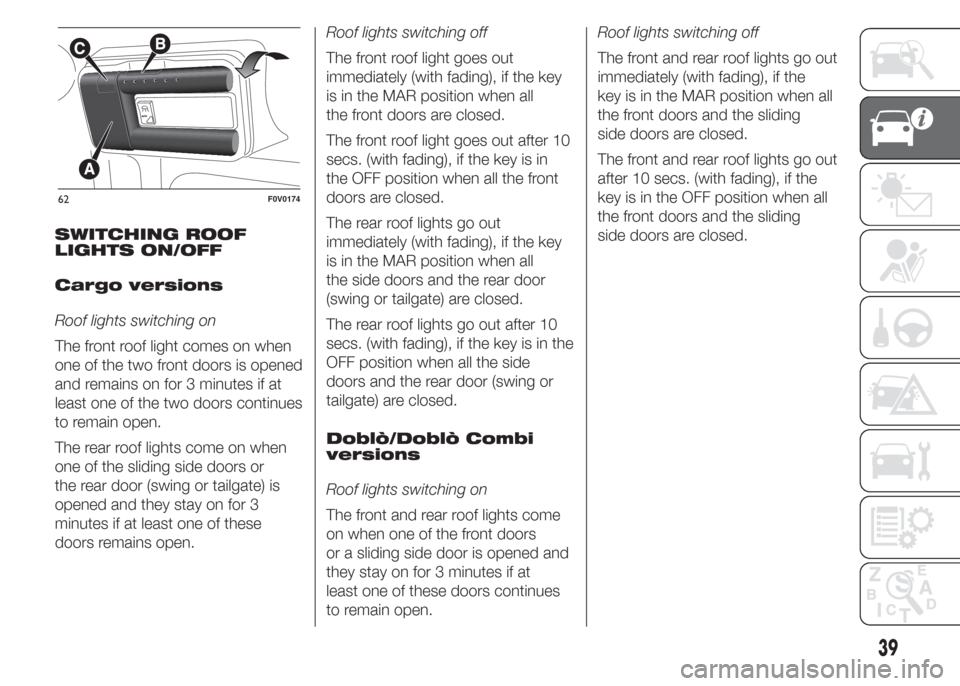

SWITCHING ROOF
LIGHTS ON/OFF
Cargo versions
Roof lights switching on
The front roof light comes on when
one of the two front doors is opened
and remains on for 3 minutes if at
least one of the two doors continues
to remain open.
The rear roof lights come on when
one of the sliding side doors or
the rear door (swing or tailgate) is
opened and they stay on for 3
minutes if at least one of these
doors remains open.Roof lights switching off
The front roof light goes out
immediately (with fading), if the key
is in the MAR position when all
the front doors are closed.
The front roof light goes out after 10
secs. (with fading), if the key is in
the OFF position when all the front
doors are closed.
The rear roof lights go out
immediately (with fading), if the key
is in the MAR position when all
the side doors and the rear door
(swing or tailgate) are closed.
The rear roof lights go out after 10
secs. (with fading), if the key is in the
OFF position when all the side
doors and the rear door (swing or
tailgate) are closed.
Doblò/Doblò Combi
versions
Roof lights switching on
The front and rear roof lights come
on when one of the front doors
or a sliding side door is opened and
they stay on for 3 minutes if at
least one of these doors continues
to remain open.Roof lights switching off
The front and rear roof lights go out
immediately (with fading), if the
key is in the MAR position when all
the front doors and the sliding
side doors are closed.
The front and rear roof lights go out
after 10 secs. (with fading), if the
key is in the OFF position when all
the front doors and the sliding
side doors are closed.
62F0V0174
39

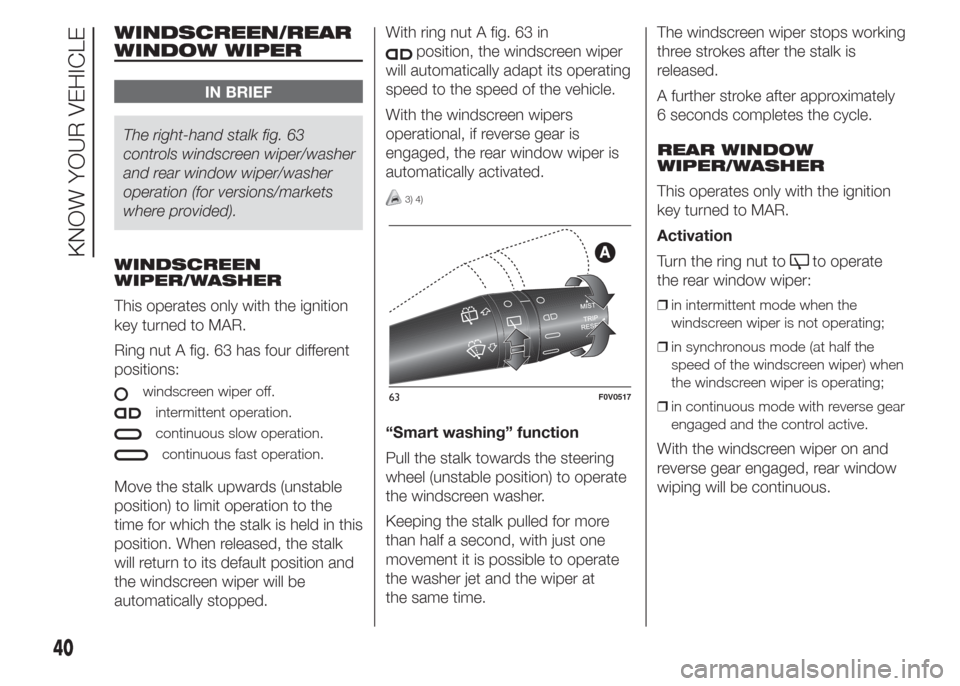

WINDSCREEN/REAR
WINDOW WIPER
IN BRIEF
The right-hand stalk fig. 63
controls windscreen wiper/washer
and rear window wiper/washer
operation (for versions/markets
where provided).
WINDSCREEN
WIPER/WASHER
This operates only with the ignition
key turned to MAR.
Ring nut A fig. 63 has four different
positions:
windscreen wiper off.
intermittent operation.
continuous slow operation.
continuous fast operation.
Move the stalk upwards (unstable
position) to limit operation to the
time for which the stalk is held in this
position. When released, the stalk
will return to its default position and
the windscreen wiper will be
automatically stopped.With ring nut A fig. 63 in
position, the windscreen wiper
will automatically adapt its operating
speed to the speed of the vehicle.
With the windscreen wipers
operational, if reverse gear is
engaged, the rear window wiper is
automatically activated.
3) 4)
“Smart washing” function
Pull the stalk towards the steering
wheel (unstable position) to operate
the windscreen washer.
Keeping the stalk pulled for more
than half a second, with just one
movement it is possible to operate
the washer jet and the wiper at
the same time.The windscreen wiper stops working
three strokes after the stalk is
released.
A further stroke after approximately
6 seconds completes the cycle.
REAR WINDOW
WIPER/WASHER
This operates only with the ignition
key turned to MAR.
Activation
Turn the ring nut to
to operate
the rear window wiper:
❒in intermittent mode when the
windscreen wiper is not operating;
❒in synchronous mode (at half the
speed of the windscreen wiper) when
the windscreen wiper is operating;
❒in continuous mode with reverse gear
engaged and the control active.
With the windscreen wiper on and
reverse gear engaged, rear window
wiping will be continuous.
63F0V0517
40
KNOW YOUR VEHICLE

Pushing the stalk towards the
dashboard (unstable position) will
activate the rear window washer jet.
Keep the stalk pushed for more
than half a second to activate the
rear window wiper as well.
Releasing the stalk will activate the
smart washing function, as
described for the windscreen wiper.
The function stops when the stalk
is released.
5)
HEADLIGHT WASHERS
(for versions/markets, where
provided)
They are activated when the dipped
headlights are on and the
windscreen washer is activated.
IMPORTANT Check jet function and
cleanliness at regular intervals.
6)
IMPORTANT
3) Do not use the windscreen wiper
to remove layers of snow or ice
from the windscreen. In such
conditions, the windscreen wiper
may be subjected to excessive
stress and the motor cut-out
switch, which prevents operation
for a few seconds, may intervene.
If operation is not restored (even
after turning the key and
restarting the engine), contact a
Fiat Dealership.
4) Do not operate the windscreen
wiper with the blades lifted from
the windscreen.
5) Do not use the rear window wiper
to remove layers of snow or ice. In
such conditions, the wiper may
be subjected to excessive stress
and the motor protection, which
prevents operation for a few
seconds, may intervene. If
operation is not restored, contact
a Fiat Dealership.
6) The headlamp washer jet does not
function when the level of fluid in
the reservoir falls below 1.6 litres.
41
