THE KEYS
KEY WITHOUT REMOTE
CONTROL
The metal insert A fig. 5 of the key is
fixed.
The key operates:
❒the ignition device;
❒the door lock;
❒opening and closing of the fuel tank
cap.
KEY WITH REMOTE
CONTROL
The metal insert A fig.6-fig.7is
retractable and it operates:
❒the ignition device;
❒the door lock;❒opening and closing of the fuel tank
cap.
To extract the metal insert, press
button B fig. 6 - fig. 7.
To refit it in the grip proceed as
follows:
❒hold down button B and turn the
metal insert A;
❒release button B and turn the metal
insert A completely until the locking
click is heard to ensure correct
closure.
1)
Cargo versions fig. 6
The
button unlocks the front
doors (including the boot, the rear
swing doors and the sliding side
doors for versions/markets where
provided).
Button
is used for locking all the
doors.
The
button unlocks the boot, the
rear swing doors and the sliding
side doors (depending on the
version).
Combi/Panorama
versions fig. 7
The
button unlocks the front
doors (including the boot, the rear
swing doors and the sliding side
doors for versions/markets where
provided).
5F0V0003
6 - Cargo versionsF0V0004
7 - Combi/Panorama versionsF0V0536
14
KNOW YOUR VEHICLE

Buttonis used for locking all the
doors.
The
button unlocks the boot,
the rear swing doors and the sliding
side doors (depending on the
version).
Changing battery - key
with remote control
To replace the remote control
battery, proceed as follows fig. 8:
❒press button A and open the metal
insert B;
❒turn the screw C to
using a fine
bit screwdriver;
❒take out the battery case D and
replace the battery E making sure
that polarities are correct;
❒refit the battery case D inside the key
and lock it turning the screw C to
.
1)
Request for additional
remote controls
The system can recognise up to 8
keys with incorporated remote
control.Should a new remote control be
necessary, contact a Fiat Dealership
and be ready to present the CODE
card, a personal identity document
and the vehicle ownership
documents.
Unlocking the load compartment
from inside the vehicle (Cargo
versions)
Pressing button A fig. 9 unlocks the
load compartment (rear swing
doors/tailgate and sliding side
doors) from inside the vehicle. If the
LED is on, the loading area is
locked.DEAD LOCK
(for versions/markets, where
provided)
This security device prevents the
opening of the doors from inside the
passenger compartment if there
has been a break-in attempt (e.g. a
window has been broken).
The dead lock device therefore
offers the best possible protection
against break-in attempts. We
recommend engaging it whenever
the vehicle is parked and left
unattended.
8F0V00059F0V0022
15

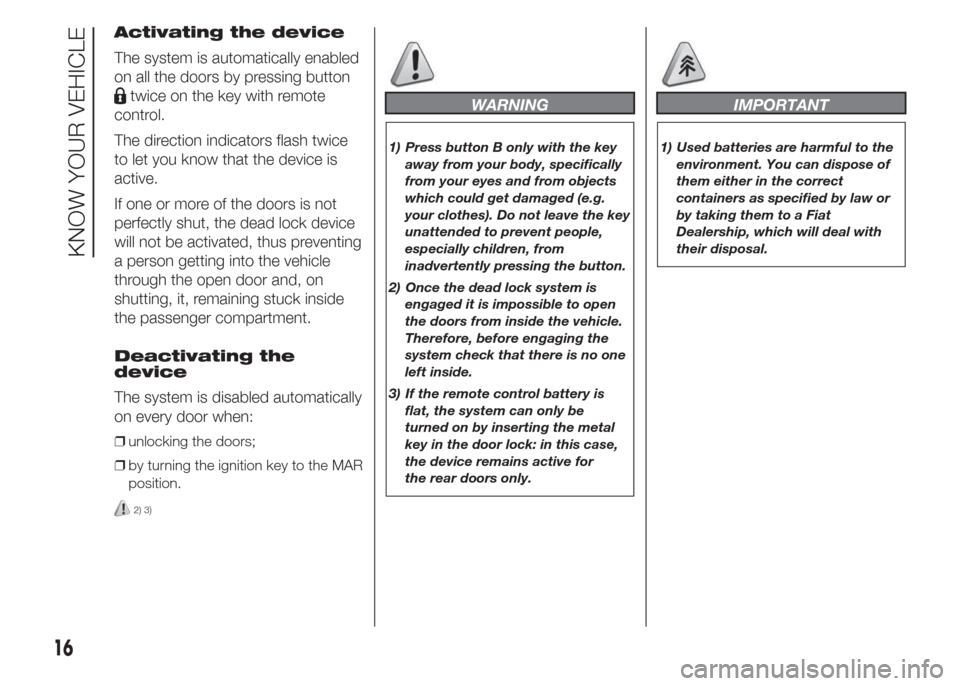

Activating the device
The system is automatically enabled
on all the doors by pressing button
twice on the key with remote
control.
The direction indicators flash twice
to let you know that the device is
active.
If one or more of the doors is not
perfectly shut, the dead lock device
will not be activated, thus preventing
a person getting into the vehicle
through the open door and, on
shutting, it, remaining stuck inside
the passenger compartment.
Deactivating the
device
The system is disabled automatically
on every door when:
❒unlocking the doors;
❒by turning the ignition key to the MAR
position.
2) 3)
WARNING
1) Press button B only with the key
away from your body, specifically
from your eyes and from objects
which could get damaged (e.g.
your clothes). Do not leave the key
unattended to prevent people,
especially children, from
inadvertently pressing the button.
2) Once the dead lock system is
engaged it is impossible to open
the doors from inside the vehicle.
Therefore, before engaging the
system check that there is no one
left inside.
3) If the remote control battery is
flat, the system can only be
turned on by inserting the metal
key in the door lock: in this case,
the device remains active for
the rear doors only.
IMPORTANT
1) Used batteries are harmful to the
environment. You can dispose of
them either in the correct
containers as specified by law or
by taking them to a Fiat
Dealership, which will deal with
their disposal.
16
KNOW YOUR VEHICLE

IGNITION DEVICE
The key can be turned to 3 different
positions fig. 10:
❒STOP: engine off, key extractable,
steering locked. Some electrical
devices (e.g. sound system, central
door locking system, etc.) can
operate;
❒MAR: driving position. All electrical
devices are enabled;
❒AVV: engine starting (unstable
position).
The ignition switch is fitted with an
electronic safety system that
requires the ignition key to be turned
back to STOP if the engine will not
start, before the starting operation
can be repeated.
4) 5) 6) 7)
STEERING LOCK
Activation
When the key is at STOP, remove
the key and turn the steering wheel
until it locks.
Deactivation
Move the steering wheel slightly as
you turn the ignition key to MAR.
WARNING
4) If the ignition device has been
tampered with (e.g. an attempted
theft), have it checked over by a
Fiat Dealership before driving
again.
5) Always remove the key when you
leave your vehicle to prevent
someone from accidentally
operating the controls. Remember
to engage the handbrake.
Engage first gear if the vehicle is
parked uphill or reverse gear if the
vehicle is parked downhill. Never
leave children unattended in the
vehicle.6) Never extract the key while the
vehicle is moving. The steering
wheel will automatically lock
as soon as it is turned. This also
applies to cases in which the
vehicle is towed.
7) It is absolutely forbidden to carry
out any after-market operation
involving steering system or
steering column modifications
(e.g.: installation of anti-theft
device) that could badly affect
performance and safety, cause
the lapse of warranty and also
result in non-compliance of the
vehicle with type approval
requirements.
10F0V0006
17

SYMBOLS
Some vehicle components have
coloured labels whose symbols
indicate precautions to be observed
when using this component. Under
the bonnet there is also a label
that summarises all the symbols.
THE FIAT CODE
SYSTEM
IN BRIEF
This is an electrical engine locking
system which increases protection
against attempted theft of the
vehicle. It is automatically
activated when the ignition key is
removed.
Each key contains an electronic
device which modulates the signal
emitted during ignition by an
antenna built into the ignition
device. The signal, which changes
each time the engine is started,
is the “password”, by means
of which the control unit
recognises the key and enables
starting.
1)
Operation
Each time the vehicle is started
turning the ignition key toMAR, the
Fiat CODE system control unit
sends a recognition code to the
Powertrain Control Module to
deactivate the inhibitor.
The acknowledgement code is sent
only if the Fiat CODE system control
unit has recognised the code
transmitted from the key.
Each time the ignition key is turned
to STOP, the Fiat CODE system
deactivates the functions of the
Powertrain Control Module.
Irregular operation
If, during starting, the code has not
been recognised correctly the
warning light
on the instrument
panel turns on accompanied by
the related message on the display
(see section “Warning lights and
messages”).
In this case, turn the key toSTOP
and then back toMAR; if the lock
continues, try with the other keys
provided with the vehicle. Contact a
Fiat Dealership if you still cannot
start the engine.
18
KNOW YOUR VEHICLE

IMPORTANT Each key has its own
code which must be stored by
the system's control unit. Contact a
Fiat Dealership to have new keys
(up to 8) stored with a code.
Activation of
warning light while
driving
❒If the warning lightswitches
on, this means that the system is
running a self-diagnosis (for
example due to a voltage drop).
❒If the warning lightstays on,
contact a Fiat Dealership.
IMPORTANT
1) The electronic components inside
the key may be damaged if the
key is subjected to strong shocks.
In order to ensure complete
efficiency of the electronic
devices inside the key, it should
never be exposed to direct
sunlight.
DOORS
DOOR CENTRAL
LOCKING/UNLOCKING
Locking doors from
the outside
The doors will only be locked if all
doors are shut. If one or more of the
doors is open after button
is
pressed on the remote control, the
direction indicators will flash quickly
for around three seconds.
You can lock all the doors by turning
the key clockwise in the driver's
door. Pressing button
on the
remote control twice in quick
succession activates the dead lock
device (see "Dead lock").
Door unlocking from
the outside
Press the
button shortly to
remotely unlock only the front doors
(Cargo version), to turn on the
front ceiling lights for a limited period
and to double flash the direction
indicators.Press the
button shortly to
remotely unlock the load
compartment (Cargo version), to
turn on the rear ceiling lights for
a limited period and to double flash
the direction indicators. Turn the
key anticlockwise in the driver's
door to unlock the front doors only.
Press the
button briefly to unlock
all the doors (Doblò/Doblò Combi
version), switch on the roof lights
temporarily and double-flash the
direction indicators. Turn the key
anticlockwise in the driver's door to
unlock all the doors.
11F0V0046
19

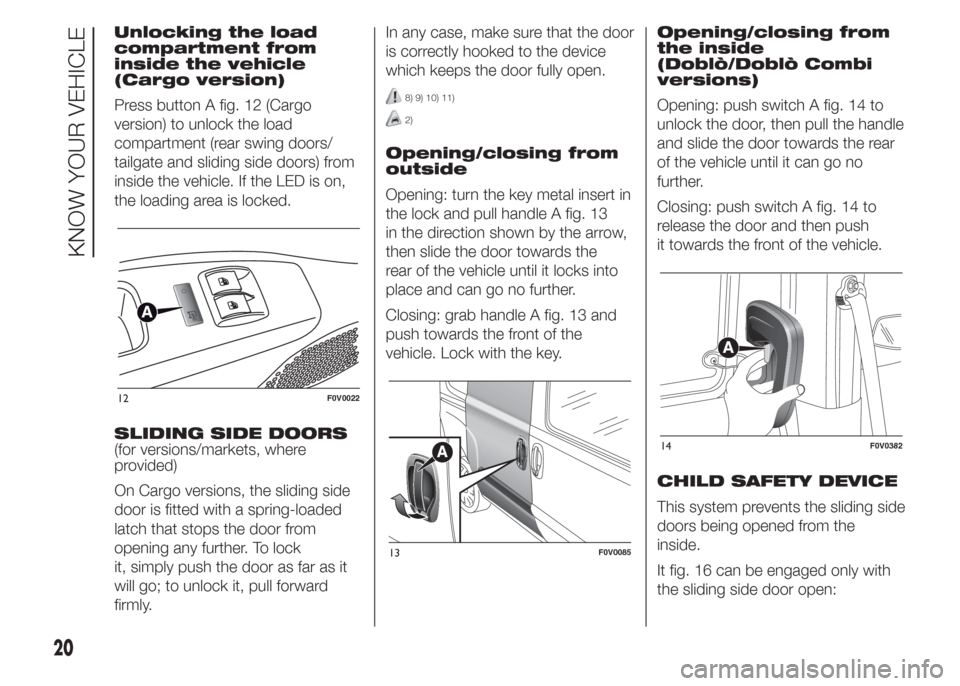

Unlocking the load
compartment from
inside the vehicle
(Cargo version)
Press button A fig. 12 (Cargo
version) to unlock the load
compartment (rear swing doors/
tailgate and sliding side doors) from
inside the vehicle. If the LED is on,
the loading area is locked.
SLIDING SIDE DOORS
(for versions/markets, where
provided)
On Cargo versions, the sliding side
door is fitted with a spring-loaded
latch that stops the door from
opening any further. To lock
it, simply push the door as far as it
will go; to unlock it, pull forward
firmly.In any case, make sure that the door
is correctly hooked to the device
which keeps the door fully open.
8) 9) 10) 11)
2)
Opening/closing from
outside
Opening: turn the key metal insert in
the lock and pull handle A fig. 13
in the direction shown by the arrow,
then slide the door towards the
rear of the vehicle until it locks into
place and can go no further.
Closing: grab handle A fig. 13 and
push towards the front of the
vehicle. Lock with the key.Opening/closing from
the inside
(Doblò/Doblò Combi
versions)
Opening: push switch A fig. 14 to
unlock the door, then pull the handle
and slide the door towards the rear
of the vehicle until it can go no
further.
Closing: push switch A fig. 14 to
release the door and then push
it towards the front of the vehicle.
CHILD SAFETY DEVICE
This system prevents the sliding side
doors being opened from the
inside.
It fig. 16 can be engaged only with
the sliding side door open:
12F0V0022
13F0V0085
14F0V0382
20
KNOW YOUR VEHICLE
