light FIAT DOBLO COMBI 2015 2.G User Guide

MAIN BEAM
HEADLIGHTS
With ring nut in position
, push
the stalk forward toward the
dashboard (stable position). The
warning light switches on in the
instrument panel. Pulling the stalk
towards the steering wheel, the
main beams are turned off and the
dipped headlights on.
FLASHING
You can flash the beams pulling the
stalk toward the steering wheel
(unstable position). The
warning
light switches on in the instrument
panel.
DIRECTION
INDICATORS
Bring the stalk into (stable) position
fig. 55:
❒up (position 1): to activate the right
direction indicator;
❒down (position 2): activates the left
direction indicator.
Warning lightorwill blink on
the instrument panel.Direction indicators switch off
automatically when the vehicle is
back in a straight line.
Lane change function
If you wish to signal a lane change,
place the left stalk in the unstable
position for less than half a second.
The direction indicator on the side
selected will flash five times and
then switch off automatically.
"FOLLOW ME HOME"
DEVICE
This device allows the illumination of
the space in front of the vehicle for
a preset time.Activation
With the ignition key in the STOP
position or extracted, pull the stalk
towards the steering wheel and
move it within 2 minutes of the
engine switching off.
Each time the stalk is moved, the
lights stay on for an extra 30
seconds up to a maximum of 210
seconds; then the lights are
switched off automatically.
The warning light
on the
instrument panel will light up and the
corresponding message will appear
in the display (see “Warning lights
and messages” section) for as long
as the function is activated.
The warning light comes on when
the stalk is operated and stays
on until the function is automatically
deactivated.
Each movement of the stalk only
increases the amount of time the
lights stay on.55F0V0516
35

Deactivation
Keep the stalk pulled towards the
steering wheel for more than 2
seconds.
WARNING
27) The daytime running lights are
an alternative to dipped
headlights for driving during the
daytime. They are compliant in
countries where is it obligatory to
have lights on during the day
and permitted in those where it is
not obligatory. Daytime running
lights cannot replace dipped
headlights when driving at night
or through tunnels. The use of
daytime running lights is
governed by the highway code of
the country in which you are
driving. Comply with the
prescriptions.
INTERIOR LIGHTS
FRONT ROOF LIGHT
WITH MOVABLE LENS
The light fades up or reaches full
brightness immediately if pushed at
the sides.
On the Doblò Cargo versions, it is
only connected to the front doors.
On the Doblò/Doblò Combi people
carrier versions, it is connected to
the front doors and the sliding
side doors.FRONT ROOF LIGHT
WITH SPOT LIGHTS
(for versions/markets, where
provided)
On the Doblò Cargo versions, it is
only connected to the front doors.
On the Doblò/Doblò Combi people
carrier versions, it is connected to
the front doors and the sliding
side doors.
Switch A fig. 56 is used to switch
on/off roof lights.
With switch A in the middle position,
lights C and D go on/off when the
doors are opened/closed.
With switch A pressed to the left,
the lights C and D are always off.
With switch A pressed to the right,
the lights C and D are always on.
Lights switch on/off progressively.
Switch B controls the spot light
function; when the roof light is off, it
switches on individually:
light C if pressed on the left side;
light D if pressed on the right side.
56F0V0055
36
KNOW YOUR VEHICLE

IMPORTANT Before getting out of
the vehicle, make sure both
switches are in the middle position;
when the doors are closed, the
lights switch off to prevent the
battery from being run down. In any
case, if the switch is left in on
position, the roof light switches off
automatically 15 minutes after
the engine switching off.
REAR ROOF LIGHT
WITH MOVABLE LENS
(Doblò/Doblò Combi versions)
The light comes on automatically
when a front door or sliding side
door is opened and goes out when
it is closed.Press the left-hand side of the lens
A fig. 58, as shown in the diagram,
to switch the light on/off when
the doors are closed.
REAR ROOF LIGHT
WITH MOVABLE LENS
(Cargo versions without fixed
window)
This is located on the rear panel of
the load compartment. The light
comes on automatically when you
open the sliding side doors (for
versions/markets where provided)
and the rear swing doors/tailgate
(for versions/markets where
provided), and goes out when you
close them. Press the left or right
side of the movable lens A, as
shown in fig. 59, to switch the light
on/off when the doors are closed.REAR ROOF LIGHT
WITH MOVABLE LENS
(additional for Cargo long wheelbase
versions)
This is located on the right side of
the load compartment. The light
comes on automatically when you
open the sliding side doors and the
rear wing doors/tailgate and goes
out when you close them.
Press the left-hand side of the lens
A fig. 59, as shown in the diagram,
to switch the light on/off when
the doors are closed.
57F0V0056
58F0V0057
59F0V0171
37

LUGGAGE
COMPARTMENT LIGHT
(Doblò/Doblò Combi version)
The light fig. 60 comes on
automatically when the swing doors
or tailgate (for versions/markets
where provided) are opened and
goes out when they are closed.
REAR ROOF LIGHT
WITH REMOVABLE
TORCH
(for Cargo versions where provided)
The removable roof light is not
connected to the doors: it can only
be switched on/off manually by
pressing switch Afig. 61, with the
ignition key in MAR position.
Switch A can assume three different
positions:❒with the switch in the middle, the light
is always off;
❒switch pushed up (position 1), light is
always on;
❒switch pushed down (position 2 -
AUTO OFF), light is always off.
For Cargo versions
with fixed window
The light comes on automatically
when you open the sliding side
doors and the rear swing
doors/tailgate ; then, it goes out
when you close them.
Press switch A fig. 61 to turn the
light on/off with the doors closed.
Switch A can assume three different
positions:
❒with switch in central position the
light comes on when a rear door
is opened;
❒with the switch pushed up (position
1), the light is always on;
❒switch pushed down (position 2 -
AUTO OFF), bulb is always off.
TORCH FUNCTION
(for Cargo versions where provided)
This is located on the right side of
the load compartment. It is a
removable electric torch.
To use the removable torch A fig.
62, push button B and remove the
torch in the direction shown by
the arrow. Then press switch C to
switch the light on/off.
When the removable light is secured
to its fixed support, the electric
torch battery is automatically
recharged.
For Cargo versions
with fixed window
With the vehicle stationary and the
ignition key either turned to STOP or
removed, the roof light is recharged
for a maximum of 15 minutes.
60F0V0172
61F0V0173
38
KNOW YOUR VEHICLE

SWITCHING ROOF
LIGHTS ON/OFF
Cargo versions
Roof lights switching on
The front roof light comes on when
one of the two front doors is opened
and remains on for 3 minutes if at
least one of the two doors continues
to remain open.
The rear roof lights come on when
one of the sliding side doors or
the rear door (swing or tailgate) is
opened and they stay on for 3
minutes if at least one of these
doors remains open.Roof lights switching off
The front roof light goes out
immediately (with fading), if the key
is in the MAR position when all
the front doors are closed.
The front roof light goes out after 10
secs. (with fading), if the key is in
the OFF position when all the front
doors are closed.
The rear roof lights go out
immediately (with fading), if the key
is in the MAR position when all
the side doors and the rear door
(swing or tailgate) are closed.
The rear roof lights go out after 10
secs. (with fading), if the key is in the
OFF position when all the side
doors and the rear door (swing or
tailgate) are closed.
Doblò/Doblò Combi
versions
Roof lights switching on
The front and rear roof lights come
on when one of the front doors
or a sliding side door is opened and
they stay on for 3 minutes if at
least one of these doors continues
to remain open.Roof lights switching off
The front and rear roof lights go out
immediately (with fading), if the
key is in the MAR position when all
the front doors and the sliding
side doors are closed.
The front and rear roof lights go out
after 10 secs. (with fading), if the
key is in the OFF position when all
the front doors and the sliding
side doors are closed.
62F0V0174
39

Pushing the stalk towards the
dashboard (unstable position) will
activate the rear window washer jet.
Keep the stalk pushed for more
than half a second to activate the
rear window wiper as well.
Releasing the stalk will activate the
smart washing function, as
described for the windscreen wiper.
The function stops when the stalk
is released.
5)
HEADLIGHT WASHERS
(for versions/markets, where
provided)
They are activated when the dipped
headlights are on and the
windscreen washer is activated.
IMPORTANT Check jet function and
cleanliness at regular intervals.
6)
IMPORTANT
3) Do not use the windscreen wiper
to remove layers of snow or ice
from the windscreen. In such
conditions, the windscreen wiper
may be subjected to excessive
stress and the motor cut-out
switch, which prevents operation
for a few seconds, may intervene.
If operation is not restored (even
after turning the key and
restarting the engine), contact a
Fiat Dealership.
4) Do not operate the windscreen
wiper with the blades lifted from
the windscreen.
5) Do not use the rear window wiper
to remove layers of snow or ice. In
such conditions, the wiper may
be subjected to excessive stress
and the motor protection, which
prevents operation for a few
seconds, may intervene. If
operation is not restored, contact
a Fiat Dealership.
6) The headlamp washer jet does not
function when the level of fluid in
the reservoir falls below 1.6 litres.
41

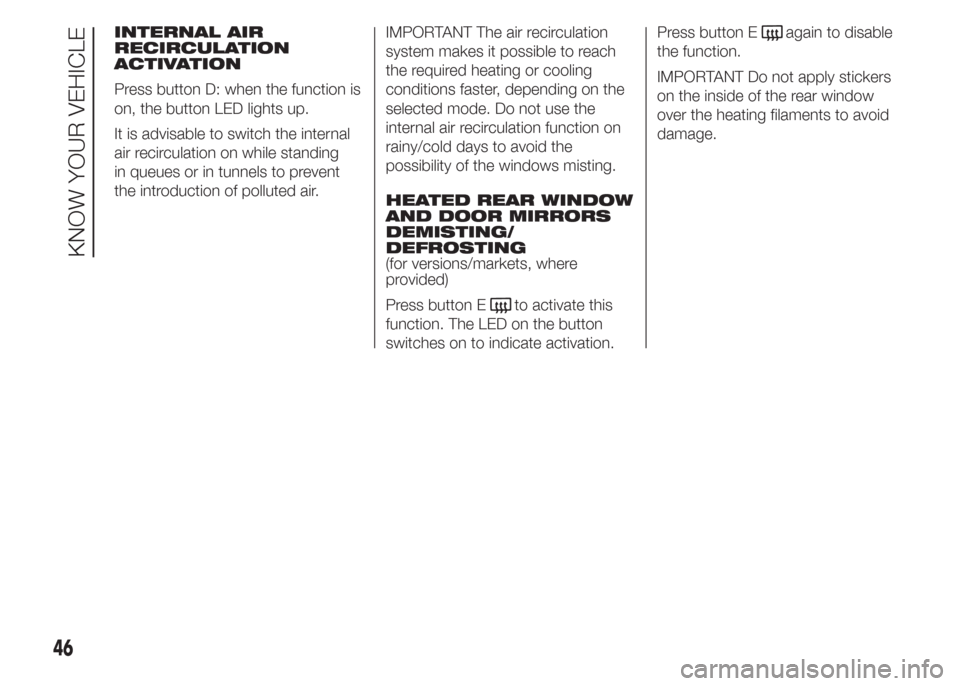

INTERNAL AIR
RECIRCULATION
ACTIVATION
Press button D: when the function is
on, the button LED lights up.
It is advisable to switch the internal
air recirculation on while standing
in queues or in tunnels to prevent
the introduction of polluted air.IMPORTANT The air recirculation
system makes it possible to reach
the required heating or cooling
conditions faster, depending on the
selected mode. Do not use the
internal air recirculation function on
rainy/cold days to avoid the
possibility of the windows misting.
HEATED REAR WINDOW
AND DOOR MIRRORS
DEMISTING/
DEFROSTING
(for versions/markets, where
provided)
Press button E
to activate this
function. The LED on the button
switches on to indicate activation.Press button E
again to disable
the function.
IMPORTANT Do not apply stickers
on the inside of the rear window
over the heating filaments to avoid
damage.
46
KNOW YOUR VEHICLE

PASSENGER
COMPARTMENT
HEATING
Proceed as follows:
❒turn knob A to the red section;
❒turn knob B to the required speed;
❒turn knob C to:
to warm the feet and demist the
windscreen at the same time
warms the feet and keeps the face
cool (bi-level function)
to warm the feet of those in the front
and rear seats.
❒to turn off internal air recirculation
(button E LED off).
FAST FRONT WINDOW
DEMISTING/
DEFROSTING
Proceed as follows:
❒press thebutton
❒turn knob A fully to the right;
❒turn knob B to
;
❒turn knob C to
;
❒
to turn off internal air recirculation
(button E LED off).After demisting/defrosting, operate
the controls to maintain optimum
visibility conditions.
Window demisting
In the event of considerable external
moisture and/or rain and/or large
differences in temperature inside
and outside the passenger
compartment, perform the following
preventive window demisting
procedure:
❒press thebutton
❒to turn off internal air recirculation
(button E LED off);
❒turn knob A to the red section;
❒turn knob B to the second speed
level;
❒turn knob C to
or toif the
windows do not show signs of
misting up deactivate the internal air
recirculation (LED on button E off)
The climate control system is very
useful for demisting the windows
more quickly: just carry out the
above procedure and activate the
system by pressing the
button.HEATED REAR WINDOW
AND DOOR MIRRORS
DEMISTING/
DEFROSTING
(for versions/markets, where
provided)
Press button F
to activate: when
this function is activated, the LED
on button F
lights up.
This function is timed and will turn
off automatically after 20 minutes.
Press button F
again to switch
the function off in advance.
IMPORTANT Do not apply stickers
on the inside of the rear window
over the heating filaments to avoid
damage.
ADJUSTING THE FAN
SPEED
To ventilate the passenger
compartment well, proceed as
follows:
❒fully open the central and side air
diffusers;
❒turn knob A to the blue section;
❒turn knob B to the required speed;
❒turn knob C to
❒to turn off internal air recirculation
(button E LED off).
48
KNOW YOUR VEHICLE

INTERNAL AIR
RECIRCULATION
ACTIVATION
Press button E: when the function is
on, the button LED lights up.
It is advisable to switch the internal
air recirculation on while standing
in queues or in tunnels to prevent
the introduction of polluted air.
Do not use the function for a long
time, particularly if there are many
passengers on board, to prevent the
windows from misting up.
IMPORTANT The air recirculation
system makes it possible to reach
the required heating or cooling
conditions faster, depending on the
selected mode. It is not advisable
to switch the internal air recirculation
on when it is rainy/cold or the
windows might steam up, especially
if the climate control system is not
turned on.
CLIMATE CONTROL
SYSTEM (cooling)
Proceed as follows:
❒turn knob A to the blue section;
❒turn knob B to the required speed;
❒turn knob C to
;❒press the
and E buttons (button
LEDs on).
Adjusting cooling
Proceed as follows:
❒turn off internal air recirculation by
pressing button E (button LED off);
❒turn knob A rightwards to increase
the temperature;
❒turn knob B leftwards to reduce the
fan speed.
ADDITIONAL HEATER
(for versions/markets, where
provided)
This device warms up the
passenger compartment more
quickly when it is very cold and the
engine coolant temperature is low.
The additional heater comes on
automatically when the engine
is started, if knob A is turned to the
last red sector and the fan (knob
B) is at least at the first speed level.
The additional heater turns off
automatically after reaching the
required comfort conditions.
IMPORTANT The heater will not turn
on if the battery voltage is too low.SYSTEM SERVICING
In winter, the climate control system
must be turned on at least once a
month for about 10 minutes. Have
the system inspected at a Fiat
Dealership before the summer.
49

Climate control
compressor
enablement/off button
(F)
Press button
to switch the climate
control compressor off (if on). The
icon on the display will go out.
Press the button when the LED is off
to automatically restore system
control and use of the compressor.
The icon will light up in the display in
this case.
The system will switch recirculation
off when the compressor is
switched off to prevent windows
from misting up. Although the
system is capable of maintaining the
required temperature, the word
FULL will disappear from the display.
If, on the other hand, it is no longer
capable of maintaining the
temperature, the letters flash and
the word AUTO goes out.
IMPORTANT With the compressor
off, it is not possible to introduce air
cooler than ambient temperature
into the passenger compartment.
Furthermore, in certain conditions,
the windows could mist up rapidly
because the air is not dehumidified.The system remembers that the
compressor has been switched off,
even after the engine has stopped.
To restore automatic compressor
control, press thebutton again (in
this case, the system will only work
as a heater) or press the AUTO
button.
With the compressor switched off, if
the outside temperature is higher
than the one set, the system is not
capable of satisfying this request
and signals it by the digits for the
temperature setting flashing after
which the word AUTO goes out.
With the climate control compressor
off, the fan speed can be set to
zero manually (no bar shown).
With the compressor enabled and
the engine started, the fan speed
may be reduced to the minimum
setting (only one bar shown).Button for rapid
window demisting/
defrosting (D)
Pressing this button, the climate
control system will automatically
switch on all the functions required
for fast windscreen and front side
window demisting/defrosting:
❒switches on climate control
compressor when climatic conditions
are suitable;
❒sets air recirculation off;
❒sets maximum air temperature HI in
both areas;
❒sets the fan speed according to the
engine coolant temperature to limit
the flow of air that is not sufficiently
warm to demist the windows;
❒directs air flow to windscreen and
front side windows vents;
❒sets heated rear window on.
IMPORTANT The rapid demisting/
defrosting function for the windows
remains on for about 3 minutes from
when the engine coolant reaches
the appropriate temperature for
a rapid demisting of the windows.
55
