light FIAT DOBLO COMBI 2015 2.G Owner's Manual

– door opening with window
moving, due to the intervention of
the anti-pinch system;
– 50 window movements without
ever closing the window;
– 3 door opening movements, with
moving window, without ever
closing the window.
Proceed as follows for the
initialisation:
1. completely close the driver's door
window, keeping the operating
button pressed for at least 5
seconds after the (upper) end of
travel position
2. proceed in the same way on the
passenger's side door button and
on the buttons of rear doors.
WARNING
28) Incorrect use of the electric
windows may be dangerous.
Before and during their operation,
ensure that any passengers are
not at risk from the moving glass
either by personal objects getting
caught in the mechanism or by
being hit by it directly.
29) When leaving the vehicle,
always remove the ignition key to
avoid the risk of injury due to
accidental operation of the
electric windows.
CONTROLS
FOG LIGHTS
(for versions/markets, where
provided)
Press the
button to turn them
on. The
warning light on the
panel switches on.
When the fog lights are on, the side
lights also come on, while the
daytime running lights go off
irrespective of the position of the
twist switch.
Press the button again to switch the
lights off.
72F0V0507
58
KNOW YOUR VEHICLE

REAR FOG LIGHTS
Press the
button with the dipped
beam headlights or front fog lights
on to turn the rear fog lights on. The
warning light on the panel
switches on.
Press the button again to turn the
lights off, or turn off the dipped
beam headlights and/or the front fog
lights (where provided).
BONNET
Opening
Proceed as follows:
❒pull lever A fig. 73 in the direction
indicated by the arrow;
❒operate lever B fig. 74, lift the bonnet
and, at the same time, release the
supporting rod C fig. 75 from its
catch D, then insert the end of the
rod into housing E in the bonnet
(large hole) and push to safety
position (small hole), as shown in the
figure.
30) 31) 32) 33)
Closing
Proceed as follows:
❒Hold the bonnet up with one hand
and with the other remove rod C
from housing E and fit it back into its
catch D;
❒Lower the bonnet to approximately
20 centimetres above the engine
compartment and let it come down.
Make sure that the bonnet is
completely closed and not just
secured in safety position. If it is not
perfectly closed, do not try to press
the bonnet down but open it and
repeat the procedure.
34)
73F0V0047
74F0V0048
59

FRONT ODDMENT
SHELF
(for versions/markets, where
provided)
The front storage compartment is
fitted above the sun visors fig.
99 and is designed for the quick
storage of light objects (e.g.
documents, road maps etc.).CENTRAL ODDMENT
SHELF
(for versions/markets, where
provided)
The central oddment shelf fig. 100,
accessible from the rear seats, is
intended for storing light objects.
UPPER REAR STORAGE
COMPARTMENT
(for versions/markets, where
provided)
It can be accessed from the rear,
with the tailgate open.
To access the compartment, open
the flap fig. 101 by pulling the
dedicated handle downwards.
The shelf can also be accessed from
inside the passenger compartment
through two flaps B fig. 102 that
slide outwards.IMPORTANT The shelf can support
a maximum weight of 7 kg.
98F0V0200
99F0V0061
100F0V0545
101F0V0559
102F0V0543
66
KNOW YOUR VEHICLE

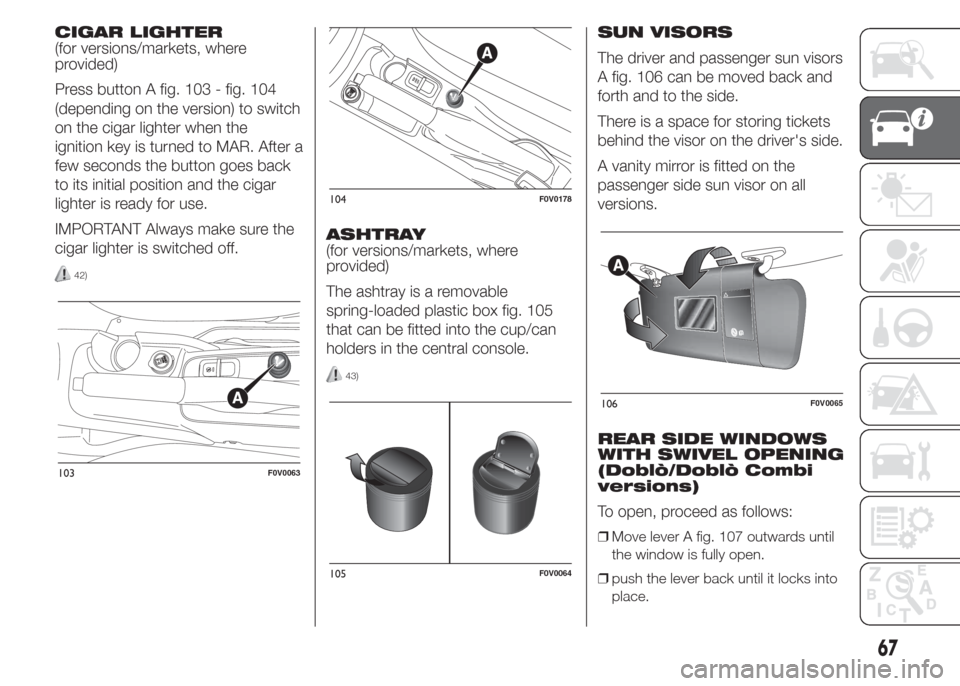

CIGAR LIGHTER
(for versions/markets, where
provided)
Press button A fig. 103 - fig. 104
(depending on the version) to switch
on the cigar lighter when the
ignition key is turned to MAR. After a
few seconds the button goes back
to its initial position and the cigar
lighter is ready for use.
IMPORTANT Always make sure the
cigar lighter is switched off.
42)
ASHTRAY
(for versions/markets, where
provided)
The ashtray is a removable
spring-loaded plastic box fig. 105
that can be fitted into the cup/can
holders in the central console.
43)
SUN VISORS
The driver and passenger sun visors
A fig. 106 can be moved back and
forth and to the side.
There is a space for storing tickets
behind the visor on the driver's side.
A vanity mirror is fitted on the
passenger side sun visor on all
versions.
REAR SIDE WINDOWS
WITH SWIVEL OPENING
(Doblò/Doblò Combi
versions)
To open, proceed as follows:
❒Move lever A fig. 107 outwards until
the window is fully open.
❒push the lever back until it locks into
place.
103F0V0063
104F0V0178
105F0V0064
106F0V0065
67

To close them, carry out the process
in reverse until the lever clicks back
into its original place.
WARNING
41) Never travel with the glove
compartment open: it could injure
the passenger in the event of a
crash.
42) The cigar lighter reaches high
temperatures. Handle it carefully
and make sure that children don't
touch it: risk of fire and/or
burning.43) Do not use the ashtray as a
waste paper basket: it may catch
fire in contact with cigarette
stubs.
ROOF RACK/SKI
RACK
44) 45)
8) 9)
FASTENERS
The fasteners are located at points
A, B and C fig. 108.
ROOF RAILS
(for versions/markets, where
provided)
On some versions, the vehicle has
two longitudinal bars which, with the
addition of special accessories,
can be used to carry various objects
(e.g. skis, surfboards, etc.).
107F0V0132
108F0V0123
68
KNOW YOUR VEHICLE

WARNING
44) Strictly adhere to the laws in
force concerning maximum
clearance.
45) Check that the attachment fixing
screws are tight after a few
kilometres.
IMPORTANT
8) Evenly distribute the load and
take into account, when driving,
the increased responsiveness
of the vehicle to side wind.
9) Never exceed the maximum
permitted loads (see chapter
“Technical specifications”).
HEADLIGHTS
LIGHT BEAM
ALIGNMENT
The correct alignment of the
headlights is essential for the
comfort and safety of the driver and
other road users. To ensure the
best visibility when travelling with the
headlights on, the headlight
alignment must be correct. Contact
a Fiat Dealership to have the
headlights checked and adjusted.
HEADLIGHT
ALIGNMENT
CORRECTOR
This device works with the ignition
key in the MAR position and the
dipped beam headlights on.
The vehicle tilts backwards when it
is laden, raising the beam. The
beams must therefore be realigned
in this case.Headlight alignment
adjustment
Press theandfig. 109
buttons on the control panel to
adjust.
The display located on the
instrument panel provides a visual
indication of the adjustment
position.
Position 0 - one or two people in the
front seats.
Position 1 - five people.
Position 2 - five people + load in the
luggage compartment.
Position 3 - driver + maximum
permitted load stowed in the
luggage compartment.
IMPORTANT Check the light beam
alignment every time the load
transported changes.
FOG LIGHTS
ALIGNMENT
(for versions/markets, where
provided)
Contact a Fiat Dealership to have
the headlights checked and
adjusted.
69

ADJUSTING THE
HEADLIGHTS ABROAD
The dipped beam headlights are
aligned for operation in the country
where the vehicle was originally
purchased. In countries where
vehicles are driven on the other side
of the road, the beams are aligned
by applying a specially designed
adhesive film in order not to dazzle
the vehicles travelling in the opposite
direction.
Such film is provided by
Lineaccessori Fiat and is available at
Fiat Dealerships.
RADIO
(for versions/markets, where
provided)
For the operation of the radio with
CD/MP3 player (for versions/
markets where provided), read the
Supplement attached to this
Owner's Handbook.
WIRING FOR
LIGHTWEIGHT SYSTEM
The system consists of:
❒radio supply leads;
❒front speaker cables (on door mirrors
trims);
❒front door panel speaker cables;
❒rear speaker cables (on the side of
the parcel shelf) (for versions/
markets, where provided);
❒radio housing;
❒aerial lead:
❒aerial.
WIRING FOR
HEAVYWEIGHT SYSTEM
The system consists of:
❒radio supply leads;❒rear speaker cables (on the side of
the parcel shelf) (for versions/
markets, where provided);
❒no. 2 tweeters on door mirror trims;
❒no. 2 midwoofers on front door lower
part;
❒no. 2 rear speakers (on the side of
the parcel shelf) (for versions/
markets, where provided);
❒radio housing;
❒aerial lead:
❒aerial.
SOUND SYSTEM
INSTALLATION
The sound system must be installed
in the space occupied by the centre
glove compartment where you will
find the wiring. Press tabs A to
remove the compartment fig. 110.
46)
109F0V0506
70
KNOW YOUR VEHICLE

During regeneration, the following
may occur: a limited increase in the
engine speed, activation of the
fan, a limited increase in fumes and
high temperatures at the exhaust.
These are not faults; they do not
impair vehicle performance or
damage the environment.
If the dedicated message is
displayed, refer to paragraph
"Warning lights and messages".
72
KNOW YOUR VEHICLE

KNOWING THE INSTRUMENT PANEL
This section of the booklet gives you
all the information you need to
understand, interpret and use the
instrument panel correctly.CONTROL PANEL AND
ON-BOARD INSTRUMENTS ........... 74
DIGITAL DISPLAY............................ 77
MULTIFUNCTION DISPLAY ............. 81
TRIP COMPUTER ........................... 89
EOBD SYSTEM............................... 91
WARNING LIGHTS AND
MESSAGES .................................... 92
- LOW BRAKE FLUID/HANDBRAKE
ENGAGED .......................................... 92
- EBD FAILURE .................................. 93
- AIRBAG FAILURE ............................. 93
- SEAT BELTS NOT FASTENED .......... 94
- ENGINE COOLANT TEMPERATURE
TOO HIGH .......................................... 95
- LOW BATTERY CHARGE ................. 95
- LOW ENGINE OIL PRESSURE ......... 96
-ENGINE OIL DETERIORATED ........... 96
-LOW ENGINE OIL LEVEL .................. 97
-INCOMPLETE DOOR LOCKING ........ 97
- INJECTION/EOBD SYSTEM
FAILURE ............................................. 98
- ABS FAILURE ................................... 99
-FUEL RESERVE ................................ 99
- GLOW PLUG PREHEATING/GLOW
PLUG PREHEATING FAILURE ............ 100
- WATER IN DIESEL FILTER ................ 100
-VEHICLE PROTECTION SYSTEM
FAILURE - FIAT CODE ........................ 101
- REAR FOG LIGHTS .......................... 101
-GENERIC FAILURE INDICATION ....... 101
-DPF (PARTICULATE FILTER)
CLEANING UNDERWAY ..................... 102
-WORN BRAKE PADS ........................ 103
-ASR SYSTEM DEACTIVATED ............ 103
- TRACTION PLUS SYSTEM
ACTIVATION ....................................... 104- TPMS ............................................... 104
-PARKING SENSOR FAILURE ............ 105
-START&STOP SYSTEM FAILURE ...... 105
- DIPPED BEAM HEADLIGHTS .......... 106
- FOLLOW ME HOME ........................ 106
- LEFT-HAND DIRECTION INDICATOR
............................................................ 107
- RIGHT-HAND DIRECTION
INDICATOR ........................................ 107
-FOG LIGHTS ..................................... 107
- CRUISE CONTROL .......................... 107
- MAIN BEAM HEADLIGHTS .............. 108
73

CONTROL PANEL AND ON-BOARD INSTRUMENTS.
Versions with digital display
A. Speedometer (speed indicator) – B. Fuel level gauge with reserve warning light – C. Engine coolant temperature indicator with overheating
warning light – D. Rev counter – E. Digital display
111F0V0530
74
KNOWING THE INSTRUMENT PANEL
