CO2EMISSIONS
These are measured by analysing the exhaust gases emitted under testing, and are correlated to the consumption
values through the carbon balance of the emissions. The CO
2emission levels given in the following table refer to
combined consumption.
CO
2emissions (according to the current European Directive litres/100 km)
1.4 16V Euro 5 / Euro 6 Start&Stop Combined
Cargo short wheelbase 163
Cargo short wheelbase, increased payload - Cargo long
wheelbase168
Combi 5-seater - Doblò 5/7-seater 166
Cargo short wheelbase, High roof - Cargo short wheelbase,
increased payload, High roof167
Doblò 5-seater, High roof 171
Flatbed short wheelbase / long wheelbase (F.C.*
1250)163
Flatbed short wheelbase / long wheelbase (F.C.*
1360)167
Flatbed short wheelbase / long wheelbase (F.C.*
1470)169
Flatbed short wheelbase / long wheelbase (F.C.*
1590)172
Flatbed short wheelbase / long wheelbase (F.C.*
1700)179
*Flywheel class
296
TECHNICAL SPECIFICATIONS

1.4 T-JET Euro 5 / Euro 6 Combined
Cargo short wheelbase / Cargo long wheelbase 169
Cargo Short wheelbase, High roof 175
Cargo Long wheelbase, High roof 179
Combi 5-seater169
Combi 5-seater, Long wheelbase 173
Doblò 5/7-seater169
1.3 MultiJet 90 HP Euro 5 / Euro 5+ Start&Stop Combined
Cargo short wheelbase 126
Cargo Short wheelbase, Increased payload 126
Cargo long wheelbase 129
Combi 5-seater129
Flatbed short wheelbase / long wheelbase (F.C.*
1360)128
Flatbed short wheelbase / long wheelbase (F.C.*
1590)137
Flatbed short wheelbase / long wheelbase (F.C.*
1700)142
*Flywheel class
1.3 MultiJet 90 HP Euro 5 / Euro 5+ Start&Stop Eco
PackCombined
Cargo Short Wheelbase 115
Cargo Increased payload, Short wheelbase 115
298
TECHNICAL SPECIFICATIONS

1.3 MultiJet Euro 4 Combined
Cargo long wheelbase 139
Combi 5-seater139
Flatbed141
1.3 MultiJet Euro 4 Start&Stop with DPF Combined
Doblò 5/7-seater129
1.3 MultiJet 75 HP Euro 5+ DPF Start&Stop Combined
Cargo 1,000 kg short wheelbase / long wheelbase 137
Cargo short wheelbase / Cargo short wheelbase, increased
payload126
Cargo long wheelbase, increased payload / Combi 5-seater 129
1.3 MultiJet 75 HP Euro 5+ DPF NO Start&Stop Combined
Cargo 1,000 kg short wheelbase / long wheelbase 144
Cargo Short wheelbase / Cargo Short wheelbase, Increased
payload / Cargo Long wheelbase133
Combi 5-seater / Cargo long wheelbase / Increased payload 136
1.6 MultiJet 105 HP Euro 5 / Euro 5+ Start&Stop Combined
Cargo short wheelbase 136
300
TECHNICAL SPECIFICATIONS

1.6 MultiJet 105 HP Euro 5 / Euro 5+ Start&Stop Eco
PackCombined
Panorama Short wheelbase / long wheelbase - Doblò Short
wheelbase / long wheelbase126
Cargo / Cargo Increased payload, Short wheelbase, High roof 134
Panorama Short wheelbase High roof 136
Flatbed short wheelbase / long wheelbase (F.C.*
1360)128
Flatbed short wheelbase / long wheelbase (F.C.*
1470)135
Flatbed short wheelbase / long wheelbase (F.C.*
1590)137
Flatbed short wheelbase / long wheelbase (F.C.*
1700)141
Flatbed short wheelbase / long wheelbase (F.C.*
1810)155
*Flywheel class
1.6 MultiJet 105 HP Euro 5 / Euro 5+ NO Start&Stop Combined
Cargo Short Wheelbase 143
Cargo Short wheelbase, Increased payload 144
Cargo Long wheelbase / Combi 5-seater, Short wheelbase 145
Combi 5-seater, Long wheelbase 148
Doblò 5/7-seater145
Cargo Long wheelbase, High roof 158
Cargo Short wheelbase, High roof 154
Cargo Short wheelbase, High roof, Increased payload / Doblò
5-seater, High roof158
302
TECHNICAL SPECIFICATIONS

2.0 MultiJet Euro 5 / Euro 5+ Combined
Cargo short wheelbase/long wheelbase 148
Combi 5-seater / Doblò 5/7-seater 150
Cargo short wheelbase, High roof / Cargo short wheelbase,
increased payload, High roof152
Doblò 5-seater, High roof 157
Doblò 5-seater, long wheelbase 150
2.0 MultiJet 135 HP Euro 5 / Euro 5+ Combined
Cargo Short Wheelbase 154
Cargo Short wheelbase, Increased payload / Cargo Long
wheelbase / Combi 5-seater, Short wheelbase156
Combi 5-seater, Long wheelbase - Doblò 5/7-seater - Cargo
Long wheelbase, High roof163
Cargo Short wheelbase, High roof 158
Cargo Short wheelbase, High roof, Increased payload / Cargo
Short wheelbase, High roof167
Cargo Short wheelbase, High roof, Increased payload - Doblò
5-seater, High roof163
Combi 5-seater, Long wheelbase, High roof 167
Doblò 5-seater, long wheelbase 156
Flatbed short wheelbase / long wheelbase (F.C.*
1360)153
*Flywheel class
304
TECHNICAL SPECIFICATIONS

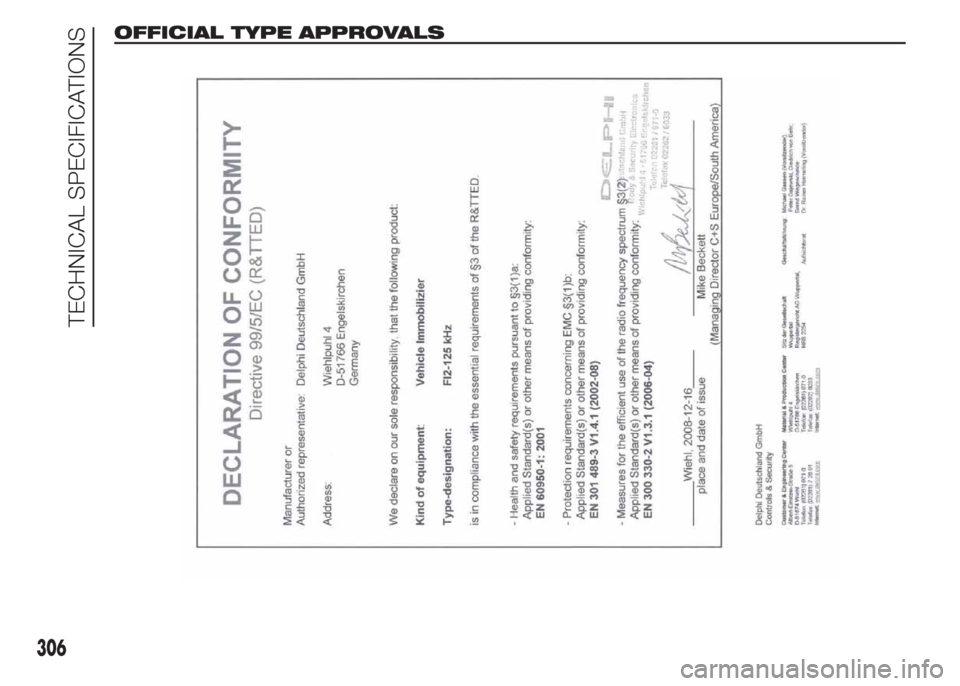

OFFICIAL TYPE APPROVALS
