SYMBOLS
Some vehicle components have
coloured labels whose symbols
indicate precautions to be observed
when using this component. Under
the bonnet there is also a label
that summarises all the symbols.
THE FIAT CODE
SYSTEM
IN BRIEF
This is an electrical engine locking
system which increases protection
against attempted theft of the
vehicle. It is automatically
activated when the ignition key is
removed.
Each key contains an electronic
device which modulates the signal
emitted during ignition by an
antenna built into the ignition
device. The signal, which changes
each time the engine is started,
is the “password”, by means
of which the control unit
recognises the key and enables
starting.
1)
Operation
Each time the vehicle is started
turning the ignition key toMAR, the
Fiat CODE system control unit
sends a recognition code to the
Powertrain Control Module to
deactivate the inhibitor.
The acknowledgement code is sent
only if the Fiat CODE system control
unit has recognised the code
transmitted from the key.
Each time the ignition key is turned
to STOP, the Fiat CODE system
deactivates the functions of the
Powertrain Control Module.
Irregular operation
If, during starting, the code has not
been recognised correctly the
warning light
on the instrument
panel turns on accompanied by
the related message on the display
(see section “Warning lights and
messages”).
In this case, turn the key toSTOP
and then back toMAR; if the lock
continues, try with the other keys
provided with the vehicle. Contact a
Fiat Dealership if you still cannot
start the engine.
18
KNOW YOUR VEHICLE

WARNING
26) When driving, these mirrors must
always be in position A fig. 51. As
door mirrors are curved, they
may slightly alter the perception
of distance.
EXTERIOR LIGHTS
IN BRIEF
The left stalk includes the controls
for the exterior lights.
The external lights can only be
switched on when the ignition key
is at MAR.
The instrument panel and the
various dashboard controls will
come on with the external lights.
DAYTIME RUNNING
LIGHTS (DRL)
(for versions/markets, where
provided)
With the ignition key turned to MAR
and the ring nut turned to position
Othe daytime running lights are
automatically activated; the other
lights and interior lighting remain off.
In some markets, the automatic
operation of the daytime running
lights can be activated/deactivated
via the display menu (see "Digital/
multifunction display" in this
section). If the daytime running lights
are deactivated, no light comes on
when the ring nut is turned toO.
27)
DIPPED HEADLIGHTS/
SIDE LIGHTS
With the ignition key turned to MAR,
turn the ring nut to
. If dipped
headlights are activated, the daytime
running lights switch off and the
side lights and dipped headlights
switch on. The
warning light
switches on in the instrument panel.
When the ignition key is turned to
STOP or removed and the ring nut is
turned fromOto
, all the side
lights and the number plate lights
come on. The
warning light will
come on in the instrument panel.
54F0V0515
34
KNOW YOUR VEHICLE

MAIN BEAM
HEADLIGHTS
With ring nut in position
, push
the stalk forward toward the
dashboard (stable position). The
warning light switches on in the
instrument panel. Pulling the stalk
towards the steering wheel, the
main beams are turned off and the
dipped headlights on.
FLASHING
You can flash the beams pulling the
stalk toward the steering wheel
(unstable position). The
warning
light switches on in the instrument
panel.
DIRECTION
INDICATORS
Bring the stalk into (stable) position
fig. 55:
❒up (position 1): to activate the right
direction indicator;
❒down (position 2): activates the left
direction indicator.
Warning lightorwill blink on
the instrument panel.Direction indicators switch off
automatically when the vehicle is
back in a straight line.
Lane change function
If you wish to signal a lane change,
place the left stalk in the unstable
position for less than half a second.
The direction indicator on the side
selected will flash five times and
then switch off automatically.
"FOLLOW ME HOME"
DEVICE
This device allows the illumination of
the space in front of the vehicle for
a preset time.Activation
With the ignition key in the STOP
position or extracted, pull the stalk
towards the steering wheel and
move it within 2 minutes of the
engine switching off.
Each time the stalk is moved, the
lights stay on for an extra 30
seconds up to a maximum of 210
seconds; then the lights are
switched off automatically.
The warning light
on the
instrument panel will light up and the
corresponding message will appear
in the display (see “Warning lights
and messages” section) for as long
as the function is activated.
The warning light comes on when
the stalk is operated and stays
on until the function is automatically
deactivated.
Each movement of the stalk only
increases the amount of time the
lights stay on.55F0V0516
35

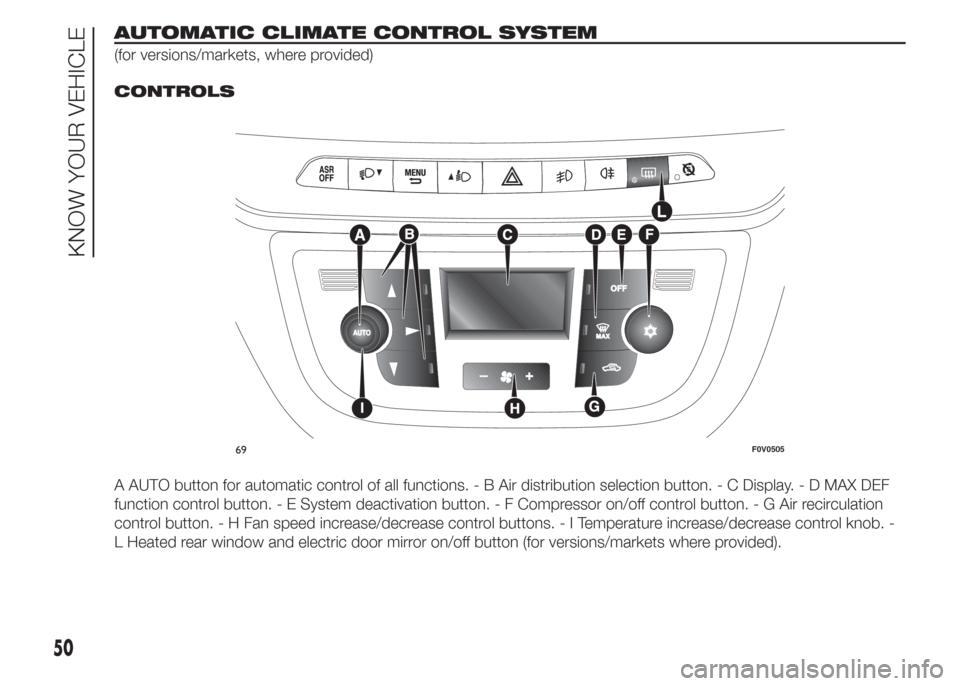

AUTOMATIC CLIMATE CONTROL SYSTEM
(for versions/markets, where provided).
CONTROLS
A AUTO button for automatic control of all functions. - B Air distribution selection button. - C Display. - D MAX DEF
function control button. - E System deactivation button. - F Compressor on/off control button. - G Air recirculation
control button. - H Fan speed increase/decrease control buttons.-ITemperature increase/decrease control knob. -
L Heated rear window and electric door mirror on/off button (for versions/markets where provided).
69F0V0505
50
KNOW YOUR VEHICLE

INTRODUCTION
The automatic climate control
system adjusts the temperature, the
quantity and the distribution of the
air in the passenger compartment.
The temperature control is based on
the "equivalent temperature": in
other words, the system
continuously works to keep the
comfort level inside the vehicle
constant and to compensate for
possible variations in outside
conditions, including the sun's rays
detected by a dedicated sensor. The
automatically controlled parameters
and functions are:
❒air temperature at the vents;
❒air distribution at the vents;
❒fan speed (continuous variation of the
air flow);
❒compressor activation (for cooling/
dehumidifying the air);
❒air recirculation.
All functions may be changed
manually. In other words, you may
select one or more functions and
change the parameters as required.
Automatic control of the manually
changed functions will be
suspended: the system will override
your settings only for safety-related
reasons (e.g. risk of misting).
Manual selections will always take
priority over automatic settings and
will be stored until the user switches
the system back to automatic
operation by pressing the AUTO
button again except for the cases in
which the system will intervene for
particular, safety-related reasons.
You can adjust one function
manually without affecting the
automatic control of the others.
The temperature of the air sent is
always controlled automatically,
depending on the temperature set in
the display (except when the
system is off or in certain conditions
when the compressor is switched
off).The system allows the following
parameters and functions to be set
or altered manually: air temperature,
fan speed (continuous variation);
air distribution in seven positions;
compressor enablement; fast
defrosting/demisting function; air
recirculation; switching off the
system.
USING THE CLIMATE
CONTROL SYSTEM
The system can be started in
different ways, but it is advisable to
start by pressing the AUTO button
and then turning the knob to set the
temperature required on the display.
The system will start running
automatically in this way and the set
temperature will be reached as
quickly as possible. The system will
adjust the temperature, the quantity
and the distribution of the air
introduced into the passenger
compartment and will manage the
recirculation function and the
compressor engagement. During
fully automatic operation, the only
manual intervention required is
the possible activation of the
following functions:
51

❒air recirculation, to keep the
function always either on or off;
❒
to speed up demisting/defrosting
of windscreen, rear window and
external rear view mirrors.
During fully automatic system
operation, you can change the set
temperature, air distribution and fan
speed at any time by using the
relevant buttons or knobs: the
system will automatically change its
settings to adjust to the new
requirements.During fully automatic operation
(FULL AUTO), the word FULL will
disappear if the air distribution
and/or flow rate and/or engagement
of the compressor and/or
recirculation settings are changed. In
this way, the functions will switch
from automatic to manual control
until the AUTO button is pressed
again. With one or more functions
turned on manually, the adjustment
of the intake air temperature
continues to be managed
automatically, except with the
compressor switched off: if this is
the case, the temperature of the air
sent into the passenger
compartment cannot be lower than
that of the outside air.
CONTROLS
Air temperature
adjustment knob (I)
Turn the knob either clockwise or
anticlockwise to increase or lower
the requested temperature in the
passenger compartment.
The set temperature is shown on
the display.Turn the knob either fully to the right
or fully to the left to the extreme HI
or LO position to turn the maximum
heating or maximum cooling
functions on:❒HI function (maximum heating):
select by turning the temperature
knob clockwise beyond the
maximum value (32°C).
This function may be used to heat
up the passenger compartment
exploiting the system potential to
the maximum. In this condition, the
system stops controlling the
temperature automatically and sets
the air mixing to maximum heating.
The air speed and distribution are
fixed.
In particular, if the heating fluid is not
sufficiently hot, the maximum fan
speed does not come on straight
away in order to limit the intake
of insufficiently hot air to the
passenger compartment.
All manual settings will be allowed
when this function is on.
To switch the function off, simply
turn the temperature knob
anticlockwise and set the required
temperature.
52
KNOW YOUR VEHICLE

❒LO function (maximum cooling):
select by turning the temperature
knob anticlockwise beyond the
minimum value (16°C).
This function may be used to cool
down the passenger compartment
by exploiting the system's potential
to the full. In this condition, the
system stops controlling the
temperature automatically and sets
the air mixing to maximum cooling.
The air speed and distribution are
fixed. All manual settings will be
allowed when this function is on.
To switch the function off, simply
turn the temperature knob
clockwise and set the required
temperature.
Air distribution
buttons (B)
By pressing these buttons, it is
possible to set one of the 5 possible
air distributions manually:
Air flow to the windscreen and
front side window vents to demist
or defrost them.
Air flow at central and side
dashboard vents to ventilate the
chest and the face during the hot
season.
Air flow to the front and rear
footwell vents. Thanks to the
natural tendency of hot air to rise,
this distribution pattern allows
the passenger compartment to
warm up as quickly as possible,
providing an immediate feeling of
warmth.
Air flow distributed between
footwell diffusers (hotter air)
and central and side
dashboard vents (cooler air).
This distribution mode is
particularly useful in spring and
autumn on sunny days.
Air flow distributed between
the footwell vents and the
windscreen and front
side window defrosting/
demisting vents. This allows an
adequate warming of the
passenger compartment and
prevents the windows from
misting up.
The distribution set is shown by the
corresponding LEDs in the selected
buttons coming on.To restore automatic control of the
air distribution after a manual
selection, press the AUTO button.
Fan speed adjustment
buttons (H)
Press the H button at its ends to
increase or to decrease the fan
speed and therefore the amount of
air sent into the passenger
compartment, though the required
temperature remains set.
The fan speed is shown by the lit
bars on the display:
❒Maximum fan speed = all the bars lit
up
❒Minimum fan speed = one bar lit up.
The fan can only be excluded if
the climate control system
compressor has been switched off
by pressing the F button fig. 69.
IMPORTANT To restore automatic
fan speed control after a manual
adjustment, press the AUTO button.
53

IMPORTANT At high vehicle speeds,
the dynamic effect may increase
the flow of air into the passenger
compartment which in this case will
not directly correspond to the fan
speed bar display.
AUTO button (A)
(automatic operation)
Press AUTO to make the system
automatically adjust the quantity and
distribution of the air introduced
into the passenger compartment. All
previous manual settings will be
cancelled.
The message FULL AUTO will
appear on the front display in this
condition.
By manually adjusting at least one of
the functions automatically
managed by the system (air
recirculation, air distribution, fan
speed or switching off the
compressor), the word FULL will
disappear from the display,
indicating that the system is no
longer automatically controlling all
the functions (the temperature
will still be controlled automatically).IMPORTANT Should the system
(after manual intervention) no longer
be able to guarantee the target
temperature for the passenger
compartment, the set temperature
value will start flashing to indicate
the difficulties the system is
experiencing and then the word
AUTO will go out.
To restore system automatic control
at any time, after one or more
manual adjustments, press the
AUTO button.
Air recirculation on/off
button (G)
The air recirculation is managed
according to the following operating
logic:
❒override on (inside air recirculation
always on), indicated by the LED
on button G and the
symbol on
the display;
❒override off (air recirculation
constantly off with air intake from the
outside), signalled by the LED in
the button switching off and by the
symbol in the display
disappearing.
These operating conditions are
obtained by pressing air recirculation
button G in sequence.
IMPORTANT The engagement of
the air recirculation system makes it
possible to reach the required
heating or cooling conditions faster.
It is however inadvisable to use it
on rainy/cold days as it would
considerably increase the possibility
of the windows misting inside,
especially if the climate control
compressor is off.
To prevent the windows from
misting up, the recirculation is forced
off (i.e. air is drawn in from the
outside) when the outside
temperature is cold.
It is advisable not to use the air
recirculation function when the
outside temperature is low to
prevent the windows from rapidly
misting up.
54
KNOW YOUR VEHICLE

Climate control
compressor
enablement/off button
(F)
Press button
to switch the climate
control compressor off (if on). The
icon on the display will go out.
Press the button when the LED is off
to automatically restore system
control and use of the compressor.
The icon will light up in the display in
this case.
The system will switch recirculation
off when the compressor is
switched off to prevent windows
from misting up. Although the
system is capable of maintaining the
required temperature, the word
FULL will disappear from the display.
If, on the other hand, it is no longer
capable of maintaining the
temperature, the letters flash and
the word AUTO goes out.
IMPORTANT With the compressor
off, it is not possible to introduce air
cooler than ambient temperature
into the passenger compartment.
Furthermore, in certain conditions,
the windows could mist up rapidly
because the air is not dehumidified.The system remembers that the
compressor has been switched off,
even after the engine has stopped.
To restore automatic compressor
control, press thebutton again (in
this case, the system will only work
as a heater) or press the AUTO
button.
With the compressor switched off, if
the outside temperature is higher
than the one set, the system is not
capable of satisfying this request
and signals it by the digits for the
temperature setting flashing after
which the word AUTO goes out.
With the climate control compressor
off, the fan speed can be set to
zero manually (no bar shown).
With the compressor enabled and
the engine started, the fan speed
may be reduced to the minimum
setting (only one bar shown).Button for rapid
window demisting/
defrosting (D)
Pressing this button, the climate
control system will automatically
switch on all the functions required
for fast windscreen and front side
window demisting/defrosting:
❒switches on climate control
compressor when climatic conditions
are suitable;
❒sets air recirculation off;
❒sets maximum air temperature HI in
both areas;
❒sets the fan speed according to the
engine coolant temperature to limit
the flow of air that is not sufficiently
warm to demist the windows;
❒directs air flow to windscreen and
front side windows vents;
❒sets heated rear window on.
IMPORTANT The rapid demisting/
defrosting function for the windows
remains on for about 3 minutes from
when the engine coolant reaches
the appropriate temperature for
a rapid demisting of the windows.
55

When this function is active, the LED
on the corresponding button and
the one on the heated rear window
button switch on. The message
FULL AUTO goes off on the display.
You can only adjust the fan speed
and switch off the heated rear
window manually when this function
is active.
To restore the previous operating
conditions, simply press button B,
air recirculation button G,
compressor button F or AUTO
button A.
Heated rear window
and door mirrors
electric control
demisting/defrosting
button (L)
(for versions/markets, where
provided)
Push this button to activate the
demisting/defrosting of the heated
rear window and electric door
mirrors
When this function is active, the
button LED is on.This function switches off
automatically after about 20 minutes
or when you push the button again,
or when the engine is turned off. It
will not be switched on automatically
when the engine is restarted.
IMPORTANT Do not affix decals to
the inside of the heated rear window
over the heating filaments, to avoid
damage that might cause them
to stop working properly.
Switching the system
OFF (E)
Press button E to switch the climate
control system off. The display will
go out.
With the system off, the climate
control system conditions are as
follows: display off, temperature
setting not display, air recirculation
on thereby insulating the passenger
compartment from the outside
(recirculation LED on), climate
control compressor off, fan off.
Press the AUTO button to switch
the climate control system back on
in full automatic mode.ELECTRIC WINDOWS
FRONT ELECTRIC
WINDOWS
There are buttons on the driver side
door panel which control the
following functions, with the ignition
key turned to MAR:
A: Opening/closing left window
B: Opening/closing right window
Push button A or B to open/close
the appropriate window.
70F0V0020
56
KNOW YOUR VEHICLE
