Page 15 of 323
.
AIR VENTS
❒Diffusers ............................................. 43
LEFT STALK
❒External lights ..................................... 34
INSTRUMENT PANEL
❒Control panel and on-board
instruments ......................................... 74
❒Warning lights ..................................... 92
RIGHT STALK
❒Window cleaning ................................ 40
CAR RADIO
❒System ............................................... 70
PASSENGER SIDE FRONT
AIRBAG
❒Front airbag ........................................128
GLOVE COMPARTMENT
❒Interior fittings ..................................... 64
DASHBOARD CONTROLS
❒Operation ........................................... 58
HEATER/CLIMATE CONTROL
SYSTEM
❒Heating and ventilation ........................ 44
❒Manual climate control system ............ 47
❒Automatic climate control .................... 50
GEAR LEVER
❒Operation ...........................................139
STEERING WHEEL
❒Adjustment ......................................... 32
❒Driver's side front airbag .....................128
3F0V0538
11
Page 17 of 323
KNOW YOUR VEHICLE
In-depth knowledge of your new
vehicle starts here.
The booklet that you are reading
simply and directly explains how it is
made and how it works.
That’s why we advise you to read it
seated comfortably on board, so
that you can see what is described
here for yourself.THE KEYS....................................... 14
IGNITION DEVICE ........................... 17
SYMBOLS ...................................... 18
THE FIAT CODE SYSTEM ............... 18
DOORS ........................................... 19
SEATS ............................................ 24
PARTITIONS ................................... 29
HEAD RESTRAINTS ........................ 31
STEERING WHEEL ......................... 32
REAR VIEW MIRRORS .................... 32
EXTERIOR LIGHTS ......................... 34
INTERIOR LIGHTS .......................... 36
WINDSCREEN/REAR WINDOW
WIPER ............................................ 40
HEATING AND VENTILATION
SYSTEM ......................................... 42
DIFFUSERS..................................... 43
HEATING AND VENTILATION.......... 44
MANUAL CLIMATE CONTROL
SYSTEM ......................................... 47
AUTOMATIC CLIMATE CONTROL
SYSTEM ......................................... 50
ELECTRIC WINDOWS .................... 56
CONTROLS .................................... 58
BONNET ......................................... 59
BOOT ............................................. 60
INTERIOR FITTINGS ....................... 64
ROOF RACK/SKI RACK .................. 68HEADLIGHTS.................................. 69
RADIO............................................. 70
PROTECTING THE
ENVIRONMENT .............................. 71
13
Page 46 of 323

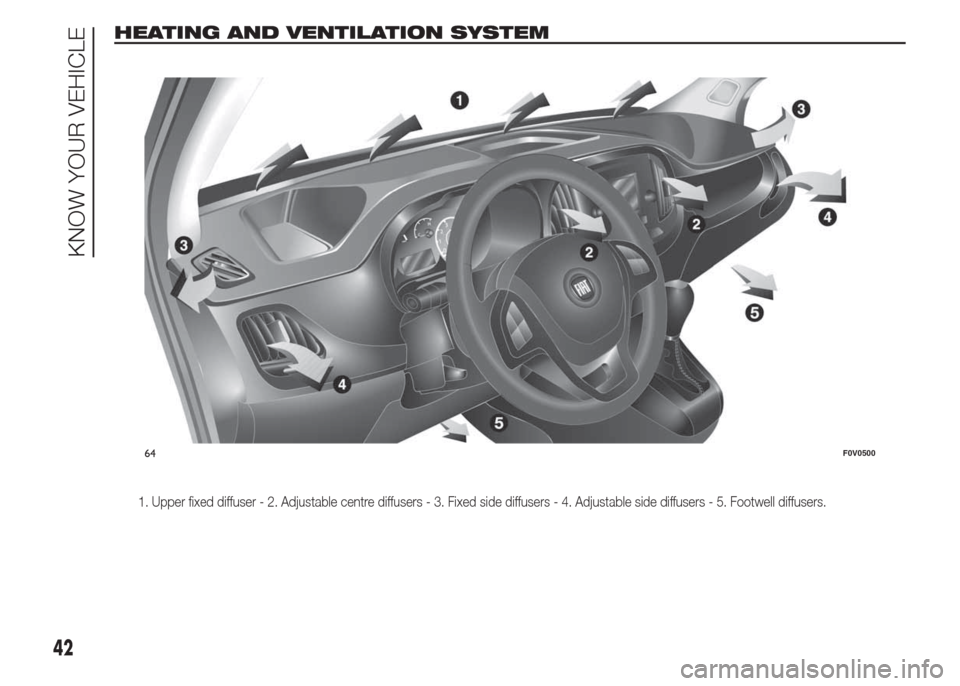

HEATING AND VENTILATION SYSTEM
1. Upper fixed diffuser - 2. Adjustable centre diffusers - 3. Fixed side diffusers - 4. Adjustable side diffusers - 5. Footwell diffusers.
64F0V0500
42
KNOW YOUR VEHICLE
Page 47 of 323

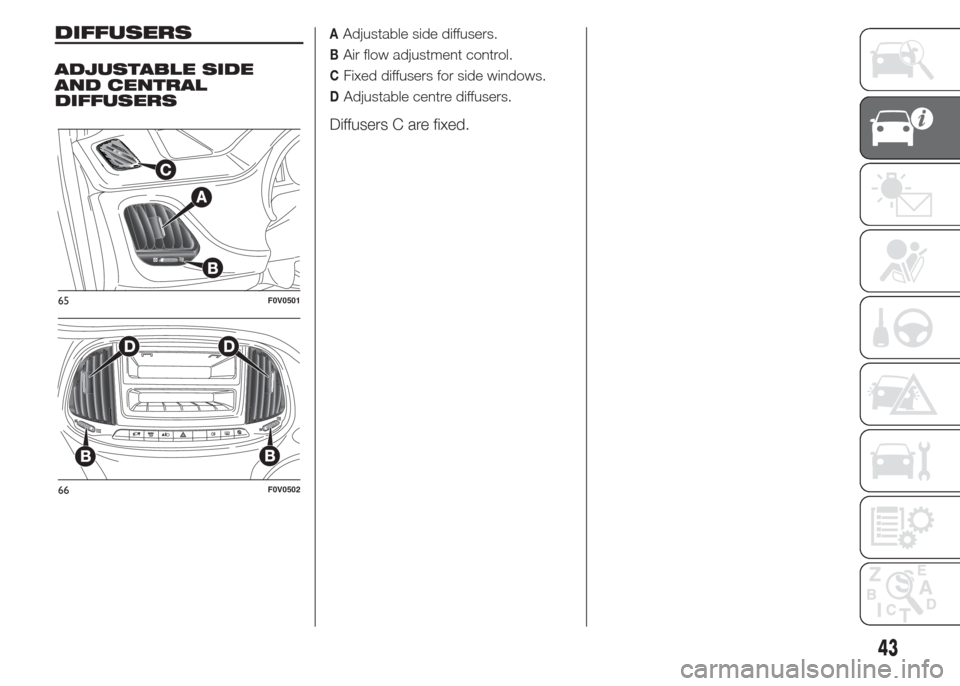

DIFFUSERS
ADJUSTABLE SIDE
AND CENTRAL
DIFFUSERS
AAdjustable side diffusers.
BAir flow adjustment control.
CFixed diffusers for side windows.
DAdjustable centre diffusers.
Diffusers C are fixed.
65F0V0501
66F0V0502
43
Page 49 of 323
CLIMATIC COMFORT
Dial C enables the air introduced
into the vehicle to reach all parts of
the passenger compartment
through five distribution options:
delivers air from the central and
side vents;
warms the feet and keeps the face
cool (bi-level function)
allows the passenger
compartment to be warmed more
quickly;
warms up the passenger
compartment and demists the
windscreen at the same time;
Demists and defrosts the
windscreen and front side
windows.
HEATING
Proceed as follows:
❒turn knob A fully to the right (to);
❒turn knob B to the required speed;
❒turn knob C to:
to warm the feet and demist the
windscreen at the same time;
to send air to the feet and
introduce fresher air from the
central and dashboard vents;
to warm up quickly.
FAST HEATING
Proceed as follows
❒close all the diffusers on the
dashboard;
❒turn knob A to
;
❒turn knob B to 4
;
❒turn knob C to
.
WINDSCREEN AND
FRONT SIDE WINDOW
FAST DEMISTING/
DEFROSTING
(MAX-DEF function)
Proceed as follows:
❒turn knob A to;
❒turn knob B to 4
;
❒turn knob C to
;
❒turn off internal air recirculation
(button D LED off).
After demisting/defrosting, operate
the controls as normal to restore the
required comfort conditions.Window demisting
In the event of considerable external
moisture and/or rain and/or large
differences in temperature inside
and outside the passenger
compartment, perform the following
preventive window demisting
procedure:
❒turn off internal air recirculation
(button D LED off);
❒turn knob A to
;
❒turn knob B to 2;
❒turn knob C to
, with the
possibility of moving it to position
if window misting does not occur.
ADJUSTING THE FAN
SPEED
To ventilate the passenger
compartment well, proceed as
follows:
❒fully open the central air diffusers and
the side vents;
❒turn knob A to the blue section;
❒turn knob B to the required speed;
❒turn knob C to
;
❒turn off internal air recirculation
(button D LED off).
45
Page 52 of 323
PASSENGER
COMPARTMENT
HEATING
Proceed as follows:
❒turn knob A to the red section;
❒turn knob B to the required speed;
❒turn knob C to:
to warm the feet and demist the
windscreen at the same time
warms the feet and keeps the face
cool (bi-level function)
to warm the feet of those in the front
and rear seats.
❒to turn off internal air recirculation
(button E LED off).
FAST FRONT WINDOW
DEMISTING/
DEFROSTING
Proceed as follows:
❒press thebutton
❒turn knob A fully to the right;
❒turn knob B to
;
❒turn knob C to
;
❒
to turn off internal air recirculation
(button E LED off).After demisting/defrosting, operate
the controls to maintain optimum
visibility conditions.
Window demisting
In the event of considerable external
moisture and/or rain and/or large
differences in temperature inside
and outside the passenger
compartment, perform the following
preventive window demisting
procedure:
❒press thebutton
❒to turn off internal air recirculation
(button E LED off);
❒turn knob A to the red section;
❒turn knob B to the second speed
level;
❒turn knob C to
or toif the
windows do not show signs of
misting up deactivate the internal air
recirculation (LED on button E off)
The climate control system is very
useful for demisting the windows
more quickly: just carry out the
above procedure and activate the
system by pressing the
button.HEATED REAR WINDOW
AND DOOR MIRRORS
DEMISTING/
DEFROSTING
(for versions/markets, where
provided)
Press button F
to activate: when
this function is activated, the LED
on button F
lights up.
This function is timed and will turn
off automatically after 20 minutes.
Press button F
again to switch
the function off in advance.
IMPORTANT Do not apply stickers
on the inside of the rear window
over the heating filaments to avoid
damage.
ADJUSTING THE FAN
SPEED
To ventilate the passenger
compartment well, proceed as
follows:
❒fully open the central and side air
diffusers;
❒turn knob A to the blue section;
❒turn knob B to the required speed;
❒turn knob C to
❒to turn off internal air recirculation
(button E LED off).
48
KNOW YOUR VEHICLE
Page 57 of 323
❒LO function (maximum cooling):
select by turning the temperature
knob anticlockwise beyond the
minimum value (16°C).
This function may be used to cool
down the passenger compartment
by exploiting the system's potential
to the full. In this condition, the
system stops controlling the
temperature automatically and sets
the air mixing to maximum cooling.
The air speed and distribution are
fixed. All manual settings will be
allowed when this function is on.
To switch the function off, simply
turn the temperature knob
clockwise and set the required
temperature.
Air distribution
buttons (B)
By pressing these buttons, it is
possible to set one of the 5 possible
air distributions manually:
Air flow to the windscreen and
front side window vents to demist
or defrost them.
Air flow at central and side
dashboard vents to ventilate the
chest and the face during the hot
season.
Air flow to the front and rear
footwell vents. Thanks to the
natural tendency of hot air to rise,
this distribution pattern allows
the passenger compartment to
warm up as quickly as possible,
providing an immediate feeling of
warmth.
Air flow distributed between
footwell diffusers (hotter air)
and central and side
dashboard vents (cooler air).
This distribution mode is
particularly useful in spring and
autumn on sunny days.
Air flow distributed between
the footwell vents and the
windscreen and front
side window defrosting/
demisting vents. This allows an
adequate warming of the
passenger compartment and
prevents the windows from
misting up.
The distribution set is shown by the
corresponding LEDs in the selected
buttons coming on.To restore automatic control of the
air distribution after a manual
selection, press the AUTO button.
Fan speed adjustment
buttons (H)
Press the H button at its ends to
increase or to decrease the fan
speed and therefore the amount of
air sent into the passenger
compartment, though the required
temperature remains set.
The fan speed is shown by the lit
bars on the display:
❒Maximum fan speed = all the bars lit
up
❒Minimum fan speed = one bar lit up.
The fan can only be excluded if
the climate control system
compressor has been switched off
by pressing the F button fig. 69.
IMPORTANT To restore automatic
fan speed control after a manual
adjustment, press the AUTO button.
53
Page 61 of 323
When one of the two buttons is
pressed briefly, the window moves
in stages; if the button is held down,
"continuous automatic" operation
is activated both for closing and
opening. Press button A or B again
to stop the window in its current
position.
The electric windows are fitted with
a security system (where provided)
that can detect the presence of
an obstacle whilst the window
is closing; when this happens, the
system kicks in and the movement
of the glass is immediately reversed.
IMPORTANT In the event that the
anti-crushing function is activated 5
times in only 1 minute, the system
will automatically enter the
"recovery" mode (self-protection).
This condition is apparent from the
window closing in stages.
If this occurs, restore the system as
follows:
❒open the windows.
If no malfunction is present, the
window returns to its normal
operation automatically.IMPORTANT With the ignition key at
STOP or removed, the electric
windows remain activated for about
two minutes and are deactivated
as soon as a door is opened.
28) 29)
FRONT AND REAR
ELECTRIC WINDOWS
(for versions/markets, where
provided)
Driver side door
Five switches fig. 71 on the inner
armrest control the following with
the ignition key turned to MAR:
A left front window opening/closing;
B right front window opening/
closing;
C left rear window opening/closing;
D right rear window opening/
closing;
E inhibition of control switches on
rear doors.Passenger side and rear doors
(for versions/markets, where
provided)
The switch controlling the
corresponding window is located on
the inner armrest of each door.
ELECTRIC WINDOWS
SYSTEM
INITIALISATION
The window automatic lifting control
system must be reinitialised as a
result of:
❒on front doors:
– protection fuse or battery
disconnection;
❒on rear doors:
– protection fuse or battery
disconnection when the window is
moving;
71F0V0175
57
Page 105 of 323
Warning lights on
panelWhat it means What to do
amberVEHICLE PROTECTION SYSTEM FAILURE -
FIAT CODE
When the key is turned to MAR the warning light
will flash only once and then switch off.
If, with the ignition key at MAR, the warning light
stays on permanently, this indicates a possible
failure (see “Fiat Code system” in the “Know your
vehicle” chapter);
If, with the engine running, the
warning light
flashes, it means that the vehicle is not protected
by the engine immobiliser device.Contact a Fiat Dealership to have all the keys
stored in the memory.
amberREAR FOG LIGHTS
The warning light comes on when the rear fog
lights are turned on.
Warning lights on
panelWhat it means What to do
amberGENERIC FAILURE INDICATION
The warning light turns on in the following
circumstances:
❒Engine oil pressure sensor failure
❒Lights failure (rear fog, direction indicator,
reverse, number plate, side, daytime running)The failure relating to these lights could be: one
or more blown bulbs, a blown protection fuse or
a break in the electrical connection.
101
Page 163 of 323

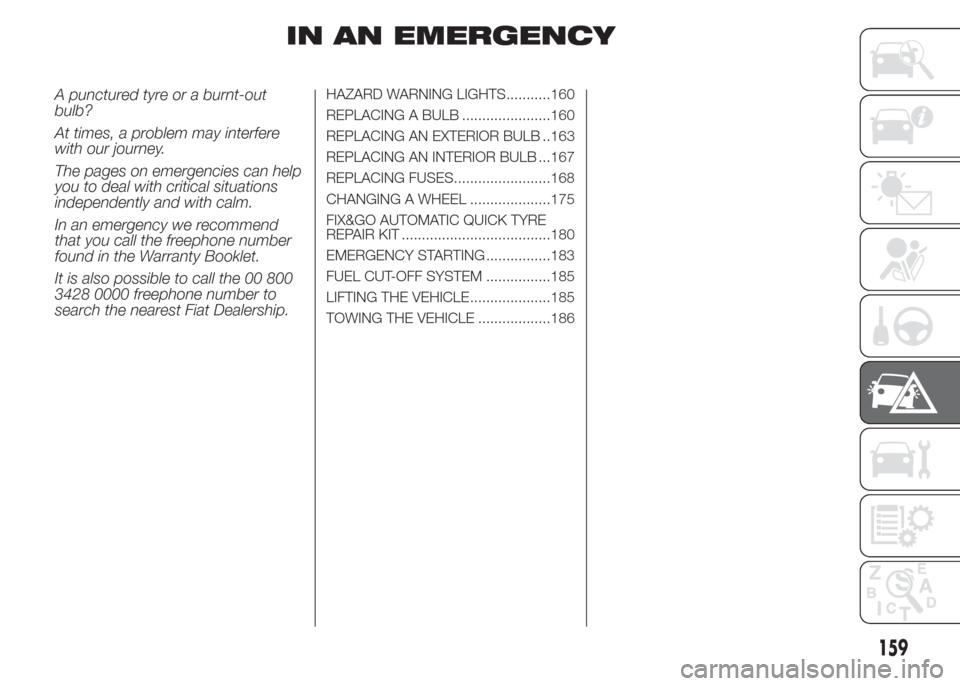

IN AN EMERGENCY
A punctured tyre or a burnt-out
bulb?
At times, a problem may interfere
with our journey.
The pages on emergencies can help
you to deal with critical situations
independently and with calm.
In an emergency we recommend
that you call the freephone number
found in the Warranty Booklet.
It is also possible to call the 00 800
3428 0000 freephone number to
search the nearest Fiat Dealership.HAZARD WARNING LIGHTS...........160
REPLACING A BULB ......................160
REPLACING AN EXTERIOR BULB ..163
REPLACING AN INTERIOR BULB ...167
REPLACING FUSES........................168
CHANGING A WHEEL ....................175
FIX&GO AUTOMATIC QUICK TYRE
REPAIR KIT .....................................180
EMERGENCY STARTING ................183
FUEL CUT-OFF SYSTEM ................185
LIFTING THE VEHICLE....................185
TOWING THE VEHICLE ..................186
159
