fuse FIAT DOBLO COMBI 2015 2.G User Guide

HAZARD WARNING
LIGHTS
They are turned on by pressing
switch A fig. 150, regardless of the
position of the ignition key. Warning
lights
andare lit up in the
instrument panel when this device is
activated.
Press switch A again to turn the
lights off.
IMPORTANT The use of hazard
warning lights is governed by the
highway code of the country you are
in. Comply with legal requirements.Emergency braking
(for versions/markets, where
provided)
In the event of emergency braking
the hazard warning lights come
on automatically, as do theand
warning lights in the panel.
The function switches off
automatically when the nature of the
braking changes. This function
complies with the relevant legislation
currently in force.
REPLACING A BULB
GENERAL
INSTRUCTIONS
❒Before replacing a bulb check the
contacts for oxidation;
❒burnt bulbs must be replaced by
others of the same type and power;
❒always check the headlight beam
alignment after replacing a bulb;
❒when a light is not working, check
that the corresponding fuse is intact
before changing a bulb. For the
location of fuses, refer to the
paragraph “If a fuse blows” in this
section.
103) 104)
24) 25)
IMPORTANT The headlight inner
surface might be slightly misted: this
does not indicate a fault, it is a
natural phenomenon due to low
temperature and the air humidity
level. Misting will disappear rapidly
when the headlights are turned
on. The presence of drops inside the
headlights indicates infiltration of
water. Contact a Fiat Dealership.
150F0V0513
160
IN AN EMERGENCY

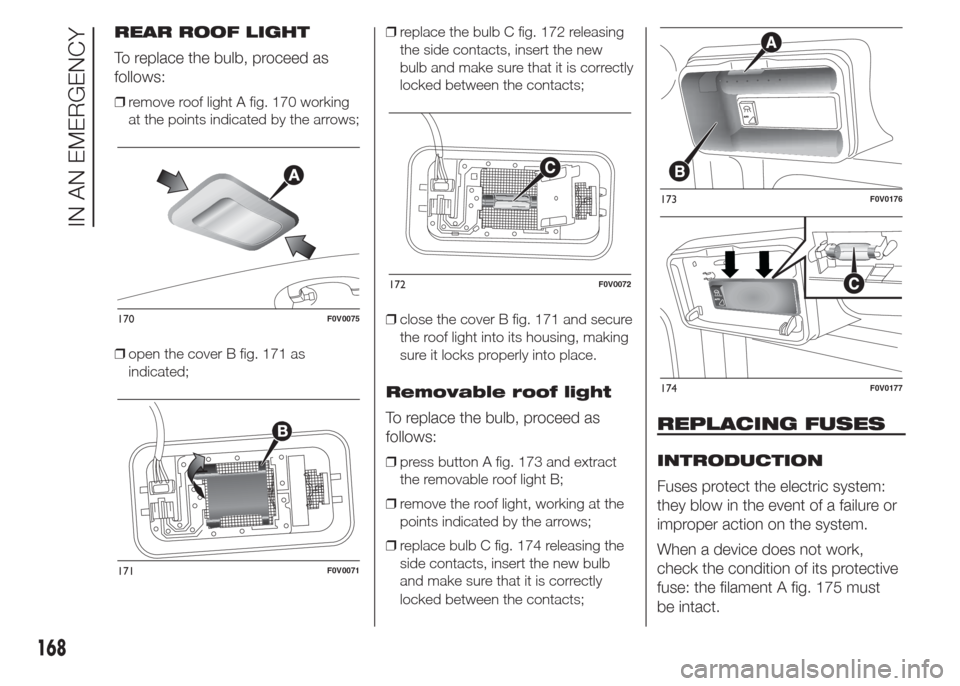

REAR ROOF LIGHT
To replace the bulb, proceed as
follows:
❒remove roof light A fig. 170 working
at the points indicated by the arrows;
❒open the cover B fig. 171 as
indicated;❒replace the bulb C fig. 172 releasing
the side contacts, insert the new
bulb and make sure that it is correctly
locked between the contacts;
❒close the cover B fig. 171 and secure
the roof light into its housing, making
sure it locks properly into place.
Removable roof light
To replace the bulb, proceed as
follows:
❒press button A fig. 173 and extract
the removable roof light B;
❒remove the roof light, working at the
points indicated by the arrows;
❒replace bulb C fig. 174 releasing the
side contacts, insert the new bulb
and make sure that it is correctly
locked between the contacts;
REPLACING FUSES
INTRODUCTION
Fuses protect the electric system:
they blow in the event of a failure or
improper action on the system.
When a device does not work,
check the condition of its protective
fuse: the filament A fig. 175 must
be intact.
170F0V0075
171F0V0071
172F0V0072
173F0V0176
174F0V0177
168
IN AN EMERGENCY

If it is not, replace the blown fuse
with another having the same
amperage (same colour).
B intact fuse.
C fuse with damaged filament.
To change a fuse, use the tweezers
D located in the tool box or the
Fix & Go container (for
versions/markets where provided).
26)
105) 106) 107)
To identify the protective fuse, see
the tables on the following pages.ENGINE
COMPARTMENT FUSE
BOX
The fuse box fig. 177 is located on
the right-hand side of the engine,
next to the battery. To remove the
protective cover A fig. 176 and
access the fuse box, undo the two
fixing screws B.
27)175F0V0088
176F0V0081
177F0V0089
169

PASSENGER
COMPARTMENT FUSE
BOXES
To access the fuses, remove
snap-fitted protective cover A fig.
178.
The fuses are located in the two
fuse boxes shown in fig. 179.
178F0V0562
179F0V0563
170
IN AN EMERGENCY

Engine compartment fuse box
fig. 176 - fig. 177
DEVICE PROTECTED FUSE AMPERE
Remote control switch for opening swing door (Cargo version) F09 10
Single tone hornF10 10
Main beam headlights F14 15
Heated rear window F20 30
Fog lightsF30 15
Rear power socket F85 15
Passenger compartment power socket F86 15
171

Passenger compartment fuse boxes
fig. 178 - fig. 179
DEVICE PROTECTED FUSE AMPERE
Door locking/unlocking motors, dead lock actuator motors, tailgate unlocking
motorF38 20
Supply + battery for EOBD diagnosis socket, radio, tyre pressure monitoring
control unitF36 10
Windscreen/rear window washer pump F43 15
Electric window motor on passenger-side front door F48 20
Left low beam, headlight corrector F13 7,5
Electric window motor on driver-side front door F47 20
172
IN AN EMERGENCY

DEVICE PROTECTED FUSE AMPERE
Heated driver seat F1 10
Heated passenger seat F2 10
Cigar lighterF3 15
Third power socket on dashboard F4 20
Driver's side rear electric window F5 20
Passenger's side rear electric window F6 20
IMPORTANT
26) Never replace a blown fuse with metal wires or other material.
27) If you need to wash the engine compartment, take care not to directly hit the fuse box and the window wiper motors
with the water jet.
173

WARNING
105) If the replaced fuse blows again, contact a Fiat Dealership.
106) Never replace a fuse with another with a higher amp rating; DANGER OF FIRE. If a general protection fuse
(MEGA-FUSE, MIDI-FUSE) is activated, contact a Fiat Dealership. Before replacing a fuse, make sure that the ignition
key has been removed and that all the other services are switched off and/or disengaged.
107) Contact a Fiat Dealership if a safety system (airbags, brakes), engine system (engine, gearbox) or steering system
general protection fuse blows.
174
IN AN EMERGENCY

If you put the vehicle through a car
wash, follow these
recommendations:
– remove the aerial from the roof so
it does not get damaged;
– water added to a soapy solution
should be used for washing;
– rinse thoroughly to avoid soap
marks staying on the bodywork or
less visible parts.
39)
Dry the less visible parts with special
care, such as the door frames,
bonnet and the headlight frames,
where water may stagnate more
easily. It is a good idea to leave the
vehicle outdoors for a while after
washing it to give water time to
evaporate.
Do not wash the vehicle after it has
been left in the sun or with the
bonnet hot: this may alter the shine
of the paintwork.Exterior plastic parts should be
cleaned in the same way as the rest
of the vehicle. Where possible, do
not park the vehicle under trees; the
resinous substances released by
many species give the paint a dull
appearance and increase the
possibility of corrosion.
IMPORTANT Bird droppings should
be washed off immediately and
thoroughly as the acid they contain
is particularly aggressive.6)
Windows
To clean glasses, use specific
cleaning products. Use clean cloths
to avoid scratching the glass or
damaging the transparency.
IMPORTANT Wipe the inside
surface of the rear window gently
with a cloth in the direction of the
filaments to avoid damaging the
heater coils.Engine compartment
At the end of each winter,
thoroughly wash the engine
compartment, taking care to avoid
spraying the water jet directly onto
the electronic control units and
the relay/fuse box on the left side of
the engine compartment (driving
direction). Have this operation
performed at a specialised
workshop.
IMPORTANT The washing should
take place with the engine cold and
the ignition key in the STOP
position. After the washing
operation, make sure that the
various protections (e.g. rubber
caps and guards) have not been
removed or damaged.
Headlights
IMPORTANT Never use aromatic
substances (e.g. petrol) or ketones
(e.g. acetone) for cleaning the
plastic lenses of the front headlights.
