MAIN BEAM
HEADLIGHTS
With ring nut in position
, push
the stalk forward toward the
dashboard (stable position). The
warning light switches on in the
instrument panel. Pulling the stalk
towards the steering wheel, the
main beams are turned off and the
dipped headlights on.
FLASHING
You can flash the beams pulling the
stalk toward the steering wheel
(unstable position). The
warning
light switches on in the instrument
panel.
DIRECTION
INDICATORS
Bring the stalk into (stable) position
fig. 55:
❒up (position 1): to activate the right
direction indicator;
❒down (position 2): activates the left
direction indicator.
Warning lightorwill blink on
the instrument panel.Direction indicators switch off
automatically when the vehicle is
back in a straight line.
Lane change function
If you wish to signal a lane change,
place the left stalk in the unstable
position for less than half a second.
The direction indicator on the side
selected will flash five times and
then switch off automatically.
"FOLLOW ME HOME"
DEVICE
This device allows the illumination of
the space in front of the vehicle for
a preset time.Activation
With the ignition key in the STOP
position or extracted, pull the stalk
towards the steering wheel and
move it within 2 minutes of the
engine switching off.
Each time the stalk is moved, the
lights stay on for an extra 30
seconds up to a maximum of 210
seconds; then the lights are
switched off automatically.
The warning light
on the
instrument panel will light up and the
corresponding message will appear
in the display (see “Warning lights
and messages” section) for as long
as the function is activated.
The warning light comes on when
the stalk is operated and stays
on until the function is automatically
deactivated.
Each movement of the stalk only
increases the amount of time the
lights stay on.55F0V0516
35
Page 91 of 323
To set the desired volume, proceed
as follows:
– briefly press theMENU
button; the previously set
volume level will flash on the display;
– press the
orbutton to make
the adjustment;
– press theMENU
button
briefly to return to the menu screen
or hold the button down to return
to the standard screen without
storing.
Belt buzzer (Buzzer
activation for SBR
indication)
This function can be displayed only
after a Fiat Dealership has
deactivated the SBR system (see
“SBR system” in the “Safety”
section).
Service (Scheduled
servicing)
Using this function you can display
information about the mileage
intervals for vehicle servicing.
To consult the information, proceed
as follows:– briefly press theMENU
button, which makes the display
show the service interval in km or
mi according to the previous setting
(see "Distance units of
measurement" paragraph);
– briefly press theMENU
button to go back to the menu
screen or hold the button down
to go back to the standard screen.NOTE The “Scheduled Servicing
Plan” includes vehicle maintenance
at fixed intervals; refer to the
“Maintenance and care” chapter.
This message is displayed
automatically when the key is turned
to MAR, starting at 2,000 km (or
equivalent value in miles) from when
the next service is due and
reappearing every 200 km (or
equivalent value in miles). Below 200
km servicing indications are more
frequent. The display will be in km or
mi depending on the settings of
the unit of measurement. When the
next scheduled service is
approaching, the word “Service” will
appear on the display, followed by
the number of kilometres or miles
left, when the key is turned to MAR.
Go to a Fiat Dealership, where the
"Scheduled Servicing Plan"
operations will be performed and
the message will be reset.
87
Page 93 of 323
TRIP COMPUTER
IN BRIEF
The Trip computer is used to
display information on vehicle
operation when the ignition key is
turned to MAR. This function
allows you to define two separate
trips, called "Trip A" and "Trip
B", for monitoring the "complete
mission" (journey) of the vehicle in
a reciprocally independent
manner. Both functions can be
reset (reset means start of a new
journey).
"Trip A" can be used to display the
values relating to:
❒External temperature
❒Range
❒Distance travelled A
❒Average consumption A
❒Instant consumption
❒Average speed A
❒Trip time A (driving time)
❒Reset Trip A
"Trip B", available on multifunction
display only, is used to display
the values relating to:
❒Distance travelled B
❒Average consumption B
❒Average speed B
❒Trip time B (driving time)
❒Trip B reset
11)
Values displayed
External temperature
Indicates the temperature outside
the vehicle passenger compartment.
Range (for versions/markets, where
provided)
This indicates the distance that can
still be travelled with the fuel in the
tank, assuming that driving style
remains unvaried. The display will
show the reading "----"when the
following events take place:
❒range is lower than 50 km (or
corresponding figure in mi)
❒vehicle is left parked with the engine
running for a long time
IMPORTANT The range can be
affected by several factors: driving
style (see paragraph “Driving style”
in the “Starting and driving” section),
type of route (motorway, towns
and cities, mountain roads, etc…),
usage conditions (load, tyre
pressures, etc…). Trip planning must
therefore take the above into
account.
Distance travelled
This value shows the distance
travelled from the start of the new
journey.
Average consumption (for
versions/markets, where provided)
This value shows the approximate
average fuel consumption from
the start of the new journey.
Instant consumption (for versions/
markets where provided)
This value shows the fuel
consumption. The value is
constantly updated. The display will
show "----"ifthevehicle is parked
with the engine running.
89
Page 94 of 323
Average speed
This value shows the vehicle's
average speed based on the overall
time elapsed since the start of the
new journey.
Trip time
Time elapsed since the start of the
new journey.
IMPORTANT If there is no
information, the Trip computer
displays "----" in place of the value.
When normal operating conditions
are restored, the counting of the
various values is resumed, without
either zeroing the values displayed
prior to the problem, or starting a
new mission.
TRIP control button
The TRIP button is located at the
end of the right stalk fig. 117. With
the ignition key turned to MAR,
this button allows you to view the
previously described values and also
zero them to begin a new journey:
❒brief press to access the various
values displays;❒long press to reset and then start a
new mission.
New mission
This begins after a reset:
❒"manual" resetting by the user, by
pressing the relevant button;
❒“automatic” resetting, when the
distance travelled reaches 3,999.9
km or 9,999.9 km (depending on the
type of display) or when the travel
time reaches 99.59 (99 hours and 59
minutes);
❒after disconnection/reconnection of
the battery.
IMPORTANT The reset operation
when “Trip A” details are being
displayed only resets the information
associated with this function.IMPORTANT The reset operation
when “Trip B” details are being
displayed resets only the information
associated with this function.
Start of journey procedure
With the ignition key in the MAR
position, reset by pressing the TRIP
button and keeping it pressed for
more than 2 seconds.
Exit Trip
You can automatically exit the TRIP
function once all the values have
been displayed or by holding the
MENU
button (*) down for more
than 1 second.
(*) For versions/markets where
provided.
IMPORTANT
11) The “Trip B” function may be
disabled (see paragraph
“Activating Trip B”). "Range" and
"Instantaneous fuel consumption"
parameters cannot be reset.
117F0V0010
90
KNOWING THE INSTRUMENT PANEL
Page 104 of 323
Warning lights on
panelWhat it means What to do
amberGLOW PLUG PREHEATING/GLOW PLUG
PREHEATING FAILURE
Glow plug preheating
This warning light switches on when the key is
turned to MAR. It will switch off as soon as the
glow plugs have reached a preset temperature.
IMPORTANT At high ambient temperatures the
warning light may stay on for an extremely
short time.
Start the engine as soon as the warning light
switches off.
Glow plug preheating failure
The warning light flashes if there is a fault in the
preheating system.
On some versions, the display shows the
dedicated message.Contact a Fiat Dealership as soon as possible.
Warning lights on
panelWhat it means What to do
amberWATER IN DIESEL FILTER
When the key is turned to MAR, the warning light
switches on but it should switch off after a few
seconds.
The
warning light switches on when there is
water in the diesel filter.
On some versions, the display shows the
dedicated message.14)
100
KNOWING THE INSTRUMENT PANEL
Page 120 of 323

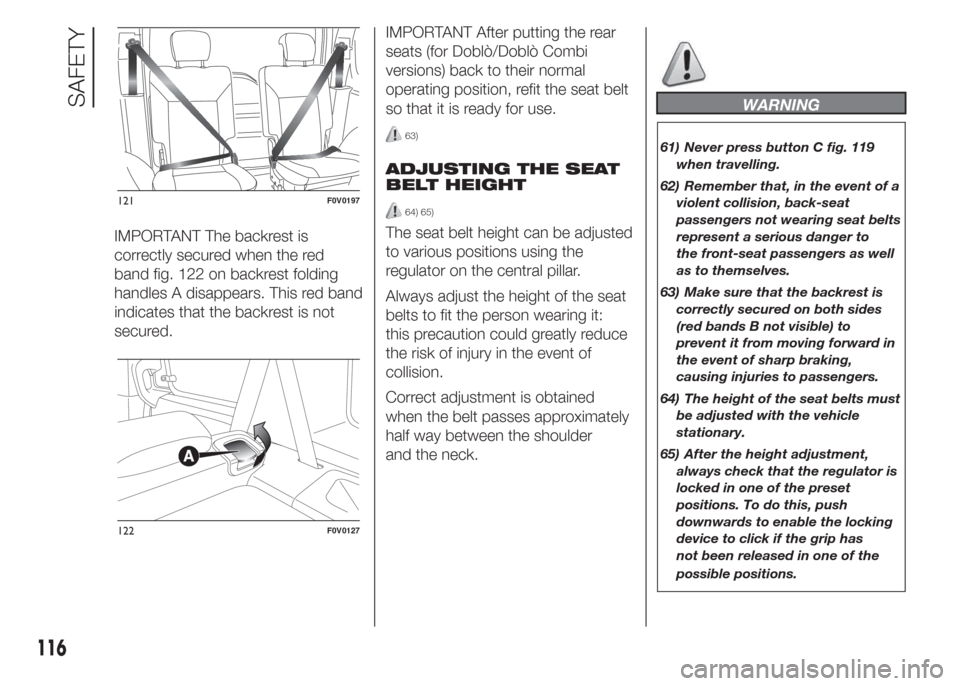

IMPORTANT The backrest is
correctly secured when the red
band fig. 122 on backrest folding
handles A disappears. This red band
indicates that the backrest is not
secured.IMPORTANT After putting the rear
seats (for Doblò/Doblò Combi
versions) back to their normal
operating position, refit the seat belt
so that it is ready for use.
63)
ADJUSTING THE SEAT
BELT HEIGHT
64) 65)
The seat belt height can be adjusted
to various positions using the
regulator on the central pillar.
Always adjust the height of the seat
belts to fit the person wearing it:
this precaution could greatly reduce
the risk of injury in the event of
collision.
Correct adjustment is obtained
when the belt passes approximately
half way between the shoulder
and the neck.
WARNING
61) Never press button C fig. 119
when travelling.
62) Remember that, in the event of a
violent collision, back-seat
passengers not wearing seat belts
represent a serious danger to
the front-seat passengers as well
as to themselves.
63) Make sure that the backrest is
correctly secured on both sides
(red bands B not visible) to
prevent it from moving forward in
the event of sharp braking,
causing injuries to passengers.
64) The height of the seat belts must
be adjusted with the vehicle
stationary.
65) After the height adjustment,
always check that the regulator is
locked in one of the preset
positions. To do this, push
downwards to enable the locking
device to click if the grip has
not been released in one of the
possible positions.
121F0V0197
122F0V0127
116
SAFETY
Page 152 of 323
CRUISE CONTROL
(for versions/markets, where
provided)
IN BRIEF
This is an electronic driving aid
that allows you to drive at a speed
of above 30 km/h on long and
straight dry roads (e.g.
motorways) with few driving
changes at a preset speed
without having to press
the accelerator pedal. It is
therefore not recommended to
use this device on extra-urban
roads with traffic. Do not use it in
town.
Activating the device
When the device is activated,
warning light
comes on together
with the relevant message in the
instrument panel (for versions/
markets where provided).
The speed adjustment function
cannot be activated in 1st or reverse
gear; it is advisable to activate the
function in 4th or higher gears.When travelling downhill with the
device activated, the vehicle speed
may exceed the memorised one.
95) 96)
Storing vehicle speed
Proceed as follows:
❒turn ring nut A fig. 146 to ON and
press the accelerator pedal so that
the vehicle reaches the desired
speed;
❒move the stalk upwards (+) for at
least one second, then release it: the
vehicle speed is memorised and
you can therefore release the
accelerator pedal.
If necessary (when overtaking for
instance) acceleration is possible by
simply pressing the accelerator
pedal: releasing the accelerator
pedal, the vehicle will return to the
speed memorised previously.
Restoring the stored
speed
If the device has been deactivated,
for example by depressing the brake
or clutch pedal, the stored speed
can be restored as follows:
❒accelerate progressively until a speed
close to that stored is reached;
❒engage the gear selected at the time
that the speed was stored;
❒press button B fig. 146.
Increasing the stored
speed
This can be done in two ways:
❒by pressing the accelerator and
memorizing the new speed reached;
or
❒by moving the stalk upwards (+).
Each operation of the stalk will
correspond to a slight increase in
speed of about 1 km/h, while
keeping the stalk upwards will
increase the speed continuously.
146F0V0092
148
STARTING AND DRIVING
