boot FIAT DOBLO COMBI 2016 2.G User Guide

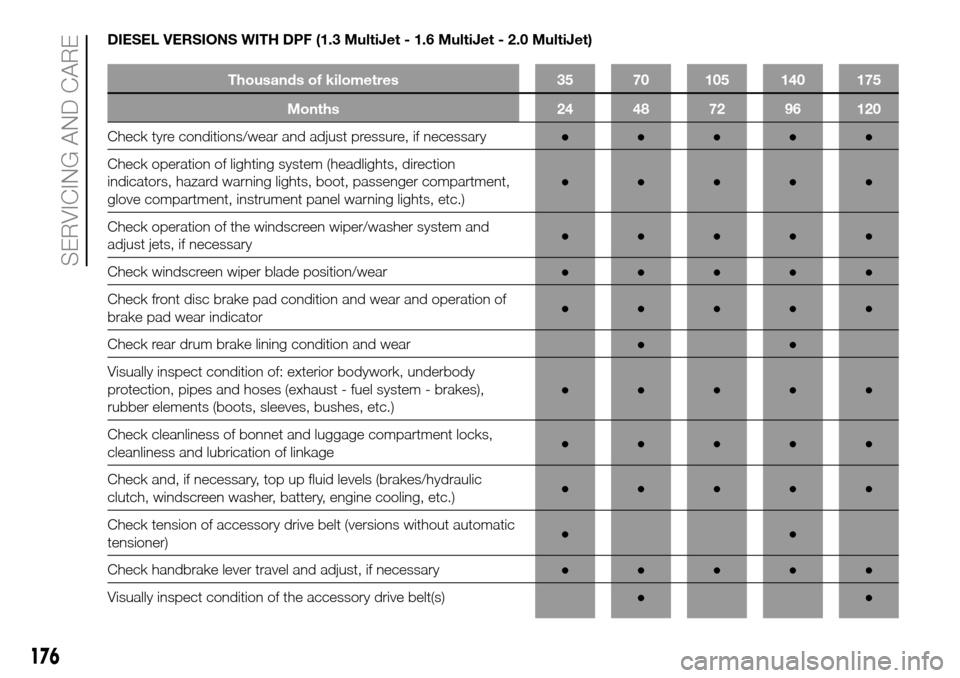

DIESEL VERSIONS WITH DPF (1.3 MultiJet - 1.6 MultiJet - 2.0 MultiJet)
Thousands of kilometres 35 70 105 140 175
Months 24 48 72 96 120
Check tyre conditions/wear and adjust pressure, if necessary●●●●●
Check operation of lighting system (headlights, direction
indicators, hazard warning lights, boot, passenger compartment,
glove compartment, instrument panel warning lights, etc.)●●●●●
Check operation of the windscreen wiper/washer system and
adjust jets, if necessary●●●●●
Check windscreen wiper blade position/wear●●●●●
Check front disc brake pad condition and wear and operation of
brake pad wear indicator●●●●●
Check rear drum brake lining condition and wear●●
Visually inspect condition of: exterior bodywork, underbody
protection, pipes and hoses (exhaust - fuel system - brakes),
rubber elements (boots, sleeves, bushes, etc.)●●●●●
Check cleanliness of bonnet and luggage compartment locks,
cleanliness and lubrication of linkage●●●●●
Check and, if necessary, top up fluid levels (brakes/hydraulic
clutch, windscreen washer, battery, engine cooling, etc.)●●●●●
Check tension of accessory drive belt (versions without automatic
tensioner)●●
Check handbrake lever travel and adjust, if necessary●●●●●
Visually inspect condition of the accessory drive belt(s)●●
176
SERVICING AND CARE

PERIODIC CHECKS
Every 1,000 km or before long
journeys, check and, if necessary, top
up the following:
engine coolant level;
brake fluid level;
windscreen washer fluid level;
tyre inflation pressure and condition;
operation of lighting system
(headlights, direction indicators, hazard
warning lights, etc.);
operation of screen washer/wiper
system and positioning/wear of
windscreen/rear screen wiper blades
(for versions/markets where provided);
Every 3,000 km check and top up if
required: engine oil level.
DEMANDING
VEHICLE USE
If the vehicle is mostly used in one of
the following conditions:
towing a trailer or motorhome;
dusty roads;
short, repeated journeys (less than
7-8 km) at sub-zero outside
temperatures;
engine often idling or driving long
distances at low speeds or long periods
of inactivity;
the following checks must be carried
out more often than indicated in the
Scheduled Servicing Plan:
check front disc brake pad condition
and wear;
check cleanliness of bonnet and
luggage compartment locks,
cleanliness and lubrication of linkage;
visually inspect condition of: engine,
gearbox, transmission, pipes and
hoses (exhaust - fuel system - brakes)
and rubber elements (boots - sleeves
- bushes - etc.);
check battery charge and battery
fluid level (electrolyte);
visually inspect conditions of the
auxiliary drive belts;
check and, if necessary, change
engine oil and replace oil filter;
check and, if necessary, replace
pollen filter;
replacement of air cleaner cartridge
every 15,000 km.
178
SERVICING AND CARE

INDEX
"
Universal" child restraint
system fitting
................................ 114
ABS system
.................................. 100
Accessories purchased by the
owner .......................................... 5
Active safety systems ..................... 100
Advice for preserving the
bodywork..................................... 196
Air cleaner/pollen filter .................... 189
Ashtray .......................................... 62
ASR system ................................... 102
Automatic climate control
system ......................................... 47
Battery
.......................................... 190
Battery recharging.......................... 191
Blades ........................................... 192
Body paintwork identification
plate............................................. 200
Bodywork ...................................... 196
Bodywork version .......................... 202
Bonnet ........................................... 55
Boot............................................... 56
Brake fluid ...................................... 187
Brakes
– features ..................................... 207
Bump starting ................................ 165
Carrying children safely
................. 108
– child restraint systems ............... 114Changing a wheel .......................... 158
Chassis marking ............................ 200
Child restraint systems (suitability
for use)......................................... 110
Child safety device ......................... 20
Cigarette lighter .............................. 62
CO2 emissions............................... 268
Control panel and on-board
instruments .................................. 68
Controls ......................................... 54
Cruise Control ................................ 133
Daytime running lights
.................. 32
Dead lock ...................................... 15
Demanding vehicle use .................. 178
Diesel filter ..................................... 189
Diffusers ......................................... 40
Digital display ................................. 70
– Control buttons ......................... 71
– Set-up menu ............................. 71
Dipped headlights .......................... 32.......................... 147
Direction indicators ........................ 33........................ 148
Door mirrors ................................... 31
Doors ............................................. 18
Draining condensation (MultiJet
versions) ...................................... 189
Driver side armrest ......................... 60
Driver's side front airbag ................ 117
Electric windows
.......................... 52
– Initialisation................................ 53
Emergency starting ........................ 125........................ 165Engine
– technical specifications.............. 204
Engine codes ................................. 202
Engine compartment...................... 179
Engine compartment control unit
fuses ............................................ 153
Engine coolant ............................... 187
Engine marking .............................. 201
Engine oil ....................................... 187
EOBD system ................................ 82
ESC system ................................... 101
External lights................................. 32
Fastening the tow hook
................. 167
Fiat CODE system.......................... 17
Fix&Go automatic quick tyre
repair kit ....................................... 162
Fluids and lubricants ...................... 250
Fog lights ....................................... 54....................................... 148
Follow Me Home ............................ 33
Follow Me Home device ................. 33
Front airbags .................................. 116
Front bench .................................. 26
Front light clusters .......................... 147
Front roof light ................................ 150
Fuel consumption .......................... 254
Fuel cut-off system......................... 166
Fuses on compartment wired
casing .......................................... 154
Glove compartment
...................... 60
