technical data FIAT DOBLO COMBI 2017 2.G Owner's Manual

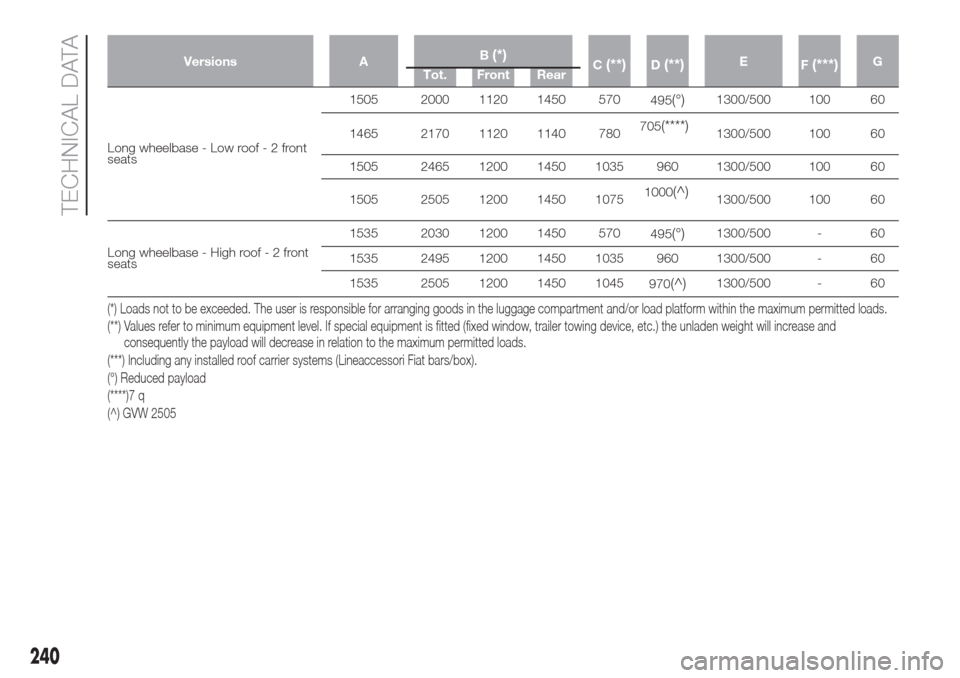

Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Long wheelbase - Low roof-2front
seats1505 2000 1120 1450 570
495
(°)1300/500 100 60
1465 2170 1120 1140 780705
(****)1300/500 100 60
1505 2465 1200 1450 1035 960 1300/500 100 60
1505 2505 1200 1450 10751000
(^)1300/500 100 60
Long wheelbase - High roof-2front
seats1535 2030 1200 1450 570
495
(°)1300/500 - 60
1535 2495 1200 1450 1035 960 1300/500 - 60
1535 2505 1200 1450 1045
970
(^)1300/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing device, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including any installed roof carrier systems (Lineaccessori Fiat bars/box).
(°) Reduced payload
(****)7 q
(^) GVW 2505
240
TECHNICAL DATA

Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Long wheelbase - Low roof-3front
seats1505 2000 1135 1450 570
495
(°)1300/500 100 60
1465 2170 1150 1140 780705
(****)1300/500 100 60
1505 2465 1200 1450 1035 960 1300/500 100 60
1505 2505 1233 1450 10751000
(^)1300/500 100 60
Long wheelbase - High roof-3front
seats1535 2030 1200 1450 570
495
(°)1300/500 - 60
1535 2495 1233 1450 1035 960 1300/500 - 60
1535 2505 1233 1450 1045
970
(^)1300/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing device, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including any installed roof carrier systems (Lineaccessori Fiat bars/box).
(°) Reduced payload
(****)7 q
(^) GVW 2505
242
TECHNICAL DATA

Cargo 2.0 Multijet
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (braked trailer).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats1448 1943 1120 1140 570
495
(°)1500/500 100 60
1448 2153 1120 1140 780 705 1500/500 100 60
1475 2435 1200 1450 1035
960
(°°)1500/500 100 60
1535 2505 1200 1450 1045
970
(^)1500/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing device, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including any installed roof carrier systems (Lineaccessori Fiat bars/box).
(°) Reduced payload
(°°) Extra capacity
(^) GVW 2505
244
TECHNICAL DATA

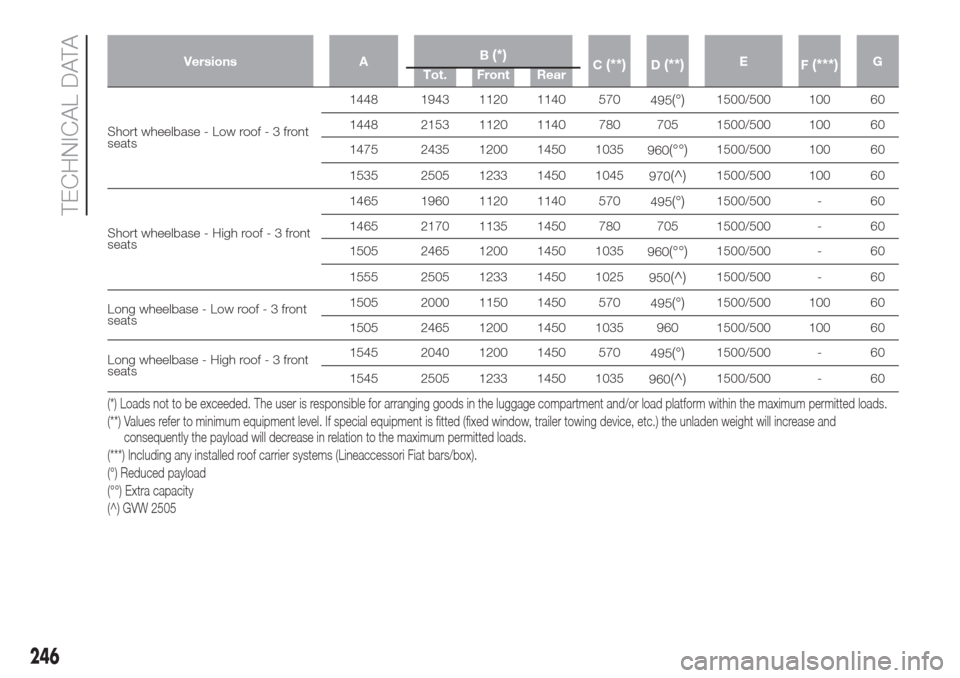

Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-3front
seats1448 1943 1120 1140 570
495
(°)1500/500 100 60
1448 2153 1120 1140 780 705 1500/500 100 60
1475 2435 1200 1450 1035
960
(°°)1500/500 100 60
1535 2505 1233 1450 1045
970
(^)1500/500 100 60
Short wheelbase - High roof-3front
seats1465 1960 1120 1140 570
495
(°)1500/500 - 60
1465 2170 1135 1450 780 705 1500/500 - 60
1505 2465 1200 1450 1035
960
(°°)1500/500 - 60
1555 2505 1233 1450 1025
950
(^)1500/500 - 60
Long wheelbase - Low roof-3front
seats1505 2000 1150 1450 570
495
(°)1500/500 100 60
1505 2465 1200 1450 1035 960 1500/500 100 60
Long wheelbase - High roof-3front
seats1545 2040 1200 1450 570
495
(°)1500/500 - 60
1545 2505 1233 1450 1035
960
(^)1500/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing device, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including any installed roof carrier systems (Lineaccessori Fiat bars/box).
(°) Reduced payload
(°°) Extra capacity
(^) GVW 2505
246
TECHNICAL DATA

Flatbed 1.4
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (braked trailer).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats1305 2210 1120 1450 980 905 1000/500 0 60
Long wheelbase - Low roof-2front
seats1320 2210 1120 1450 965 890 1000/500 0 60
Short wheelbase - Low roof-3front
seats1305 2210 1120 1450 980 905 1000/500 0 60
Long wheelbase - Low roof-3front
seats1320 2210 1120 1450 965 890 1000/500 0 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing device, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including any installed roof carrier systems (Lineaccessori Fiat bars/box).
248
TECHNICAL DATA

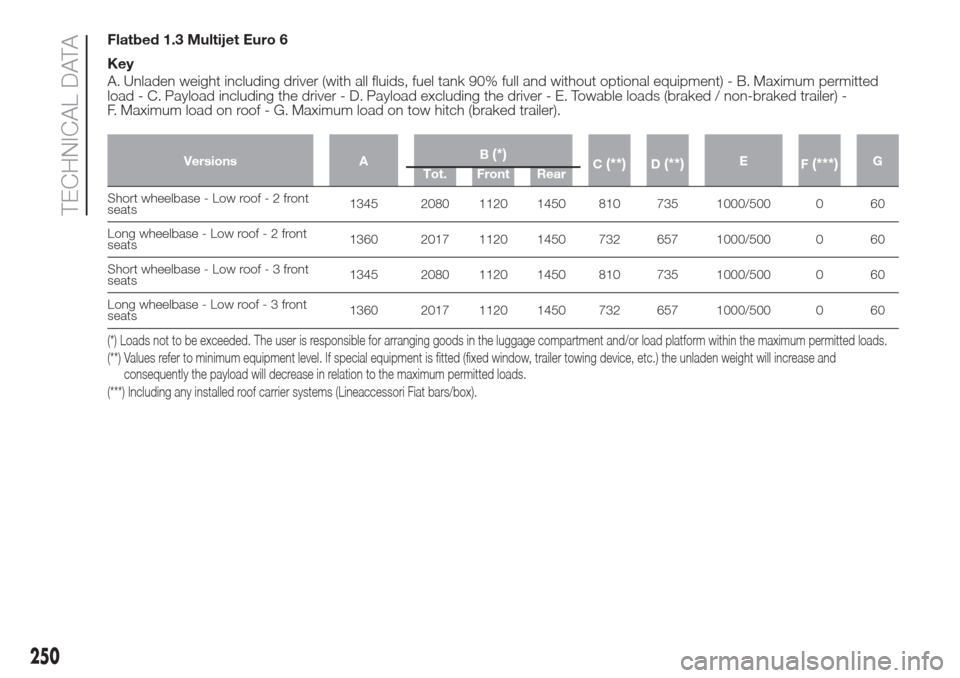

Flatbed 1.3 Multijet Euro 6
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (braked trailer).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats1345 2080 1120 1450 810 735 1000/500 0 60
Long wheelbase - Low roof-2front
seats1360 2017 1120 1450 732 657 1000/500 0 60
Short wheelbase - Low roof-3front
seats1345 2080 1120 1450 810 735 1000/500 0 60
Long wheelbase - Low roof-3front
seats1360 2017 1120 1450 732 657 1000/500 0 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing device, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including any installed roof carrier systems (Lineaccessori Fiat bars/box).
250
TECHNICAL DATA

Flatbed 1.6 Multijet Euro 6
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (braked trailer).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats1385 2380 1200 1450 1070 995 1300/500 0 60
Long wheelbase - Low roof-2front
seats1400 2315 1200 1450 990 915 1300/500 0 60
Short wheelbase - Low roof-3front
seats1385 2380 1200 1450 1070 995 1300/500 0 60
Long wheelbase - Low roof-3front
seats1400 2315 1200 1450 990 915 1300/500 0 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing device, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including any installed roof carrier systems (Lineaccessori Fiat bars/box).
252
TECHNICAL DATA

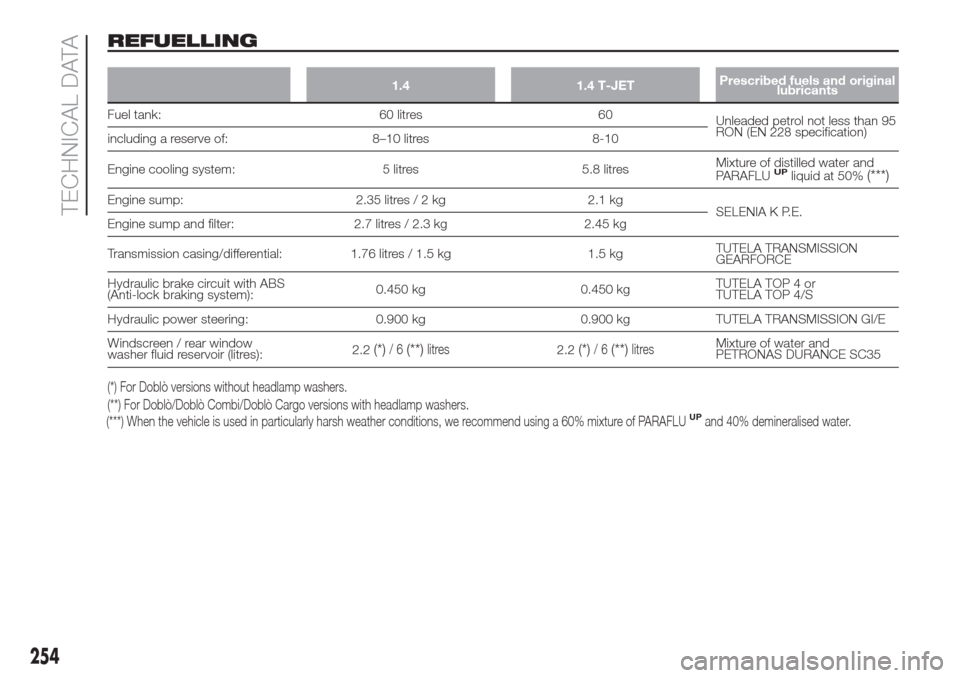

REFUELLING
1.4 1.4 T-JETPrescribed fuels and original
lubricants
Fuel tank: 60 litres 60
Unleaded petrol not less than 95
RON (EN 228 specification)
including a reserve of: 8–10 litres 8-10
Engine cooling system: 5 litres 5.8 litresMixture of distilled water and
PARAFLU
UPliquid at 50%(***)
Engine sump: 2.35 litres/2kg 2.1kg
SELENIA K P.E.
Engine sump and filter: 2.7 litres / 2.3 kg 2.45 kg
Transmission casing/differential: 1.76 litres / 1.5 kg 1.5 kgTUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with ABS
(Anti-lock braking system):0.450 kg 0.450 kgTUTELA TOP 4 or
TUTELA TOP 4/S
Hydraulic power steering: 0.900 kg 0.900 kg TUTELA TRANSMISSION GI/E
Windscreen / rear window
washer fluid reservoir (litres):2.2
(*)/6(**)litres2.2(*)/6(**)litresMixture of water and
PETRONAS DURANCE SC35
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLUUPand 40% demineralised water. (*) For Doblò versions without headlamp washers.
(**) For Doblò/Doblò Combi/Doblò Cargo versions with headlamp washers.
254
TECHNICAL DATA

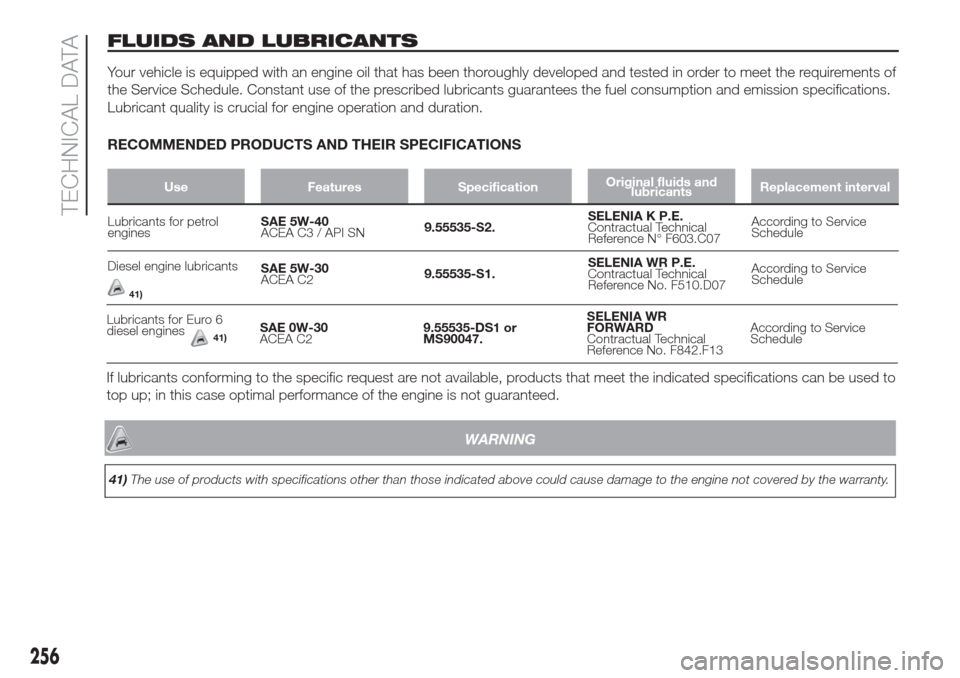

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Service Schedule. Constant use of the prescribed lubricants guarantees the fuel consumption and emission specifications.
Lubricant quality is crucial for engine operation and duration.
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
Use Features SpecificationOriginal fluids and
lubricantsReplacement interval
Lubricants for petrol
enginesSAE 5W-40
ACEA C3 / API SN9.55535-S2.SELENIA K P.E.
Contractual Technical
Reference N° F603.C07According to Service
Schedule
Diesel engine lubricants
41)
SAE 5W-30
ACEA C29.55535-S1.SELENIA WR P.E.
Contractual Technical
Reference No. F510.D07According to Service
Schedule
Lubricants for Euro 6
diesel engines
41)SAE 0W-30
ACEA C29.55535-DS1 or
MS90047.SELENIA WR
FORWARD
Contractual Technical
Reference No. F842.F13According to Service
Schedule
If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to
top up; in this case optimal performance of the engine is not guaranteed.
256
TECHNICAL DATA
WARNING
41)The use of products with specifications other than those indicated above could cause damage to the engine not covered by the warranty.

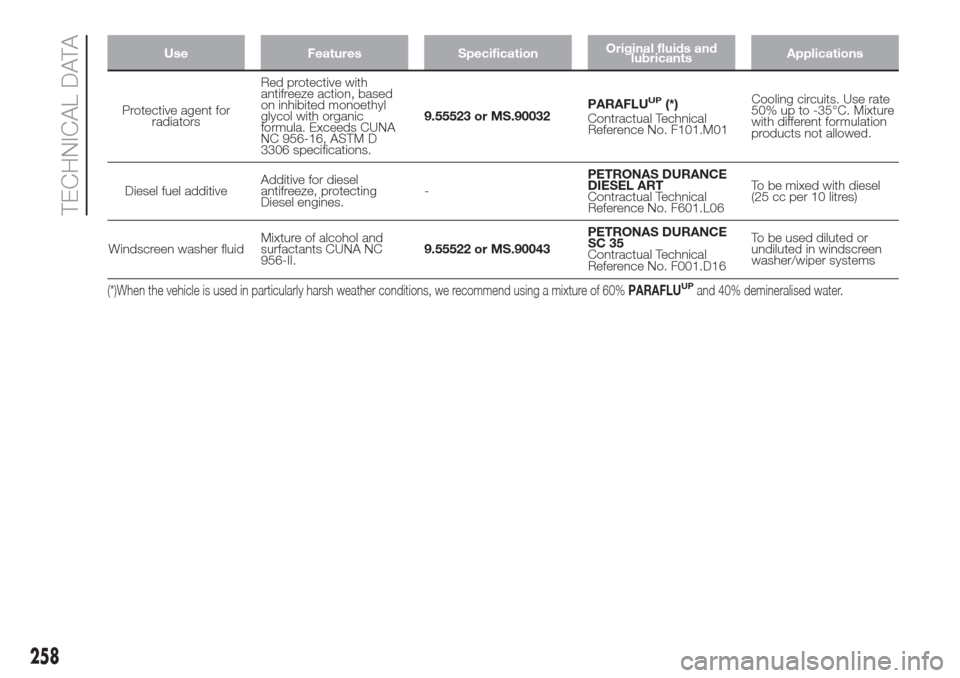

Use Features SpecificationOriginal fluids and
lubricantsApplications
Protective agent for
radiatorsRed protective with
antifreeze action, based
on inhibited monoethyl
glycol with organic
formula. Exceeds CUNA
NC 956-16, ASTM D
3306 specifications.9.55523 or MS.90032PARAFLUUP(*)
Contractual Technical
Reference No. F101.M01Cooling circuits. Use rate
50% up to -35°C. Mixture
with different formulation
products not allowed.
Diesel fuel additiveAdditive for diesel
antifreeze, protecting
Diesel engines.-PETRONAS DURANCE
DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with diesel
(25 cc per 10 litres)
Windscreen washer fluidMixture of alcohol and
surfactants CUNA NC
956-II.9.55522 or MS.90043PETRONAS DURANCE
SC 35
Contractual Technical
Reference No. F001.D16To be used diluted or
undiluted in windscreen
washer/wiper systems
(*)When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised water.
258
