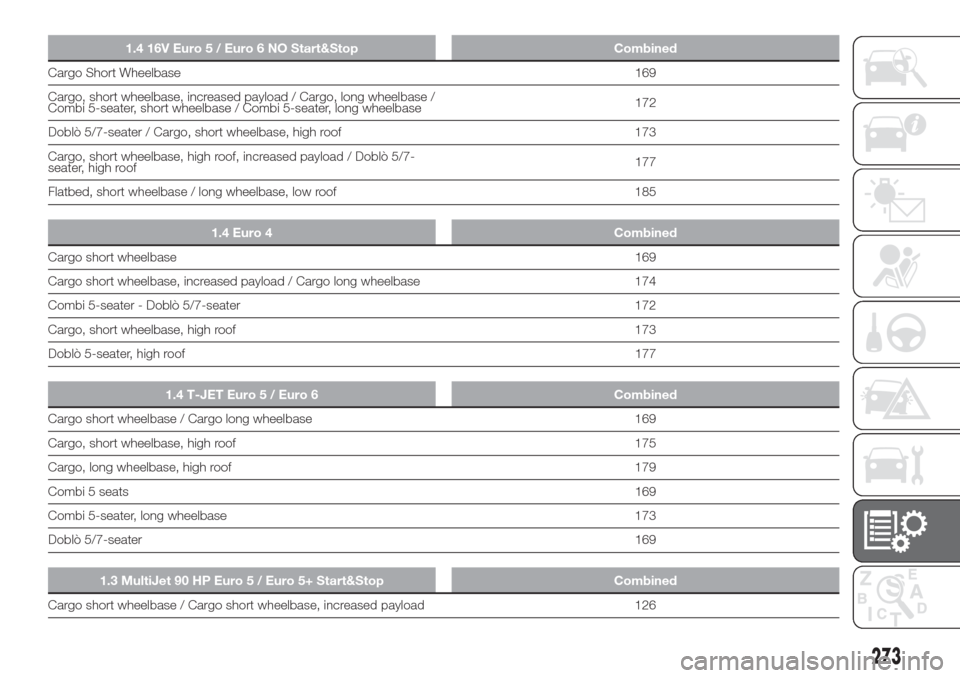

stop start FIAT DOBLO COMBI 2017 2.G Service Manual

1.4 16V Euro 5 / Euro 6 NO Start&Stop Combined
Cargo Short Wheelbase169
Cargo, short wheelbase, increased payload / Cargo, long wheelbase /
Combi 5-seater, short wheelbase / Combi 5-seater, long wheelbase172
Doblò 5/7-seater / Cargo, short wheelbase, high roof 173
Cargo, short wheelbase, high roof, increased payload / Doblò 5/7-
seater, high roof177
Flatbed, short wheelbase / long wheelbase, low roof 185
1.4 Euro 4 Combined
Cargo short wheelbase169
Cargo short wheelbase, increased payload / Cargo long wheelbase 174
Combi 5-seater - Doblò 5/7-seater 172
Cargo, short wheelbase, high roof 173
Doblò 5-seater, high roof177
1.4 T-JET Euro 5 / Euro 6 Combined
Cargo short wheelbase / Cargo long wheelbase 169
Cargo, short wheelbase, high roof 175
Cargo, long wheelbase, high roof 179
Combi 5 seats169
Combi 5-seater, long wheelbase 173
Doblò 5/7-seater169
1.3 MultiJet 90 HP Euro 5 / Euro 5+ Start&Stop Combined
Cargo short wheelbase / Cargo short wheelbase, increased payload 126
273

1.3 MultiJet 90 HP Euro 5 / Euro 5+ Start&Stop Combined
Cargo long wheelbase / Combi 5-seater 129
Flatbed, short wheelbase / long wheelbase, low roof 142
1.3 MultiJet 90 HP Euro 5 / Euro 5+ Start&Stop Eco Pack Combined
Cargo, short wheelbase / Cargo, increased payload, short wheelbase 115
Cargo increased payload, long wheelbase / Combi, short wheelbase /
long wheelbase118
Flatbed, short wheelbase / long wheelbase, low roof 131
1.3 MultiJet 90 HP Euro 5 / Euro 5+ NO Start&Stop with DPF Combined
Cargo Short wheelbase / Cargo Short wheelbase, Increased payload
/ Cargo Long wheelbase133
Combi 5-seater, short wheelbase / Combi 5-seater, long wheelbase 136
Flatbed, short wheelbase / long wheelbase, low roof 149
1.3 Multijet 80 HP/95 HP Euro 6 Start&Stop Eco Pack Combined
Cargo short wheelbase / Cargo short wheelbase, increased payload 120
Cargo, long wheelbase / Cargo, long wheelbase (700 kg) 123
Combi, short wheelbase - Combi, short wheelbase, increased
payload - Cargo, long wheelbase123
Truck, long wheelbase127
Flatbed, short wheelbase / long wheelbase, low roof 127

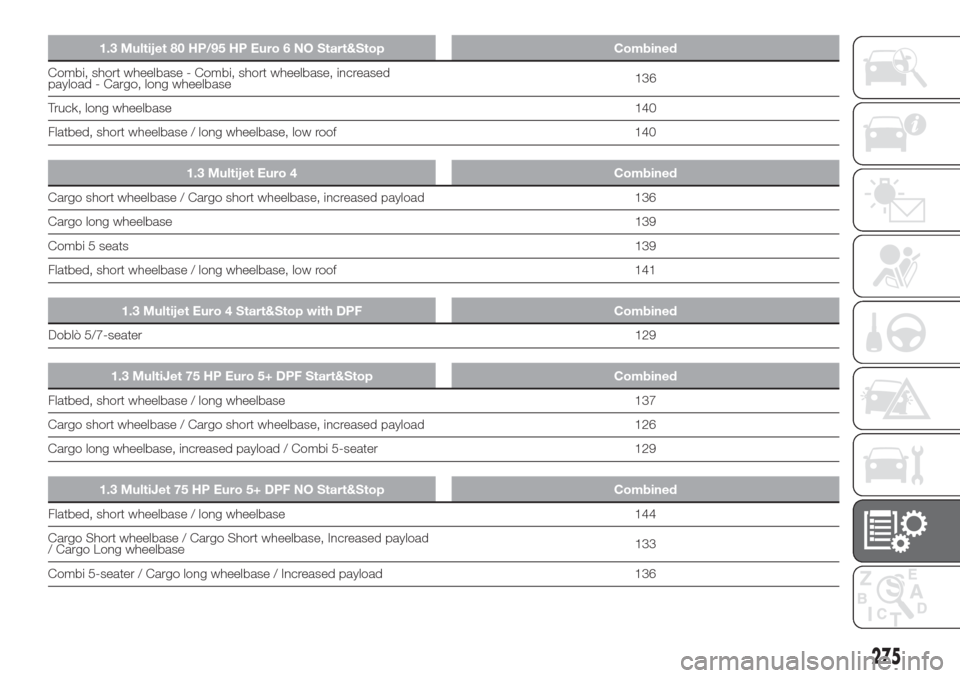

1.3 Multijet 80 HP/95 HP Euro 6 NO Start&Stop Combined
Cargo short wheelbase / Cargo short wheelbase, increased payload 133
Cargo, long wheelbase / Cargo, long wheelbase (700 kg) 136
274
TECHNICAL DATA

1.3 Multijet 80 HP/95 HP Euro 6 NO Start&Stop Combined
Combi, short wheelbase - Combi, short wheelbase, increased
payload - Cargo, long wheelbase136
Truck, long wheelbase140
Flatbed, short wheelbase / long wheelbase, low roof 140
1.3 Multijet Euro 4 Combined
Cargo short wheelbase / Cargo short wheelbase, increased payload 136
Cargo long wheelbase139
Combi 5 seats139
Flatbed, short wheelbase / long wheelbase, low roof 141
1.3 Multijet Euro 4 Start&Stop with DPF Combined
Doblò 5/7-seater129
1.3 MultiJet 75 HP Euro 5+ DPF Start&Stop Combined
Flatbed, short wheelbase / long wheelbase 137
Cargo short wheelbase / Cargo short wheelbase, increased payload 126
Cargo long wheelbase, increased payload / Combi 5-seater 129
1.3 MultiJet 75 HP Euro 5+ DPF NO Start&Stop Combined
Flatbed, short wheelbase / long wheelbase 144
Cargo Short wheelbase / Cargo Short wheelbase, Increased payload
/ Cargo Long wheelbase133
Combi 5-seater / Cargo long wheelbase / Increased payload 136
275

1.6 MultiJet 105 HP Euro 5 / Euro 5+ Start&Stop Combined
Cargo short wheelbase136
Cargo short wheelbase, increased payload Cargo long wheelbase 137
Combi 5-seater, short wheelbase 138
Combi 5-seater, long wheelbase 141
Doblò 5/7-seater138
Cargo,short wheelbase, high roof / Cargo, short wheelbase,
increased payload, high roof146
Doblò 5-seater, high roof150
Doblò 5-seater, long wheelbase 138
Flatbed, short wheelbase / long wheelbase, low roof 170
1.6 MultiJet 105 HP Euro 5 / Euro 5+ Start&Stop Eco Pack Combined
Cargo short wheelbase124
Cargo, increased payload, short wheelbase / long wheelbase 125
Combi short wheelbase126
Long wheelbase Combi129
Combi Panorama, short wheelbase / long wheelbase - Doblò, short
wheelbase / long wheelbase126
Cargo / Cargo increased payload, short wheelbase, high roof 134
Doblò, short wheelbase, high roof 136
Flatbed, short wheelbase / long wheelbase, low roof 155

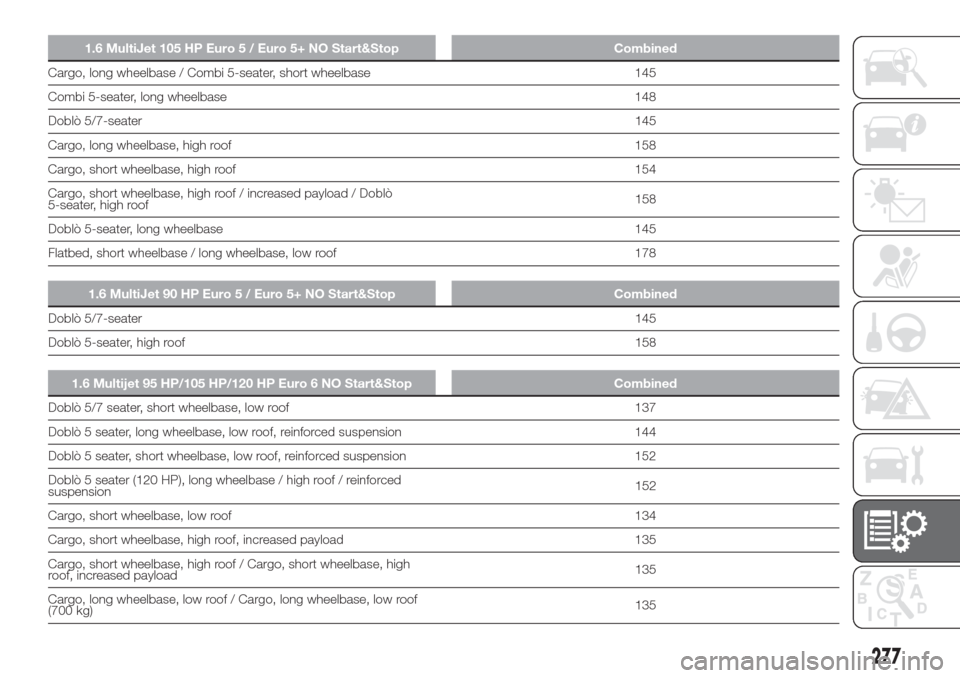

1.6 MultiJet 105 HP Euro 5 / Euro 5+ NO Start&Stop Combined
Cargo short wheelbase143
Cargo Short wheelbase, Increased payload 144
276
TECHNICAL DATA

1.6 MultiJet 105 HP Euro 5 / Euro 5+ NO Start&Stop Combined
Cargo, long wheelbase / Combi 5-seater, short wheelbase 145
Combi 5-seater, long wheelbase 148
Doblò 5/7-seater145
Cargo, long wheelbase, high roof 158
Cargo, short wheelbase, high roof 154
Cargo, short wheelbase, high roof / increased payload / Doblò
5-seater, high roof158
Doblò 5-seater, long wheelbase 145
Flatbed, short wheelbase / long wheelbase, low roof 178
1.6 MultiJet 90 HP Euro 5 / Euro 5+ NO Start&Stop Combined
Doblò 5/7-seater145
Doblò 5-seater, high roof158
1.6 Multijet 95 HP/105 HP/120 HP Euro 6 NO Start&Stop Combined
Doblò 5/7 seater, short wheelbase, low roof 137
Doblò 5 seater, long wheelbase, low roof, reinforced suspension 144
Doblò 5 seater, short wheelbase, low roof, reinforced suspension 152
Doblò 5 seater (120 HP), long wheelbase / high roof / reinforced
suspension152
Cargo, short wheelbase, low roof 134
Cargo, short wheelbase, high roof, increased payload 135
Cargo, short wheelbase, high roof / Cargo, short wheelbase, high
roof, increased payload135
Cargo, long wheelbase, low roof / Cargo, long wheelbase, low roof
(700 kg)135
277

1.6 Multijet 95 HP/105 HP/120 HP Euro 6 NO Start&Stop Combined
Cargo, long wheelbase, high roof 149
Combi, short wheelbase, low roof / Combi, short wheelbase, low roof,
increased payload136
Combi, long wheelbase, low roof 139
Combi, long wheelbase, high roof 149
Truck, long wheelbase, low roof 149
Flatbed, short wheelbase / long wheelbase, low roof 149
1.6 Multijet 95 HP/105 HP/120 HP Euro 6 Start&Stop Eco Pack Combined
Doblò 5/7 seater, short wheelbase, low roof 124
Doblò 5 seater, long wheelbase, low roof, reinforced suspension 130
Doblò 5 seater, short wheelbase, low roof, reinforced suspension 140
Doblò 5 seater (120 HP), long wheelbase / high roof / reinforced
suspension140
Cargo, short wheelbase, low roof 120
Cargo, short wheelbase, high roof, increased payload 121
Cargo, short wheelbase, high roof / Cargo, short wheelbase, high
roof, increased payload121
Cargo, long wheelbase, low roof / Cargo, long wheelbase, low roof
(700 kg)121
Cargo, long wheelbase, high roof 133
Combi, short wheelbase, low roof / Combi, short wheelbase, low roof,
increased payload122
Combi, long wheelbase, low roof 125
Combi, long wheelbase, high roof 133
Truck, long wheelbase, low roof 133
278
TECHNICAL DATA

1.6 Multijet 95 HP/105 HP/120 HP Euro 6 Start&Stop Eco Pack Combined
Flatbed, short wheelbase / long wheelbase, low roof 133

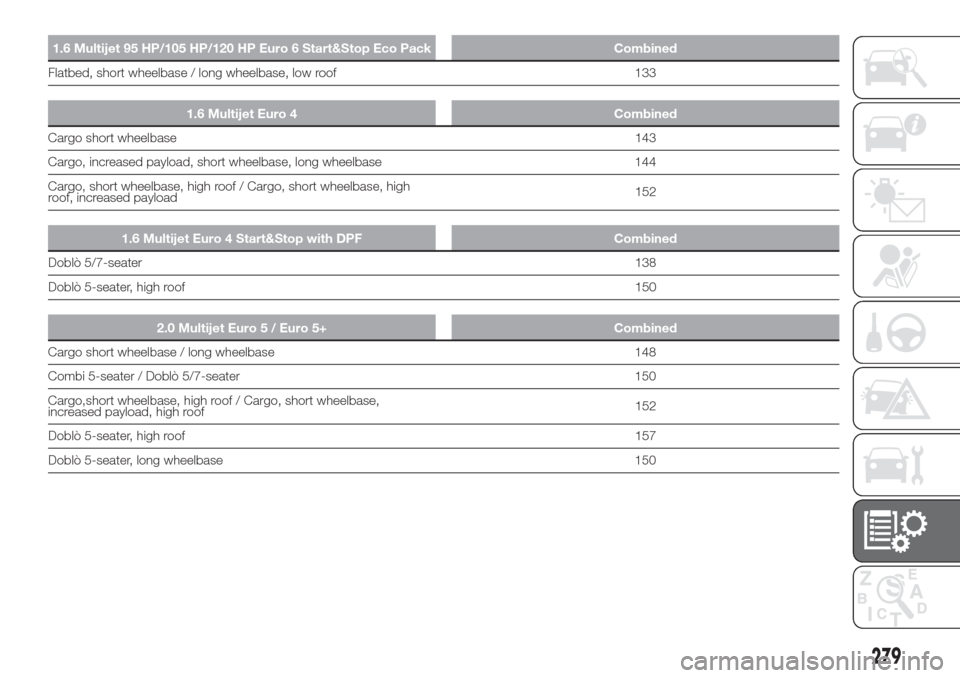

1.6 Multijet Euro 4 Combined
Cargo short wheelbase143
Cargo, increased payload, short wheelbase, long wheelbase 144
Cargo, short wheelbase, high roof / Cargo, short wheelbase, high
roof, increased payload152
1.6 Multijet Euro 4 Start&Stop with DPF Combined
Doblò 5/7-seater138
Doblò 5-seater, high roof150
2.0 Multijet Euro 5 / Euro 5+ Combined
Cargo short wheelbase / long wheelbase 148
Combi 5-seater / Doblò 5/7-seater 150
Cargo,short wheelbase, high roof / Cargo, short wheelbase,
increased payload, high roof152
Doblò 5-seater, high roof157
Doblò 5-seater, long wheelbase 150
279
