FIAT DOBLO PANORAMA 2016 2.G Owners Manual

Warning lights on
panelWhat it means What to do

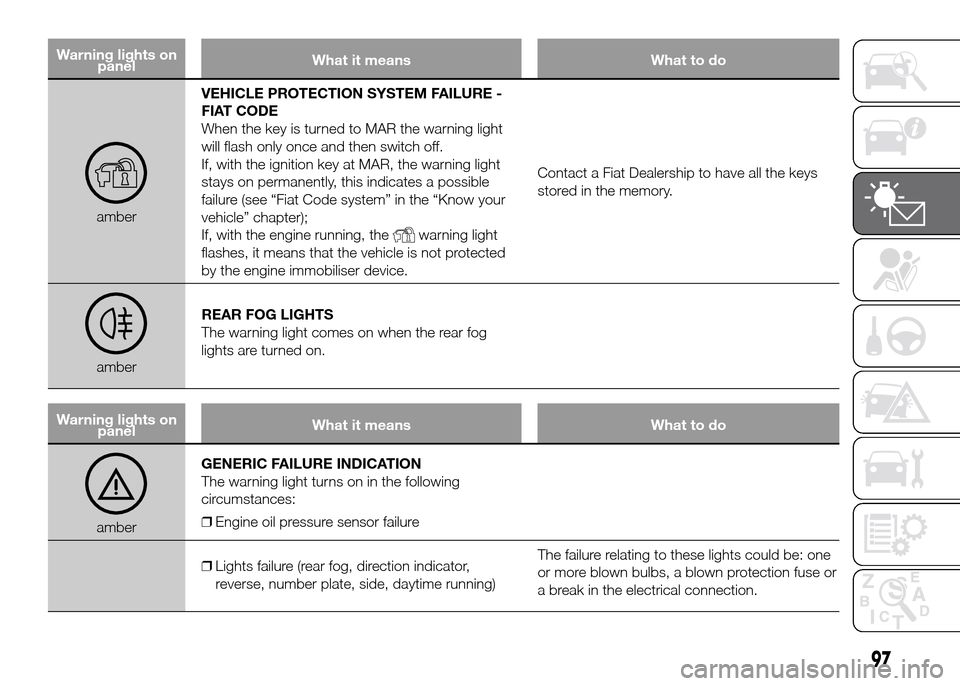

amberVEHICLE PROTECTION SYSTEM FAILURE -
FIAT CODE
When the key is turned to MAR the warning light
will flash only once and then switch off.
If, with the ignition key at MAR, the warning light
stays on permanently, this indicates a possible
failure (see “Fiat Code system” in the “Know your
vehicle” chapter);
If, with the engine running, the
warning light
flashes, it means that the vehicle is not protected
by the engine immobiliser device.Contact a Fiat Dealership to have all the keys
stored in the memory.
amberREAR FOG LIGHTS
The warning light comes on when the rear fog
lights are turned on.
Warning lights on
panelWhat it means What to do
amberGENERIC FAILURE INDICATION
The warning light turns on in the following
circumstances:
❒Engine oil pressure sensor failure
❒Lights failure (rear fog, direction indicator,
reverse, number plate, side, daytime running)The failure relating to these lights could be: one
or more blown bulbs, a blown protection fuse or
a break in the electrical connection.
97

Warning lights on
panelWhat it means What to do

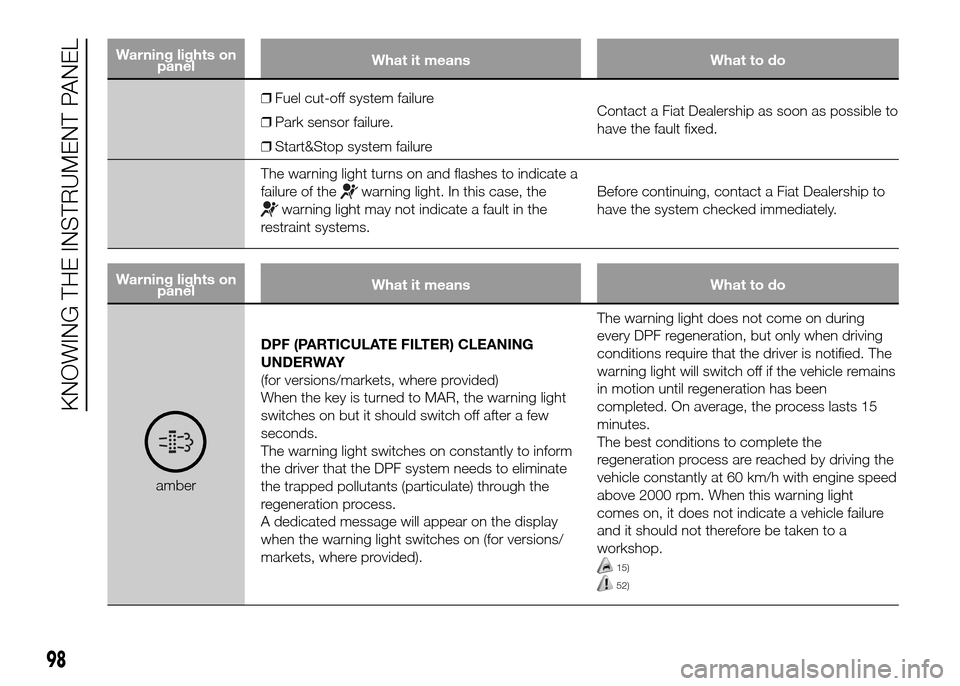

❒Fuel cut-off system failure
❒Park sensor failure.
❒Start&Stop system failureContact a Fiat Dealership as soon as possible to
have the fault fixed.
The warning light turns on and flashes to indicate a
failure of the
warning light. In this case, the
warning light may not indicate a fault in the
restraint systems.Before continuing, contact a Fiat Dealership to
have the system checked immediately.
Warning lights on
panelWhat it means What to do
amberDPF (PARTICULATE FILTER) CLEANING
UNDERWAY
(for versions/markets, where provided)
When the key is turned to MAR, the warning light
switches on but it should switch off after a few
seconds.
The warning light switches on constantly to inform
the driver that the DPF system needs to eliminate
the trapped pollutants (particulate) through the
regeneration process.
A dedicated message will appear on the display
when the warning light switches on (for versions/
markets, where provided).The warning light does not come on during
every DPF regeneration, but only when driving
conditions require that the driver is notified. The
warning light will switch off if the vehicle remains
in motion until regeneration has been
completed. On average, the process lasts 15
minutes.
The best conditions to complete the
regeneration process are reached by driving the
vehicle constantly at 60 km/h with engine speed
above 2000 rpm. When this warning light
comes on, it does not indicate a vehicle failure
and it should not therefore be taken to a
workshop.
15)
52)
98
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do
amberESC system failure
On certain versions a dedicated message is
displayed.
Flashing of the warning light while driving indicates
the intervention of the ESC system.If the warning light does not switch off, or stays
on when travelling, contact a Fiat Dealership.
Hill Holder system failure
The warning light will turn on when the Hill Holder
system is faulty.
On certain versions a dedicated message is
displayed.In this case, contact a Fiat Dealership as soon
as possible.
amberWORN BRAKE PADS
The warning light switches on if the front or rear
brake pads are worn.
On certain versions a dedicated message is
displayed.Have them replaced as soon as possible.
Warning lights on
panelWhat it means What to do
amberASR SYSTEM DEACTIVATED
The ASR system can be turned off by pressing the
button ASR OFF.
The warning light switches on to warn the driver
that the system is off.
If the ASR OFF button is pressed again, the
warning light will switch off to inform the driver that
the system is on again.
99

Warning lights on
panelWhat it means What to do

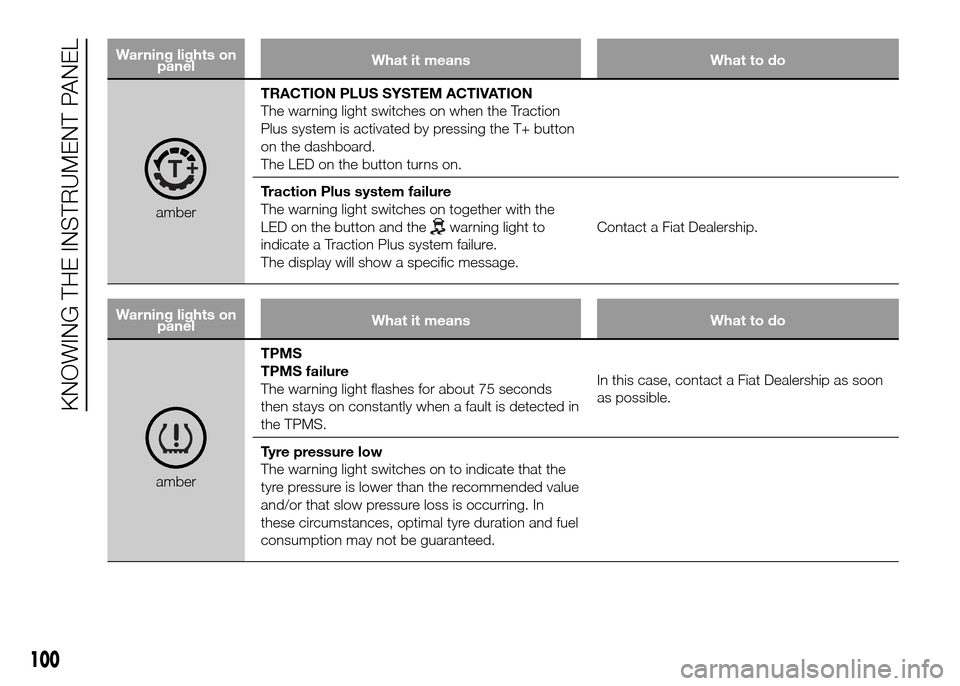

amberTRACTION PLUS SYSTEM ACTIVATION
The warning light switches on when the Traction
Plus system is activated by pressing the T+ button
on the dashboard.
The LED on the button turns on.
Traction Plus system failure
The warning light switches on together with the
LED on the button and thewarning light to
indicate a Traction Plus system failure.
The display will show a specific message.Contact a Fiat Dealership.
Warning lights on
panelWhat it means What to do
amberTPMS
TPMS failure
The warning light flashes for about 75 seconds
then stays on constantly when a fault is detected in
the TPMS.In this case, contact a Fiat Dealership as soon
as possible.
Tyre pressure low
The warning light switches on to indicate that the
tyre pressure is lower than the recommended value
and/or that slow pressure loss is occurring. In
these circumstances, optimal tyre duration and fuel
consumption may not be guaranteed.
100
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do
amberPARKING SENSOR FAILURE
(for versions/markets, where provided)
The warning light turns on when failure is detected
in the parking sensors.
On certain versions the
warning light comes on
instead. In this case, contact a Fiat Dealership.
On certain versions a dedicated message is
displayed.
amberSTART&STOP SYSTEM FAILURE
(for versions/markets, where provided)
The warning light comes on when a fault is
detected in the Start&Stop system.
On certain versions the
warning light comes on
instead. In this case, contact a Fiat Dealership.
On certain versions a dedicated message is
displayed.
IMPORTANT
13) If, when the ignition key is turned to MAR, thewarning light does not switch on or if it stays on steadily or
flashing when travelling (on certain versions together with the message on the display), contact a Fiat Dealership as
soon as possible.
101

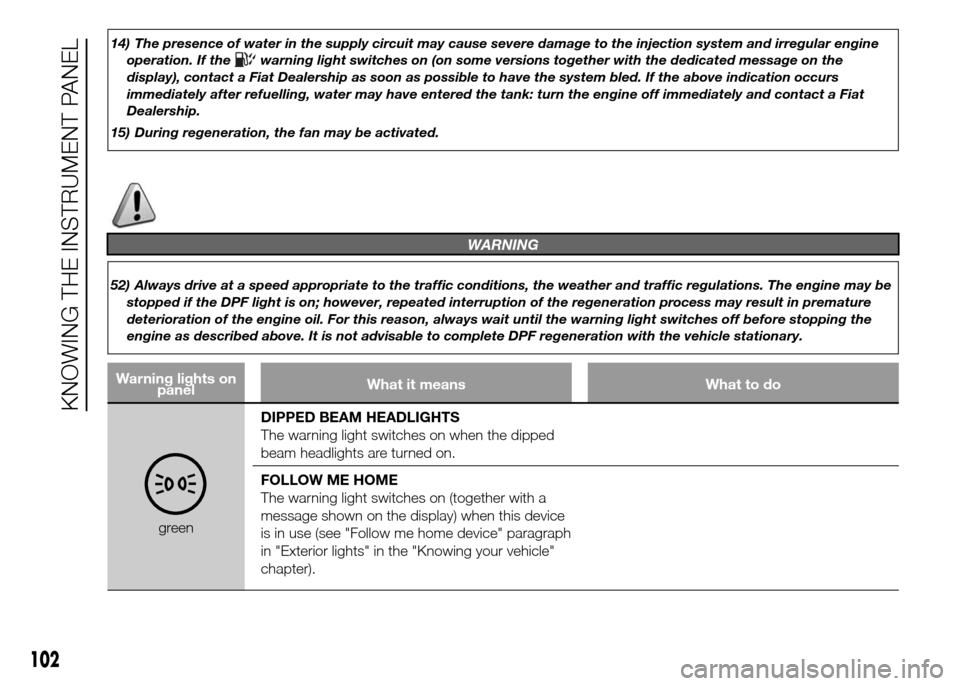

14) The presence of water in the supply circuit may cause severe damage to the injection system and irregular engine
operation. If the
warning light switches on (on some versions together with the dedicated message on the
display), contact a Fiat Dealership as soon as possible to have the system bled. If the above indication occurs
immediately after refuelling, water may have entered the tank: turn the engine off immediately and contact a Fiat
Dealership.
15) During regeneration, the fan may be activated.
WARNING
52) Always drive at a speed appropriate to the traffic conditions, the weather and traffic regulations. The engine may be
stopped if the DPF light is on; however, repeated interruption of the regeneration process may result in premature
deterioration of the engine oil. For this reason, always wait until the warning light switches off before stopping the
engine as described above. It is not advisable to complete DPF regeneration with the vehicle stationary.
Warning lights on
panelWhat it means What to do
greenDIPPED BEAM HEADLIGHTS
The warning light switches on when the dipped
beam headlights are turned on.
FOLLOW ME HOME
The warning light switches on (together with a
message shown on the display) when this device
is in use (see "Follow me home device" paragraph
in "Exterior lights" in the "Knowing your vehicle"
chapter).
102
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do

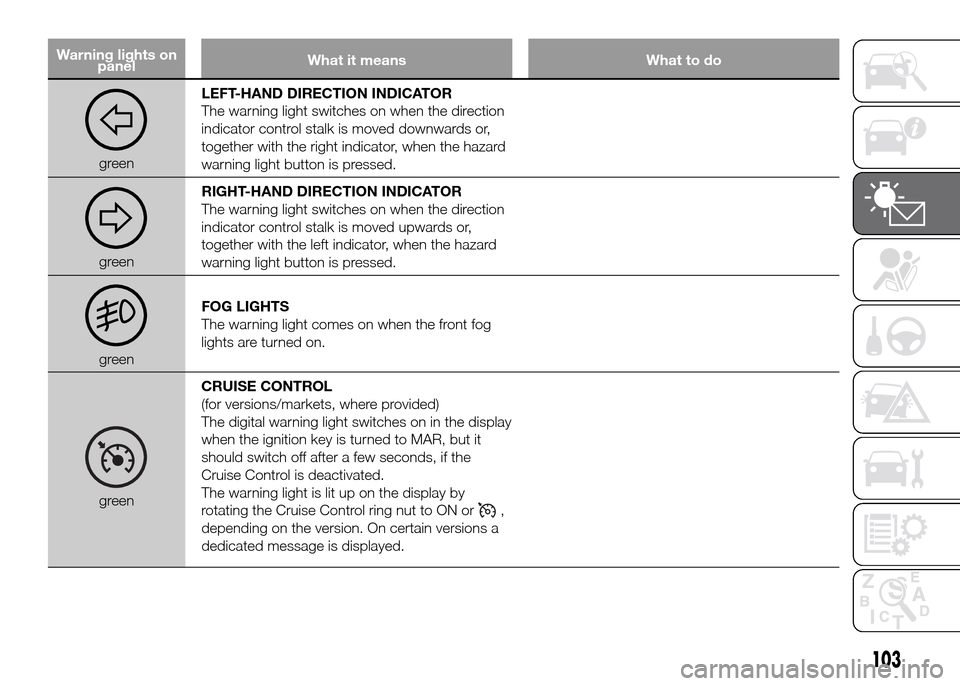

greenLEFT-HAND DIRECTION INDICATOR
The warning light switches on when the direction
indicator control stalk is moved downwards or,
together with the right indicator, when the hazard
warning light button is pressed.
greenRIGHT-HAND DIRECTION INDICATOR
The warning light switches on when the direction
indicator control stalk is moved upwards or,
together with the left indicator, when the hazard
warning light button is pressed.
greenFOG LIGHTS
The warning light comes on when the front fog
lights are turned on.
greenCRUISE CONTROL
(for versions/markets, where provided)
The digital warning light switches on in the display
when the ignition key is turned to MAR, but it
should switch off after a few seconds, if the
Cruise Control is deactivated.
The warning light is lit up on the display by
rotating the Cruise Control ring nut to ON or,
depending on the version. On certain versions a
dedicated message is displayed.
103

Warning lights on
panelWhat it means What to do

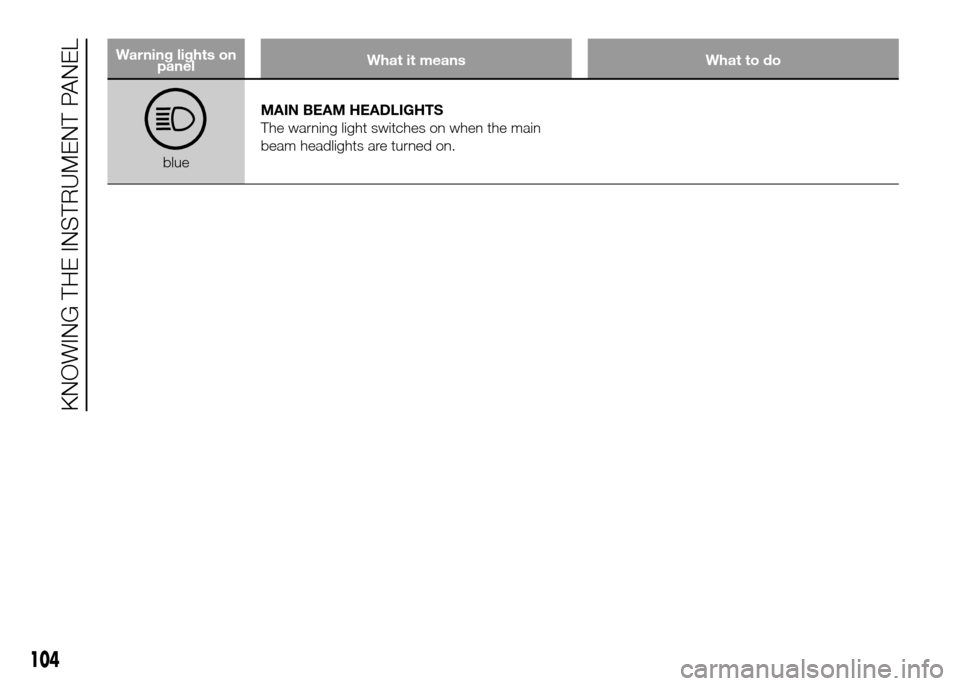

blueMAIN BEAM HEADLIGHTS
The warning light switches on when the main
beam headlights are turned on.
104
KNOWING THE INSTRUMENT PANEL

SAFETY
The chapter that you are about to read
is very important: it describes the
safety systems with which the car is
equipped and provides instructions on
how to use them correctly.ACTIVE SAFETY SYSTEMS ............106
ABS ................................................106
ESC (ELECTRONIC STABILITY
CONTROL) SYSTEM .......................108
OCCUPANT PROTECTION
SYSTEMS .......................................110
SEAT BELTS ...................................111
SBR SYSTEM .................................112
PRETENSIONERS...........................113
CARRYING CHILDREN SAFELY ......115
ISOFIX CHILD RESTRAINT
SYSTEM SETUP .............................119
FRONT AIRBAGS............................121
SIDE BAGS .....................................126
105

ACTIVE SAFETY
SYSTEMS
The vehicle has the following active
safety systems:
❒ABS;
❒EBD system;
❒Brake Assist system;
❒ESP system;
❒ASR system;
❒Hill Holder system;
❒MSR system;
For the operation of the systems, see
the following pages.
ABS
This is an integral part of the braking
system, which prevents one or more
wheels from locking or slipping
regardless of the road surface
conditions and braking intensity,
ensuring control of the vehicle even
during emergency braking.
The EBD system (Electronic Braking
Force Distribution) completes the
system allowing the brake force to be
distributed between the front and
rear wheels.
IMPORTANT To get the maximum
efficiency of the braking system,
a bedding-in period of about 500 km is
needed: during this period it is better
to avoid sharp, repeated and prolonged
braking.
SYSTEM INTERVENTION
The driver can feel that the ABS has
come into action because the brake
pedal pulsates slightly and the system
gets noisier: it means that the vehicle
speed should be altered to suit the type
of road surface.
53) 54) 55)
FAULT INDICATIONS
ABS failure
This is indicated by the
warning
light in the instrument panel coming on
(together with the appropriate message
on the multifunction display on some
versions) (see the “Warning lights and
messages” chapter).
In this case, the braking system will still
be effective, although without the
extra capacity offered by the ABS.
Drive carefully to the nearest Fiat
Dealership to have the system
checked.
EBD failure
This is indicated by the
and
warning lights in the instrument
panel coming on (together with the
appropriate message on the
multifunction display on some versions)
(see the “Warning lights and messages”
chapter).
In this case, the rear wheels may
suddenly lock and the vehicle may
swerve when braking sharply. Drive
carefully to the nearest Fiat Dealership
to have the system checked.
56)
106
