clock FIAT DUCATO 2007 Owner handbook (in English)

171
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
MAIN BEAM HEADLIGHTS
To change the bulb, proceed as follows:
❒remove the protection cover A-fig.
20 turning it counterclockwise;
❒disconnect the electric connector A-
fig. 22;
❒release the bulb catch B-fig. 22;
❒remove the bulb C-fig. 22 and replace
it;
❒fit the new bulb, making the outlines
of the metallic part coincide with the
grooves on the reflector then, refit the
bulb holder catch Aand reconnect
the electrical connector B;
❒refit the protection cover A-fig. 20
turning it clockwise and check for
proper locking.DIRECTION INDICATORS
To change the bulb, proceed as follows:
❒turn the bulb holder A-fig. 23coun-
terclockwise and remove it;
❒remove the bulb pushing it gently and
turning it counterclockwise (“bayo-
net”);
❒replace the bulb;
❒refit the bulb holder, by turning it
clockwise and locking it properly.DIPPED BEAM HEADLIGHTS
With incandescent bulb
To change the bulb, proceed as follows:
❒remove the protection cover B-fig.
20turning it counterclockwise;
❒disconnect the electric connector A-
fig. 24;
❒release the bulb holder catch B-fig.
24;
❒remove the bulb C-fig. 24and replace
it;
❒fit the new bulb, making the outlines
of the metallic part coincide with the
grooves on the reflector then, refit the
bulb holder catch Band reconnect the
electrical connector A;
❒refit the protection cover turning it
clockwise and check for proper lock-
ing.
fig. 22F0N0083mfig. 23F0N0081mfig. 24F0N0084m

172
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
Side fig. 25 - 26
To change the bulb, proceed as follows:
❒move the mirror by hand to reach the
two fastening screws A;FRONT FOG LIGHTS
(where provided)
To change front fog lights A-fig. 27pro-
ceed as follows:
❒turn the steering wheel fully leftwards;
❒loosen the self-tapping screw and open
the lid on the front wheel box
❒remove the bayonet cap;
❒disconnect the connector;
❒release the bulb holder clip;
❒remove the bulb and change it;
❒fit the new bulb, making the outline
of the metallic section coincide with
the grooves on the headlight reflector,
refit the bulb holder clip and recon-
nect the electric connector;
❒refit the bayonet cap.
fig. 25F0N0169mfig. 27F0N0085mfig. 26F0N0170m
❒use the screwdriver provided to
loosen the screws and remove the
bulb holder unit releasing it from the
catches;
❒loosen the bulb turning it counter-
clockwise and change it B.

173
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
REAR LIGHT UNITS
fig. 28-29-30
The bulbs are arranged inside the light unit
as follows:
Abrake lights/taillights
Bdirection indicators
Creversing lights
Drear fog lights (on Heavy-Duty Van
versions, the reversing lights are built
into the bumpers, see “Heavy-Duty
Van rear fog lights).
fig. 28F0N0086m
To replace a bulb proceed as follows:
❒open the rear swing door and loosen
the two fastening screws A;
❒disconnect the central electric con-
nector B and pull the lens unit out-
wards;
❒loosen the screws using the screw-
driver provided Cand remove the
bulb holder;
❒remove the bulb to replace D, E, For
Gpushing it slightly and turning it
counterclockwise (“bayonet” clamp-
ing) and replace it;
❒refit the bulb holder and tighten the
screws C;
❒reconnect the electric connector B,
suitably refit the unit to the vehicle
body and then tighten the fastening
screws A.
fig. 30F0N0088mfig. 29F0N0087m

174
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY

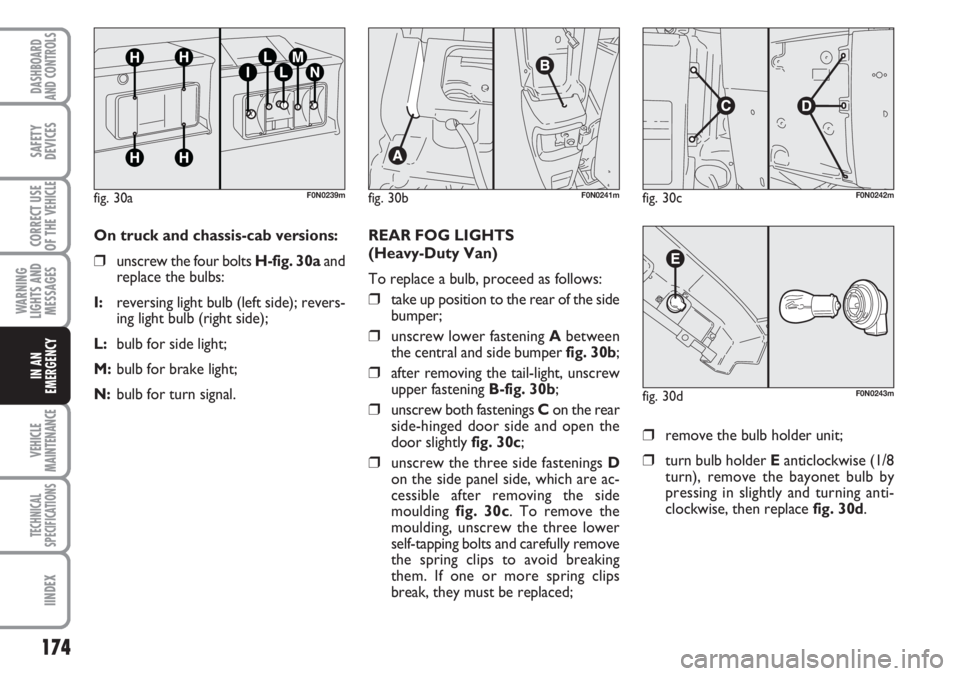

fig. 30aF0N0239mfig. 30bF0N0241mfig. 30cF0N0242m
fig. 30dF0N0243m
On truck and chassis-cab versions:
❒unscrew the four bolts H-fig. 30a and
replace the bulbs:
I: reversing light bulb (left side); revers-
ing light bulb (right side);
L: bulb for side light;
M: bulb for brake light;
N: bulb for turn signal.REAR FOG LIGHTS
(Heavy-Duty Van)
To replace a bulb, proceed as follows:
❒take up position to the rear of the side
bumper;
❒unscrew lower fastening Abetween
the central and side bumper fig. 30b;
❒after removing the tail-light, unscrew
upper fastening B-fig. 30b;
❒unscrew both fastenings Con the rear
side-hinged door side and open the
door slightly fig. 30c;
❒unscrew the three side fastenings D
on the side panel side, which are ac-
cessible after removing the side
moulding fig. 30c. To remove the
moulding, unscrew the three lower
self-tapping bolts and carefully remove
the spring clips to avoid breaking
them. If one or more spring clips
break, they must be replaced;
❒remove the bulb holder unit;
❒turn bulb holder Eanticlockwise (1/8
turn), remove the bayonet bulb by
pressing in slightly and turning anti-
clockwise, then replace fig. 30d.

187
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
fig. 46F0N0134m
Do not start the engine
when towing the vehicle.
WARNING
Before starting to tow, disen-
gage the steering lock (see
paragraph “Ignition device” in section
“Dashboard and controls”). When
towing, remember that without the
help of the brake booster and power
steering, a greater effort is required on
the pedal and steering wheel. Do not
use flexible cables for towing and
avoid jerks. During towing operations
make sure that fastening the joint to
the vehicle does not damage the com-
ponents in contact with it. When tow-
ing the vehicle, you must comply with
the specific traffic regulations regard-
ing the tow ring and how to tow on the
road.
WARNING
fig. 47F0N0135m
fig. 48F0N0136m
Front ring is housed in the tool compart-
ment under the front passenger’s seat.
To use it proceed as follows:
❒Open lid Aand remove it as shown in
fig. 46;
❒turn the knob Bcounterclockwise and
remove it fig. 46 to extract the com-
partment fig. 47;
