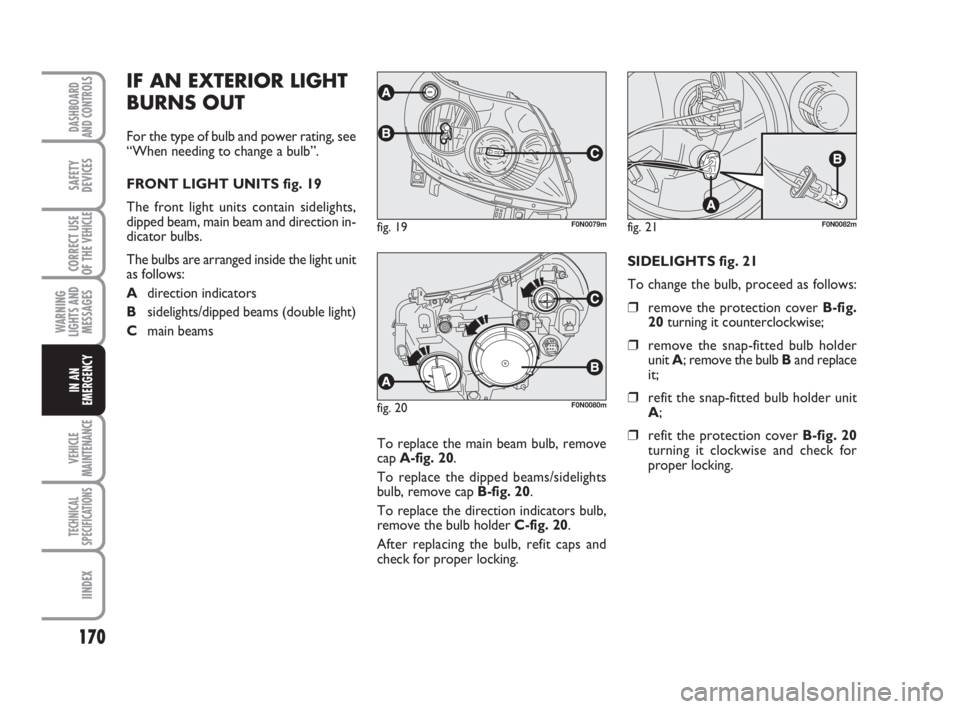

IF AN EXTERIOR LIGHT
BURNS OUT
For the type of bulb and power rating, see
“When needing to change a bulb”.
FRONT LIGHT UNITS fig. 19
The front light units contain sidelights,
dipped beam, main beam and direction in-
dicator bulbs.
The bulbs are arranged inside the light unit
as follows:
Adirection indicators
Bsidelights/dipped beams (double light)
Cmain beams
To replace the main beam bulb, remove
cap A-fig. 20.
To replace the dipped beams/sidelights
bulb, remove cap B-fig. 20.
To replace the direction indicators bulb,
remove the bulb holder C-fig. 20.
After replacing the bulb, refit caps and
check for proper locking.SIDELIGHTS fig. 21
To change the bulb, proceed as follows:
❒remove the protection cover B-fig.
20turning it counterclockwise;
❒remove the snap-fitted bulb holder
unit A; remove the bulb Band replace
it;
❒refit the snap-fitted bulb holder unit
A;
❒refit the protection cover B-fig. 20
turning it clockwise and check for
proper locking.
fig. 19F0N0079mfig. 21F0N0082m
fig. 20F0N0080m
157-188 Ducato GB 6-11-2007 10:32 Pagina 170

171
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
MAIN BEAM HEADLIGHTS
To change the bulb, proceed as follows:
❒remove the protection cover A-fig.
20 turning it counterclockwise;
❒disconnect the electric connector A-
fig. 22;
❒release the bulb catch B-fig. 22;
❒remove the bulb C-fig. 22 and replace
it;
❒fit the new bulb, making the outlines
of the metallic part coincide with the
grooves on the reflector then, refit the
bulb holder catch Aand reconnect
the electrical connector B;
❒refit the protection cover A-fig. 20
turning it clockwise and check for
proper locking.DIRECTION INDICATORS
To change the bulb, proceed as follows:
❒turn the bulb holder A-fig. 23coun-
terclockwise and remove it;
❒remove the bulb pushing it gently and
turning it counterclockwise (“bayo-
net”);
❒replace the bulb;
❒refit the bulb holder, by turning it
clockwise and locking it properly.DIPPED BEAM HEADLIGHTS
With incandescent bulb
To change the bulb, proceed as follows:
❒remove the protection cover B-fig.
20turning it counterclockwise;
❒disconnect the electric connector A-
fig. 24;
❒release the bulb holder catch B-fig.
24;
❒remove the bulb C-fig. 24and replace
it;
❒fit the new bulb, making the outlines
of the metallic part coincide with the
grooves on the reflector then, refit the
bulb holder catch Band reconnect the
electrical connector A;
❒refit the protection cover turning it
clockwise and check for proper lock-
ing.
fig. 22F0N0083mfig. 23F0N0081mfig. 24F0N0084m
157-188 Ducato GB 6-11-2007 10:32 Pagina 171

172
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY

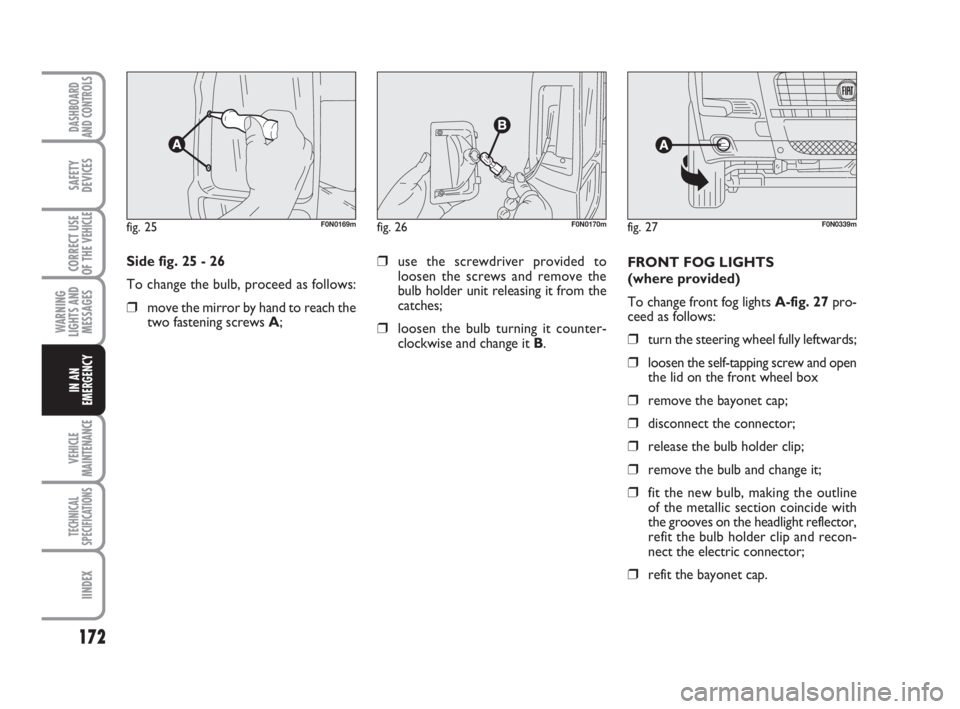

Side fig. 25 - 26
To change the bulb, proceed as follows:
❒move the mirror by hand to reach the
two fastening screws A;FRONT FOG LIGHTS
(where provided)
To change front fog lights A-fig. 27pro-
ceed as follows:
❒turn the steering wheel fully leftwards;
❒loosen the self-tapping screw and open
the lid on the front wheel box
❒remove the bayonet cap;
❒disconnect the connector;
❒release the bulb holder clip;
❒remove the bulb and change it;
❒fit the new bulb, making the outline
of the metallic section coincide with
the grooves on the headlight reflector,
refit the bulb holder clip and recon-
nect the electric connector;
❒refit the bayonet cap.
fig. 25F0N0169mfig. 27F0N0339mfig. 26F0N0170m
❒use the screwdriver provided to
loosen the screws and remove the
bulb holder unit releasing it from the
catches;
❒loosen the bulb turning it counter-
clockwise and change it B.
157-188 Ducato GB 6-11-2007 10:32 Pagina 172

173
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY

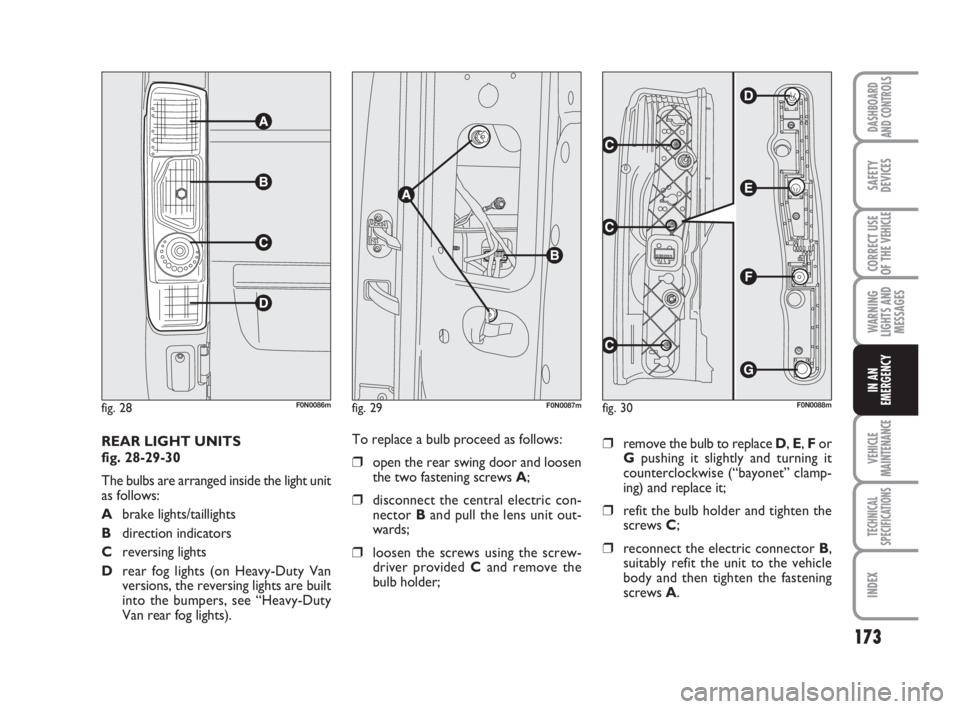

REAR LIGHT UNITS
fig. 28-29-30
The bulbs are arranged inside the light unit
as follows:
Abrake lights/taillights
Bdirection indicators
Creversing lights
Drear fog lights (on Heavy-Duty Van
versions, the reversing lights are built
into the bumpers, see “Heavy-Duty
Van rear fog lights).
fig. 28F0N0086m
To replace a bulb proceed as follows:
❒open the rear swing door and loosen
the two fastening screws A;
❒disconnect the central electric con-
nector B and pull the lens unit out-
wards;
❒loosen the screws using the screw-
driver provided Cand remove the
bulb holder;
❒remove the bulb to replace D, E, For
Gpushing it slightly and turning it
counterclockwise (“bayonet” clamp-
ing) and replace it;
❒refit the bulb holder and tighten the
screws C;
❒reconnect the electric connector B,
suitably refit the unit to the vehicle
body and then tighten the fastening
screws A.
fig. 30F0N0088mfig. 29F0N0087m
157-188 Ducato GB 6-11-2007 10:32 Pagina 173

174
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
fig. 30aF0N0239mfig. 30bF0N0241mfig. 30cF0N0242m
fig. 30dF0N0243m
On truck and chassis-cab versions:
❒unscrew the four bolts H-fig. 30a and
replace the bulbs:
I: reversing light bulb (left side); revers-
ing light bulb (right side);
L: bulb for side light;
M: bulb for brake light;
N: bulb for turn signal.REAR FOG LIGHTS
(Heavy-Duty Van)
To replace a bulb, proceed as follows:
❒take up position to the rear of the side
bumper;
❒unscrew lower fastening Abetween
the central and side bumper fig. 30b;
❒after removing the tail-light, unscrew
upper fastening B-fig. 30b;
❒unscrew both fastenings Con the rear
side-hinged door side and open the
door slightly fig. 30c;
❒unscrew the three side fastenings D
on the side panel side, which are ac-
cessible after removing the side
moulding fig. 30c. To remove the
moulding, unscrew the three lower
self-tapping bolts and carefully remove
the spring clips to avoid breaking
them. If one or more spring clips
break, they must be replaced;
❒remove the bulb holder unit;
❒turn bulb holder Eanticlockwise (1/8
turn), remove the bayonet bulb by
pressing in slightly and turning anti-
clockwise, then replace fig. 30d.
157-188 Ducato GB 6-11-2007 10:32 Pagina 174

175
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
THIRD BRAKE LIGHT fig. 31-32
To change the bulb proceed as follows:
❒loosen the two fastening screws A-
fig. 31;
❒remove the lens unit;
❒press the tabs B-fig. 32and remove
the bulb holder;
❒remove the snap-fitted bulb and re-
place it.NUMBER PLATE LIGHT fig. 33
To change the bulb proceed as follows:
❒work in the point shown by the arrow
and remove the lens unit A;
❒change the bulb releasing it from the
side contacts and making sure the new
bulb is correctly fastened between the
contacts;
❒refit the snap-fitted lens unit.fig. 32F0N0142m
fig. 33F0N0089mfig. 31F0N0141mfig. 33aF0N0244m
SIDE LIGHTS (where provided)
To replace a bulb, proceed as follows:
❒for extra-long van:
– unscrew both retaining screws C-
fig. 33aand remove the light;
– remove bulb holder Don the rear
side of the bulb by turning through
1/4 of a turn;
– remove the press-fitted bulb and
replace.
❒for chassis cabs with box:
– remove the bulb holder on the rear
side of the bulb by turning through
1/4 of a turn;
– remove the press-fitted bulb and
replace.
157-188 Ducato GB 6-11-2007 10:32 Pagina 175

176
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
REAR CEILING LIGHT
To replace the bulbs proceed as follows:
❒work in the points shown by the ar-
rows and remove light D-fig. 36;
❒open the protection lid E-fig. 37;
❒replace bulb F-fig. 37releasing it from
the side contacts making sure that the
new bulb is correctly clamped between
the contacts;
❒re-close the protection lid E-fig. 37
and secure light D-fig. 36into its
housing locking it properly.
fig. 34F0N0090m
fig. 35F0N0091m
fig. 36F0N0092m
fig. 37F0N0093m
IF AN INTERIOR LIGHT
BURNS OUT
For the type of bulb and power rating, see
“When needing to change a bulb”.
FRONT CEILING LIGHT
To replace the bulbs proceed as follows:
❒work in the points shown by the ar-
rows and remove light A-fig. 34;
❒open the protection lid B-fig. 35;
❒replace bulbs C-fig. 35releasing them
from the side contacts; make sure that
new bulbs are correctly clamped be-
tween contacts;
❒re-close the lid B-fig. 35and secure
light A-fig. 34into its housing lock-
ing it properly.
157-188 Ducato GB 6-11-2007 10:32 Pagina 176

177
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
IF A FUSE BLOWS
GENERAL
The fuse is a protective device for the
electric system: it comes into action (i.e.
it cuts off) mainly due to a fault or im-
proper action on the system.
When a device does not work, check the
efficiency of its fuse: the conductor ele-
ment A-fig. 38must be intact. If not, re-
place the fuse with one of the same amp
rating (same colour).
Bundamaged fuse
Cfuse with damaged filament.
fig. 38F0N0094m
Never change a fuse with
another with a higher amp
rating, DANGER OF FIRE.
WARNING
Never replace a broken fuse
with anything other than a
new fuse.
If a general fuse (MEGA-
FUSE, MIDI-FUSE, MAXI-
FUSE) cuts in, do not attempt any re-
pair and contact Fiat Dealership. Be-
fore changing a fuse, check the igni-
tion key has been removed and that
all the other electric devices have
been turned off/disabled.
WARNING
If a fuse blows again, contact
a Fiat Dealership.
WARNING
157-188 Ducato GB 6-11-2007 10:32 Pagina 177

178
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
FUSE LOCATION
Fuses are grouped into three fuse boxes
to be found respectively on the dashboard,
on the passenger compartment right pil-
lar and in the engine compartment.
Fuse box on the
dashboard
To gain access to the fuses in the fuse box
on the dashboard, loosen the fastening
screws A-fig. 39and remove the cover.
fig. 40F0N0096m
fig. 39F0N0095m
157-188 Ducato GB 6-11-2007 10:32 Pagina 178

179
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
fig. 42F0N0097m
fig. 41F0N0098m
Fuse box in engine compartment
To gain access to the fuse box, remove the
protection cover fig. 41.
157-188 Ducato GB 6-11-2007 10:32 Pagina 179
