fig. 30aF0N0239mfig. 30bF0N0241mfig. 30cF0N0242m
fig. 30dF0N0243m

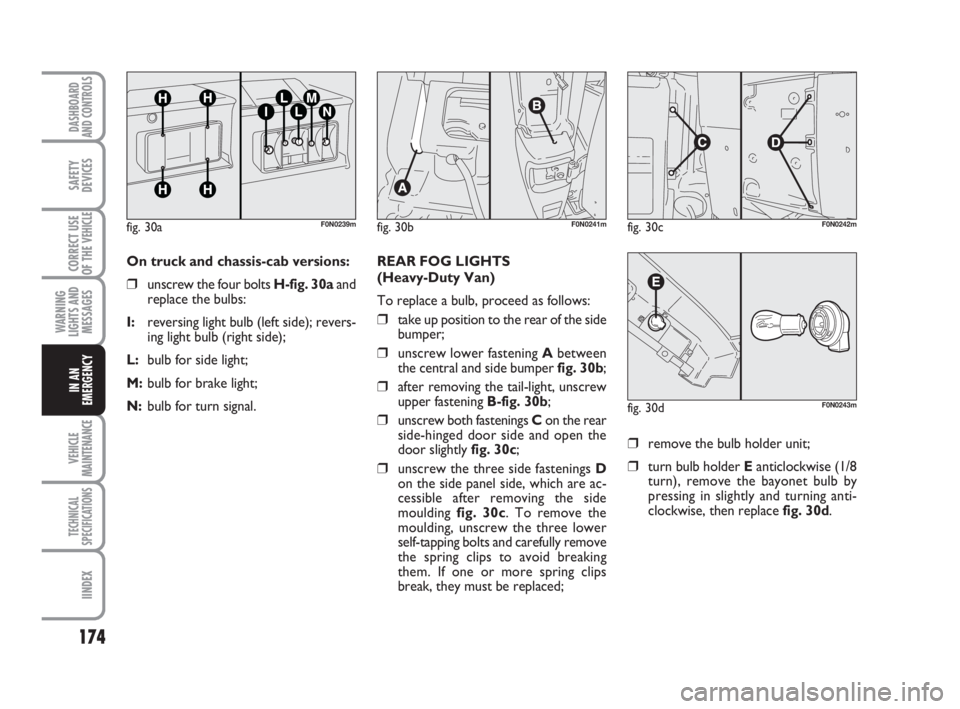

On truck and chassis-cab versions:
❒unscrew the four bolts H-fig. 30a and
replace the bulbs:
I: reversing light bulb (left side); revers-
ing light bulb (right side);
L: bulb for side light;
M: bulb for brake light;
N: bulb for turn signal.REAR FOG LIGHTS
(Heavy-Duty Van)
To replace a bulb, proceed as follows:
❒take up position to the rear of the side
bumper;
❒unscrew lower fastening Abetween
the central and side bumper fig. 30b;
❒after removing the tail-light, unscrew
upper fastening B-fig. 30b;
❒unscrew both fastenings Con the rear
side-hinged door side and open the
door slightly fig. 30c;
❒unscrew the three side fastenings D
on the side panel side, which are ac-
cessible after removing the side
moulding fig. 30c. To remove the
moulding, unscrew the three lower
self-tapping bolts and carefully remove
the spring clips to avoid breaking
them. If one or more spring clips
break, they must be replaced;
❒remove the bulb holder unit;
❒turn bulb holder Eanticlockwise (1/8
turn), remove the bayonet bulb by
pressing in slightly and turning anti-
clockwise, then replace fig. 30d.
157-188 Ducato GB 6-11-2007 10:32 Pagina 174

175
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY

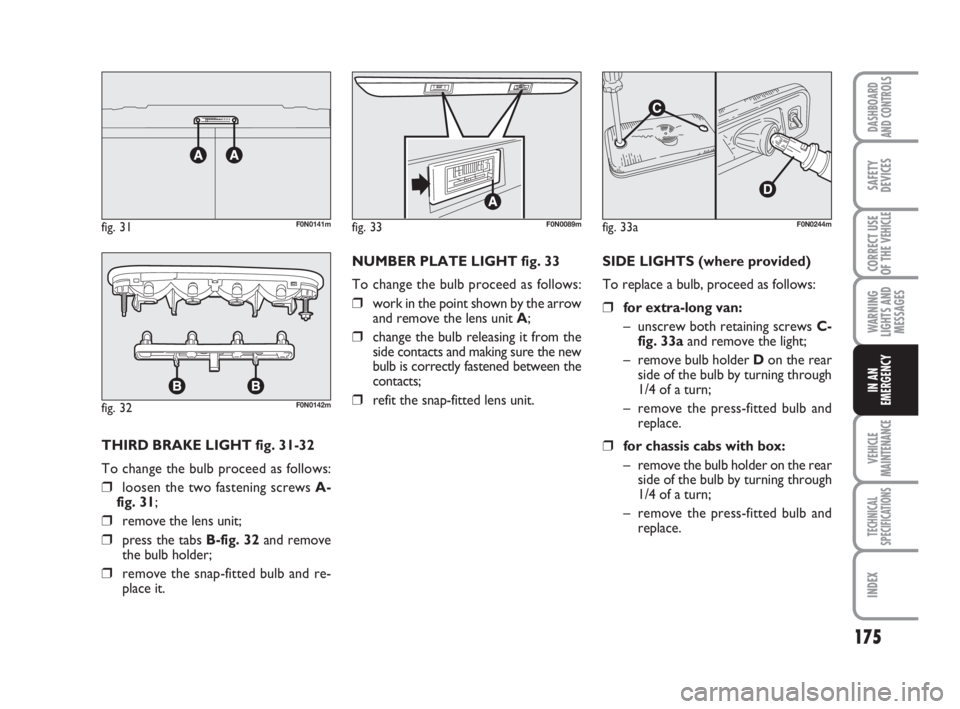

THIRD BRAKE LIGHT fig. 31-32
To change the bulb proceed as follows:
❒loosen the two fastening screws A-
fig. 31;
❒remove the lens unit;
❒press the tabs B-fig. 32and remove
the bulb holder;
❒remove the snap-fitted bulb and re-
place it.NUMBER PLATE LIGHT fig. 33
To change the bulb proceed as follows:
❒work in the point shown by the arrow
and remove the lens unit A;
❒change the bulb releasing it from the
side contacts and making sure the new
bulb is correctly fastened between the
contacts;
❒refit the snap-fitted lens unit.fig. 32F0N0142m
fig. 33F0N0089mfig. 31F0N0141mfig. 33aF0N0244m
SIDE LIGHTS (where provided)
To replace a bulb, proceed as follows:
❒for extra-long van:
– unscrew both retaining screws C-
fig. 33aand remove the light;
– remove bulb holder Don the rear
side of the bulb by turning through
1/4 of a turn;
– remove the press-fitted bulb and
replace.
❒for chassis cabs with box:
– remove the bulb holder on the rear
side of the bulb by turning through
1/4 of a turn;
– remove the press-fitted bulb and
replace.
157-188 Ducato GB 6-11-2007 10:32 Pagina 175

176
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY

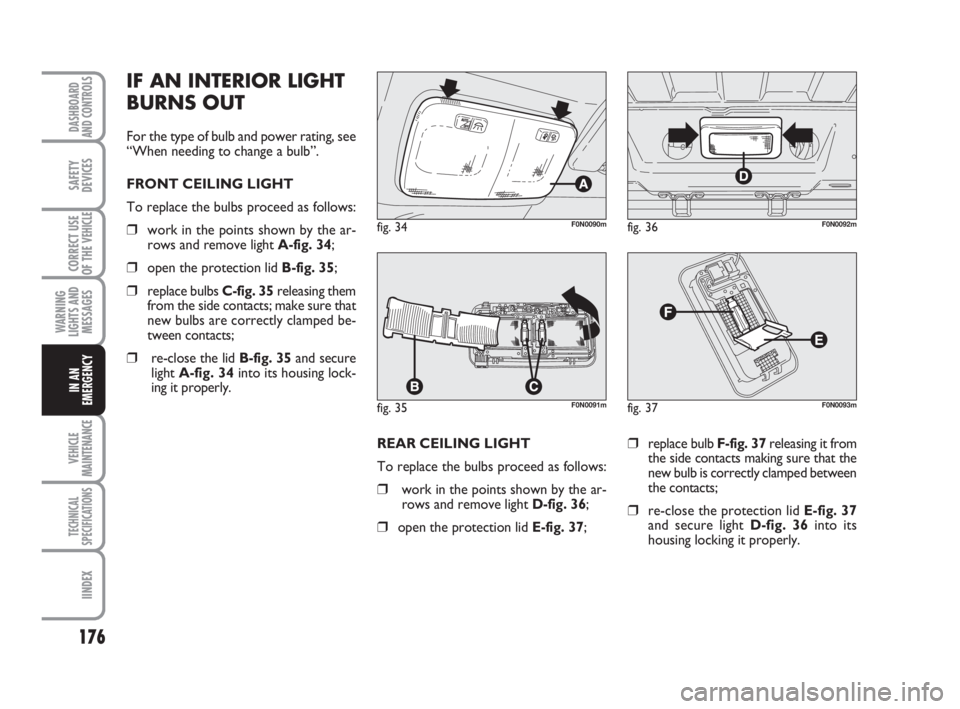

REAR CEILING LIGHT
To replace the bulbs proceed as follows:
❒work in the points shown by the ar-
rows and remove light D-fig. 36;
❒open the protection lid E-fig. 37;
❒replace bulb F-fig. 37releasing it from
the side contacts making sure that the
new bulb is correctly clamped between
the contacts;
❒re-close the protection lid E-fig. 37
and secure light D-fig. 36into its
housing locking it properly.
fig. 34F0N0090m
fig. 35F0N0091m
fig. 36F0N0092m
fig. 37F0N0093m
IF AN INTERIOR LIGHT
BURNS OUT
For the type of bulb and power rating, see
“When needing to change a bulb”.
FRONT CEILING LIGHT
To replace the bulbs proceed as follows:
❒work in the points shown by the ar-
rows and remove light A-fig. 34;
❒open the protection lid B-fig. 35;
❒replace bulbs C-fig. 35releasing them
from the side contacts; make sure that
new bulbs are correctly clamped be-
tween contacts;
❒re-close the lid B-fig. 35and secure
light A-fig. 34into its housing lock-
ing it properly.
157-188 Ducato GB 6-11-2007 10:32 Pagina 176

177
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY

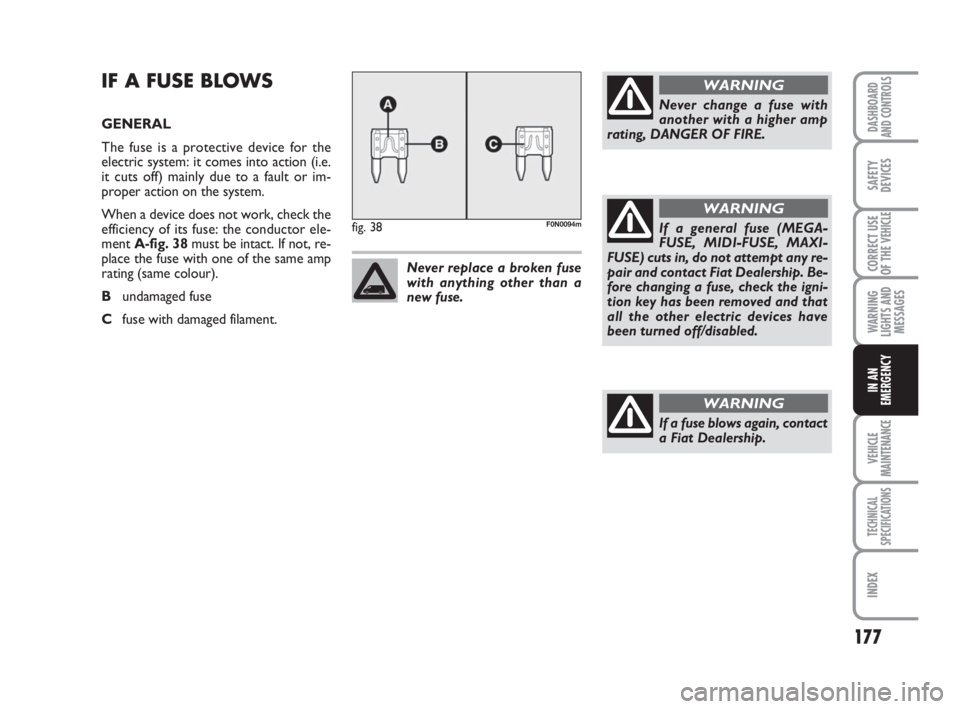

IF A FUSE BLOWS
GENERAL
The fuse is a protective device for the
electric system: it comes into action (i.e.
it cuts off) mainly due to a fault or im-
proper action on the system.
When a device does not work, check the
efficiency of its fuse: the conductor ele-
ment A-fig. 38must be intact. If not, re-
place the fuse with one of the same amp
rating (same colour).
Bundamaged fuse
Cfuse with damaged filament.
fig. 38F0N0094m
Never change a fuse with
another with a higher amp
rating, DANGER OF FIRE.
WARNING
Never replace a broken fuse
with anything other than a
new fuse.
If a general fuse (MEGA-
FUSE, MIDI-FUSE, MAXI-
FUSE) cuts in, do not attempt any re-
pair and contact Fiat Dealership. Be-
fore changing a fuse, check the igni-
tion key has been removed and that
all the other electric devices have
been turned off/disabled.
WARNING
If a fuse blows again, contact
a Fiat Dealership.
WARNING
157-188 Ducato GB 6-11-2007 10:32 Pagina 177

178
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY

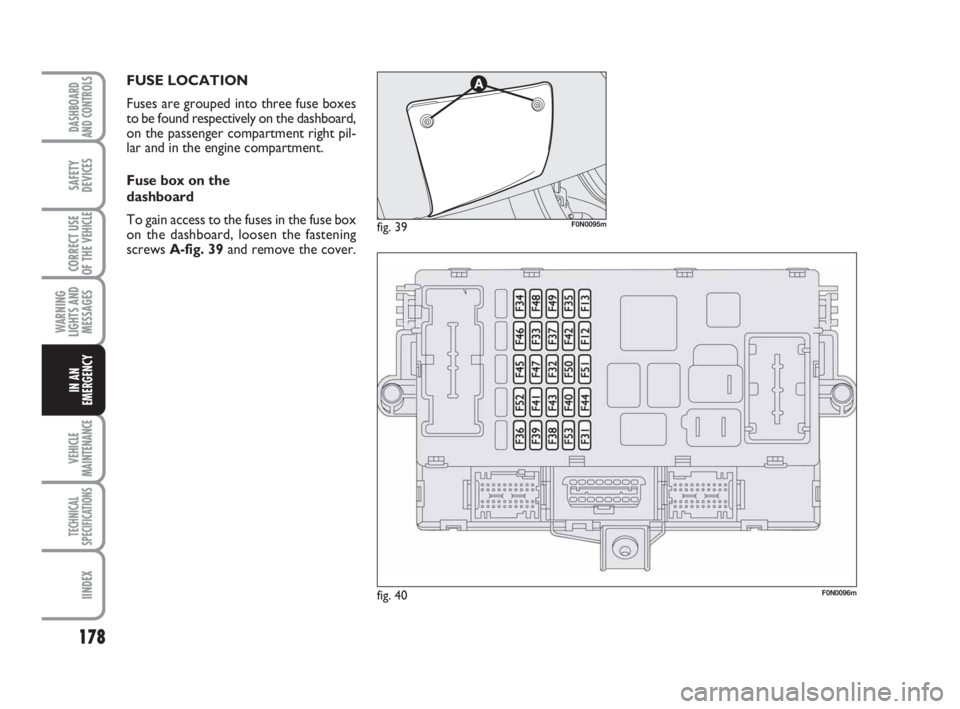

FUSE LOCATION
Fuses are grouped into three fuse boxes
to be found respectively on the dashboard,
on the passenger compartment right pil-
lar and in the engine compartment.
Fuse box on the
dashboard
To gain access to the fuses in the fuse box
on the dashboard, loosen the fastening
screws A-fig. 39and remove the cover.
fig. 40F0N0096m
fig. 39F0N0095m
157-188 Ducato GB 6-11-2007 10:32 Pagina 178

179
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
fig. 42F0N0097m
fig. 41F0N0098m

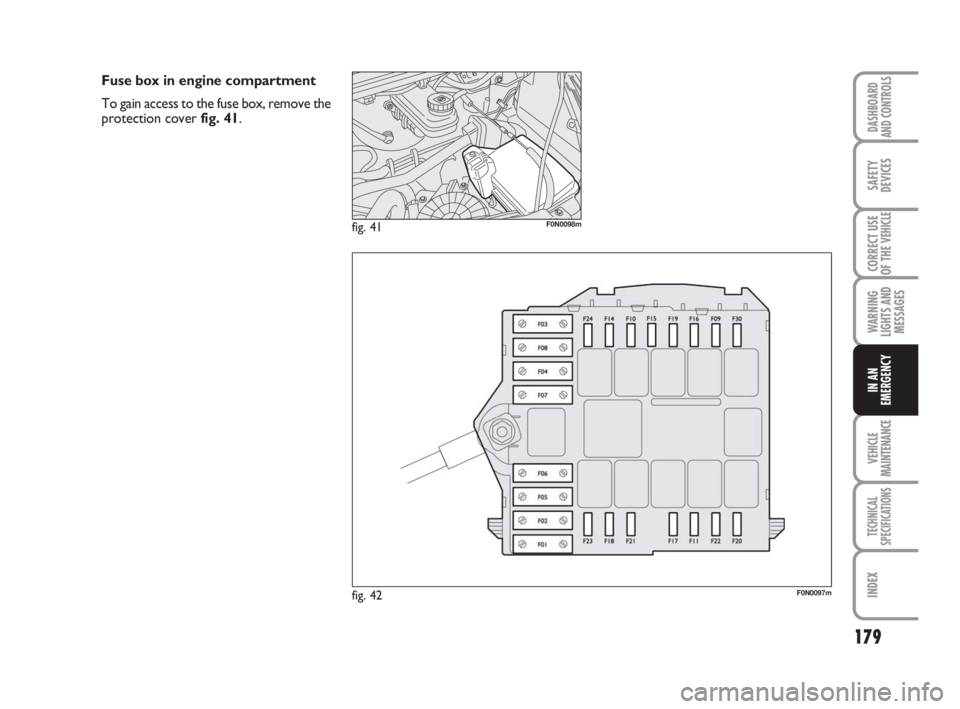

Fuse box in engine compartment
To gain access to the fuse box, remove the
protection cover fig. 41.
157-188 Ducato GB 6-11-2007 10:32 Pagina 179

180
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY

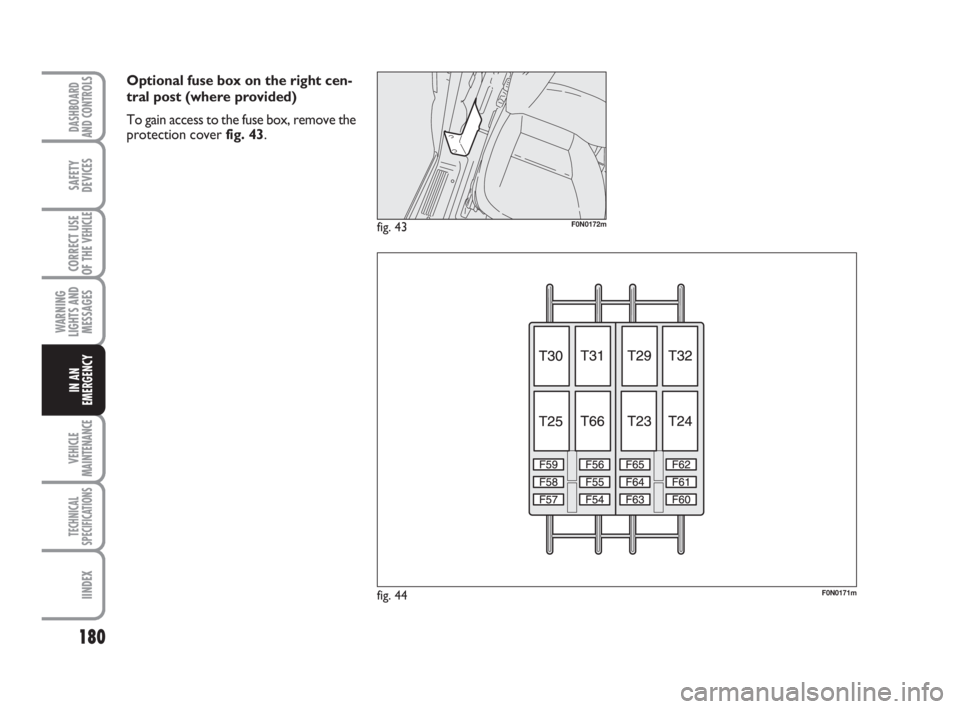

Optional fuse box on the right cen-
tral post (where provided)
To gain access to the fuse box, remove the
protection cover fig. 43.
fig. 43F0N0172m
fig. 44F0N0171m
157-188 Ducato GB 6-11-2007 10:32 Pagina 180

181
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
FUSE SUMMARY TABLE
Fuse box on dashboard
USERSFUSE AMPERE
Right dipped beam headlight F12 7.5
Left dipped beam headlight, Headlight aiming device F13 7.5
Engine compartment fuse box relay, dashboard fuse box relay (+key) F31 7.5
Minibus internal lights (emergency) F32 10
Rear current outlet F33 15
AbsentF34 –
Reversing lights, sevotronic control unit, Water in diesel fuel filter sensor, (+key) F35 7.5
Central door locking (+ battery) F36 20
Brake lights (main), Third brake light, Instrument panel (+key) F37 10
Dashboard control unit relay (+ battery) F38 10
EOBD socket, Sound System, A/C control, Alarm, Chronotachograph,
Webasto timer (+battery) F39 10
Left-hand heated window, Driver’s mirror defroster F40 15
Right-hand heated window, Passenger’s mirror defroster F41 15
ABS, ASR, ESP, Brake light control (secondary) (+key) F42 7.5
Windscreen wiper (+key) F43 30
Cigar lighter, Front current outlet F44 20
157-188 Ducato GB 6-11-2007 10:32 Pagina 181

182
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY

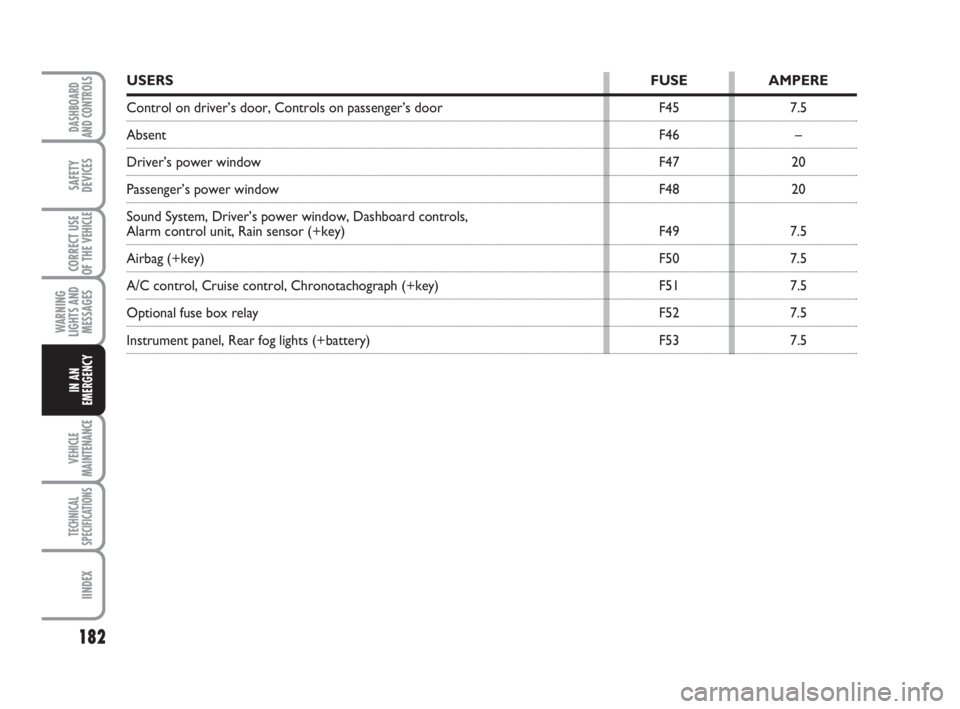

USERSFUSE AMPERE
Control on driver’s door, Controls on passenger’s door F45 7.5
AbsentF46 –
Driver’s power window F47 20
Passenger’s power window F48 20
Sound System, Driver’s power window, Dashboard controls,
Alarm control unit, Rain sensor (+key) F49 7.5
Airbag (+key)F50 7.5
A/C control, Cruise control, Chronotachograph (+key) F51 7.5
Optional fuse box relay F52 7.5
Instrument panel, Rear fog lights (+battery) F53 7.5
157-188 Ducato GB 6-11-2007 10:32 Pagina 182

183
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY

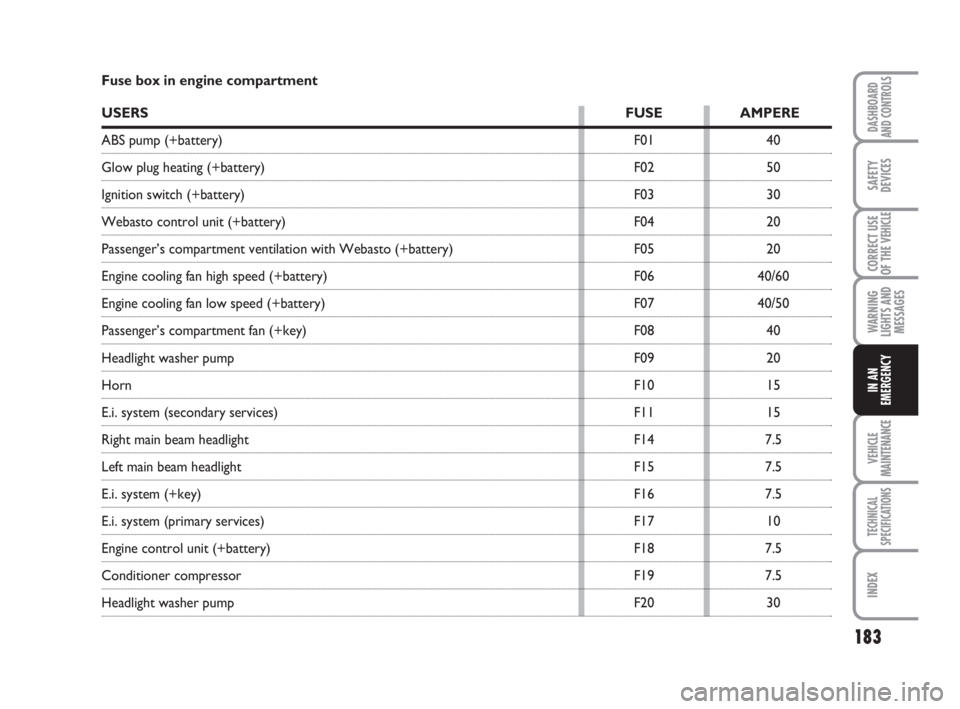

Fuse box in engine compartment
USERSFUSE AMPERE
ABS pump (+battery) F01 40
Glow plug heating (+battery) F02 50
Ignition switch (+battery) F03 30
Webasto control unit (+battery) F04 20
Passenger’s compartment ventilation with Webasto (+battery) F05 20
Engine cooling fan high speed (+battery) F06 40/60
Engine cooling fan low speed (+battery) F07 40/50
Passenger’s compartment fan (+key) F08 40
Headlight washer pump F09 20
HornF10 15
E.i. system (secondary services) F11 15
Right main beam headlight F14 7.5
Left main beam headlight F15 7.5
E.i. system (+key) F16 7.5
E.i. system (primary services) F17 10
Engine control unit (+battery) F18 7.5
Conditioner compressor F19 7.5
Headlight washer pump F20 30
