FIAT DUCATO 2014 3.G Owners Manual

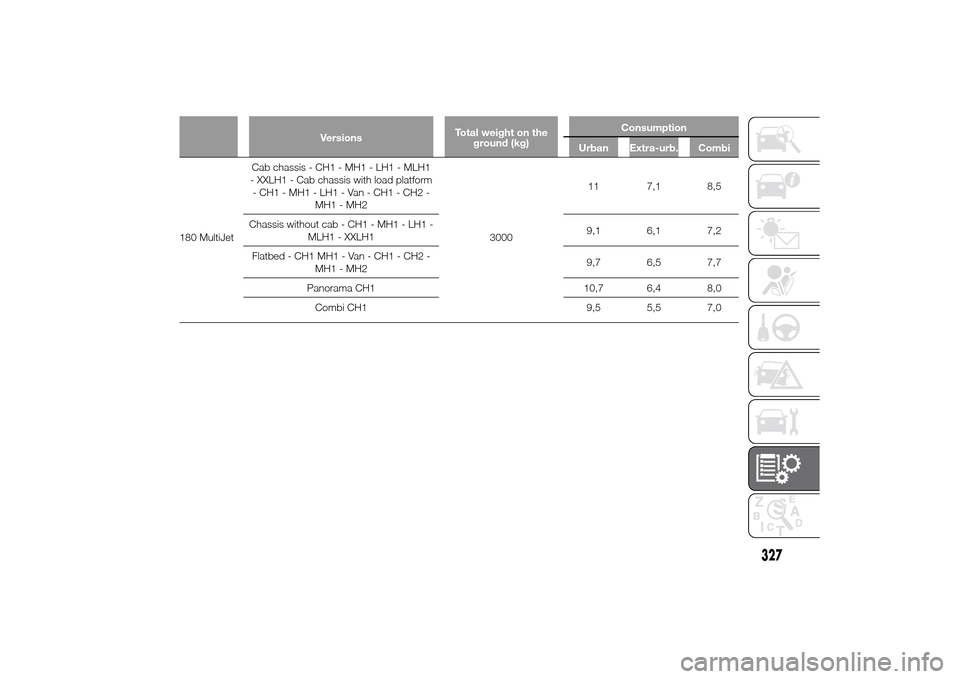

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
180 MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Cab chassis with load platform
- CH1 - MH1 - LH1 - Van - CH1 - CH2 -
MH1 - MH2
300011 7,1 8,5
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH19,1 6,1 7,2
Flatbed - CH1 MH1 - Van - CH1 - CH2 -
MH1 - MH29,7 6,5 7,7
Panorama CH1 10,7 6,4 8,0
Combi CH1 9,5 5,5 7,0
327

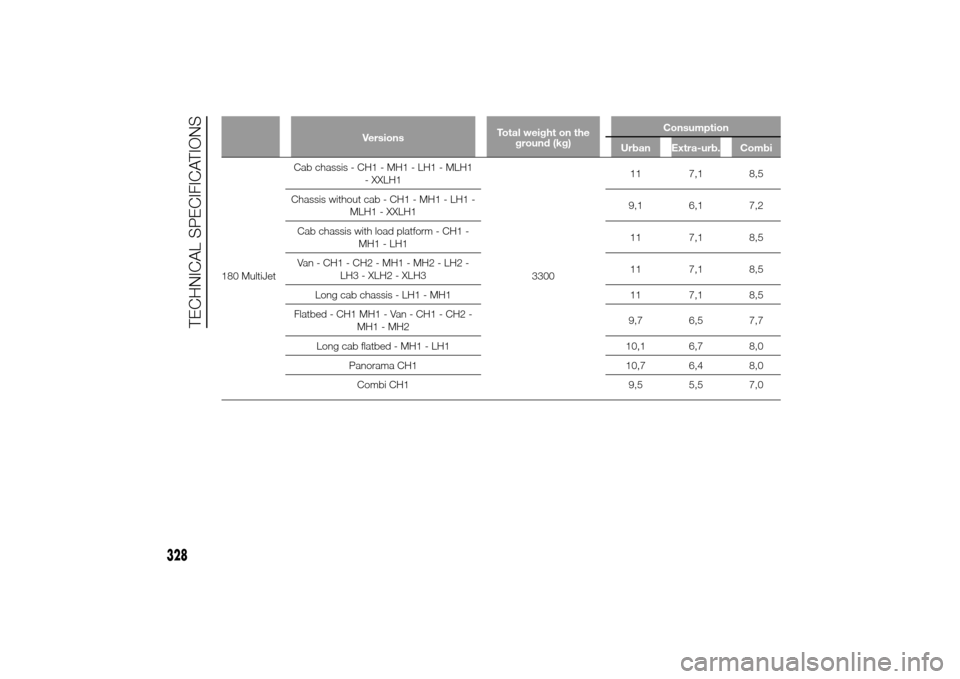

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
180 MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1
330011 7,1 8,5
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH19,1 6,1 7,2
Cab chassis with load platform - CH1 -
MH1 - LH111 7,1 8,5
Van - CH1 - CH2 - MH1 - MH2 - LH2 -
LH3 - XLH2 - XLH311 7,1 8,5
Long cab chassis - LH1 - MH1 11 7,1 8,5
Flatbed - CH1 MH1 - Van - CH1 - CH2 -
MH1 - MH29,7 6,5 7,7
Long cab flatbed - MH1 - LH1 10,1 6,7 8,0
Panorama CH1 10,7 6,4 8,0
Combi CH1 9,5 5,5 7,0
328
TECHNICAL SPECIFICATIONS

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
180 MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1
350011 7,1 8,5
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH19,1 6,1 7,2
Cab chassis with load platform - CH1 -
MH1 - LH111 7,1 8,5
Van - CH1 - CH2 - MH1 - MH2 - LH2 -
LH3 - XLH2 - XLH311,6 7,4 8,9
Long cab chassis - LH1 - MH1 11 7,1 8,5
Flatbed - CH1 - MH1 - Van - CH1 - CH2
- MH1 - MH29,7 6,5 7,7
Long cab flatbed - MH1 - LH1 10,1 6,7 8,0
Combi CH1 10,3 6,0 7,6
329

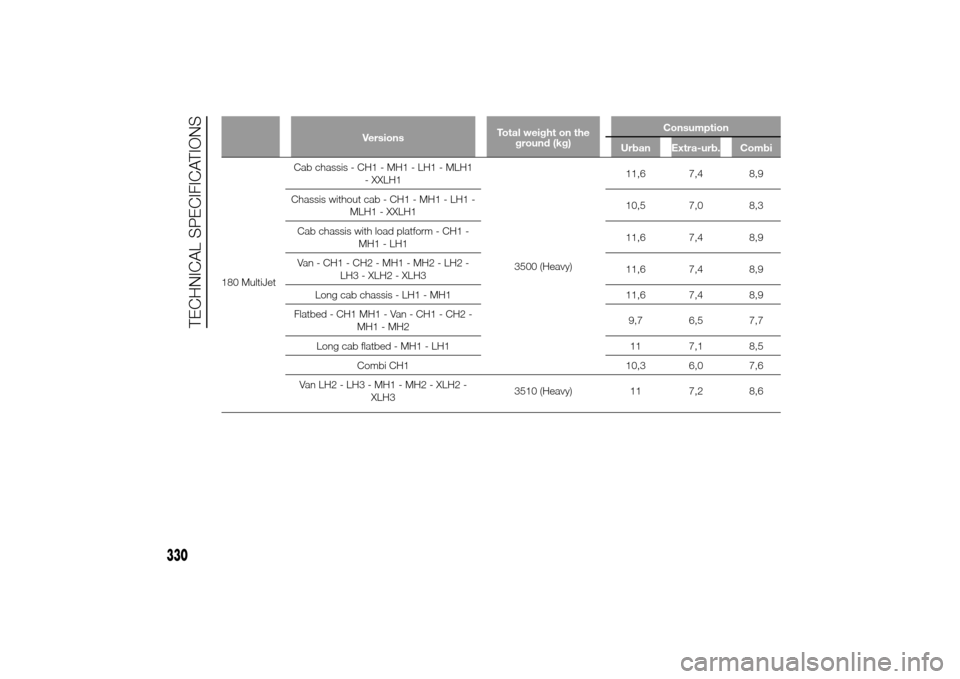

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
180 MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1
3500 (Heavy)11,6 7,4 8,9
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH110,5 7,0 8,3
Cab chassis with load platform - CH1 -
MH1 - LH111,6 7,4 8,9
Van - CH1 - CH2 - MH1 - MH2 - LH2 -
LH3 - XLH2 - XLH311,6 7,4 8,9
Long cab chassis - LH1 - MH1 11,6 7,4 8,9
Flatbed - CH1 MH1 - Van - CH1 - CH2 -
MH1 - MH29,7 6,5 7,7
Long cab flatbed - MH1 - LH1 11 7,1 8,5
Combi CH1 10,3 6,0 7,6
Van LH2 - LH3 - MH1 - MH2 - XLH2 -
XLH33510 (Heavy) 11 7,2 8,6
330
TECHNICAL SPECIFICATIONS

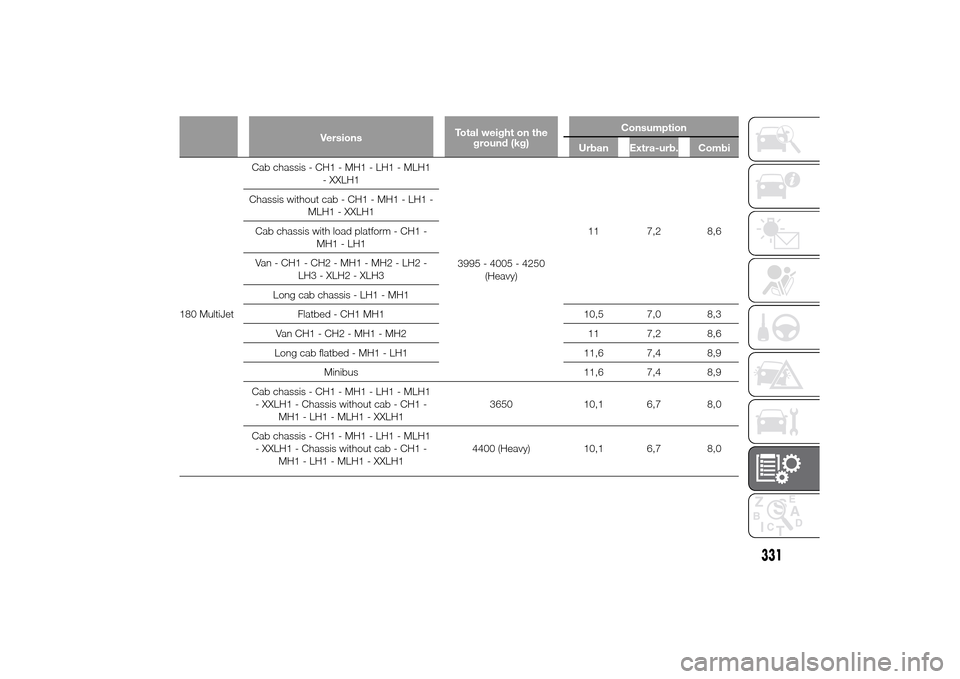

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
180 MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1
3995 - 4005 - 4250
(Heavy)11 7,2 8,6 Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH1
Cab chassis with load platform - CH1 -
MH1 - LH1
Van - CH1 - CH2 - MH1 - MH2 - LH2 -
LH3 - XLH2 - XLH3
Long cab chassis - LH1 - MH1
Flatbed - CH1 MH1 10,5 7,0 8,3
Van CH1 - CH2 - MH1 - MH2 11 7,2 8,6
Long cab flatbed - MH1 - LH1 11,6 7,4 8,9
Minibus 11,6 7,4 8,9
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Chassis without cab - CH1 -
MH1 - LH1 - MLH1 - XXLH13650 10,1 6,7 8,0
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Chassis without cab - CH1 -
MH1 - LH1 - MLH1 - XXLH14400 (Heavy) 10,1 6,7 8,0
331

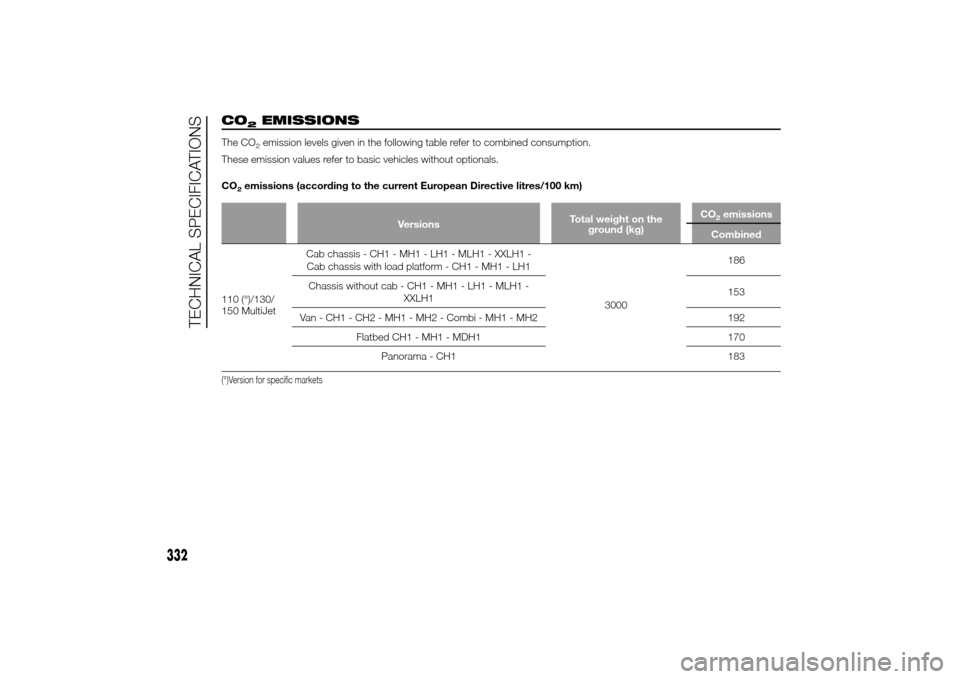

CO
2
EMISSIONS
The CO
2emission levels given in the following table refer to combined consumption.
These emission values refer to basic vehicles without optionals.
CO
2emissions (according to the current European Directive litres/100 km)
VersionsTotal weight on the
ground (kg)CO
2emissions
Combined
110 (°)/130/
150 MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Cab chassis with load platform - CH1 - MH1 - LH1
3000186
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1153
Van - CH1 - CH2 - MH1 - MH2 - Combi - MH1 - MH2 192
Flatbed CH1 - MH1 - MDH1 170
Panorama - CH1 183(°)Version for specific markets
332
TECHNICAL SPECIFICATIONS

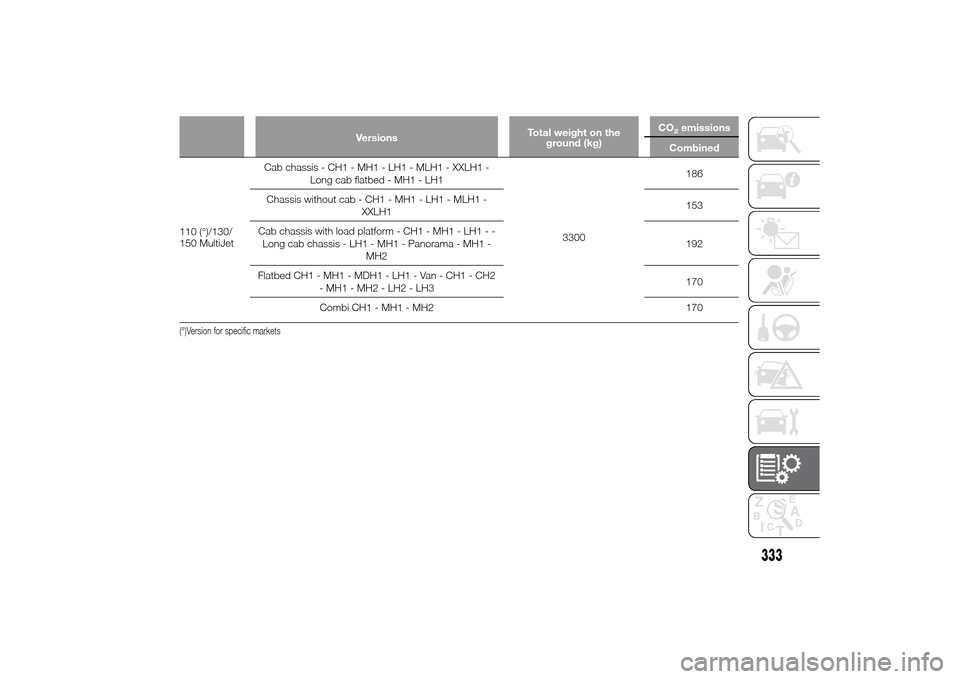

VersionsTotal weight on the
ground (kg)CO
2emissions
Combined
110 (°)/130/
150 MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Long cab flatbed - MH1 - LH1
3300186
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1153
Cab chassis with load platform - CH1 - MH1 - LH1 - -
Long cab chassis - LH1 - MH1 - Panorama - MH1 -
MH2192
Flatbed CH1 - MH1 - MDH1 - LH1 - Van - CH1 - CH2
- MH1 - MH2 - LH2 - LH3170
Combi CH1 - MH1 - MH2 170(°)Version for specific markets
333

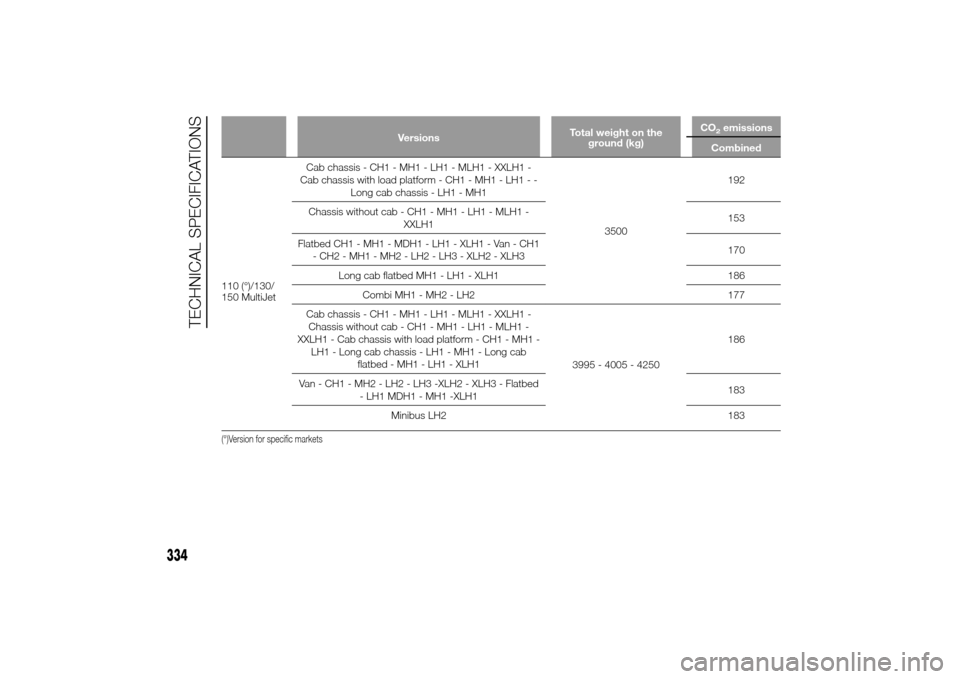

VersionsTotal weight on the
ground (kg)CO
2emissions
Combined
110 (°)/130/
150 MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Cab chassis with load platform - CH1 - MH1 - LH1 - -
Long cab chassis - LH1 - MH1
3500192
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1153
Flatbed CH1 - MH1 - MDH1 - LH1 - XLH1 - Van - CH1
- CH2 - MH1 - MH2 - LH2 - LH3 - XLH2 - XLH3170
Long cab flatbed MH1 - LH1 - XLH1 186
Combi MH1 - MH2 - LH2 177
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1 - Cab chassis with load platform - CH1 - MH1 -
LH1 - Long cab chassis - LH1 - MH1 - Long cab
flatbed - MH1 - LH1 - XLH1
3995 - 4005 - 4250186
Van - CH1 - MH2 - LH2 - LH3 -XLH2 - XLH3 - Flatbed
- LH1 MDH1 - MH1 -XLH1183
Minibus LH2 183(°)Version for specific markets
334
TECHNICAL SPECIFICATIONS

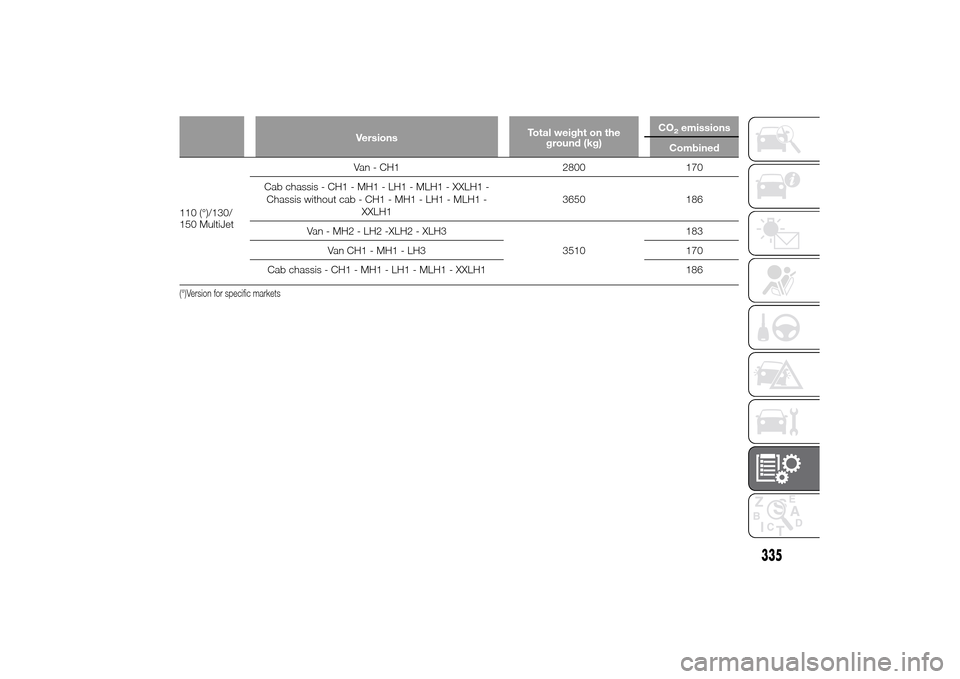

VersionsTotal weight on the
ground (kg)CO
2emissions
Combined
110 (°)/130/
150 MultiJetVan - CH1 2800 170
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH13650 186
Van - MH2 - LH2 -XLH2 - XLH3
3510183
Van CH1 - MH1 - LH3 170
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 186(°)Version for specific markets
335

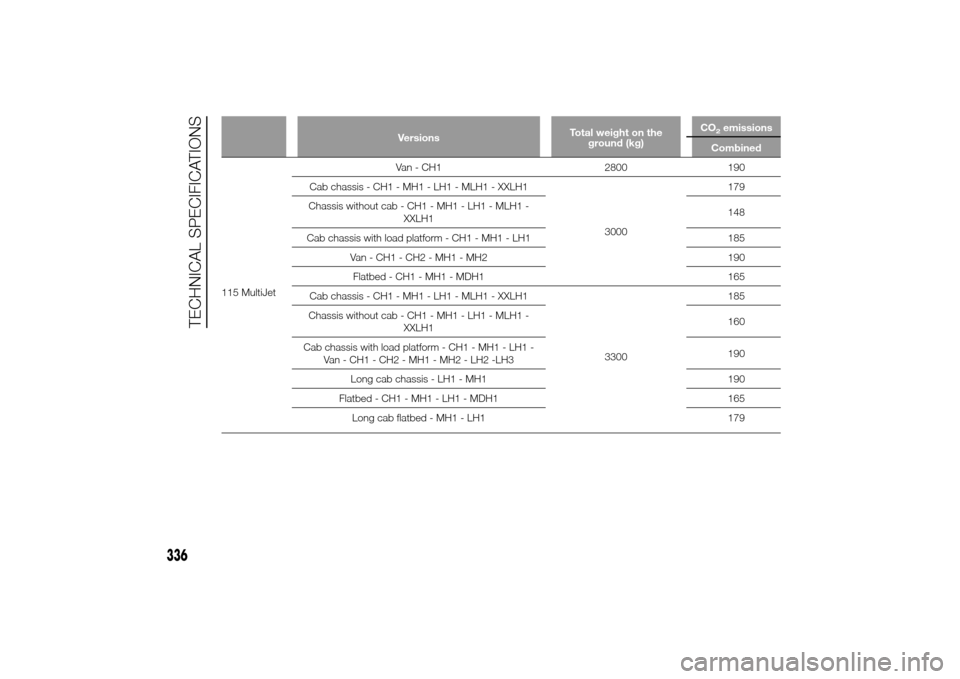

VersionsTotal weight on the
ground (kg)CO
2emissions
Combined
115 MultiJetVan - CH1 2800 190
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1
3000179
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1148
Cab chassis with load platform - CH1 - MH1 - LH1 185
Van - CH1 - CH2 - MH1 - MH2 190
Flatbed - CH1 - MH1 - MDH1 165
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1
3300185
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1160
Cab chassis with load platform - CH1 - MH1 - LH1 -
Van - CH1 - CH2 - MH1 - MH2 - LH2 -LH3190
Long cab chassis - LH1 - MH1 190
Flatbed - CH1 - MH1 - LH1 - MDH1 165
Long cab flatbed - MH1 - LH1 179
336
