FIAT DUCATO 2014 Owner handbook (in English)

115 MultiJet
(°)110 (°)
/130
MultiJet
150 MultiJet180 MultiJet
PowerPrescribed fuels and
original lubricants
Gearbox/differential casing
(litres):2,92.9 (M38
gearbox)2.9TUTELA TRANSMISSION
GEARTECH
Hydraulic braking circuit with
ABS (kg):0.6 0.6 0.6 0.6
TUTELA TOP 4
Hydraulic braking circuit with
ASR/ESP (kg):0.62 0.62 0.62 0.62
Hydraulic power steering: 1.5 1.5 1.5 1.5TUTELA TRANSMISSION
GI/E
Windscreen/headlight
washer reservoir:5.5 5.5 5.5 5.5Mixture of water and
TUTELA PROFESSIONAL
SC35(°)Version for specific markets
317

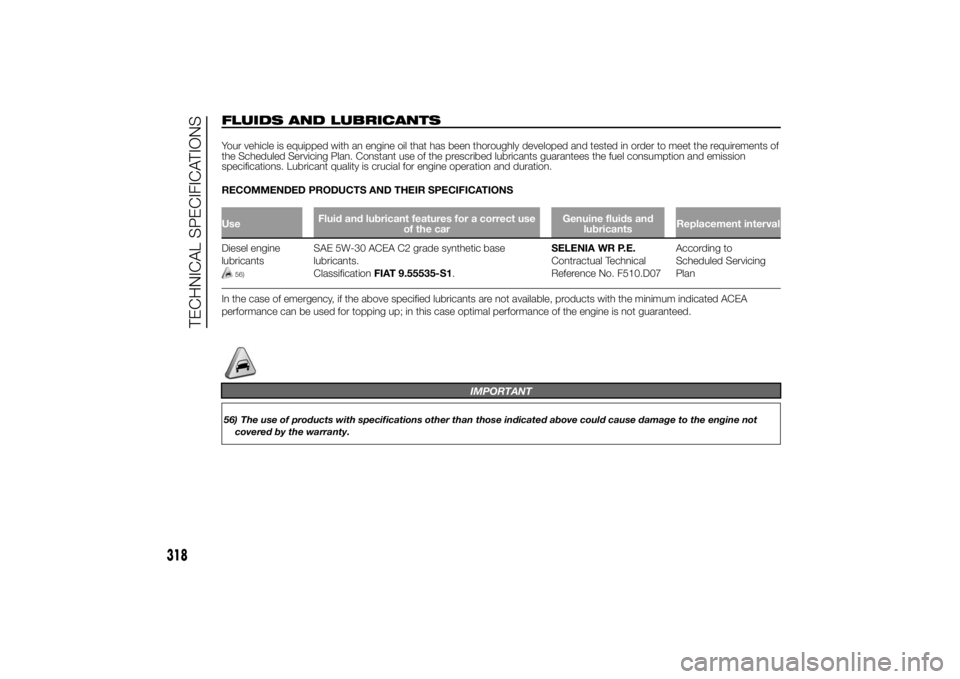

FLUIDS AND LUBRICANTSYour vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONSUseFluid and lubricant features for a correct use
of the carGenuine fluids and
lubricantsReplacement intervalDiesel engine
lubricants
56)
SAE 5W-30 ACEA C2 grade synthetic base
lubricants.
ClassificationFIAT 9.55535-S1.SELENIA WR P.E.
Contractual Technical
Reference No. F510.D07According to
Scheduled Servicing
Plan
In the case of emergency, if the above specified lubricants are not available, products with the minimum indicated ACEA
performance can be used for topping up; in this case optimal performance of the engine is not guaranteed.
IMPORTANT
56) The use of products with specifications other than those indicated above could cause damage to the engine not
covered by the warranty.
318
TECHNICAL SPECIFICATIONS

UseFluid and lubricant features for a correct use
of the carGenuine fluids and
lubricantsApplicationsLubricants and
greases for drive
transmissionSAE 75W- 80 grade synthetic lubricant.
Classification FIAT 9.55550-MZ2..TUTELA
TRANSMISSION
EXPERYA
Contractual Technical
Reference No. F178.B06Manual gearbox and
differential
Synthetic base lubricant SAE 75W-85 grade
Classification FIAT 9.55550-MZ3TUTELA
TRANSMISSION
GEARTECH
Contractual Technical
Reference No. F704.C08Manual gearbox and
differential
Molybdenum disulphide grease, for use at high
temperatures.
FIAT 9.55580 classification. Consistency NLGI
1-2TUTELA ALL STAR
Contractual Technical
Reference No. F702.G07Wheel side constant
velocity joints
Grease for constant velocity joints with low friction
coefficient.
FIAT 9.55580 classification. Consistency NLGI
0-1TUTELA STAR 700
Contractual Technical
Reference No. F701.C07Differential-side
constant velocity joints
Lubricant for power steering
Exceeds "ATF DEXRON III" specifications
Classification FIAT 9.55550-AG2.TUTELA
TRANSMISSION GI/E
Contractual Technical
Reference No. F001.C94Hydraulic power
steering
Brake fluidSynthetic fluid for brake and clutch systems
Exceeds specifications: FMVSS no. 116 DOT 4,
ISO 4925, SAE J 1704
Classification FIAT 9.55597.TUTELA TOP 4
Contractual Technical
Reference No. F001.A93Hydraulic brakes and
clutch controls
319

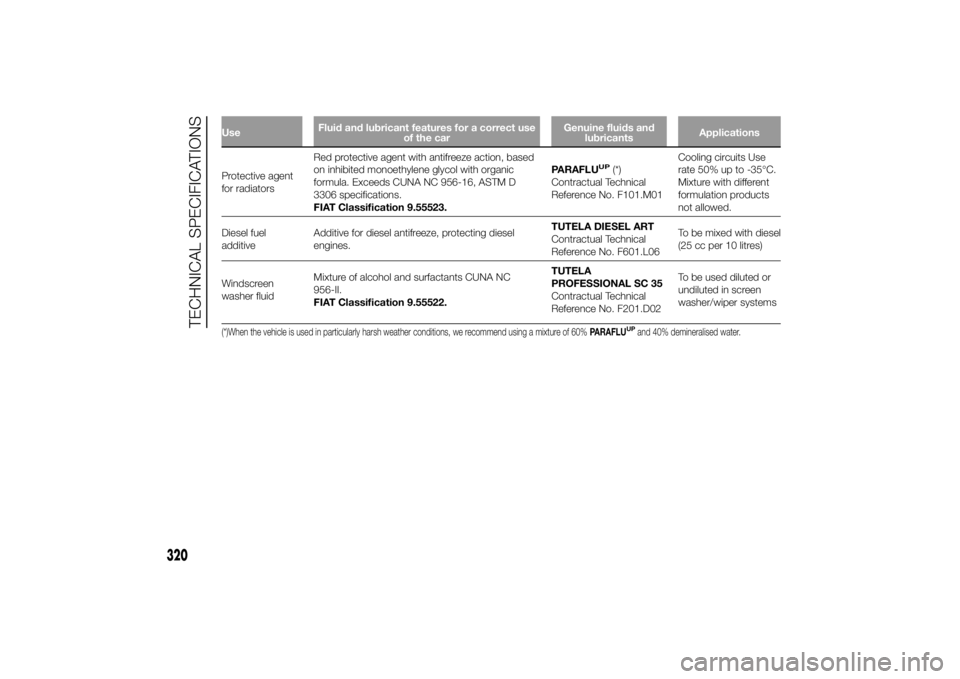

UseFluid and lubricant features for a correct use
of the carGenuine fluids and
lubricantsApplicationsProtective agent
for radiatorsRed protective agent with antifreeze action, based
on inhibited monoethylene glycol with organic
formula. Exceeds CUNA NC 956-16, ASTM D
3306 specifications.
FIAT Classification 9.55523.PARAFLU
UP
(*)
Contractual Technical
Reference No. F101.M01Cooling circuits Use
rate 50% up to -35°C.
Mixture with different
formulation products
not allowed.
Diesel fuel
additiveAdditive for diesel antifreeze, protecting diesel
engines.TUTELA DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with diesel
(25 cc per 10 litres)
Windscreen
washer fluidMixture of alcohol and surfactants CUNA NC
956-II.
FIAT Classification 9.55522.TUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference No. F201.D02To be used diluted or
undiluted in screen
washer/wiper systems
(*)When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLU
UPand 40% demineralised water.
320
TECHNICAL SPECIFICATIONS

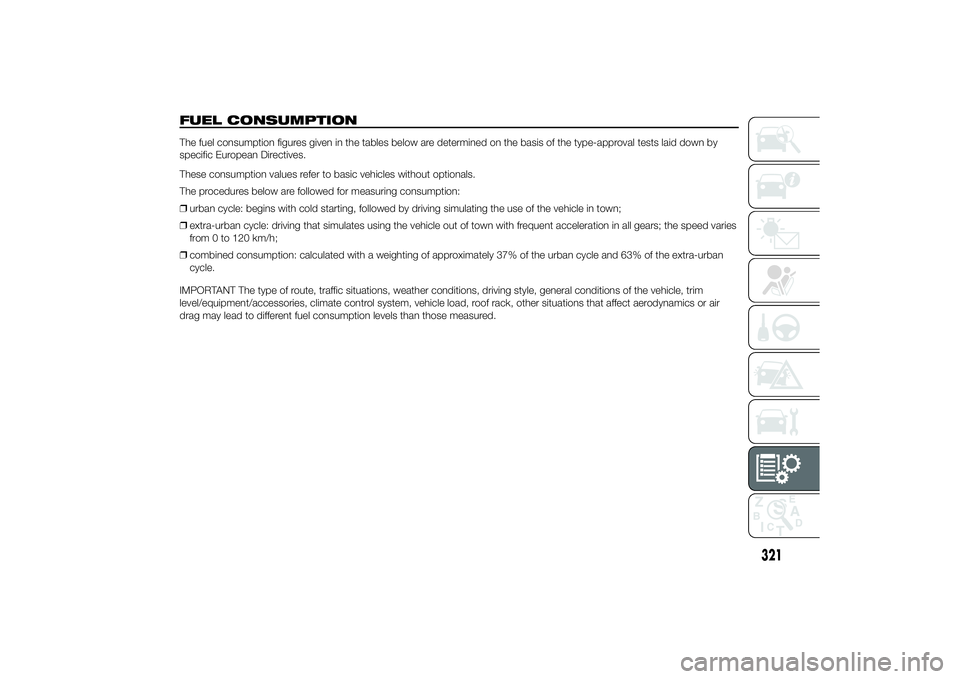

FUEL CONSUMPTIONThe fuel consumption figures given in the tables below are determined on the basis of the type-approval tests laid down by
specific European Directives.
These consumption values refer to basic vehicles without optionals.
The procedures below are followed for measuring consumption:
❒urban cycle: begins with cold starting, followed by driving simulating the use of the vehicle in town;
❒extra-urban cycle: driving that simulates using the vehicle out of town with frequent acceleration in all gears; the speed varies
from 0 to 120 km/h;
❒combined consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the extra-urban
cycle.
IMPORTANT The type of route, traffic situations, weather conditions, driving style, general conditions of the vehicle, trim
level/equipment/accessories, climate control system, vehicle load, roof rack, other situations that affect aerodynamics or air
drag may lead to different fuel consumption levels than those measured.
321

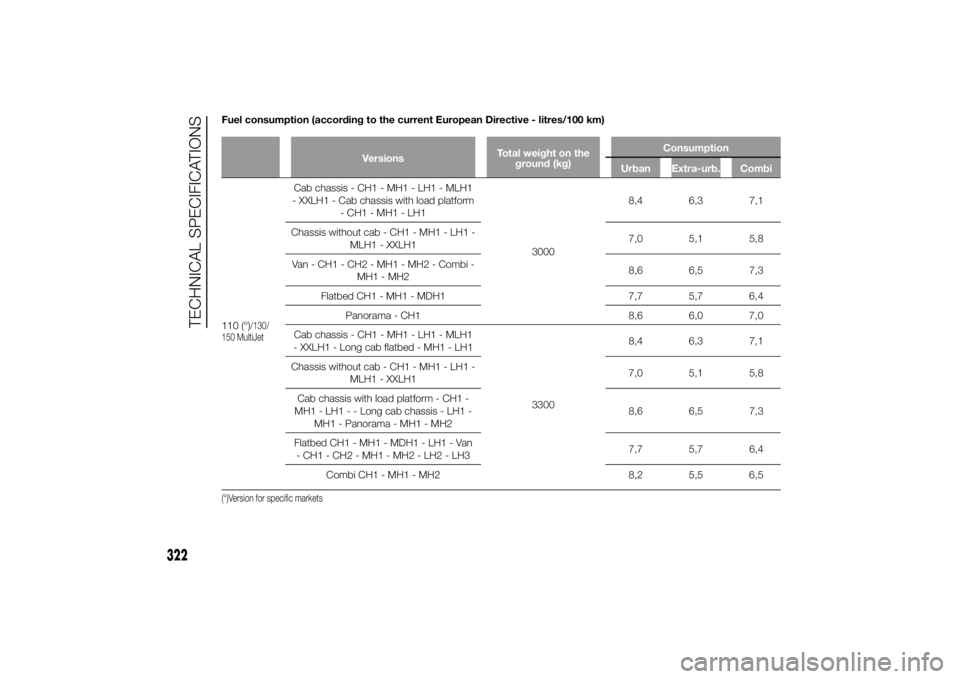

Fuel consumption (according to the current European Directive - litres/100 km)
VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
110 (°)
/130/
150 MultiJet
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Cab chassis with load platform
- CH1 - MH1 - LH1
30008,4 6,3 7,1
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH17,0 5,1 5,8
Van - CH1 - CH2 - MH1 - MH2 - Combi -
MH1 - MH28,6 6,5 7,3
Flatbed CH1 - MH1 - MDH1 7,7 5,7 6,4
Panorama - CH1 8,6 6,0 7,0
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Long cab flatbed - MH1 - LH1
33008,4 6,3 7,1
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH17,0 5,1 5,8
Cab chassis with load platform - CH1 -
MH1 - LH1 - - Long cab chassis - LH1 -
MH1 - Panorama - MH1 - MH28,6 6,5 7,3
Flatbed CH1 - MH1 - MDH1 - LH1 - Van
- CH1 - CH2 - MH1 - MH2 - LH2 - LH37,7 5,7 6,4
Combi CH1 - MH1 - MH2 8,2 5,5 6,5
(°)Version for specific markets
322

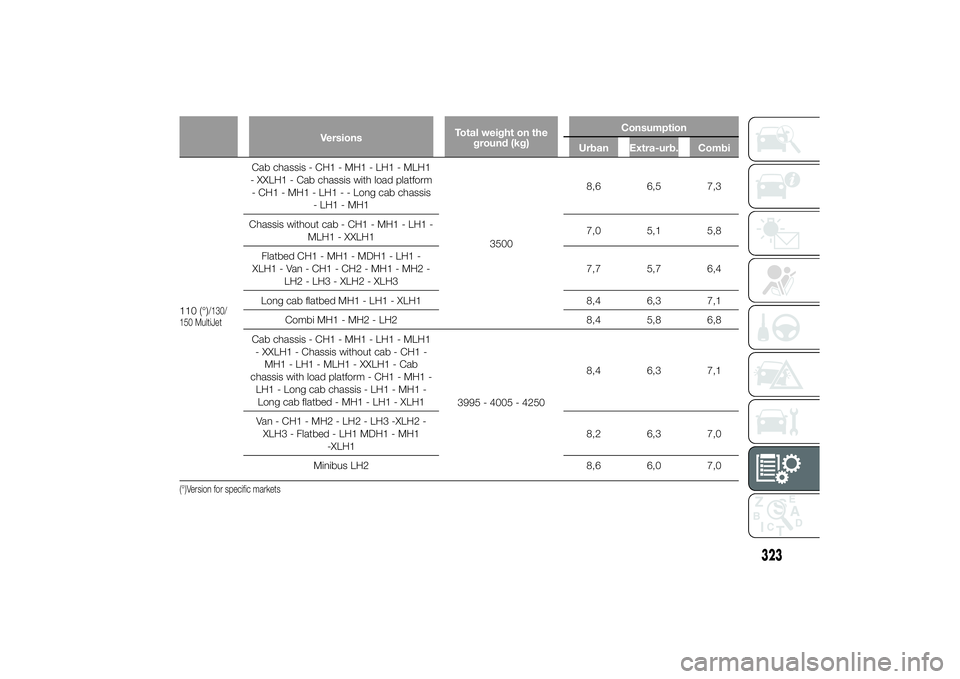

TECHNICAL SPECIFICATIONS

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
110 (°)
/130/
150 MultiJet
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Cab chassis with load platform
- CH1 - MH1 - LH1 - - Long cab chassis
- LH1 - MH1
35008,6 6,5 7,3
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH17,0 5,1 5,8
Flatbed CH1 - MH1 - MDH1 - LH1 -
XLH1 - Van - CH1 - CH2 - MH1 - MH2 -
LH2 - LH3 - XLH2 - XLH37,7 5,7 6,4
Long cab flatbed MH1 - LH1 - XLH1 8,4 6,3 7,1
Combi MH1 - MH2 - LH2 8,4 5,8 6,8
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Chassis without cab - CH1 -
MH1 - LH1 - MLH1 - XXLH1 - Cab
chassis with load platform - CH1 - MH1 -
LH1 - Long cab chassis - LH1 - MH1 -
Long cab flatbed - MH1 - LH1 - XLH1
3995 - 4005 - 42508,4 6,3 7,1
Van - CH1 - MH2 - LH2 - LH3 -XLH2 -
XLH3 - Flatbed - LH1 MDH1 - MH1
-XLH18,2 6,3 7,0
Minibus LH2 8,6 6,0 7,0
(°)Version for specific markets
323

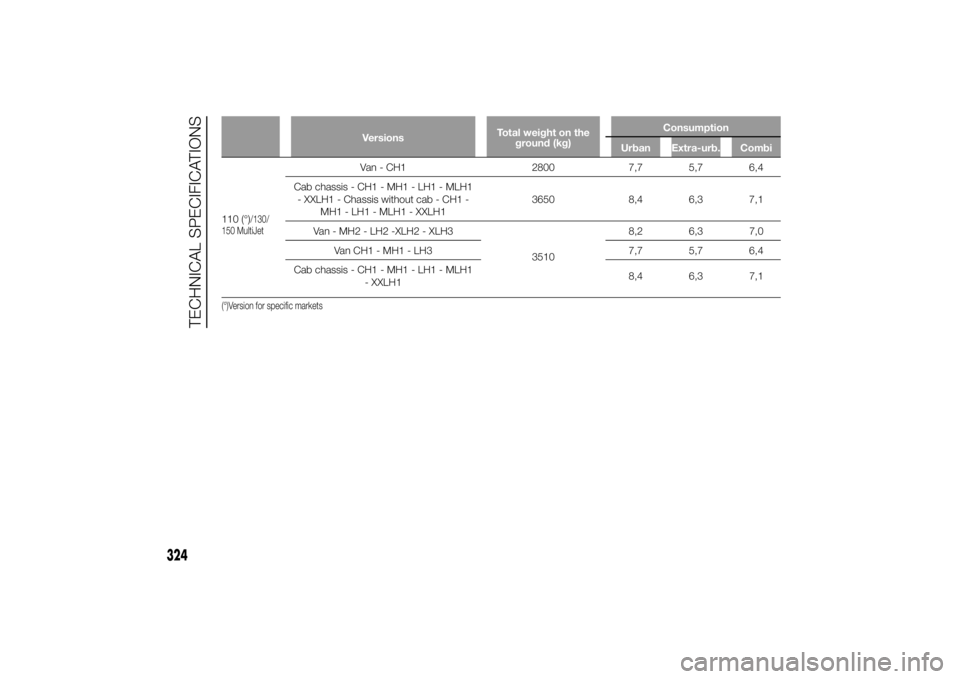

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
110 (°)
/130/
150 MultiJet
Van - CH1 2800 7,7 5,7 6,4
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Chassis without cab - CH1 -
MH1 - LH1 - MLH1 - XXLH13650 8,4 6,3 7,1
Van - MH2 - LH2 -XLH2 - XLH3
35108,2 6,3 7,0
Van CH1 - MH1 - LH3 7,7 5,7 6,4
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH18,4 6,3 7,1
(°)Version for specific markets
324
TECHNICAL SPECIFICATIONS

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi

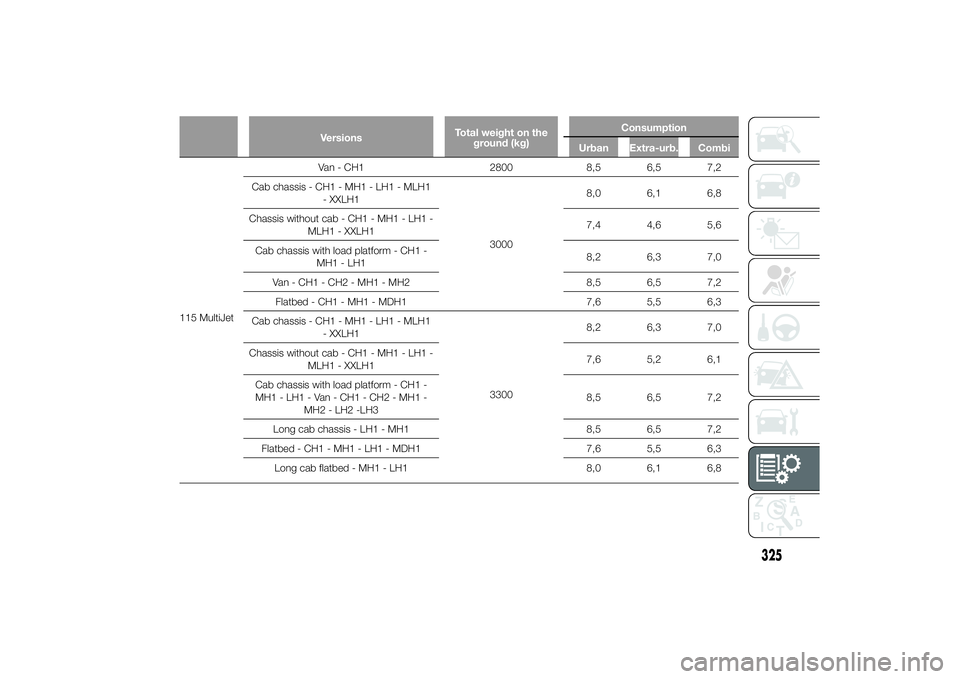

115 MultiJetVan - CH1 2800 8,5 6,5 7,2
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1
30008,0 6,1 6,8
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH17,4 4,6 5,6
Cab chassis with load platform - CH1 -
MH1 - LH18,2 6,3 7,0
Van - CH1 - CH2 - MH1 - MH2 8,5 6,5 7,2
Flatbed - CH1 - MH1 - MDH1 7,6 5,5 6,3
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1
33008,2 6,3 7,0
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH17,6 5,2 6,1
Cab chassis with load platform - CH1 -
MH1 - LH1 - Van - CH1 - CH2 - MH1 -
MH2 - LH2 -LH38,5 6,5 7,2
Long cab chassis - LH1 - MH1 8,5 6,5 7,2
Flatbed - CH1 - MH1 - LH1 - MDH1 7,6 5,5 6,3
Long cab flatbed - MH1 - LH1 8,0 6,1 6,8
325

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi

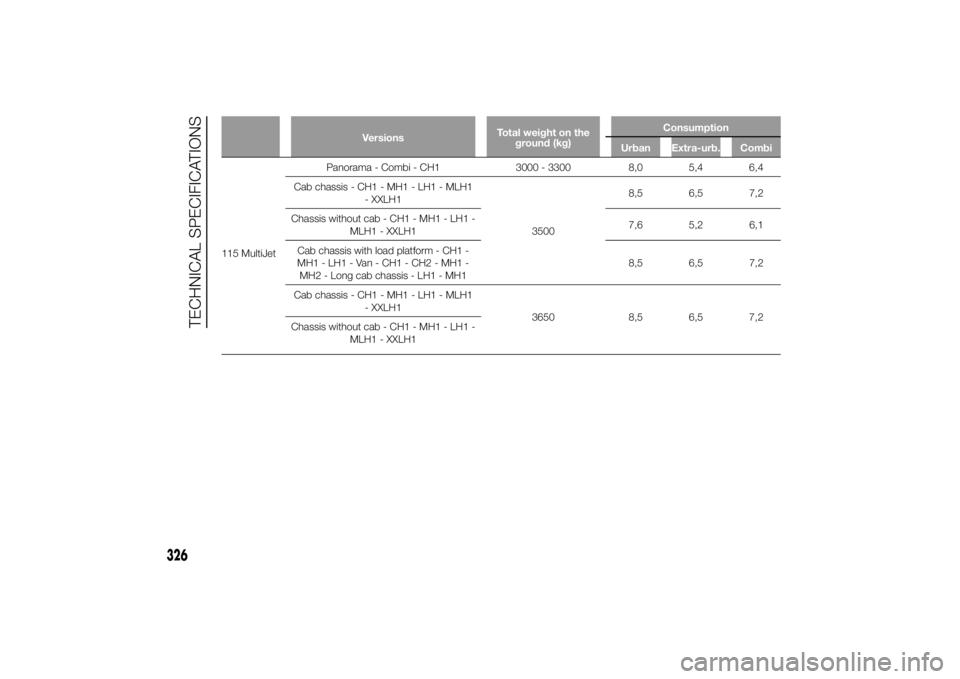

115 MultiJetPanorama - Combi - CH1 3000 - 3300 8,0 5,4 6,4
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1
35008,5 6,5 7,2
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH17,6 5,2 6,1
Cab chassis with load platform - CH1 -
MH1 - LH1 - Van - CH1 - CH2 - MH1 -
MH2 - Long cab chassis - LH1 - MH18,5 6,5 7,2
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1
3650 8,5 6,5 7,2
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH1
