FIAT DUCATO 2014 Owner handbook (in English)

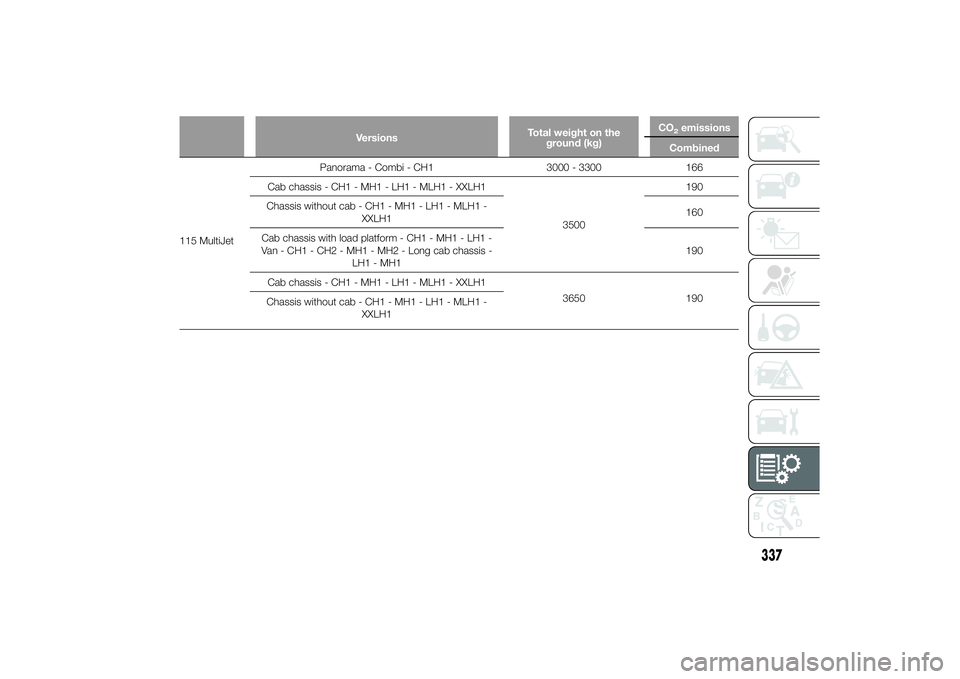

VersionsTotal weight on the
ground (kg)CO
2emissions
Combined
115 MultiJetPanorama - Combi - CH1 3000 - 3300 166
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1
3500190
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1160
Cab chassis with load platform - CH1 - MH1 - LH1 -
Van - CH1 - CH2 - MH1 - MH2 - Long cab chassis -
LH1 - MH1190
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1
3650 190
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1
337

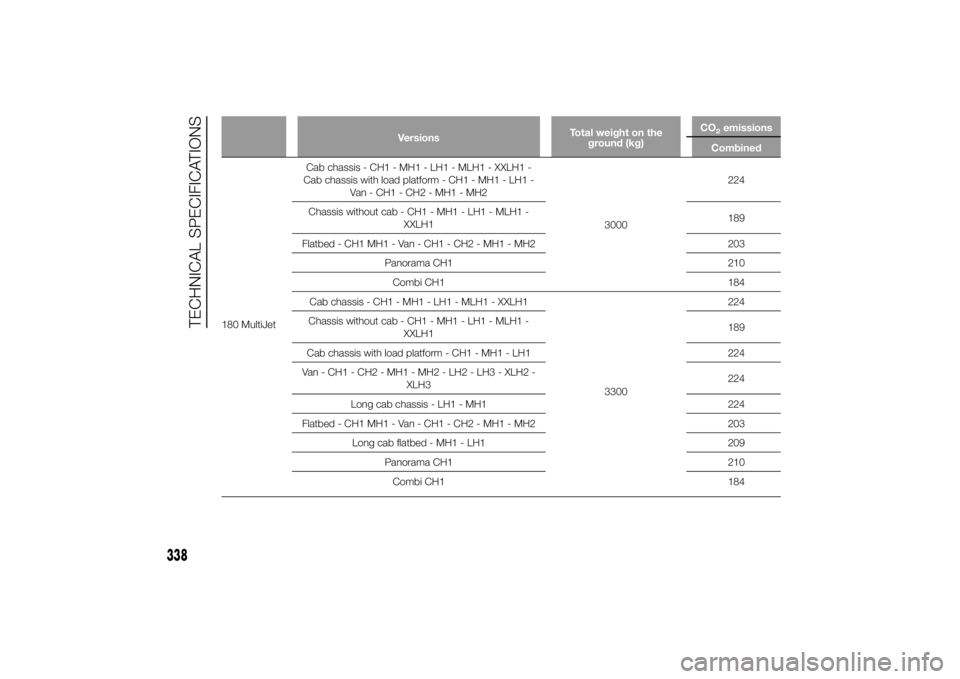

VersionsTotal weight on the
ground (kg)CO
2emissions
Combined
180 MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Cab chassis with load platform - CH1 - MH1 - LH1 -
Van - CH1 - CH2 - MH1 - MH2
3000224
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1189
Flatbed - CH1 MH1 - Van - CH1 - CH2 - MH1 - MH2 203
Panorama CH1 210
Combi CH1 184
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1
3300224
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1189
Cab chassis with load platform - CH1 - MH1 - LH1 224
Van - CH1 - CH2 - MH1 - MH2 - LH2 - LH3 - XLH2 -
XLH3224
Long cab chassis - LH1 - MH1 224
Flatbed - CH1 MH1 - Van - CH1 - CH2 - MH1 - MH2 203
Long cab flatbed - MH1 - LH1 209
Panorama CH1 210
Combi CH1 184
338
TECHNICAL SPECIFICATIONS

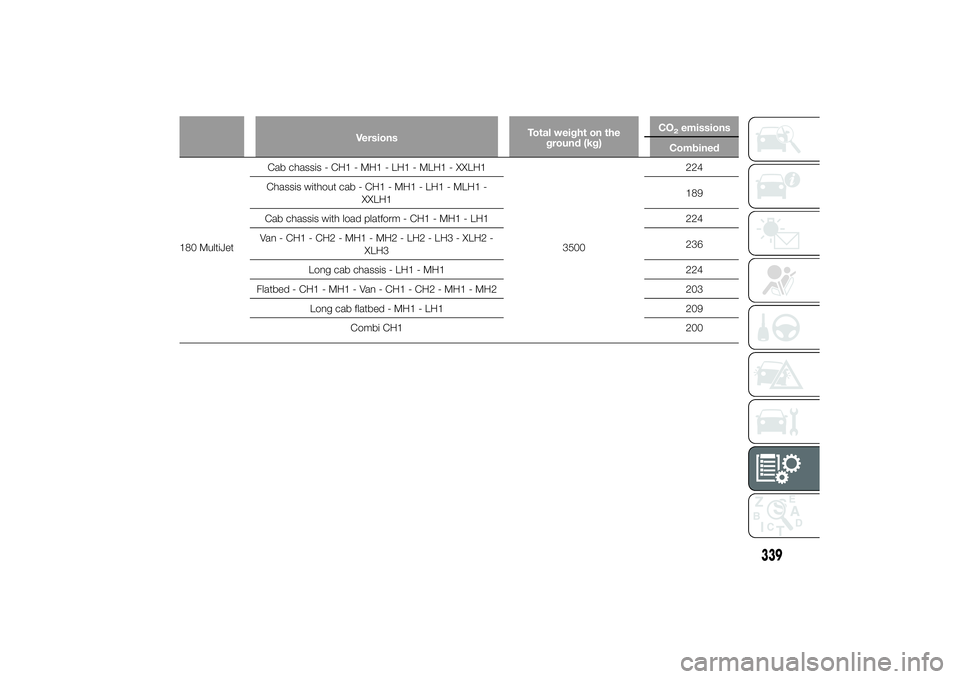

VersionsTotal weight on the
ground (kg)CO
2emissions
Combined
180 MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1
3500224
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1189
Cab chassis with load platform - CH1 - MH1 - LH1 224
Van - CH1 - CH2 - MH1 - MH2 - LH2 - LH3 - XLH2 -
XLH3236
Long cab chassis - LH1 - MH1 224
Flatbed - CH1 - MH1 - Van - CH1 - CH2 - MH1 - MH2 203
Long cab flatbed - MH1 - LH1 209
Combi CH1 200
339

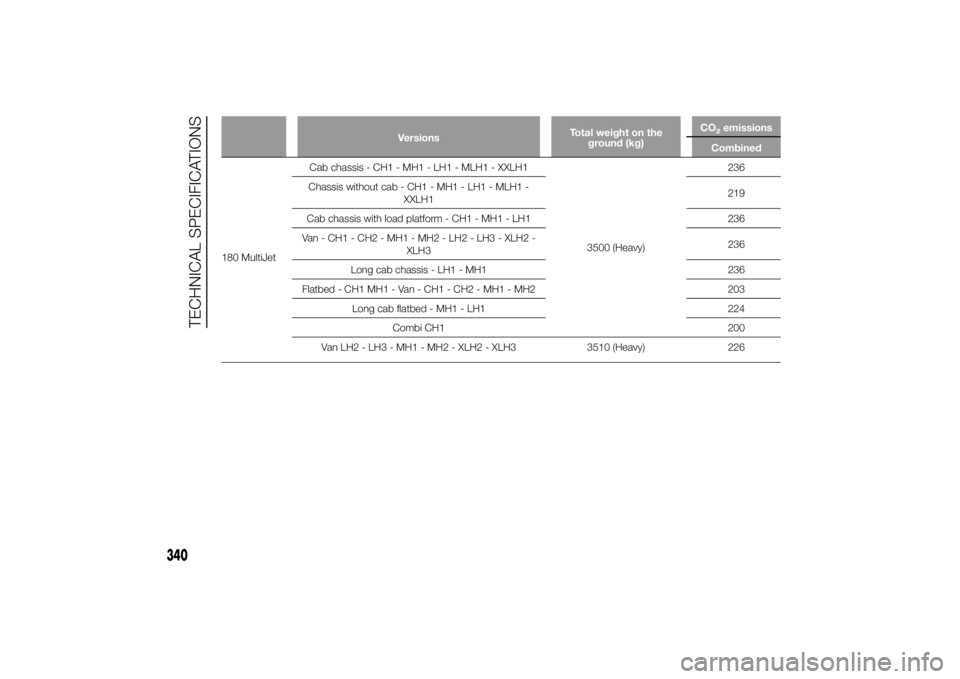

VersionsTotal weight on the
ground (kg)CO
2emissions
Combined
180 MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1
3500 (Heavy)236
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1219
Cab chassis with load platform - CH1 - MH1 - LH1 236
Van - CH1 - CH2 - MH1 - MH2 - LH2 - LH3 - XLH2 -
XLH3236
Long cab chassis - LH1 - MH1 236
Flatbed - CH1 MH1 - Van - CH1 - CH2 - MH1 - MH2 203
Long cab flatbed - MH1 - LH1 224
Combi CH1 200
Van LH2 - LH3 - MH1 - MH2 - XLH2 - XLH3 3510 (Heavy) 226
340
TECHNICAL SPECIFICATIONS

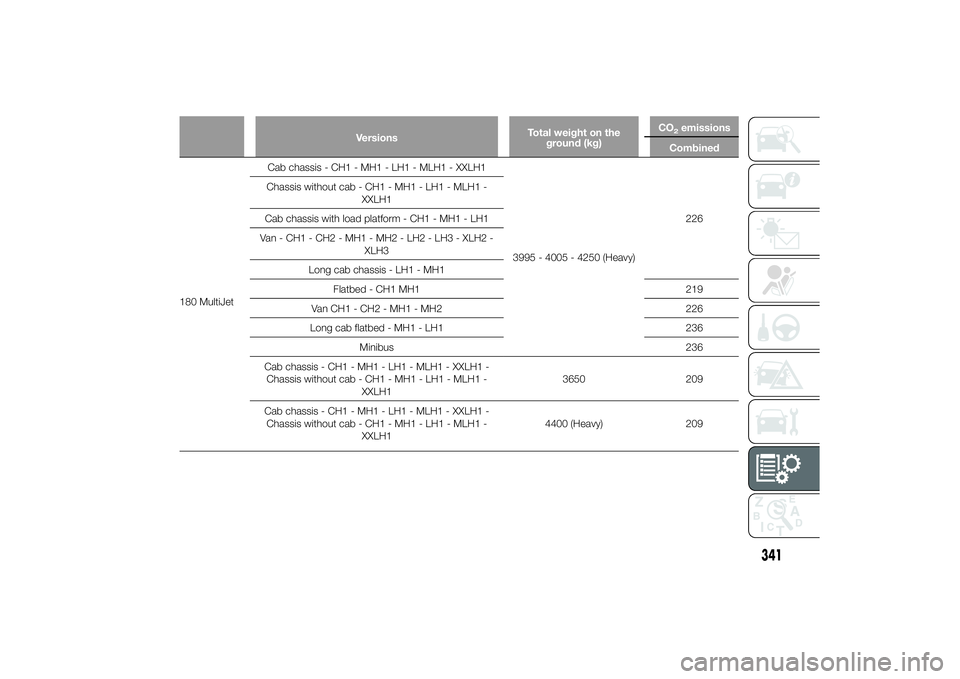

VersionsTotal weight on the
ground (kg)CO
2emissions
Combined
180 MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1
3995 - 4005 - 4250 (Heavy)226 Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1
Cab chassis with load platform - CH1 - MH1 - LH1
Van - CH1 - CH2 - MH1 - MH2 - LH2 - LH3 - XLH2 -
XLH3
Long cab chassis - LH1 - MH1
Flatbed - CH1 MH1 219
Van CH1 - CH2 - MH1 - MH2 226
Long cab flatbed - MH1 - LH1 236
Minibus 236
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH13650 209
Cab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH14400 (Heavy) 209
341

OFFICIAL TYPE APPROVALS
342
TECHNICAL SPECIFICATIONS

343

344
TECHNICAL SPECIFICATIONS

345

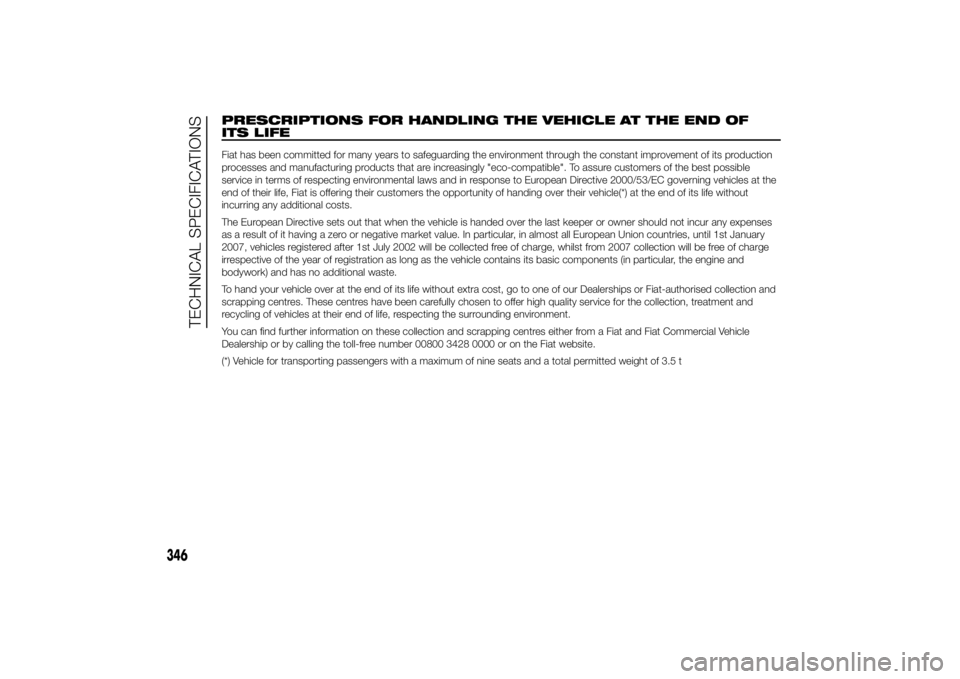

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF
ITS LIFEFiat has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To assure customers of the best possible
service in terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the
end of their life, Fiat is offering their customers the opportunity of handing over their vehicle(*) at the end of its life without
incurring any additional costs.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not incur any expenses
as a result of it having a zero or negative market value. In particular, in almost all European Union countries, until 1st January
2007, vehicles registered after 1st July 2002 will be collected free of charge, whilst from 2007 collection will be free of charge
irrespective of the year of registration as long as the vehicle contains its basic components (in particular, the engine and
bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, go to one of our Dealerships or Fiat-authorised collection and
scrapping centres. These centres have been carefully chosen to offer high quality service for the collection, treatment and
recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from a Fiat and Fiat Commercial Vehicle
Dealership or by calling the toll-free number 00800 3428 0000 or on the Fiat website.
(*) Vehicle for transporting passengers with a maximum of nine seats and a total permitted weight of 3.5 t
346
