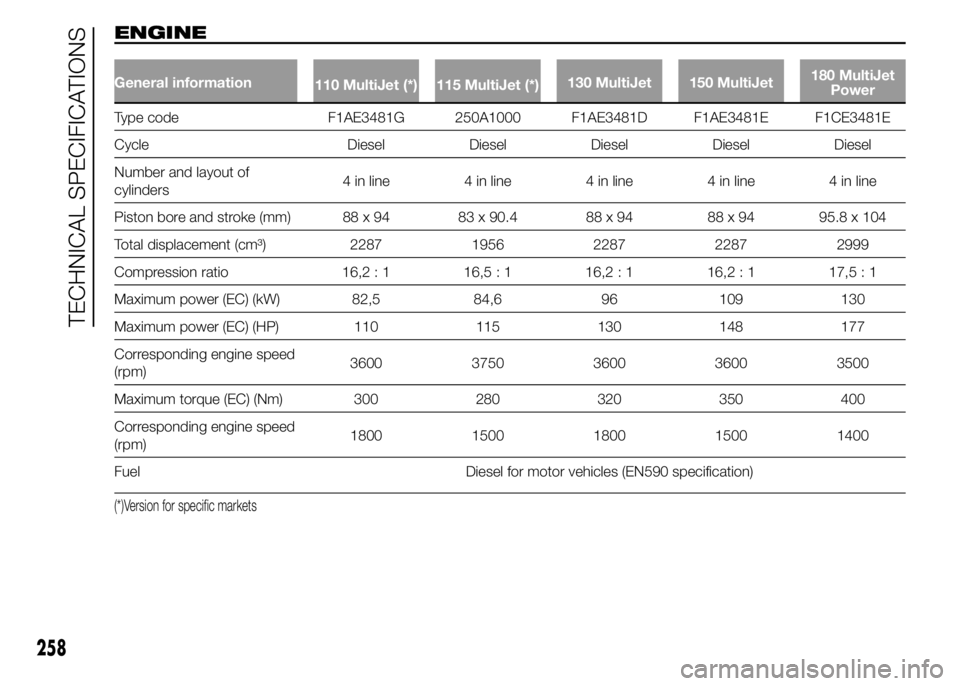

ENGINE
General information
110 MultiJet (*) 115 MultiJet (*)130 MultiJet 150 MultiJet180 MultiJet
Power
Type code F1AE3481G 250A1000 F1AE3481D F1AE3481E F1CE3481E
Cycle Diesel Diesel Diesel Diesel Diesel
Number and layout of
cylinders4 in line 4 in line 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 88 x 94 83 x 90.4 88 x 94 88 x 94 95.8 x 104
Total displacement (cm³) 2287 1956 2287 2287 2999
Compression ratio 16,2 : 1 16,5 : 1 16,2 : 1 16,2 : 1 17,5 : 1
Maximum power (EC) (kW) 82,5 84,6 96 109 130
Maximum power (EC) (HP) 110 115 130 148 177
Corresponding engine speed
(rpm)3600 3750 3600 3600 3500
Maximum torque (EC) (Nm) 300 280 320 350 400
Corresponding engine speed
(rpm)1800 1500 1800 1500 1400
Fuel Diesel for motor vehicles (EN590 specification)
(*)Version for specific markets
258
TECHNICAL SPECIFICATIONS
