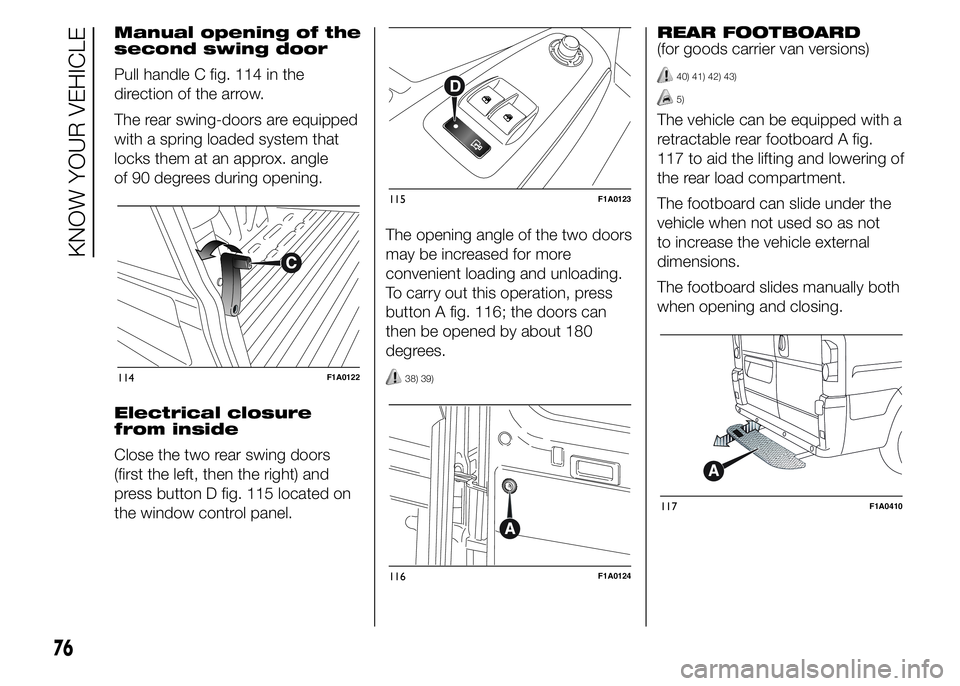

Manual opening of the
second swing door
Pull handle C fig. 114 in the
direction of the arrow.
The rear swing-doors are equipped
with a spring loaded system that
locks them at an approx. angle
of 90 degrees during opening.
Electrical closure
from inside
Close the two rear swing doors
(first the left, then the right) and
press button D fig. 115 located on
the window control panel.The opening angle of the two doors
may be increased for more
convenient loading and unloading.
To carry out this operation, press
button A fig. 116; the doors can
then be opened by about 180
degrees.
38) 39)
REAR FOOTBOARD
(for goods carrier van versions)
40) 41) 42) 43)
5)
The vehicle can be equipped with a
retractable rear footboard A fig.
117 to aid the lifting and lowering of
the rear load compartment.
The footboard can slide under the
vehicle when not used so as not
to increase the vehicle external
dimensions.
The footboard slides manually both
when opening and closing.
114F1A0122
115F1A0123
116F1A0124
117F1A0410
76
KNOW YOUR VEHICLE

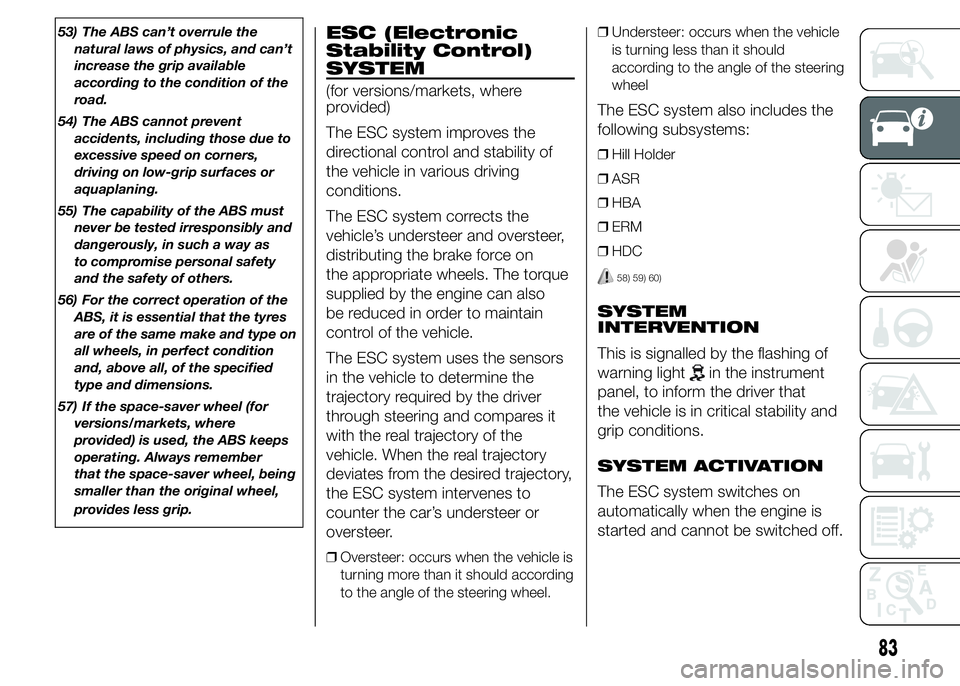

53) The ABS can’t overrule the
natural laws of physics, and can’t
increase the grip available
according to the condition of the
road.
54) The ABS cannot prevent
accidents, including those due to
excessive speed on corners,
driving on low-grip surfaces or
aquaplaning.
55) The capability of the ABS must
never be tested irresponsibly and
dangerously, in such a way as
to compromise personal safety
and the safety of others.
56) For the correct operation of the
ABS, it is essential that the tyres
are of the same make and type on
all wheels, in perfect condition
and, above all, of the specified
type and dimensions.
57) If the space-saver wheel (for
versions/markets, where
provided) is used, the ABS keeps
operating. Always remember
that the space-saver wheel, being
smaller than the original wheel,
provides less grip.ESC (Electronic
Stability Control)
SYSTEM
(for versions/markets, where
provided)
The ESC system improves the
directional control and stability of
the vehicle in various driving
conditions.
The ESC system corrects the
vehicle’s understeer and oversteer,
distributing the brake force on
the appropriate wheels. The torque
supplied by the engine can also
be reduced in order to maintain
control of the vehicle.
The ESC system uses the sensors
in the vehicle to determine the
trajectory required by the driver
through steering and compares it
with the real trajectory of the
vehicle. When the real trajectory
deviates from the desired trajectory,
the ESC system intervenes to
counter the car’s understeer or
oversteer.
❒Oversteer: occurs when the vehicle is
turning more than it should according
to the angle of the steering wheel.❒Understeer: occurs when the vehicle
is turning less than it should
according to the angle of the steering
wheel
The ESC system also includes the
following subsystems:
❒Hill Holder
❒ASR
❒HBA
❒ERM
❒HDC
58) 59) 60)
SYSTEM
INTERVENTION
This is signalled by the flashing of
warning light
in the instrument
panel, to inform the driver that
the vehicle is in critical stability and
grip conditions.
SYSTEM ACTIVATION
The ESC system switches on
automatically when the engine is
started and cannot be switched off.
83

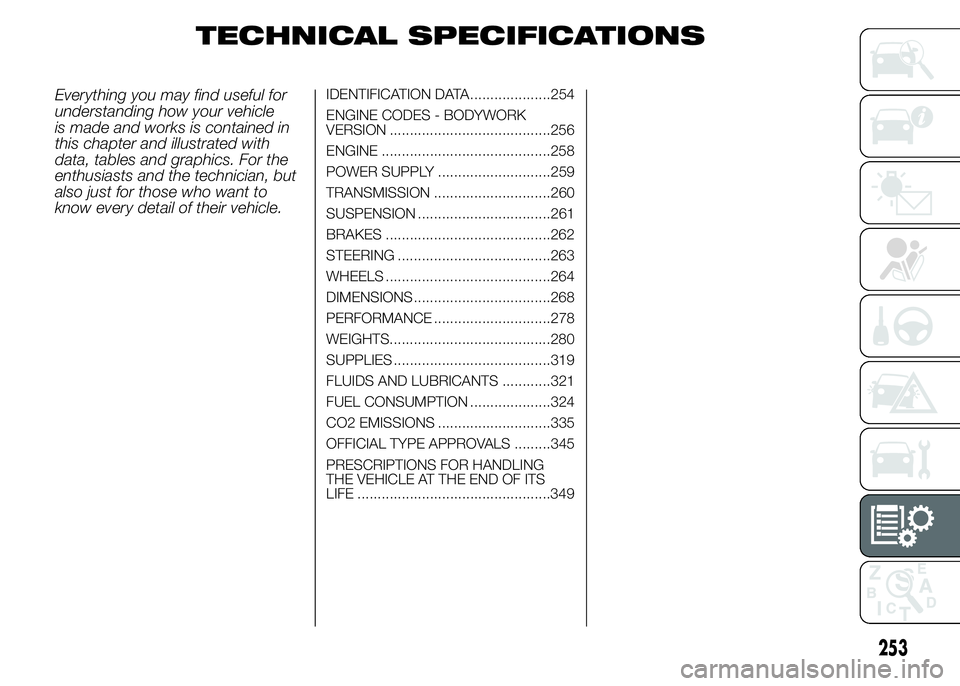

TECHNICAL SPECIFICATIONS
Everything you may find useful for
understanding how your vehicle
is made and works is contained in
this chapter and illustrated with
data, tables and graphics. For the
enthusiasts and the technician, but
also just for those who want to
know every detail of their vehicle.IDENTIFICATION DATA....................254
ENGINE CODES - BODYWORK
VERSION ........................................256
ENGINE ..........................................258
POWER SUPPLY ............................259
TRANSMISSION .............................260
SUSPENSION .................................261
BRAKES .........................................262
STEERING ......................................263
WHEELS .........................................264
DIMENSIONS ..................................268
PERFORMANCE .............................278
WEIGHTS........................................280
SUPPLIES .......................................319
FLUIDS AND LUBRICANTS ............321
FUEL CONSUMPTION ....................324
CO2 EMISSIONS ............................335
OFFICIAL TYPE APPROVALS .........345
PRESCRIPTIONS FOR HANDLING
THE VEHICLE AT THE END OF ITS
LIFE ................................................349
253

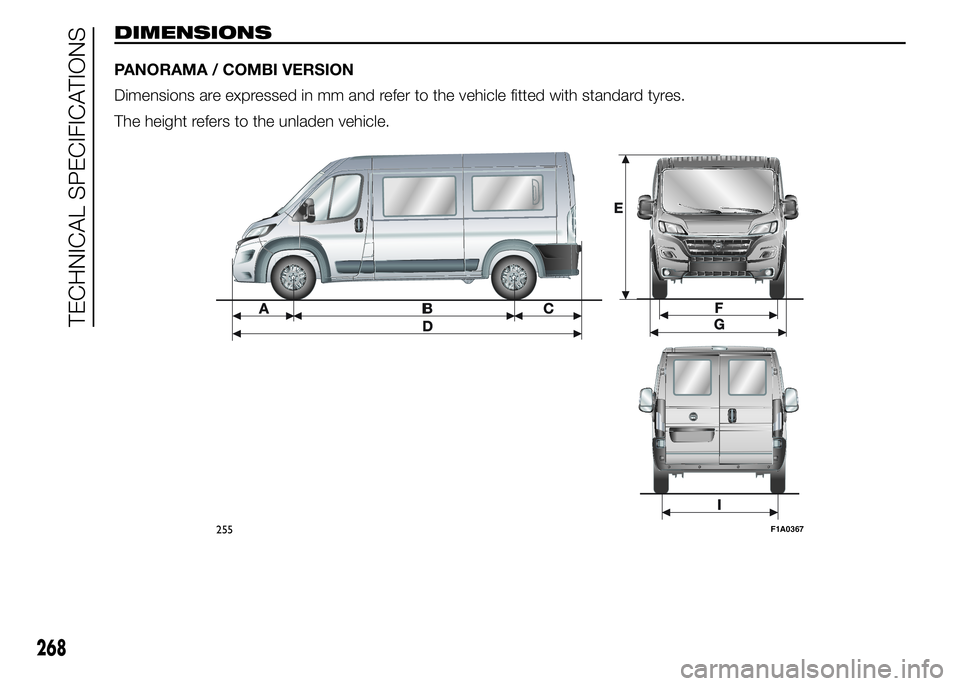

DIMENSIONS
PANORAMA / COMBI VERSION
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
The height refers to the unladen vehicle.
255F1A0367
268
TECHNICAL SPECIFICATIONS

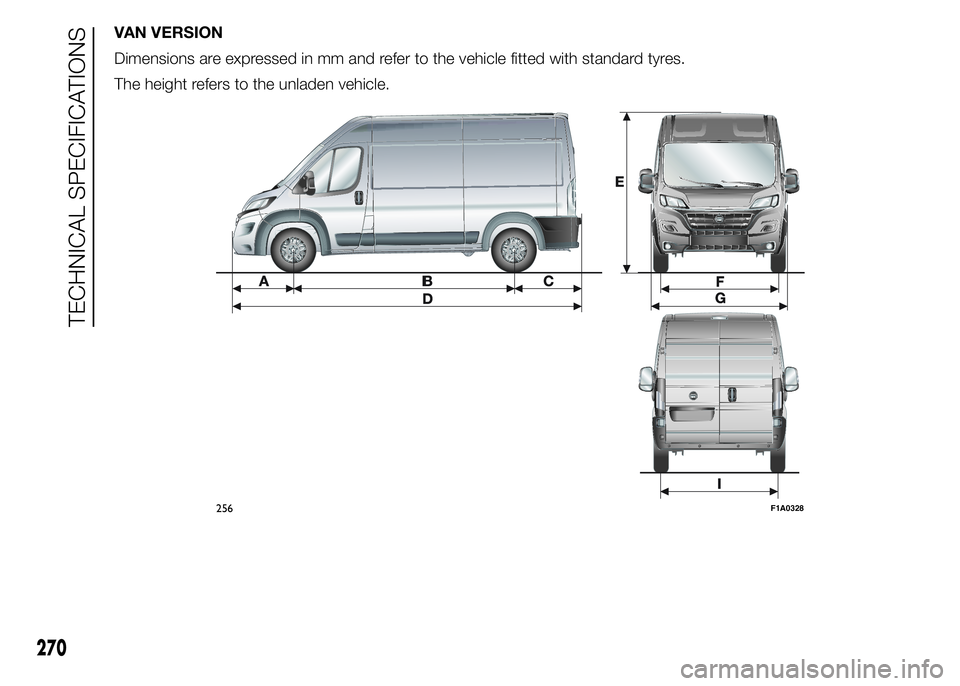

VAN VERSION
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
The height refers to the unladen vehicle.
256F1A0328
270
TECHNICAL SPECIFICATIONS

TRUCK VERSION
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
The height refers to the unladen vehicle.
257F1A0329
272
TECHNICAL SPECIFICATIONS

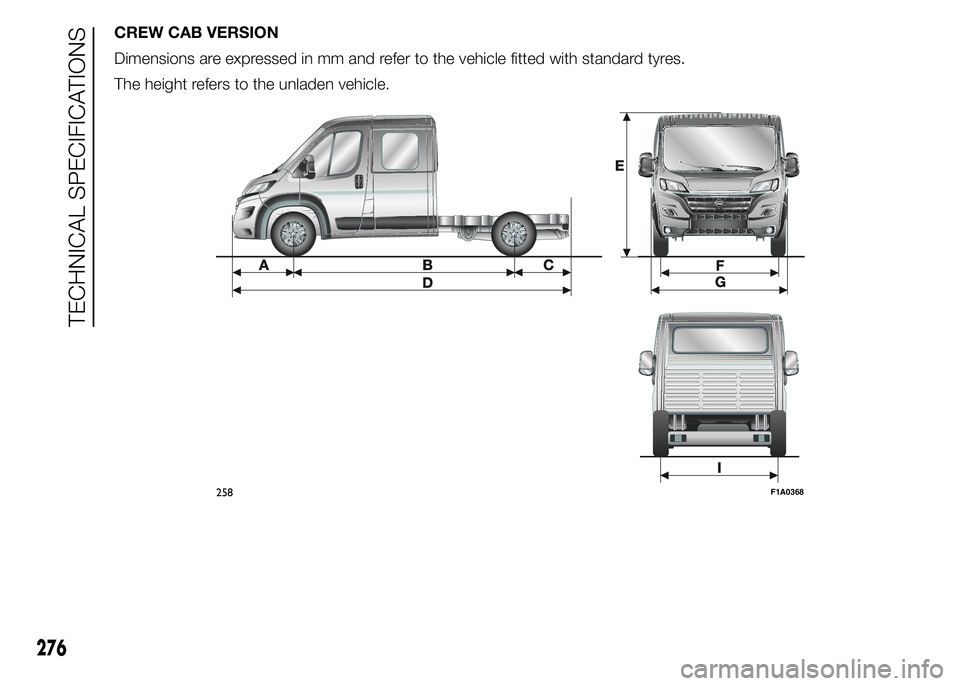

CREW CAB VERSION
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
The height refers to the unladen vehicle.
258F1A0368
276
TECHNICAL SPECIFICATIONS

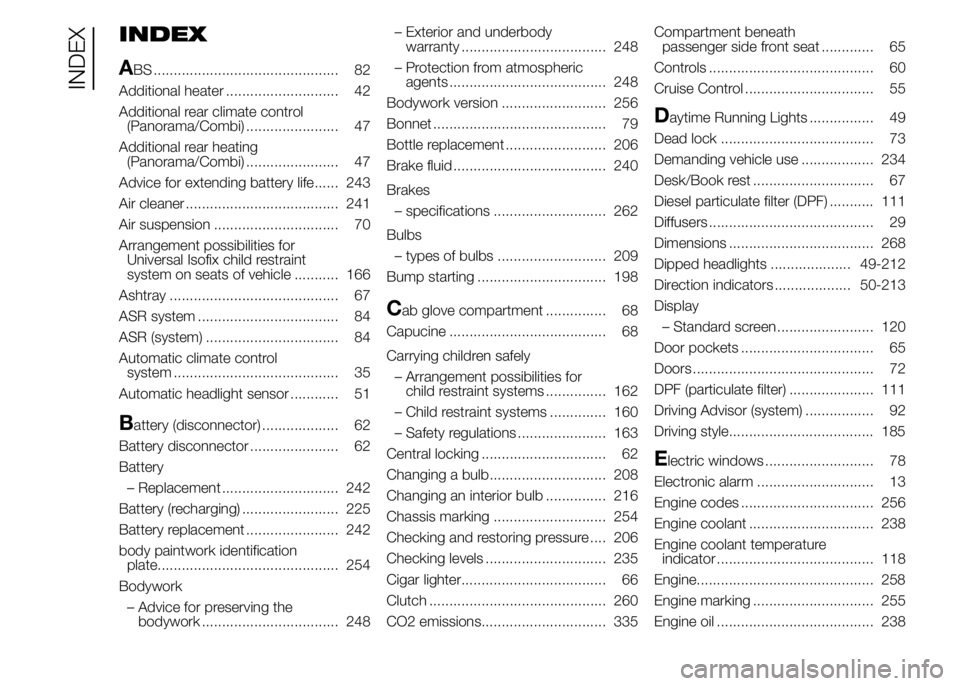

INDEX
A
BS .............................................. 82
Additional heater ............................ 42
Additional rear climate control
(Panorama/Combi) ....................... 47
Additional rear heating
(Panorama/Combi) ....................... 47
Advice for extending battery life...... 243
Air cleaner ...................................... 241
Air suspension ............................... 70
Arrangement possibilities for
Universal Isofix child restraint
system on seats of vehicle ........... 166
Ashtray .......................................... 67
ASR system ................................... 84
ASR (system) ................................. 84
Automatic climate control
system ......................................... 35
Automatic headlight sensor ............ 51
Battery (disconnector) ................... 62
Battery disconnector ...................... 62
Battery
– Replacement ............................. 242
Battery (recharging) ........................ 225
Battery replacement ....................... 242
body paintwork identification
plate............................................. 254
Bodywork
– Advice for preserving the
bodywork .................................. 248– Exterior and underbody
warranty .................................... 248
– Protection from atmospheric
agents ....................................... 248
Bodywork version .......................... 256
Bonnet ........................................... 79
Bottle replacement ......................... 206
Brake fluid ...................................... 240
Brakes
– specifications ............................ 262
Bulbs
– types of bulbs ........................... 209
Bump starting ................................ 198
Cab glove compartment ............... 68
Capucine ....................................... 68
Carrying children safely
– Arrangement possibilities for
child restraint systems ............... 162
– Child restraint systems .............. 160
– Safety regulations ...................... 163
Central locking ............................... 62
Changing a bulb............................. 208
Changing an interior bulb ............... 216
Chassis marking ............................ 254
Checking and restoring pressure .... 206
Checking levels .............................. 235
Cigar lighter.................................... 66
Clutch ............................................ 260
CO2 emissions............................... 335Compartment beneath
passenger side front seat ............. 65
Controls ......................................... 60
Cruise Control ................................ 55
Daytime Running Lights ................ 49
Dead lock ...................................... 73
Demanding vehicle use .................. 234
Desk/Book rest .............................. 67
Diesel particulate filter (DPF) ........... 111
Diffusers ......................................... 29
Dimensions .................................... 268
Dipped headlights .................... 49-212
Direction indicators ................... 50-213
Display
– Standard screen ........................ 120
Door pockets ................................. 65
Doors ............................................. 72
DPF (particulate filter) ..................... 111
Driving Advisor (system) ................. 92
Driving style.................................... 185
Electric windows ........................... 78
Electronic alarm ............................. 13
Engine codes ................................. 256
Engine coolant ............................... 238
Engine coolant temperature
indicator ....................................... 118
Engine............................................ 258
Engine marking .............................. 255
Engine oil ....................................... 238
