ignition FIAT DUCATO 2015 Owner handbook (in English)

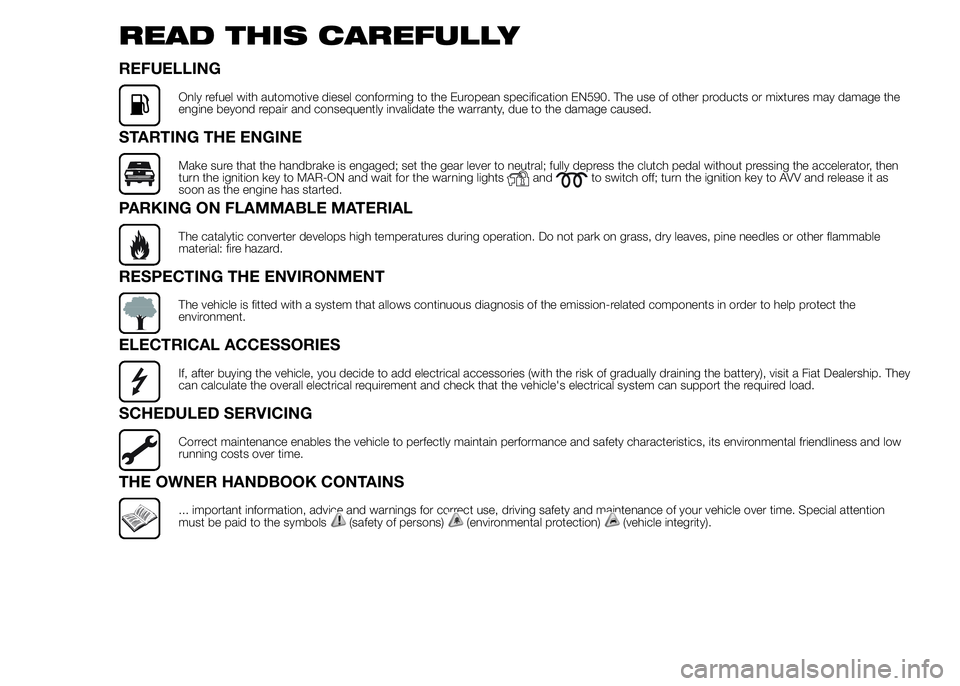

READ THIS CAREFULLY
REFUELLING
Only refuel with automotive diesel conforming to the European specification EN590. The use of other products or mixtures may damage the
engine beyond repair and consequently invalidate the warranty, due to the damage caused.
STARTING THE ENGINE
Make sure that the handbrake is engaged; set the gear lever to neutral; fully depress the clutch pedal without pressing the accelerator, then
turn the ignition key to MAR-ON and wait for the warning lightsandto switch off; turn the ignition key to AVV and release it as
soon as the engine has started.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter develops high temperatures during operation. Do not park on grass, dry leaves, pine needles or other flammable
material: fire hazard.
RESPECTING THE ENVIRONMENT
The vehicle is fitted with a system that allows continuous diagnosis of the emission-related components in order to help protect the
environment.
ELECTRICAL ACCESSORIES
If, after buying the vehicle, you decide to add electrical accessories (with the risk of gradually draining the battery), visit a Fiat Dealership. They
can calculate the overall electrical requirement and check that the vehicle's electrical system can support the required load.
SCHEDULED SERVICING
Correct maintenance enables the vehicle to perfectly maintain performance and safety characteristics, its environmental friendliness and low
running costs over time.
THE OWNER HANDBOOK CONTAINS
... important information, advice and warnings for correct use, driving safety and maintenance of your vehicle over time. Special attention
must be paid to the symbols(safety of persons)(environmental protection)(vehicle integrity).

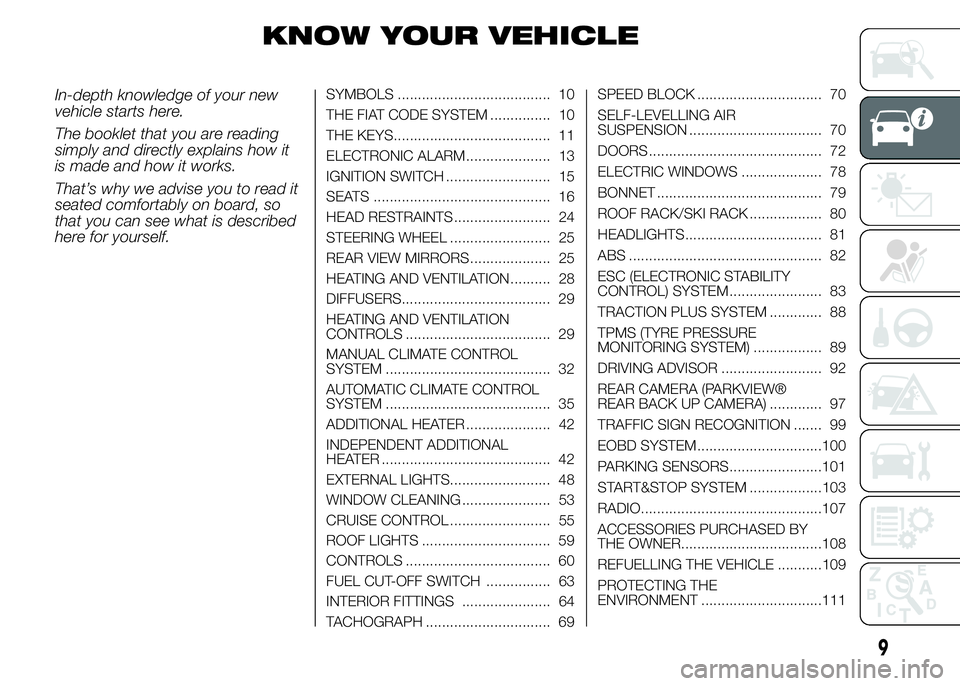

KNOW YOUR VEHICLE
In-depth knowledge of your new
vehicle starts here.
The booklet that you are reading
simply and directly explains how it
is made and how it works.
That’s why we advise you to read it
seated comfortably on board, so
that you can see what is described
here for yourself.SYMBOLS ...................................... 10
THE FIAT CODE SYSTEM ............... 10
THE KEYS....................................... 11
ELECTRONIC ALARM..................... 13
IGNITION SWITCH .......................... 15
SEATS ............................................ 16
HEAD RESTRAINTS ........................ 24
STEERING WHEEL ......................... 25
REAR VIEW MIRRORS .................... 25
HEATING AND VENTILATION.......... 28
DIFFUSERS..................................... 29
HEATING AND VENTILATION
CONTROLS .................................... 29
MANUAL CLIMATE CONTROL
SYSTEM ......................................... 32
AUTOMATIC CLIMATE CONTROL
SYSTEM ......................................... 35
ADDITIONAL HEATER ..................... 42
INDEPENDENT ADDITIONAL
HEATER .......................................... 42

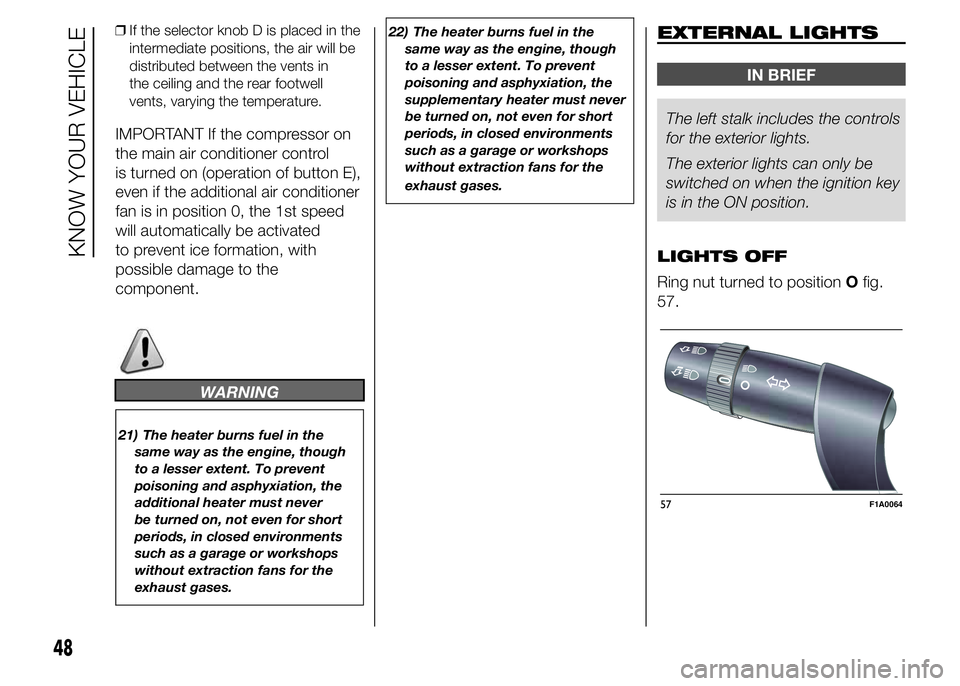

EXTERNAL LIGHTS......................... 48
WINDOW CLEANING ...................... 53
CRUISE CONTROL ......................... 55
ROOF LIGHTS ................................ 59
CONTROLS .................................... 60
FUEL CUT-OFF SWITCH ................ 63
INTERIOR FITTINGS ...................... 64
TACHOGRAPH ............................... 69SPEED BLOCK ............................... 70
SELF-LEVELLING AIR
SUSPENSION ................................. 70
DOORS ........................................... 72
ELECTRIC WINDOWS .................... 78
BONNET ......................................... 79
ROOF RACK/SKI RACK .................. 80
HEADLIGHTS.................................. 81
ABS ................................................ 82
ESC (ELECTRONIC STABILITY
CONTROL) SYSTEM ....................... 83
TRACTION PLUS SYSTEM ............. 88
TPMS (TYRE PRESSURE
MONITORING SYSTEM) ................. 89
DRIVING ADVISOR ......................... 92
REAR CAMERA (PARKVIEW®
REAR BACK UP CAMERA) ............. 97
TRAFFIC SIGN RECOGNITION ....... 99
EOBD SYSTEM...............................100
PARKING SENSORS.......................101
START&STOP SYSTEM ..................103
RADIO.............................................107
ACCESSORIES PURCHASED BY
THE OWNER...................................108
REFUELLING THE VEHICLE ...........109
PROTECTING THE
ENVIRONMENT ..............................111
9

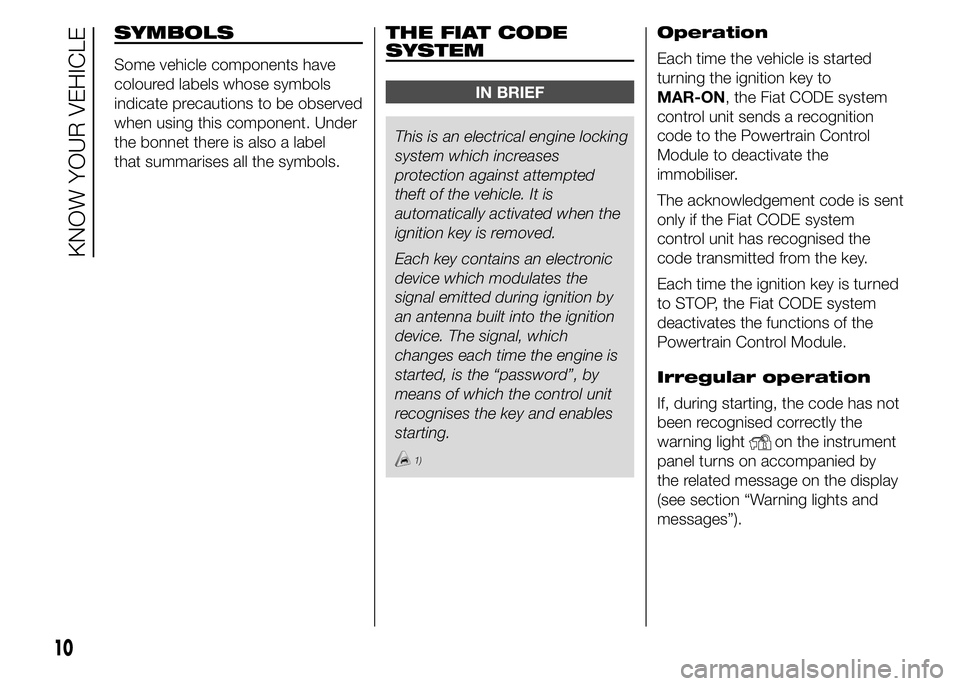

SYMBOLS
Some vehicle components have
coloured labels whose symbols
indicate precautions to be observed
when using this component. Under
the bonnet there is also a label
that summarises all the symbols.
THE FIAT CODE
SYSTEM
IN BRIEF
This is an electrical engine locking
system which increases
protection against attempted
theft of the vehicle. It is
automatically activated when the
ignition key is removed.
Each key contains an electronic
device which modulates the
signal emitted during ignition by
an antenna built into the ignition
device. The signal, which
changes each time the engine is
started, is the “password”, by
means of which the control unit
recognises the key and enables
starting.
1)
Operation
Each time the vehicle is started
turning the ignition key to
MAR-ON, the Fiat CODE system
control unit sends a recognition
code to the Powertrain Control
Module to deactivate the
immobiliser.
The acknowledgement code is sent
only if the Fiat CODE system
control unit has recognised the
code transmitted from the key.
Each time the ignition key is turned
to STOP, the Fiat CODE system
deactivates the functions of the
Powertrain Control Module.
Irregular operation
If, during starting, the code has not
been recognised correctly the
warning light
on the instrument
panel turns on accompanied by
the related message on the display
(see section “Warning lights and
messages”).
10
KNOW YOUR VEHICLE

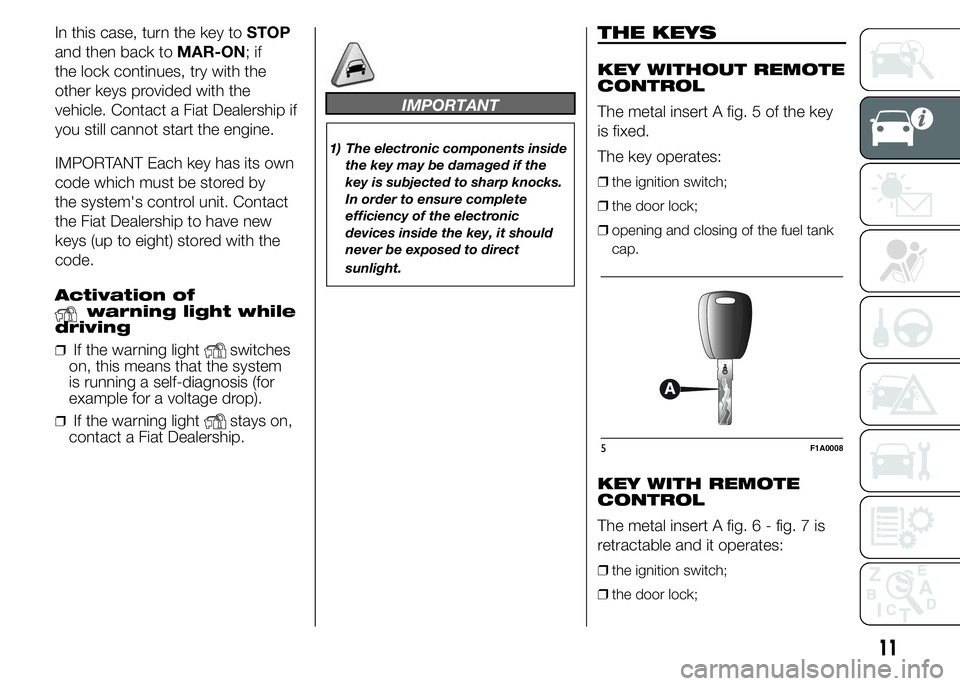

In this case, turn the key toSTOP
and then back toMAR-ON;if
the lock continues, try with the
other keys provided with the
vehicle. Contact a Fiat Dealership if
you still cannot start the engine.
IMPORTANT Each key has its own
code which must be stored by
the system's control unit. Contact
the Fiat Dealership to have new
keys (up to eight) stored with the
code.
Activation of
warning light while
driving
❒If the warning lightswitches
on, this means that the system
is running a self-diagnosis (for
example for a voltage drop).
❒If the warning lightstays on,
contact a Fiat Dealership.
IMPORTANT
1) The electronic components inside
the key may be damaged if the
key is subjected to sharp knocks.
In order to ensure complete
efficiency of the electronic
devices inside the key, it should
never be exposed to direct
sunlight.
THE KEYS
KEY WITHOUT REMOTE
CONTROL
The metal insert A fig. 5 of the key
is fixed.
The key operates:
❒the ignition switch;
❒the door lock;
❒opening and closing of the fuel tank
cap.
KEY WITH REMOTE
CONTROL
The metal insert A fig.6-fig.7is
retractable and it operates:
❒the ignition switch;
❒the door lock;
5F1A0008
11

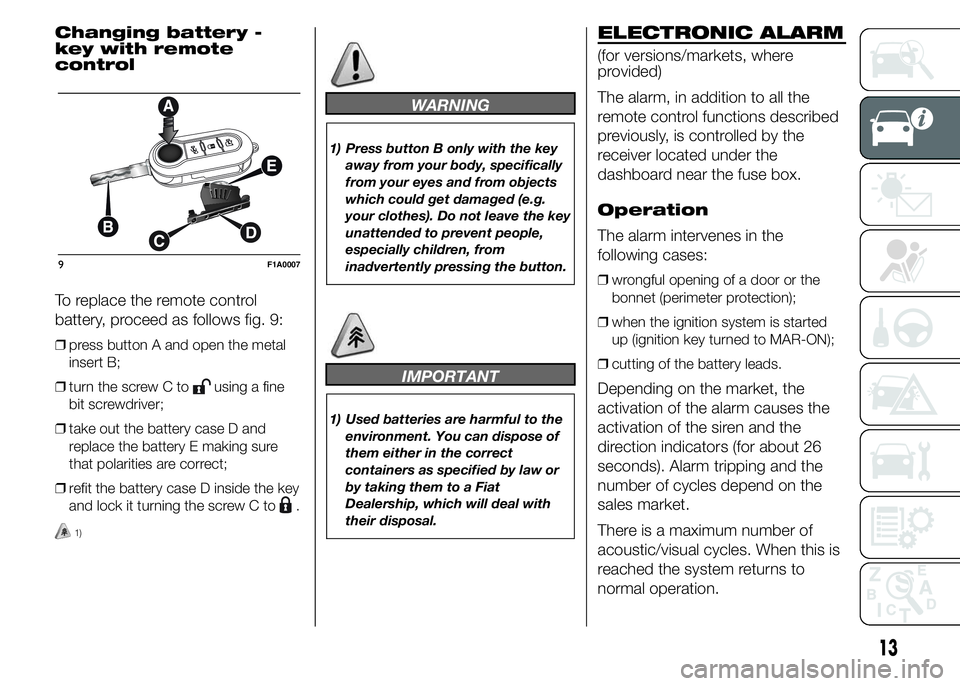

Changing battery -
key with remote
control
To replace the remote control
battery, proceed as follows fig. 9:
❒press button A and open the metal
insert B;
❒turn the screw C to
using a fine
bit screwdriver;
❒take out the battery case D and
replace the battery E making sure
that polarities are correct;
❒refit the battery case D inside the key
and lock it turning the screw C to
.
1)
WARNING
1) Press button B only with the key
away from your body, specifically
from your eyes and from objects
which could get damaged (e.g.
your clothes). Do not leave the key
unattended to prevent people,
especially children, from
inadvertently pressing the button.
IMPORTANT
1) Used batteries are harmful to the
environment. You can dispose of
them either in the correct
containers as specified by law or
by taking them to a Fiat
Dealership, which will deal with
their disposal.
ELECTRONIC ALARM
(for versions/markets, where
provided)
The alarm, in addition to all the
remote control functions described
previously, is controlled by the
receiver located under the
dashboard near the fuse box.
Operation
The alarm intervenes in the
following cases:
❒wrongful opening of a door or the
bonnet (perimeter protection);
❒when the ignition system is started
up (ignition key turned to MAR-ON);
❒cutting of the battery leads.
Depending on the market, the
activation of the alarm causes the
activation of the siren and the
direction indicators (for about 26
seconds). Alarm tripping and the
number of cycles depend on the
sales market.
There is a maximum number of
acoustic/visual cycles. When this is
reached the system returns to
normal operation.
9F1A0007
13

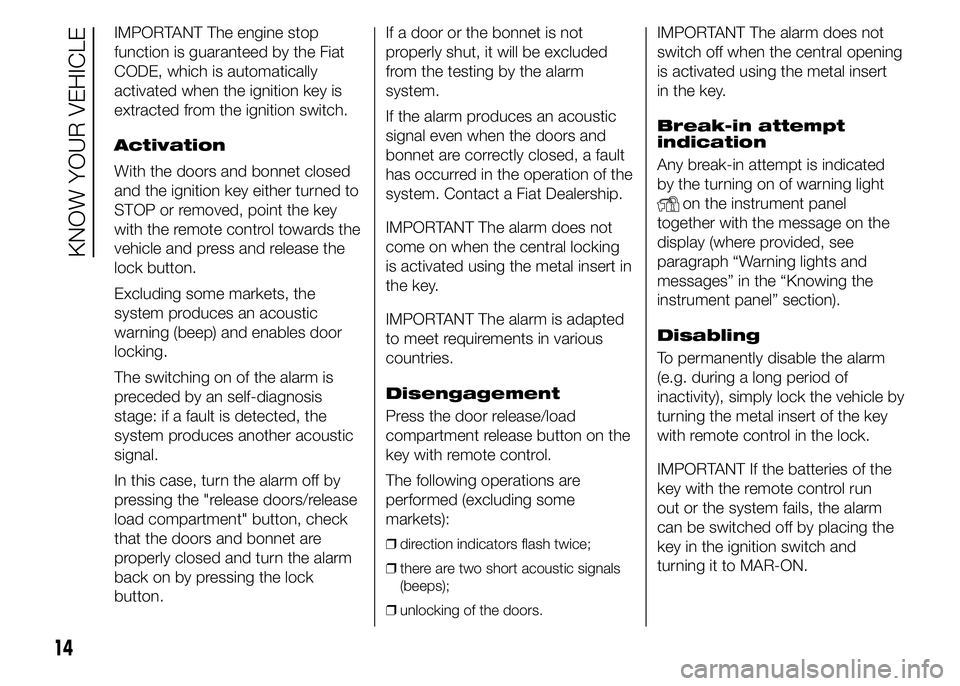

IMPORTANT The engine stop
function is guaranteed by the Fiat
CODE, which is automatically
activated when the ignition key is
extracted from the ignition switch.
Activation
With the doors and bonnet closed
and the ignition key either turned to
STOP or removed, point the key
with the remote control towards the
vehicle and press and release the
lock button.
Excluding some markets, the
system produces an acoustic
warning (beep) and enables door
locking.
The switching on of the alarm is
preceded by an self-diagnosis
stage: if a fault is detected, the
system produces another acoustic
signal.
In this case, turn the alarm off by
pressing the "release doors/release
load compartment" button, check
that the doors and bonnet are
properly closed and turn the alarm
back on by pressing the lock
button.If a door or the bonnet is not
properly shut, it will be excluded
from the testing by the alarm
system.
If the alarm produces an acoustic
signal even when the doors and
bonnet are correctly closed, a fault
has occurred in the operation of the
system. Contact a Fiat Dealership.
IMPORTANT The alarm does not
come on when the central locking
is activated using the metal insert in
the key.
IMPORTANT The alarm is adapted
to meet requirements in various
countries.
Disengagement
Press the door release/load
compartment release button on the
key with remote control.
The following operations are
performed (excluding some
markets):
❒direction indicators flash twice;
❒there are two short acoustic signals
(beeps);
❒unlocking of the doors.
IMPORTANT The alarm does not
switch off when the central opening
is activated using the metal insert
in the key.
Break-in attempt
indication
Any break-in attempt is indicated
by the turning on of warning light
on the instrument panel
together with the message on the
display (where provided, see
paragraph “Warning lights and
messages” in the “Knowing the
instrument panel” section).
Disabling
To permanently disable the alarm
(e.g. during a long period of
inactivity), simply lock the vehicle by
turning the metal insert of the key
with remote control in the lock.
IMPORTANT If the batteries of the
key with the remote control run
out or the system fails, the alarm
can be switched off by placing the
key in the ignition switch and
turning it to MAR-ON.
14
KNOW YOUR VEHICLE

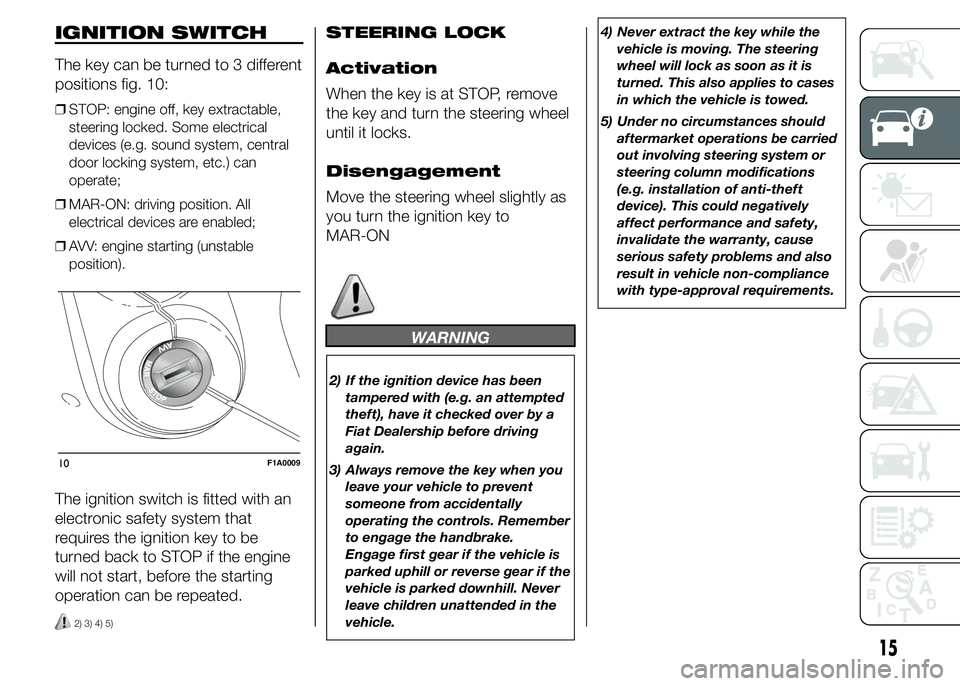

IGNITION SWITCH
The key can be turned to 3 different
positions fig. 10:
❒STOP: engine off, key extractable,
steering locked. Some electrical
devices (e.g. sound system, central
door locking system, etc.) can
operate;
❒MAR-ON: driving position. All
electrical devices are enabled;
❒AVV: engine starting (unstable
position).
The ignition switch is fitted with an
electronic safety system that
requires the ignition key to be
turned back to STOP if the engine
will not start, before the starting
operation can be repeated.
2) 3) 4) 5)
STEERING LOCK
Activation
When the key is at STOP, remove
the key and turn the steering wheel
until it locks.
Disengagement
Move the steering wheel slightly as
you turn the ignition key to
MAR-ON
WARNING
2) If the ignition device has been
tampered with (e.g. an attempted
theft), have it checked over by a
Fiat Dealership before driving
again.
3) Always remove the key when you
leave your vehicle to prevent
someone from accidentally
operating the controls. Remember
to engage the handbrake.
Engage first gear if the vehicle is
parked uphill or reverse gear if the
vehicle is parked downhill. Never
leave children unattended in the
vehicle.4) Never extract the key while the
vehicle is moving. The steering
wheel will lock as soon as it is
turned. This also applies to cases
in which the vehicle is towed.
5) Under no circumstances should
aftermarket operations be carried
out involving steering system or
steering column modifications
(e.g. installation of anti-theft
device). This could negatively
affect performance and safety,
invalidate the warranty, cause
serious safety problems and also
result in vehicle non-compliance
with type-approval requirements.
10F1A0009
15

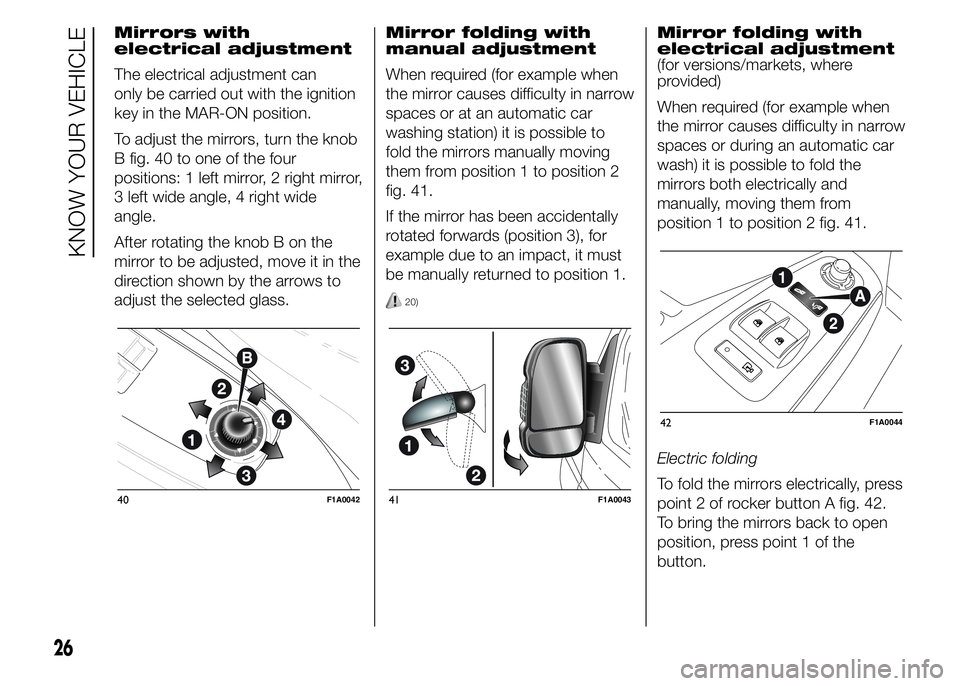

Mirrors with
electrical adjustment
The electrical adjustment can
only be carried out with the ignition
key in the MAR-ON position.
To adjust the mirrors, turn the knob
B fig. 40 to one of the four
positions: 1 left mirror, 2 right mirror,
3 left wide angle, 4 right wide
angle.
After rotating the knob B on the
mirror to be adjusted, move it in the
direction shown by the arrows to
adjust the selected glass.Mirror folding with
manual adjustment
When required (for example when
the mirror causes difficulty in narrow
spaces or at an automatic car
washing station) it is possible to
fold the mirrors manually moving
them from position 1 to position 2
fig. 41.
If the mirror has been accidentally
rotated forwards (position 3), for
example due to an impact, it must
be manually returned to position 1.
20)
Mirror folding with
electrical adjustment
(for versions/markets, where
provided)
When required (for example when
the mirror causes difficulty in narrow
spaces or during an automatic car
wash) it is possible to fold the
mirrors both electrically and
manually, moving them from
position 1 to position 2 fig. 41.
Electric folding
To fold the mirrors electrically, press
point 2 of rocker button A fig. 42.
To bring the mirrors back to open
position, press point 1 of the
button.
40F1A004241F1A0043
42F1A0044
26
KNOW YOUR VEHICLE

IMPORTANT If the compressor on
the main air conditioner control
is turned on (operation of button E),
even if the additional air conditioner
fan is in position 0, the 1st speed
will automatically be activated
to prevent ice formation, with
possible damage to the
component.
WARNING
21) The heater burns fuel in the
same way as the engine, though
to a lesser extent. To prevent
poisoning and asphyxiation, the
additional heater must never
be turned on, not even for short
periods, in closed environments
such as a garage or workshops
without extraction fans for the
exhaust gases.22) The heater burns fuel in the
same way as the engine, though
to a lesser extent. To prevent
poisoning and asphyxiation, the
supplementary heater must never
be turned on, not even for short
periods, in closed environments
such as a garage or workshops
without extraction fans for the
exhaust gases.
EXTERNAL LIGHTS
IN BRIEF
The left stalk includes the controls
for the exterior lights.
The exterior lights can only be
switched on when the ignition key
is in the ON position.
LIGHTS OFF
Ring nut turned to positionOfig.
57.
57F1A0064
48
KNOW YOUR VEHICLE
❒If the selector knob D is placed in the
intermediate positions, the air will be
distributed between the vents in
the ceiling and the rear footwell
vents, varying the temperature.

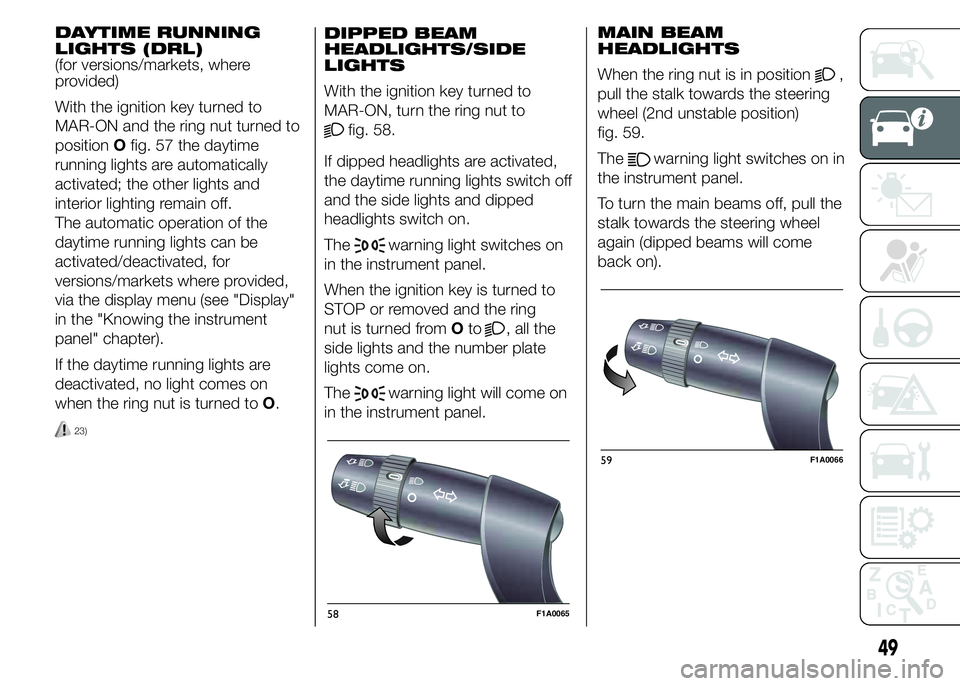

DAYTIME RUNNING
LIGHTS (DRL)
(for versions/markets, where
provided)
With the ignition key turned to
MAR-ON and the ring nut turned to
positionOfig. 57 the daytime
running lights are automatically
activated; the other lights and
interior lighting remain off.
The automatic operation of the
daytime running lights can be
activated/deactivated, for
versions/markets where provided,
via the display menu (see "Display"
in the "Knowing the instrument
panel" chapter).
If the daytime running lights are
deactivated, no light comes on
when the ring nut is turned toO.
23)
DIPPED BEAM
HEADLIGHTS/SIDE
LIGHTS
With the ignition key turned to
MAR-ON, turn the ring nut to
fig. 58.
If dipped headlights are activated,
the daytime running lights switch off
and the side lights and dipped
headlights switch on.
The
warning light switches on
in the instrument panel.
When the ignition key is turned to
STOP or removed and the ring
nut is turned fromOto
, all the
side lights and the number plate
lights come on.
The
warning light will come on
in the instrument panel.MAIN BEAM
HEADLIGHTS
When the ring nut is in position
,
pull the stalk towards the steering
wheel (2nd unstable position)
fig. 59.
The
warning light switches on in
the instrument panel.
To turn the main beams off, pull the
stalk towards the steering wheel
again (dipped beams will come
back on).
58F1A0065
59F1A0066
49
