FIAT DUCATO 2016 3.G Owners Manual

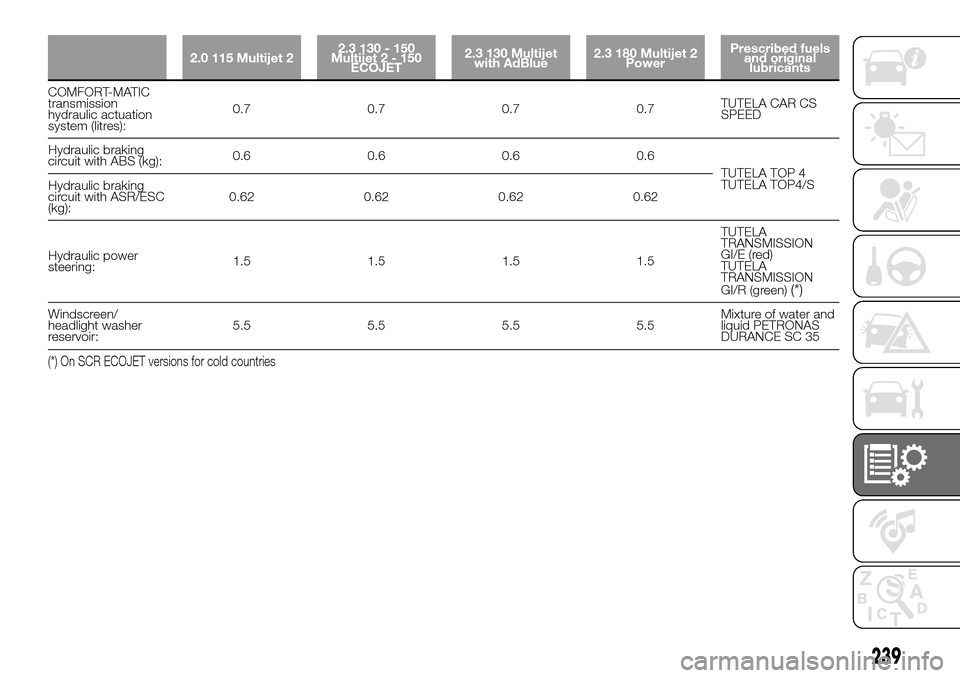

2.0 115 Multijet 22.3 130 - 150
Multijet2-150
ECOJET2.3 130 Multijet
with AdBlue2.3 180 Multijet 2
PowerPrescribed fuels
and original
lubricants
COMFORT-MATIC
transmission
hydraulic actuation
system (litres):0.7 0.7 0.7 0.7TUTELA CAR CS
SPEED
Hydraulic braking
circuit with ABS (kg):0.6 0.6 0.6 0.6
TUTELA TOP 4
TUTELA TOP4/S
Hydraulic braking
circuit with ASR/ESC
(kg):0.62 0.62 0.62 0.62
Hydraulic power
steering:1.5 1.5 1.5 1.5TUTELA
TRANSMISSION
GI/E (red)
TUTELA
TRANSMISSION
GI/R (green)
(*)
Windscreen/
headlight washer
reservoir:5.5 5.5 5.5 5.5Mixture of water and
liquid PETRONAS
DURANCE SC 35
(*) On SCR ECOJET versions for cold countries
239

3.0 140 Natural Power Prescribed fuels and original lubricants
Fuel tank (litres):Petrol: 14.5
Methane (kg): 36(§) (°°)Petrol with an octane number (RON) no lower
than 95 (EN228 specification)
Automotive methane and bio-methane
(EN16723 specification)
Including a reserve of (litres): Petrol: 8
Engine cooling system (litres):
10
(***)Mixture of distilled water and PARAFLUUP
liquid at 50%(****)
Transmission/differential casing (litres): 2.9 TUTELA TRANSMISSION GEARTECH
COMFORT-MATIC transmission hydraulic
actuation system (litres):0.7 TUTELA CAR CS SPEED
Clutch hydraulic activation system (litres): 0,050 TUTELA TOP4
Hydraulic braking circuit with ASR/ESC (kg): 0.62TUTELA TOP 4
TUTELA TOP4/S
Hydraulic power steering: 1.5 TUTELA TRANSMISSION GI/E (red)
(§) Range on Methane: 400 km
(°°) The amount of methane depends on the outside temperature, the supply pressure, the quality of the gas and the type of refuelling system. The total volume of
the cylinders is about 220 litres (218.5 nominal) for all versions.
(***) With Webasto: + 1/4 litre - Underseat heating 600cc: + 1 litre - Underseat heating 900cc: + 1.5 litres - Underseat heating + Webasto: + 1.25 litres - Underseat
heating + Webasto: +1.75 litres
(****) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UPand demineralised water.
IMPORTANT Note that when using a fuel like methane, the range is extremely variable because in addition to the vehicle
maintenance and driving conditions it also depends on the temperature of the gas in the cylinder. The methane actually heats
up during the refuelling and cools down whilst driving, undergoing variations in pressure that reduce the quantity that can
be used.
240
TECHNICAL DATA

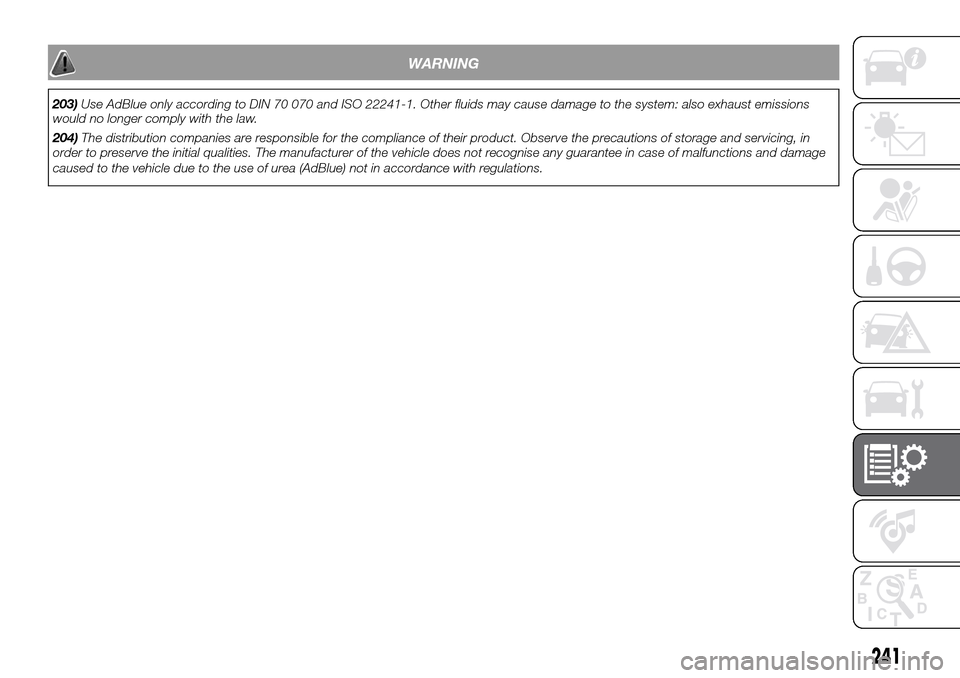

WARNING
203)Use AdBlue only according to DIN 70 070 and ISO 22241-1. Other fluids may cause damage to the system: also exhaust emissions
would no longer comply with the law.
204)The distribution companies are responsible for the compliance of their product. Observe the precautions of storage and servicing, in
order to preserve the initial qualities. The manufacturer of the vehicle does not recognise any guarantee in case of malfunctions and damage
caused to the vehicle due to the use of urea (AdBlue) not in accordance with regulations.
241

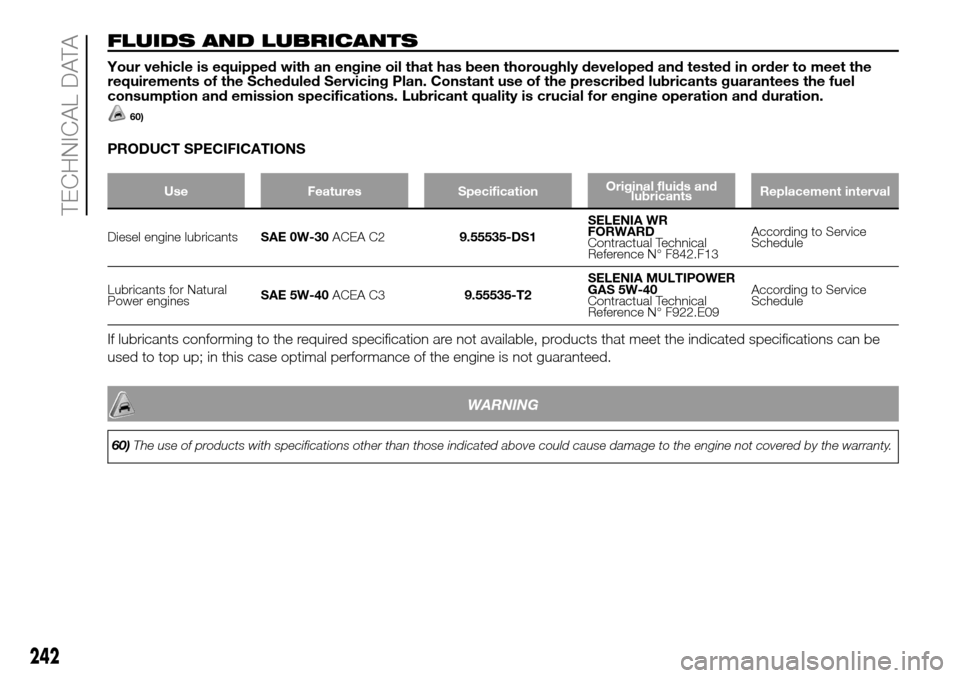

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the
requirements of the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel
consumption and emission specifications. Lubricant quality is crucial for engine operation and duration.
60)
PRODUCT SPECIFICATIONS
Use Features SpecificationOriginal fluids and
lubricantsReplacement interval
Diesel engine lubricantsSAE 0W-30ACEA C29.55535-DS1SELENIA WR
FORWARD
Contractual Technical
Reference N° F842.F13According to Service
Schedule
Lubricants for Natural
Power enginesSAE 5W-40ACEA C39.55535-T2SELENIA MULTIPOWER
GAS 5W-40
Contractual Technical
Reference N° F922.E09According to Service
Schedule
If lubricants conforming to the required specification are not available, products that meet the indicated specifications can be
used to top up; in this case optimal performance of the engine is not guaranteed.
WARNING
60)The use of products with specifications other than those indicated above could cause damage to the engine not covered by the warranty.
242
TECHNICAL DATA

Use Features SpecificationOriginal fluids and
lubricantsApplications
Lubricants and greases
for drive transmissionSAE 75W grade synthetic
lubricant9.55550 - MZ2TUTELA
TRANSMISSION
EXPERYA
Contractual Technical
Reference No. F002.F13Mechanical transmission
and differential (MLGU
transmission)
SAE 75W-85 grade
synthetic lubricant9.55550-MZ3 or
MS.90030-M2TUTELA
TRANSMISSION
GEARTECH
Contractual Technical
Reference No. F704.C08Manual gearbox and
differential
Special oil with "ATF
DEXRON III" type additive-TUTELA CAR CS
SPEEDCOMFORT-MATIC
transmission hydraulic
actuator system
Molybdenum disulphide
grease, for use at high
temperatures.
Consistency NLGI 1-29.55580 - GRAS IITUTELA ALL STAR
Contractual Technical
Reference No. F702.G07Wheel side constant
velocity joints
Grease for constant
velocity joints with low
friction coefficient.
Consistency NLGI 0-19.55580 - GRAS IITUTELA STAR 700
Contractual Technical
Reference No. F701.C07Differential side constant
velocity joints
Lubricant for power
steering. Exceeds "ATF
DEXRON III" specifications9.55550-AG2TUTELA
TRANSMISSION GI/E
Contractual Technical
Reference No. F001.C94Hydraulic power steering
Lubricant for power
steering. "ISO VG 2" – "2F
TE_ML 02K"9.55550-AG3TUTELA
TRANSMISSION GI/R
Contractual Technical
Reference No. F428.HD4Electro-Hydraulic Power
Steering
Brake fluidSynthetic fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS N° 116 DOT 4,
ISO 4925, SAE J 1704.9.55597 or MS.90039TUTELA TOP 4
Contractual Technical
Reference No. F001.A93
or
TUTELA TOP4/S
Contractual Technical
Reference No. F005.F15Hydraulic brakes and
hydraulic clutch controls
243

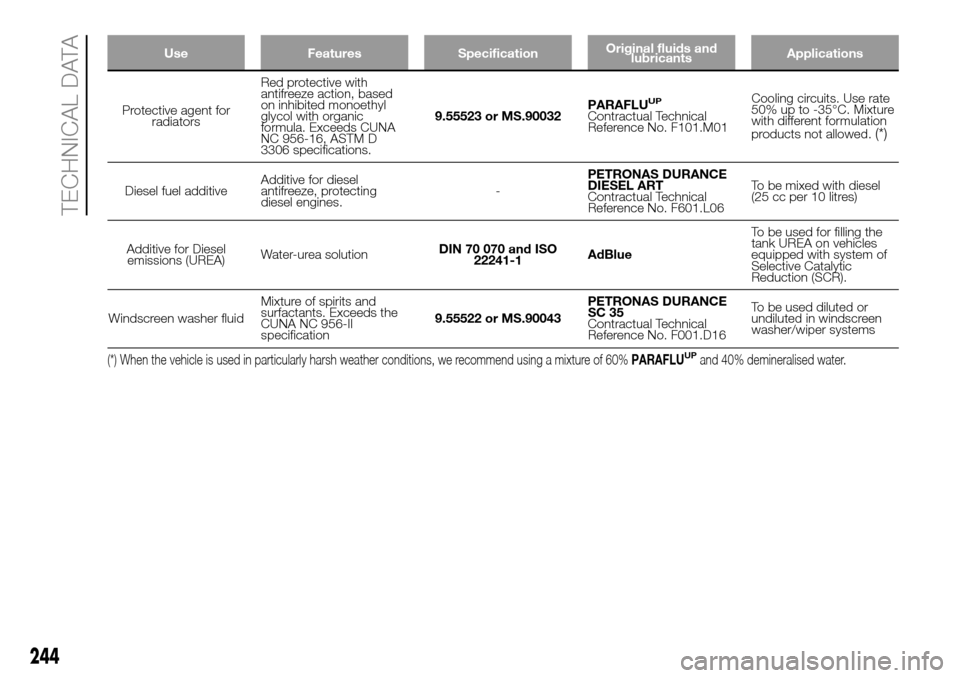

Use Features SpecificationOriginal fluids and
lubricantsApplications
Protective agent for
radiatorsRed protective with
antifreeze action, based
on inhibited monoethyl
glycol with organic
formula. Exceeds CUNA
NC 956-16, ASTM D
3306 specifications.9.55523 or MS.90032PARAFLUUP
Contractual Technical
Reference No. F101.M01Cooling circuits. Use rate
50% up to -35°C. Mixture
with different formulation
products not allowed.
(*)
Diesel fuel additiveAdditive for diesel
antifreeze, protecting
diesel engines.-PETRONAS DURANCE
DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with diesel
(25 cc per 10 litres)
Additive for Diesel
emissions (UREA)Water-urea solutionDIN 70 070 and ISO
22241-1AdBlueTo be used for filling the
tank UREA on vehicles
equipped with system of
Selective Catalytic
Reduction (SCR).
Windscreen washer fluidMixture of spirits and
surfactants. Exceeds the
CUNA NC 956-II
specification9.55522 or MS.90043PETRONAS DURANCE
SC 35
Contractual Technical
Reference No. F001.D16To be used diluted or
undiluted in windscreen
washer/wiper systems
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised water.
244
TECHNICAL DATA

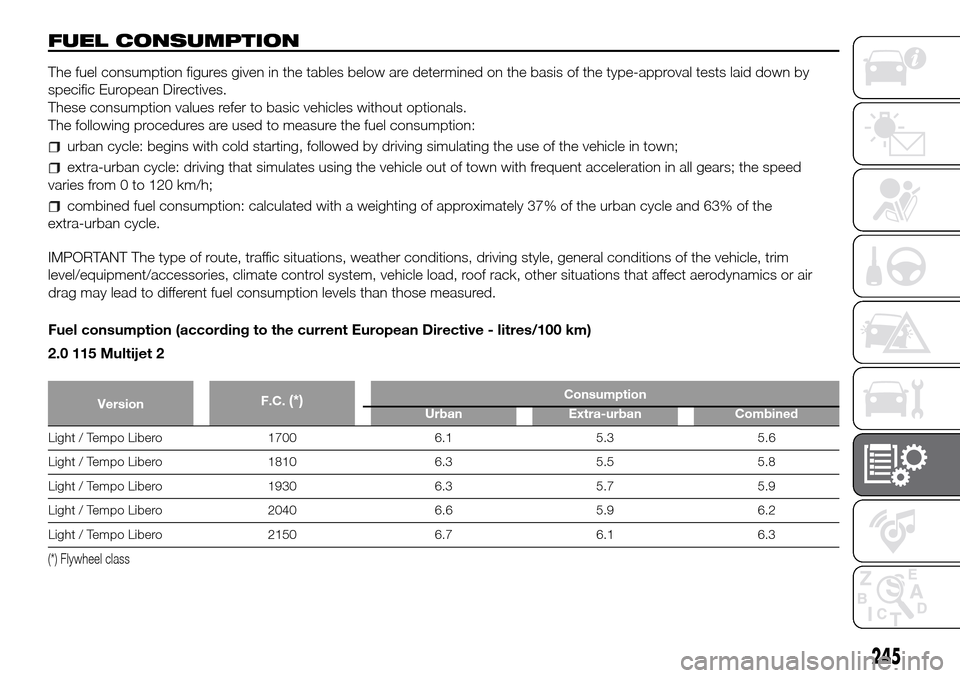

FUEL CONSUMPTION
The fuel consumption figures given in the tables below are determined on the basis of the type-approval tests laid down by
specific European Directives.
These consumption values refer to basic vehicles without optionals.
The following procedures are used to measure the fuel consumption:
urban cycle: begins with cold starting, followed by driving simulating the use of the vehicle in town;
extra-urban cycle: driving that simulates using the vehicle out of town with frequent acceleration in all gears; the speed
varies from 0 to 120 km/h;
combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the
extra-urban cycle.
IMPORTANT The type of route, traffic situations, weather conditions, driving style, general conditions of the vehicle, trim
level/equipment/accessories, climate control system, vehicle load, roof rack, other situations that affect aerodynamics or air
drag may lead to different fuel consumption levels than those measured.
Fuel consumption (according to the current European Directive - litres/100 km)
2.0 115 Multijet 2
VersionF.C.(*)Consumption
Urban Extra-urban Combined
Light / Tempo Libero 1700 6.1 5.3 5.6
Light / Tempo Libero 1810 6.3 5.5 5.8
Light / Tempo Libero 1930 6.3 5.7 5.9
Light / Tempo Libero 2040 6.6 5.9 6.2
Light / Tempo Libero 2150 6.7 6.1 6.3
(*) Flywheel class
245

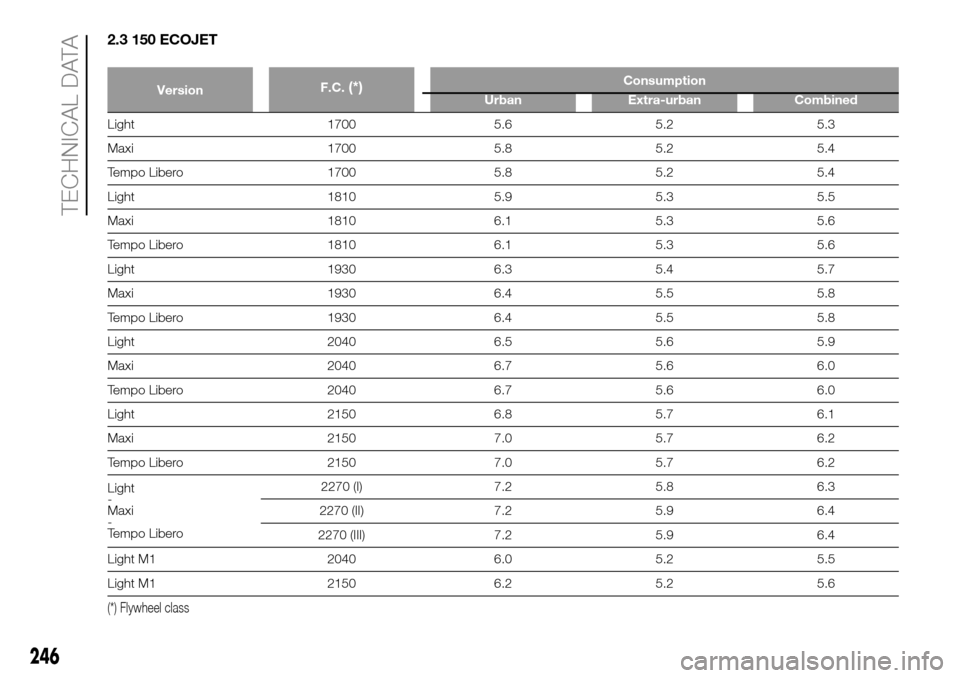

2.3 150 ECOJET
VersionF.C.(*)Consumption
Urban Extra-urban Combined
Light 1700 5.6 5.2 5.3
Maxi 1700 5.8 5.2 5.4
Tempo Libero 1700 5.8 5.2 5.4
Light 1810 5.9 5.3 5.5
Maxi 1810 6.1 5.3 5.6
Tempo Libero 1810 6.1 5.3 5.6
Light 1930 6.3 5.4 5.7
Maxi 1930 6.4 5.5 5.8
Tempo Libero 1930 6.4 5.5 5.8
Light 2040 6.5 5.6 5.9
Maxi 2040 6.7 5.6 6.0
Tempo Libero 2040 6.7 5.6 6.0
Light 2150 6.8 5.7 6.1
Maxi 2150 7.0 5.7 6.2
Tempo Libero 2150 7.0 5.7 6.2
Light
-
Maxi
-
Tempo Libero2270 (I) 7.2 5.8 6.3
2270 (II) 7.2 5.9 6.4
2270 (III) 7.2 5.9 6.4
Light M1 2040 6.0 5.2 5.5
Light M1 2150 6.2 5.2 5.6
(*) Flywheel class
246
TECHNICAL DATA

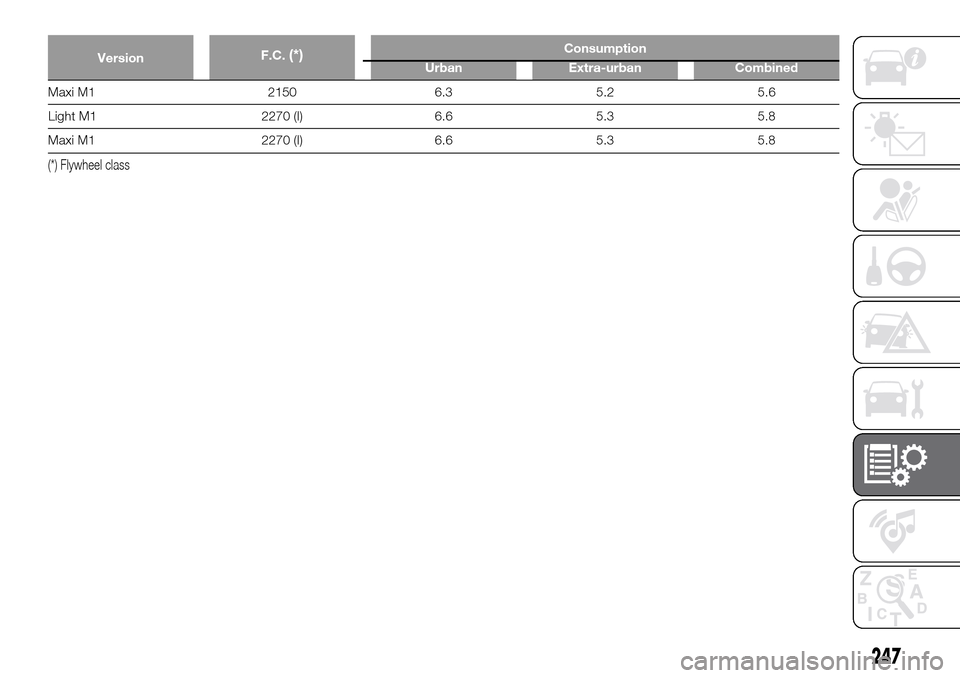

VersionF.C.(*)Consumption
Urban Extra-urban Combined
Maxi M1 2150 6.3 5.2 5.6
Light M1 2270 (I) 6.6 5.3 5.8
Maxi M1 2270 (I) 6.6 5.3 5.8
(*) Flywheel class
247

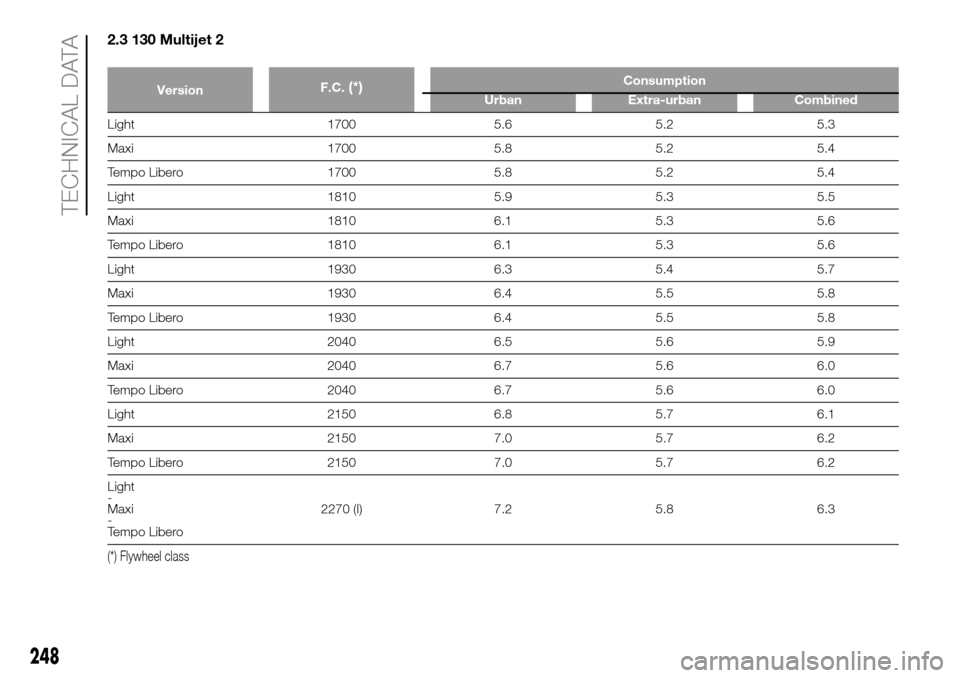

2.3 130 Multijet 2
VersionF.C.(*)Consumption
Urban Extra-urban Combined
Light 1700 5.6 5.2 5.3
Maxi 1700 5.8 5.2 5.4
Tempo Libero 1700 5.8 5.2 5.4
Light 1810 5.9 5.3 5.5
Maxi 1810 6.1 5.3 5.6
Tempo Libero 1810 6.1 5.3 5.6
Light 1930 6.3 5.4 5.7
Maxi 1930 6.4 5.5 5.8
Tempo Libero 1930 6.4 5.5 5.8
Light 2040 6.5 5.6 5.9
Maxi 2040 6.7 5.6 6.0
Tempo Libero 2040 6.7 5.6 6.0
Light 2150 6.8 5.7 6.1
Maxi 2150 7.0 5.7 6.2
Tempo Libero 2150 7.0 5.7 6.2
Light
-
Maxi
-
Tempo Libero2270 (I) 7.2 5.8 6.3
(*) Flywheel class
248
TECHNICAL DATA
