FIAT DUCATO 250 2006 3.G Blue And Me User Manual

1

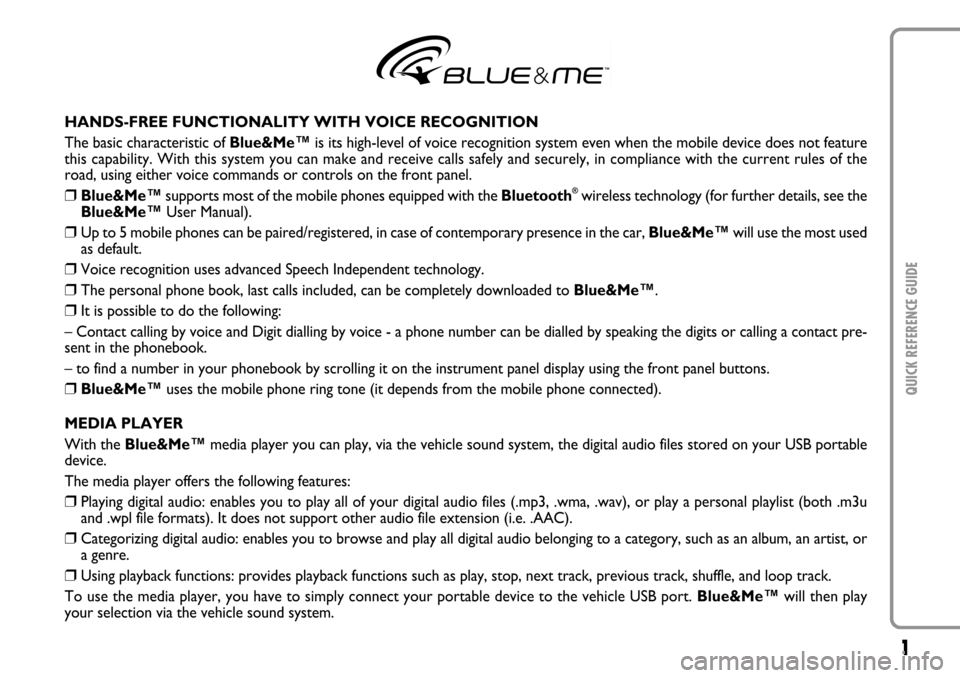

QUICK REFERENCE GUIDE
HANDS-FREE FUNCTIONALITY WITH VOICE RECOGNITION
The basic characteristic of Blue&Me
™
is its high-level of voice recognition system even when the mobile device does not feature
this capability. With this system you can make and receive calls safely and securely, in compliance with the current rules of the
road, using either voice commands or controls on the front panel.
❒
Blue&Me
™
supports most of the mobile phones equipped with the Bluetooth
®wireless technology (for further details, see the
Blue&Me
™
User Manual).
❒
Up to 5 mobile phones can be paired/registered, in case of contemporary presence in the car, Blue&Me
™
will use the most used
as default.
❒
Voice recognition uses advanced Speech Independent technology.
❒
The personal phone book, last calls included, can be completely downloaded to Blue&Me
™.
❒
It is possible to do the following:
– Contact calling by voice and Digit dialling by voice - a phone number can be dialled by speaking the digits or calling a contact pre-
sent in the phonebook.
– to find a number in your phonebook by scrolling it on the instrument panel display using the front panel buttons.
❒
Blue&Me
™
uses the mobile phone ring tone (it depends from the mobile phone connected).
MEDIA PLAYER
With the Blue&Me
™
media player you can play, via the vehicle sound system, the digital audio files stored on your USB portable
device.
The media player offers the following features:
❒
Playing digital audio: enables you to play all of your digital audio files (.mp3, .wma, .wav), or play a personal playlist (both .m3u
and .wpl file formats). It does not support other audio file extension (i.e. .AAC).
❒
Categorizing digital audio: enables you to browse and play all digital audio belonging to a category, such as an album, an artist, or
a genre.
❒
Using playback functions: provides playback functions such as play, stop, next track, previous track, shuffle, and loop track.
To use the media player, you have to simply connect your portable device to the vehicle USB port. Blue&Me
™
will then play
your selection via the vehicle sound system.

2QUICK REFERENCE GUIDE

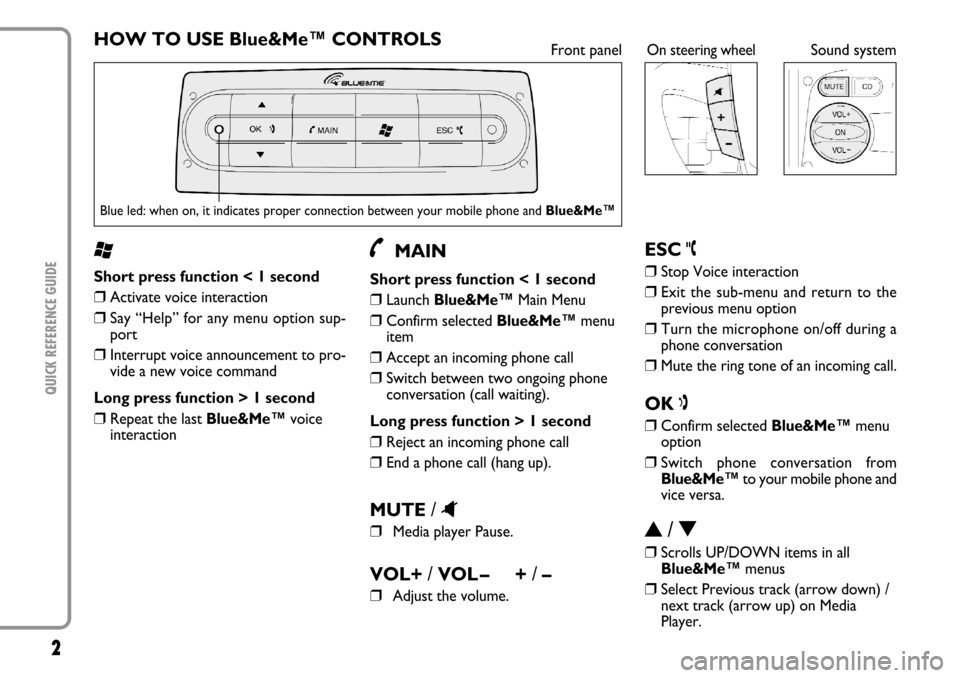

HOW TO USE Blue&Me™ CONTROLS‘Short press function < 1 second❒
Activate voice interaction
❒
Say “Help” for any menu option sup-
port
❒
Interrupt voice announcement to pro-
vide a new voice command
Long press function > 1 second
❒
Repeat the last Blue&Me
™
voice
interaction
˜
MAIN
Short press function < 1 second❒
Launch Blue&Me
™
Main Menu
❒
Confirm selected Blue&Me
™
menu
item
❒
Accept an incoming phone call
❒
Switch between two ongoing phone
conversation (call waiting).
Long press function > 1 second
❒
Reject an incoming phone call
❒
End a phone call (hang up).
MUTE /
^
❒
Media player Pause.
VOL+ /VOL – + /–❒
Adjust the volume.
ESC ˆ❒
Stop Voice interaction
❒
Exit the sub-menu and return to the
previous menu option
❒
Turn the microphone on/off during a
phone conversation
❒
Mute the ring tone of an incoming call.
OK ı❒
Confirm selected Blue&Me
™
menu
option
❒
Switch phone conversation from
Blue&Me
™
to your mobile phone and
vice versa.
N
/ O
❒
Scrolls UP/DOWN items in all
Blue&Me
™
menus
❒
Select Previous track (arrow down) /
next track (arrow up) on Media
Player.On steering wheel
Sound system Front panel
Blue led: when on, it indicates proper connection between your mobile phone and Blue&Me™

3
QUICK REFERENCE GUIDE

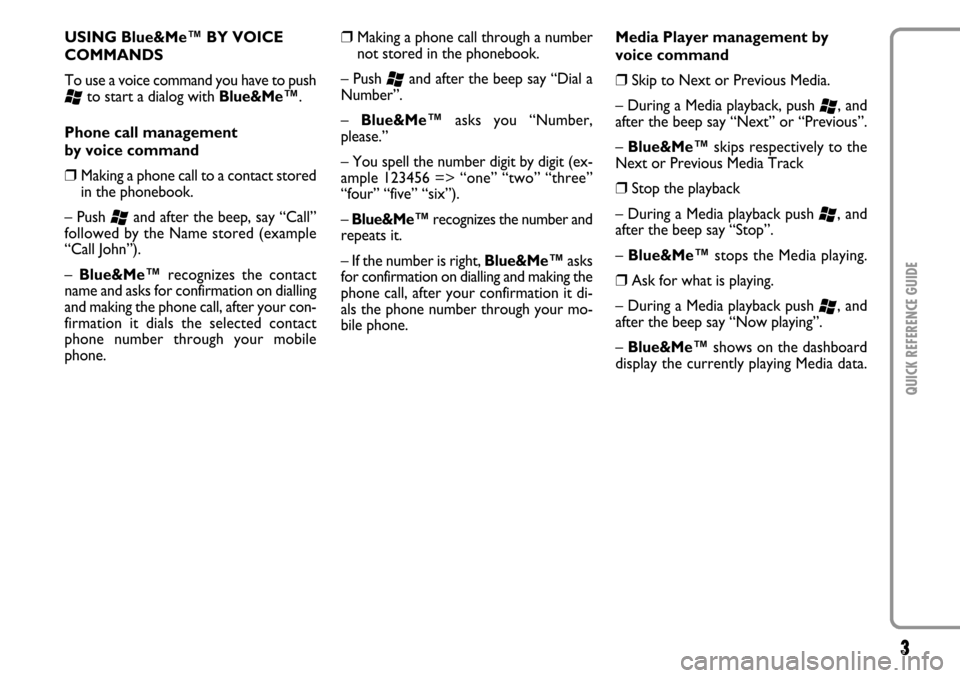

USING Blue&Me™ BY VOICE
COMMANDS
To use a voice command you have to push‘
to start a dialog with Blue&Me
™.
Phone call management
by voice command
❒
Making a phone call to a contact stored
in the phonebook.
– Push
‘
and after the beep, say “Call”
followed by the Name stored (example
“Call John”).
– Blue&Me™
recognizes the contact
name and asks for confirmation on dialling
and making the phone call, after your con-
firmation it dials the selected contact
phone number through your mobile
phone.
❒
Making a phone call through a number
not stored in the phonebook.
– Push
‘
and after the beep say “Dial a
Number”.
– Blue&Me
™
asks you “Number,
please.”
– You spell the number digit by digit (ex-
ample 123456 => “one” “two” “three”
“four” “five” “six”).
– Blue&Me
™
recognizes the number and
repeats it.
– If the number is right, Blue&Me
™
asks
for confirmation on dialling and making the
phone call, after your confirmation it di-
als the phone number through your mo-
bile phone.Media Player management by
voice command
❒
Skip to Next or Previous Media.
– During a Media playback, push
‘
, and
after the beep say “Next” or “Previous”.
– Blue&Me
™
skips respectively to the
Next or Previous Media Track
❒
Stop the playback
– During a Media playback push
‘
, and
after the beep say “Stop”.
– Blue&Me
™
stops the Media playing.
❒
Ask for what is playing.
– During a Media playback push
‘
, and
after the beep say “Now playing”.
– Blue&Me
™
shows on the dashboard
display the currently playing Media data.

4QUICK REFERENCE GUIDE
Fiat Auto S.p.A - Quality
Assistenza Tecnica Ingegneria Assistenziale
Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Publication no. 603.46.928 - V/2006 - 1

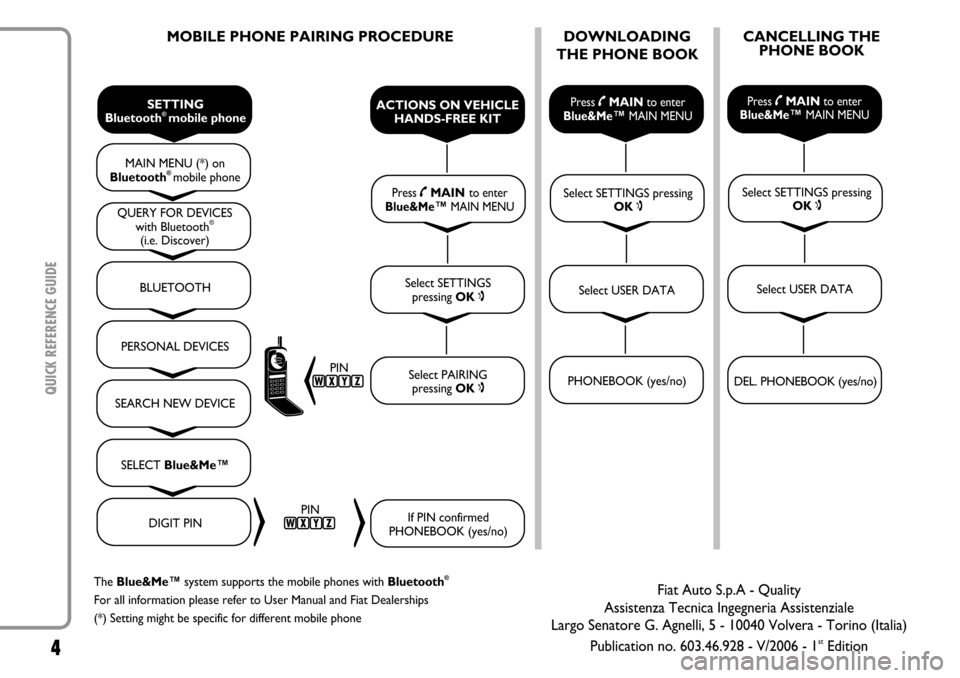

stEdition MOBILE PHONE PAIRING PROCEDURE DOWNLOADING
THE PHONE BOOK
The Blue&Me™system supports the mobile phones with Bluetooth
®
For all information please refer to User Manual and Fiat Dealerships
(*) Setting might be specific for different mobile phone
SETTING
Bluetooth® mobile phone
MAIN MENU (*) on
Bluetooth® mobile phone ACTIONS ON VEHICLE
HANDS-FREE KIT
Press
˜MAIN
to enter
Blue&Me
™MAIN MENU
QUERY FOR DEVICES
with Bluetooth
®
(i.e. Discover)
PERSONAL DEVICES
SELECT Blue&Me
™
SEARCH NEW DEVICE
DIGIT PIN BLUETOOTH
PIN
PINSelect SETTINGS
pressing OK ı
Select PAIRING
pressing OK ı
If PIN confirmed
PHONEBOOK (yes/no)
Press
˜MAIN
to enter
Blue&Me
™MAIN MENU
Select SETTINGS pressing
OK ı
Select USER DATA
PHONEBOOK (yes/no)
DEL. PHONEBOOK (yes/no)Select USER DATA
Press
˜MAIN
to enter
Blue&Me
™
MAIN MENU
Select SETTINGS pressing
OK ıCANCELLING THE
PHONE BOOK
