stop start FIAT DUCATO BASE CAMPER 2015 Owner handbook (in English)

WHEELS AND TYRES
Check the pressure of each tyre,
including the space-saver wheel,
approximately every two weeks and
before long journeys: the pressure
should be checked with the tyre
rested and cold.
It is normal for the pressure to
increase when the vehicle is used;
for the correct tyre inflation
pressure, see “Wheels” in the
“Technical specifications” section.
Incorrect pressure causes abnormal
tyre wear fig. 246:
Anormal pressure: tread evenly worn;
Blow pressure: tread particularly worn
at the edges;
Chigh pressure: tread particularly worn
in the centre.
The tyres must be replaced when
the tread is less than 1.6 mm thick.
In any case, follow the laws in
force in the country you are in.
193) 194) 195) 196)
IMPORTANT
INFORMATION
❒As far as possible, avoid sharp
braking and screech starts. Be
careful not to hit the kerb, potholes or
other hard obstacles. Driving for
long stretches over uneven roads can
damage the tyres;
❒periodically check that the tyres have
no cuts in the side wall, abnormal
swelling or irregular tyre wear.
Contact a Fiat Dealership if required;
❒avoid overloading the car when
travelling: this may cause serious
damage to the wheels and tyres;
❒if a tyre is punctured, stop
immediately and change it to avoid
damage to the tyre, the rim,
suspensions and steering system;❒tyres age even if they are not used a
great deal. Cracks in the tread and
on the side walls are a sign of ageing.
In any event, have the tyres checked
by specialised personnel if they
have been fitted for longer than 6
years. Remember to check the spare
wheel very carefully;
❒in the case of replacement, always fit
new tyres, avoiding those of
unknown origin;
❒if a tyre is changed, also change the
inflation valve;
❒to allow even wear between the front
and rear tyres, it is advisable to
change them over every 10–15
thousand kilometres, keeping them
on the same side of the vehicle so as
not to reverse the direction of
rotation.
IMPORTANT Replacing a tyre,
check that the tyre pressure
monitoring (TPMS) sensor is also
taken from the previous rim,
together with the valve.
246F1A0240
245

WHATTODOIF
Fault Possible solution
... A TYRE IS PUNCTURED.Use the Fix&Go tyre repair kit. See page 204.
Replace the tyre. See page 199
... A TYRE DEFLATES. Restore the correct pressure. See page 267.
... THE INTERNAL ROOF LIGHT DOES NOT
SWITCH ON.Replace the bulb.See page 216 or contact a
Fiat Dealership.
... AN EXTERNAL BULB (main beam, dipped
beam headlights...) DOES NOT COME ON.Replace the bulb.See page 211 or contact a
Fiat Dealership.
... THE REMOTE CONTROL DOES NOT
WORK.Replace the batteries inside the remote
control.See page 13 or contact a
Fiat Dealership.
... AN ELECTRIC WINDOW DOES NOT
WORK.Check the relevant protection fuse.See page 217 or contact a
Fiat Dealership.
Have the relevant window raising / lowering
motor checked.Contact a Fiat Dealership.
... THE ENGINE DOES NOT START OR
STOPS WHEN DRIVING.Check that there is sufficient fuel in the tank;
refuel if necessary.See page 109.
...DIESEL FUEL IS FROZEN.Use winter diesel fuel or a suitable additive. See page 323
In the case of VOR, warm up the diesel filter
area and the upstream/downstream circuits, if
possible.-
...INCORRECT FITTING OF THE AFTER
MARKET SYSTEMS.Carefully follow the instructions in the Owner
Handbook in order to prevent affecting the
correct operation of the vehicle.See page 108 or contact a
Fiat Dealership.

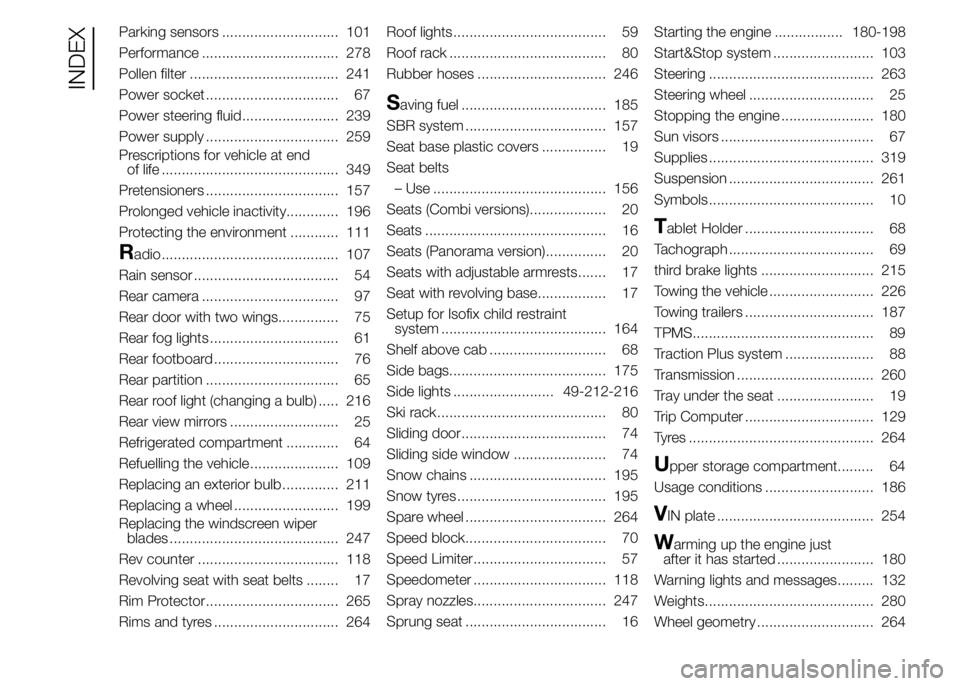

Parking sensors ............................. 101
Performance .................................. 278
Pollen filter ..................................... 241
Power socket ................................. 67
Power steering fluid........................ 239
Power supply ................................. 259
Prescriptions for vehicle at end
of life ............................................ 349
Pretensioners ................................. 157
Prolonged vehicle inactivity............. 196
Protecting the environment ............ 111
Radio ............................................ 107
Rain sensor .................................... 54
Rear camera .................................. 97
Rear door with two wings............... 75
Rear fog lights ................................ 61
Rear footboard ............................... 76
Rear partition ................................. 65
Rear roof light (changing a bulb) ..... 216
Rear view mirrors ........................... 25
Refrigerated compartment ............. 64
Refuelling the vehicle ...................... 109
Replacing an exterior bulb .............. 211
Replacing a wheel .......................... 199
Replacing the windscreen wiper
blades .......................................... 247
Rev counter ................................... 118
Revolving seat with seat belts ........ 17
Rim Protector................................. 265
Rims and tyres ............................... 264Roof lights...................................... 59
Roof rack ....................................... 80
Rubber hoses ................................ 246
Saving fuel .................................... 185
SBR system ................................... 157
Seat base plastic covers ................ 19
Seat belts
– Use ........................................... 156
Seats (Combi versions)................... 20
Seats ............................................. 16
Seats (Panorama version)............... 20
Seats with adjustable armrests....... 17
Seat with revolving base................. 17
Setup for Isofix child restraint
system ......................................... 164
Shelf above cab ............................. 68
Side bags....................................... 175
Side lights ......................... 49-212-216
Ski rack.......................................... 80
Sliding door.................................... 74
Sliding side window ....................... 74
Snow chains .................................. 195
Snow tyres ..................................... 195
Spare wheel ................................... 264
Speed block................................... 70
Speed Limiter................................. 57
Speedometer ................................. 118
Spray nozzles................................. 247
Sprung seat ................................... 16Starting the engine ................. 180-198
Start&Stop system ......................... 103
Steering ......................................... 263
Steering wheel ............................... 25
Stopping the engine ....................... 180
Sun visors ...................................... 67
Supplies ......................................... 319
Suspension .................................... 261
Symbols......................................... 10
Tablet Holder ................................ 68
Tachograph .................................... 69
third brake lights ............................ 215
Towing the vehicle .......................... 226
Towing trailers ................................ 187
TPMS............................................. 89
Traction Plus system ...................... 88
Transmission .................................. 260
Tray under the seat ........................ 19
Trip Computer ................................ 129
Tyres .............................................. 264
Upper storage compartment......... 64
Usage conditions ........................... 186
VIN plate ....................................... 254
Warming up the engine just
after it has started ........................ 180
Warning lights and messages......... 132
Weights.......................................... 280
Wheel geometry ............................. 264
INDEX
