key FIAT DUCATO BASE CAMPER 2015 Owner handbook (in English)

READ THIS CAREFULLY
REFUELLING
Only refuel with automotive diesel conforming to the European specification EN590. The use of other products or mixtures may damage the
engine beyond repair and consequently invalidate the warranty, due to the damage caused.
STARTING THE ENGINE
Make sure that the handbrake is engaged; set the gear lever to neutral; fully depress the clutch pedal without pressing the accelerator, then
turn the ignition key to MAR-ON and wait for the warning lightsandto switch off; turn the ignition key to AVV and release it as
soon as the engine has started.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter develops high temperatures during operation. Do not park on grass, dry leaves, pine needles or other flammable
material: fire hazard.
RESPECTING THE ENVIRONMENT
The vehicle is fitted with a system that allows continuous diagnosis of the emission-related components in order to help protect the
environment.
ELECTRICAL ACCESSORIES
If, after buying the vehicle, you decide to add electrical accessories (with the risk of gradually draining the battery), visit a Fiat Dealership. They
can calculate the overall electrical requirement and check that the vehicle's electrical system can support the required load.
SCHEDULED SERVICING
Correct maintenance enables the vehicle to perfectly maintain performance and safety characteristics, its environmental friendliness and low
running costs over time.
THE OWNER HANDBOOK CONTAINS
... important information, advice and warnings for correct use, driving safety and maintenance of your vehicle over time. Special attention
must be paid to the symbols(safety of persons)(environmental protection)(vehicle integrity).

KNOW YOUR VEHICLE
In-depth knowledge of your new
vehicle starts here.
The booklet that you are reading
simply and directly explains how it
is made and how it works.
That’s why we advise you to read it
seated comfortably on board, so
that you can see what is described
here for yourself.SYMBOLS ...................................... 10
THE FIAT CODE SYSTEM ............... 10
THE KEYS....................................... 11
ELECTRONIC ALARM..................... 13
IGNITION SWITCH .......................... 15
SEATS ............................................ 16
HEAD RESTRAINTS ........................ 24
STEERING WHEEL ......................... 25
REAR VIEW MIRRORS .................... 25
HEATING AND VENTILATION.......... 28
DIFFUSERS..................................... 29
HEATING AND VENTILATION
CONTROLS .................................... 29
MANUAL CLIMATE CONTROL
SYSTEM ......................................... 32
AUTOMATIC CLIMATE CONTROL
SYSTEM ......................................... 35
ADDITIONAL HEATER ..................... 42
INDEPENDENT ADDITIONAL
HEATER .......................................... 42
EXTERNAL LIGHTS......................... 48
WINDOW CLEANING ...................... 53
CRUISE CONTROL ......................... 55
ROOF LIGHTS ................................ 59
CONTROLS .................................... 60
FUEL CUT-OFF SWITCH ................ 63
INTERIOR FITTINGS ...................... 64
TACHOGRAPH ............................... 69SPEED BLOCK ............................... 70
SELF-LEVELLING AIR
SUSPENSION ................................. 70
DOORS ........................................... 72
ELECTRIC WINDOWS .................... 78
BONNET ......................................... 79
ROOF RACK/SKI RACK .................. 80
HEADLIGHTS.................................. 81
ABS ................................................ 82
ESC (ELECTRONIC STABILITY
CONTROL) SYSTEM ....................... 83
TRACTION PLUS SYSTEM ............. 88
TPMS (TYRE PRESSURE
MONITORING SYSTEM) ................. 89
DRIVING ADVISOR ......................... 92
REAR CAMERA (PARKVIEW®
REAR BACK UP CAMERA) ............. 97
TRAFFIC SIGN RECOGNITION ....... 99
EOBD SYSTEM...............................100
PARKING SENSORS.......................101
START&STOP SYSTEM ..................103
RADIO.............................................107
ACCESSORIES PURCHASED BY
THE OWNER...................................108
REFUELLING THE VEHICLE ...........109
PROTECTING THE
ENVIRONMENT ..............................111
9

SYMBOLS
Some vehicle components have
coloured labels whose symbols
indicate precautions to be observed
when using this component. Under
the bonnet there is also a label
that summarises all the symbols.
THE FIAT CODE
SYSTEM
IN BRIEF
This is an electrical engine locking
system which increases
protection against attempted
theft of the vehicle. It is
automatically activated when the
ignition key is removed.
Each key contains an electronic
device which modulates the
signal emitted during ignition by
an antenna built into the ignition
device. The signal, which
changes each time the engine is
started, is the “password”, by
means of which the control unit
recognises the key and enables
starting.
1)
Operation
Each time the vehicle is started
turning the ignition key to
MAR-ON, the Fiat CODE system
control unit sends a recognition
code to the Powertrain Control
Module to deactivate the
immobiliser.
The acknowledgement code is sent
only if the Fiat CODE system
control unit has recognised the
code transmitted from the key.
Each time the ignition key is turned
to STOP, the Fiat CODE system
deactivates the functions of the
Powertrain Control Module.
Irregular operation
If, during starting, the code has not
been recognised correctly the
warning light
on the instrument
panel turns on accompanied by
the related message on the display
(see section “Warning lights and
messages”).
10
KNOW YOUR VEHICLE

In this case, turn the key toSTOP
and then back toMAR-ON;if
the lock continues, try with the
other keys provided with the
vehicle. Contact a Fiat Dealership if
you still cannot start the engine.
IMPORTANT Each key has its own
code which must be stored by
the system's control unit. Contact
the Fiat Dealership to have new
keys (up to eight) stored with the
code.
Activation of
warning light while
driving
❒If the warning lightswitches
on, this means that the system
is running a self-diagnosis (for
example for a voltage drop).
❒If the warning lightstays on,
contact a Fiat Dealership.
IMPORTANT
1) The electronic components inside
the key may be damaged if the
key is subjected to sharp knocks.
In order to ensure complete
efficiency of the electronic
devices inside the key, it should
never be exposed to direct
sunlight.
THE KEYS
KEY WITHOUT REMOTE
CONTROL
The metal insert A fig. 5 of the key
is fixed.
The key operates:
❒the ignition switch;
❒the door lock;
❒opening and closing of the fuel tank
cap.
KEY WITH REMOTE
CONTROL
The metal insert A fig.6-fig.7is
retractable and it operates:
❒the ignition switch;
❒the door lock;
5F1A0008
11

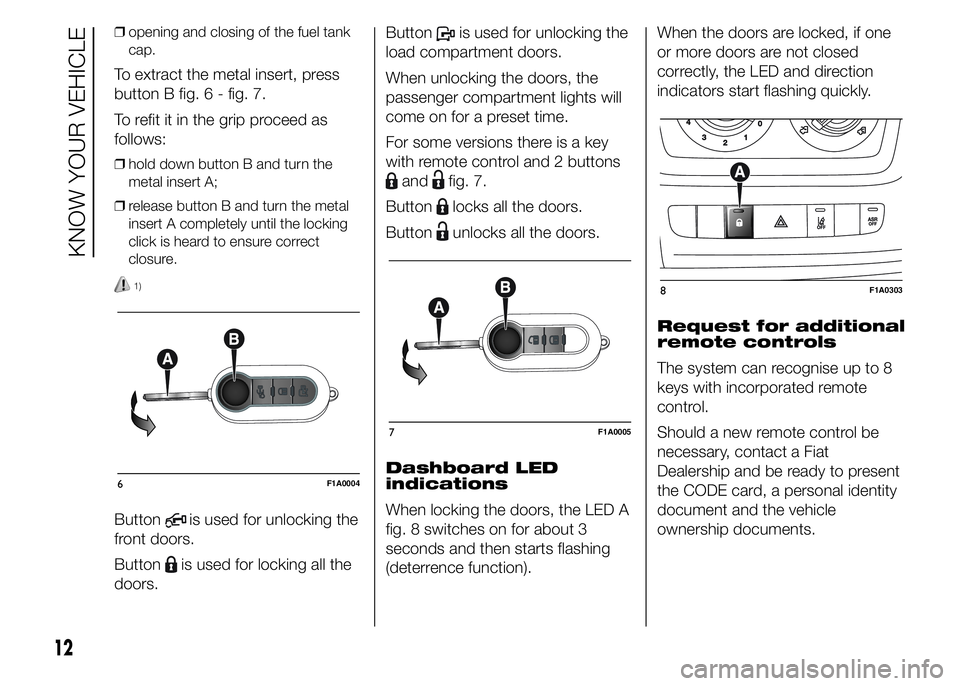

❒opening and closing of the fuel tank
cap.
To extract the metal insert, press
button B fig. 6 - fig. 7.
To refit it in the grip proceed as
follows:
❒hold down button B and turn the
metal insert A;
❒release button B and turn the metal
insert A completely until the locking
click is heard to ensure correct
closure.
1)
Buttonis used for unlocking the
front doors.
Button
is used for locking all the
doors.Button
is used for unlocking the
load compartment doors.
When unlocking the doors, the
passenger compartment lights will
come on for a preset time.
For some versions there is a key
with remote control and 2 buttons
andfig. 7.
Button
locks all the doors.
Button
unlocks all the doors.
Dashboard LED
indications
When locking the doors, the LED A
fig. 8 switches on for about 3
seconds and then starts flashing
(deterrence function).When the doors are locked, if one
or more doors are not closed
correctly, the LED and direction
indicators start flashing quickly.
Request for additional
remote controls
The system can recognise up to 8
keys with incorporated remote
control.
Should a new remote control be
necessary, contact a Fiat
Dealership and be ready to present
the CODE card, a personal identity
document and the vehicle
ownership documents.
6F1A0004
7F1A0005
8F1A0303
12
KNOW YOUR VEHICLE

Changing battery -
key with remote
control
To replace the remote control
battery, proceed as follows fig. 9:
❒press button A and open the metal
insert B;
❒turn the screw C to
using a fine
bit screwdriver;
❒take out the battery case D and
replace the battery E making sure
that polarities are correct;
❒refit the battery case D inside the key
and lock it turning the screw C to
.
1)
WARNING
1) Press button B only with the key
away from your body, specifically
from your eyes and from objects
which could get damaged (e.g.
your clothes). Do not leave the key
unattended to prevent people,
especially children, from
inadvertently pressing the button.
IMPORTANT
1) Used batteries are harmful to the
environment. You can dispose of
them either in the correct
containers as specified by law or
by taking them to a Fiat
Dealership, which will deal with
their disposal.
ELECTRONIC ALARM
(for versions/markets, where
provided)
The alarm, in addition to all the
remote control functions described
previously, is controlled by the
receiver located under the
dashboard near the fuse box.
Operation
The alarm intervenes in the
following cases:
❒wrongful opening of a door or the
bonnet (perimeter protection);
❒when the ignition system is started
up (ignition key turned to MAR-ON);
❒cutting of the battery leads.
Depending on the market, the
activation of the alarm causes the
activation of the siren and the
direction indicators (for about 26
seconds). Alarm tripping and the
number of cycles depend on the
sales market.
There is a maximum number of
acoustic/visual cycles. When this is
reached the system returns to
normal operation.
9F1A0007
13

IMPORTANT The engine stop
function is guaranteed by the Fiat
CODE, which is automatically
activated when the ignition key is
extracted from the ignition switch.
Activation
With the doors and bonnet closed
and the ignition key either turned to
STOP or removed, point the key
with the remote control towards the
vehicle and press and release the
lock button.
Excluding some markets, the
system produces an acoustic
warning (beep) and enables door
locking.
The switching on of the alarm is
preceded by an self-diagnosis
stage: if a fault is detected, the
system produces another acoustic
signal.
In this case, turn the alarm off by
pressing the "release doors/release
load compartment" button, check
that the doors and bonnet are
properly closed and turn the alarm
back on by pressing the lock
button.If a door or the bonnet is not
properly shut, it will be excluded
from the testing by the alarm
system.
If the alarm produces an acoustic
signal even when the doors and
bonnet are correctly closed, a fault
has occurred in the operation of the
system. Contact a Fiat Dealership.
IMPORTANT The alarm does not
come on when the central locking
is activated using the metal insert in
the key.
IMPORTANT The alarm is adapted
to meet requirements in various
countries.
Disengagement
Press the door release/load
compartment release button on the
key with remote control.
The following operations are
performed (excluding some
markets):
❒direction indicators flash twice;
❒there are two short acoustic signals
(beeps);
❒unlocking of the doors.
IMPORTANT The alarm does not
switch off when the central opening
is activated using the metal insert
in the key.
Break-in attempt
indication
Any break-in attempt is indicated
by the turning on of warning light
on the instrument panel
together with the message on the
display (where provided, see
paragraph “Warning lights and
messages” in the “Knowing the
instrument panel” section).
Disabling
To permanently disable the alarm
(e.g. during a long period of
inactivity), simply lock the vehicle by
turning the metal insert of the key
with remote control in the lock.
IMPORTANT If the batteries of the
key with the remote control run
out or the system fails, the alarm
can be switched off by placing the
key in the ignition switch and
turning it to MAR-ON.
14
KNOW YOUR VEHICLE

IGNITION SWITCH
The key can be turned to 3 different
positions fig. 10:
❒STOP: engine off, key extractable,
steering locked. Some electrical
devices (e.g. sound system, central
door locking system, etc.) can
operate;
❒MAR-ON: driving position. All
electrical devices are enabled;
❒AVV: engine starting (unstable
position).
The ignition switch is fitted with an
electronic safety system that
requires the ignition key to be
turned back to STOP if the engine
will not start, before the starting
operation can be repeated.
2) 3) 4) 5)
STEERING LOCK
Activation
When the key is at STOP, remove
the key and turn the steering wheel
until it locks.
Disengagement
Move the steering wheel slightly as
you turn the ignition key to
MAR-ON
WARNING
2) If the ignition device has been
tampered with (e.g. an attempted
theft), have it checked over by a
Fiat Dealership before driving
again.
3) Always remove the key when you
leave your vehicle to prevent
someone from accidentally
operating the controls. Remember
to engage the handbrake.
Engage first gear if the vehicle is
parked uphill or reverse gear if the
vehicle is parked downhill. Never
leave children unattended in the
vehicle.4) Never extract the key while the
vehicle is moving. The steering
wheel will lock as soon as it is
turned. This also applies to cases
in which the vehicle is towed.
5) Under no circumstances should
aftermarket operations be carried
out involving steering system or
steering column modifications
(e.g. installation of anti-theft
device). This could negatively
affect performance and safety,
invalidate the warranty, cause
serious safety problems and also
result in vehicle non-compliance
with type-approval requirements.
10F1A0009
15

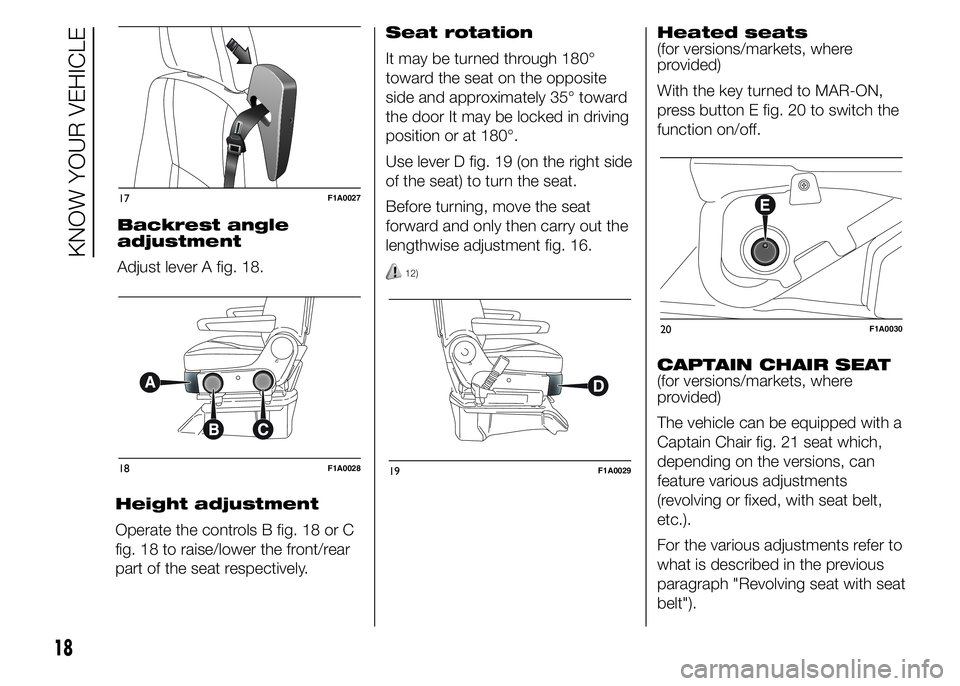

Height adjustment
Operate the controls B fig. 18 or C
fig. 18 to raise/lower the front/rear
part of the seat respectively.Seat rotation
It may be turned through 180°
toward the seat on the opposite
side and approximately 35° toward
the door It may be locked in driving
position or at 180°.
Use lever D fig. 19 (on the right side
of the seat) to turn the seat.
Before turning, move the seat
forward and only then carry out the
lengthwise adjustment fig. 16.
12)
Heated seats
(for versions/markets, where
provided)
With the key turned to MAR-ON,
press button E fig. 20 to switch the
function on/off.
CAPTAIN CHAIR SEAT
(for versions/markets, where
provided)
The vehicle can be equipped with a
Captain Chair fig. 21 seat which,
depending on the versions, can
feature various adjustments
(revolving or fixed, with seat belt,
etc.).
For the various adjustments refer to
what is described in the previous
paragraph "Revolving seat with seat
belt").
17F1A0027
18F1A002819F1A0029
20F1A0030
18
KNOW YOUR VEHICLE
Backrest angle
adjustment
Adjust lever A fig. 18.

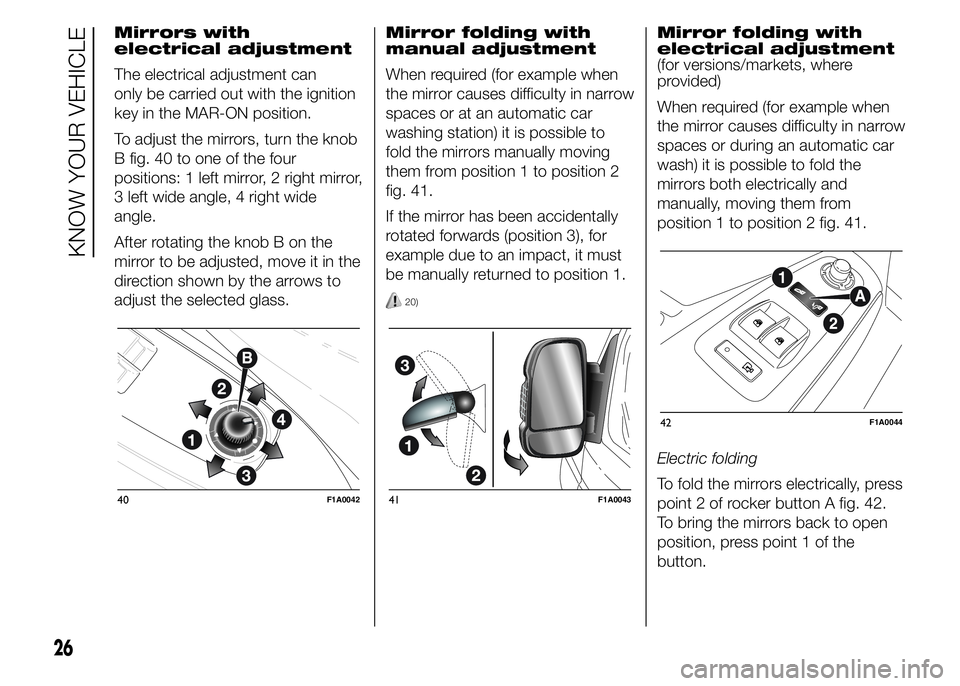

Mirrors with
electrical adjustment
The electrical adjustment can
only be carried out with the ignition
key in the MAR-ON position.
To adjust the mirrors, turn the knob
B fig. 40 to one of the four
positions: 1 left mirror, 2 right mirror,
3 left wide angle, 4 right wide
angle.
After rotating the knob B on the
mirror to be adjusted, move it in the
direction shown by the arrows to
adjust the selected glass.Mirror folding with
manual adjustment
When required (for example when
the mirror causes difficulty in narrow
spaces or at an automatic car
washing station) it is possible to
fold the mirrors manually moving
them from position 1 to position 2
fig. 41.
If the mirror has been accidentally
rotated forwards (position 3), for
example due to an impact, it must
be manually returned to position 1.
20)
Mirror folding with
electrical adjustment
(for versions/markets, where
provided)
When required (for example when
the mirror causes difficulty in narrow
spaces or during an automatic car
wash) it is possible to fold the
mirrors both electrically and
manually, moving them from
position 1 to position 2 fig. 41.
Electric folding
To fold the mirrors electrically, press
point 2 of rocker button A fig. 42.
To bring the mirrors back to open
position, press point 1 of the
button.
40F1A004241F1A0043
42F1A0044
26
KNOW YOUR VEHICLE
