technical specifications FIAT DUCATO BASE CAMPER 2016 Owner handbook (in English)

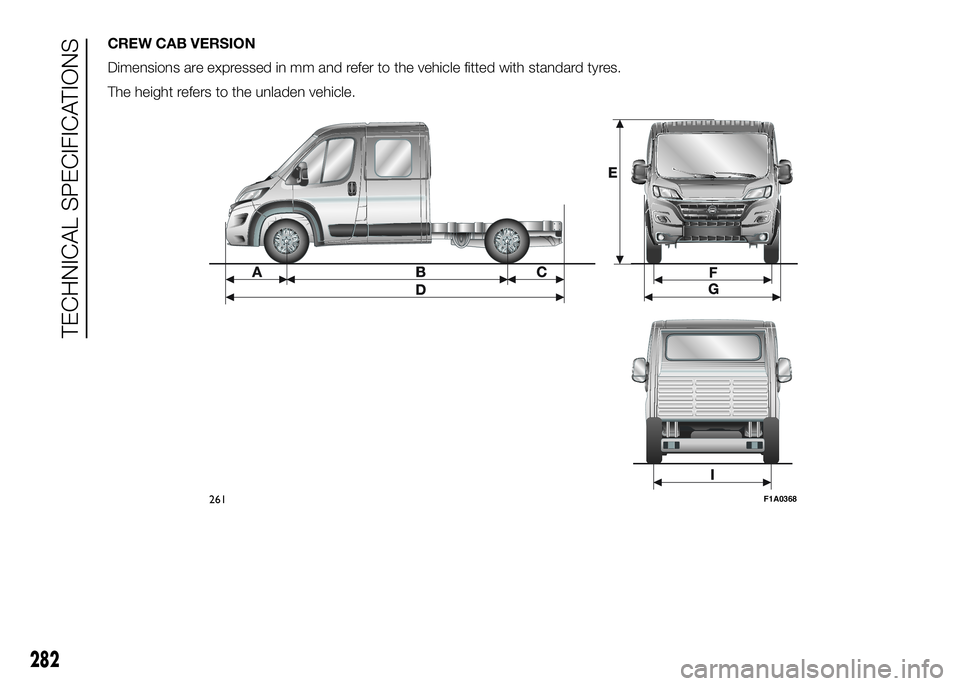

CREW CAB VERSION
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
The height refers to the unladen vehicle.
261F1A0368
282
TECHNICAL SPECIFICATIONS

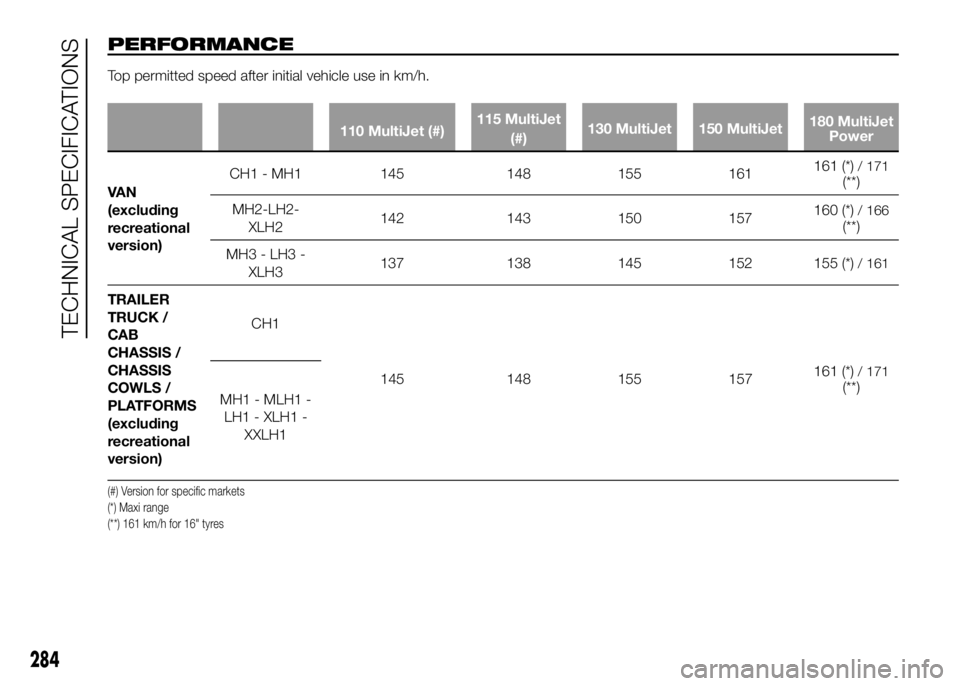

PERFORMANCE
Top permitted speed after initial vehicle use in km/h.
110 MultiJet (#)115 MultiJet
(#)130 MultiJet 150 MultiJet180 MultiJet
Power
VAN
(excluding
r
ecreational
version)CH1 - MH1 145 148 155 161161 (*)
/ 171(**)
MH2-LH2-
XLH2142 143 150 157160 (*)
/ 166(**)
MH3 - LH3 -
XLH3137 138 145 152 155 (*)
/ 161
TRAILER
TRUCK /
CAB
CHASSIS /
CHASSIS
COWLS /
PLATFORMS
(excluding
recreational
version)CH1
145 148 155 157161 (*)
/ 171(**)
MH1 - MLH1 -
LH1 - XLH1 -
XXLH1
(#) Version for specific markets
(*) Maxi range
(**) 161 km/h for 16" tyres
284
TECHNICAL SPECIFICATIONS

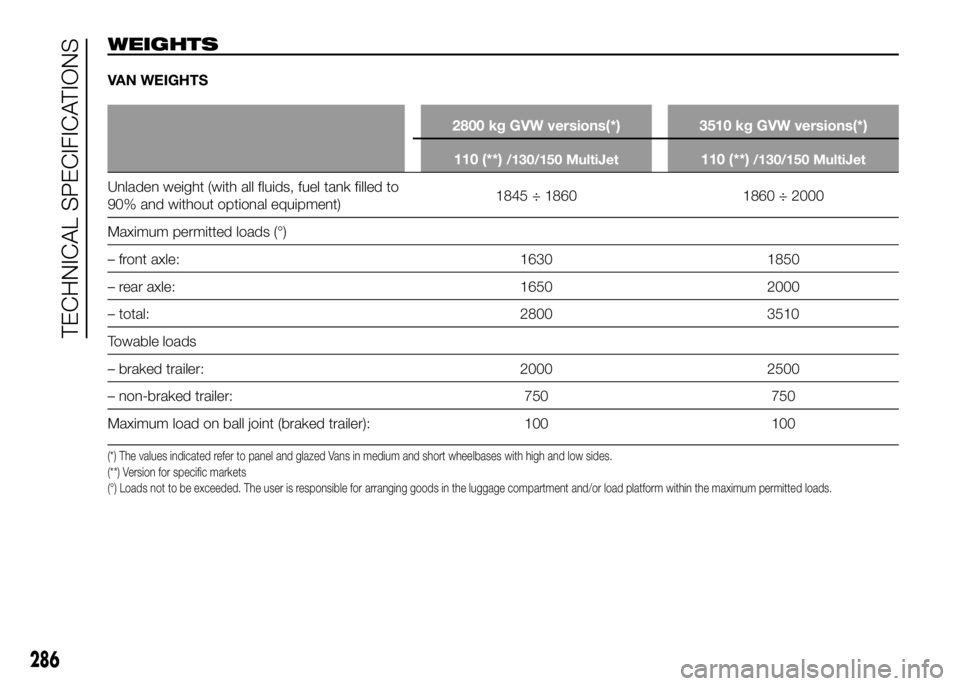

WEIGHTS
VAN WEIGHTS
2800 kg GVW versions(*) 3510 kg GVW versions(*)
110 (**)
/130/150 MultiJet110 (**)/130/150 MultiJet
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1845 ÷ 1860 1860 ÷ 2000
Maximum permitted loads (°)
– front axle: 1630 1850
– rear axle: 1650 2000
– total: 2800 3510
Towable loads
– braked trailer: 2000 2500
– non-braked trailer: 750 750
Maximum load on ball joint (braked trailer): 100 100
(*) The values indicated refer to panel and glazed Vans in medium and short wheelbases with high and low sides.
(**) Version for specific markets
(°) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
286
TECHNICAL SPECIFICATIONS

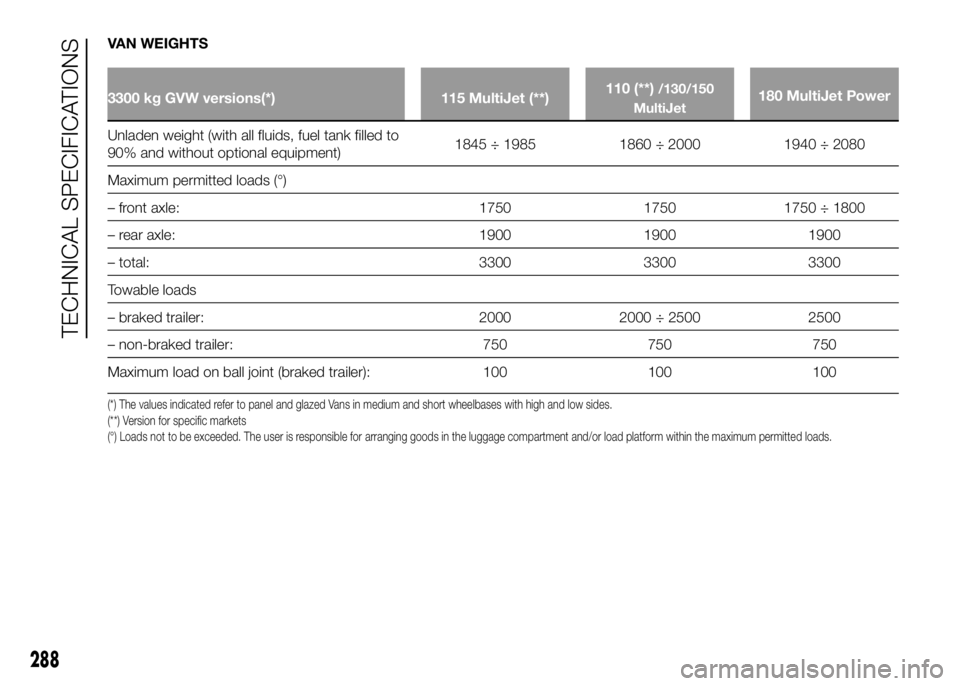

VAN WEIGHTS
3300 kg GVW versions(*) 115 MultiJet (**)110 (**)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1845 ÷ 1985 1860 ÷ 2000 1940 ÷ 2080
Maximum permitted loads (°)
– front axle: 1750 1750 1750 ÷ 1800
– rear axle: 1900 1900 1900
– total: 3300 3300 3300
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) The values indicated refer to panel and glazed Vans in medium and short wheelbases with high and low sides.
(**) Version for specific markets
(°) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
288
TECHNICAL SPECIFICATIONS

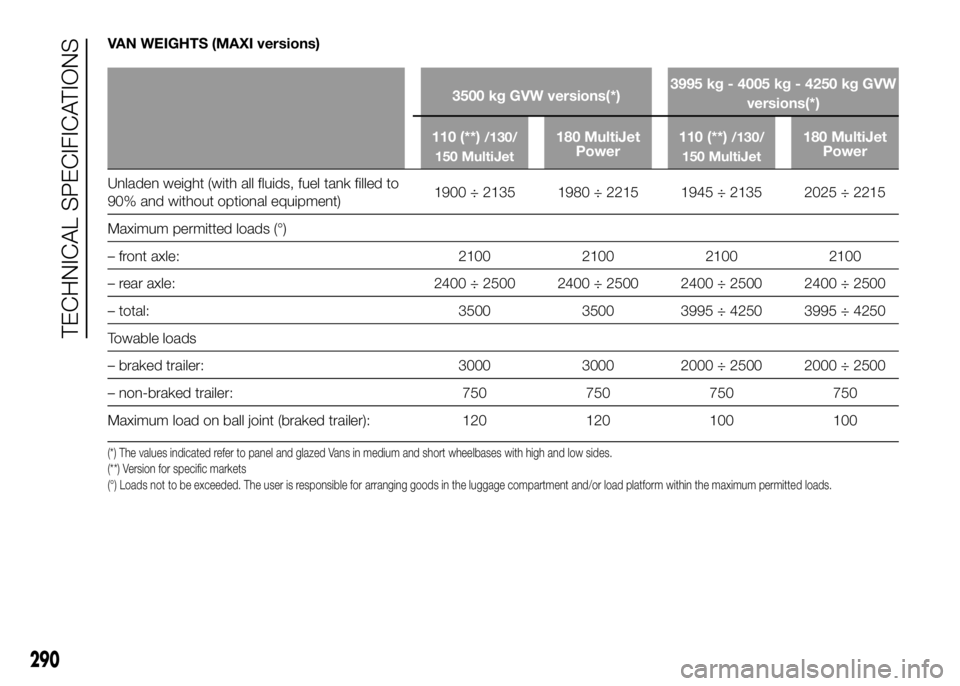

VAN WEIGHTS (MAXI versions)
3500 kg GVW versions(*)3995 kg - 4005 kg - 4250 kg GVW
versions(*)
110 (**)
/130/
150 MultiJet180 MultiJet
Power110 (**)/130/
150 MultiJet180 MultiJet
Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1900 ÷ 2135 1980 ÷ 2215 1945 ÷ 2135 2025 ÷ 2215
Maximum permitted loads (°)
– front axle: 2100 2100 2100 2100
– rear axle: 2400 ÷ 2500 2400 ÷ 2500 2400 ÷ 2500 2400 ÷ 2500
– total: 3500 3500 3995 ÷ 4250 3995 ÷ 4250
Towable loads
– braked trailer: 3000 3000 2000 ÷ 2500 2000 ÷ 2500
– non-braked trailer: 750 750 750 750
Maximum load on ball joint (braked trailer): 120 120 100 100
(*) The values indicated refer to panel and glazed Vans in medium and short wheelbases with high and low sides.
(**) Version for specific markets
(°) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
290
TECHNICAL SPECIFICATIONS

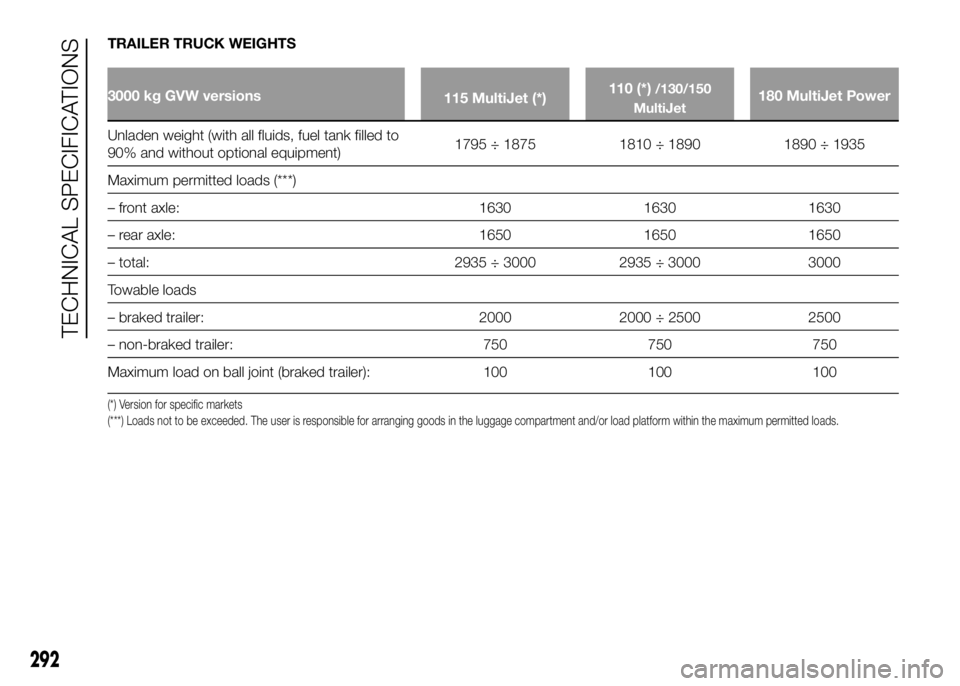

TRAILER TRUCK WEIGHTS
3000 kg GVW versions
115 MultiJet (*)110 (*)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1795 ÷ 1875 1810 ÷ 1890 1890 ÷ 1935
Maximum permitted loads (***)
– front axle: 1630 1630 1630
– rear axle: 1650 1650 1650
– total: 2935 ÷ 3000 2935 ÷ 3000 3000
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
292
TECHNICAL SPECIFICATIONS

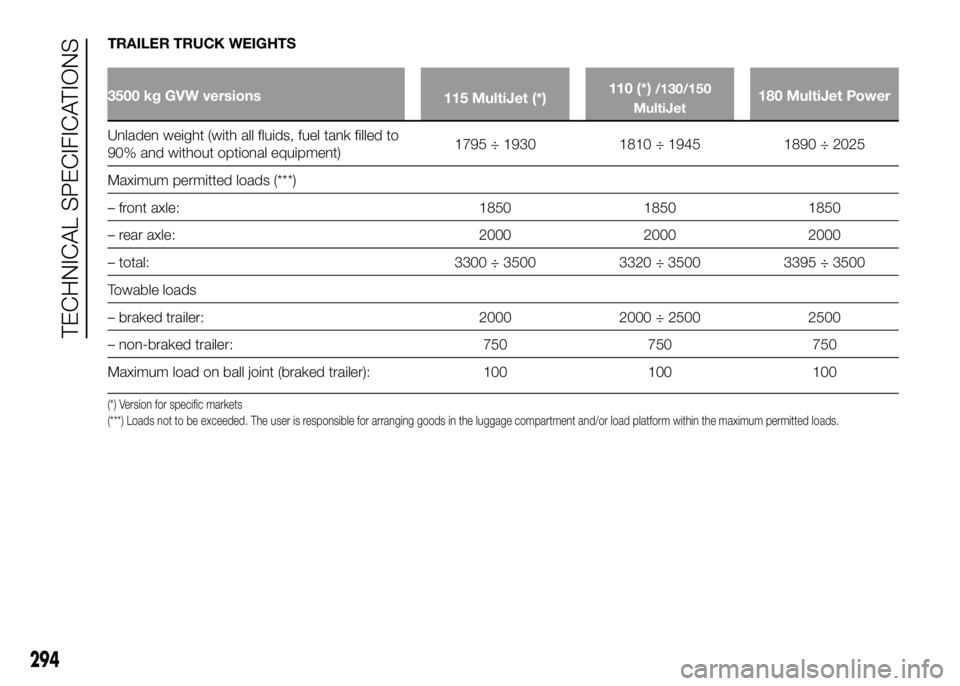

TRAILER TRUCK WEIGHTS
3500 kg GVW versions
115 MultiJet (*)110 (*)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1795 ÷ 1930 1810 ÷ 1945 1890 ÷ 2025
Maximum permitted loads (***)
– front axle: 1850 1850 1850
– rear axle: 2000 2000 2000
– total: 3300 ÷ 3500 3320 ÷ 3500 3395 ÷ 3500
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
294
TECHNICAL SPECIFICATIONS

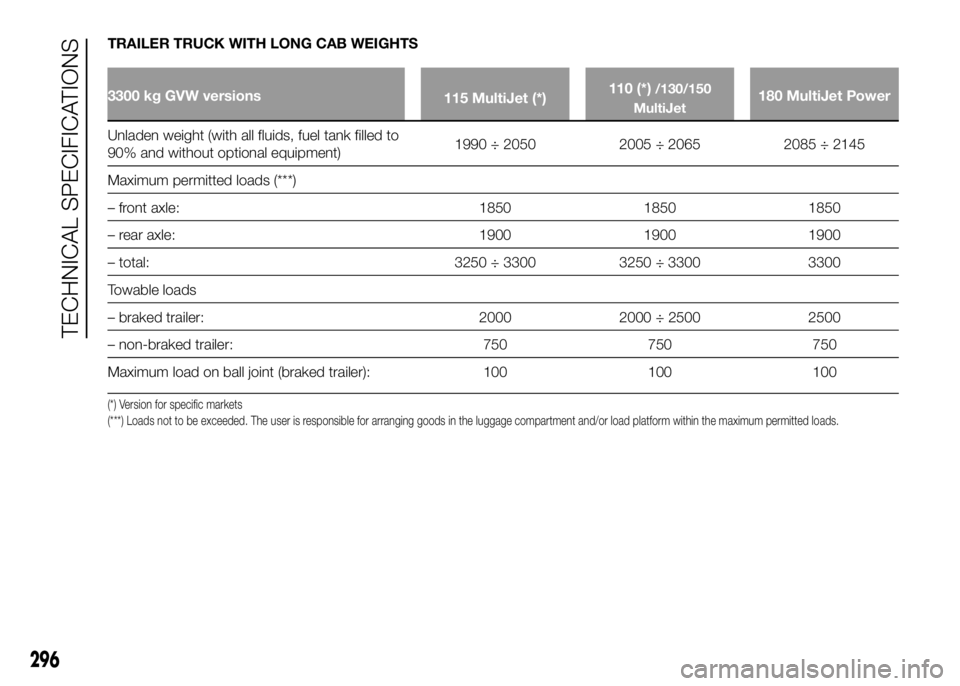

TRAILER TRUCK WITH LONG CAB WEIGHTS
3300 kg GVW versions
115 MultiJet (*)110 (*)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1990 ÷ 2050 2005 ÷ 2065 2085 ÷ 2145
Maximum permitted loads (***)
– front axle: 1850 1850 1850
– rear axle: 1900 1900 1900
– total: 3250 ÷ 3300 3250 ÷ 3300 3300
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
296
TECHNICAL SPECIFICATIONS

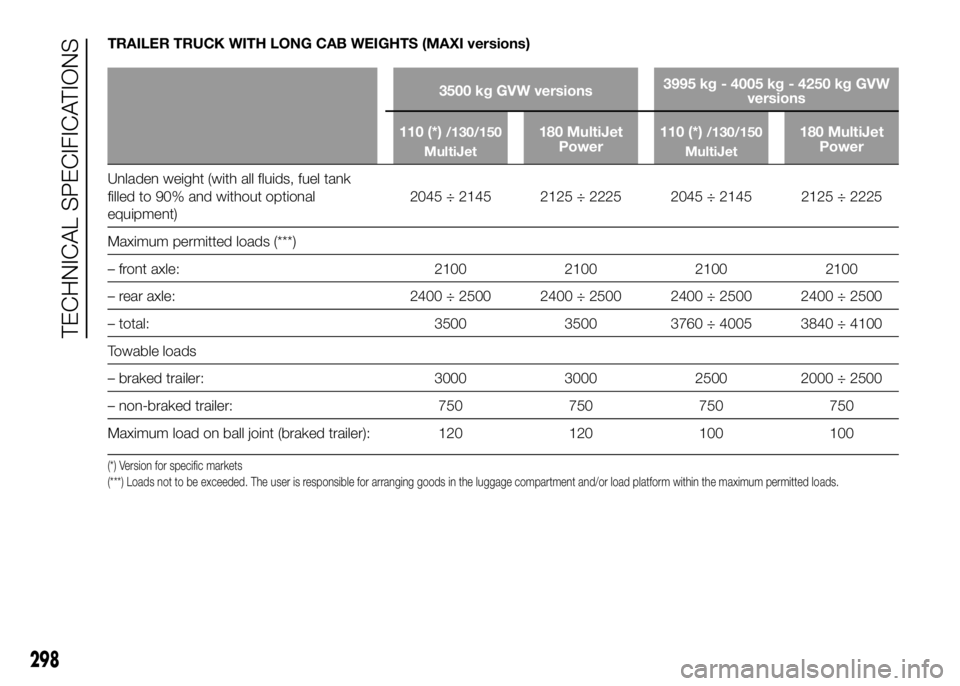

TRAILER TRUCK WITH LONG CAB WEIGHTS (MAXI versions)
3500 kg GVW versions3995 kg - 4005 kg - 4250 kg GVW
versions
110 (*)
/130/150
MultiJet180 MultiJet
Power110 (*)/130/150
MultiJet180 MultiJet
Power
Unladen weight (with all fluids, fuel tank
filled
to 90% and without optional
equipment)2045 ÷ 2145 2125 ÷ 2225 2045 ÷ 2145 2125 ÷ 2225
Maximum permitted loads (***)
– front axle: 2100 2100 2100 2100
– rear axle: 2400 ÷ 2500 2400 ÷ 2500 2400 ÷ 2500 2400 ÷ 2500
– total: 3500 3500 3760 ÷ 4005 3840 ÷ 4100
Towable loads
– braked trailer: 3000 3000 2500 2000 ÷ 2500
– non-braked trailer: 750 750 750 750
Maximum load on ball joint (braked trailer): 120 120 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
298
TECHNICAL SPECIFICATIONS

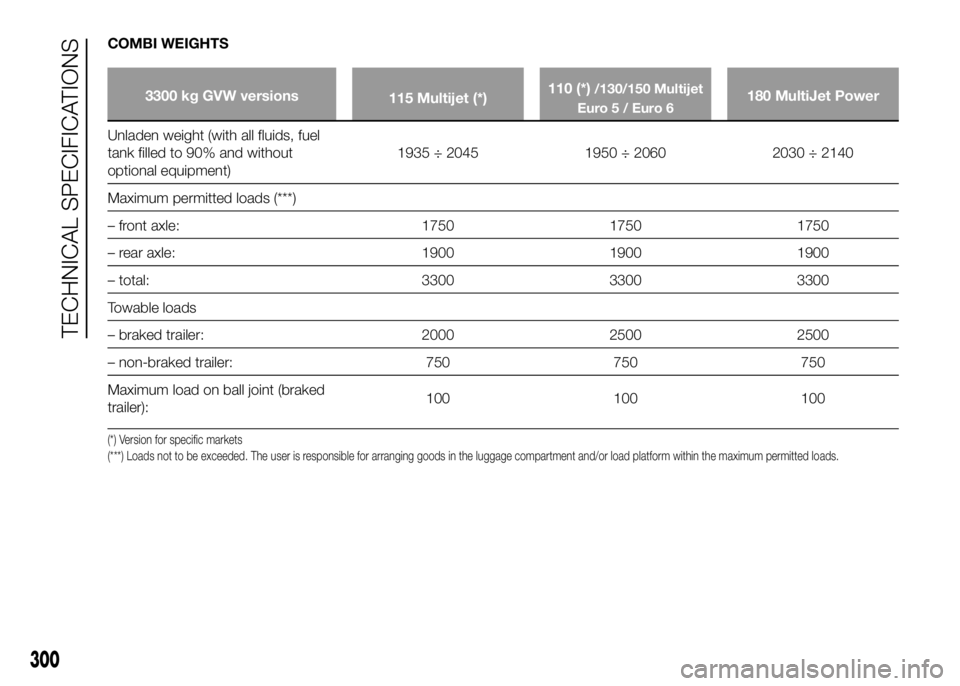

COMBI WEIGHTS
3300 kg GVW versions
115 Multijet (*)110 (*)/130/150 Multijet
Euro 5 / Euro 6180 MultiJet Power
Unladen weight (with all fluids, fuel
tank
filled to 90% and without
optional equipment)1935 ÷ 2045 1950 ÷ 2060 2030 ÷ 2140
Maximum permitted loads (***)
– front axle: 1750 1750 1750
– rear axle: 1900 1900 1900
– total: 3300 3300 3300
Towable loads
– braked trailer: 2000 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked
trailer):100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
300
