technical specifications FIAT DUCATO BASE CAMPER 2016 Owner handbook (in English)

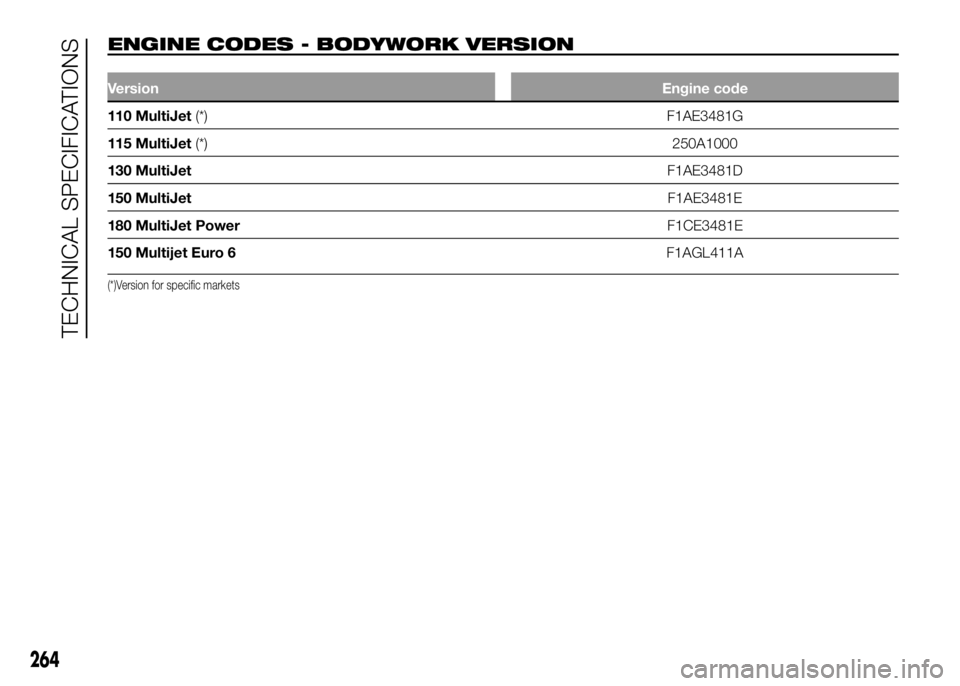

ENGINE CODES - BODYWORK VERSION.
VersionEngine code
110 MultiJet(*)F1AE3481G
115 MultiJet(*)250A1000
130 MultiJetF1AE3481D
150 MultiJetF1AE3481E
180 MultiJet PowerF1CE3481E
150 Multijet Euro 6F1AGL411A
(*)Version for specific markets
264
TECHNICAL SPECIFICATIONS

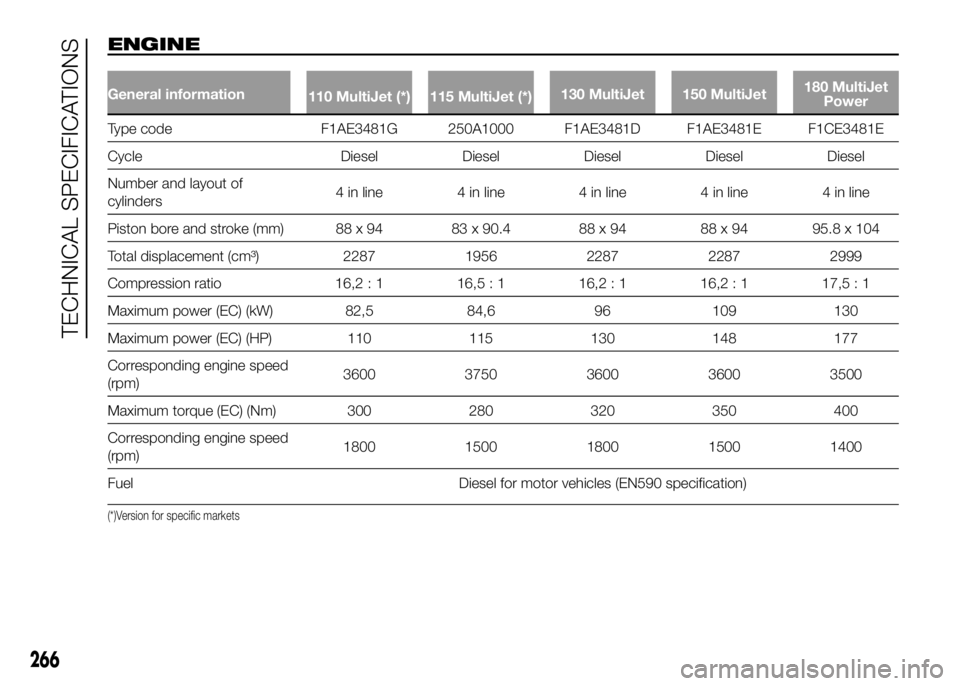

ENGINE
General information
110 MultiJet (*) 115 MultiJet (*)130 MultiJet 150 MultiJet180 MultiJet
Power
Type code F1AE3481G 250A1000 F1AE3481D F1AE3481E F1CE3481E
CycleDiesel Diesel Diesel Diesel Diesel
Number and layout of
cylinders4 in line 4 in line 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 88 x 94 83 x 90.4 88 x 94 88 x 94 95.8 x 104
Total displacement (cm³) 2287 1956 2287 2287 2999
Compression ratio 16,2 : 1 16,5 : 1 16,2 : 1 16,2 : 1 17,5 : 1
Maximum power (EC) (kW) 82,5 84,6 96 109 130
Maximum power (EC) (HP) 110 115 130 148 177
Corresponding engine speed
(rpm)3600 3750 3600 3600 3500
Maximum torque (EC) (Nm) 300 280 320 350 400
Corresponding engine speed
(rpm)1800 1500 1800 1500 1400
Fuel Diesel for motor vehicles (EN590 specification)
(*)Version for specific markets
266
TECHNICAL SPECIFICATIONS

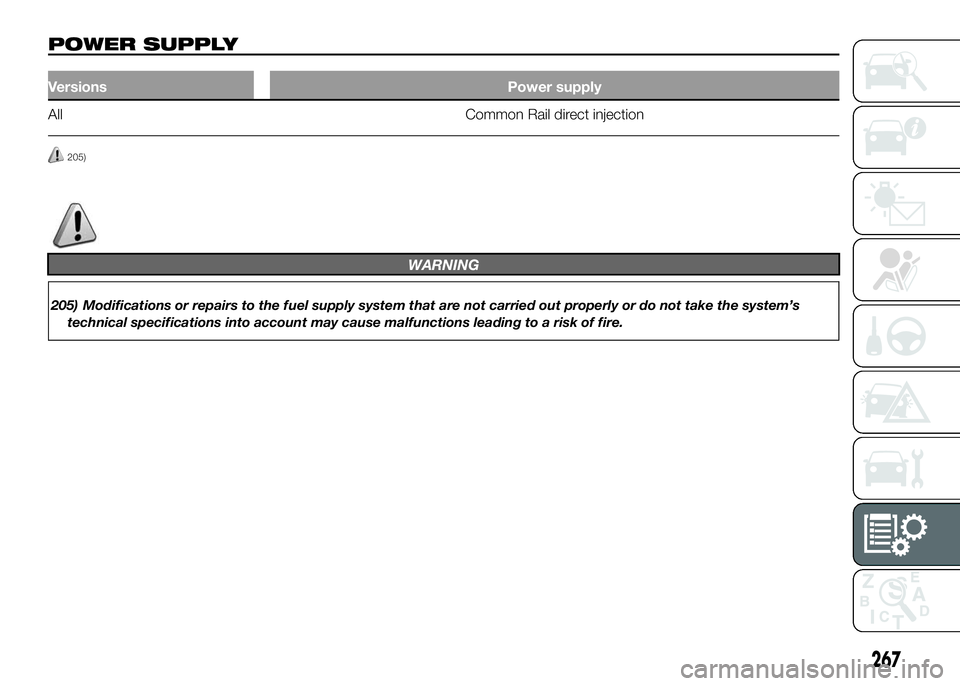

POWER SUPPLY
Versions Power supply
All Common Rail direct injection
205)
WARNING
205) Modifications or repairs to the fuel supply system that are not carried out properly or do not take the system’s
technical specifications into account may cause malfunctions leading to a risk of fire.
267

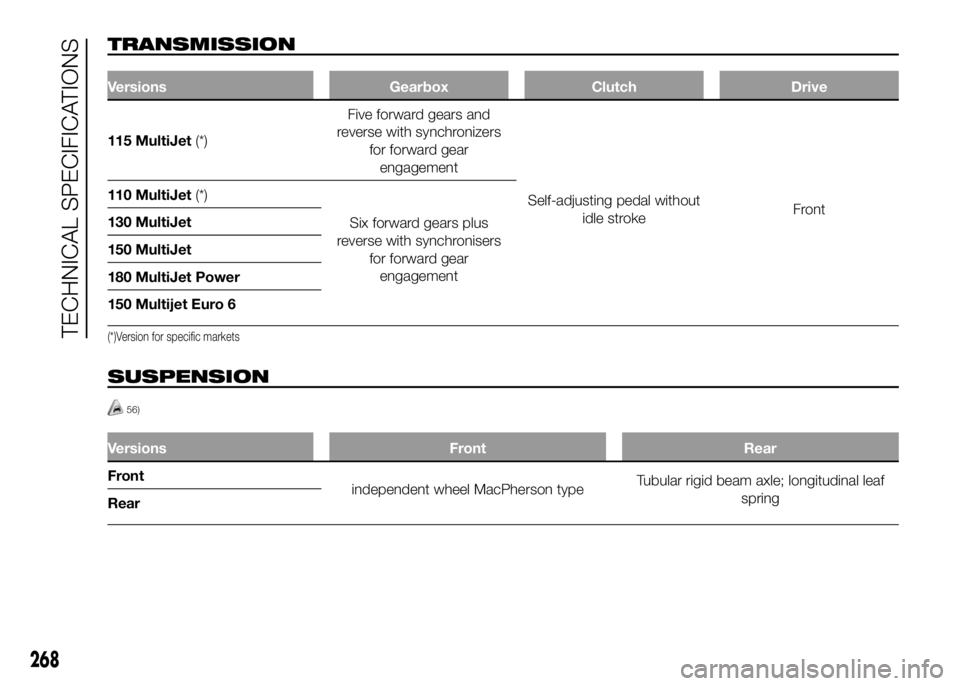

TRANSMISSION
Versions Gearbox Clutch Drive
115 MultiJet(*)Five
forward gears and
reverse with synchronizers
for forward gear
engagement
Self-adjusting pedal without
idle strokeFront 110 MultiJet(*)
Six forward gears plus
reverse with synchronisers
for forward gear
engagement 130 MultiJet
150 MultiJet
180 MultiJet Power
150 Multijet Euro 6
(*)Version for specific markets
SUSPENSION
56)
Versions Front Rear
Front
independentwheel MacPherson typeTubular rigid beam axle; longitudinal leaf
spring
Rear
268
TECHNICAL SPECIFICATIONS

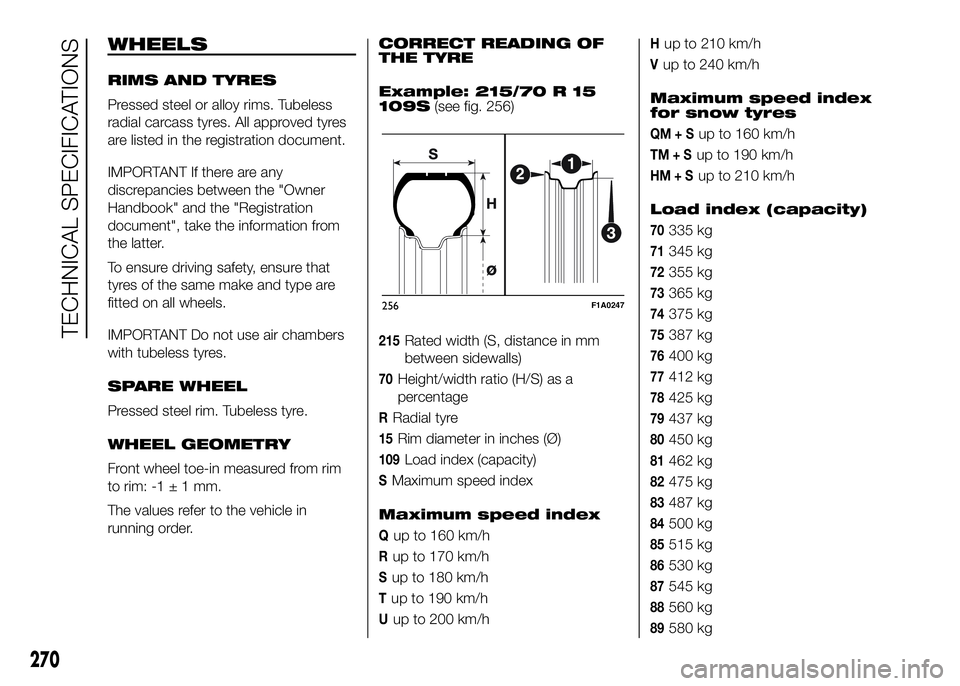

WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless
radial carcass tyres. All approved tyres
are listed in the registration document.
IMPORTANT If there are any
discrepancies between the "Owner
Handbook" and the "Registration
document", take the information from
the latter.
To ensure driving safety, ensure that
tyres of the same make and type are
fitted on all wheels.
IMPORTANT Do not use air chambers
with tubeless tyres.
SPARE WHEEL
Pressed steel rim. Tubeless tyre.
WHEEL GEOMETRY
Front wheel toe-in measured from rim
to rim: -1±1mm.
The values refer to the vehicle in
running order.CORRECT READING OF
THE TYRE
Example: 215/70 R 15
109S(see fig. 256)
215Rated width (S, distance in mm
between sidewalls)
70Height/width ratio (H/S) as a
percentage
RRadial tyre
15Rim diameter in inches (Ø)
109Load index (capacity)
SMaximum speed index
Maximum speed index
Qup to 160 km/h
Rup to 170 km/h
Sup to 180 km/h
Tup to 190 km/h
Uup to 200 km/h
Hup to 210 km/h
Vup to 240 km/h
Maximum speed index
for snow tyres
QM+Sup to 160 km/h
TM+Sup to 190 km/h
HM+Sup to 210 km/h
Load index (capacity)
70335 kg
71345 kg
72355 kg
73365 kg
74375 kg
75387 kg
76400 kg
77412 kg
78425 kg
79437 kg
80450 kg
81462 kg
82475 kg
83487 kg
84500 kg
85515 kg
86530 kg
87545 kg
88560 kg
89580 kg
256F1A0247
270
TECHNICAL SPECIFICATIONS

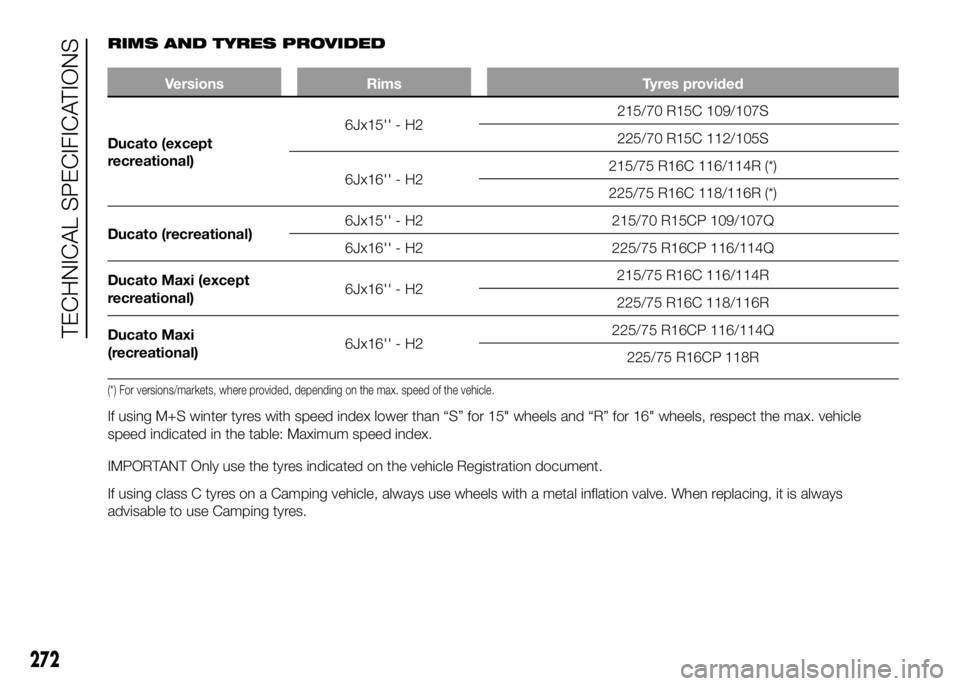

RIMS AND TYRES PROVIDED
Versions Rims Tyres provided
Ducato (except
r
ecreational)6Jx15'' - H2215/70 R15C 109/107S
225/70 R15C 112/105S
6Jx16'' - H2215/75 R16C 116/114R (*)
225/75 R16C 118/116R (*)
Ducato (recreational)6Jx15'' - H2 215/70 R15CP 109/107Q
6Jx16'' - H2 225/75 R16CP 116/114Q
Ducato Maxi (except
recreational)6Jx16'' - H2215/75 R16C 116/114R
225/75 R16C 118/116R
Ducato Maxi
(recreational)6Jx16'' - H2225/75 R16CP 116/114Q
225/75 R16CP 118R
(*) For versions/markets, where provided, depending on the max. speed of the vehicle..
If using M+S winter tyres with speed index lower than “S” for 15" wheels and “R” for 16" wheels, respect the max. vehicle
speed indicated in the table: Maximum speed index.
IMPORTANT Only use the tyres indicated on the vehicle Registration document.
If using class C tyres on a Camping vehicle, always use wheels with a metal inflation valve. When replacing, it is always
advisable to use Camping tyres.
272
TECHNICAL SPECIFICATIONS

DIMENSIONS

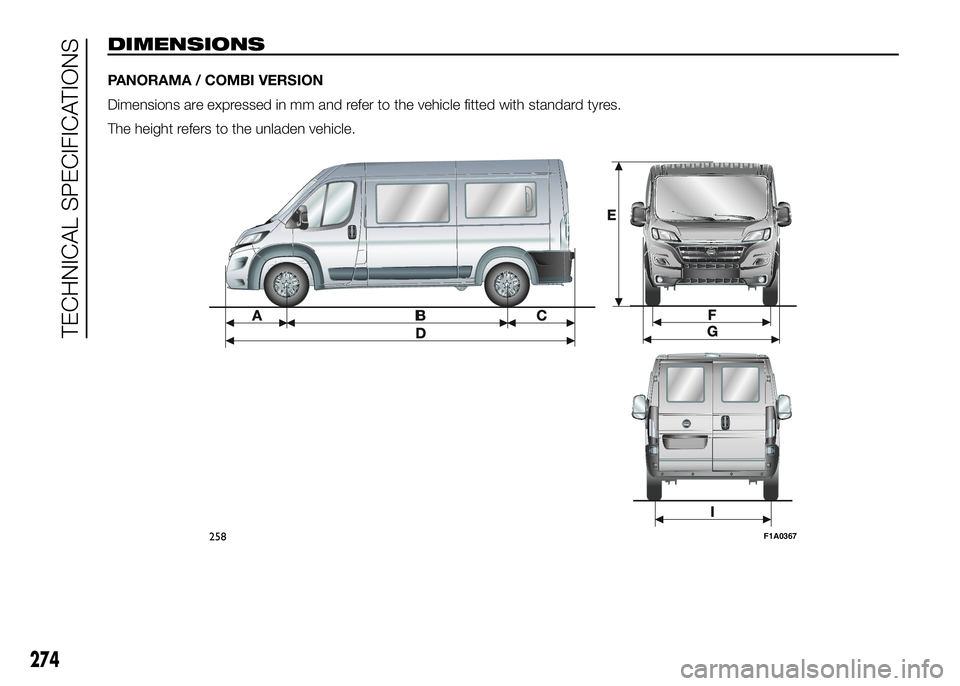

PANORAMA / COMBI VERSION
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
The height refers to the unladen vehicle.
258F1A0367
274
TECHNICAL SPECIFICATIONS

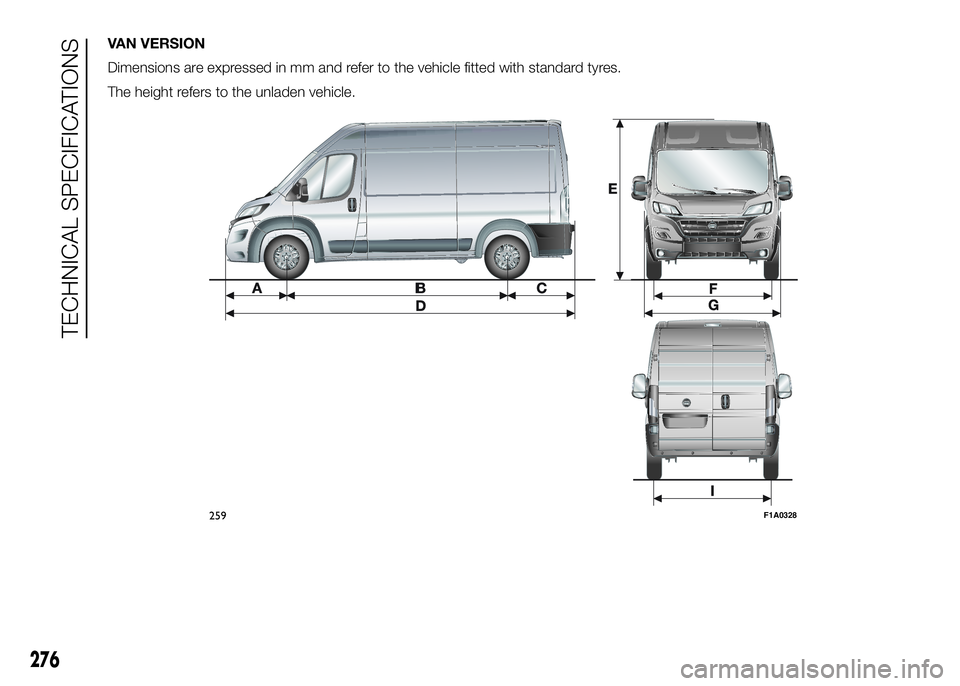

VAN VERSION
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
The height refers to the unladen vehicle.
259F1A0328
276
TECHNICAL SPECIFICATIONS

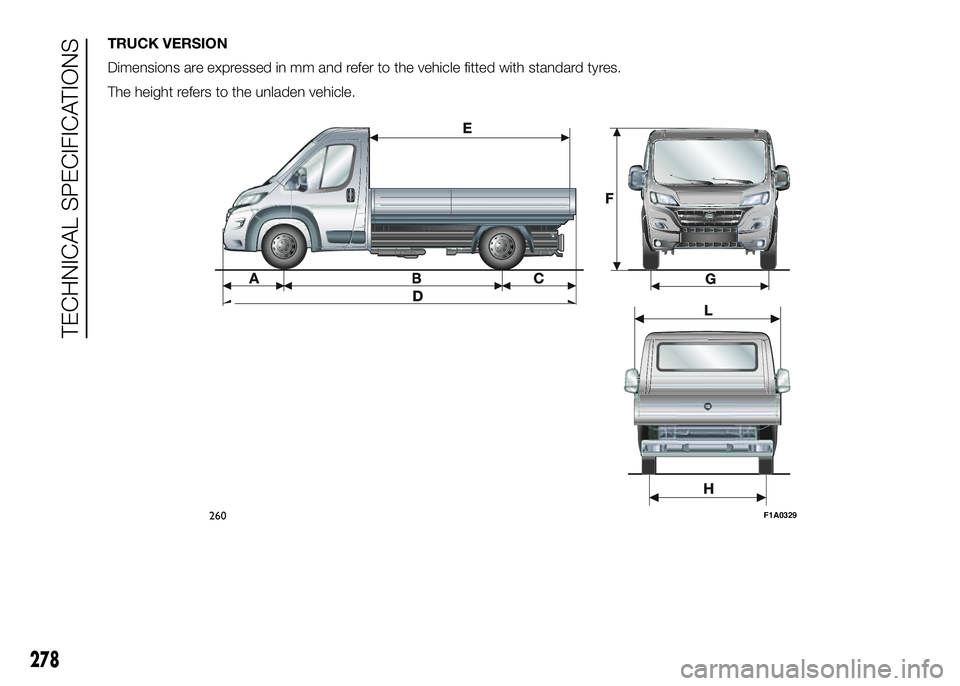

TRUCK VERSION
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
The height refers to the unladen vehicle.
260F1A0329
278
TECHNICAL SPECIFICATIONS

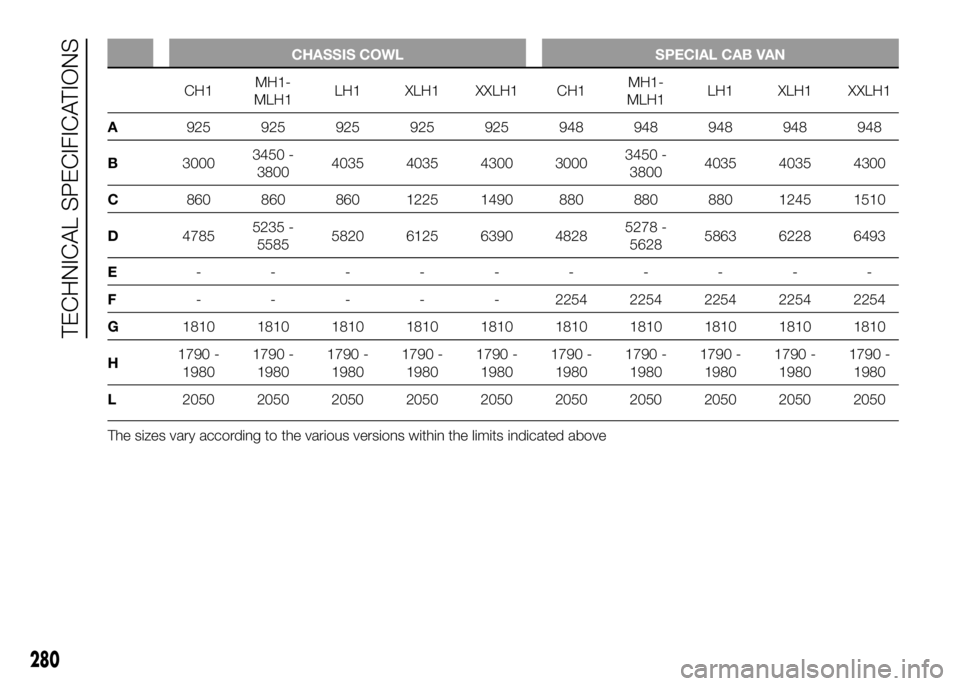

CHASSIS COWL SPECIAL CAB VAN
CH1MH1-
MLH1LH1 XLH1 XXLH1 CH1MH1-
MLH1LH1 XLH1 XXLH1
A925 925 925 925 925 948 948 948 948 948
B30003450 -
38004035 4035 4300 30003450 -
38004035 4035 4300
C860 860 860 1225 1490 880 880 880 1245 1510
D47855235 -
55855820 6125 6390 48285278 -
56285863 6228 6493
E----------
F-----2254 2254 2254 2254 2254
G1810 1810 1810 1810 1810 1810 1810 1810 1810 1810
H1790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
1980
L2050 2050 2050 2050 2050 2050 2050 2050 2050 2050
The sizes vary according to the various versions within the limits indicated above
