technical specifications FIAT FIORINO 2008 Owner handbook (in English)

184
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
UNDERSTANDING
TYRE MARKING fig. 5
Example: 175/70 R 14 91T
175= Nominal width (S, distance in mm
between sidewalls).
70= Height/width ratio (H/S) in per-
centage.
R= Radial tyre.
14= Rim diameter in inches (Ø).
91= Load rating (capacity).
T= Maximum speed rating.
WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless ra-
dial carcass tyres. All approved tyres are
listed in the Log Book.
IMPORTANT In the event of discrepan-
cies between the information provided on
this “Owner handbook” and the “Log
book”, consider the specifications shown
in the log book only.
Respect the prescribed size to ensure
safety of the vehicle in movement. Fit tyres
of the same make and type on all wheels.
IMPORTANT Do not use inner tubes
with Tubeless tyres.SPARE WHEEL
Pressed steel rim Tubeless tyre.
WHEEL GEOMETRY
Toe-in measured between rims: –1 ±1
mm.
The values refer to the vehicle in running
order.
fig. 5F0T0014m
177-198 Fiorino GB 2ed 8-02-2008 15:18 Pagina 184

185
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
Load rating (capacity)
60= 250 kg 84= 500 kg
61= 257 kg 85= 515 kg
62= 265 kg 86= 530 kg
63= 272 kg 87= 545 kg
64= 280 kg 88= 560 kg
65= 290 kg 89= 580 kg
66= 300 kg 90= 600 kg
67= 307 kg 91= 615 kg
68= 315 kg 92= 630 kg
69= 325 kg 93= 650 kg
70= 335 kg 94= 670 kg
71= 345 kg 95= 690 kg
72= 355 kg 96= 710 kg
73= 365 kg 97= 730 kg
74= 375 kg 98= 750 kg
75= 387 kg 99= 775 kg
76= 400 kg 100= 800 kg
77= 412 kg 101= 825 kg
78= 425 kg 102= 850 kg
79= 437 kg 103= 875 kg
80= 450 kg 104= 900 kg
81= 462 kg 105= 925 kg
82= 475 kg 106= 950 kg
83= 487 kgMaximum speed rating
Q= up to 160 km/h.
R= up to 170 km/h.
S
= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
W= up to 270 km/h.
Y= up to 300 km/h.
Maximum speed rating
for snow tyres
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S= up to 210 km/h.UNDERSTANDING
RIM MARKING fig. 5
Example: 5
1/2J x 14 H2 ET 44
5
1/2= Rim diameter in inches (1).
J= rim drop centre outline (side
projection where the tyre bead
rests) (2).
14= rim nominal diameter in inches
(corresponds to diameter of the
tyre to be mounted) (3= Ø).
H2= shape and number of the humps
(circumference relief, holding in-
to its seat the bead of the Tube-
less tyre on the rim).
ET 44= wheel camber angle (distance
between the disc/rim supporting
plane and the wheel rim centre
line).
177-198 Fiorino GB 2ed 8-02-2008 15:18 Pagina 185

186
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS

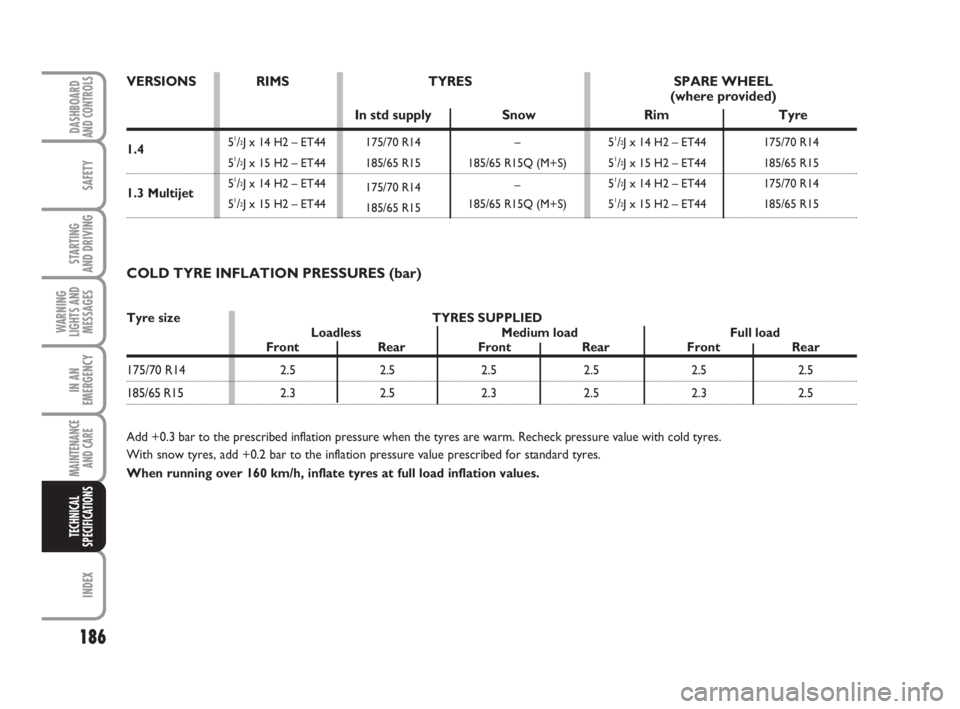

1.4
1.3 Multijet
COLD TYRE INFLATION PRESSURES (bar)
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
When running over 160 km/h, inflate tyres at full load inflation values.
175/70 R14 2.5 2.5 2.5 2.5 2.5 2.5
185/65 R15 2.3 2.5 2.3 2.5 2.3 2.5 Tyre size TYRES SUPPLIED
Loadless Medium load Full load
Front Rear Front Rear Front Rear
VERSIONS RIMS TYRES SPARE WHEEL
(where provided)
In std supply Snow Rim Tyre
51/2J x 14 H2 – ET44 175/70 R14 – 51/2J x 14 H2 – ET44 175/70 R14
5
1/2J x 15 H2 – ET44 185/65 R15 185/65 R15Q (M+S) 51/2J x 15 H2 – ET44 185/65 R15
5
1/2J x 14 H2 – ET44
175/70 R14–51/2J x 14 H2 – ET44 175/70 R14
5
1/2J x 15 H2 – ET44
185/65 R15185/65 R15Q (M+S) 51/2J x 15 H2 – ET44 185/65 R15
177-198 Fiorino GB 2ed 8-02-2008 15:18 Pagina 186

187
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS

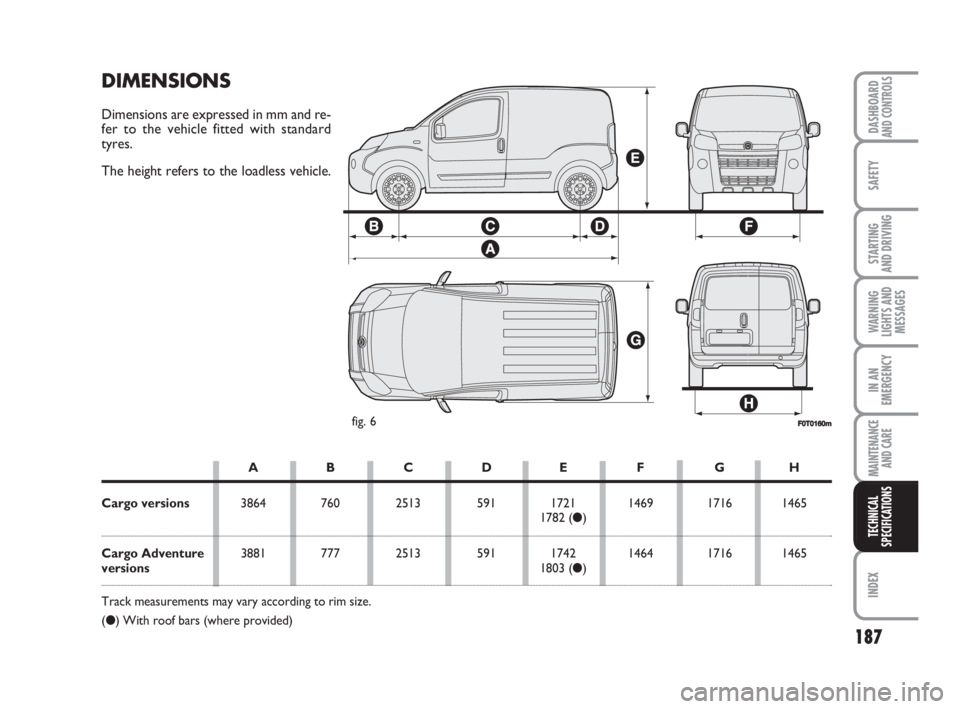

F0T0160mfig. 6
DIMENSIONS
Dimensions are expressed in mm and re-
fer to the vehicle fitted with standard
tyres.
The height refers to the loadless vehicle.
AB CDE F GH
Cargo versions 3864 760 2513 591 1721 1469 1716 1465
1782 (●)
Cargo Adventure3881 777 2513 591 1742 1464 1716 1465
versions 1803 (●)
Track measurements may vary according to rim size.
(●) With roof bars (where provided)
177-198 Fiorino GB 2ed 8-02-2008 15:18 Pagina 187

188
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS

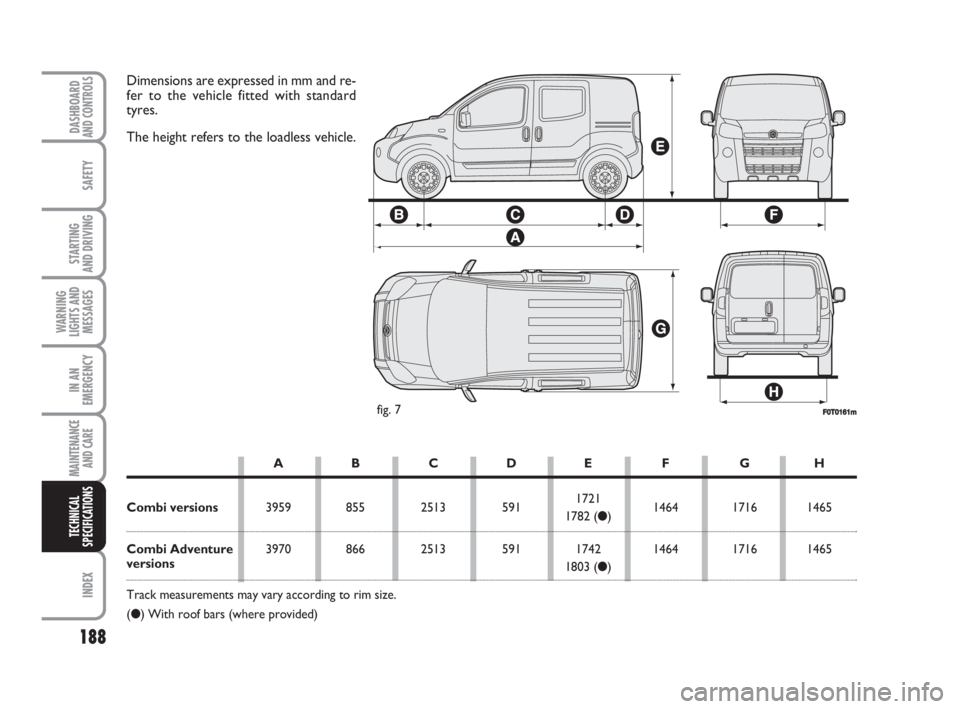

F0T0161mfig. 7
Dimensions are expressed in mm and re-
fer to the vehicle fitted with standard
tyres.
The height refers to the loadless vehicle.
AB CDE F GH
Combi versions 3959 855 2513 5911721
1464 1716 1465
1782 (●)
Combi Adventure3970 866 2513 591 1742 1464 1716 1465
versions
1803 (●)
Track measurements may vary according to rim size.
(●) With roof bars (where provided)
177-198 Fiorino GB 2ed 8-02-2008 15:18 Pagina 188

189
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
1.4 1.3 Multijet
157 (*) / 155 (**) 157 (*) / 155 (**)
(*) Cargo versions
(**) Combi versions

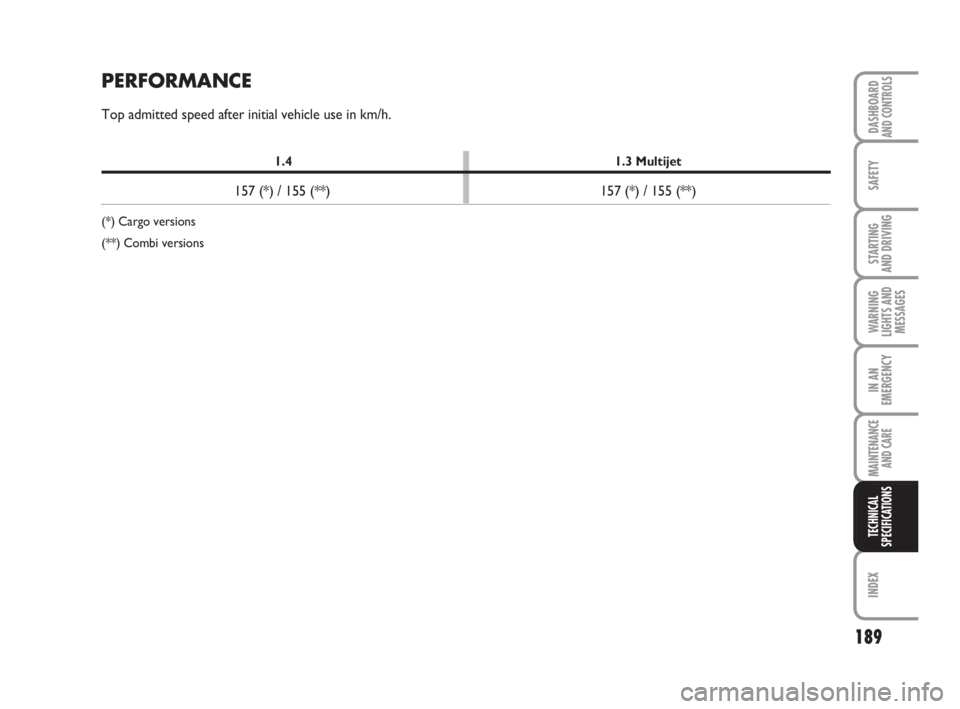

PERFORMANCE
Top admitted speed after initial vehicle use in km/h.
177-198 Fiorino GB 2ed 8-02-2008 15:18 Pagina 189

190
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS

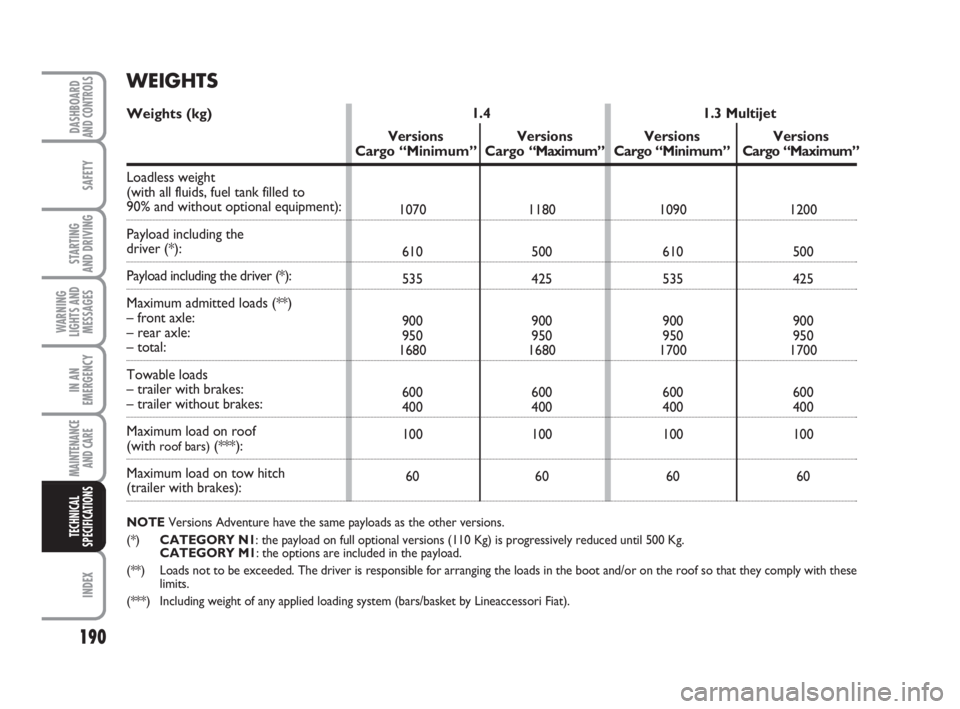

WEIGHTS
Weights (kg)
Loadless weight
(with all fluids, fuel tank filled to
90% and without optional equipment):
Payload including the
driver (*):
Payload including the driver (*):
Maximum admitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– trailer with brakes:
– trailer without brakes:
Maximum load on roof
(with roof bars)(***):
Maximum load on tow hitch
(trailer with brakes):
NOTEVersions Adventure have the same payloads as the other versions.
(*)CATEGORY N1: the payload on full optional versions (110 Kg) is progressively reduced until 500 Kg.
CATEGORY M1: the options are included in the payload.
(**) Loads not to be exceeded. The driver is responsible for arranging the loads in the boot and/or on the roof so that they comply with these
limits.
(***) Including weight of any applied loading system (bars/basket by Lineaccessori Fiat).
1.4
Versions Versions
Cargo “Minimum” Cargo “Maximum”
1070 1180
610 500
535 425
900 900
950 950
1680 1680
600 600
400 400
100 100
60 601.3 Multijet
Versions Versions
Cargo “Minimum”Cargo “Maximum”
1090 1200
610 500
535 425
900 900
950 950
1700 1700
600 600
400 400
100 100
60 60
177-198 Fiorino GB 2ed 8-02-2008 15:18 Pagina 190

191
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS

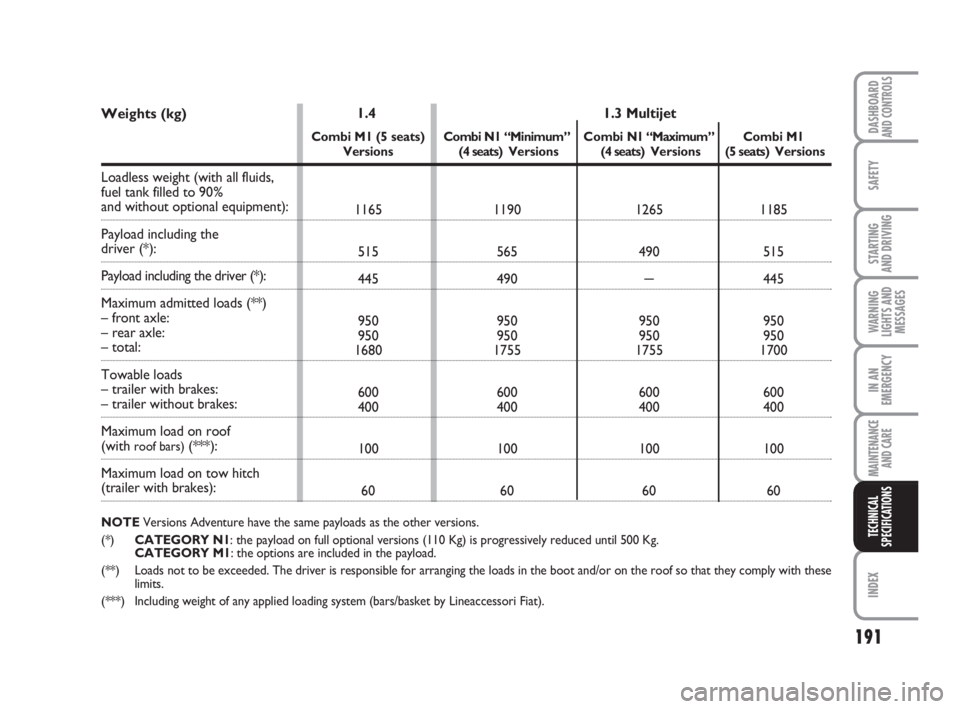

Weights (kg)
Loadless weight (with all fluids,
fuel tank filled to 90%
and without optional equipment):
Payload including the
driver (*):
Payload including the driver (*):
Maximum admitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– trailer with brakes:
– trailer without brakes:
Maximum load on roof
(with roof bars)(***):
Maximum load on tow hitch
(trailer with brakes):
NOTEVersions Adventure have the same payloads as the other versions.
(*)CATEGORY N1: the payload on full optional versions (110 Kg) is progressively reduced until 500 Kg.
CATEGORY M1: the options are included in the payload.
(**) Loads not to be exceeded. The driver is responsible for arranging the loads in the boot and/or on the roof so that they comply with these
limits.
(***) Including weight of any applied loading system (bars/basket by Lineaccessori Fiat).
1.4
Combi M1 (5 seats)Combi N1 “Minimum”
Versions (4 seats) Versions
1165 1190
515 565
445 490
950 950
950 950
1680 1755
600 600
400 400
100 100
60 601.3 Multijet
Combi N1 “Maximum” Combi M1
(4 seats) Versions (5 seats) Versions
1265 1185
490 515
–445
950 950
950 950
1755 1700
600 600
400 400
100 100
60 60
177-198 Fiorino GB 2ed 8-02-2008 15:18 Pagina 191

192
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS

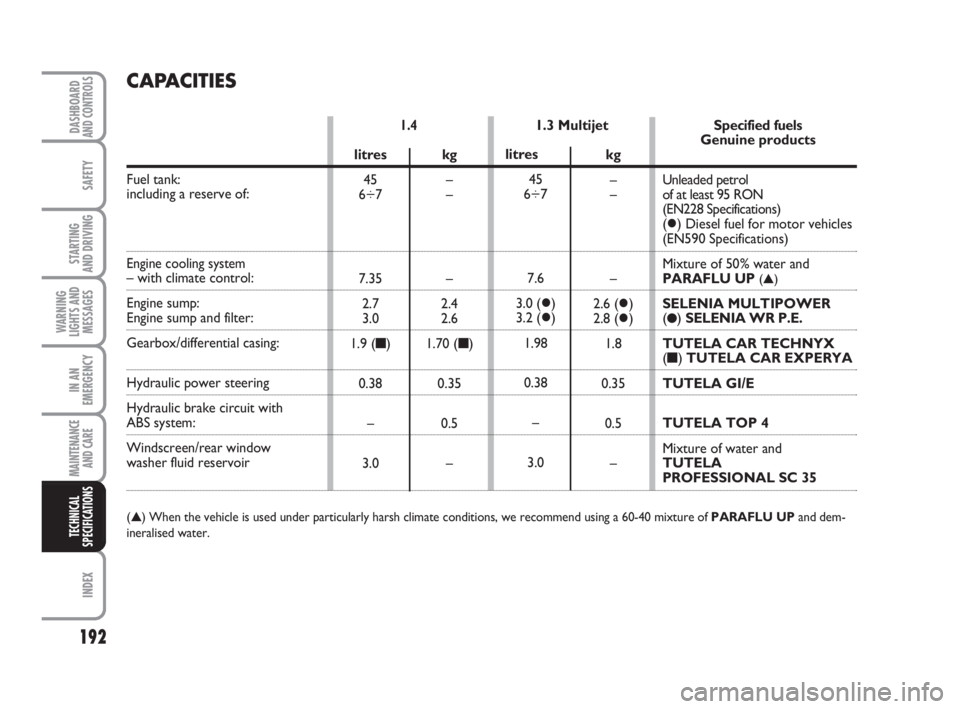

CAPACITIES
1.3 Multijet1.4
Fuel tank:
including a reserve of:
Engine cooling system– with climate control:
Engine sump:
Engine sump and filter:
Gearbox/differential casing:
Hydraulic power steering
Hydraulic brake circuit with
ABS system:
Windscreen/rear window
washer fluid reservoir
(▲) When the vehicle is used under particularly harsh climate conditions, we recommend using a 60-40 mixture of PARAFLU UPand dem-
ineralised water.
litres
45
6
÷7
7.35
2.7
3.0
1.9 (
■)
0.38
–
3.0kg
–
–
–
2.4
2.6
1.70 (■)
0.35
0.5
–litres
45
6
÷7
7.6
3.0 ()
3.2 ()
1.98
0.38
–
3.0kg
–
–
–
2.6 ()
2.8 ()
1.8
0.35
0.5
–Specified fuels
Genuine products
Unleaded petrol
of at least 95 RON
(EN228 Specifications)
() Diesel fuel for motor vehicles
(EN590 Specifications)
Mixture of 50% water and
PARAFLU UP(▲)
SELENIA MULTIPOWER
(●) SELENIA WR P.E.
TUTELA CAR TECHNYX
(
■) TUTELA CAR EXPERYA
TUTELA GI/E
TUTELA TOP 4
Mixture of water and
TUTELA
PROFESSIONAL SC 35
177-198 Fiorino GB 2ed 8-02-2008 15:18 Pagina 192

193
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
For diesel engines, in emergency cases where genuine products are not available, lubricants with min. performance ACEA C2
are accepted. If this is the case, the best engine performance is not guaranteed. We however recommend replacing the lubri-
cant with those recommended by Fiat Dealership.
The use of products with features lower than ACEA A1/B1 and ACEA C2 could cause engine damage which is not covered by
warranty.
If the vehicle is used in particularly cold climates, ask your Fiat Dealership for the right Seleniaproduct.

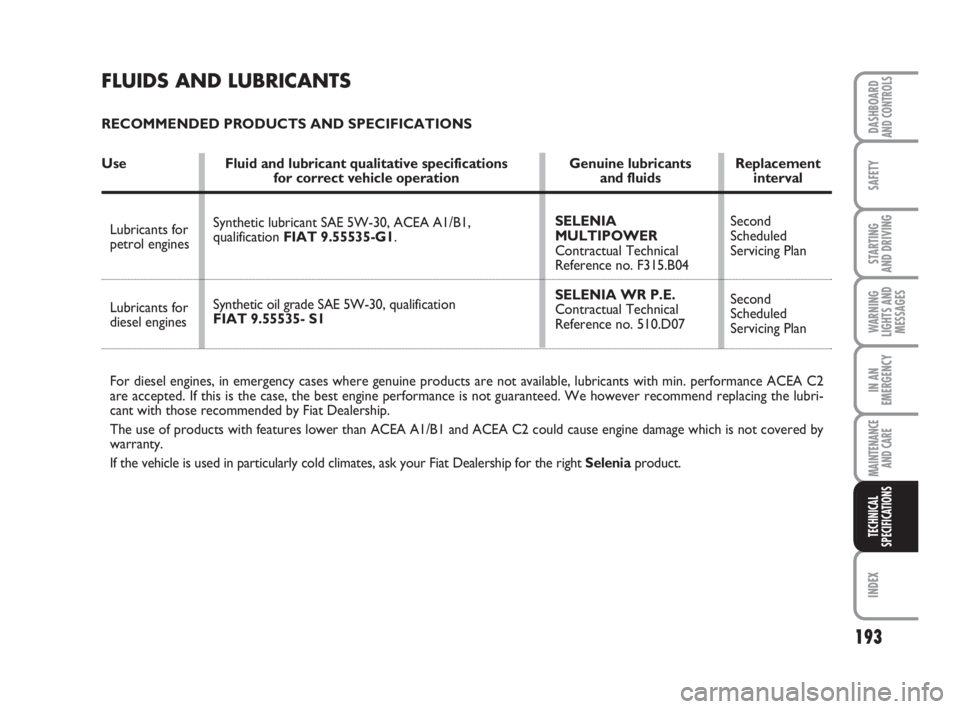

FLUIDS AND LUBRICANTS
RECOMMENDED PRODUCTS AND SPECIFICATIONS
Use Fluid and lubricant qualitative specifications Genuine lubricants Replacement
for correct vehicle operation and fluids interval
Synthetic lubricant SAE 5W-30, ACEA A1/B1,
qualification FIAT 9.55535-G1.
Synthetic oil grade SAE 5W-30,qualification
FIAT 9.55535- S1 Lubricants for
petrol engines
Lubricants for
diesel enginesSELENIA
MULTIPOWER
Contractual Technical
Reference no. F315.B04
SELENIA WR P.E.
Contractual Technical
Reference no. 510.D07Second
Scheduled
Servicing Plan
Second
Scheduled
Servicing Plan
