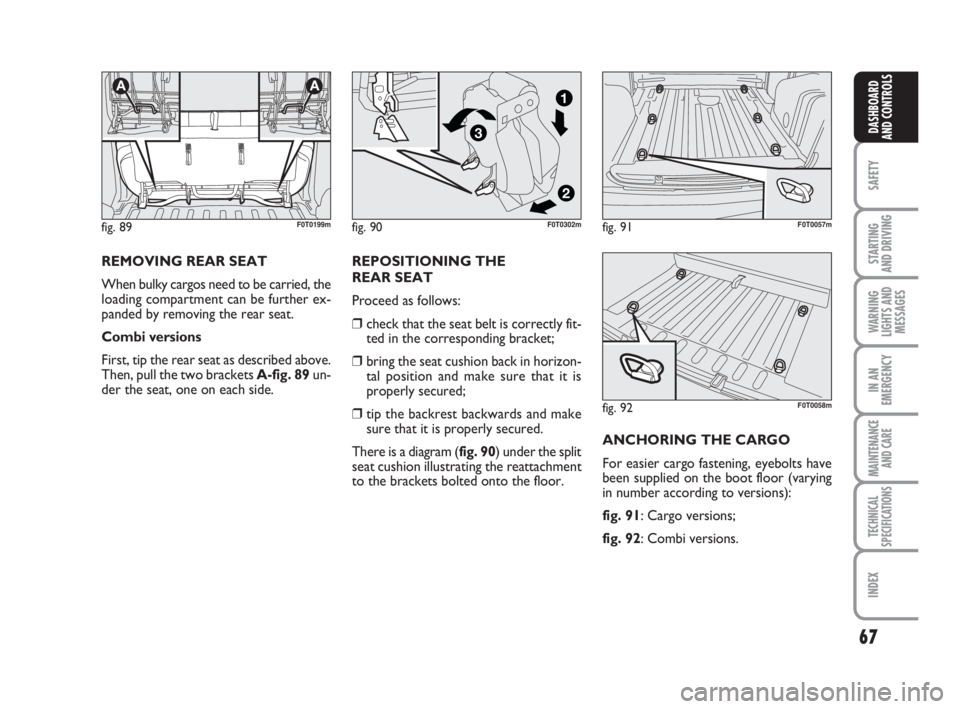

REMOVING REAR SEAT
When bulky cargos need to be carried, the
loading compartment can be further ex-
panded by removing the rear seat.
Combi versions
First, tip the rear seat as described above.
Then, pull the two brackets A-fig. 89un-
der the seat, one on each side.REPOSITIONING THE
REAR SEAT
Proceed as follows:
❒check that the seat belt is correctly fit-
ted in the corresponding bracket;
❒bring the seat cushion back in horizon-
tal position and make sure that it is
properly secured;
❒tip the backrest backwards and make
sure that it is properly secured.
There is a diagram (fig. 90) under the split
seat cushion illustrating the reattachment
to the brackets bolted onto the floor.
fig. 89
AA
F0T0199mfig. 91F0T0057m
fig. 92F0T0058m
ANCHORING THE CARGO
For easier cargo fastening, eyebolts have
been supplied on the boot floor (varying
in number according to versions):
fig. 91: Cargo versions;
fig. 92: Combi versions.
fig. 90
2
3
1
F0T0302m
036-082 CombiCargo GB 1ed 21-10-2008 14:17 Pagina 67

85
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
SAFETY
The rear seat belts must be used as shown
in the diagram in fig. 2.
IMPORTANT The backrest is correctly
secured when the “red band” B-fig. 3 on
the backrest lowering levers Adisappears.
This red band indicates that the backrest
is not secured. IMPORTANT After putting the seats back
in their travel position, restore the seat
belt position to make them ready for use.
S.B.R. SYSTEM
The vehicle is provided with a Seat Belt
Reminder (S.B.R.) system, which warns
the driver and the front passenger if the
seat belt is not buckled, as follows:
❒warning light
buzzer keeps on playing for the first 6
seconds;
❒warning light
plays intermittently for the next 90 se-
conds;
For permanent deactivation, contact the
Fiat Dealership.
The S.B.R. system can also be reset th-
rough the setup menu.fig. 2F0T0193mfig. 3 Combi versions
AB
F0T0064m
Make sure the backrest is
properly secured on both si-
des (red bands B not visible) to pre-
vent it from moving forward in the
event of sharp braking, which may
cause injuries to passengers.
WARNING
