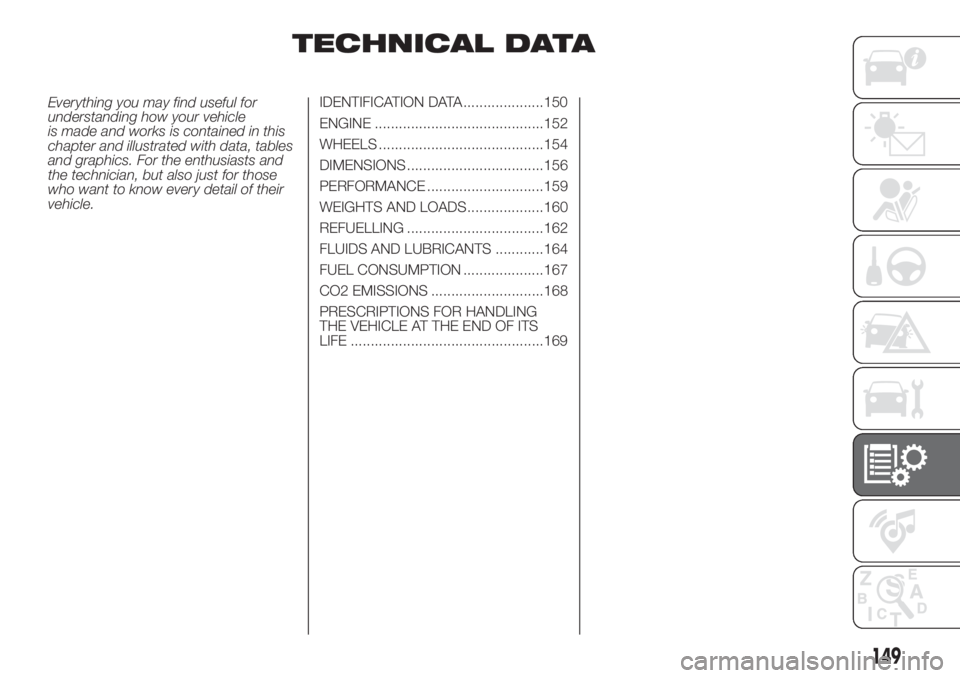

TECHNICAL DATA
Everything you may find useful for
understanding how your vehicle
is made and works is contained in this
chapter and illustrated with data, tables
and graphics. For the enthusiasts and
the technician, but also just for those
who want to know every detail of their
vehicle.ENGINE ..........................................152
WHEELS .........................................154
DIMENSIONS ..................................156
PERFORMANCE .............................159
WEIGHTS AND LOADS...................160
REFUELLING ..................................162
FLUIDS AND LUBRICANTS ............164
FUEL CONSUMPTION ....................167
CO2 EMISSIONS ............................168
PRESCRIPTIONS FOR HANDLING
THE VEHICLE AT THE END OF ITS
LIFE ................................................169
149
IDENTIFICATION DATA....................150

ABCDEFGH
Cargo versions
3957/3864(**)854/760(**)2513
590/591(**)1721/1782(*)1469 1716 1465
Cargo Adventure
versions3957 854 2513 590
1742/1803
(*)1464 1716 1465
(**) Natural Power versions
(*) With roof bars (for versions/markets where provided)
Natural Power versions
Load compartment volume: 2100 litres
Small variations in size are possible depending on the dimensions of the rims.
156
TECHNICAL DATA
180F0T0160

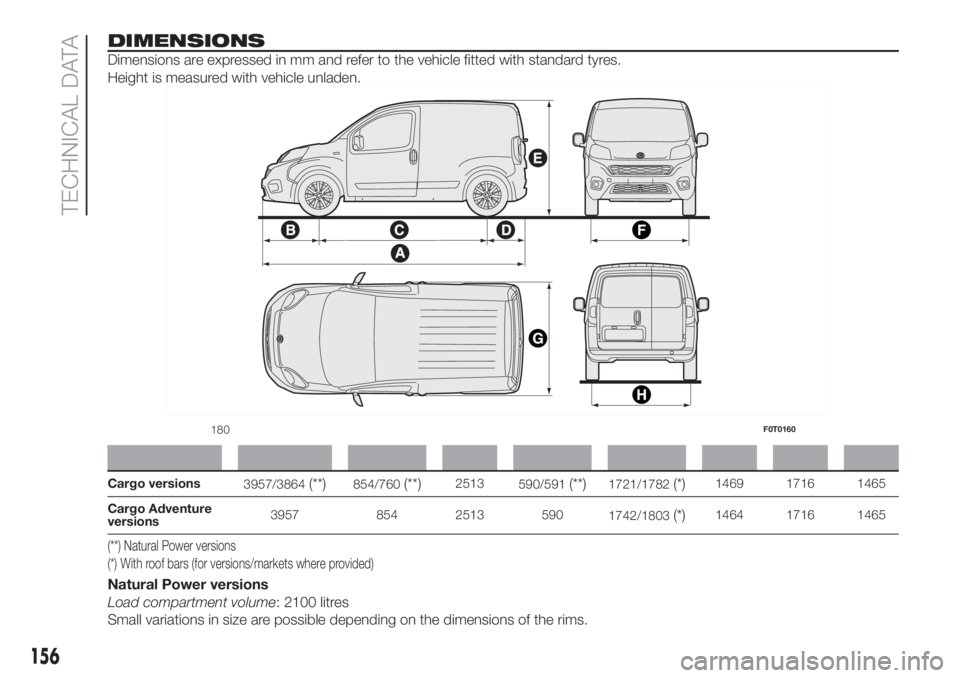

DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
Height is measured with vehicle unladen.

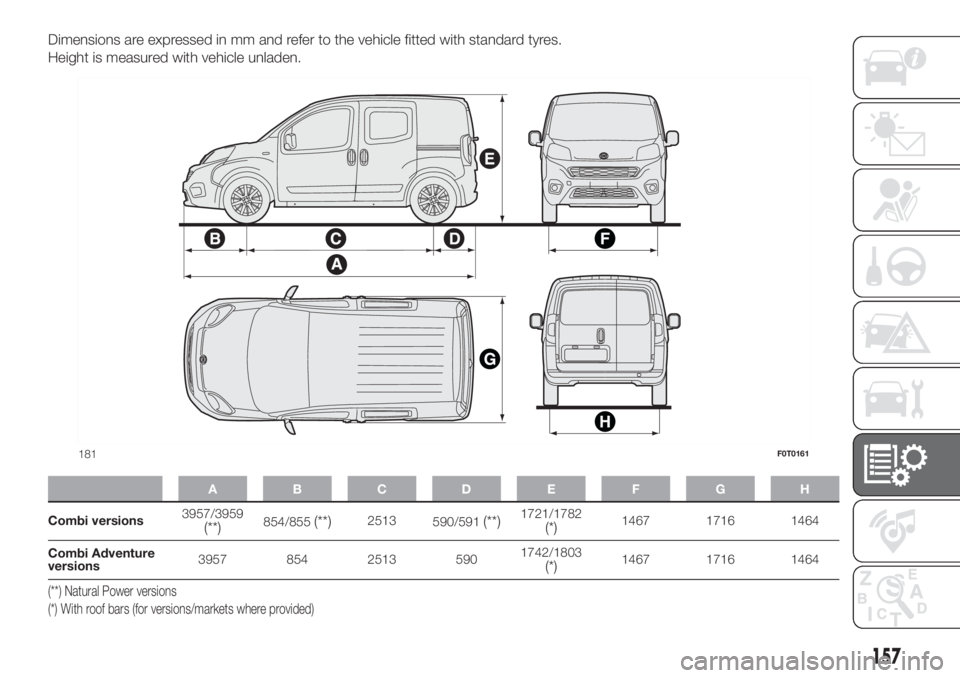

Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
Height is measured with vehicle unladen.
ABCDE FGH
Combi versions3957/3959(**)854/855(**)2513
590/591(**)1721/1782(*)1467 1716 1464
Combi Adventure
versions3957 854 2513 5901742/1803
(*)1467 1716 1464
(**) Natural Power versions
(*) With roof bars (for versions/markets where provided)
181F0T0161
157

Natural Power versions
Luggage compartment capacity:
With rear backrests not folded over:275 litres
With rear backrests folded over:553 litres
Small variations in size are possible depending on the dimensions of the rims.
158
TECHNICAL DATA

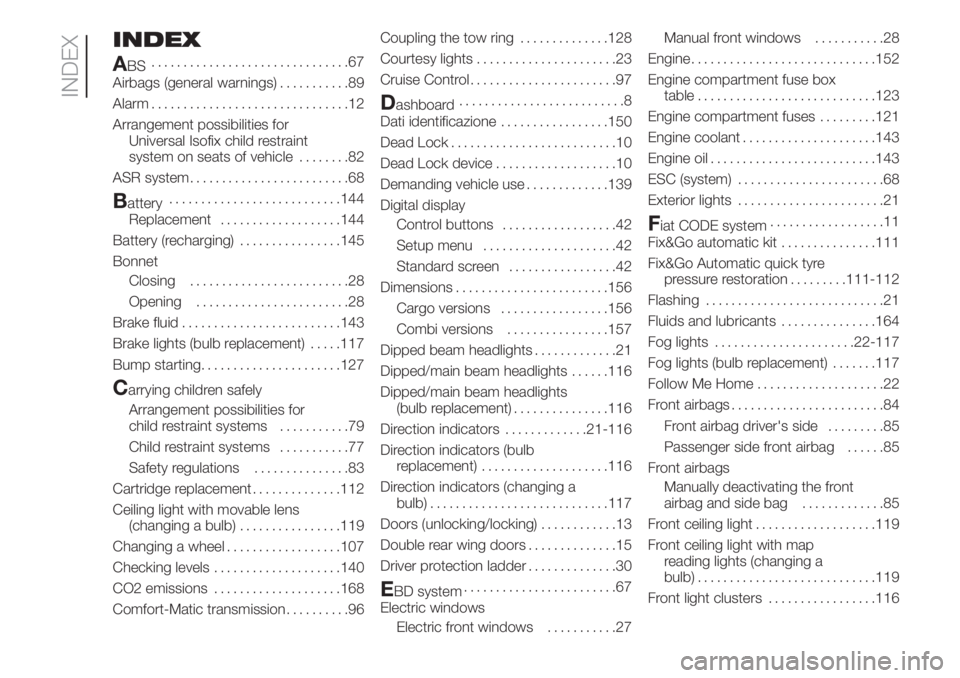

INDEX
A
BS...............................67
Airbags (general warnings)...........89
Alarm...............................12
Arrangement possibilities for
Universal Isofix child restraint
system on seats of vehicle........82
ASR system.........................68
Battery...........................144
Replacement...................144
Battery (recharging)................145
Bonnet
Closing.........................28
Opening........................28
Brake fluid.........................143
Brake lights (bulb replacement).....117
Bump starting......................127
Carrying children safely
Arrangement possibilities for
child restraint systems...........79
Child restraint systems...........77
Safety regulations...............83
Cartridge replacement..............112
Ceiling light with movable lens
(changing a bulb)................119
Changing a wheel..................107
Checking levels....................140
CO2 emissions....................168
Comfort-Matic transmission..........96Coupling the tow ring..............128
Courtesy lights......................23
Cruise Control.......................97
Dashboard..........................8
Dati identificazione.................150
Dead Lock..........................10
Dead Lock device...................10
Demanding vehicle use.............139
Digital display
Control buttons..................42
Setup menu.....................42
Standard screen.................42
Dimensions........................156
Cargo versions.................156
Combi versions................157
Dipped beam headlights.............21
Dipped/main beam headlights......116
Dipped/main beam headlights
(bulb replacement)...............116
Direction indicators.............21-116
Direction indicators (bulb
replacement)....................116
Direction indicators (changing a
bulb)............................117
Doors (unlocking/locking)............13
Double rear wing doors..............15
Driver protection ladder..............30
EBD system........................67
Electric windows
Electric front windows...........27Manual front windows...........28
Engine.............................152
Engine compartment fuse box
table............................123
Engine compartment fuses.........121
Engine coolant.....................143
Engine oil..........................143
ESC (system).......................68
Exterior lights.......................21
Fiat CODE system..................11
Fix&Go automatic kit...............111
Fix&Go Automatic quick tyre
pressure restoration.........111-112
Flashing............................21
Fluids and lubricants...............164
Fog lights......................22-117
Fog lights (bulb replacement).......117
Follow Me Home....................22
Front airbags........................84
Front airbag driver's side.........85
Passenger side front airbag......85
Front airbags
Manually deactivating the front
airbag and side bag.............85
Front ceiling light...................119
Front ceiling light with map
reading lights (changing a
bulb)............................119
Front light clusters.................116
