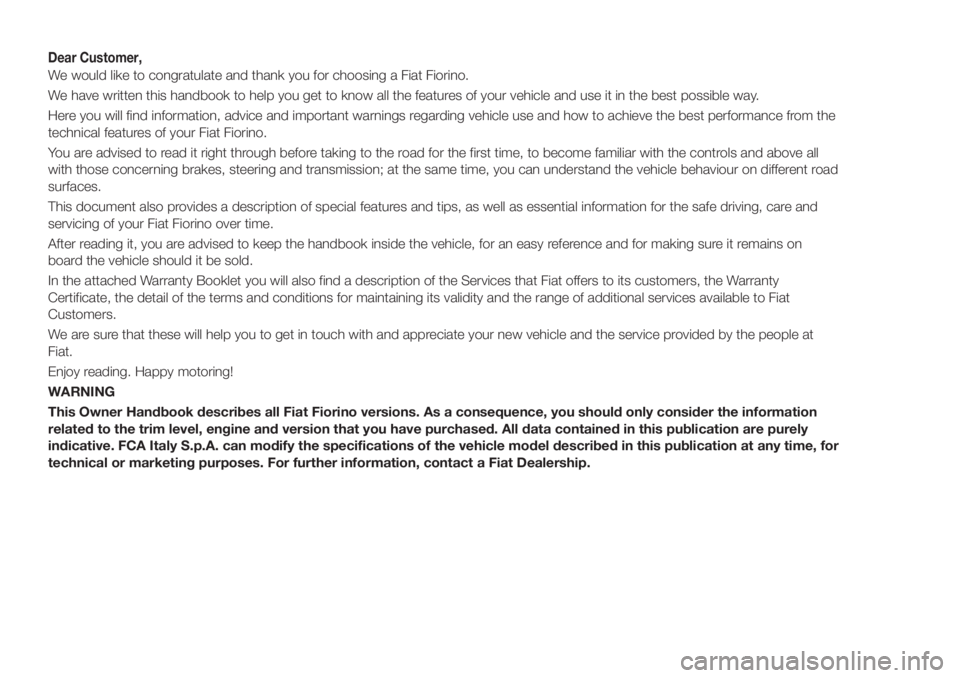

Dear Customer,
We would like to congratulate and thank you for choosing a Fiat Fiorino.
We have written this handbook to help you get to know all the features of your vehicle and use it in the best possible way.
Here you will find information, advice and important warnings regarding vehicle use and how to achieve the best performance from the
technical features of your Fiat Fiorino.
You are advised to read it right through before taking to the road for the first time, to become familiar with the controls and above all
with those concerning brakes, steering and transmission; at the same time, you can understand the vehicle behaviour on different road
surfaces.
This document also provides a description of special features and tips, as well as essential information for the safe driving, care and
servicing of your Fiat Fiorino over time.
After reading it, you are advised to keep the handbook inside the vehicle, for an easy reference and for making sure it remains on
board the vehicle should it be sold.
In the attached Warranty Booklet you will also find a description of the Services that Fiat offers to its customers, the Warranty
Certificate, the detail of the terms and conditions for maintaining its validity and the range of additional services available to Fiat
Customers.
We are sure that these will help you to get in touch with and appreciate your new vehicle and the service provided by the people at
Fiat.
Enjoy reading. Happy motoring!
WARNING
This Owner Handbook describes all Fiat Fiorino versions. As a consequence, you should only consider the information
related to the trim level, engine and version that you have purchased. All data contained in this publication are purely
indicative. FCA Italy S.p.A. can modify the specifications of the vehicle model described in this publication at any time, for
technical or marketing purposes. For further information, contact a Fiat Dealership.

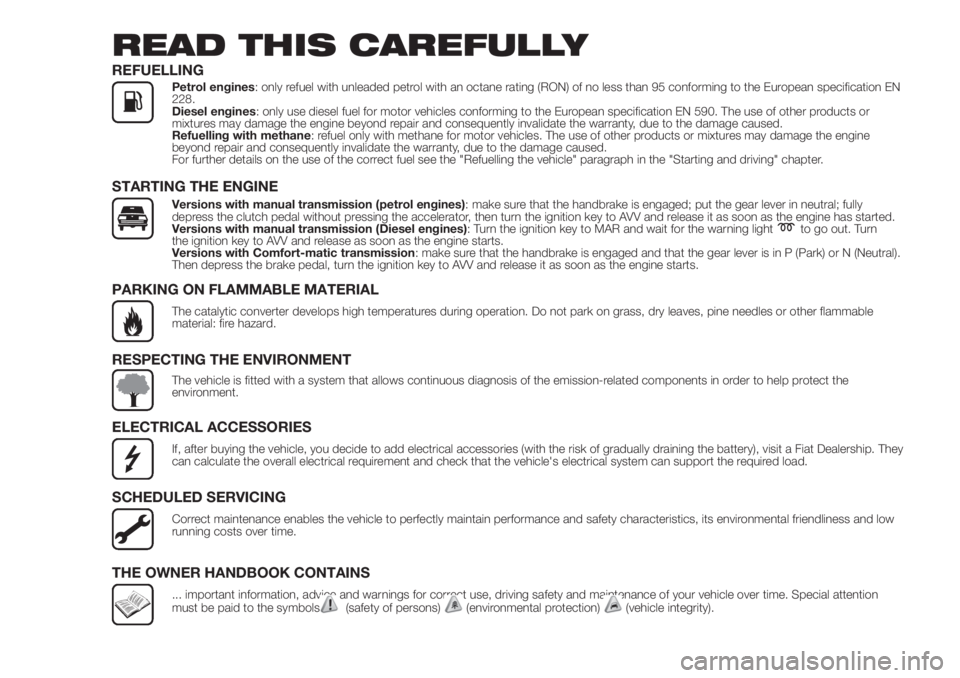

READ THIS CAREFULLY
REFUELLINGPetrol engines: only refuel with unleaded petrol with an octane rating (RON) of no less than 95 conforming to the European specification EN
228.
Diesel engines: only use diesel fuel for motor vehicles conforming to the European specification EN 590. The use of other products or
mixtures may damage the engine beyond repair and consequently invalidate the warranty, due to the damage caused.
Refuelling with methane: refuel only with methane for motor vehicles. The use of other products or mixtures may damage the engine
beyond repair and consequently invalidate the warranty, due to the damage caused.
For further details on the use of the correct fuel see the "Refuelling the vehicle" paragraph in the "Starting and driving" chapter.
STARTING THE ENGINE
Versions with manual transmission (petrol engines): make sure that the handbrake is engaged; put the gear lever in neutral; fully
depress the clutch pedal without pressing the accelerator, then turn the ignition key to AVV and release it as soon as the engine has started.
Versions with manual transmission (Diesel engines): Turn the ignition key to MAR and wait for the warning light
to go out. Turn
the ignition key to AVV and release as soon as the engine starts.
Versions with Comfort-matic transmission: make sure that the handbrake is engaged and that the gear lever is in P (Park) or N (Neutral).
Then depress the brake pedal, turn the ignition key to AVV and release it as soon as the engine starts.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter develops high temperatures during operation. Do not park on grass, dry leaves, pine needles or other flammable
material: fire hazard.
RESPECTING THE ENVIRONMENT
The vehicle is fitted with a system that allows continuous diagnosis of the emission-related components in order to help protect the
environment.
ELECTRICAL ACCESSORIES
If, after buying the vehicle, you decide to add electrical accessories (with the risk of gradually draining the battery), visit a Fiat Dealership. They
can calculate the overall electrical requirement and check that the vehicle's electrical system can support the required load.
SCHEDULED SERVICING
Correct maintenance enables the vehicle to perfectly maintain performance and safety characteristics, its environmental friendliness and low
running costs over time.
THE OWNER HANDBOOK CONTAINS
... important information, advice and warnings for correct use, driving safety and maintenance of your vehicle over time. Special attention
must be paid to the symbols(safety of persons)(environmental protection)(vehicle integrity).

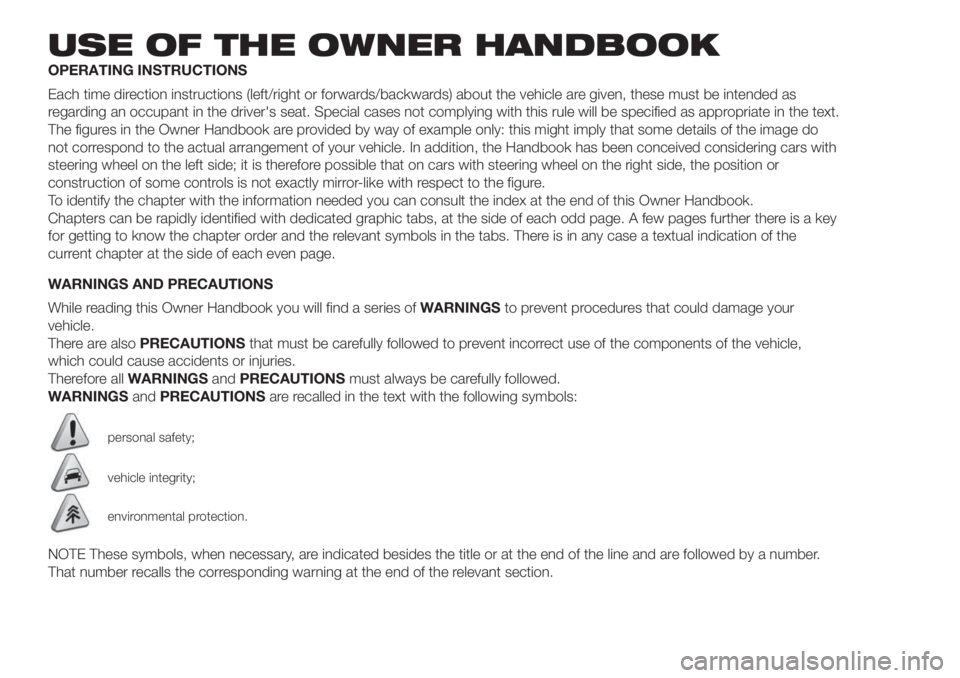

USE OF THE OWNER HANDBOOK
OPERATING INSTRUCTIONS
Each time direction instructions (left/right or forwards/backwards) about the vehicle are given, these must be intended as
regarding an occupant in the driver's seat. Special cases not complying with this rule will be specified as appropriate in the text.
The figures in the Owner Handbook are provided by way of example only: this might imply that some details of the image do
not correspond to the actual arrangement of your vehicle. In addition, the Handbook has been conceived considering cars with
steering wheel on the left side; it is therefore possible that on cars with steering wheel on the right side, the position or
construction of some controls is not exactly mirror-like with respect to the figure.
To identify the chapter with the information needed you can consult the index at the end of this Owner Handbook.
Chapters can be rapidly identified with dedicated graphic tabs, at the side of each odd page. A few pages further there is a key
for getting to know the chapter order and the relevant symbols in the tabs. There is in any case a textual indication of the
current chapter at the side of each even page.
WARNINGS AND PRECAUTIONS
While reading this Owner Handbook you will find a series ofWARNINGSto prevent procedures that could damage your
vehicle.
There are alsoPRECAUTIONSthat must be carefully followed to prevent incorrect use of the components of the vehicle,
which could cause accidents or injuries.
Therefore allWARNINGSandPRECAUTIONSmust always be carefully followed.
WARNINGSandPRECAUTIONSare recalled in the text with the following symbols:
personal safety;
vehicle integrity;
environmental protection.
NOTE These symbols, when necessary, are indicated besides the title or at the end of the line and are followed by a number.
That number recalls the corresponding warning at the end of the relevant section.

Dashboard
The presence and position of controls, instruments and gauges may vary depending on the versions.
1. Vent for directing air to the side windows – 2. Adjustable air vent – 3. Left stalk: external light control – 4. Instrument panel and warning lights – 5.
Right stalk: windscreen wiper, rear window wiper, trip computer controls – 6. Radio (for versions/markets, where applicable) – 7. Emergency light
switch, heated rear window switch, ASR/Traction Plus on/off switch (for versions/markets, where provided), rear swing door lock button (for
versions/markets, where provided), Start&Stop off switch (for versions/markets, where provided) – 8. Passenger's airbag (for versions/markets,
where provided) – 9. Glove box/oddment tray (for versions/markets, where provided) – 10. Adjustable and directable air diffusers – 11.
Heating/ventilation/climate control system controls – 12. Storage compartment – 13. Ignition device – 14. Driver's airbag – 15. Bonnet release lever
– 16. Controls display: fog light/rear fog light/head light alignment adjustment/display
1F0T0070
8
KNOWING YOUR VEHICLE

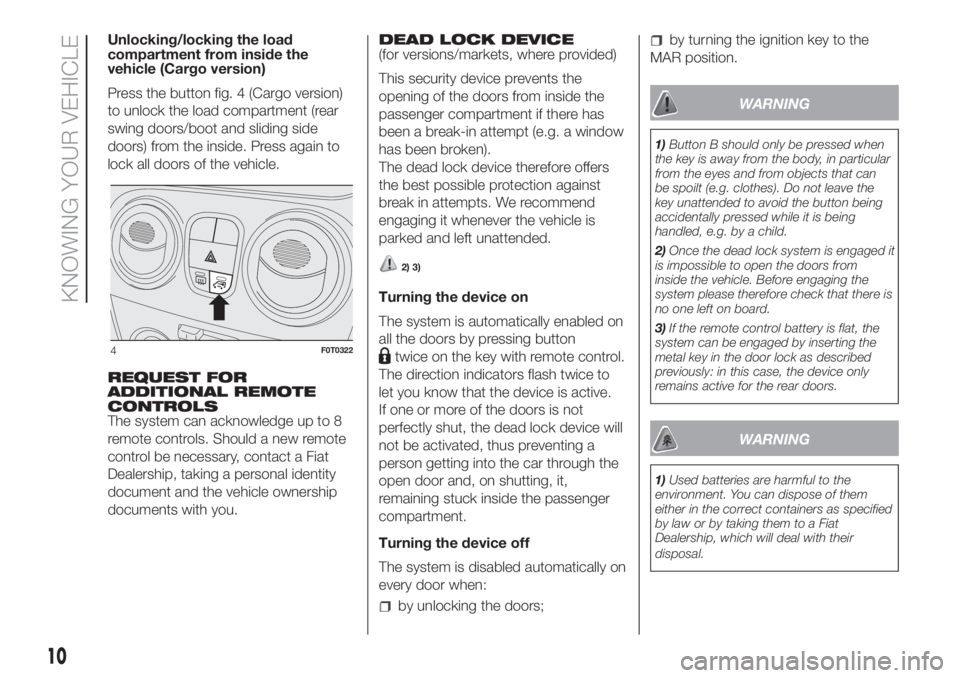

Unlocking/locking the load
compartment from inside the
vehicle (Cargo version)
Press the button fig. 4 (Cargo version)
to unlock the load compartment (rear
swing doors/boot and sliding side
doors) from the inside. Press again to
lock all doors of the vehicle.
REQUEST FOR
ADDITIONAL REMOTE
CONTROLS
The system can acknowledge up to 8
remote controls. Should a new remote
control be necessary, contact a Fiat
Dealership, taking a personal identity
document and the vehicle ownership
documents with you.DEAD LOCK DEVICE
(for versions/markets, where provided)
This security device prevents the
opening of the doors from inside the
passenger compartment if there has
been a break-in attempt (e.g. a window
has been broken).
The dead lock device therefore offers
the best possible protection against
break in attempts. We recommend
engaging it whenever the vehicle is
parked and left unattended.
2) 3)
Turning the device on
The system is automatically enabled on
all the doors by pressing button
twice on the key with remote control.
The direction indicators flash twice to
let you know that the device is active.
If one or more of the doors is not
perfectly shut, the dead lock device will
not be activated, thus preventing a
person getting into the car through the
open door and, on shutting, it,
remaining stuck inside the passenger
compartment.
Turning the device off
The system is disabled automatically on
every door when:
by unlocking the doors;
by turning the ignition key to the
MAR position.
WARNING
1)Button B should only be pressed when
the key is away from the body, in particular
from the eyes and from objects that can
be spoilt (e.g. clothes). Do not leave the
key unattended to avoid the button being
accidentally pressed while it is being
handled, e.g. by a child.
2)Once the dead lock system is engaged it
is impossible to open the doors from
inside the vehicle. Before engaging the
system please therefore check that there is
no one left on board.
3)If the remote control battery is flat, the
system can be engaged by inserting the
metal key in the door lock as described
previously: in this case, the device only
remains active for the rear doors.
WARNING
1)Used batteries are harmful to the
environment. You can dispose of them
either in the correct containers as specified
by law or by taking them to a Fiat
Dealership, which will deal with their
disposal.
4F0T0322
10
KNOWING YOUR VEHICLE

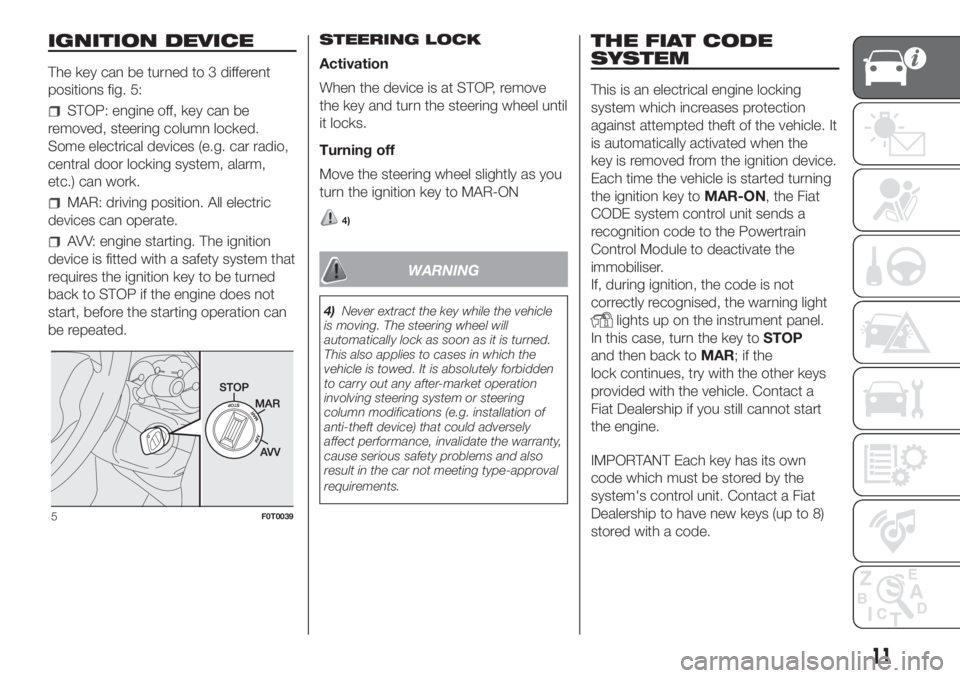

IGNITION DEVICE
The key can be turned to 3 different
positions fig. 5:
STOP: engine off, key can be
removed, steering column locked.
Some electrical devices (e.g. car radio,
central door locking system, alarm,
etc.) can work.
MAR: driving position. All electric
devices can operate.
AVV: engine starting. The ignition
device is fitted with a safety system that
requires the ignition key to be turned
back to STOP if the engine does not
start, before the starting operation can
be repeated.STEERING LOCK
Activation
When the device is at STOP, remove
the key and turn the steering wheel until
it locks.
Turning off
Move the steering wheel slightly as you
turn the ignition key to MAR-ON
4)
WARNING
4)Never extract the key while the vehicle
is moving. The steering wheel will
automatically lock as soon as it is turned.
This also applies to cases in which the
vehicle is towed. It is absolutely forbidden
to carry out any after-market operation
involving steering system or steering
column modifications (e.g. installation of
anti-theft device) that could adversely
affect performance, invalidate the warranty,
cause serious safety problems and also
result in the car not meeting type-approval
requirements.
THE FIAT CODE
SYSTEM
This is an electrical engine locking
system which increases protection
against attempted theft of the vehicle. It
is automatically activated when the
key is removed from the ignition device.
Each time the vehicle is started turning
the ignition key toMAR-ON, the Fiat
CODE system control unit sends a
recognition code to the Powertrain
Control Module to deactivate the
immobiliser.
If, during ignition, the code is not
correctly recognised, the warning light
lights up on the instrument panel.
In this case, turn the key toSTOP
and then back toMAR;ifthe
lock continues, try with the other keys
provided with the vehicle. Contact a
Fiat Dealership if you still cannot start
the engine.
IMPORTANT Each key has its own
code which must be stored by the
system's control unit. Contact a Fiat
Dealership to have new keys (up to 8)
stored with a code.
5F0T0039
11

Activation of thewarning light while
driving
If thewarning light (or symbol in
the display) comes on, this means
that the system is running a self-
diagnosis test (caused, for example, by
a voltage drop). When you stop for
the first time, turn the key to STOP and
then to MAR: the warning light
will
not light up if no faults are detected.
If the warning light(or symbol on
the display) stays on, repeat the
procedure described above leaving the
key at STOP for longer than 30
seconds. If the problem persists,
contact the Fiat Dealership.
The code is not recognised if the
warning light
(or symbol on the
display) stays on. In this case, turn the
key to STOP and then to MAR; if it is
still locked, try again with the other keys
that come with the vehicle. If you still
cannot start the engine, perform the
emergency start procedure (see
chapter “In an emergency”) and then
contact the Fiat Dealership.
1)
WARNING
1)The electronic components inside the
key may be damaged if the key is
subjected to strong shocks.
ALARM
(for versions/markets, where provided)
The alarm, in addition to all the
previously described remote control
functions, is controlled by the receiver
located under the dashboard near
the fuse box.
IMPORTANT The engine stop function
is guaranteed by the Fiat CODE, which
is automatically activated when the
ignition key is extracted from the
ignition switch.
TURNING THE ALARM ON
With the doors and bonnet closed and
the ignition key either turned to STOP
or removed, point the key with the
remote control towards the vehicle and
press and release button
.
With the exception of some markets,
the system emits an acoustic signal
("beep") and activates door locking.
A self-diagnostic stage precedes the
turning on of the alarm: if a fault is
detected, the system produces another
acoustic signal after approximately 4
seconds from switch-on.
In this case switch off the alarm by
pressing
, check that all the doors,
bonnet and tailgate are closed
correctly; then switch the alarm back
on by pressing
.If a door or the bonnet is not properly
shut, it will be excluded from the testing
by the alarm system.
A fault has occurred in system
operation if the alarm produces an
acoustic signal even when the doors,
bonnet and boot are correctly closed.
Contact a Fiat Dealership.
IMPORTANT The alarm does not come
on when the central locking is activated
using the metal insert in the key.
IMPORTANT The alarm is adapted to
meet requirements in various countries.
TURNING THE ALARM
OFF
Press button
on the key with the
remote control.
IMPORTANT The alarm is not turned off
using the door are opened using the
metal insert in the key.
VOLUMETRIC/ANTI-LIFT
PROTECTION
The side windows must be completely
closed for correct operation of the
protection.
If necessary, the function can be turned
off (if, for example, you are leaving a
pet in the car) by pressing button A fig.
6 on the front courtesy light before
activating turning the alarm on.
12
KNOWING YOUR VEHICLE

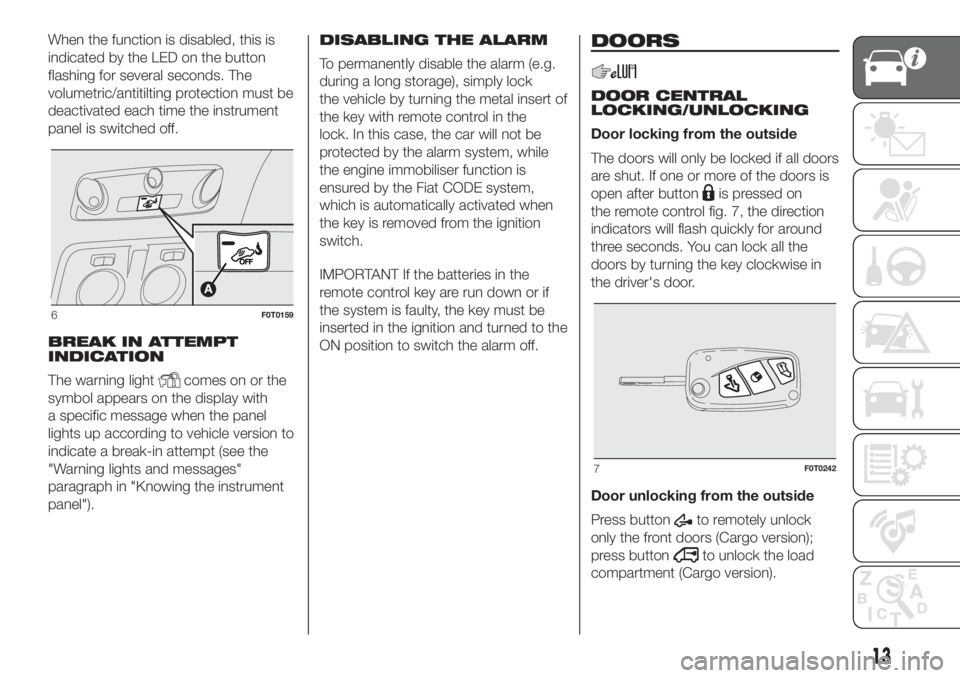

When the function is disabled, this is
indicated by the LED on the button
flashing for several seconds. The
volumetric/antitilting protection must be
deactivated each time the instrument
panel is switched off.
BREAK IN ATTEMPT
INDICATION
The warning light
comes on or the
symbol appears on the display with
a specific message when the panel
lights up according to vehicle version to
indicate a break-in attempt (see the
"Warning lights and messages"
paragraph in "Knowing the instrument
panel").DISABLING THE ALARM
To permanently disable the alarm (e.g.
during a long storage), simply lock
the vehicle by turning the metal insert of
the key with remote control in the
lock. In this case, the car will not be
protected by the alarm system, while
the engine immobiliser function is
ensured by the Fiat CODE system,
which is automatically activated when
the key is removed from the ignition
switch.
IMPORTANT If the batteries in the
remote control key are run down or if
the system is faulty, the key must be
inserted in the ignition and turned to the
ON position to switch the alarm off.
DOORS
DOOR CENTRAL
LOCKING/UNLOCKING
Door locking from the outside
The doors will only be locked if all doors
are shut. If one or more of the doors is
open after button
is pressed on
the remote control fig. 7, the direction
indicators will flash quickly for around
three seconds. You can lock all the
doors by turning the key clockwise in
the driver's door.
Door unlocking from the outside
Press button
to remotely unlock
only the front doors (Cargo version);
press button
to unlock the load
compartment (Cargo version).
6F0T0159
7F0T0242
13

WARNING
5)Before opening a door, ensure that you
can do it in conditions of safety.
6)The right sliding side door cannot be
opened with the fuel flap open during
refuelling.
7)Do not leave the sliding side door open
when the vehicle is parked on a gradient. A
knock could release the latch leaving the
door free to move forward.
8)Before leaving the vehicle parked with
sliding doors open, always check that
the latch is engaged.
9)Always use this device when carrying
children.
10)The spring-loaded system is designed
for optimum usage. Accidental knocks
or a strong gust of wind may release the
springs, forcing the doors to close.
11)When closing, shut the right-hand door
2 fig. 13fully before you close the left-hand
door 1 fig. 13. Never shut the two doors
at the same time.
WARNING
2)Make sure that the right sliding side
door is all closed before refuelling to
prevent damage to the door and to the
sliding locking system with fuel filler cap
open, activated during refuelling
operations.
SEATS
12)
FRONT SEATS
Lengthwise adjustment
Lift lever A fig. 17 and push the seat
forwards or backwards: in the driving
position your arms should rest on
the steering wheel rim.
13)
Backrest angle adjustment
Turn knob B fig. 17.
Driver seat height adjustment
(for versions/markets, where provided)
Operate lever C fig. 17 to lift or lower
the rear part of the cushion to achieve
the most comfortable driving position.IMPORTANT Adjustment must be
carried out only when seated in the
relevant seat.
Driver seat lumbar adjustment
(for versions/markets, where provided)
Turn knob D fig. 17 to adjust the
backrest support.
Heated seats
(for versions/markets, where provided)
With the key turned to MAR, press
button A fig. 18 to switch the function
on/off.
When the function is enabled, the LED
on the button turns on.
B
D
C
A
17F0T0153
18F0T0205
16
KNOWING YOUR VEHICLE

WARNING
12)All adjustments must be made with the
vehicle stationary.
13)Once you have released the
adjustment lever, always check that the
seat is locked on the guides by trying
to move it back and forth. If it is not locked,
the seat may move unexpectedly and
make you lose control of the vehicle.
14)When the passenger seat is folded
away, the space created cannot be used
for loading. When the vehicle is in motion,
you are therefore advised to remove or
secure any objects that might interfere with
the driver. If there is no partition between
the cab and the load compartment, tall
objects or packages may take up part of
the passenger area. Make sure that these
items are well secured by using the
available hooks and that they cannot
interfere with the driver.
15)If there is no partition between the cab
and the load compartment, tall objects
or packages may take up part of the
passenger area. Make sure that these
items are well secured by using the
available hooks and that they cannot
interfere with the driver.
HEADRESTS
FRONT
These are height-adjustable and lock
into place automatically fig. 24.
Upward adjustment: lift the head
restraint until it clicks into place.
Downwards adjustment: press the
button A fig. 24 and lower the head
restraint.
16)
REAR
(for versions/markets, where provided)
Lift up to use.
To put the headrests away, press
buttons A fig. 25 and fig. 26 and push
them down into the backrest.
To extract the headrests, raise them
until you hear the click (which indicates
they are in "all extracted" position).IMPORTANT The headrests must
always be in the "all extracted" position
when the rear seats are in use.
24F0T0053
25F0T0054
26 - N1 versions (4 seats)F0T0341
18
KNOWING YOUR VEHICLE
